Integrated amplifier
Yamaha A-S501 Black

Product code: 118679
no reviews

Description

Reviews (0)

Description

Solution that enhances sound quality based on ToP-ART concept

ToP-ART circuitry and ART Base support optimal sound quality. When audio signal processing and transmission are simple and direct, the likelihood of negative effects of noise and distortion on the signal decreases. Yamaha's amplifier design technology, known as ToP-ART, features a symmetrical construction with direct signal transmission from input to output, where the left and right channels are organized in a straight symmetrical scheme for maximum signal purity.

In addition, the ART (Anti-Resonance and Tough) Base chassis and solid center bar provide reliable support and vibration damping thanks to high rigidity. These design enhancements from Yamaha contribute to obtaining rich and truly musical sound.

High-quality components for sound improvement

Special power transformer and block capacitors, two direct signal path relay outputs to speakers, single-point grounding system, stamped extruded aluminum radiators, and other high-quality components meet strict requirements for audio signal fidelity without unnecessary energy consumption. In essence, the quality of each individual component and its interaction with others shape the overall sound quality. Only the highest quality components, carefully selected and tested, are used in Yamaha equipment.

Signature sound quality from Yamaha as a result of rich experience, adherence to traditions, and high professionalism

Yamaha, with its more than 125-year history of manufacturing musical instruments, has a solid reputation as a manufacturer of high-class audio equipment. The A-S501 amplifier is created using the rich experience and high professionalism of its employees. Developed based on the "Natural Sound" concept, aiming to reproduce any music as realistically as possible, and meticulously designed from circuitry development to sound model creation, this model, despite its affordability, delivers high-quality and musically rich sound.

Pure Direct mode for pure sound

In Pure Direct mode, signals travel through the shortest possible path, bypassing the buffer amplifier, tone controls, tone compensation, and balance, virtually eliminating degradation of signal quality and ensuring the cleanest sound.

Tone control regulator

The A-S501 model features a new analog tone control regulator on the front panel: the electronic circuit used in it allows adjusting the tone compensation effect to improve sound quality as desired. This regulator sets the balance of low and high frequencies independently of the overall volume control, providing a full tonal range and thereby compensating for the natural loss of hearing perception of certain parts of the timbral component at low volume.

Digital audio inputs for TV and Blu-ray player

The amplifier is equipped with optical and coaxial digital audio inputs. The optical connector is designed to receive audio signals from the TV, while the coaxial input is for the Blu-ray player. The signal remains in the digital domain, ensuring pure, dynamically rich sound from any source: from sports and other programs to movies and concerts.

Bluetooth adapter YBA-11 connection port

With the YBA-11 adapter, you can wirelessly stream music from a Bluetooth-compatible mobile phone, tablet, or PC using the amplifier's built-in network audio signal receiver. Thanks to the presence of a digital connection and the aptX® audio coding algorithm, optimal sound quality is ensured. For simplified power supply of the adapter, its connection to the amplifier's DC output is provided on the rear panel.

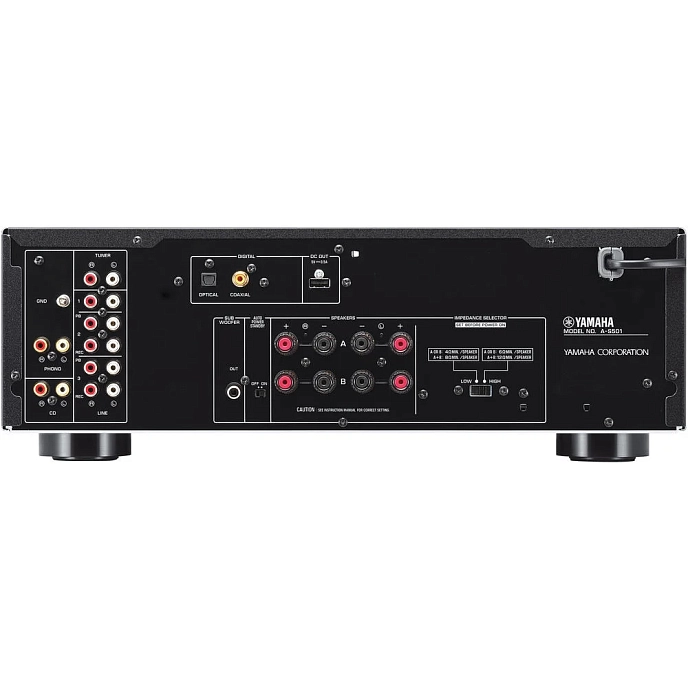

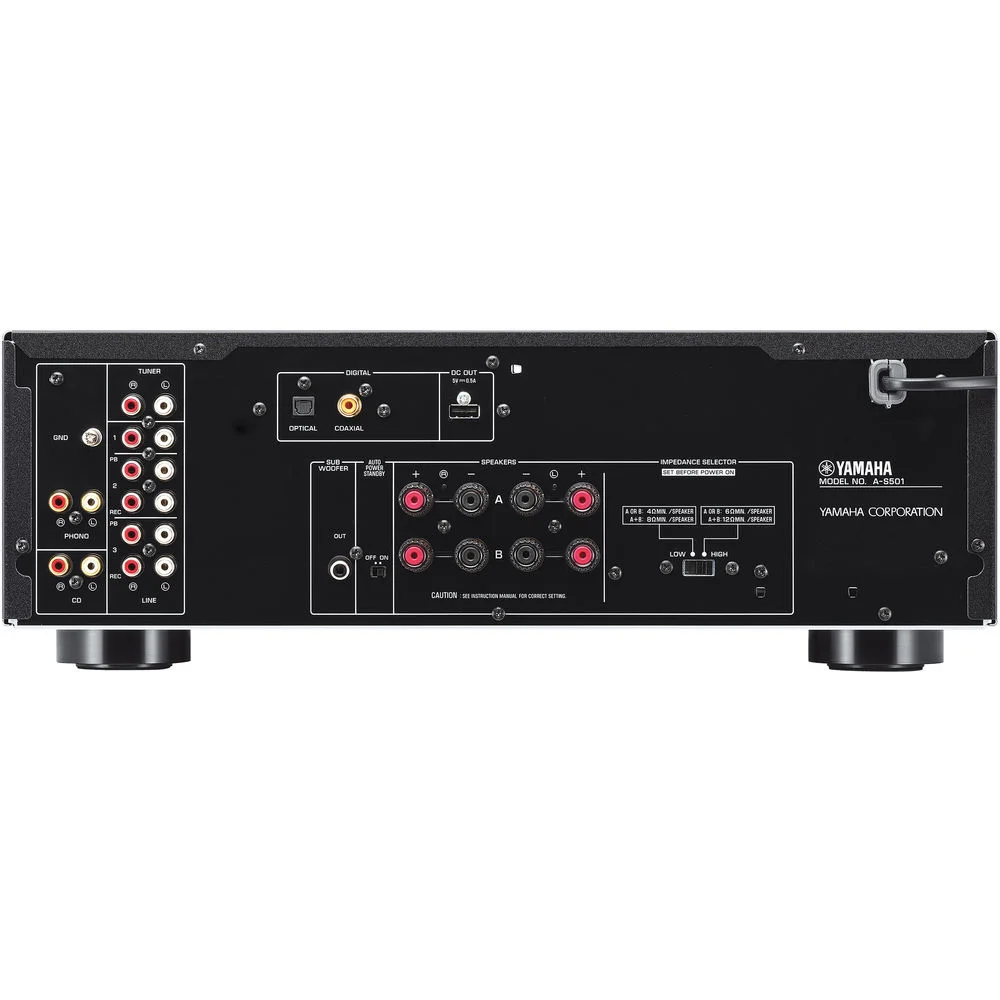

Ability to select A, B, or A+B speakers and terminals for connecting two pairs of speakers

You can connect two separate sets of speakers installed in different rooms and either switch between them or play them simultaneously. Four terminals are provided for connection, and you can switch between two pairs of terminals to choose the desired sound source.

Subwoofer connector

A connector is provided for connecting a subwoofer, allowing you to enhance the low-frequency component of the audio system's sound to make the overall sound more powerful and high-quality.

Connector for connecting a turntable with an MM cartridge

You can connect a turntable with an MM (moving magnet) cartridge. This allows you to use the amplifier with its latest technical capabilities for listening not only to CDs but also to analog recordings.

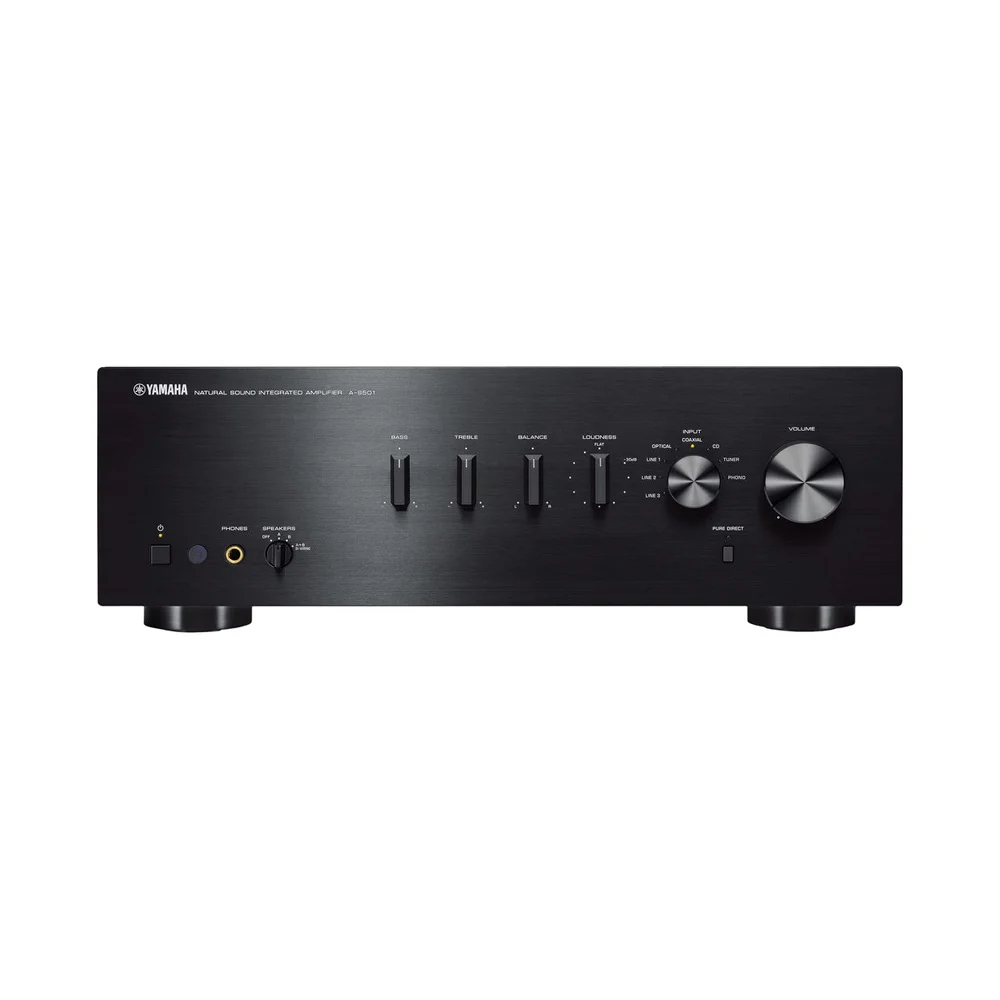

Simple yet carefully designed design

Thanks to its unique - simple and aesthetically pleasing - design, directly inherited from other high-class Yamaha audio components, this amplifier, like its predecessors, features intuitively arranged buttons and knobs. The aluminum front panel has an elegant textured finish in the form of fine "hairline" lines. Equally presentable control organs are identical to those used in our "top" models.

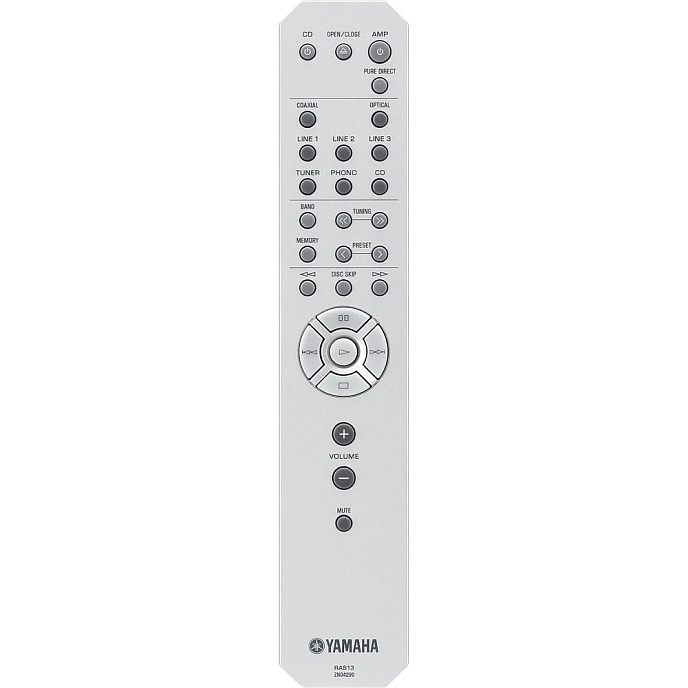

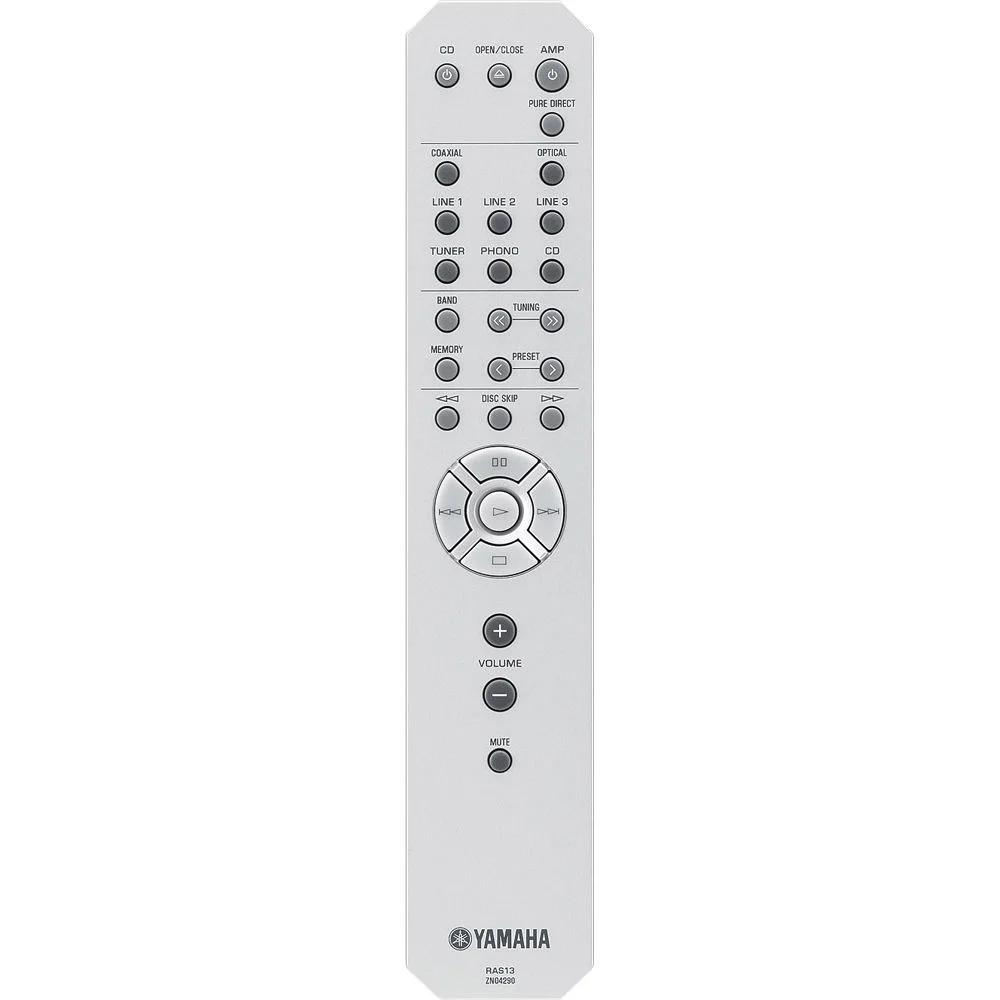

Simple and intuitive remote control

The simple and intuitive design of the remote control allows you to perform all necessary operations with one hand (for example, adjust the volume or set the track playback order). The remote, like the amplifier, has an elegant finish with fine "hairline" lines. The remote can also control a Yamaha CD player.

Rotary input selector with LED indicators

This rotary switch allows you to quickly and easily select input signal sources. Its luxurious "hairline" finish provides pleasant tactile sensations. LED indicators indicate the selected signal sources, making it easy to switch between them even in the dark.

Automatic standby mode switching feature

The amplifier features a power management function that, even when powered on, detects when the unit has not been used for an extended period (approximately 8 hours) and initiates automatic standby mode switching. Therefore, even if you forget to turn off the unit, power consumption is minimized.

Features:

  • ToP-ART circuitry and high-quality components;
  • symmetrical construction with direct signal transmission from input to output;
  • ART (Anti-Resonance and Tough) Base chassis;
  • special power transformer;
  • high output power of 120 watts;
  • Pure Direct mode for improved sound purity;
  • smooth tone control adjustment;
  • digital audio inputs for TV and Blu-ray player;
  • ability to connect wireless Bluetooth adapter YBA-11;
  • automatic shutdown function.

Equipment:

  • amplifier;
  • remote control;
  • documentation.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Power per channel at 4 ohms, W
120
Power per channel at 8 Ohm, W
85
Internal DAC
yes
Input connectors
RCA, Coaxial, Optical
Output connectors
RCA
Headphone output
6.35mm jack
Phono stage type
MM
Circuit design
discrete

The circuit with transistors used.

Словарь терминов
Preamplifier

A preamp is used as a hub to connect other components of the audio system. The preamp can be either integrated, or an autonomous device.

Glossary of terms
yes
The lowest frequency, Hz
10
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
100
Remote controller

The remote controller simplifies the use of the device

Glossary of terms
yes
Form factor
stationary

For use on a table or in a rack.

Словарь терминов
Color
DAC bit depth, bits
24
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
4, 6, 8, 12
Material
steel
Number of channels
2
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

Glossary of terms
192
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

99
Depth, mm
387
Height, mm
151
Width, mm
435
Weight, g
10300
Service life, months
24
Warranty, months
12
