Headphone Amplifier
Stax SRM T8000 Silver

Product code: 102975
no reviews

Description

Reviews (0)

Description

Stax SRM-T8000 introduces a new line of amplifiers, indicated by the "T" index. This fully balanced hybrid amplifier encompasses the company's years of experience and the best technologies.

The SRM-T8000 sets a new standard for STAX's flagship amplifiers. It is the company's best amplifier in over 20 years. The amplifier delivers a more open and dynamic sound compared to the previous flagships, the SRM-727 or SRM-007t, when paired with the SR-009 and SR-007 headphones. The design is classic STAX and meets the expectations of future owners. For those who only want to use STAX amplifiers, there is no better choice.

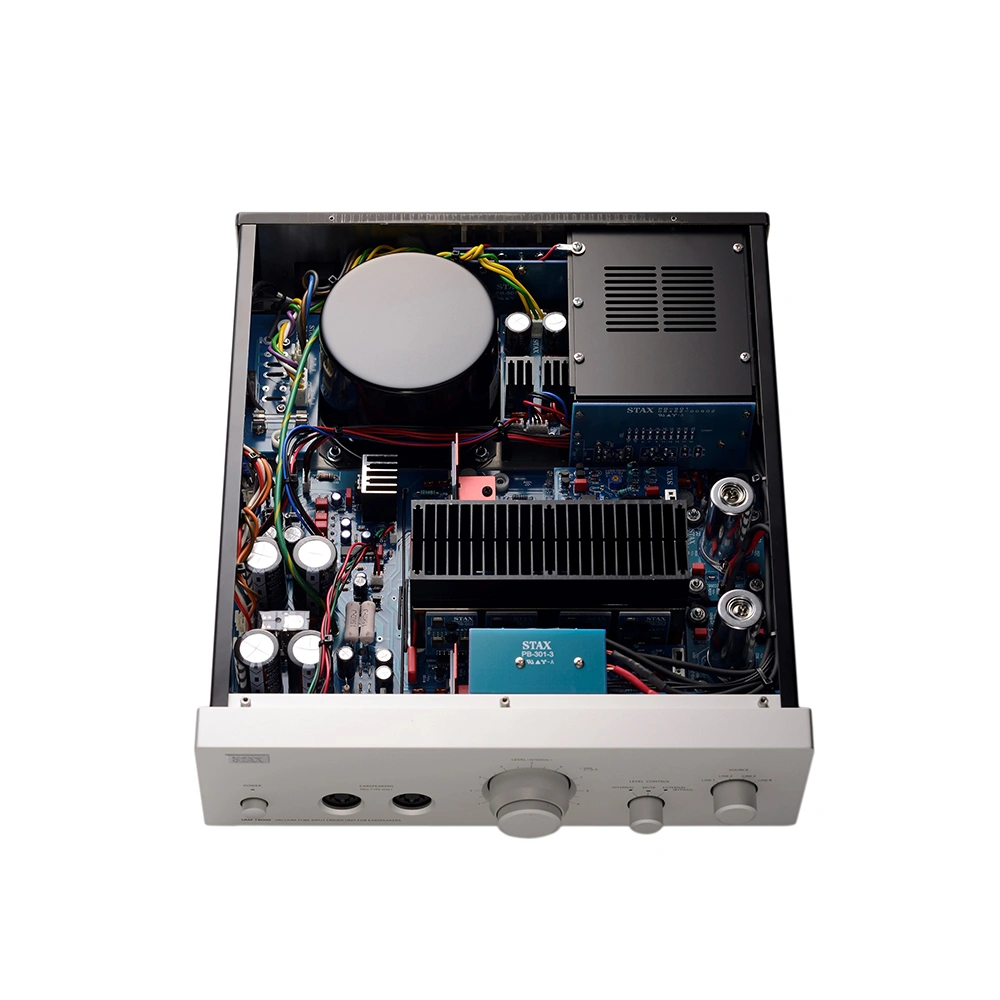

The first stage features a dual triode 6922, and the transistor output stage operates in Class A. To eliminate external interference and vibrations, the electronic tube of the first stage is placed in a separate shielded and dampened module.

For the first time in STAX's practice, a large toroidal transformer and a non-magnetic chassis made of aluminum alloy are employed. This ensures an extremely low level of noise and precise and rich sound reproduction. The amplifier has the ability to disconnect its own volume regulator if the volume is adjusted at the signal source.

Specifications:

  • Frequency range: 1 Hz - 115,000 Hz;
  • THD: Max. 0.01% at 1 kHz, 100V RMS;
  • Nominal sensitivity: 100 mV (at 100 V output voltage);
  • Tubes used: 2 x 6922;
  • Maximum output voltage: 470 V;

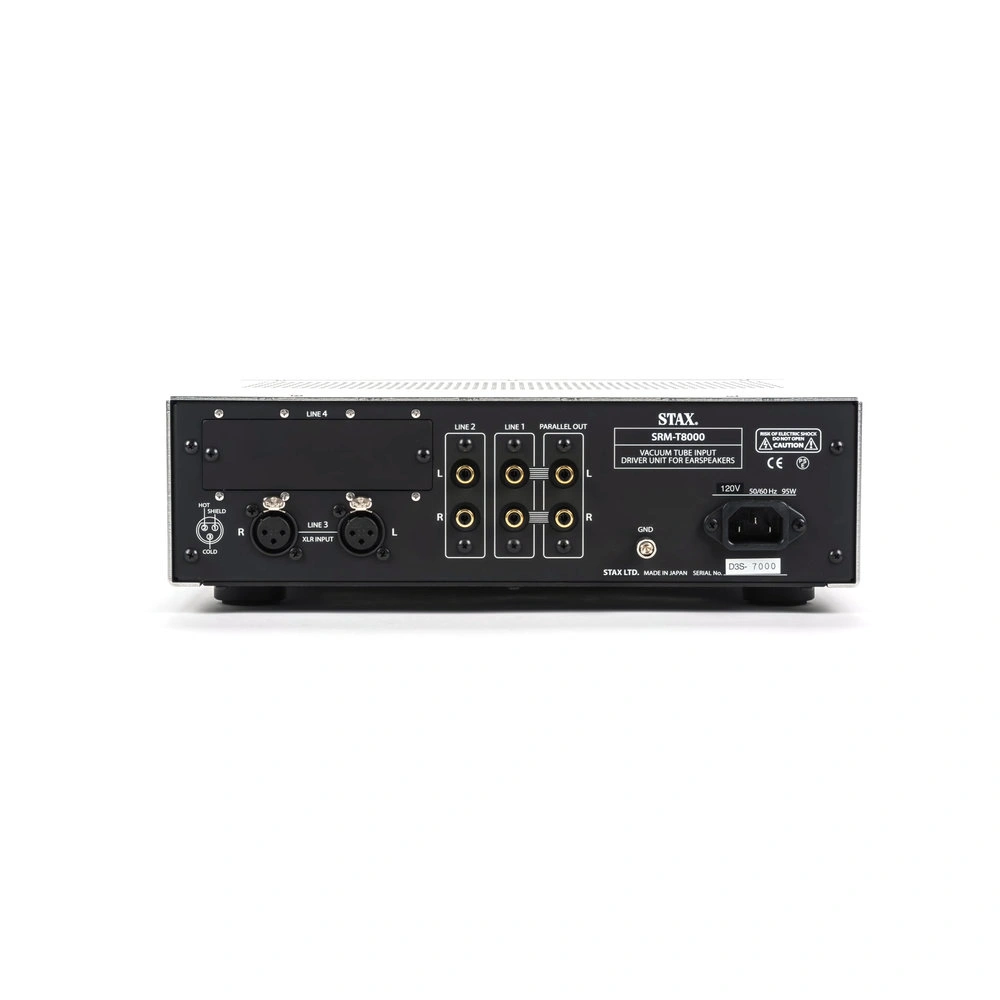

  • Outputs: (2 RCA, 1 XLR, 1 - reserved for expansion module);
  • Input impedance: 50 kΩ (2 x 50 kΩ for XLR);
  • Line output: 1 RCA;
  • Headphone output: 2;
  • Power supply parameters: 190-250 V, 50/60 Hz;
  • Power consumption: 58 W (95 W with expansion module);
  • Dimensions (WxHxD): 320 x 103 x 395 mm;
  • Weight: 7.3 kg;

Package Contents:

  • Amplifier;
  • Power cable;
  • Documentation.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
50000
Headphone output
XLR
Output connectors
5-pin
The lowest frequency, Hz
1
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
115
Circuit design
tube

The circuit with vacuum tubes used.

Словарь терминов
Color
Form factor
stationary

For use on a table or in a rack.

Словарь терминов
Input connectors
XLR, RCA
Material
metal
Preamplifier

A preamp is used as a hub to connect other components of the audio system. The preamp can be either integrated, or an autonomous device.

Glossary of terms
yes
Depth, mm
395
Height, mm
103
Width, mm
320
Weight, g
7300
Service life, months
24
Warranty, months
12
