Headphone Amplifier
Stax SRM T8000 Black

Product code: 96599
no reviews

Description

Reviews (0)

Description

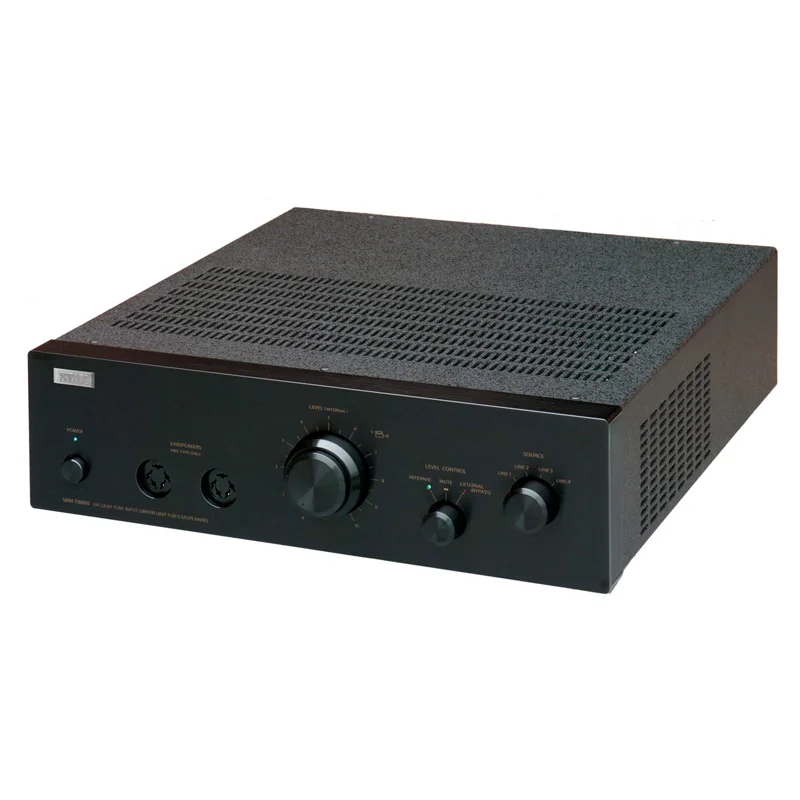

Stax SRM-T8000 introduces a new range of amplifiers, as indicated by the "T" index. This fully balanced hybrid amplifier combines the company's years of experience and the best technologies.

Features:

  • THD: Max. 0.01% at 1 kHz, 100V RMS.
  • Nominal sensitivity: 100 mV (at 100V output voltage).
  • Tubes used: 2 x 6922.
  • Maximum output voltage: 470V.

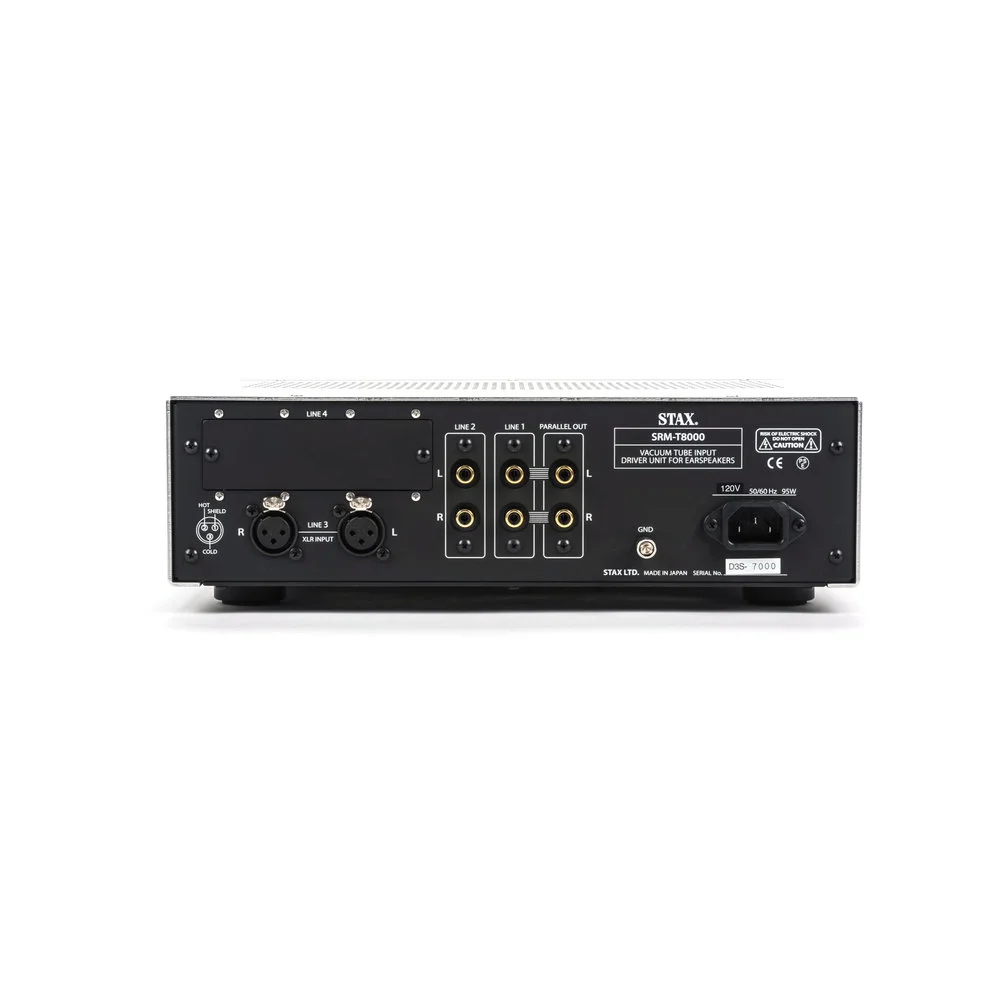

  • Outputs: 2 RCA, 1 XLR, 1 reserved for expansion module.
  • Input impedance: 50 kΩ (2 x 50 kΩ for XLR).
  • Line output: 1 RCA.
  • Headphone output: 2.
  • Power requirements: 190-250V, 50/60 Hz.
  • Power consumption: 58W (95W with expansion module).

SRM-T8000 sets a new standard for STAX brand amplifiers. It is the company's best amplifier in over 20 years. The amplifier delivers a more open and dynamic sound compared to the previous flagship models, SRM-727 or SRM-007t, when used with SR-009 and SR-007 headphones. The design is classic STAX and fulfills the expectations of future owners. For those who only want to use STAX amplifiers, there is no better choice.

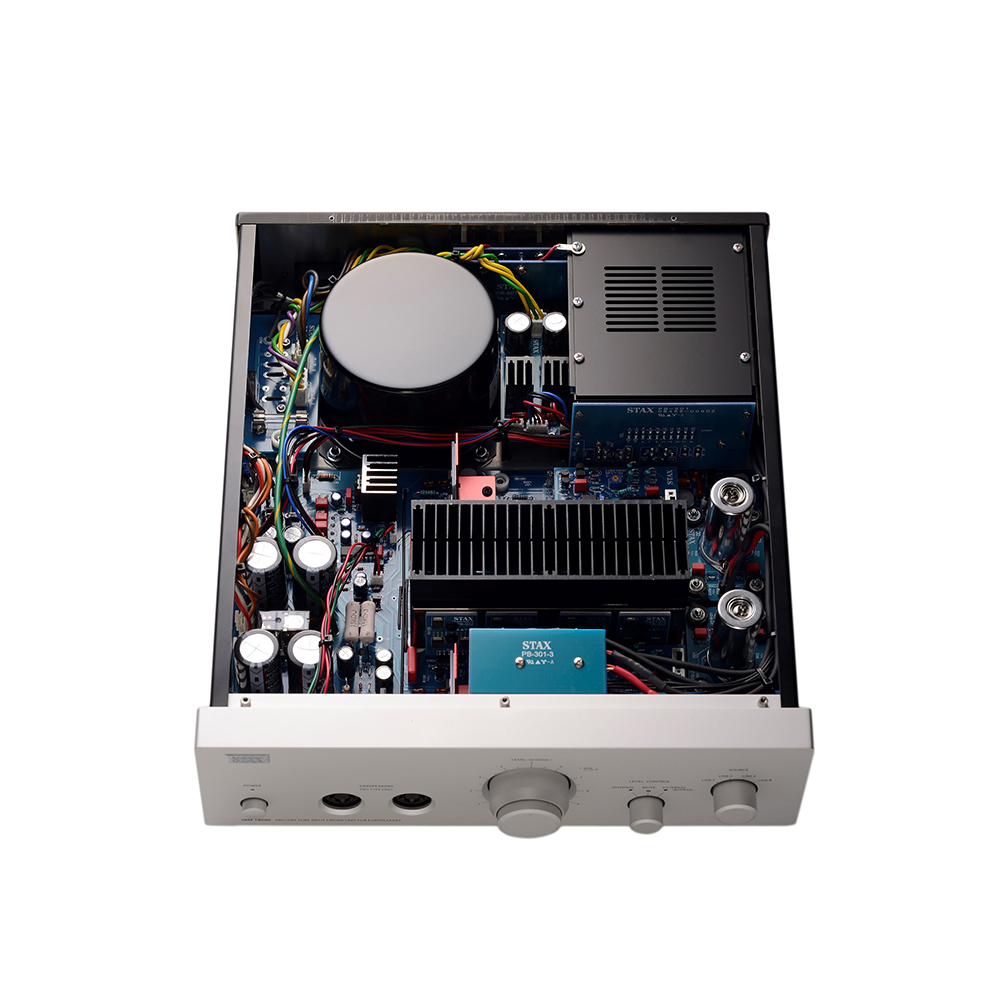

The first stage features a dual triode 6922 and the transistor output stage operates in class "A". To eliminate the influence of external interference and vibrations, the first stage electronic tube is placed in a separate shielded and dampened module.

For the first time in STAX practice, a large toroidal transformer and a non-magnetic chassis made of aluminum alloy are used. This ensures an extremely low noise level and precise, rich sound. The amplifier has the ability to disable its own volume control if the volume is adjusted at the signal source.

Package includes:

  • Amplifier
  • Power cable
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
50000
Headphone output
XLR
Output connectors
5-pin
The lowest frequency, Hz
0.4
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
115
Circuit design
tube

The circuit with vacuum tubes used.

Словарь терминов
Color
Form factor
stationary

For use on a table or in a rack.

Словарь терминов
Input connectors
XLR, RCA
Material
metal, plastic
Preamplifier

A preamp is used as a hub to connect other components of the audio system. The preamp can be either integrated, or an autonomous device.

Glossary of terms
yes
Depth, mm
395
Height, mm
103
Width, mm
320
Weight, g
7300
Service life, months
24
Warranty, months
12
