Studio microphone
Soyuz 013 FET-M-B Black

Product code: 117881
no reviews

Description

Reviews (0)

Description

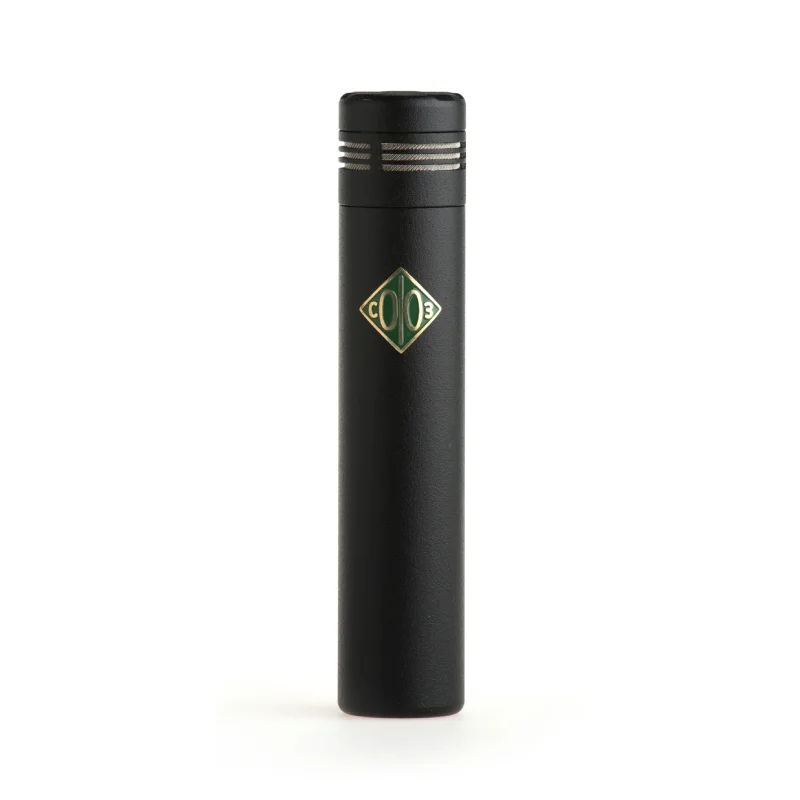

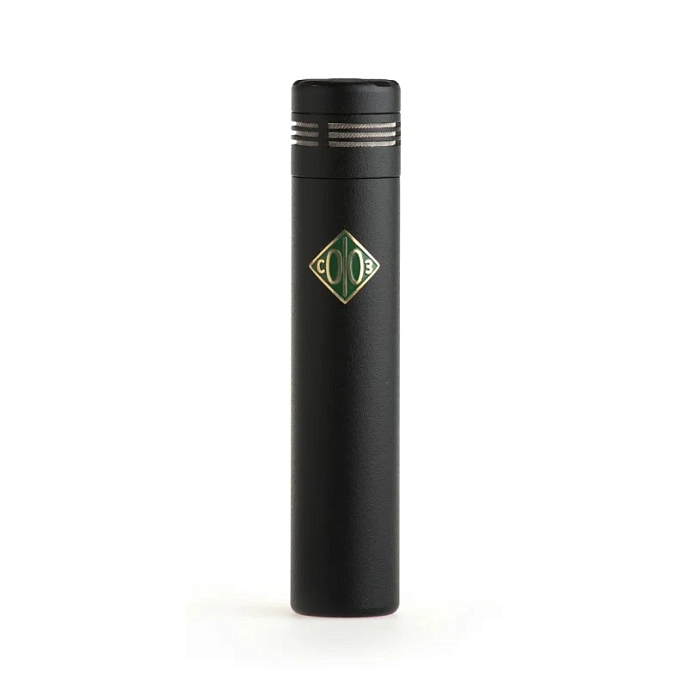

Microphone 013 FET

The sound of the 013 FET microphone is characterized by rich low end, warm midrange, and natural high end. Built following all the classic narrow diaphragm microphone canons, this model also has its own unique character. The 013 series microphones capture sound with high precision and add a distinctive warmth, giving a musical shine to the precise response. The soft top end with detailed nuances significantly simplifies the process of recording instruments with complex transients.

By using a special toroidal transformer and delivering an extremely low level of nonlinear distortion, the 013 FET microphone has a saturated and beautiful sound comparable to the legendary Neumann KM84. Like all Soyuz products, the 013 FET is 100% handmade at the Soyuz factory in Tula. It is available in the signature creamy color as well as in a classic black finish.

Features:

  • Detailed high end, warm midrange, and balanced low end
  • Custom transformer adds color and depth to the sound
  • Supplied with -10 dB attenuators
  • Unique proprietary capsule design
  • Comes in handmade oak boxes
  • Fully handmade at the Soyuz factory in Tula

Specifications:

  • Type: Condenser microphone
  • Capsule: 25mm gold-sputtered membrane
  • Frequency range: 20 Hz / 20 kHz

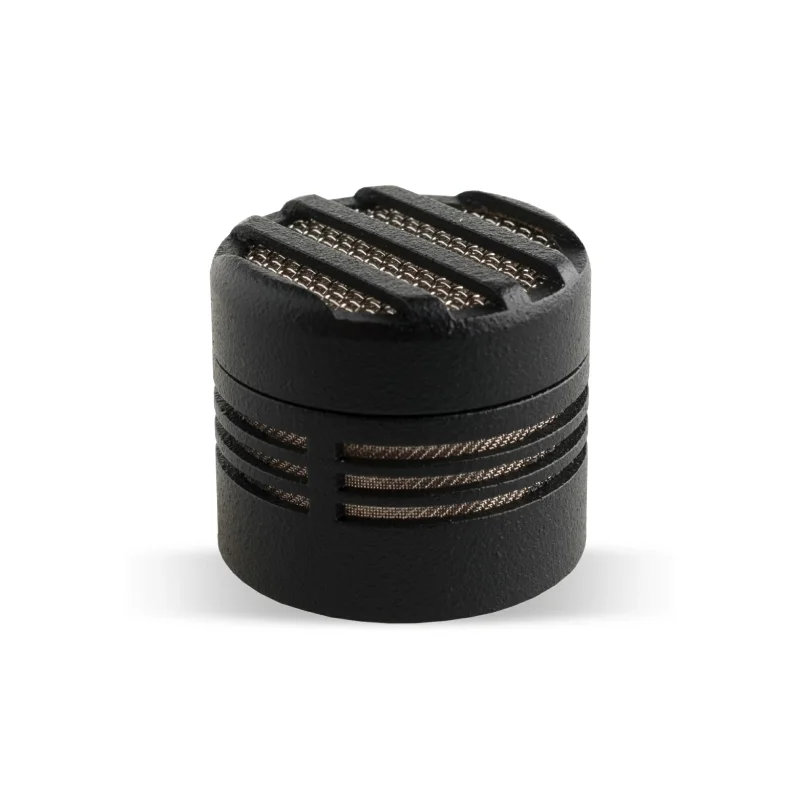

  • Polar pattern: Cardioid (optional capsules: "omni", "hypercardioid")
  • Sensitivity: 20 mV/Pa
  • Impedance: 150 Ohms
  • Max SPL: 143 dB SPL
  • Equivalent noise: no more than 16 dB (A-weighted)
  • Power: 48 V phantom power
  • Size: 122 mm x 25 mm
  • Weight: 200 grams (per microphone)

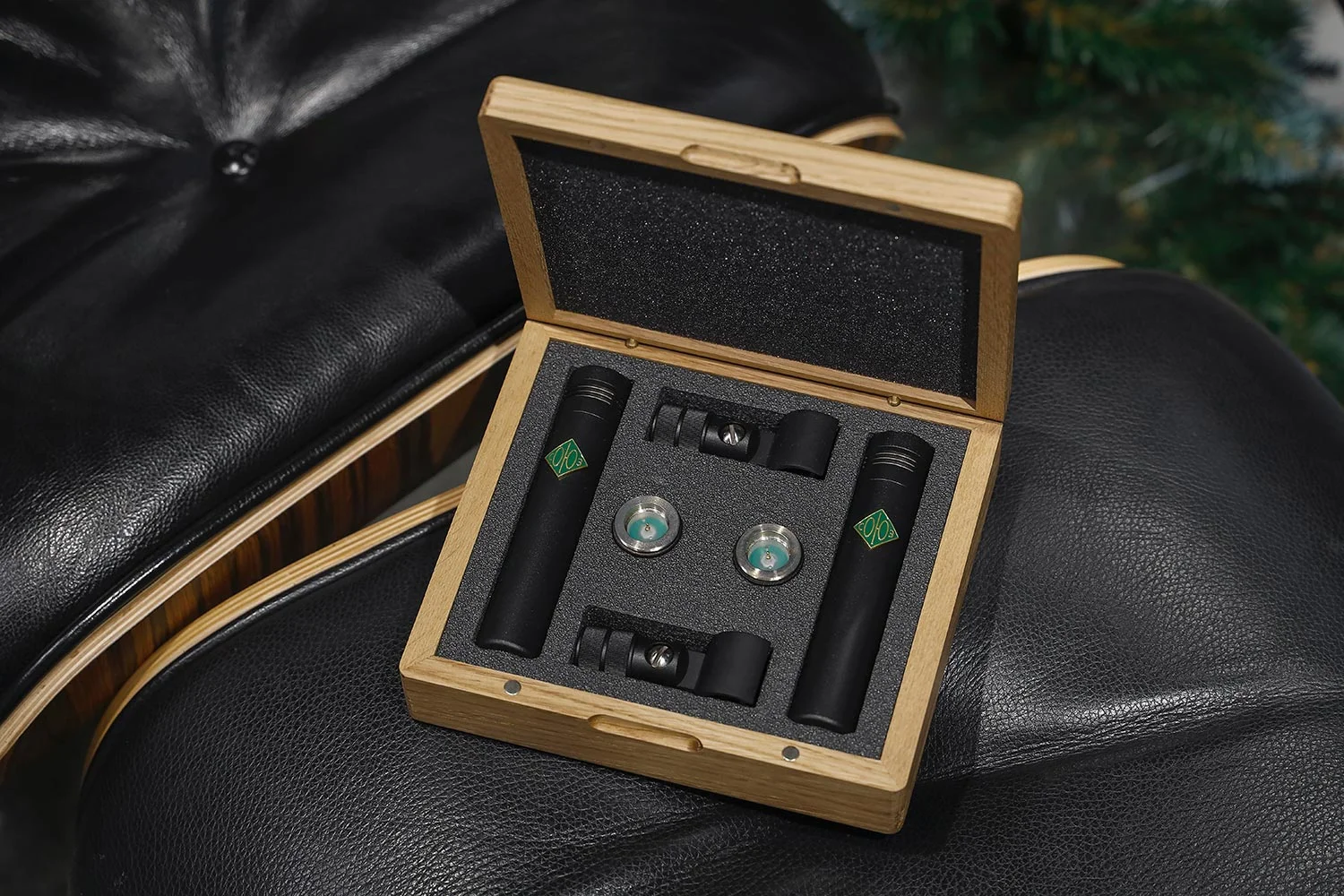

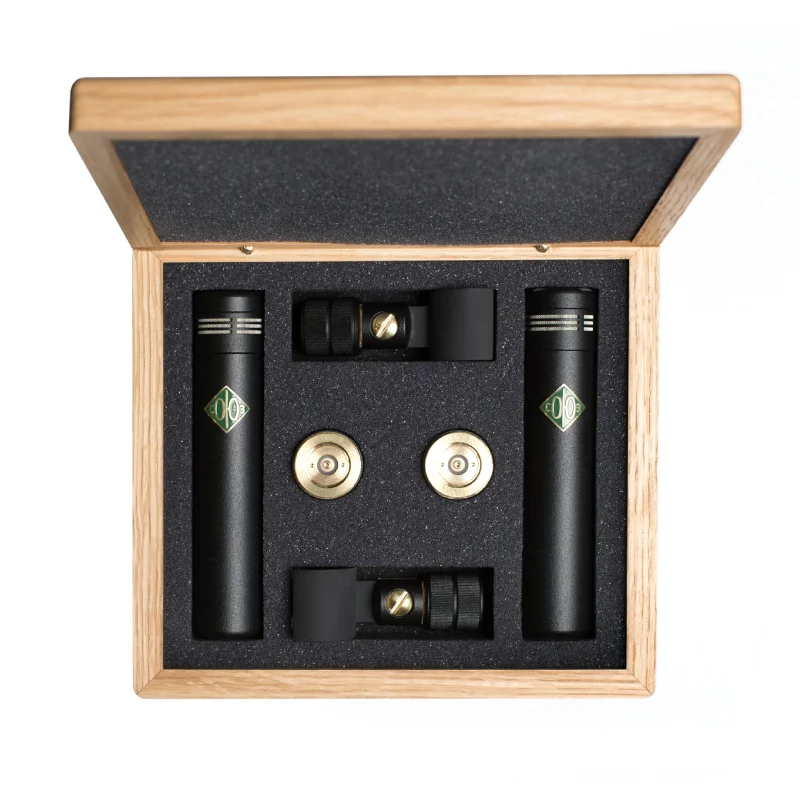

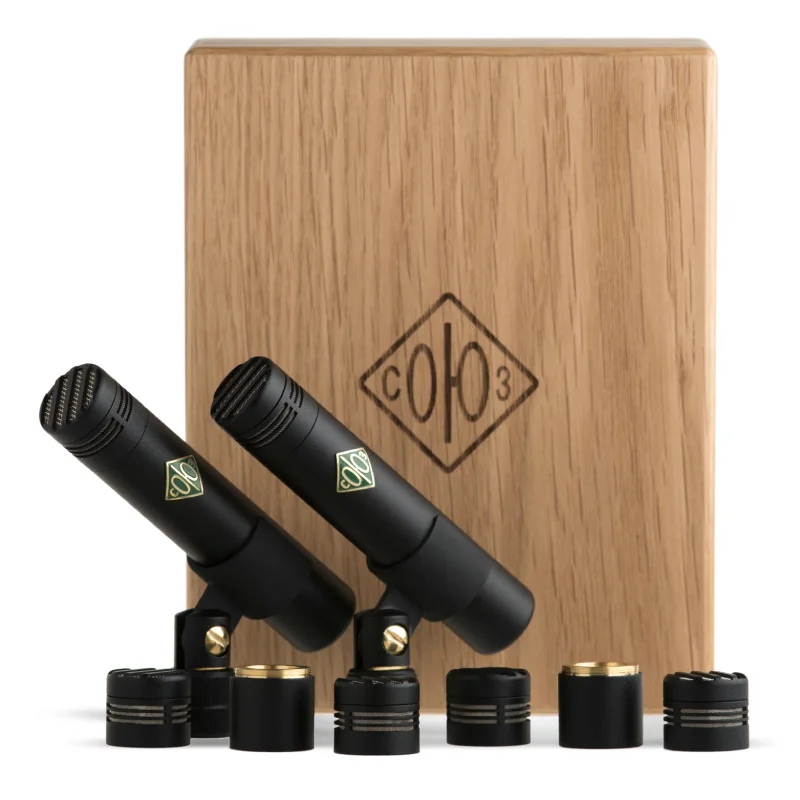

Package includes:

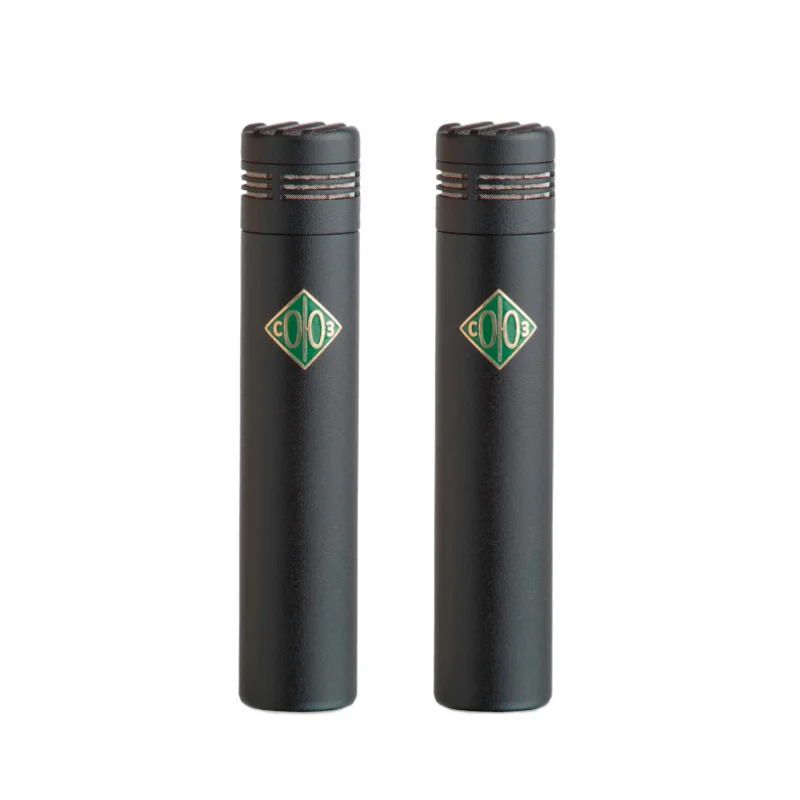

  • Stereo pair of microphones
  • Wooden case
  • -10 dB attenuator

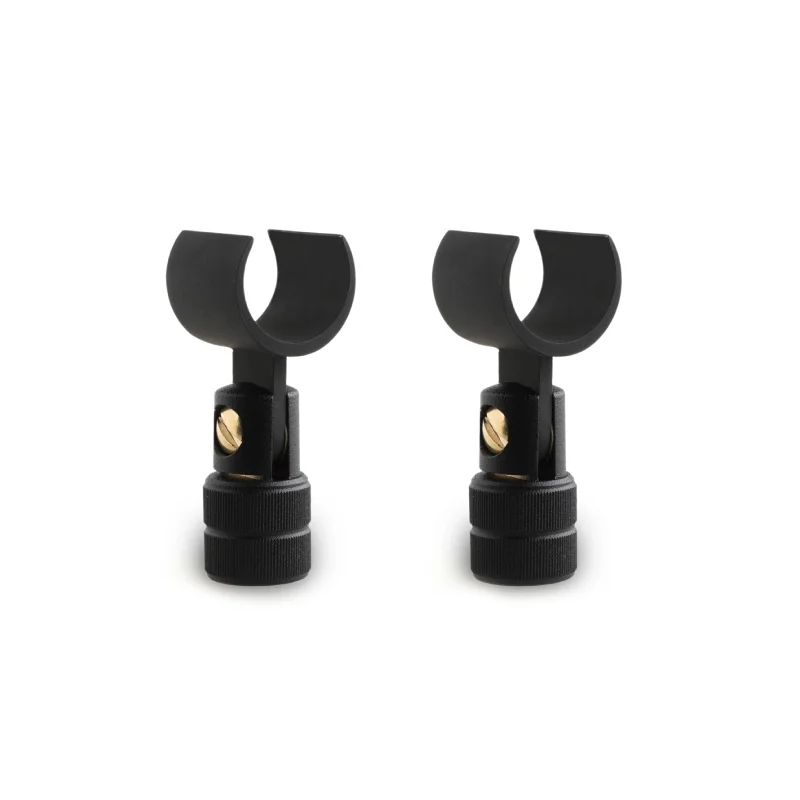

  • Stand mount
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Audio signal format
stereo
Capsule diameter, mm
25
Color
Connectors
XLR
Diaphragm size
with a small membrane

Microphones used for recording that are distinguished by improved perception of high frequencies as well as sound sources with fast variable volume or sudden attack.

Словарь терминов
Free-field sensitivity without load (1 kHz), mV/Pa
20
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
150
Max SPL, dB
143
Microphone polar pattern

Omnidirectional, cardioid and supercardioid. It determines the sensitivity of the microphone to sound relative to the direction or angle, i.e. shows how well the microphone "hears" sound from different sides

Glossary of terms
cardioid

The polar pattern of the microphone that picks up the sound in front of it.

Словарь терминов
Microphone type
condenser

A metal membrane consisting of plates (a condenser) oscillates under the influence of sound air flows converting a sound wave into an electromagnetic one.

Словарь терминов
Phantom power

Necessary for condenser microphones

Glossary of terms
yes

Simultaneous transmission of DC power and information signals over one wire.

Словарь терминов
The highest microphone frequency, kHz
20
The lowest microphone frequency, Hz
20
Depth, mm
25
Height, mm
122
Width, mm
25
Weight, g
200
Country of origin

The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

Glossary of terms
Russia
Service life, months
60
Warranty, months
48
