Studio microphone

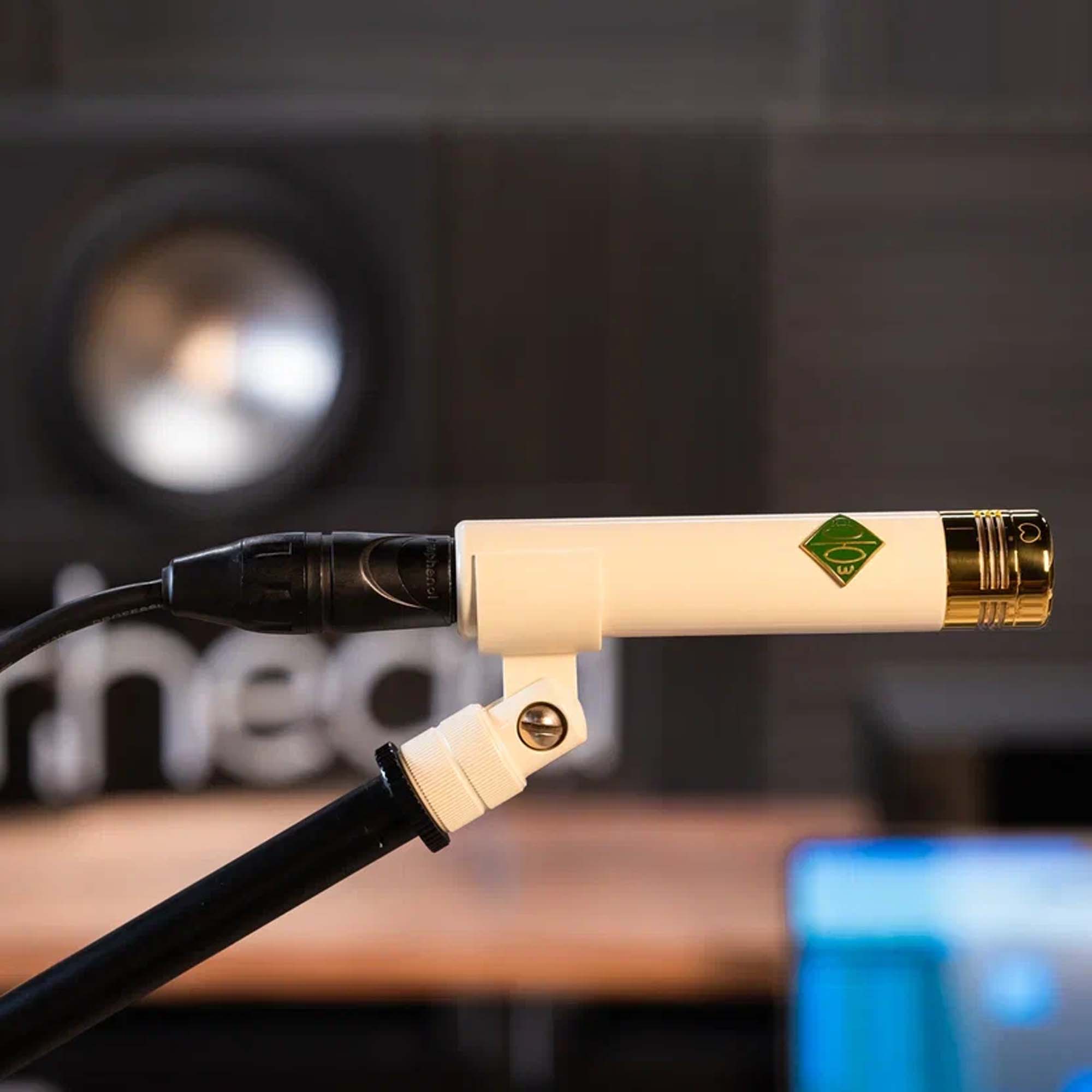

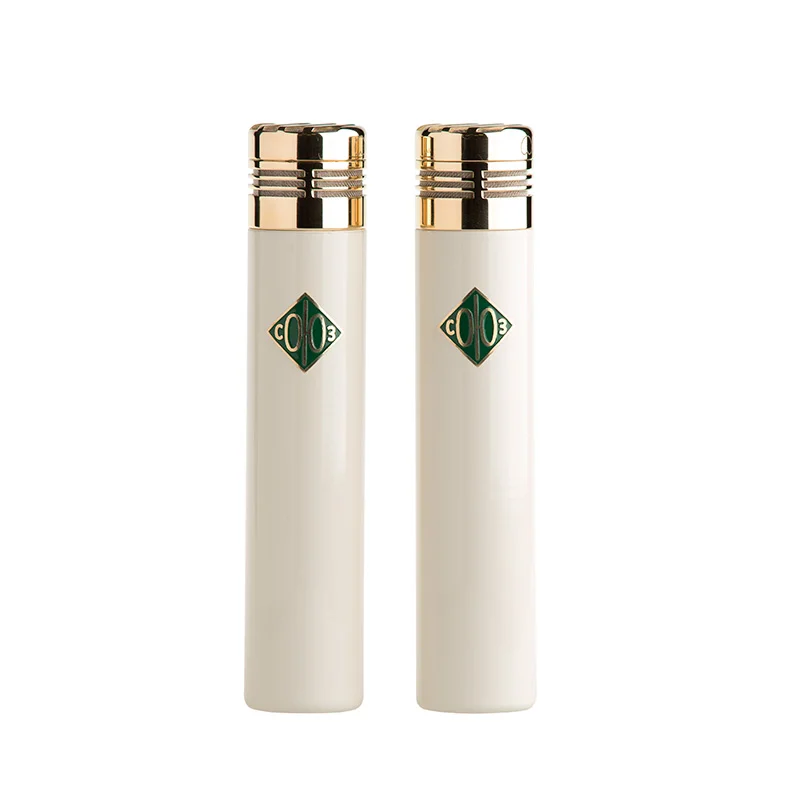

Soyuz 013 FET-M

Product code: 91172
no reviews

Description

Reviews (0)

Description

Product Description

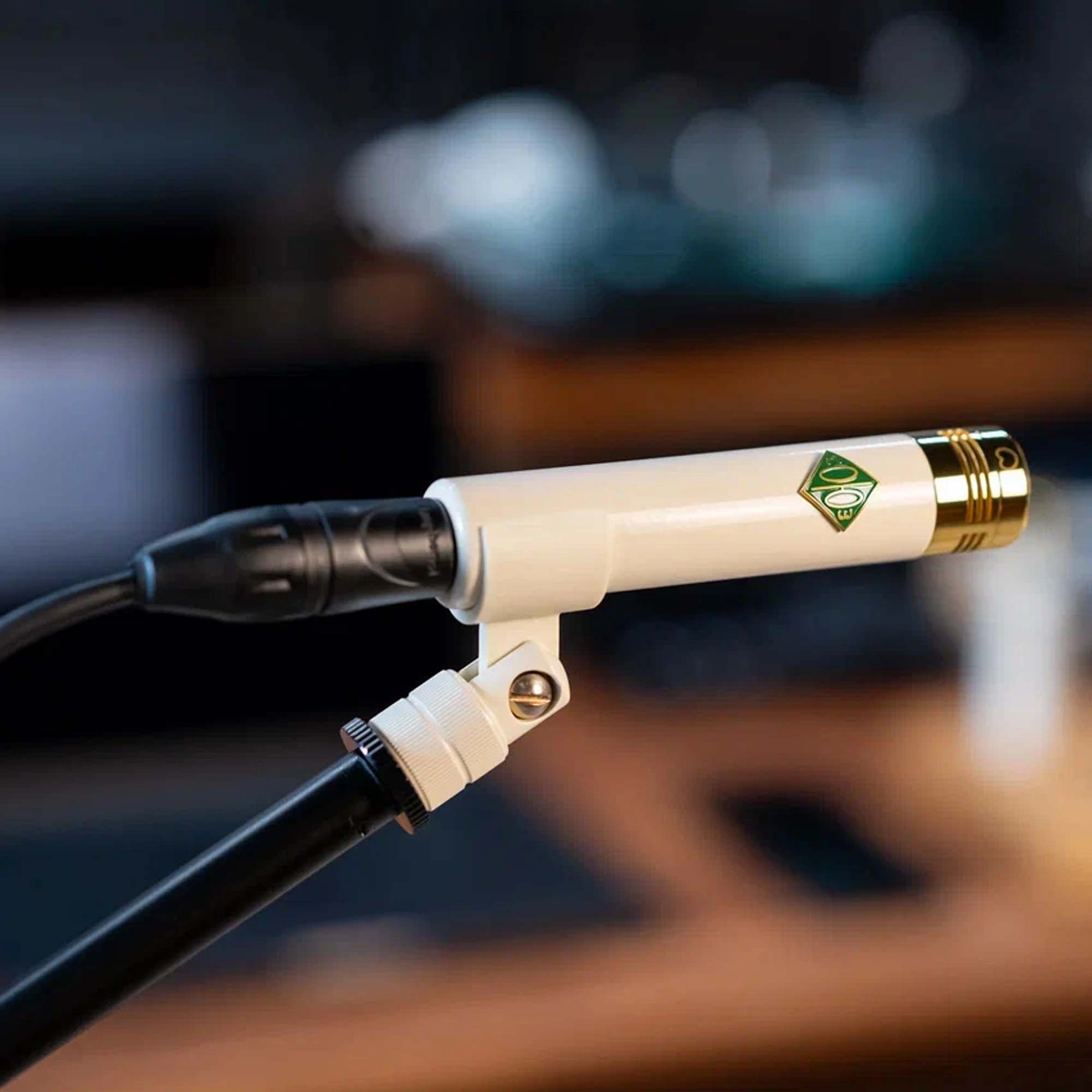

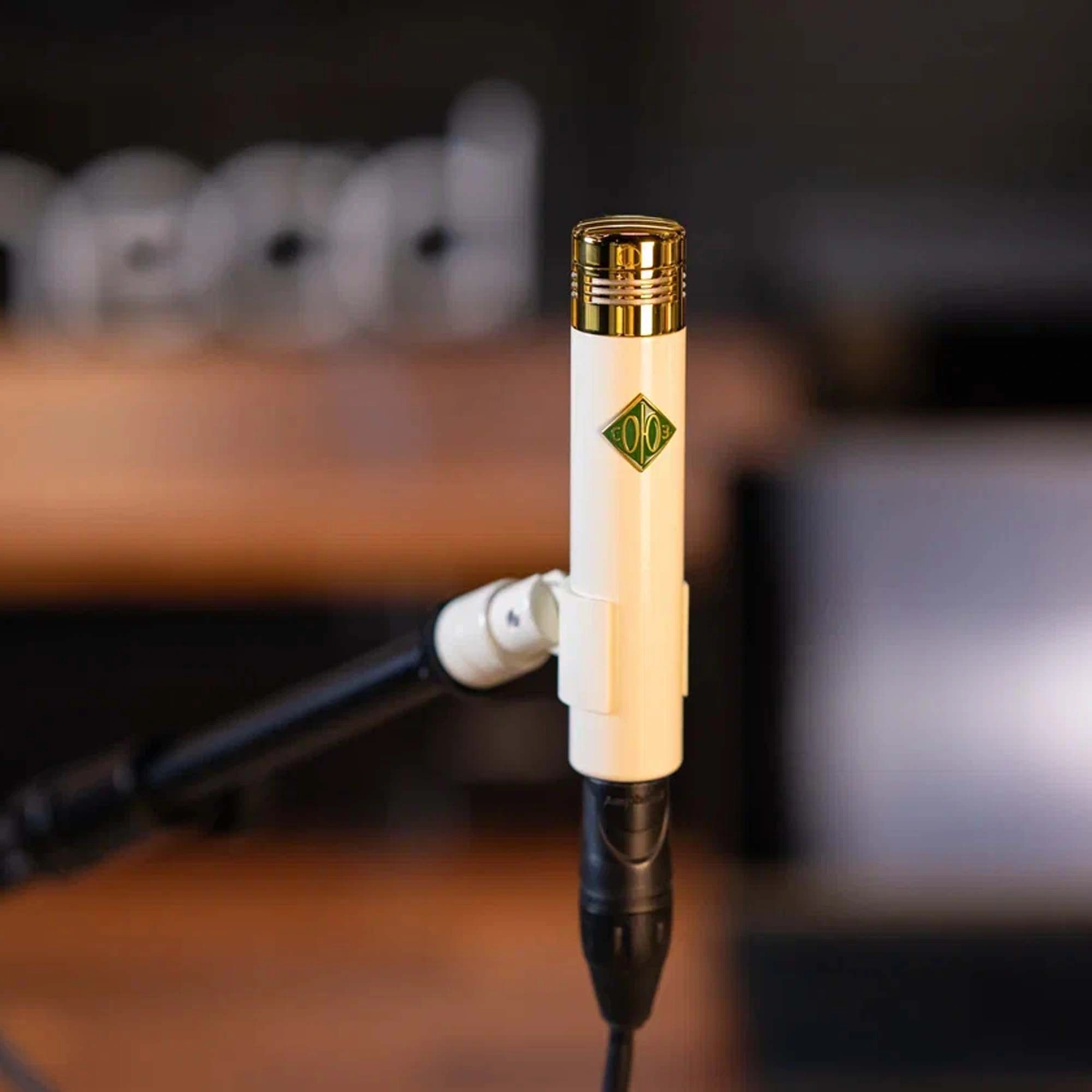

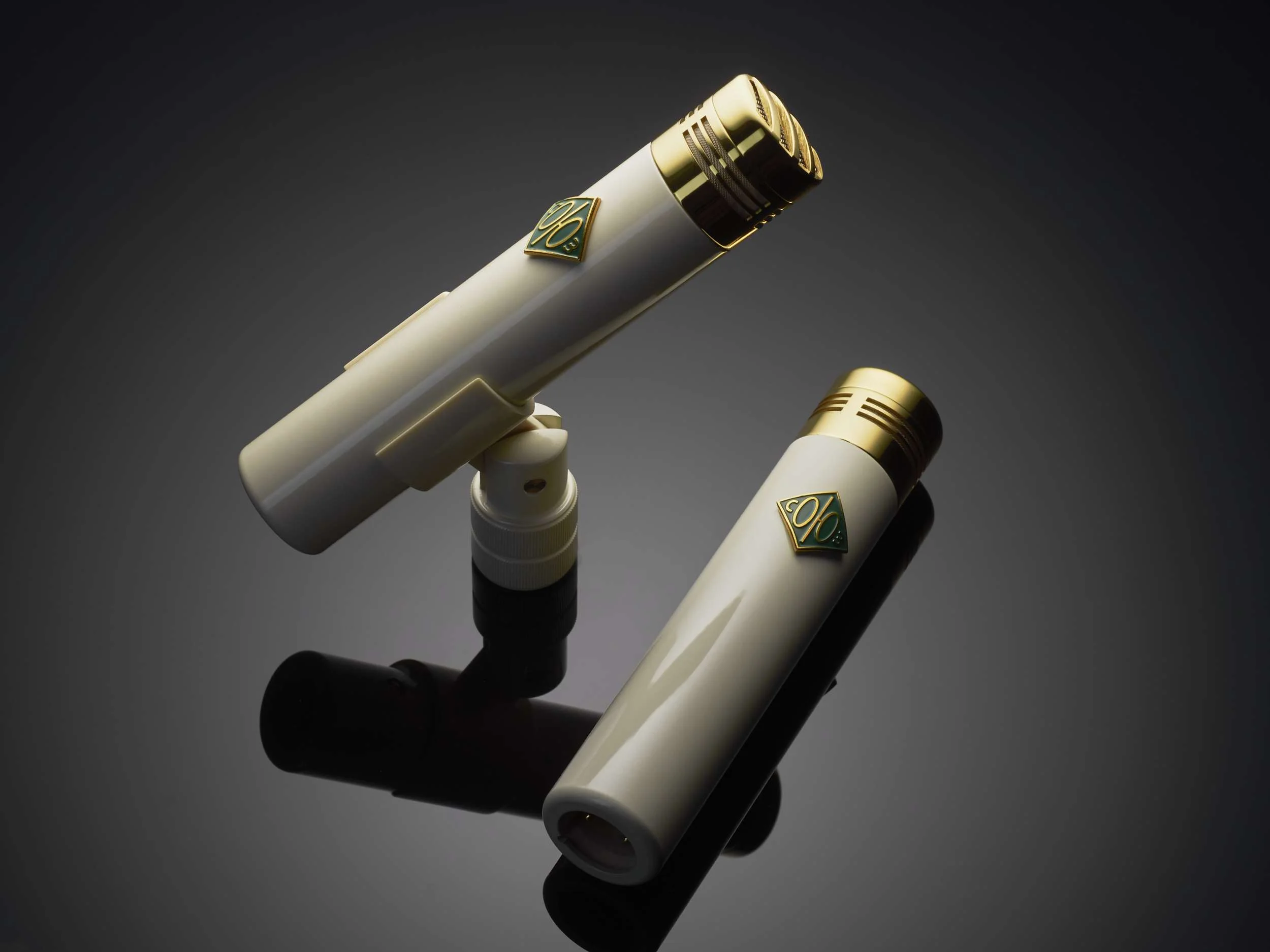

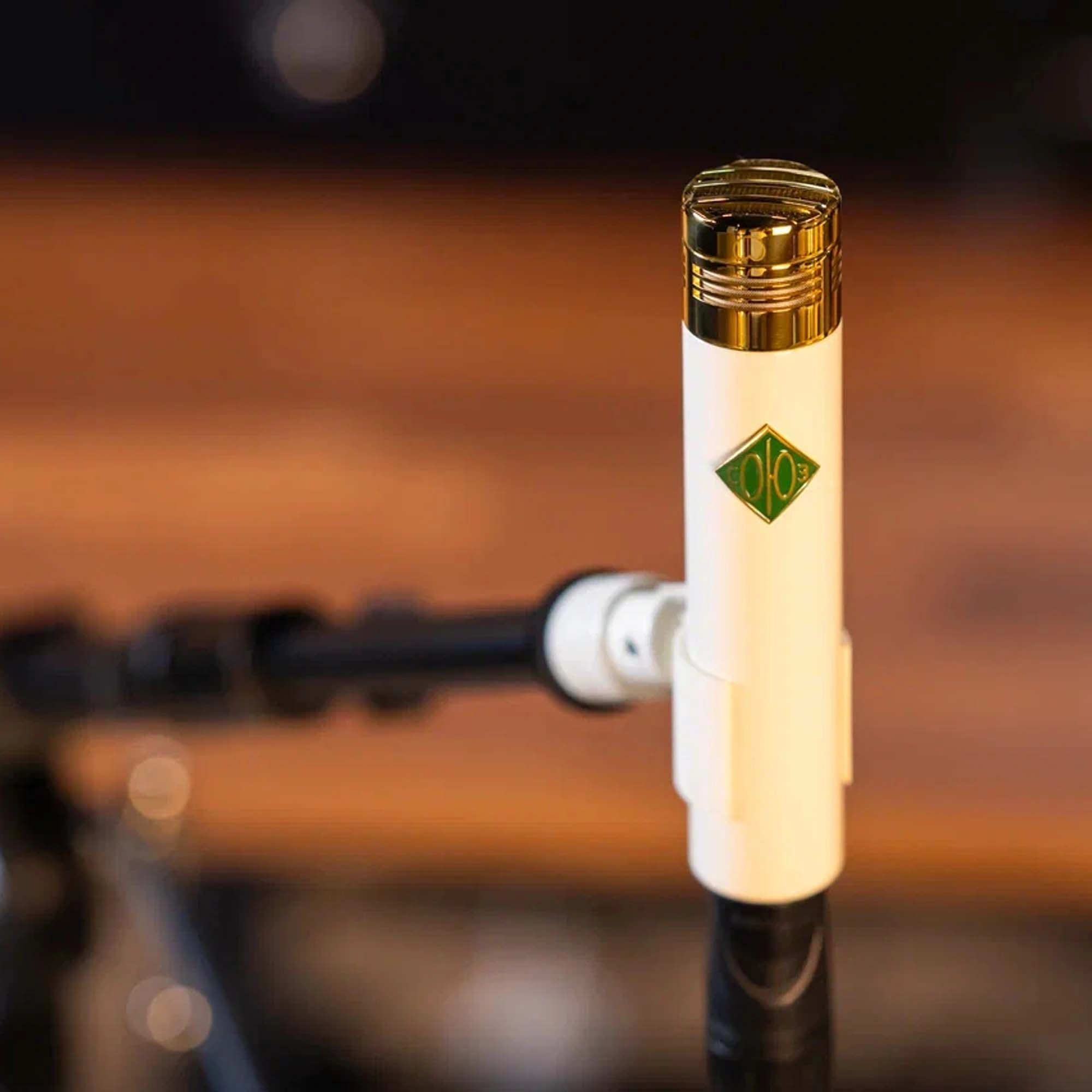

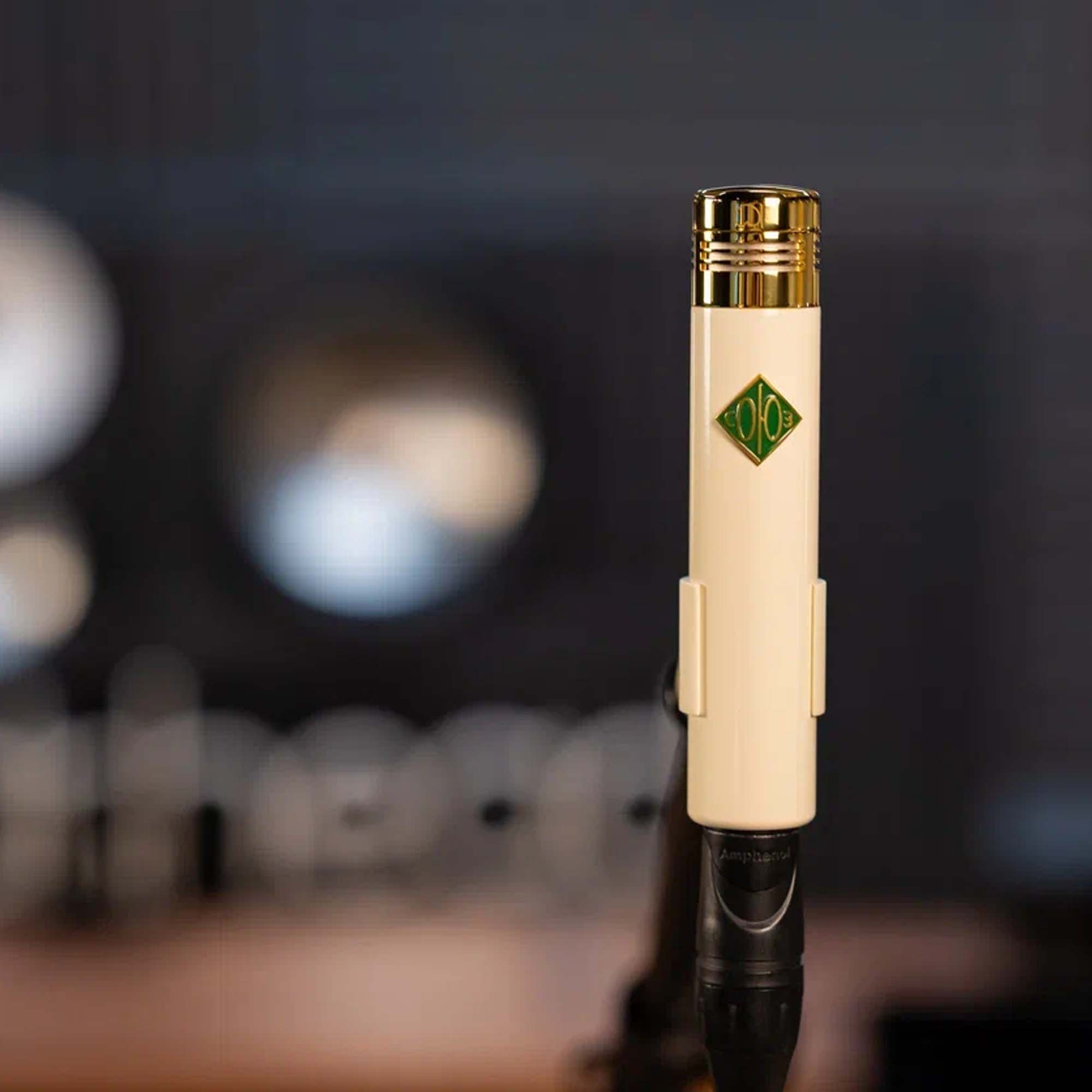

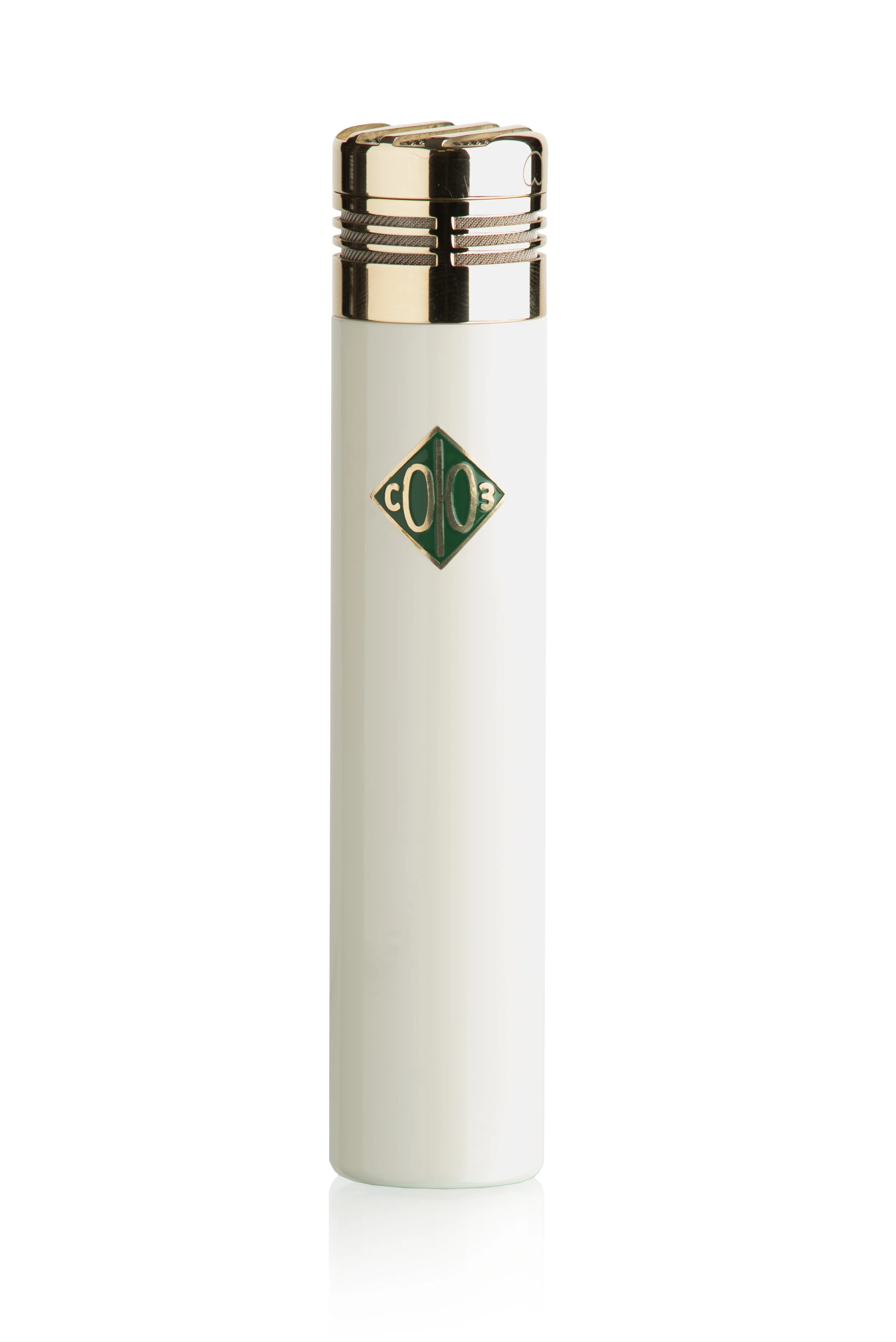

The 013 FET microphone sound is characterized by rich low-end, warm and collected mid-range, and natural highs. This model follows all the classic narrow-diaphragm microphone standards while also possessing its own unique character. The 013 series microphones capture sound with high precision and add a distinctive warmth that gives a polished musical shine to the clean response. The soft high-end with detailed nuances significantly simplifies the process of recording instruments with complex transients.

By using a special toroidal transformer and producing an extremely low level of nonlinear distortions, the 013 FET microphone has a rich and beautiful sound comparable to the legendary Neumann KM84. Like all Soyuz products, the 013 FET is 100% handmade at the Soyuz factory in Tula. It is available in both the signature creamy color and the classic black finish.

Features:

  • Detailed highs, warm mid-range, and balanced lows.
  • Custom transformer adds color and depth to the sound.
  • Comes with -10 dB pad attenuators.
  • Unique proprietary capsule design.
  • Comes in handmade oak boxes.
  • Completely handmade at the Soyuz factory in Tula.

Specifications:

  • Type: Condenser microphone.
  • Capsule: 25mm membrane with gold sputtering.
  • Frequency Range: 20Hz / 20kHz.
  • Polar Pattern: Cardioid (optional capsules: "omnidirectional", "hypercardioid").
  • Sensitivity: 20 mV/Pa.
  • Impedance: 150 Ohms.
  • Maximum SPL: 143 dB.
  • Self Noise: no more than 16 dB (A-weighted).
  • Power: phantom 48V.
  • Size: 122mm x 25mm.
  • Weight: 200 grams (per microphone).

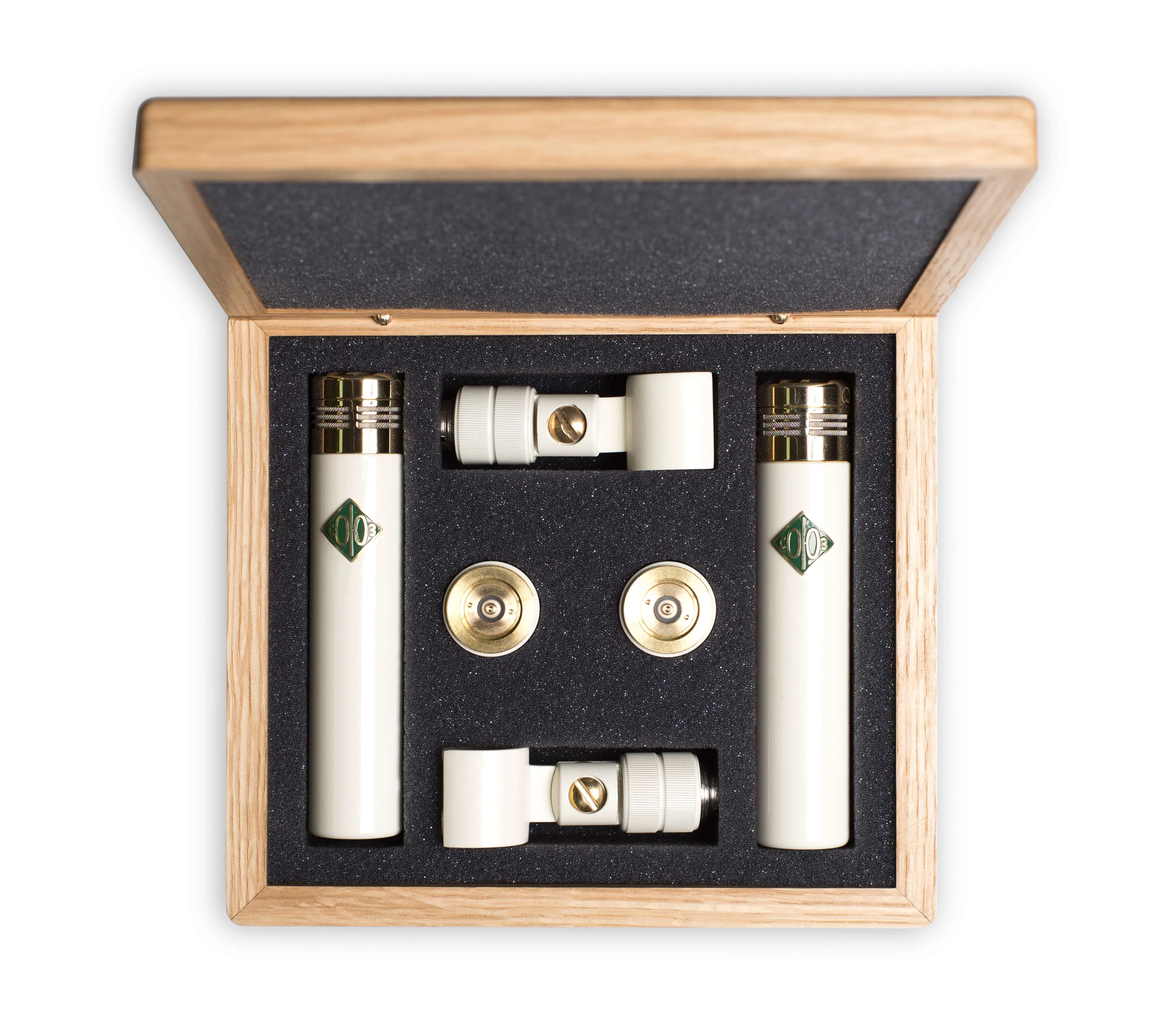

Package Includes:

  • Microphones.
  • Wooden case.
  • -10 dB pad attenuator.

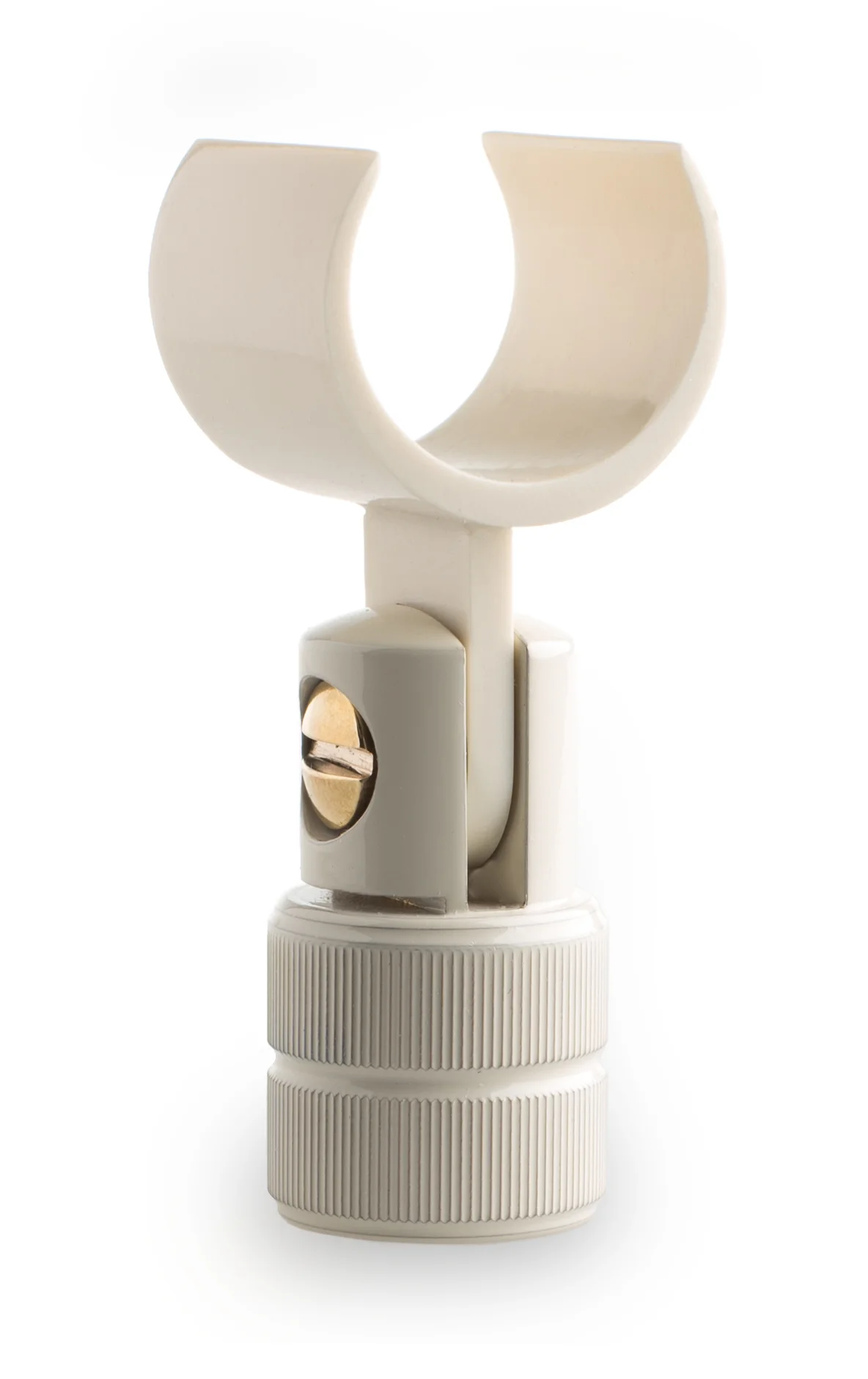

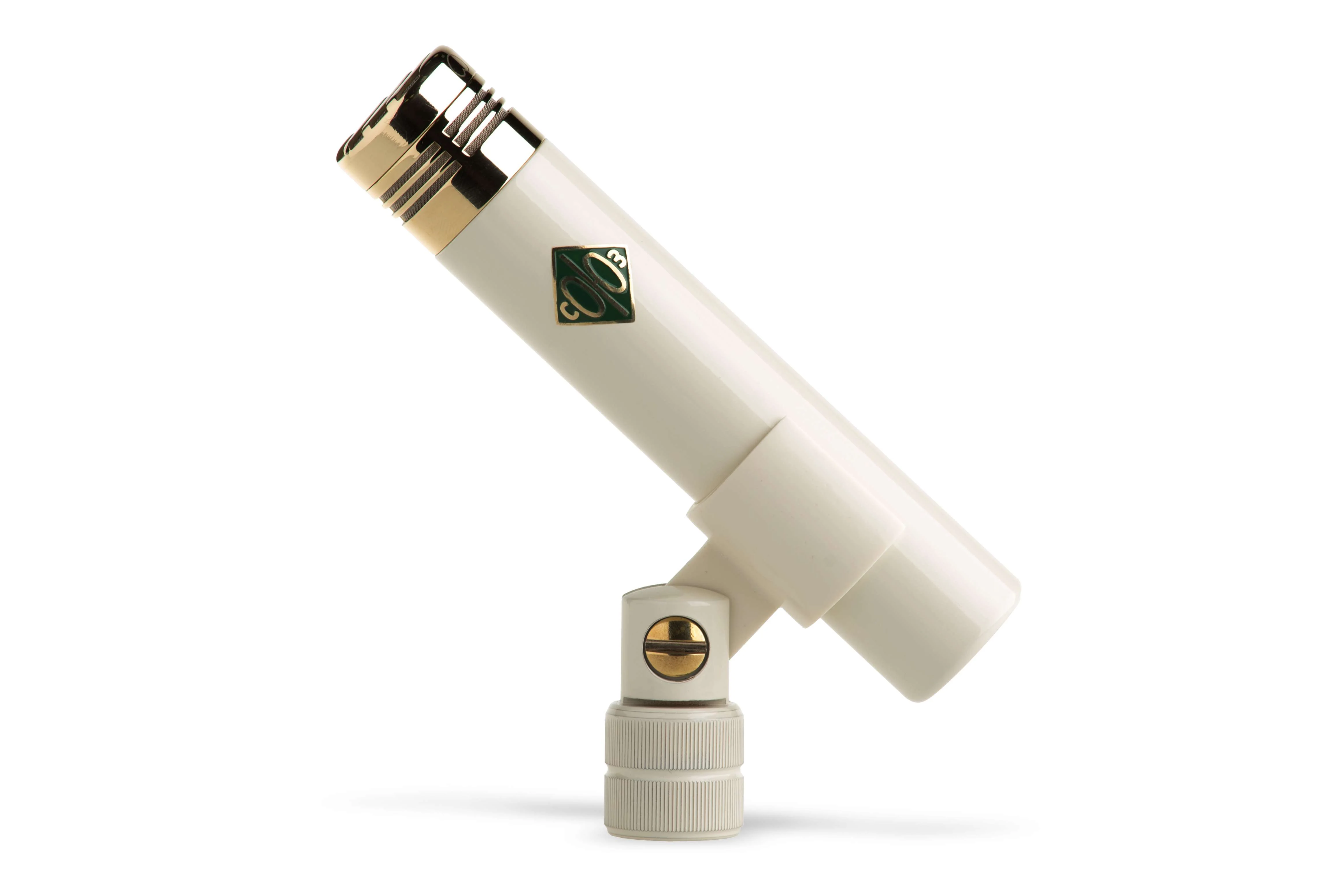

  • Holder.
  • Documentation.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Audio signal format
stereo
Capsule diameter, mm
25
Color
Connectors
XLR
Diaphragm size
with a small membrane

Microphones used for recording that are distinguished by improved perception of high frequencies as well as sound sources with fast variable volume or sudden attack.

Словарь терминов
Free-field sensitivity without load (1 kHz), mV/Pa
20
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
150
Max SPL, dB
143
Microphone polar pattern

Omnidirectional, cardioid and supercardioid. It determines the sensitivity of the microphone to sound relative to the direction or angle, i.e. shows how well the microphone "hears" sound from different sides

Glossary of terms
cardioid

The polar pattern of the microphone that picks up the sound in front of it.

Словарь терминов
Microphone type
condenser

A metal membrane consisting of plates (a condenser) oscillates under the influence of sound air flows converting a sound wave into an electromagnetic one.

Словарь терминов
Phantom power

Necessary for condenser microphones

Glossary of terms
yes

Simultaneous transmission of DC power and information signals over one wire.

Словарь терминов
The highest microphone frequency, kHz
20
The lowest microphone frequency, Hz
20
Depth, mm
25
Height, mm
122
Width, mm
25
Weight, g
200
Country of origin

The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

Glossary of terms
Russia
Service life, months
60
Warranty, months
48
