Studio microphone

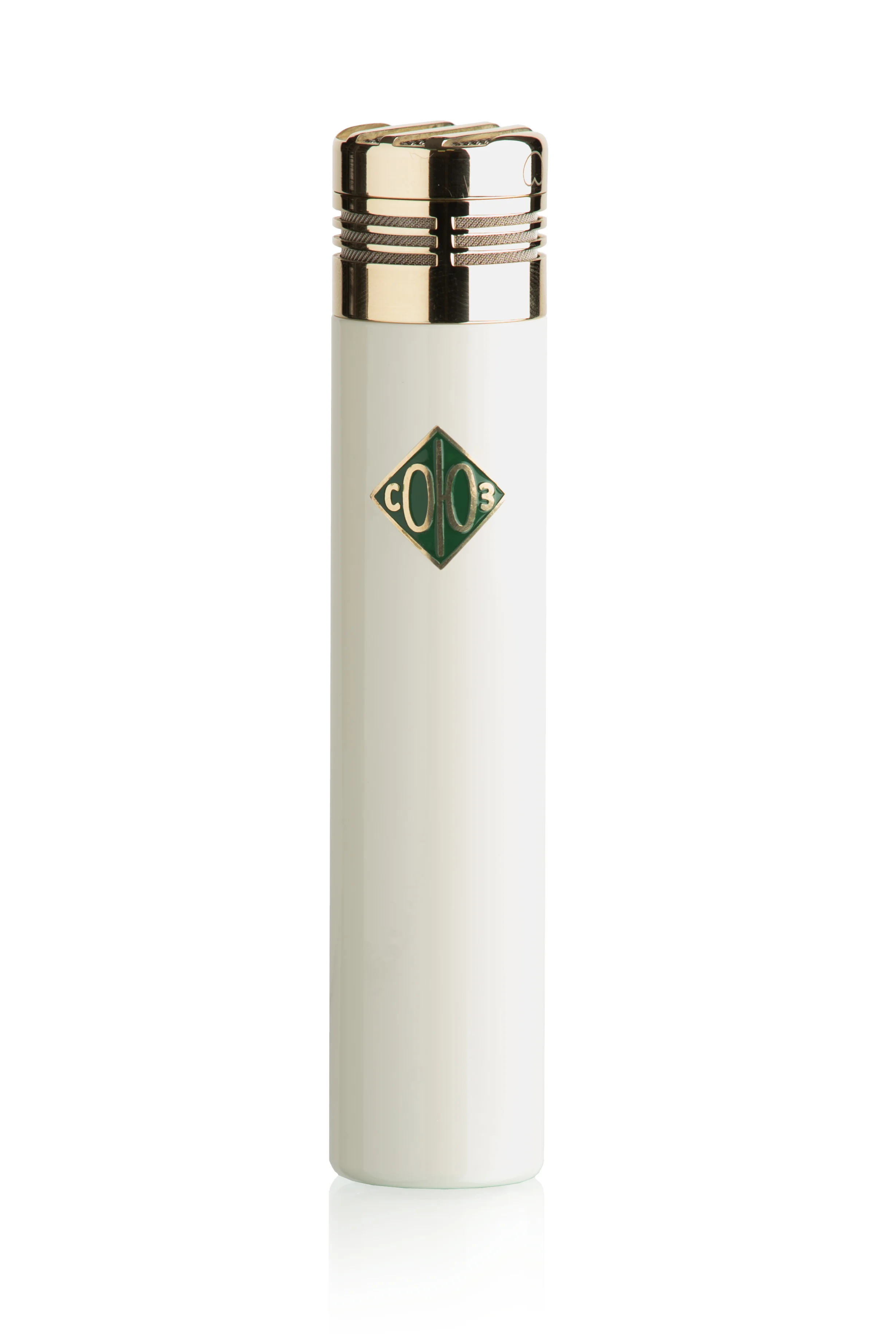

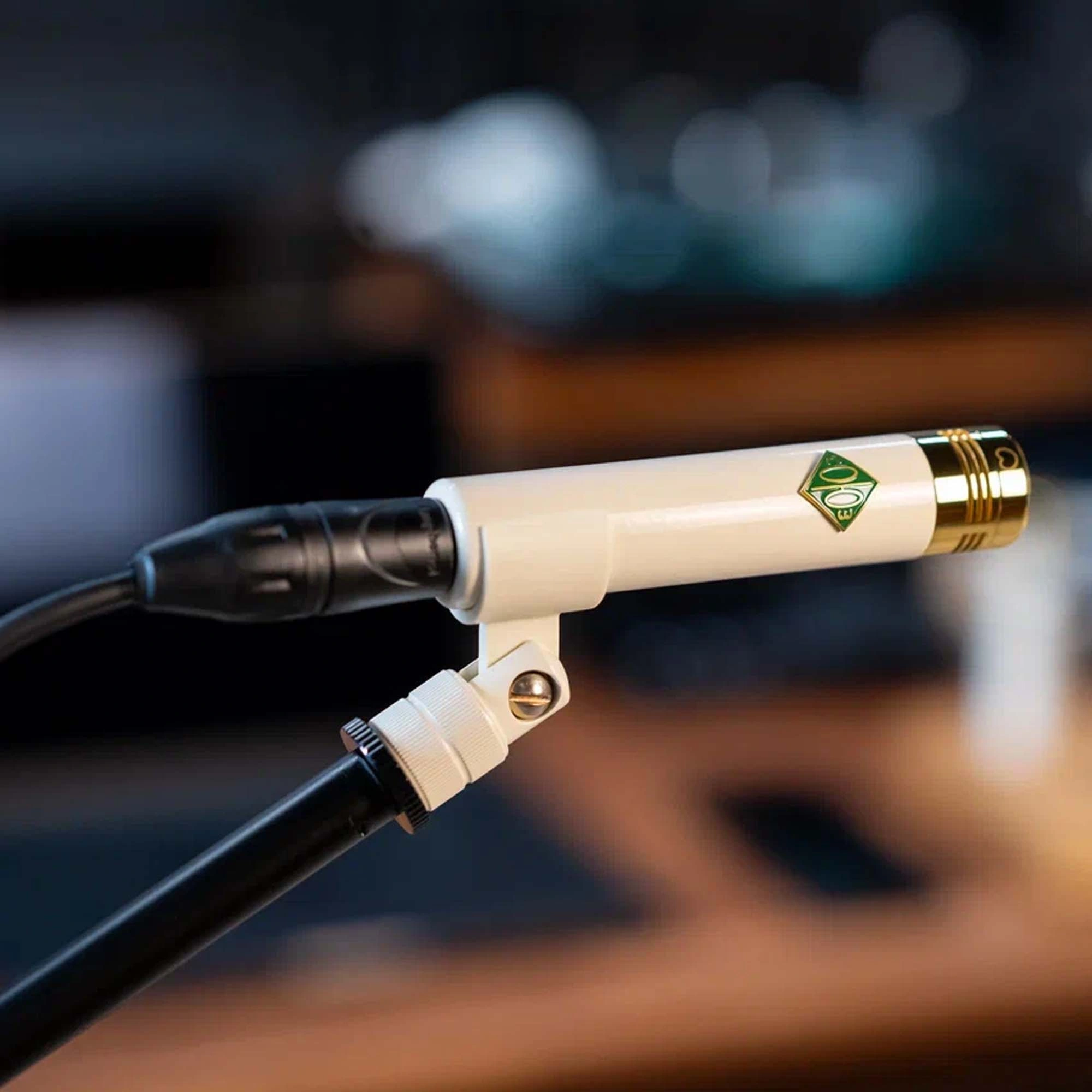

Soyuz 013 FET Cream

Product code: 91171
no reviews

Description

Reviews (0)

Description

The sound of the 013 FET microphone is characterized by a rich low end, warm and full midrange, and natural top end. This model is built according to all the classic standards of small diaphragm microphones while also having its own unique character.

The microphones in the 013 series capture sound with high precision and add an incomparable warmth, giving a musical shine to the precise response. The soft top end with detailed articulation significantly simplifies the process of recording instruments with complex transients.

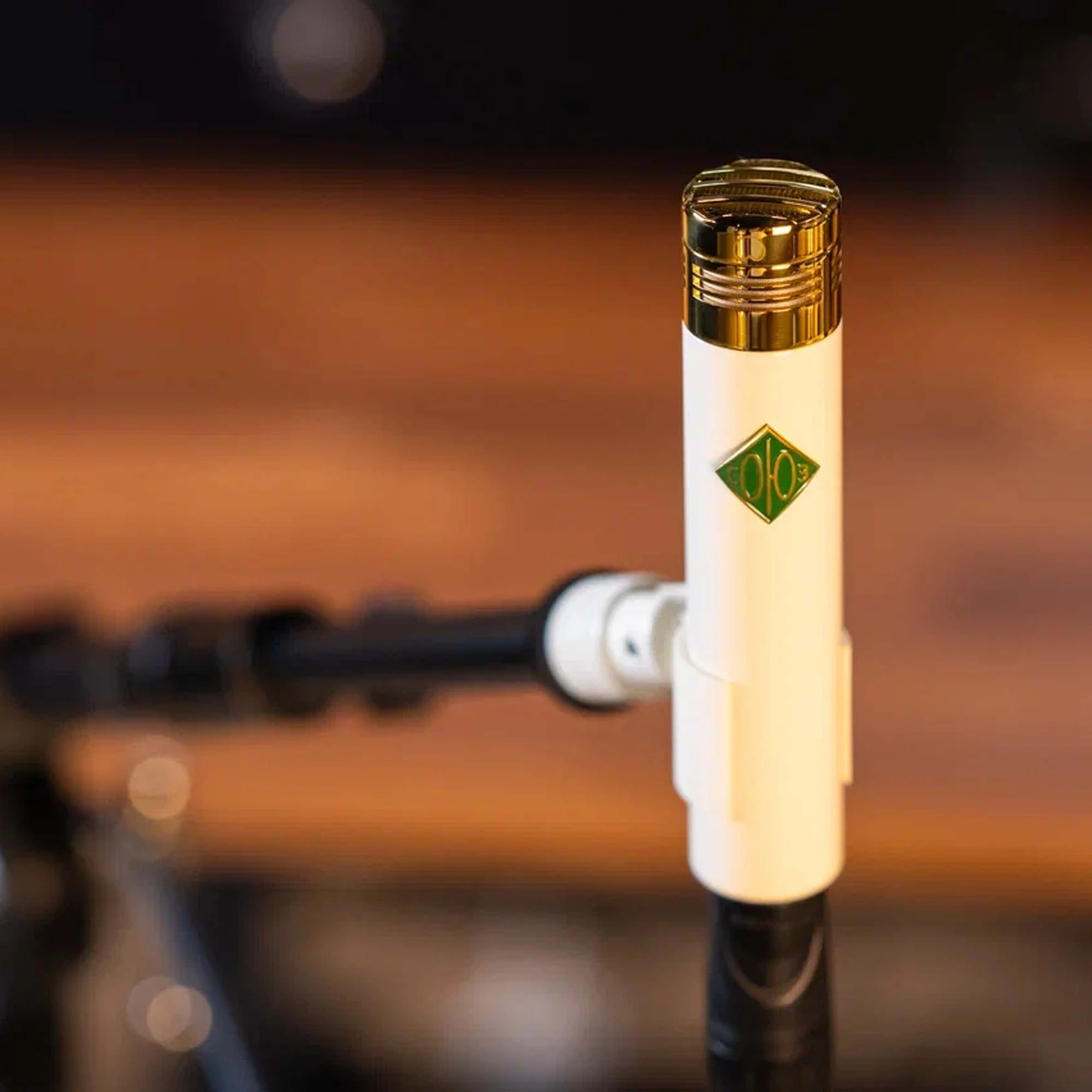

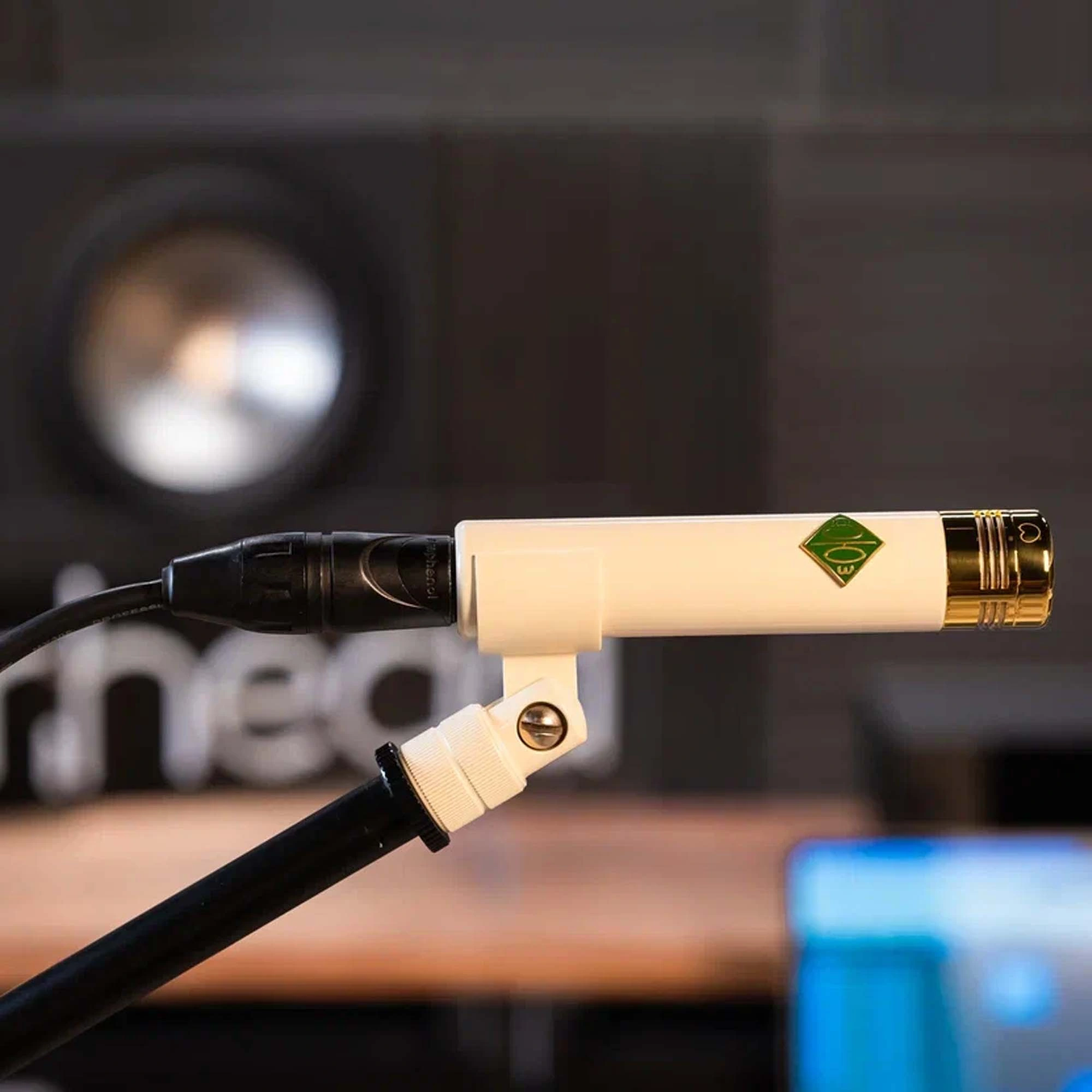

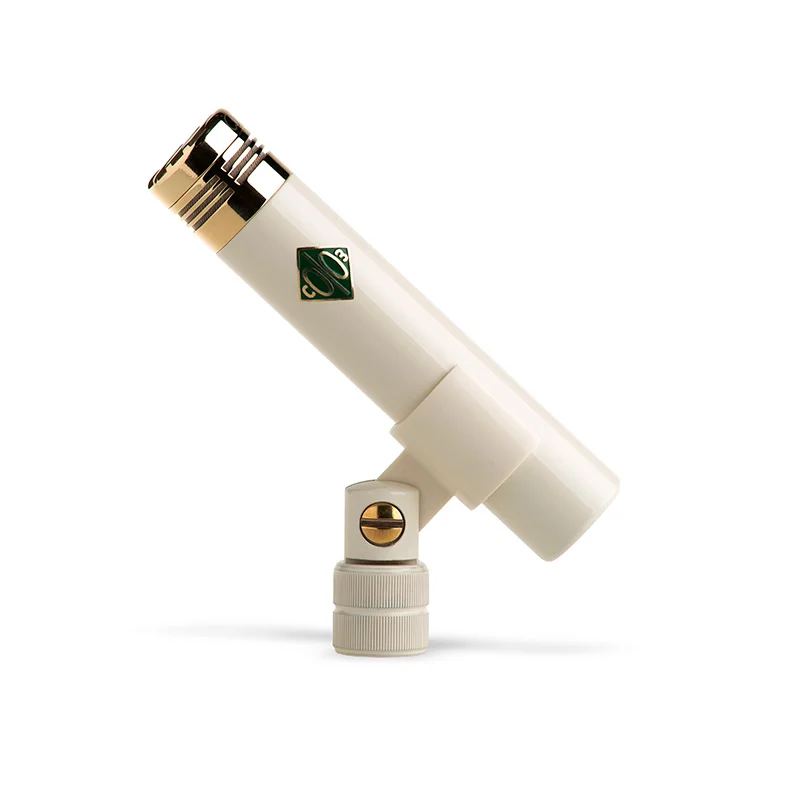

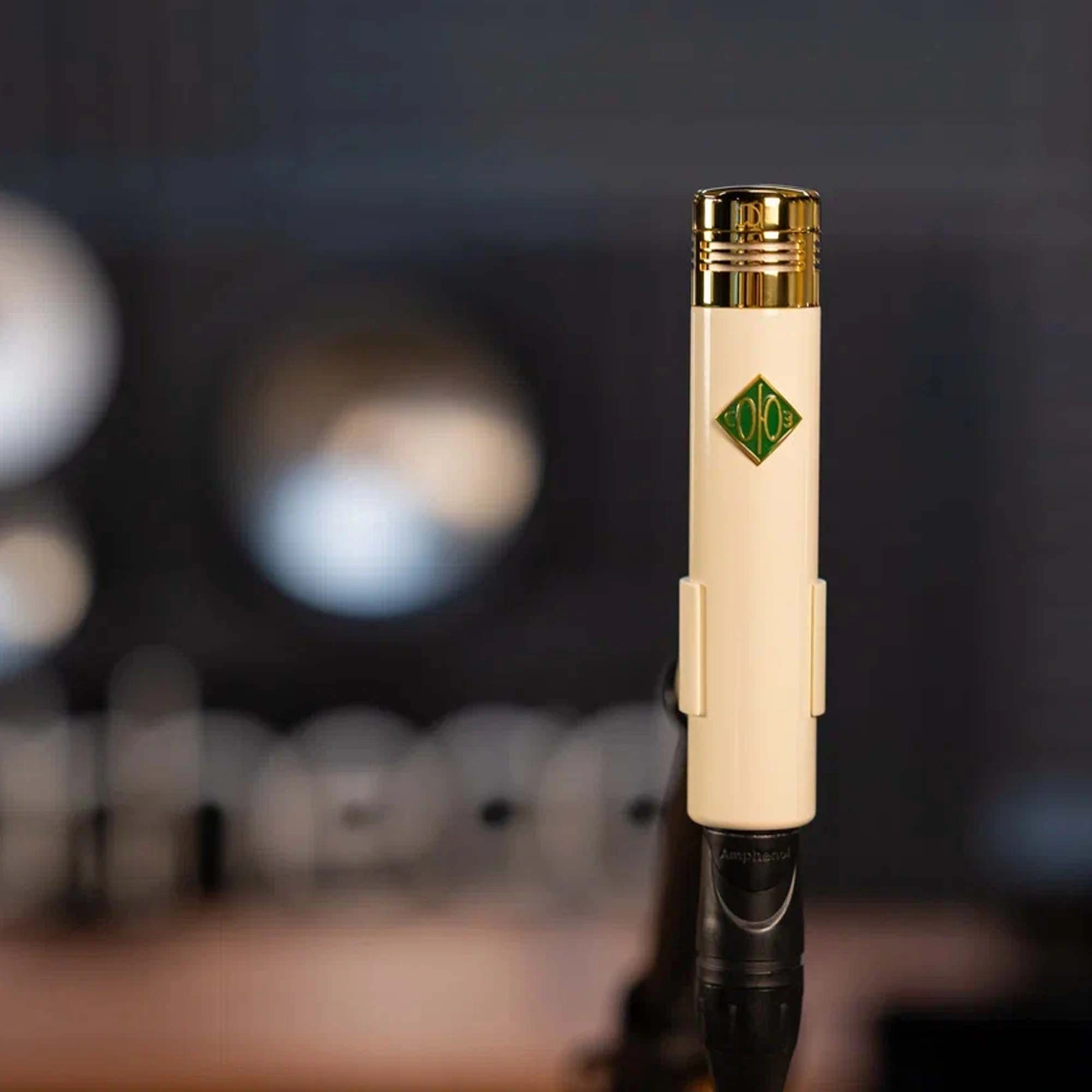

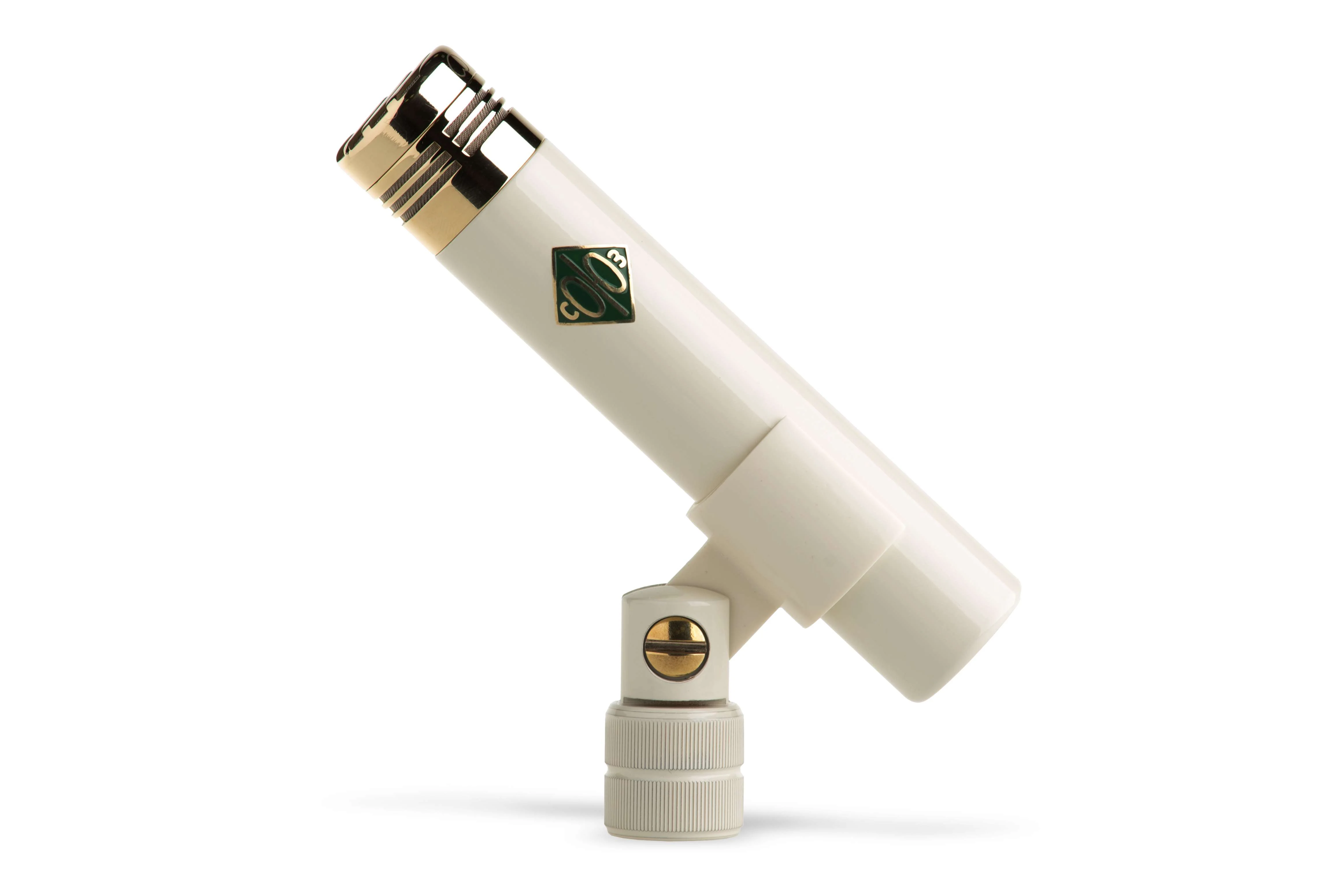

Using a special toroidal transformer and providing an extremely low level of nonlinear distortion, the 013 FET microphone produces a rich and beautiful sound comparable to the legendary Neumann KM84. Like all Soyuz products, the 013 FET is 100% handmade at the Soyuz factory in Tula. It is available in the signature cream color as well as in the classic black finish.

Features:

  • Detailed top end, warm midrange, and balanced low end
  • Custom transformer adds color and depth to the sound
  • Supplied with -10 dB attenuators
  • Unique proprietary capsule design

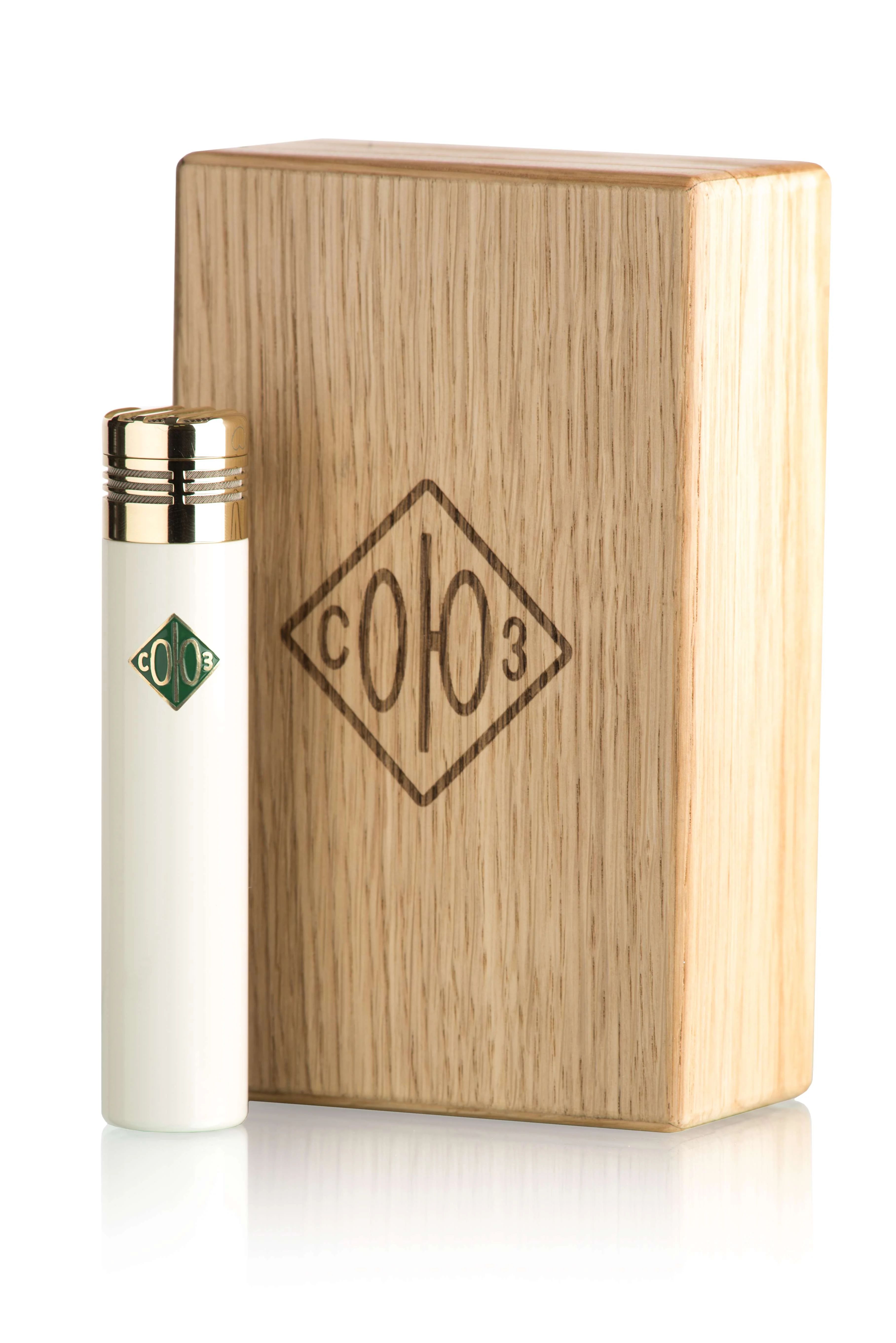

  • Supplied in handmade oak boxes
  • Completely handmade at the Soyuz factory in Tula

Specifications:

  • Type: Condenser microphone
  • Capsule: 25mm gold-sputtered membrane
  • Frequency Range: 20Hz-20kHz
  • Polar Pattern: Cardioid (optional capsules: Omni, Hypercardioid)
  • Sensitivity: 20 mV/Pa
  • Impedance: 150 ohms
  • Maximum SPL: 143 dB
  • Self Noise: no more than 16 dB (A-weighted)
  • Power Requirements: Phantom 48V
  • Size: 122mm x 25mm
  • Weight: 250 grams (one microphone)
  • Accessories included: wooden box, -10 dB attenuator, clip holder

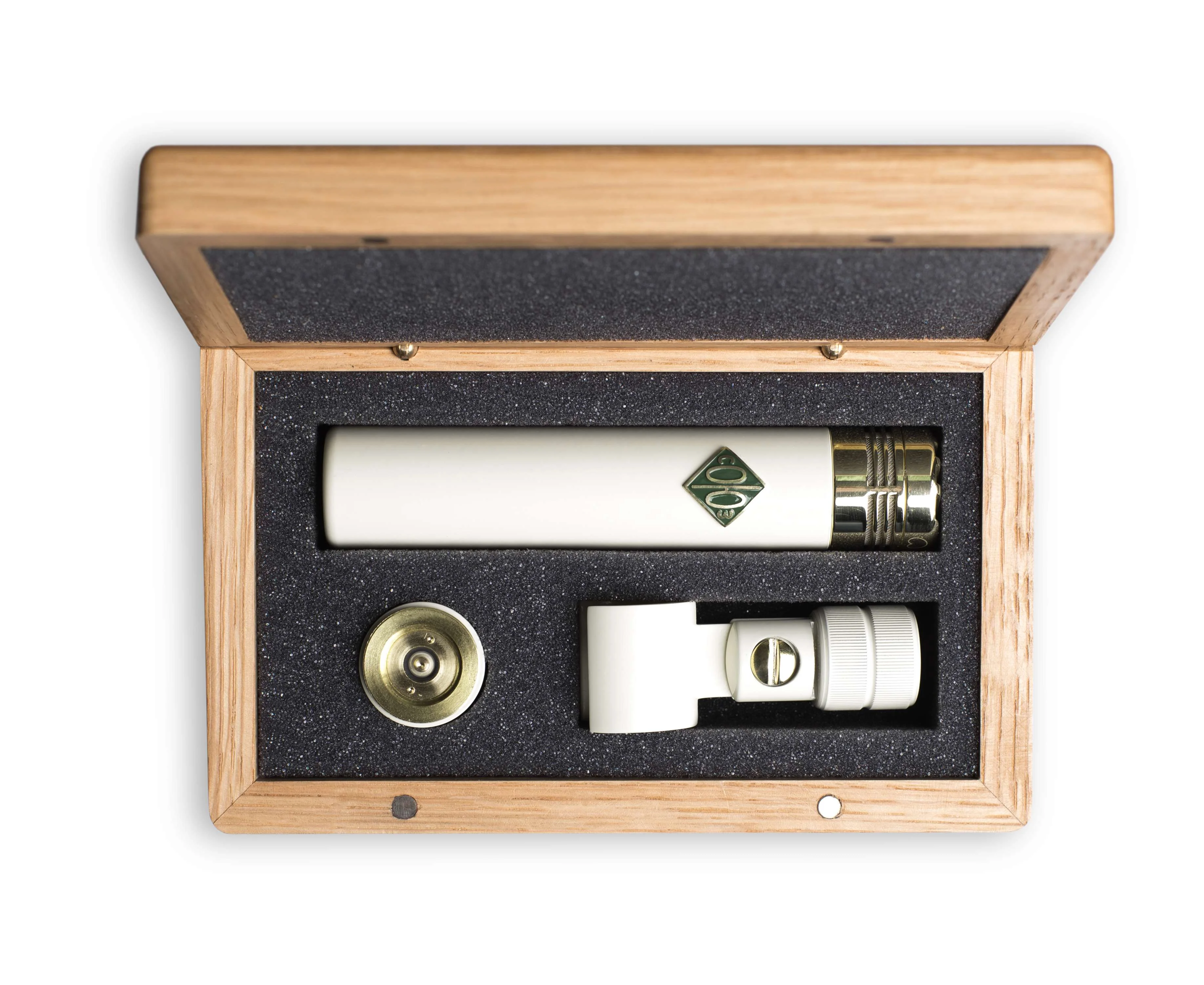

Package Includes:

  • Microphone
  • Wooden box
  • Attenuator

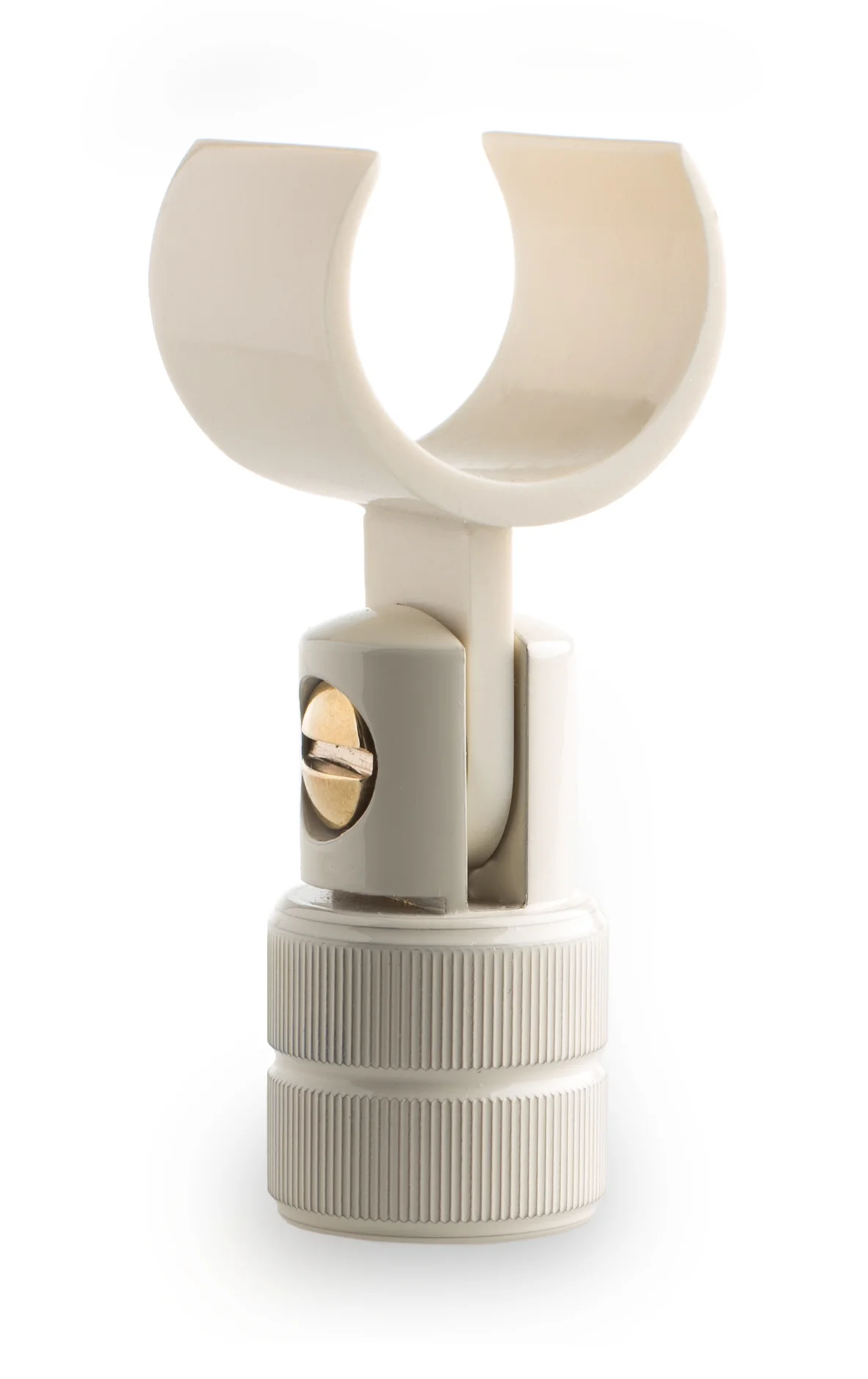

  • Clip holder
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Audio signal format
mono
Capsule diameter, mm
25
Color
Connectors
XLR
Diaphragm size
with a small membrane

Microphones used for recording that are distinguished by improved perception of high frequencies as well as sound sources with fast variable volume or sudden attack.

Словарь терминов
Free-field sensitivity without load (1 kHz), mV/Pa
20
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
150
Max SPL, dB
143
Microphone polar pattern

Omnidirectional, cardioid and supercardioid. It determines the sensitivity of the microphone to sound relative to the direction or angle, i.e. shows how well the microphone "hears" sound from different sides

Glossary of terms
cardioid

The polar pattern of the microphone that picks up the sound in front of it.

Словарь терминов
Microphone type
condenser

A metal membrane consisting of plates (a condenser) oscillates under the influence of sound air flows converting a sound wave into an electromagnetic one.

Словарь терминов
The highest microphone frequency, kHz
20
The lowest microphone frequency, Hz
20
Depth, mm
25
Height, mm
122
Width, mm
25
Weight, g
250
Country of origin

The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

Glossary of terms
Russia
Service life, months
60
Warranty, months
48
