Studio microphone
Soyuz 013 Ambisonic Black

Product code: 143496
no reviews
AED 10,789
Delivery from the supplier's remote warehouse.
We will contact you within 48 hours to clarify the delivery time.

Description

Reviews (0)

Description

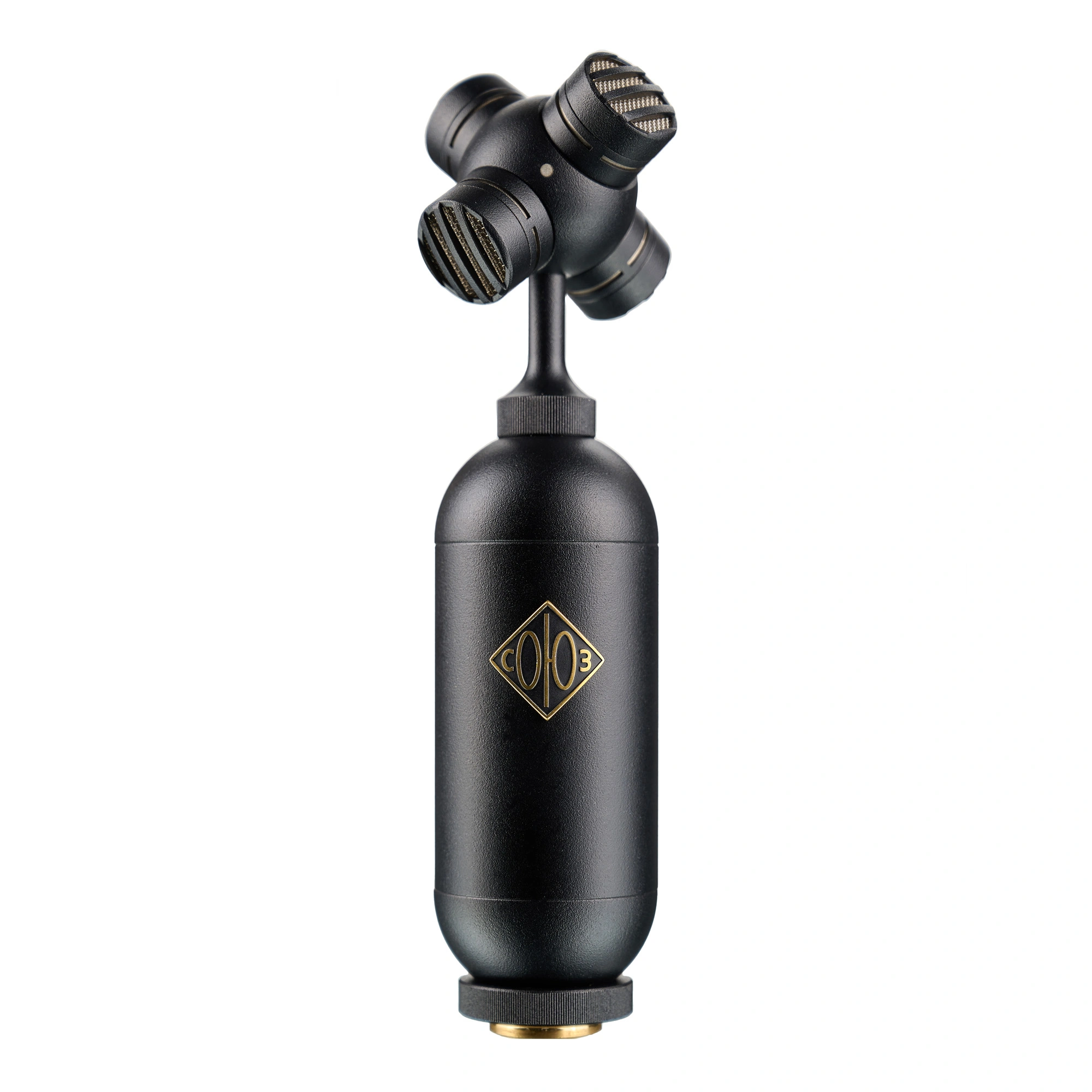

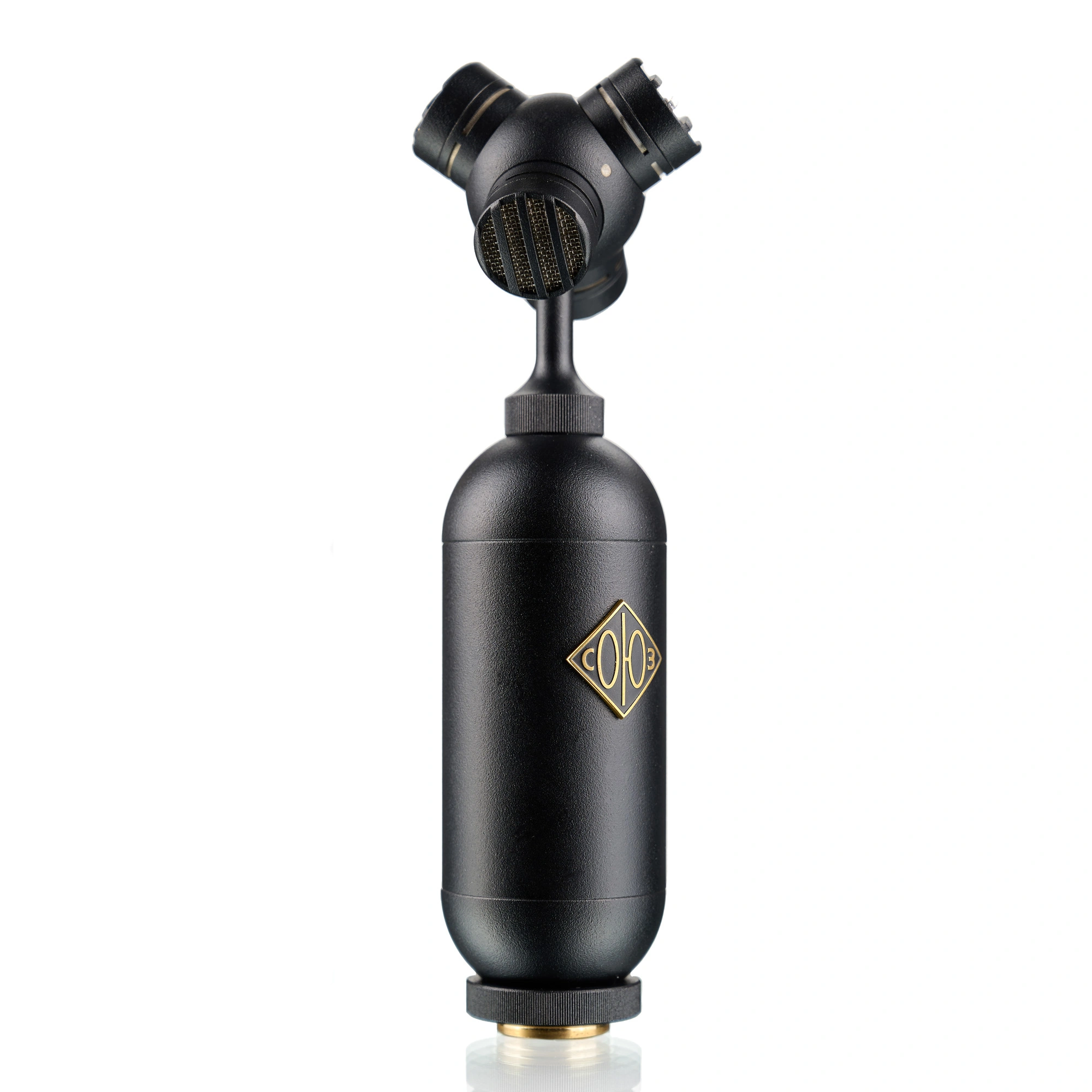

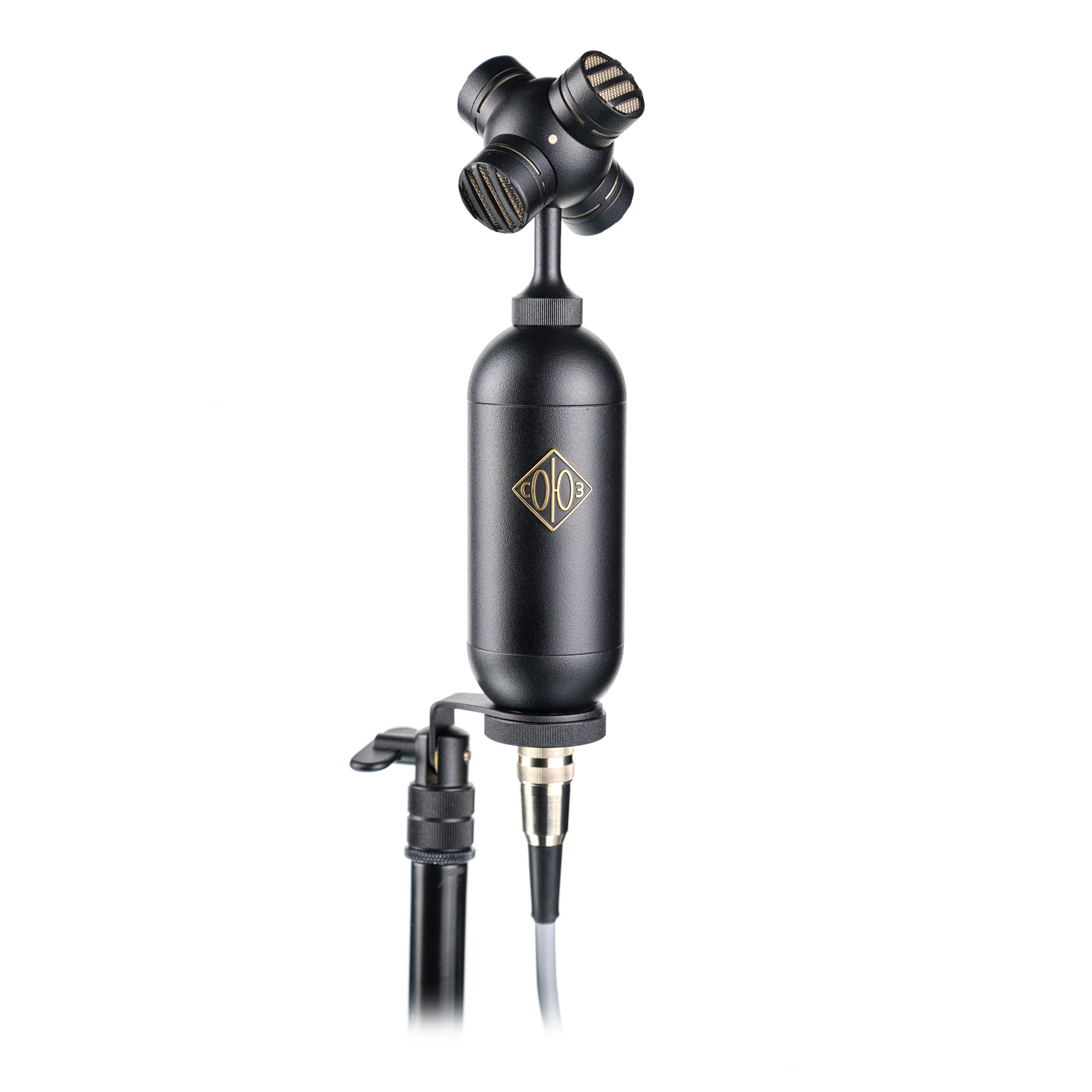

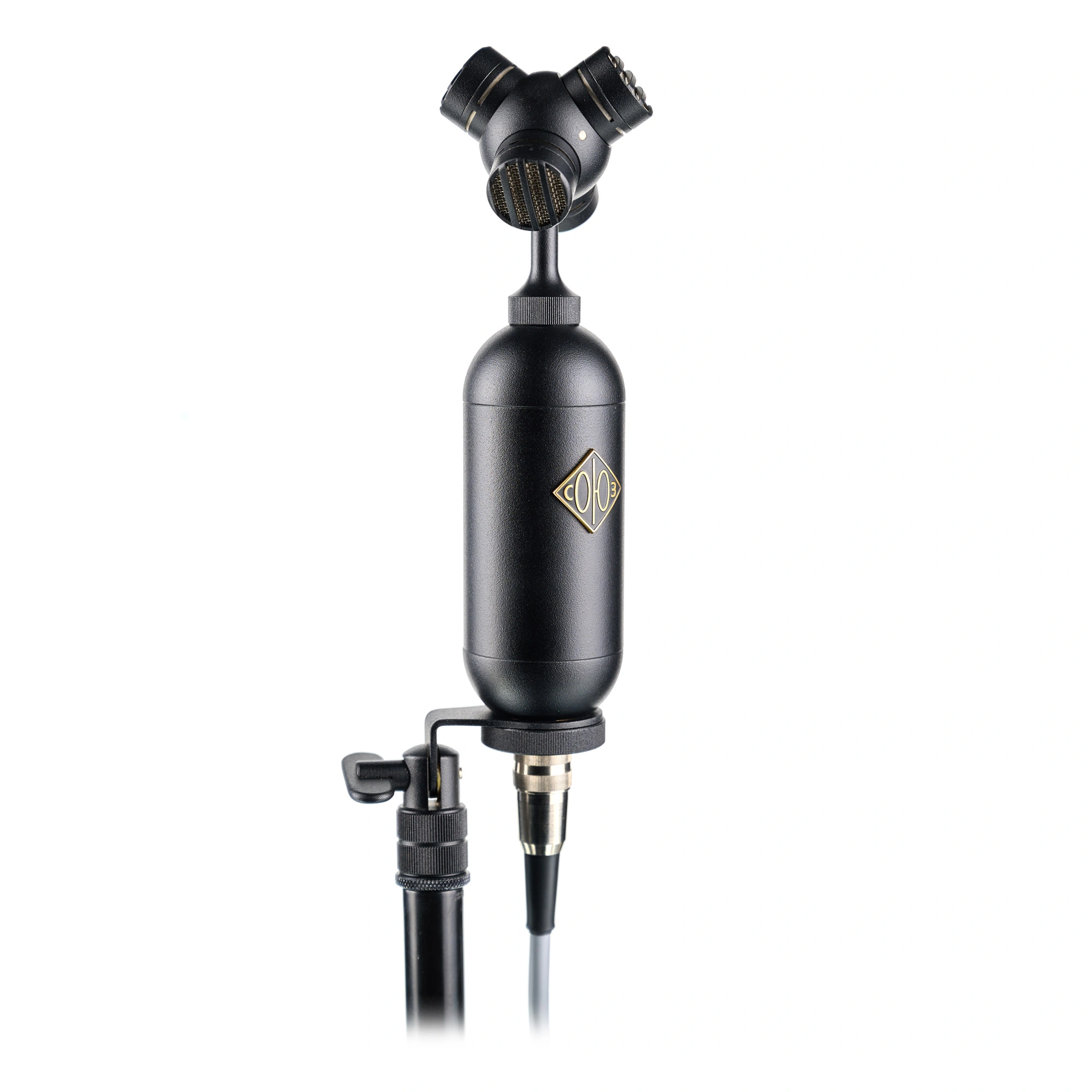

Soyuz 013 Ambisonic

The SOYUZ 013 Ambisonic is a system for three-dimensional spatial sound. It "captures" sound in all three planes: horizontal, as well as up and down from the listener. This technology is used for sound in computer games, virtual reality, background sound in movies, and so on: as the camera rotates, the angle of sound sources changes.

Features:

  • First-order condenser microphone;
  • Requires a four-channel audio recorder or audio interface to work, as each capsule is connected separately;
  • The microphone simultaneously records four monophonic signals;

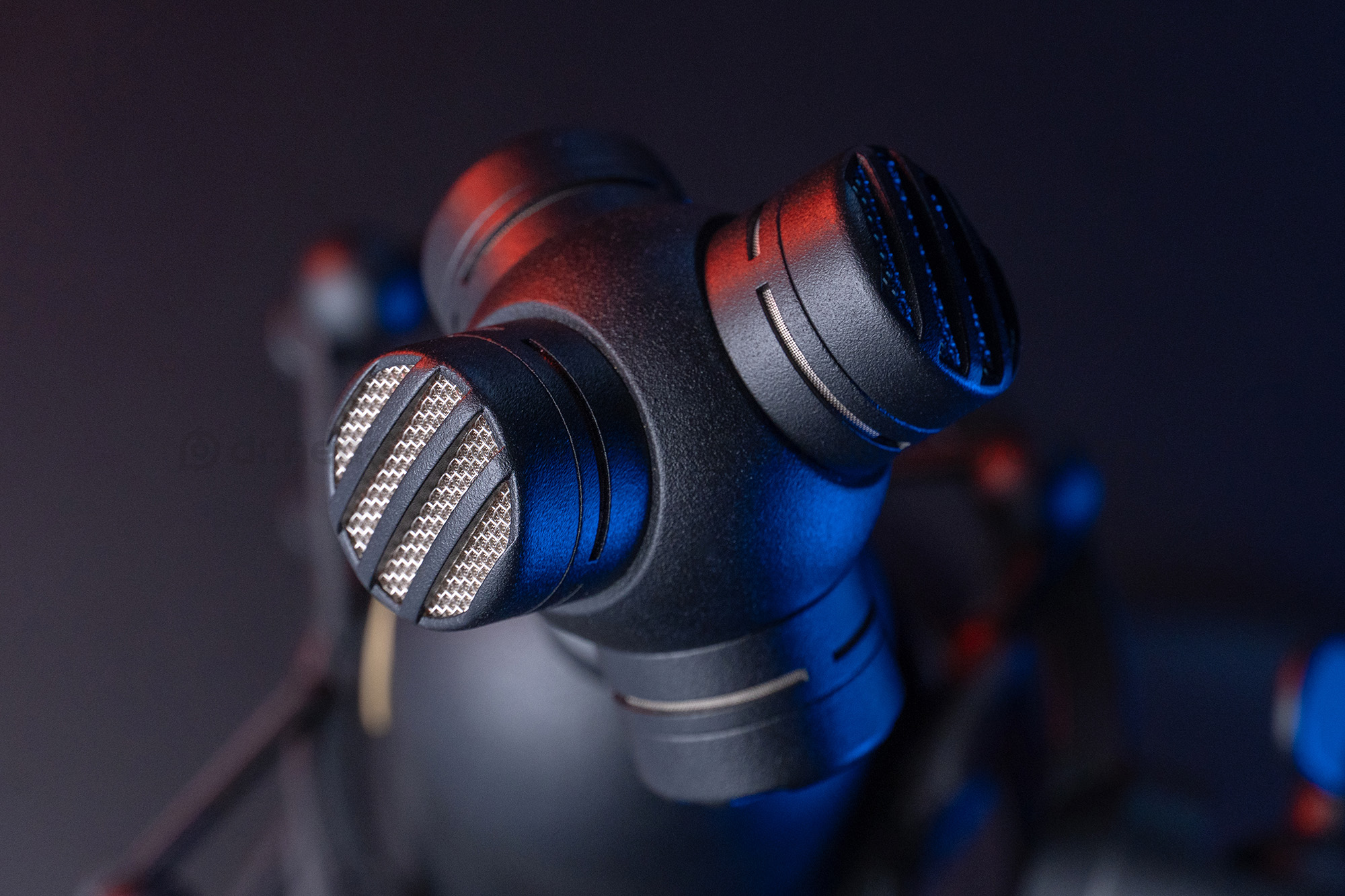

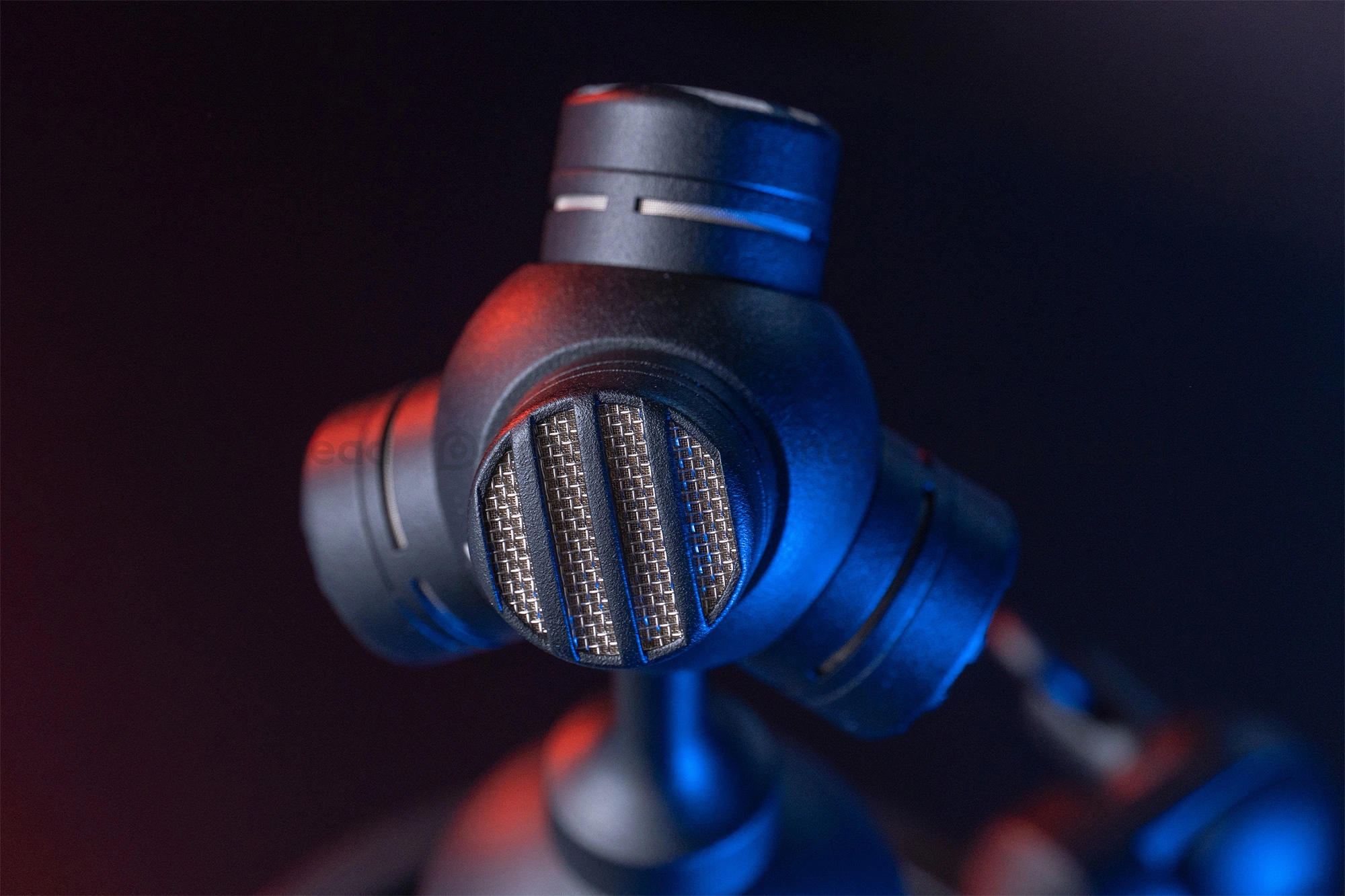

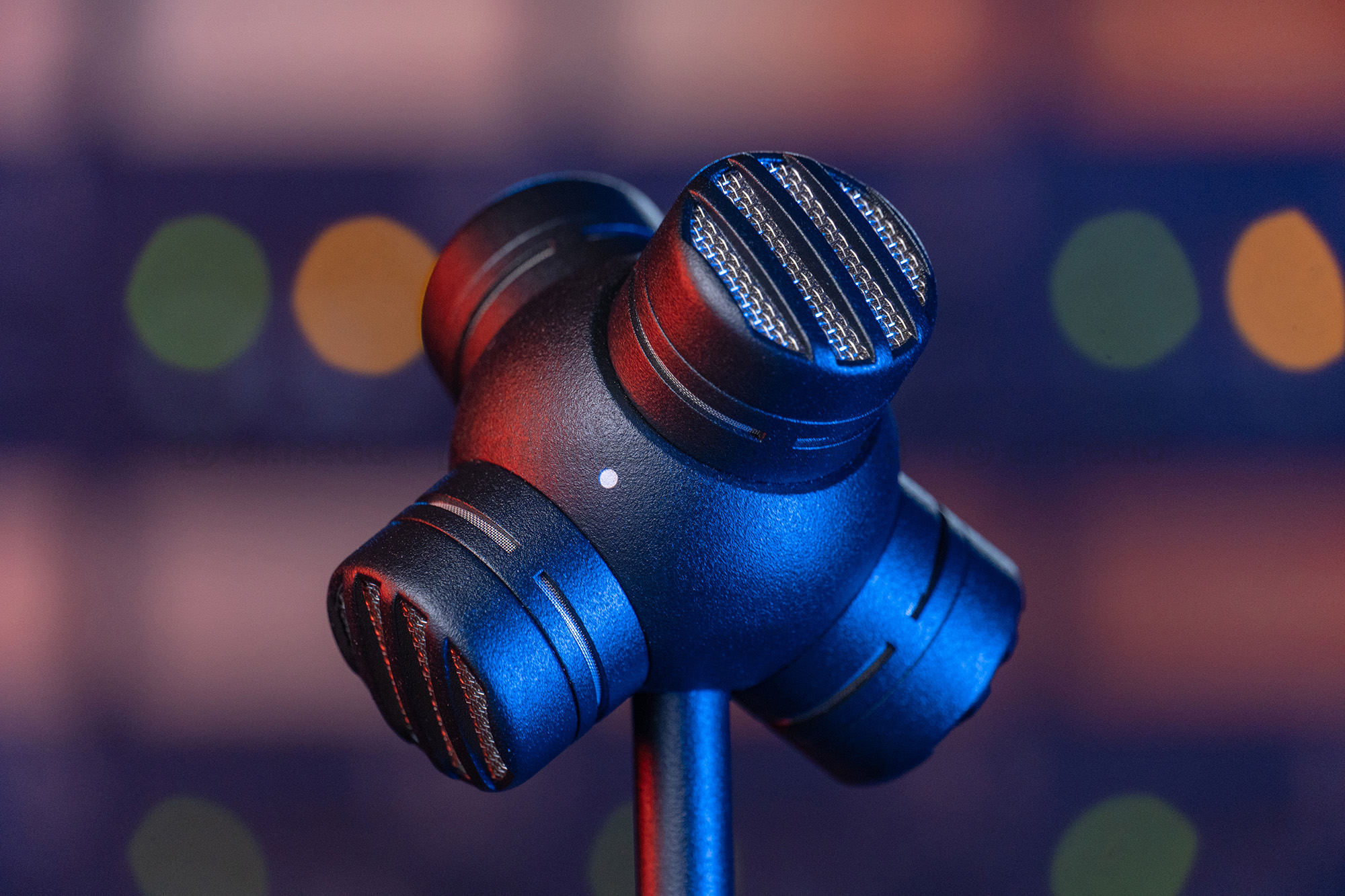

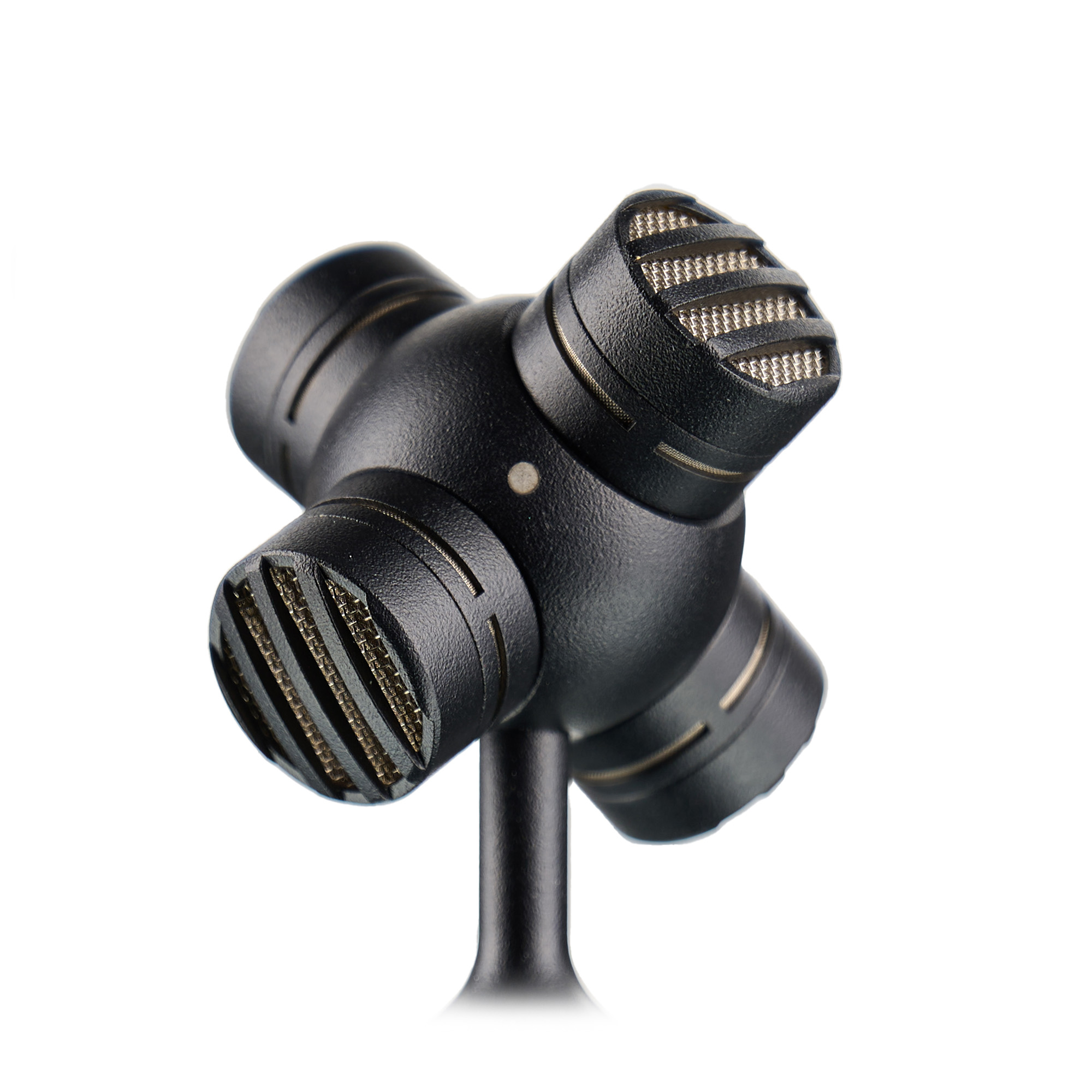

  • Four capsules, directed relative to each other;
  • Designed to work indoors.

013 Ambisonic is the first studio microphone from SOYUZ designed for recording spatial sound. It is equipped with four 013 series capsules, slightly modified: we reduced the membrane height to place the capsules as close to each other as possible.

User Plugin Package

In collaboration with Audio Brewers, we have developed a set of plugins for transcoding and decoding 013 Ambisonic, compatible with major DAWs. The transcoder perfectly matches the capsules, specifications, and dimensions of the new microphone. It instantly converts the signal into an ambisonic format with the additional ability to monitor in real time. The decoder makes it easy to shape recordings. Simple and intuitive control tools, such as "rotation" and "focusing," can shift the sound in any direction, highlight key elements, and explore new perspectives.

Why do you need 013 Ambisonic?

013 Ambisonic allows you to record multiple instruments at once in a live format – for example, a small orchestra or acoustic band;

This innovation will serve excellently as a room microphone when recording drum kits or studio live sessions;

013 Ambisonic will be useful in filmmaking: it will record background sounds perfectly, and a special plugin will recreate and convey the sound in full;

013 Ambisonic will be useful in recording sound for VR and video games. Detailed full-dimensional sound will perfectly convey the atmosphere and allow you to immerse yourself fully into a new, unexplored world;

The microphone delicately emphasizes all the acoustics of the room where the recording takes place. And thanks to the plugin, you can place accents and arrange the sound according to your preference.

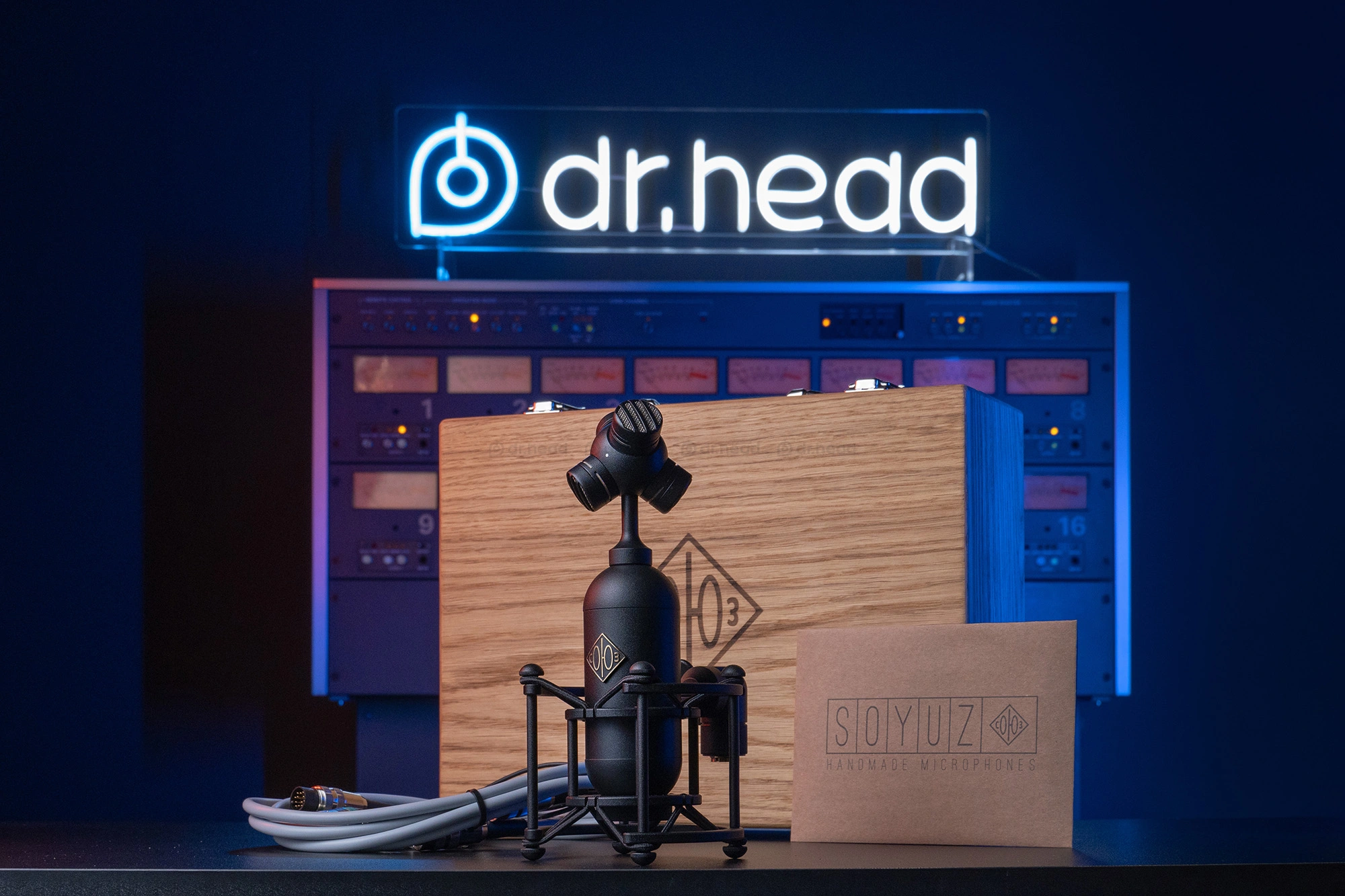

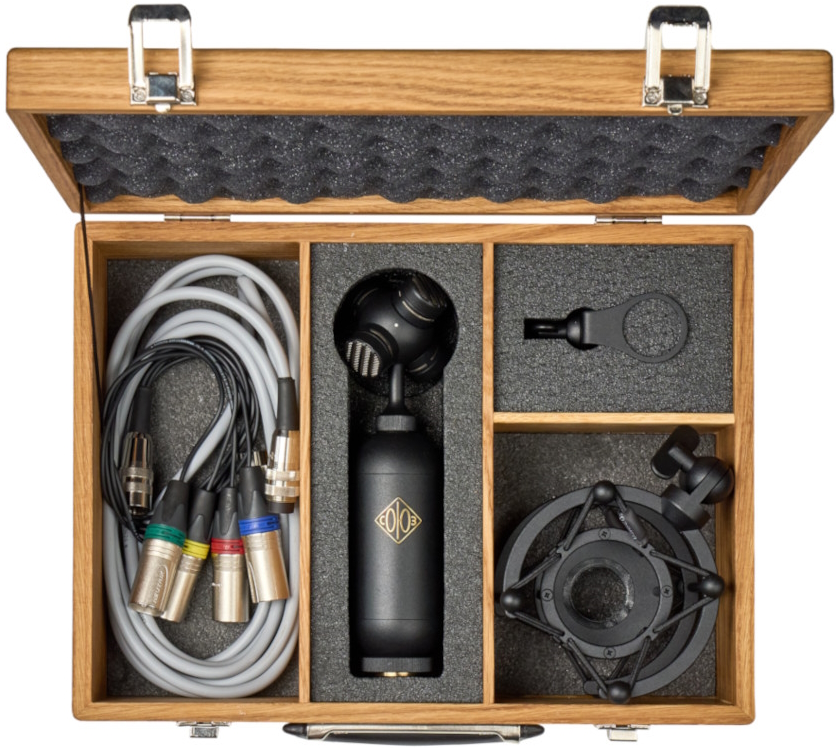

Package contents:

  • Microphone;

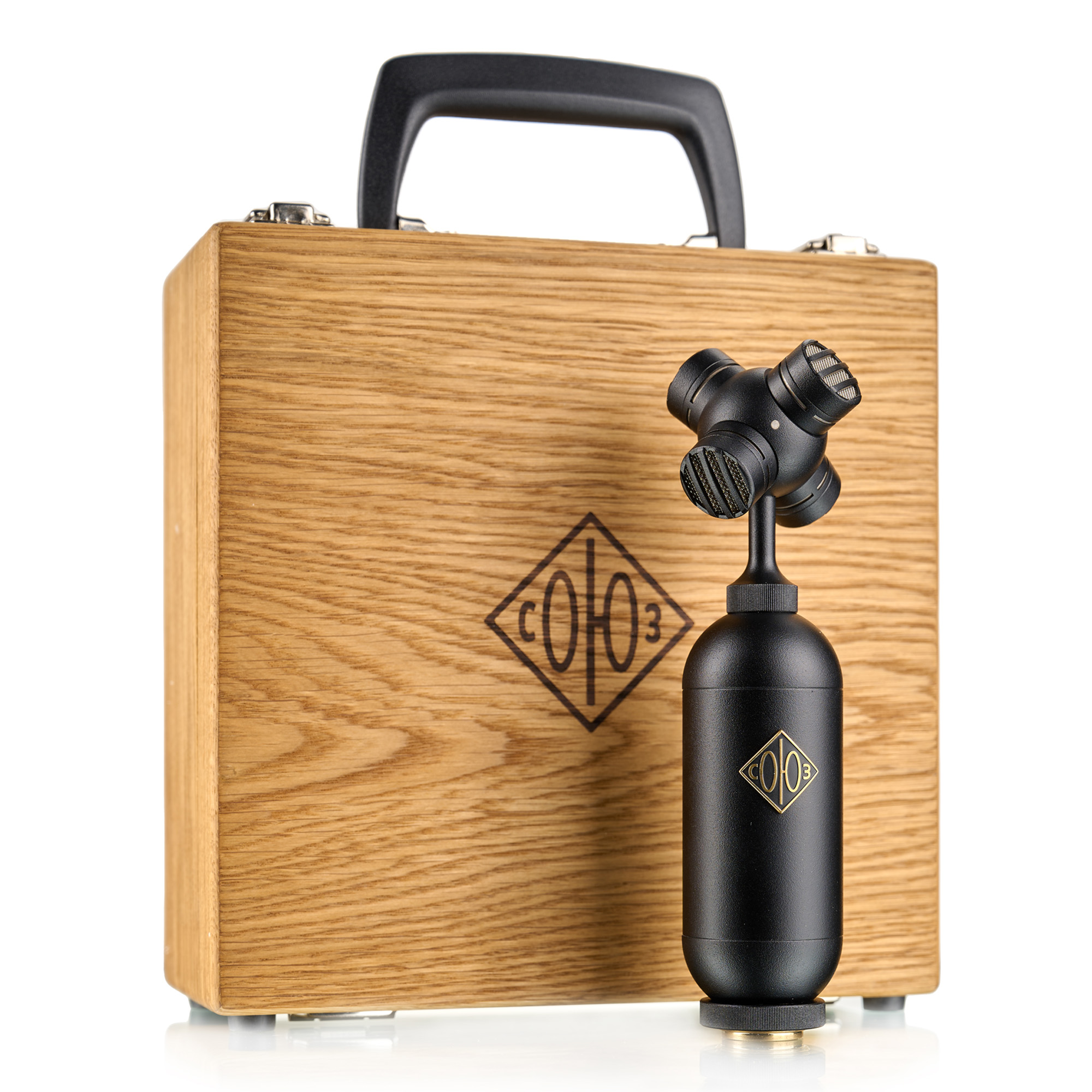

  • Wooden case;
  • Hard mount;

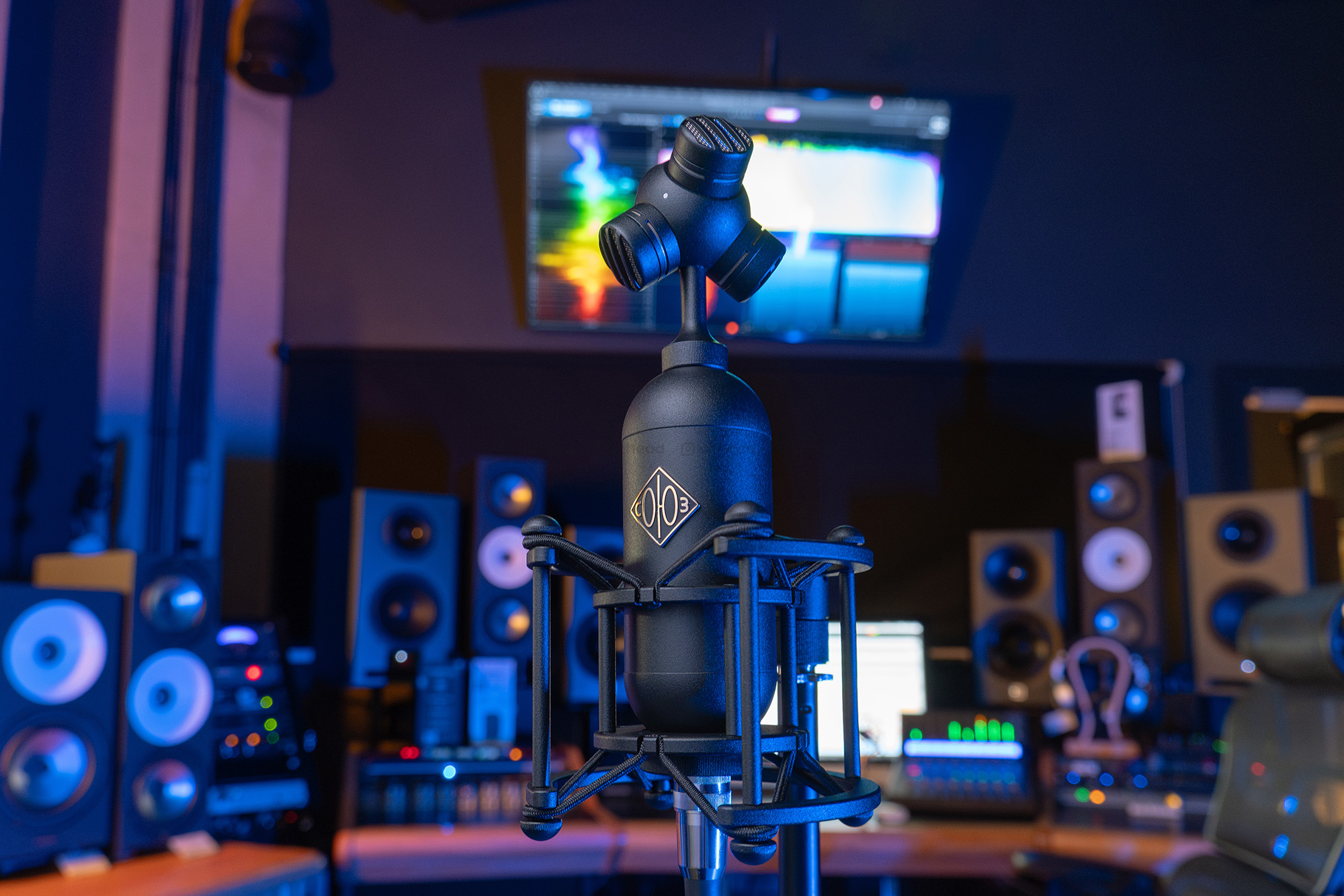

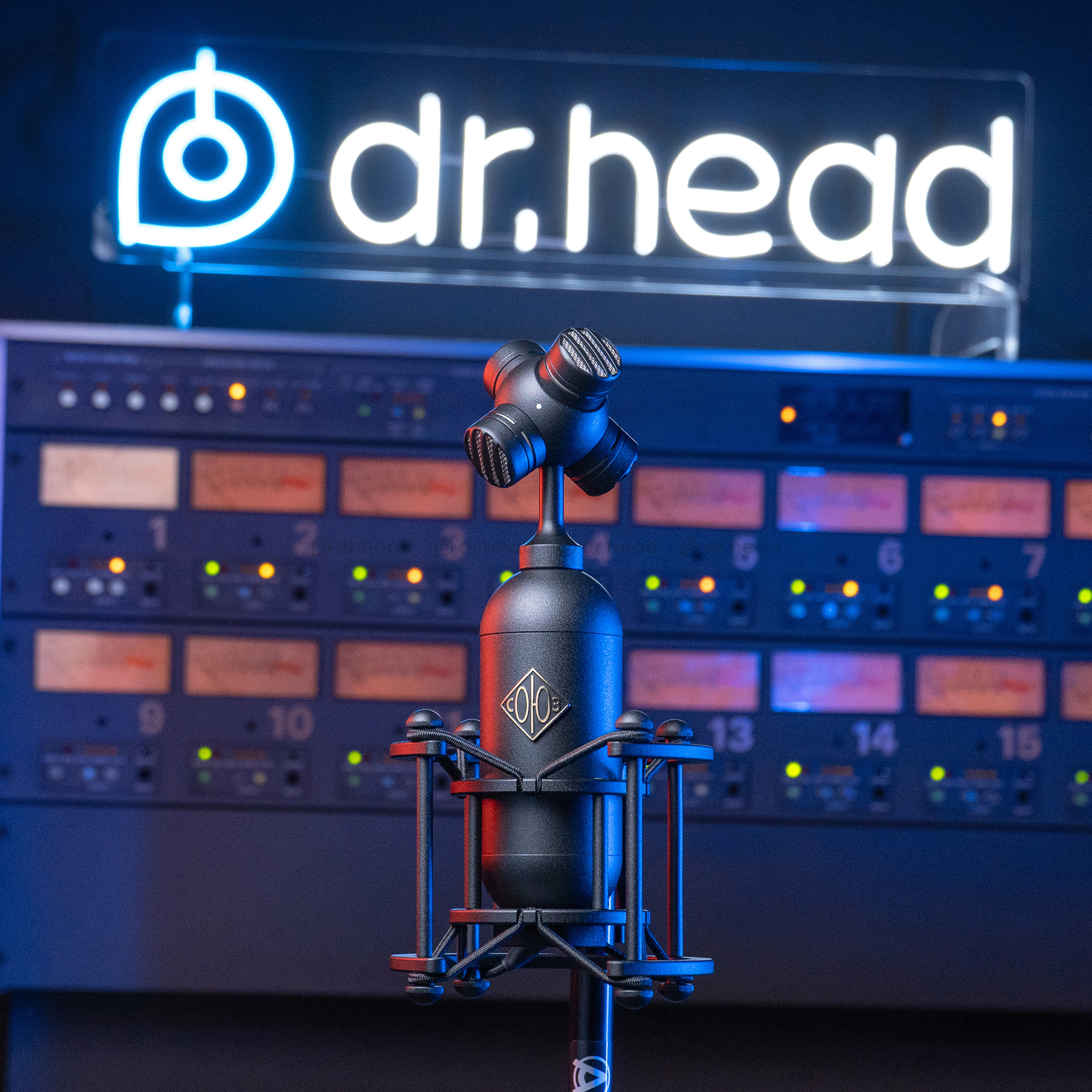

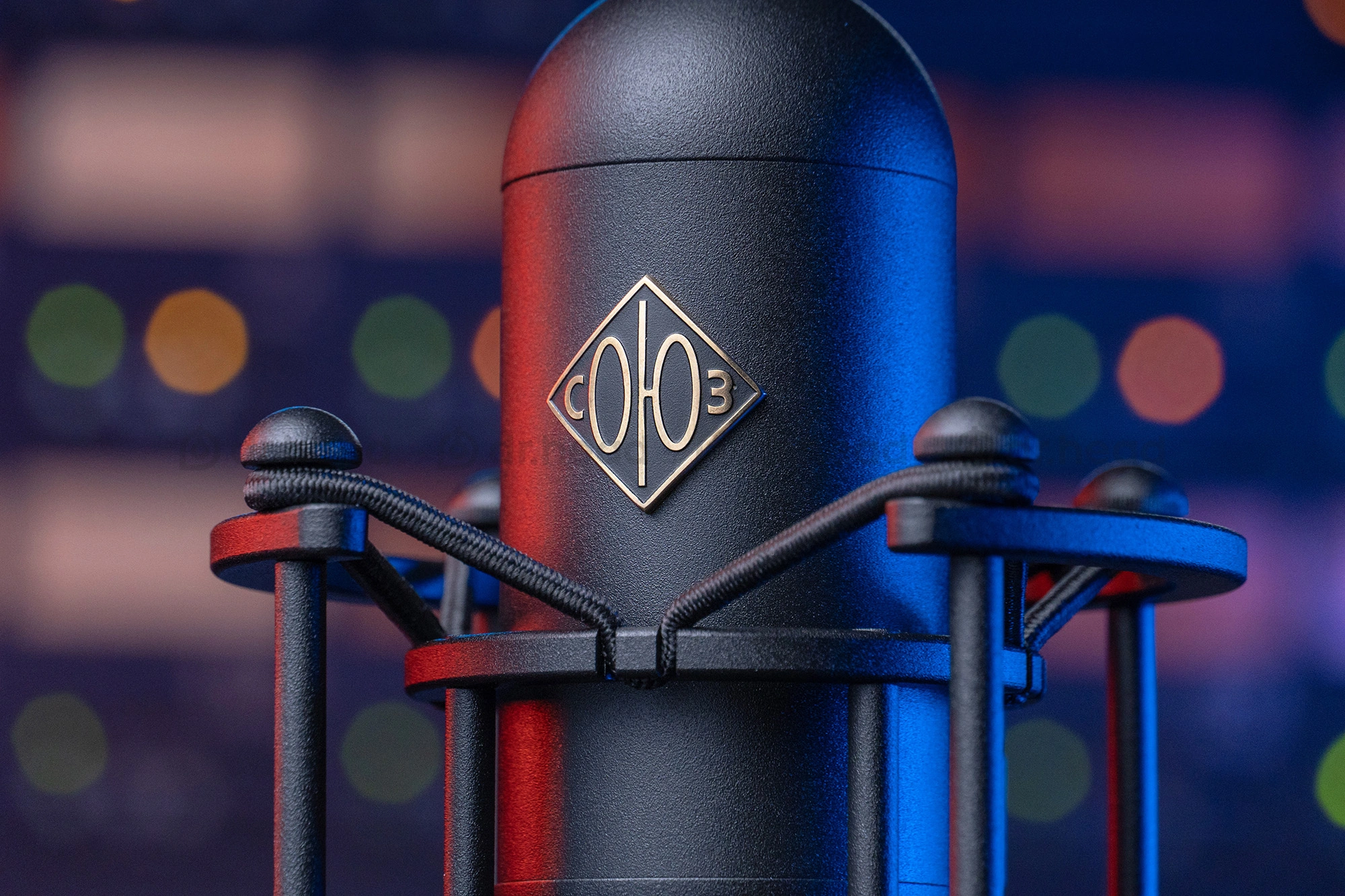

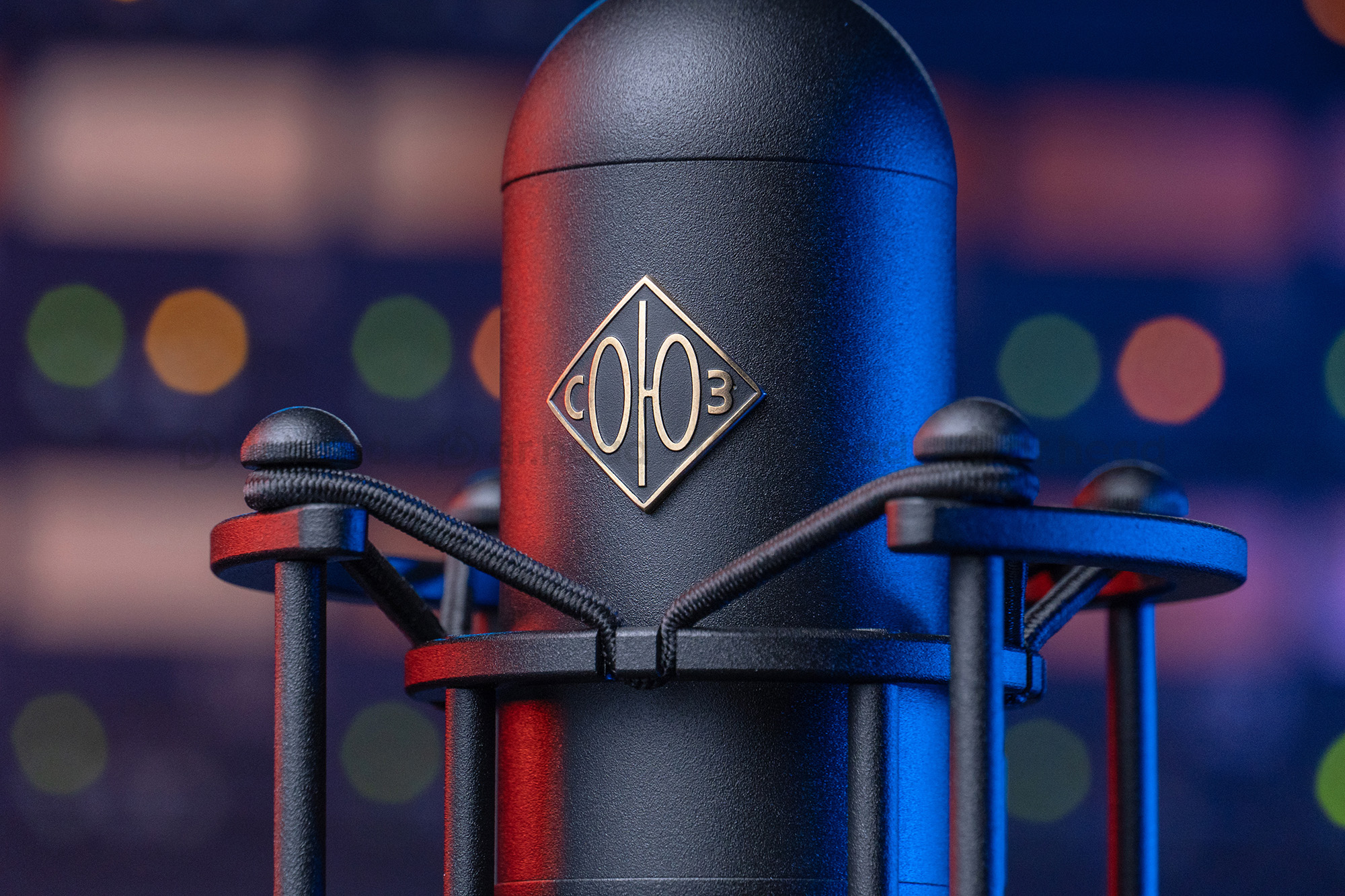

  • Suspension holder;
  • Breakout cable;
  • Extension cable - 3m;
  • Licensed plugin package;
  • Documentation.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Audio signal format
mono
Color
Connectors
XLR
Diaphragm size
large diaphragm

These microphones are very sensitive. They require an external power supply and are hung up to ceiling

Словарь терминов
Free-field sensitivity without load (1 kHz), mV/Pa
20
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
150
Max SPL, dB
143
Microphone polar pattern

Omnidirectional, cardioid and supercardioid. It determines the sensitivity of the microphone to sound relative to the direction or angle, i.e. shows how well the microphone "hears" sound from different sides

Glossary of terms
cardioid

The polar pattern of the microphone that picks up the sound in front of it.

Словарь терминов
Microphone type
condenser

A metal membrane consisting of plates (a condenser) oscillates under the influence of sound air flows converting a sound wave into an electromagnetic one.

Словарь терминов
Phantom power

Necessary for condenser microphones

Glossary of terms
yes

Simultaneous transmission of DC power and information signals over one wire.

Словарь терминов
The highest microphone frequency, kHz
20
The lowest microphone frequency, Hz
20
Height, mm
207
Width, mm
32
Weight, g
57
Country of origin

The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

Glossary of terms
Russia
Service life, months
24
Warranty, months
12
