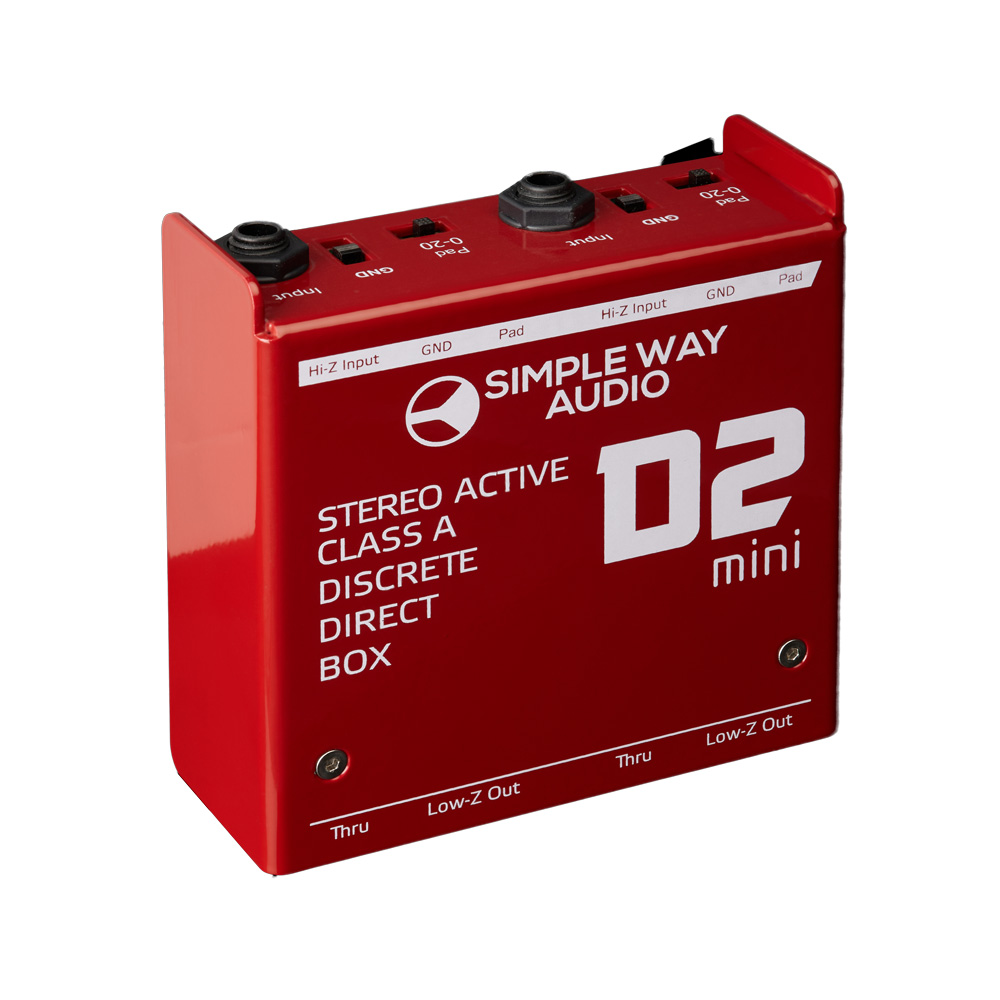

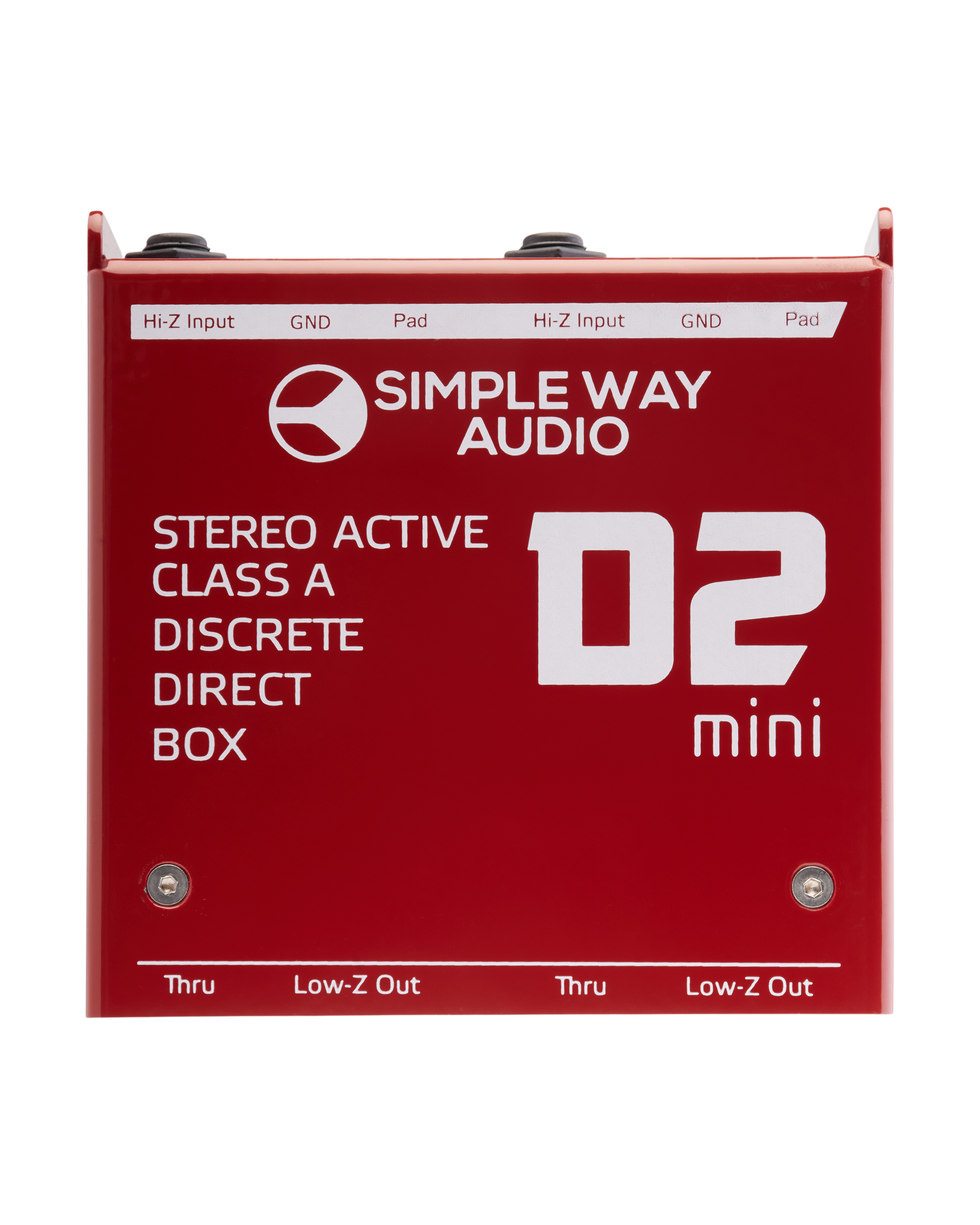

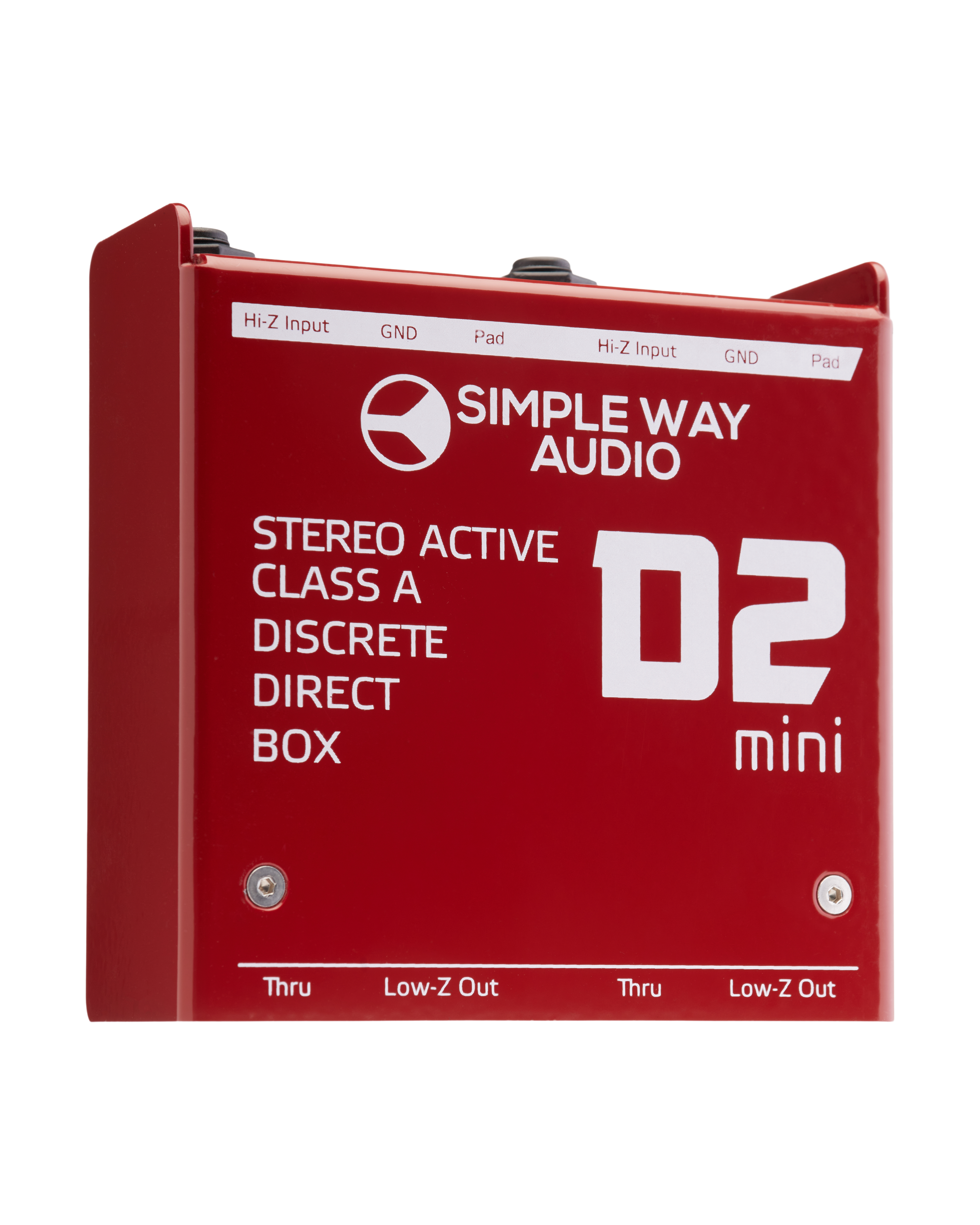

Simpleway Audio D2 Mini is designed to amplify the signal of an unbalanced musical instrument and convert it into a balanced signal for transmission to an amplifier or mixer.
Features:
- Analog circuit made with discrete semiconductor devices operating in class A, without using common negative feedback "OOOS";
- Input impedance - not less than 4.7 MOhm;
- Input impedance with PAD function on - 47 kOhm;
- PAD attenuation - 20dB;
- Unweighted noise level (10-20 kHz) - less than -110 dBu;
- Nonlinear distortions at input level -20 dBu (guitar) - less than 0.001%;
- Nonlinear distortions at input level 0 dBu, 1 kHz - less than 0.0008% (typical value 0.001%);
- Nonlinear distortions at input level 0 dBu, 100 Hz - less than 0.0008% (typical value 0.001%);
- Maximum input level (distortion less than 3%) - more than +14 dBu; 4.35 volts (RMS); 12.32 volts (p-p);
- Maximum input level with PAD on (distortion less than 3%) - more than +34 dBu;
- Output impedance of balanced output (XLR) - less than 33 Ohm.
Unlike other DI boxes, Simpleway Audio operates in class A without using any operational amplifiers and common negative feedback. Only analog circuits and good old transistors. This truly eliminates unwanted distortions, gives clarity to the sound, and opens up new horizons of dynamic range. The discrete amplification module is made from high-quality sound components using 0.5% precision resistors and redesigned to meet the needs of everyday heavy workloads.
Simpleway Audio provides a color-coded range of its devices:
- Black J series DI boxes - for passive instruments "without internal electronics";
- Red D series DI boxes - for active instruments with signal amplifiers in the instrument.
All DI boxes are equipped with Simple Way Ground Safety technology. The essence is simple: if there is a voltage passing through the DI box chassis capable of harming a person, the DI box will light up a LED informing technical personnel on stage and sound engineers about grounding issues. This could really save someone's life!
Package includes:
- DI box;
- Documentation.
