Headphone amplifier with DAC
Shanling UA5

Product code: 125538
no reviews
AED 999
Delivery from the supplier's remote warehouse.
We will contact you within 48 hours to clarify the delivery time.

Description

Reviews (0)

Description

Shanling UA5 - digital-to-analog conversion using two ES9038Q2M DAC chips.

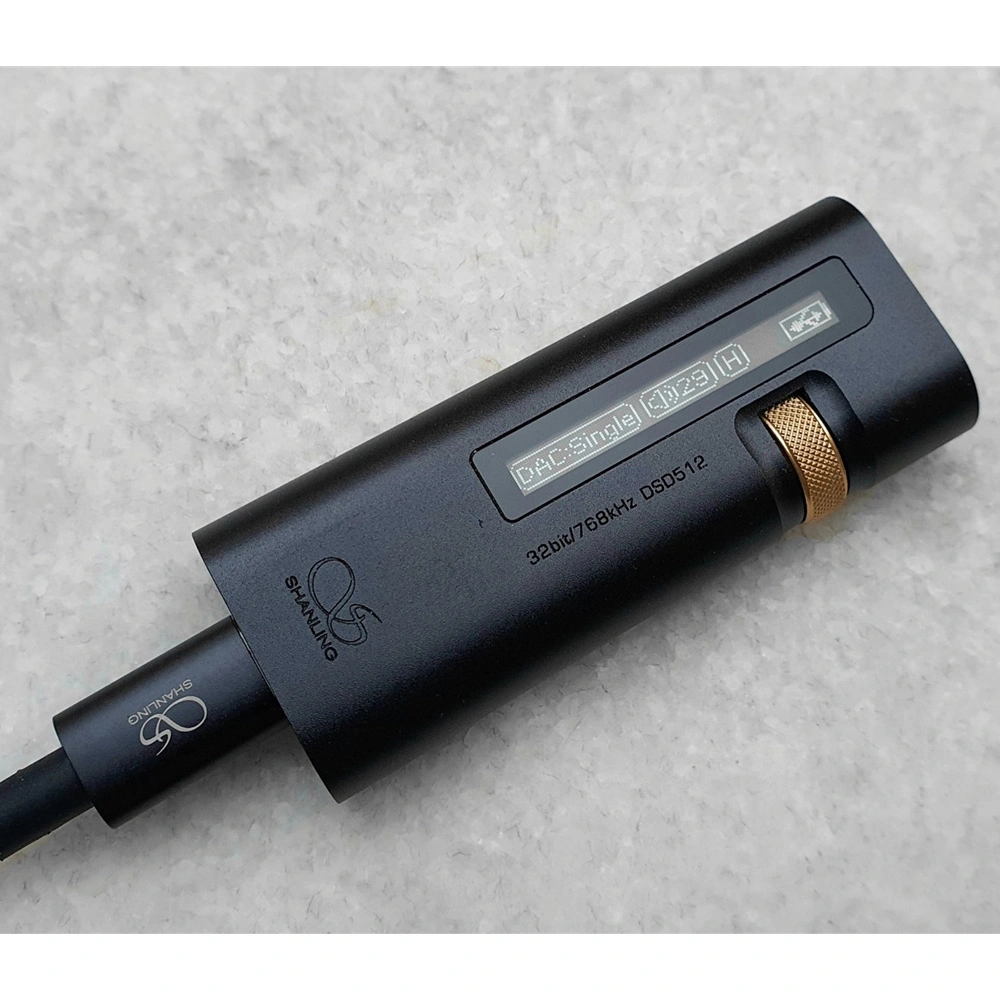

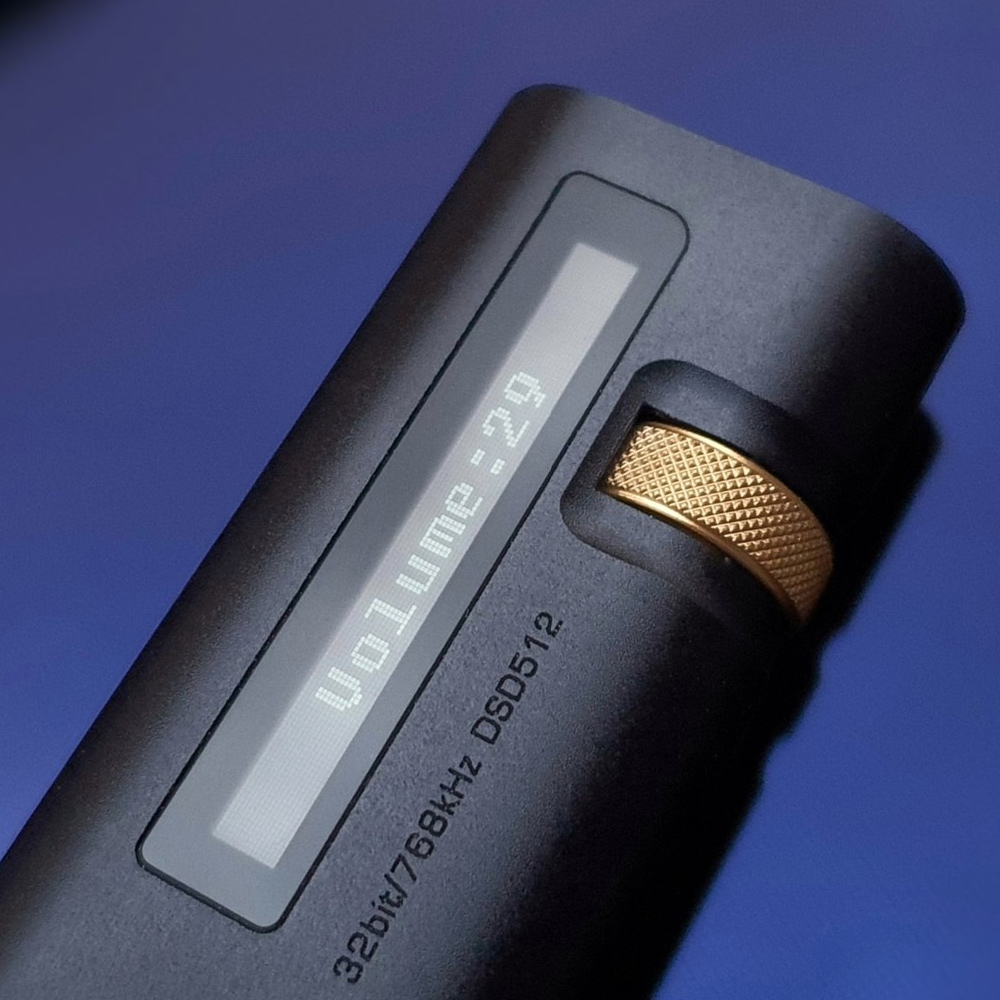

The UA5 takes portable digital-to-analog converters to a whole new level. The additional wheel provides independent volume control, while the monochrome OLED display gives access to all additional settings. The specially selected 4.4mm balanced connector ensures reliable connection, and the dedicated power mode ensures stable performance from the hybrid battery.

Hybrid Battery Mode

Upon turning on, some circuits of the UA5 will still operate from the USB power source, such as the USB controller and FPGA matrix. However, crucial parts like the DAC and amplifier will use cleaner power from the built-in battery. This ensures stable analog performance and low noise levels, regardless of the quality of the USB power of the connected device.

The reduced power consumption allows compatibility with certain devices that usually can't provide sufficient power for portable USB DACs. The UA5 can operate in standard mode with USB power, where the battery is fully disconnected and all UA5 circuits run from USB. The UA5 automatically switches to this mode when the battery is too low.

Dedicated Headphone Amplifier

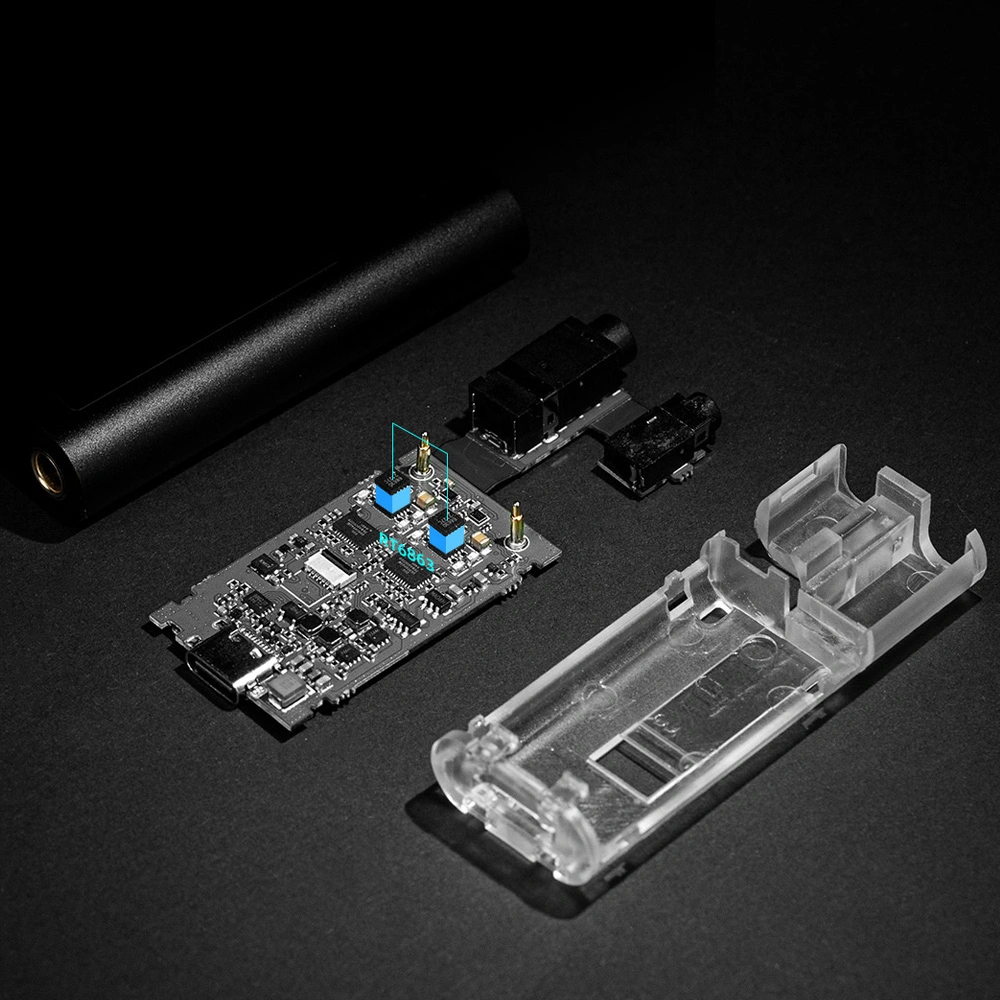

Two Ricore RT6863 amplifiers complement the ESS DAC chips, creating a fully balanced UA5 circuit and providing output power up to 211mW for your headphones.

High-performance ESS DAC

Thanks to its proprietary FPGA system and high-precision quartz oscillator, the UA5 can handle all data with increased accuracy and precision, supporting PCM 32-bit/768kHz and DSD512 formats.

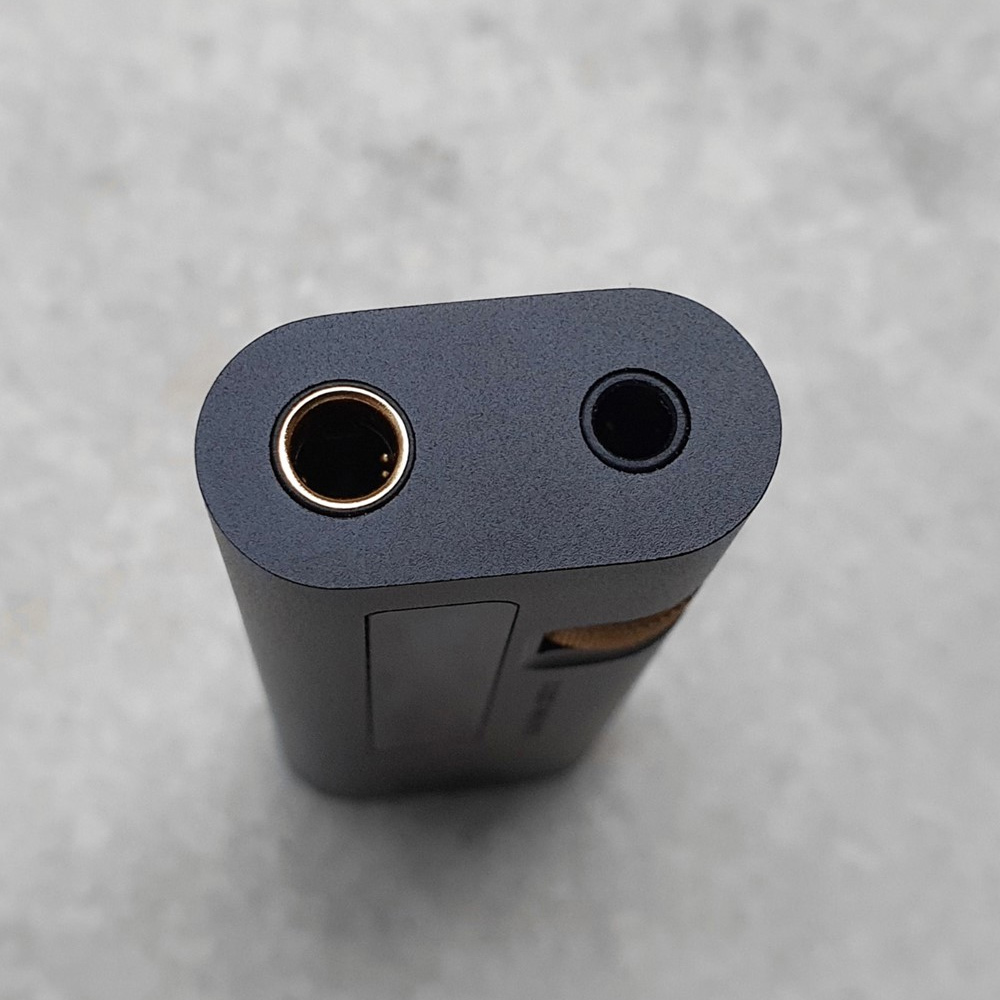

3.5mm, 4.4mm, and Coaxial Digital Outputs

Connect using the 3.5mm jack for regular headphones or the balanced 4.4mm output to fully unleash the potential of the UA5. The UA5 can also be used as a USB to coaxial SPDIF converter, providing a high-quality connection between smartphones and home systems with SPDIF input.

Ultra-low Noise Level

The Shanling engineers believe that an extremely "black background" with zero unwanted noise is crucial for proper high-quality sound. The UA5 is designed strictly according to this approach.

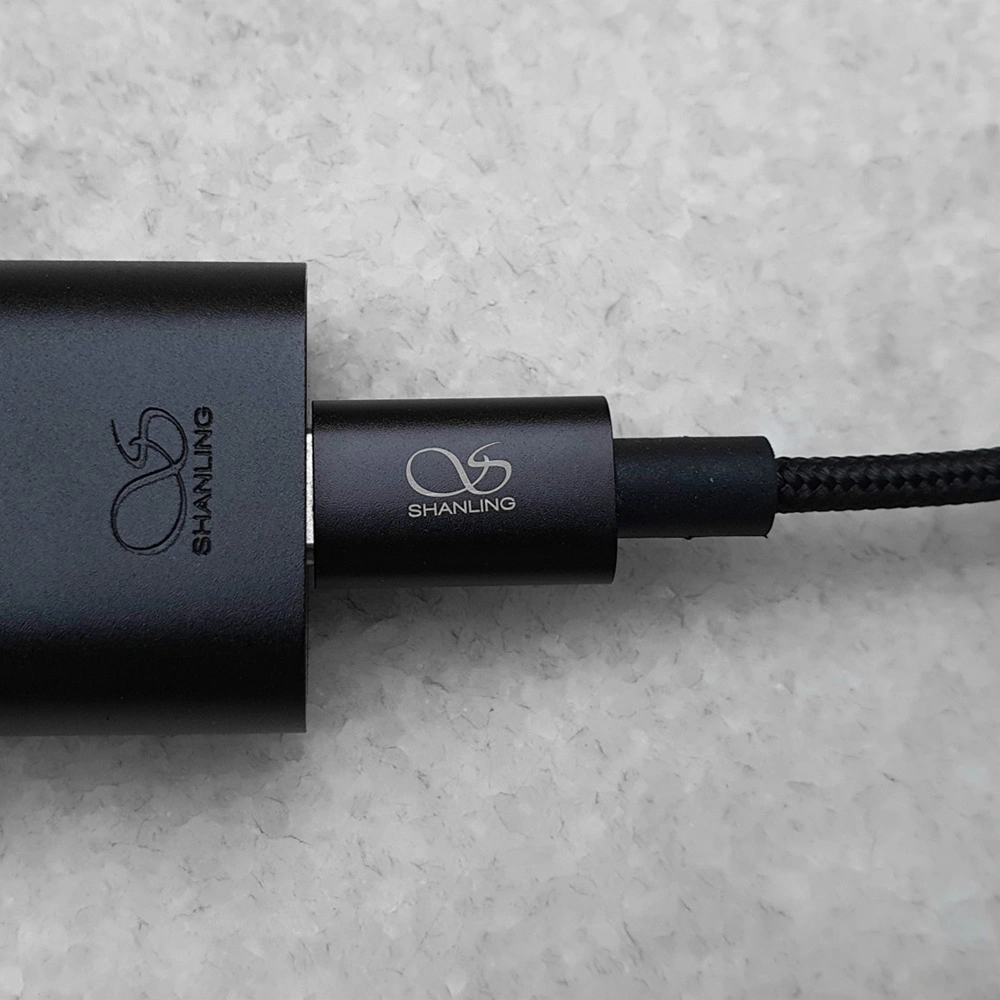

Choice of Cable

The UA5 comes with a high-quality copper USB-C to USB-A cable. However, thanks to the standard USB cable connector, it can be switched to a wide range of cables, differing in construction or length, to perfectly match your Android phone, computer, or even iOS device.

Features:

  • Two ESS ES9038Q2M DACs
  • Balanced amplification with Ricore RT6863
  • 7 selectable digital filters
  • Up to 6 hours of battery life
  • 3.5mm output power: 137mW at 32Ω
  • Balanced output power: 211mW at 32Ω
  • 3.5mm TRRS coaxial output 24 bit/192kHz
  • Dedicated volume control
  • UAC 2.0/UAC 1.0 support
  • Monochrome OLED display

Package includes:

  • Portable DAC
  • USB-C to USB-C OTG cable
  • USB-C to USB-A adapter
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Headphone output
3.5mm jack, 4.4mm jack
Output connectors
Coaxial
Power output

This is the useful power developed by the amplifier in the load resistance. Amplifiers are usually characterized by the highest power that can be obtained at the output, provided that the distortion does not exceed the specified permissible value. This power is called the output power of the amplifier.

Glossary of terms
0.211
DAC chip

The chip used for digital-to-analog conversion

Glossary of terms
ES9038Q2M
DAC bit depth, bits
32
Internal DAC
yes
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

Glossary of terms
768
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
121
Powered by USB
yes
Connecting to a computer via USB
yes
DSD support

Direct Stream Digital is a single bit audio format developed by Sony and Philips. It uses density-pulse modulation coding (a kind of sigma-delta modulation) and is used to store records on SACD

Glossary of terms
yes
Built-in battery
yes
The lowest frequency, Hz
20
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
50
Circuit design
operational
Color
Form factor
portable
Input connectors
USB-C
Material
plastic
Playback via USB
yes

Playing music files via USB

Depth, mm
68
Height, mm
13
Width, mm
27
Weight, g
29
Service life, months
24
Warranty, months
12
