Shanling M30 HPA is a versatile all-in-one device: a modular high-performance Hi-Fi DAC/amplifier combined with a music player/streamer with its own power supply. The HPA version features an amplifier module with increased output power.
While theoretically it can be used as a portable device, it was designed as a true stationary component. The M30 is quite heavy and large, equipped with inputs and outputs suitable for home use.
The modular design allows for future upgrades and customization of the device. The player supports a variety of streaming services, including Tidal, Spotify, Qobuz, and others.
Enjoy the best of both worlds
Shanling M30 features a hybrid architecture: both tube and transistor technologies are used in the player. As for the semiconductor signal, the M30 is equipped with 2 ADI ADA4610-2 amplification modules and 4 Ti BUF634 modules, while the tube cascade in the M30 includes 2 Korg Nature 6P1 bulbs. The M30 has three output modes: direct, transport, and tube.
Fully modular design
Shanling engineers have developed a unique modular construction. As a result, the M30 can be upgraded and reconfigured over time.
Dual AKM DACs
Shanling M30 is equipped with two AKM AK4497 DAC chips and two Ti OPA1662 op-amps for smooth signal decoding and rendering. The AKM AK4497 is a widely recognized chip used in flagship stationary Hi-Fi components. It supports high-resolution signal decoding with ultra-low distortions and an ultra-clean background. The player can handle PCM up to 32 bit/384 kHz and has native support for DSD512. It also supports DSD upsampling and MQA decoding.
Multiple input/output modes

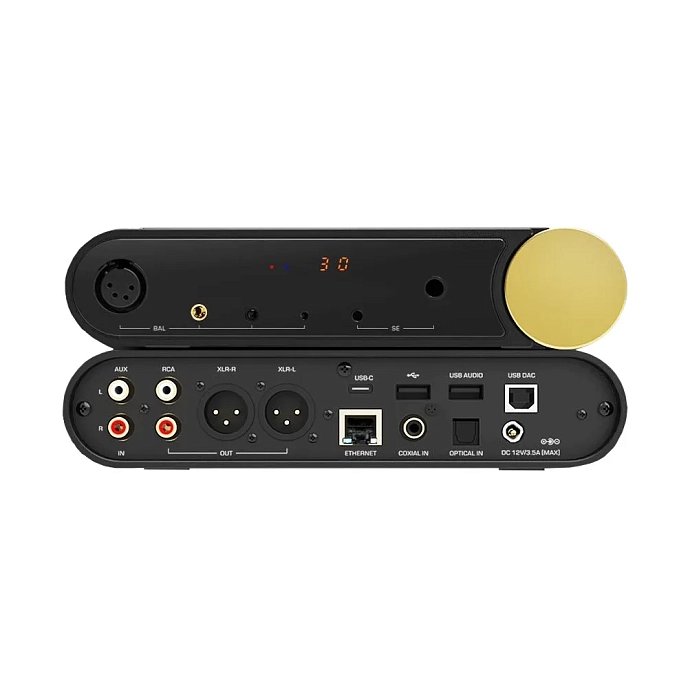

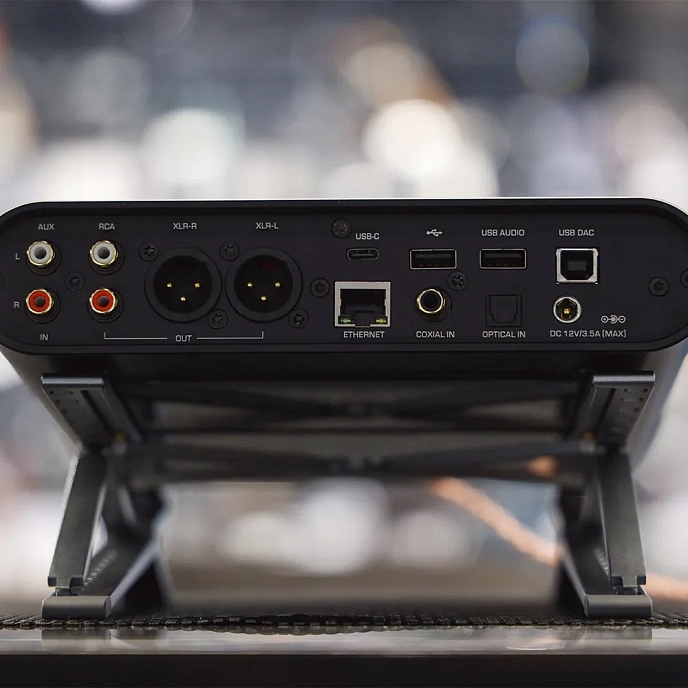

Shanling M30 comes with a range of input/output options. It can accept analog signals via RCA, and digital signals via coaxial, optical, 2x USB-A, USB-B, USB-C, and Ethernet inputs. For headphone output, the M30 supports 4-pole XLR, 4.4mm, 2.5mm, 3.5mm PRO balanced output, and unbalanced 6.35mm/3.5mm output. Shanling M30 is ready for any usage scenario.
Wireless HD connectivity support
Shanling M30 supports high-resolution wireless connectivity using dual-band Wi-Fi (2.4/5GHz) and high-resolution Bluetooth codecs such as LDAC, LHDC, aptX HD, among others. Enjoy flawless high-resolution music through wireless connection with the M30.
Features:

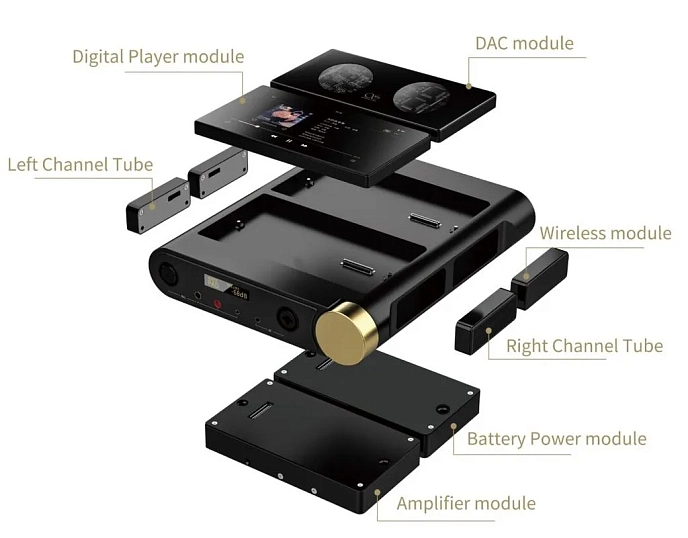

- Modular design: 5 interchangeable modules;

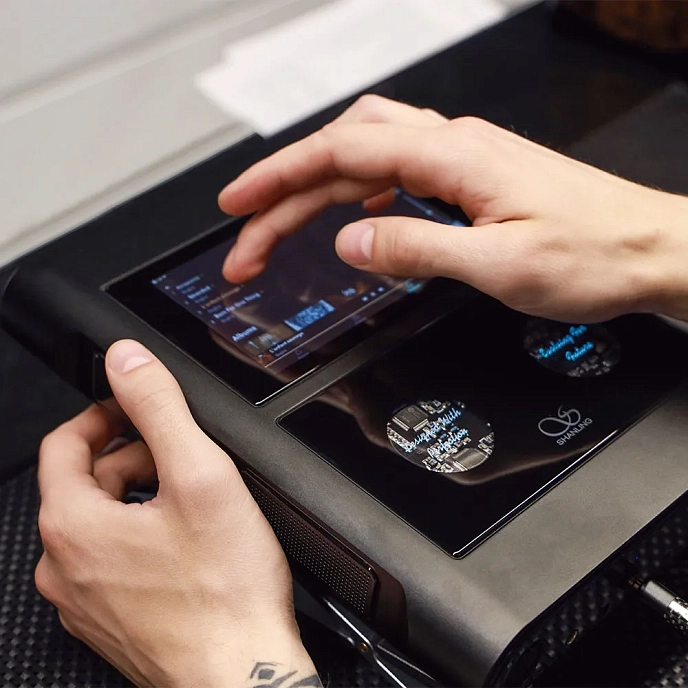

- Player module: 6-inch touchscreen with 1920x1080 resolution;
- Processor: 8-core Qualcomm Snapdragon 430;
- Memory: 4GB RAM + 32GB ROM + microSD card slot;
- Streaming services: Spotify/Tidal/Qobuz/Deezer/QQ Music;
- DAC module: 2x AKM AK4497 + 2x Ti OPA1662;
- Amplifier module: 2x ADI ADA4610-2 + 4x Ti BUF634;
- Power module: 16500mAh;
- Tube output module: 2x Korg Nutube 6P1;
- Output power in balanced mode: 11V/3.8W at 32 ohms, 13V/560mW at 300 ohms;
- Output power in unbalanced mode: 6V/1125mW at 32 ohms, 7V/165mW at 300 ohms;
- Output mode: direct/transistor/tube;
- Headphone outputs: balanced 4-pole XLR, 4.4mm, 2.5mm, 3.5 PRO/unbalanced 6.35mm, 3.5mm;
- Analog connection: RCA and XLR output, RCA input;
- Digital inputs: coaxial/optical/2x USB-A/USB-B/USB-C/LAN;
- USB DAC input: XMOS XUF208, up to PCM 32 bit/768 kHz and DSD512;
- Wireless connectivity: Wi-Fi 2.4/5G/Bluetooth;
- Wi-Fi connection: DLNA/AirPlay/NAS/file transfer;
- Bluetooth receiver: LDAC/SBC;
- Bluetooth transmitter: LDAC/LHDC/aptX HD/aptX/SBC;
- Other features: over-the-air updates/DSD upsampling/MQA.
Package includes:
- Player;
- Power supply;
- Storage case;
- Tools for module replacement;
- Documentation.
