Product Description

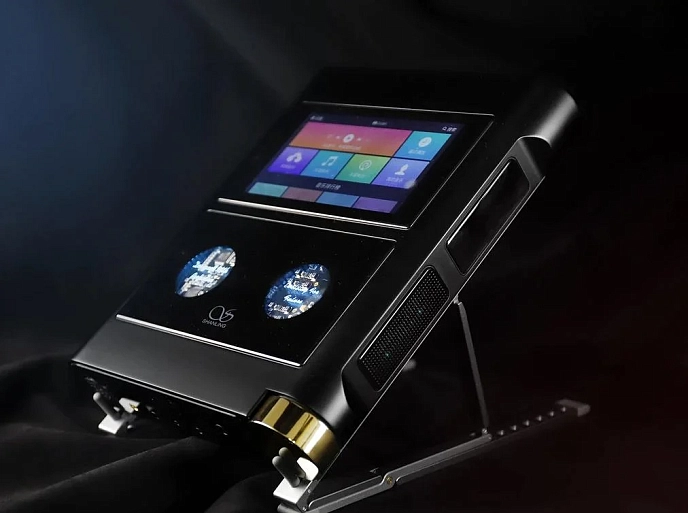

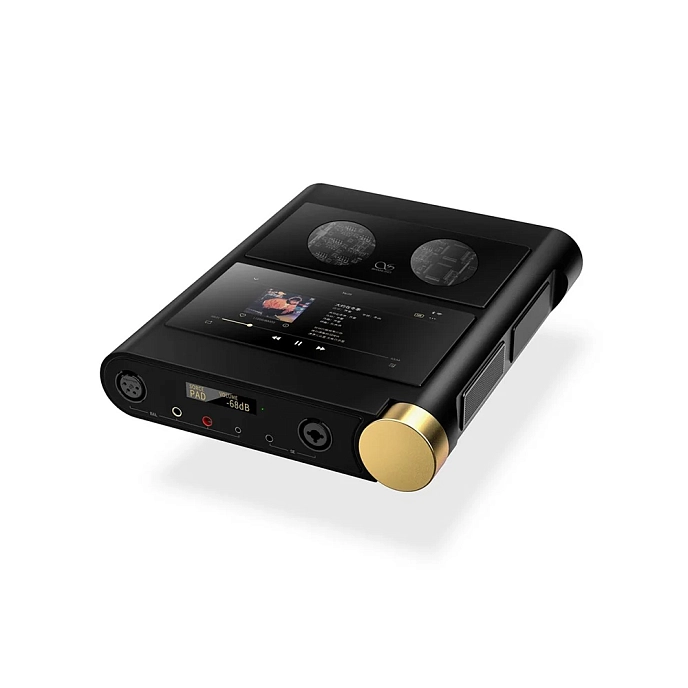

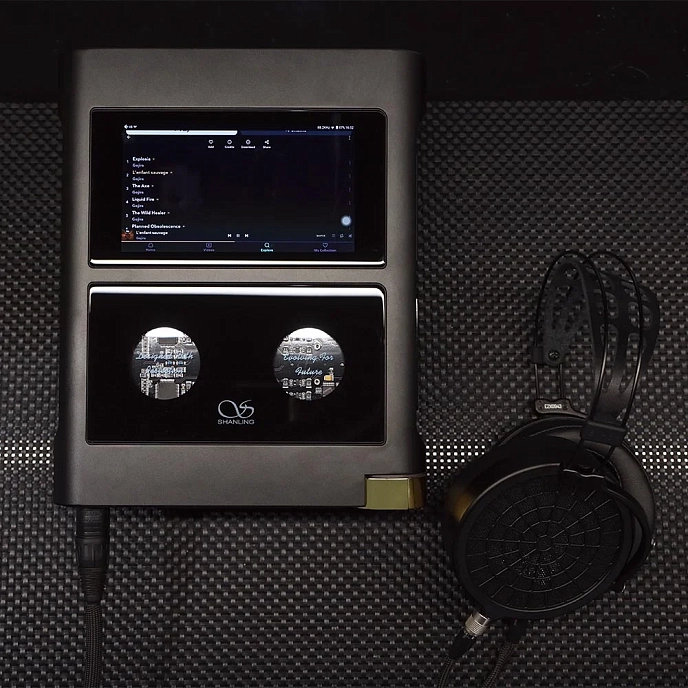

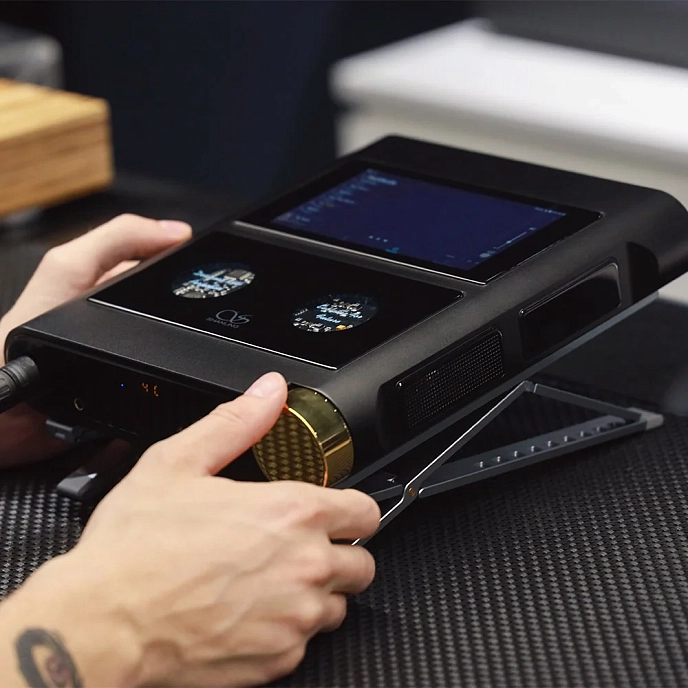

Theoretically, it can be used as a portable device, but it was designed as a true stationary component. The M30 is quite heavy and large, equipped with inputs and outputs suitable for home use.
The modular design allows for future upgrades and customization of the device. The player supports multiple streaming services, including Tidal, Spotify, Qobuz, and others.
Enjoy the best of both worlds
The Shanling M30 has a hybrid architecture, using both vacuum tube and transistor technologies in the player. As for semiconductor signal, the M30 is equipped with 2 ADI ADA4610-2 amplification modules and 4 Ti BUF634 modules, while the tube cascade of the M30 is equipped with 2 Korg Nature 6P1 tubes. The M30 has three output modes: direct, transport, and tube.
Fully modular design

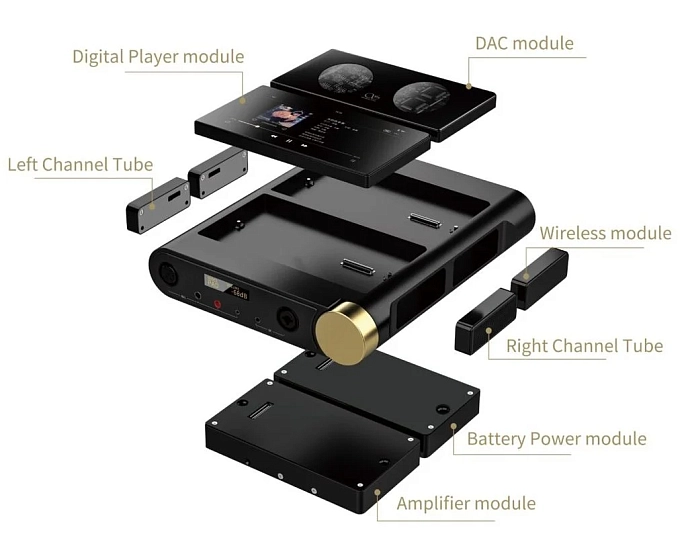

Shanling engineers have developed a unique modular construction. As a result, the M30 can be upgraded and reconfigured over time.
Dual AKM DACs
The Shanling M30 features two AKM AK4497 DAC chips and two Ti OPA1662 operational amplifiers for smooth signal decoding and rendering. The AKM AK4497 is a widely known chip used in flagship stationary Hi-Fi components, supporting high-resolution signal decoding with ultra-low distortion and a clean background. The player can process PCM up to 32-bit/384 kHz and has native support for DSD512. It also supports DSD upsampling and MQA decoding.
Multiple input/output modes

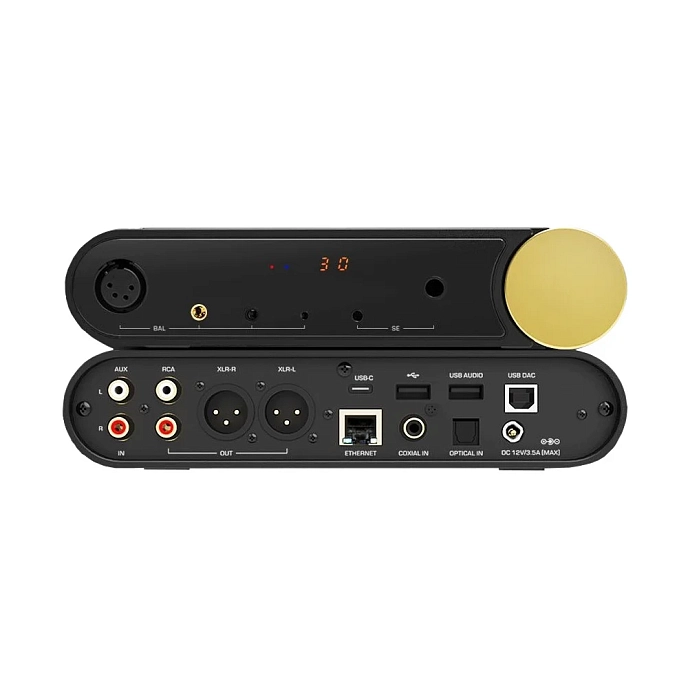

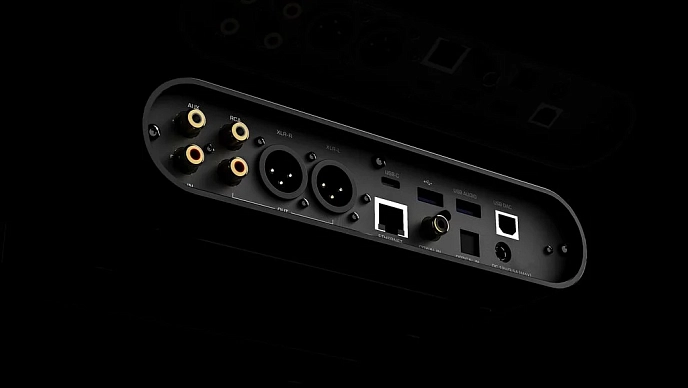

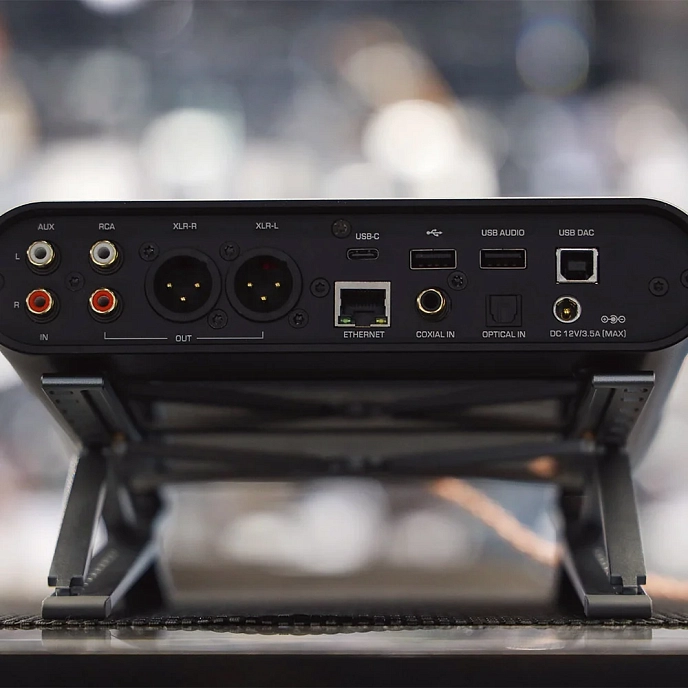

The Shanling M30 comes with a variety of input/output options. It can accept analog signals through RCA, and digital signals through coaxial, optical, 2x USB-A, USB-B, USB-C, and Ethernet inputs. For headphone output, the Shanling M30 supports 4-pin XLR, 4.4 mm, 2.5 mm, 3.5 mm PRO balanced outputs, and unbalanced 6.35 mm/3.5 mm output. The Shanling M30 is ready for any usage scenario.
HD wireless connectivity support
The Shanling M30 supports high-resolution wireless connectivity through dual-band Wi-Fi (2.4/5 GHz) and high-resolution Bluetooth codecs like LDAC, LHDC, aptX HD, and others. Enjoy flawless high-resolution music wirelessly with the M30.
Features:
- Modular design: 5 interchangeable modules

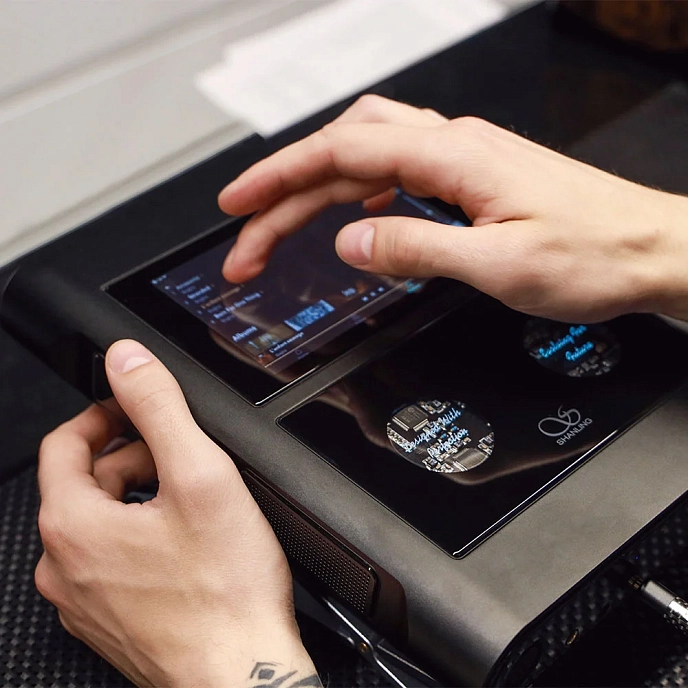

- Player module: 6-inch touch screen with a resolution of 1920x1080
- Processor: 8-core Qualcomm Snapdragon 430
- Memory: 4GB RAM + 32GB ROM + microSD card slot
- Streaming services: Spotify / Tidal / Qobuz / Deezer / QQ Music
- DAC module: 2x AKM AK4497 + 2x Ti OPA1662
- Amplifier module: 2x ADI ADA4610-2 + 4x Ti BUF634
- Output power in balanced mode: 1.53W at 32Ω
- Output power in unbalanced mode: 500mW at 32Ω
- Power module: 16500mAh
- Tube output module: 2x Korg Nutube 6P1
- Output mode: direct/transistor/tube
- Headphone outputs: balanced 4-pin XLR, 4.4 mm, 2.5 mm, 3.5 PRO / unbalanced 6.35 mm, 3.5 mm
- Analog connection: RCA and XLR output, RCA input
- Digital inputs: coaxial / optical / 2x USB-A / USB-B / USB-C / LAN
- USB DAC input: XMOS XUF208, up to PCM 32/768 and DSD512
- Wireless connectivity: Wi-Fi 2.4/5G / Bluetooth
- Wi-Fi connection: DLNA / AirPlay / NAS / file transfer
- Bluetooth receiver: LDAC/SBC
- Bluetooth transmitter: LDAC/LHDC/aptX HD/aptX/SBC
- Other features: over-the-air updates / DSD upsampling / MQA
Package Includes:
- Player
- Power adapter
- Storage case
- Tools for module replacement
- Documentation.
