Integrated amplifier
Shanling EA5 Plus

Product code: 133344
no reviews
AED 4,399
Delivery from the supplier's remote warehouse.
We will contact you within 48 hours to clarify the delivery time.

Description

Reviews (0)

Description

Shanling EA5 Plus - All-in-One Music Center

The Shanling EA5 Plus is designed as a multifunctional Hi-Fi music center for your desktop, working great on its own or in combination with other devices. The EA5 Plus features carefully considered technical architecture that provides dynamic, rich, and precise sound reproduction, while its Android operating system offers access to a wide range of applications.

Features:

  • Custom Android with built-in streaming apps
  • 4.7" display
  • Separate power for analog and digital sections
  • Low-noise toroidal transformer
  • Switchable power source
  • Micro SD card support: up to 2TB
  • Wi-Fi 2.4/5GHz and Bluetooth 4.2
  • Support for PCM 32bit/768kHz, DSD512, and MQA 8x
  • Hi-Res Audio Wireless codecs LDAC, LHDC, aptX-HD
  • Formats: DSF, DFF, DXD, APE, FLAC, WAV, AIFF, AIF, DTS, MP3, WMA, ACC, OGG, ALAC, M4A, AC3, ISO
  • DLNA, AirPlay support
  • Streaming services: TIDAL, Qobuz, Spotify, Deezer, Amazon Music, Apple Music
  • AKM AK4493EQ DAC
  • 6 preset digital filters
  • OPA2211 low-frequency filter
  • TPA6120A2 headphone output
  • CPAF Filter technology
  • 4 gain settings for headphone compatibility
  • ICEpower 100AS2 amplifier module
  • Output power: 6.35mm - 570mW at 32 ohms, speaker output 100W at 4 ohms

The heart of the EA5 Plus is a digital player system that gives you easy access to a wide range of streaming services or works with your music library. Insert a MicroSD card, connect an external hard drive, or link the EA5 Plus to your local Wi-Fi network for music playback. All of this can be controlled remotely from an app on your phone.

Inside the EA5 Plus are two amplifiers. The headphone amplifier offers up to 570mW at 32 ohms, ideal for audiophile headphones, using a full-size 6.35mm output. The second is a Class D ICEpower 100AS2 amplifier for speakers with 100W at 4 ohms per channel. The EA5 Plus is the perfect choice for your desktop setup, allowing you to easily switch between headphones and speakers.

Key Design Elements:

  • Golden volume control wheel for luxury feel
  • 4.7-inch touchscreen optimized for music control

Separate Power Sources: To achieve perfect sound in such a complex device, Shanling engineers have separated the power source into two sections. Analog components are powered by a small and highly efficient toroidal transformer paired with high-performance German capacitors, resulting in a cleaner and smoother sound.

The digital section is powered by a switching power supply with a specially designed voltage stabilization scheme to minimize unwanted noise and interference.

Highest Standards of Digital-to-Analog Conversion: Shanling selected the classic AKM AK4493EQ DAC for the EA5 Plus to ensure smooth and natural sound. Combined with a high-quality power source, playback capabilities in high resolution, and 33 years of design experience, the device owner gets true Hi-Fi sound.

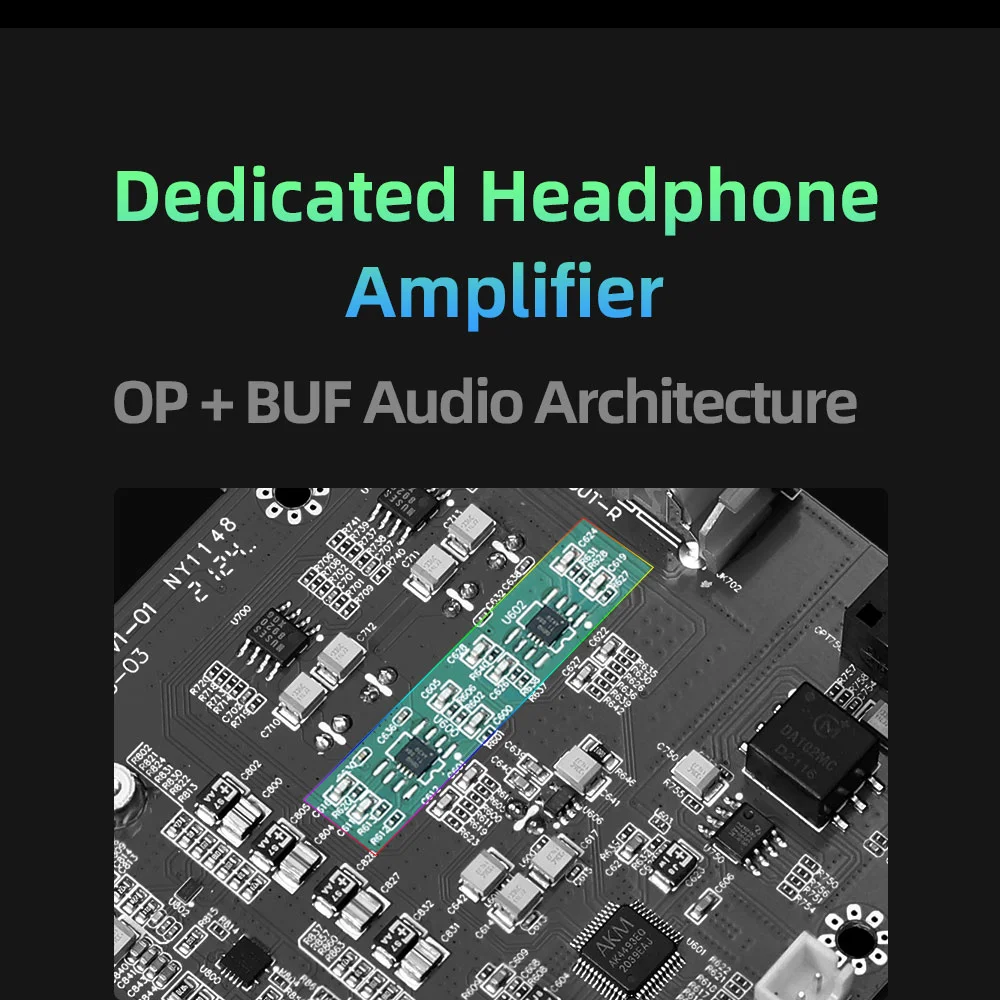

Analog Power: Based on the proven OpAmp+BUF audio architecture, the EA5 Plus features a newly developed 2-channel balanced amplifier circuit that provides low distortion, perfect control, and impressive output power.

Two active quartz generators from Japan KDS and an enhanced Shandling algorithm ensure more accurate signal timing and effectively reduce jitter. Each channel uses a TPA6120A2 amplifier from Texas Instruments, chosen for their impressive performance with low distortion and high slew rate.

Four gain levels help match headphones of different types with the amplifier, from in-ear monitors to full-size headphones. Precision film resistors with 0.01% accuracy and Panasonic tantalum capacitors are used in the analog circuits.

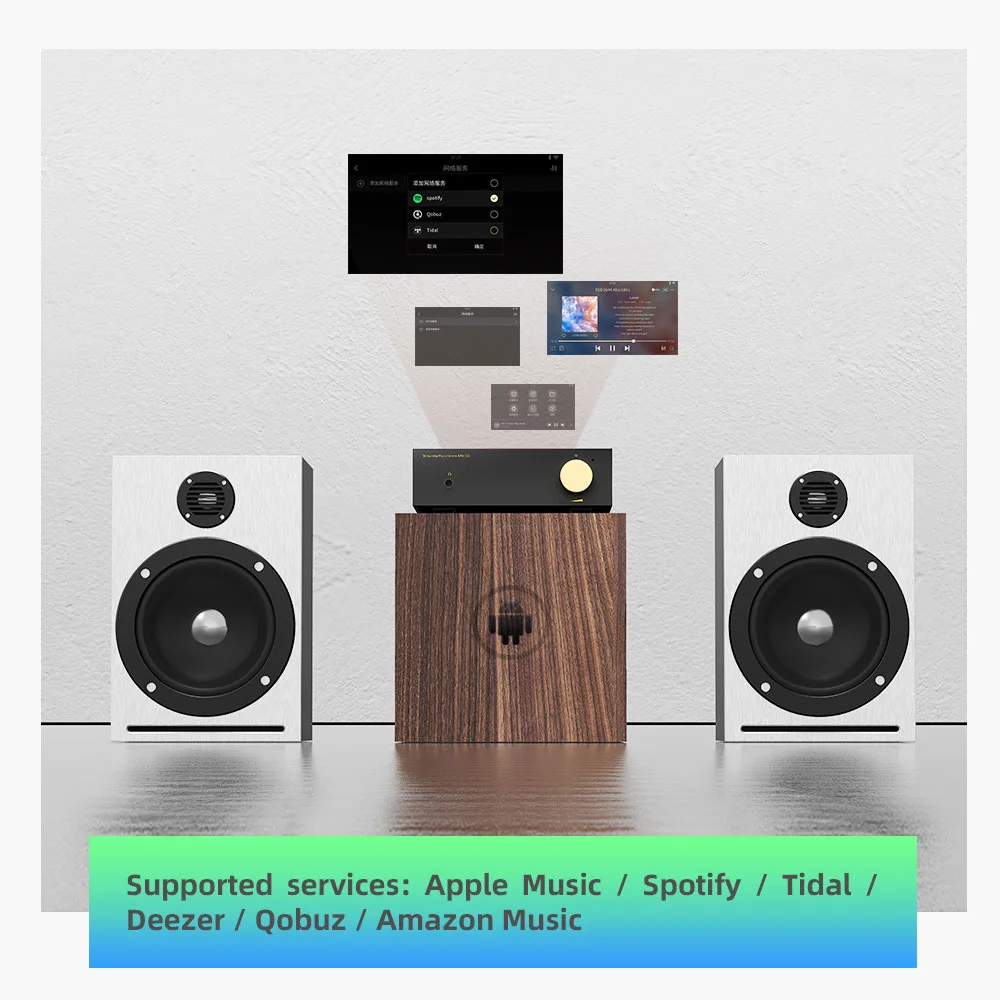

Wireless Streaming Capabilities: The EA5 Plus offers high-speed wireless connectivity with Wi-Fi 2.4 and 5GHz for high speeds and reduced interference. It provides two-way Bluetooth connection for convenient music streaming from your phone or when using Bluetooth headphones or speakers. Transmission support: LDAC, LHDC, aptX HD, aptX, SBC. Reception support: LDAC, SBC.

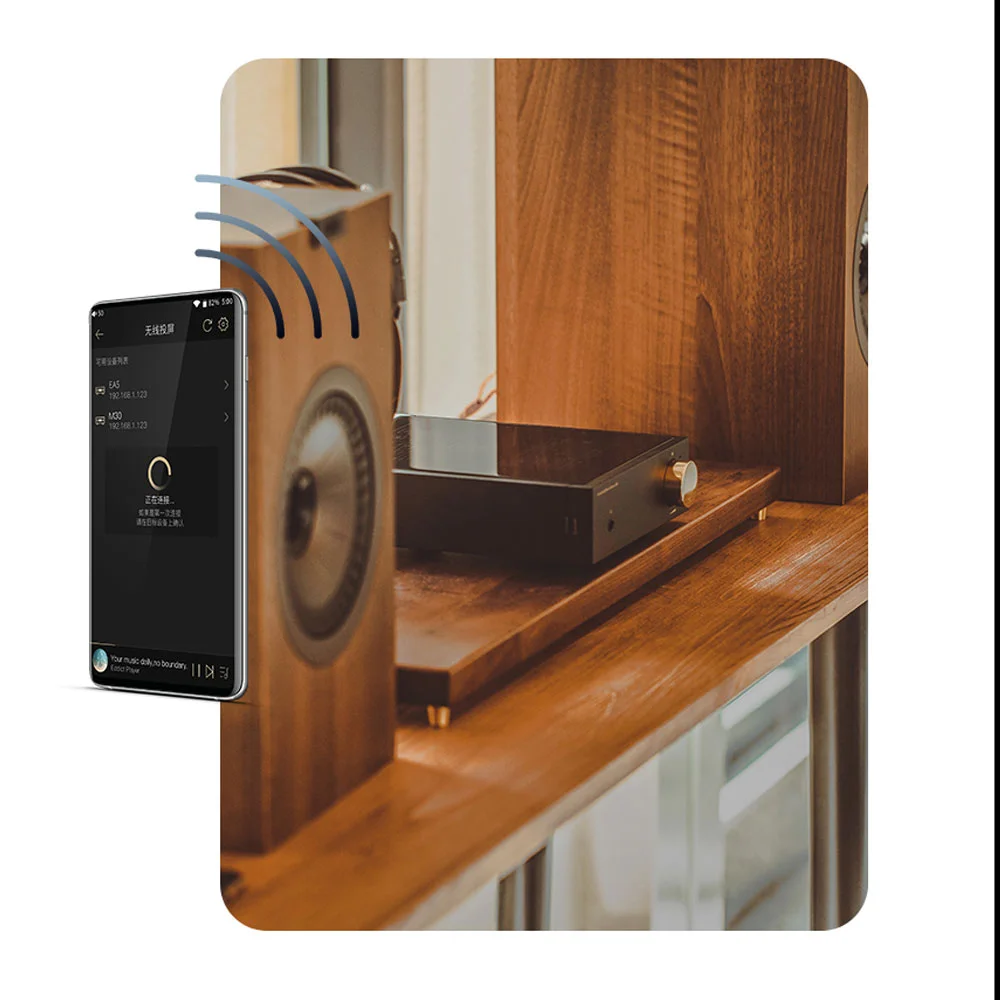

In addition to built-in streaming apps, the EA5 Plus can also be used in your local network. It supports DLNA/UPnP and AirPlay protocols, allowing access to files stored on network devices like computers, NAS, or smartphones. By offering full mirroring of the display, you have access to all EA5 Plus functions without leaving your seat.

The Eddict Player app, available for free download on Android and iOS devices, allows you to control the EA5 Plus from your smartphone or tablet. With an ergonomic and intuitive graphical interface, you can easily access music and device functions.

Thanks to AGLO (Android Global Lossless Output) technology, music from any app is processed correctly and in full quality, without degradation from Android system processes.

Signature AGLO Technology

Included:

  • Digital-to-Analog Converter
  • Power cable
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Power per channel at 4 ohms, W
100
Power per channel at 8 Ohm, W
55
Internal DAC
yes

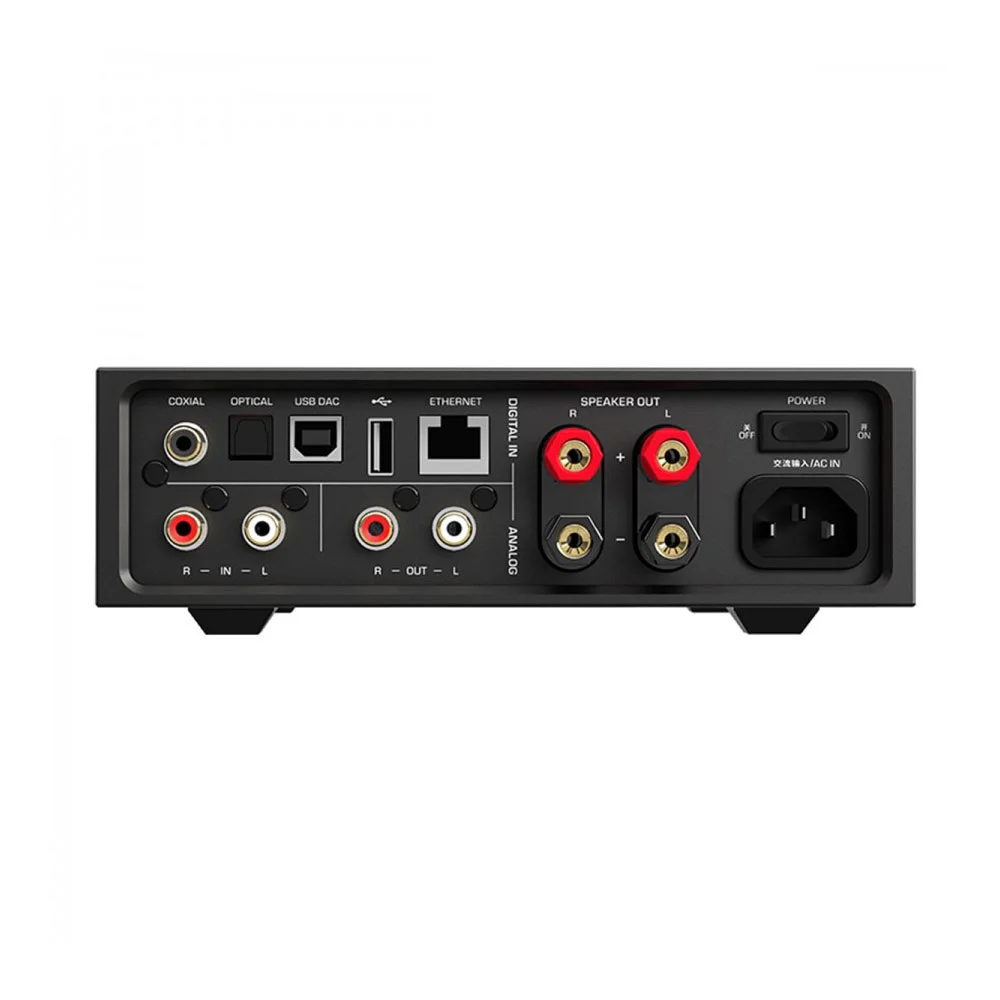

Input connectors
Coaxial, Optical, USB-A, USB-B, RCA, RJ45
Output connectors
terminals, RCA
Headphone output
6.35mm jack
Circuit design
operational
Preamplifier

A preamp is used as a hub to connect other components of the audio system. The preamp can be either integrated, or an autonomous device.

Glossary of terms
yes
The lowest frequency, Hz
20
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
40
Wi-Fi

Support Wi-Fi technology

Glossary of terms
yes
Bluetooth version

Bluetooth is a short-range wireless technology that allows you to connect headphones or portable speakers, a stereo system or a soundbar to your smartphone or laptop. For a certain version to work, both devices must support it. The versions differ in data transfer speed, power consumption, securing data transfer, anti-interference ability and range of connection.

Glossary of terms
4.2
DAC chip

The chip used for digital-to-analog conversion

Glossary of terms
AK4493
Network standards
DLNA, UPnP
Form factor
stationary

For use on a table or in a rack.

Словарь терминов
Color
DAC bit depth, bits
32
DSD support

Direct Stream Digital is a single bit audio format developed by Sony and Philips. It uses density-pulse modulation coding (a kind of sigma-delta modulation) and is used to store records on SACD

Glossary of terms
yes
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
4
Material
plastic, glass
Number of channels
2
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

768
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

118
Connecting to a computer via USB
yes
Playback via USB
yes

Playing music files via USB

Depth, mm
238
Height, mm
55
Width, mm
188
Service life, months
24
Warranty, months
12
