The Sennheiser XSW-D VOCAL SET is a digital vocal wireless system kit consisting of an XSW-D receiver, transmitter, and an XS 1 microphone. The system stands out for its simplicity and instant setup, as the radio signal transmission operates in the public RF range from 2400 to 2483 MHz. The range can reach up to 75 meters in ideal conditions. The devices in the kit are perfect for amplifying vocals and speeches in small or medium-sized venues during concerts, entertainment events, or conferences.

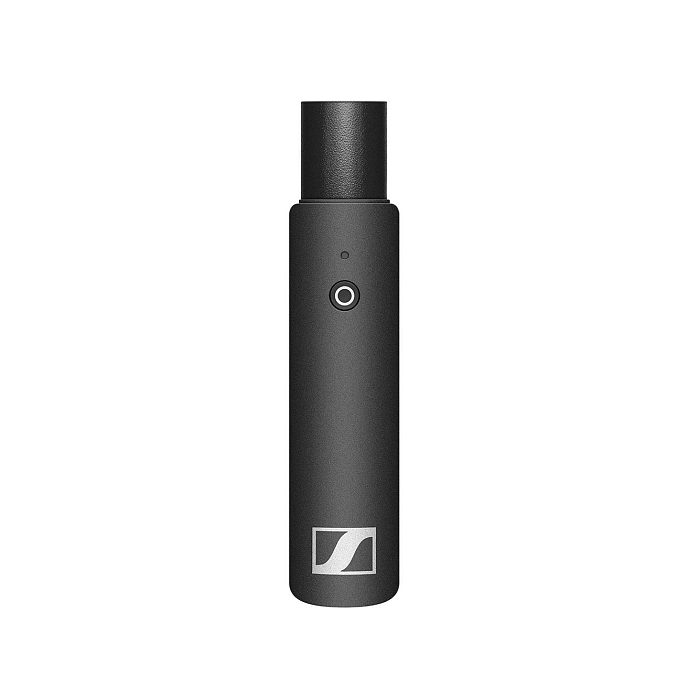

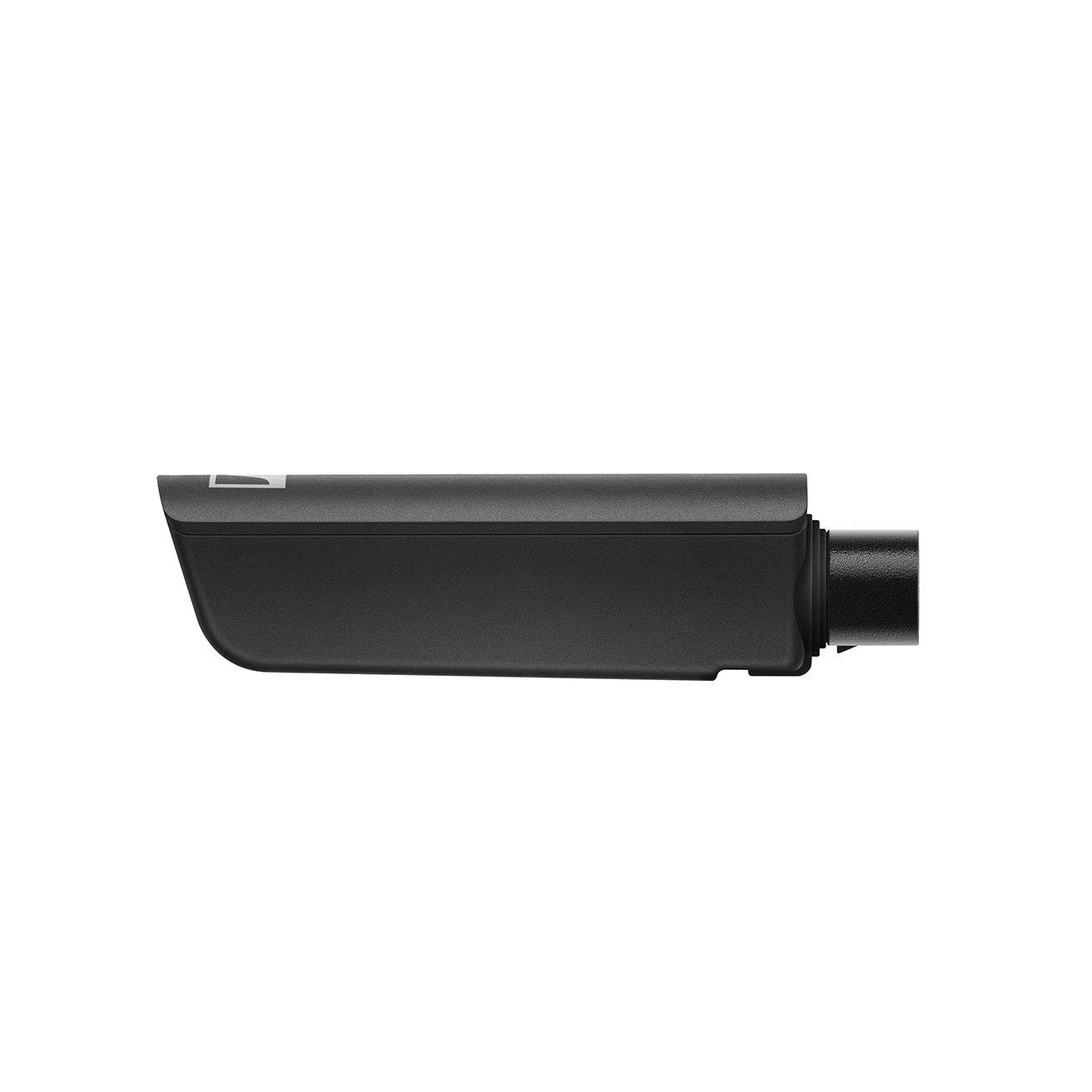

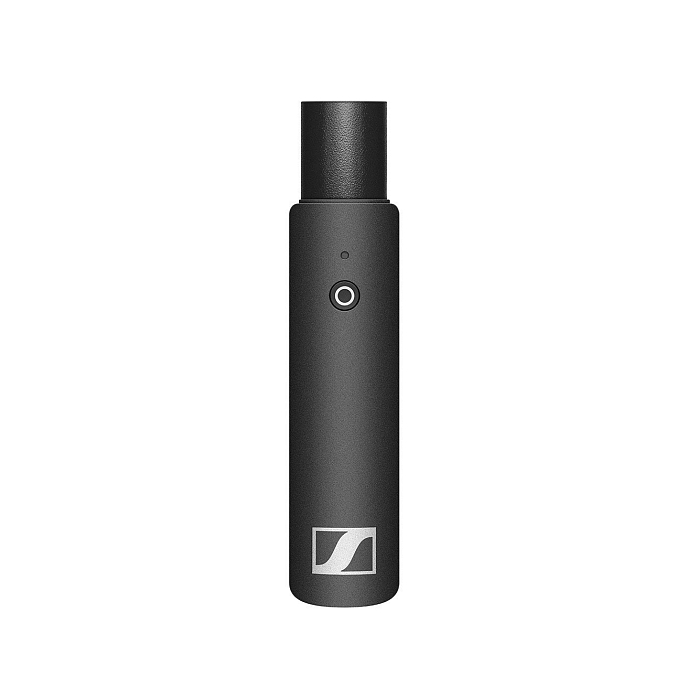

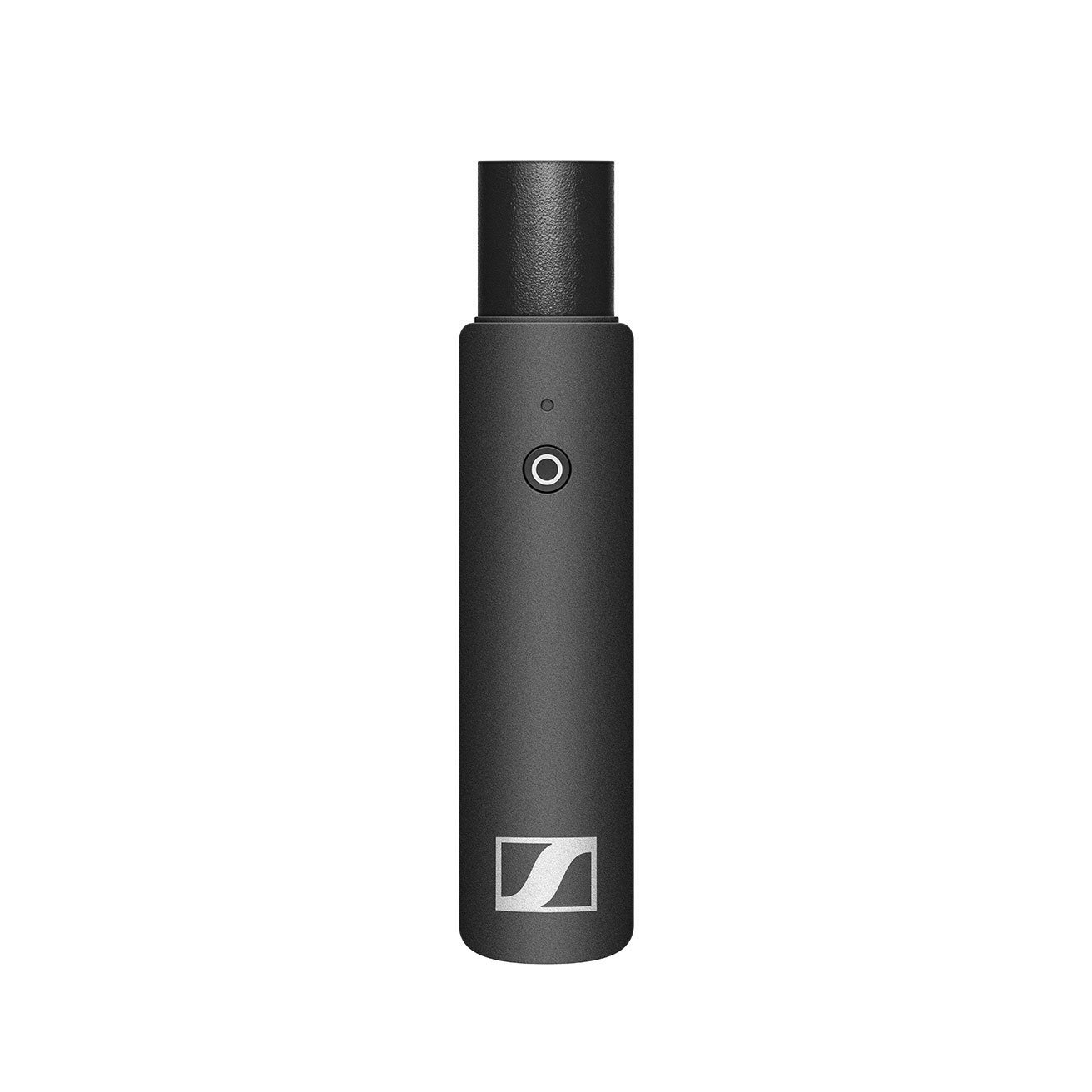

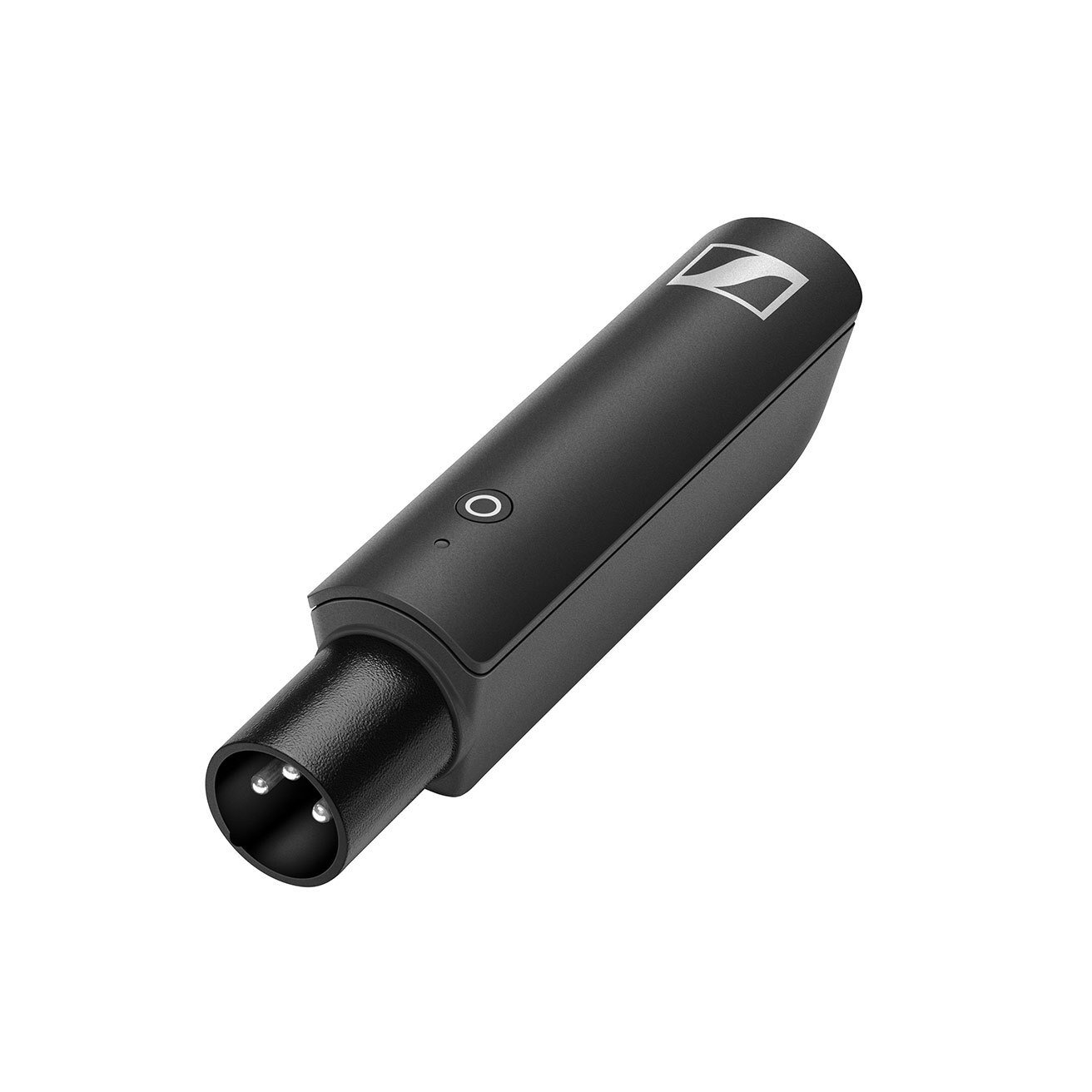

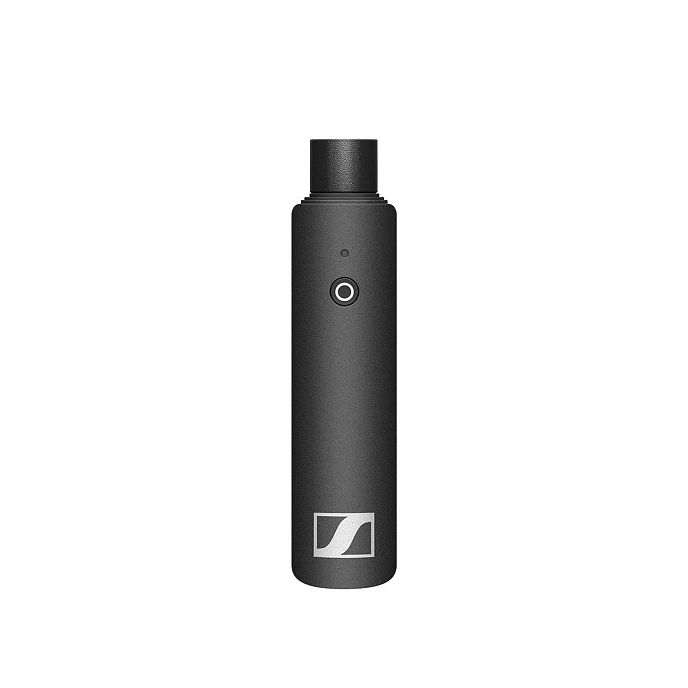

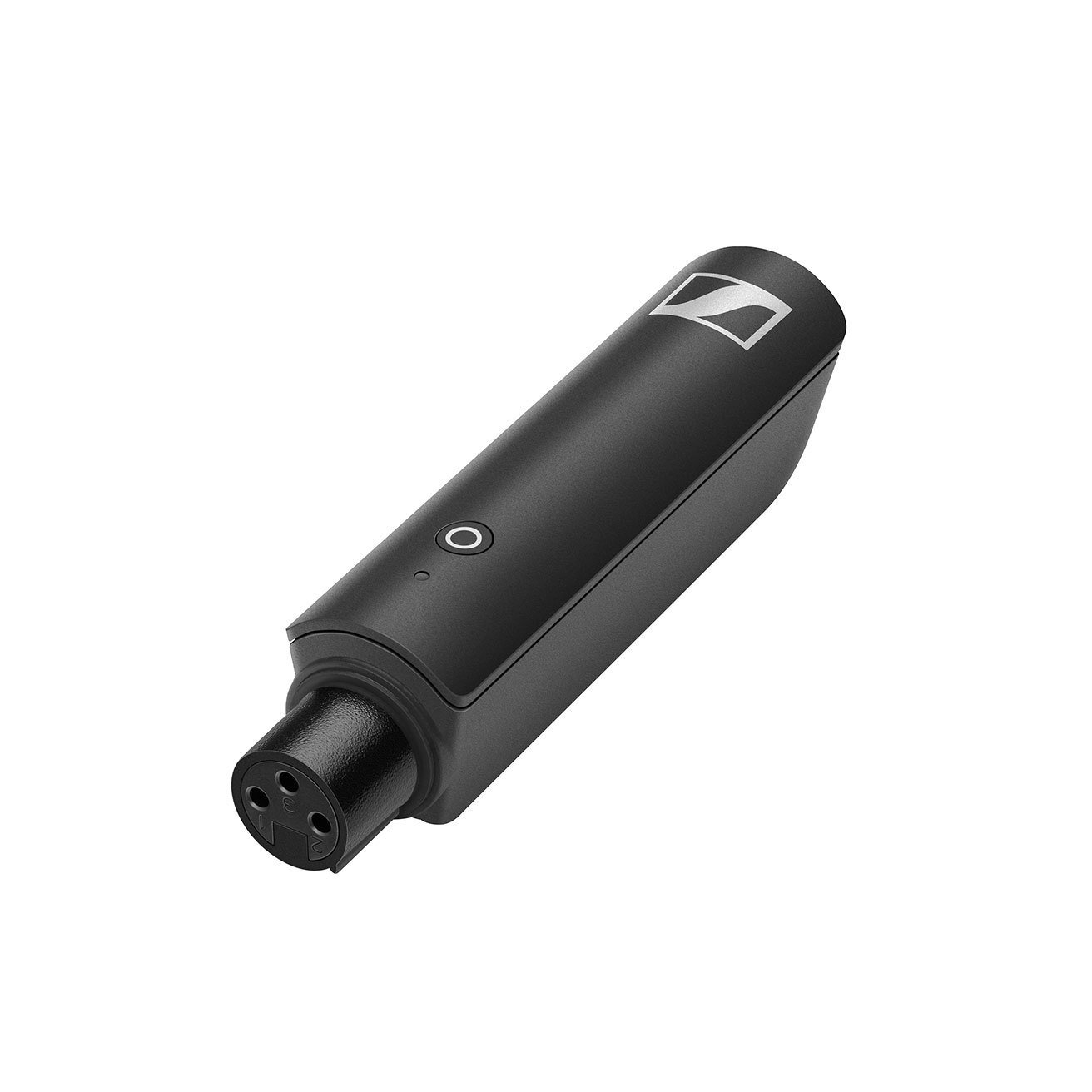

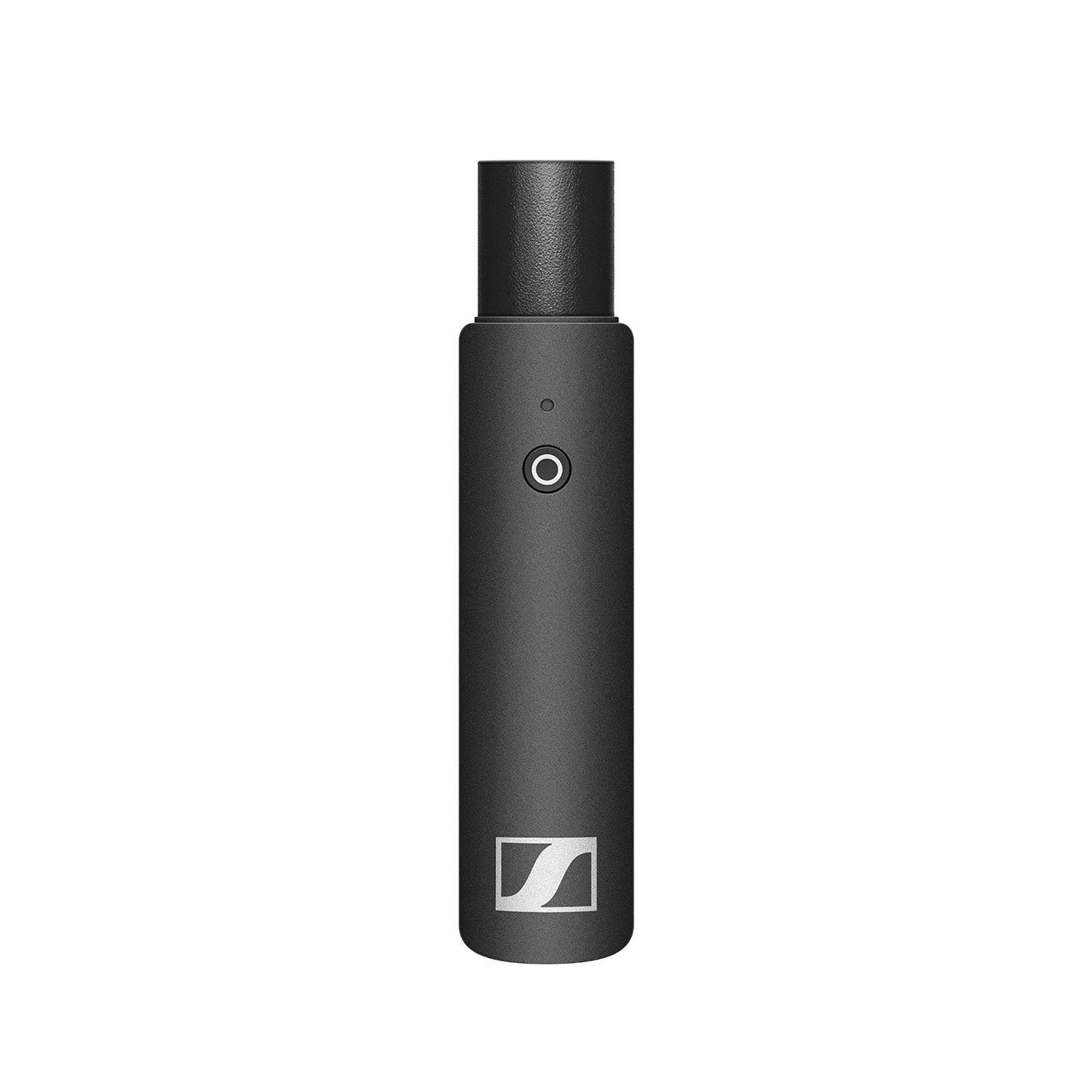

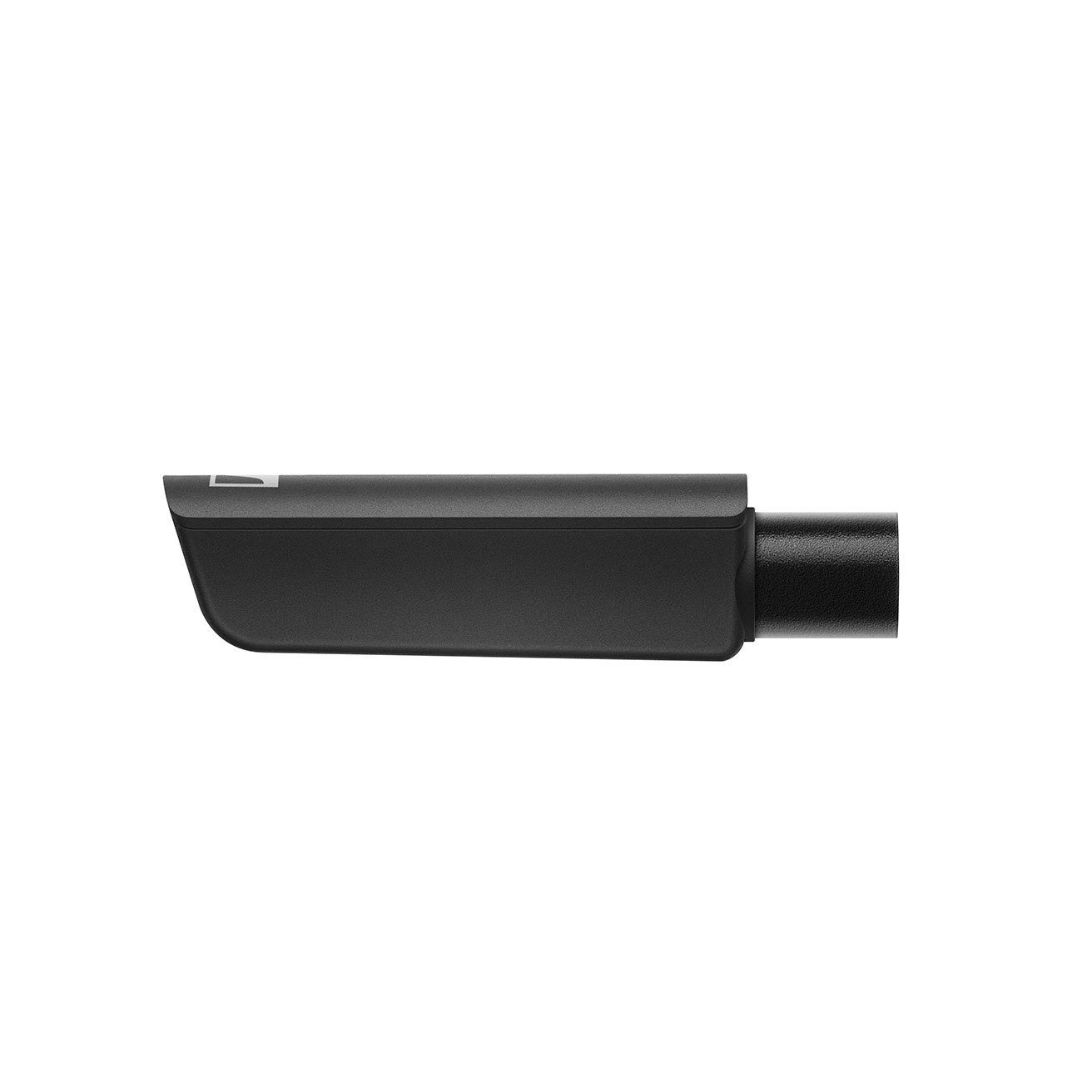

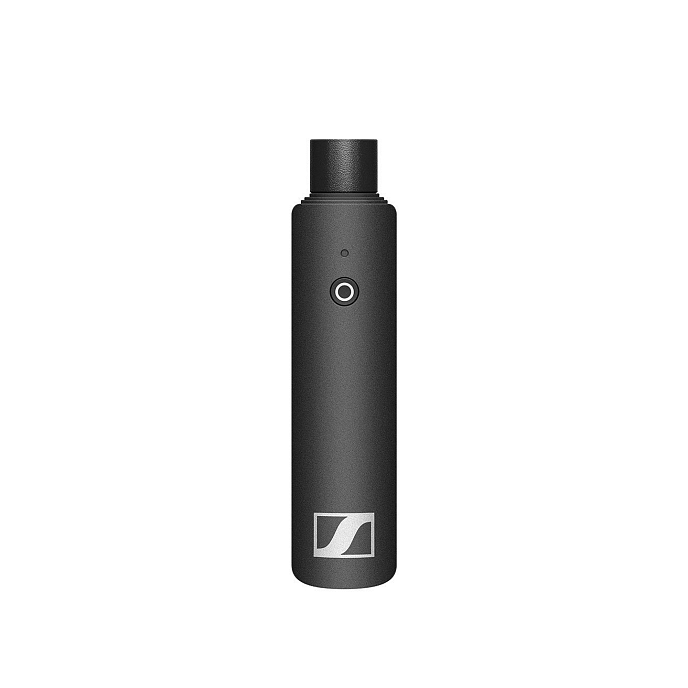

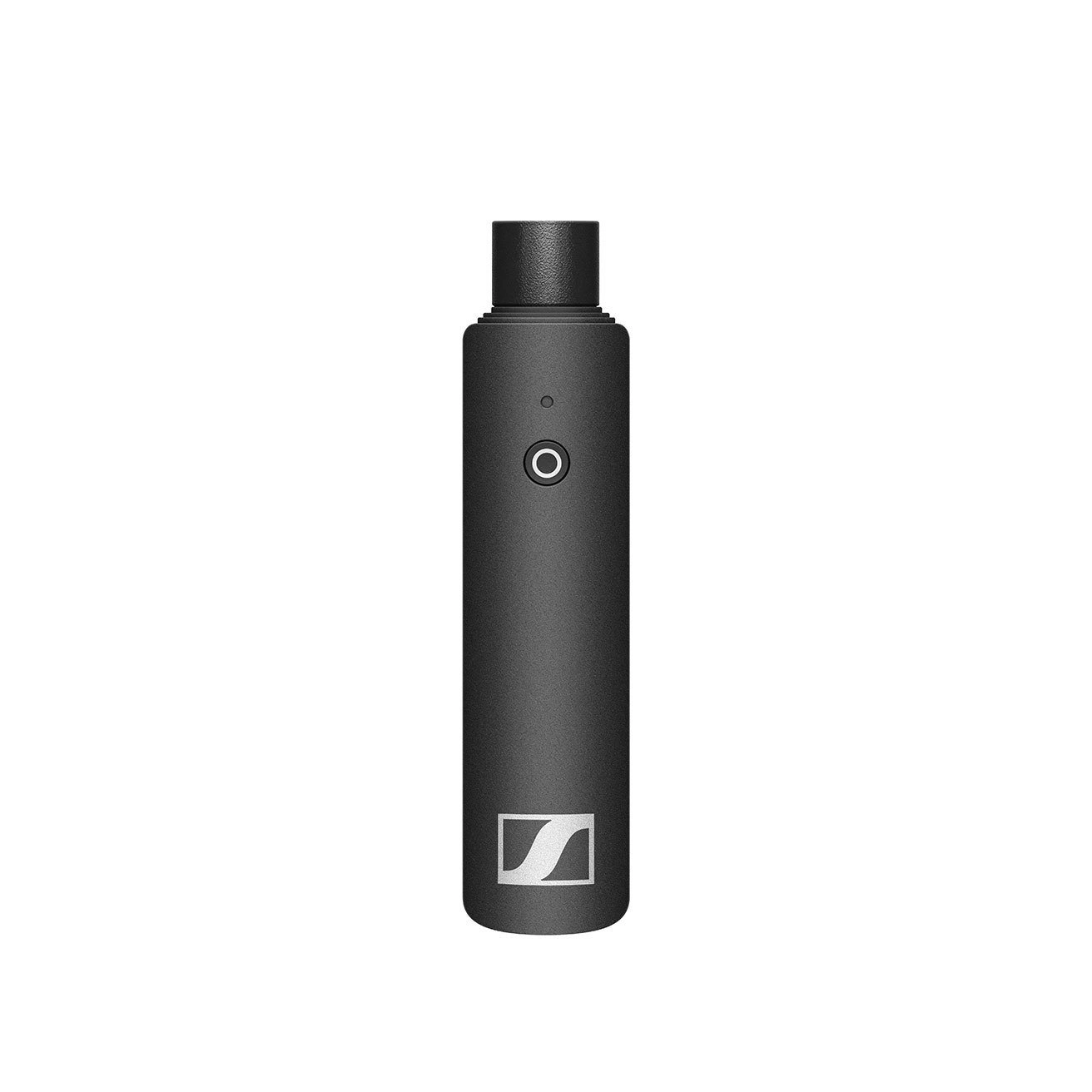

The receiver and transmitter are designed as compact attachable devices with XLR Male and XLR Female connectors respectively. The transmitter has an output power of 10 mW and is intended for connection with a microphone, while the receiver can be connected to a sound system or mixer and can switch between up to five simultaneously connected devices. The audible frequency range is between 80 Hz and 18 kHz, and the system's technical specifications allow for sound transmission with minimal distortion and noise.
The system is powered by built-in lithium-ion batteries, which require no more than 3 hours for charging and provide 5 hours of uninterrupted operation. The charging process is done through USB-C ports located on each device, and one USB-A to USB-C cable is included in the kit. The devices have sync buttons on their bodies, which can also activate the Mute mode.

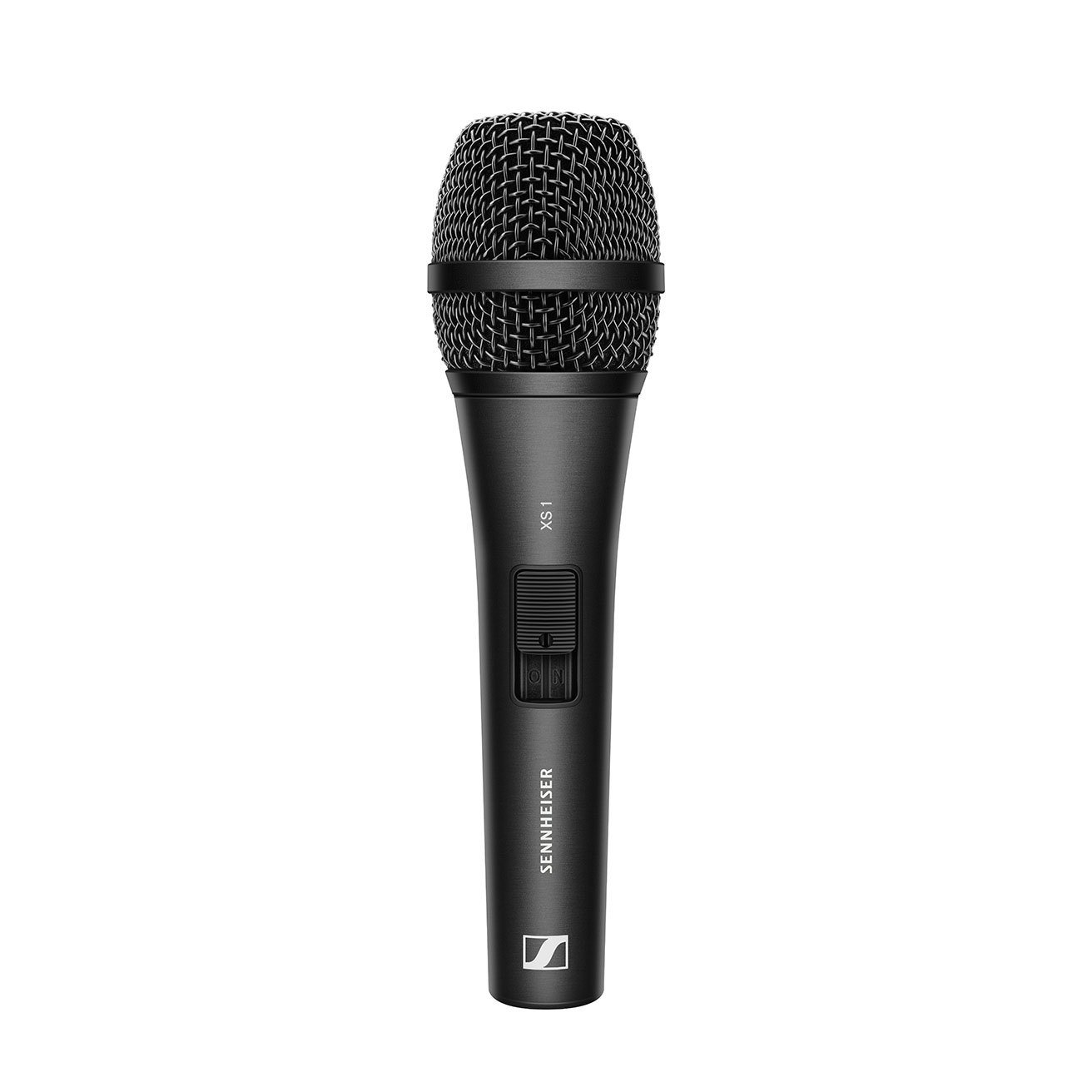

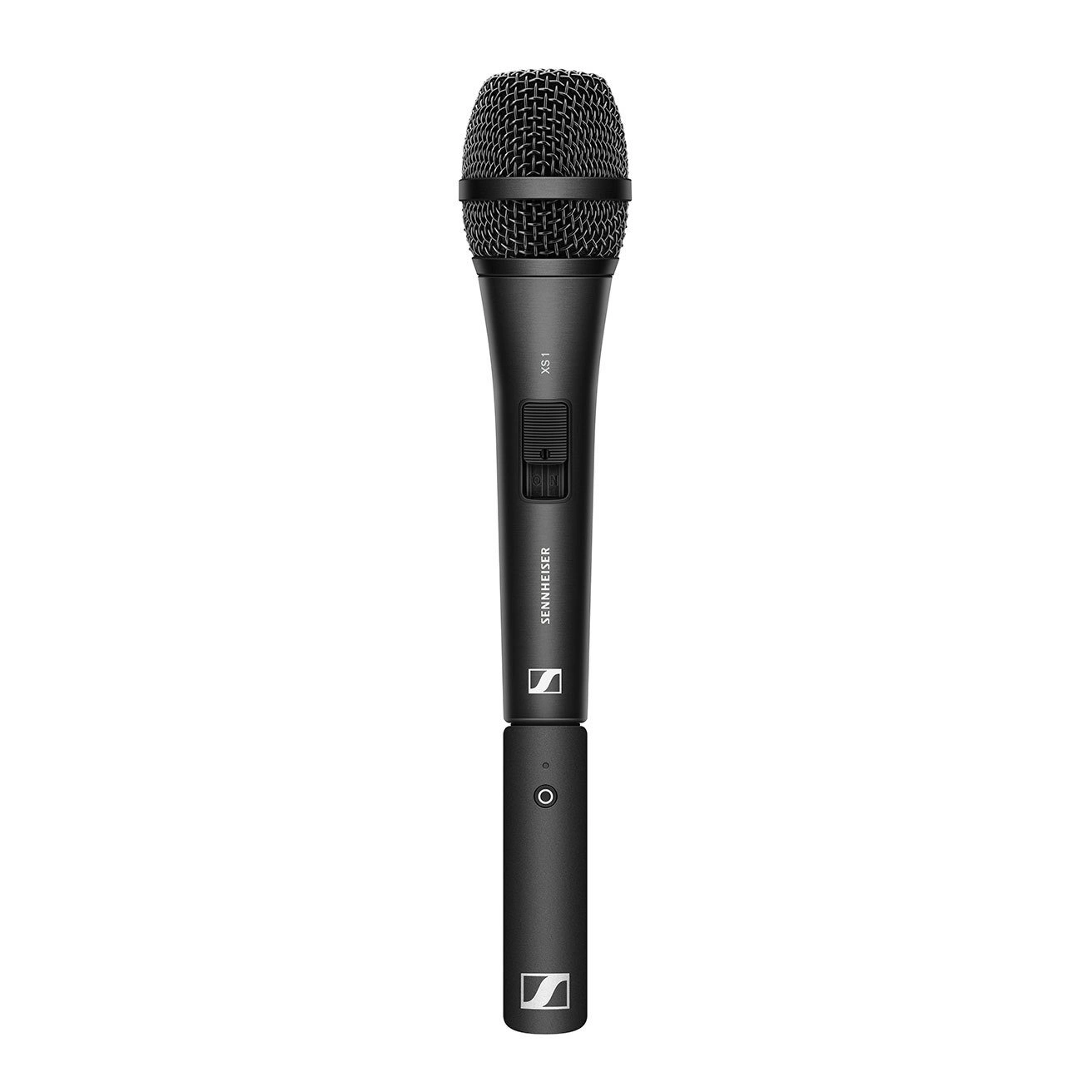

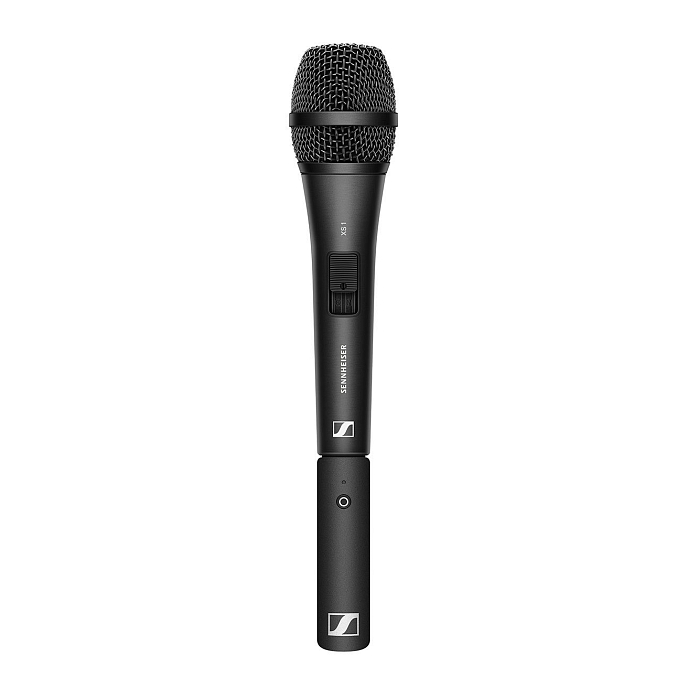

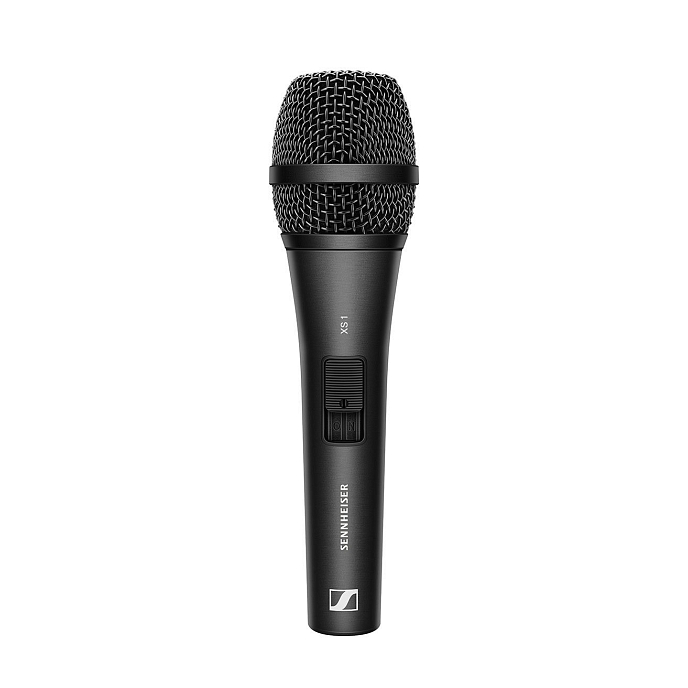

The XS 1 microphone is dynamic, which enhances its effectiveness in stage conditions as this type of capsule is less sensitive to surrounding sounds and offers greater stability. The cardioid polar pattern also contributes to clear sound reproduction, leaving only the working zone in front of the capsule and suppressing any signals from the sides and behind it. The output connector is a standard XLR, making it easy to connect to the transmitter. The microphone housing is made of durable steel and is equipped with a switch. The kit includes a microphone holder for convenient installation of the transmitter on a stand.
The Sennheiser XSW-D VOCAL SET is an incredibly convenient and affordable vocal wireless system that will help quickly implement a wireless connection for a vocal microphone. The compact size of all the devices in the kit makes transportation easy, and the intuitive interface allows for working with the system without any professional knowledge.
Features:
- Wireless single-button audio device
- Digital transmission on the 2.4 GHz frequency for limitless operation
- Range of 75 meters (250 feet) under optimal conditions
- Up to 5 hours of battery life from a single charge
- Switching between multiple transmitters connected to a single receiver
- Configuration of any combinations of transmitters and receivers
- Mute option for the transmitter or receiver

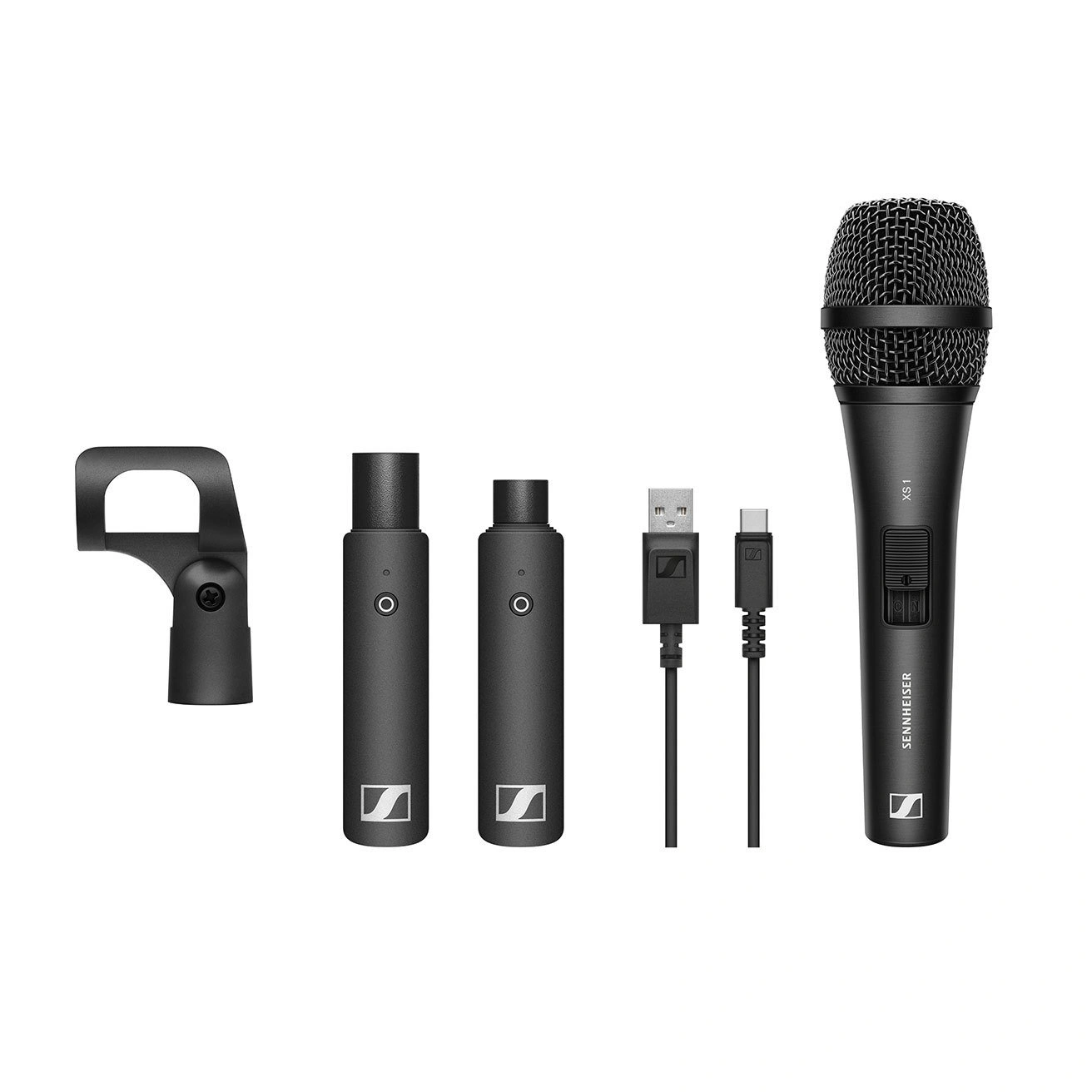

Included in the set:
- XSW-D XLR plug-on transmitter
- XSW-D XLR receiver
- Cardioid dynamic microphone XS 1

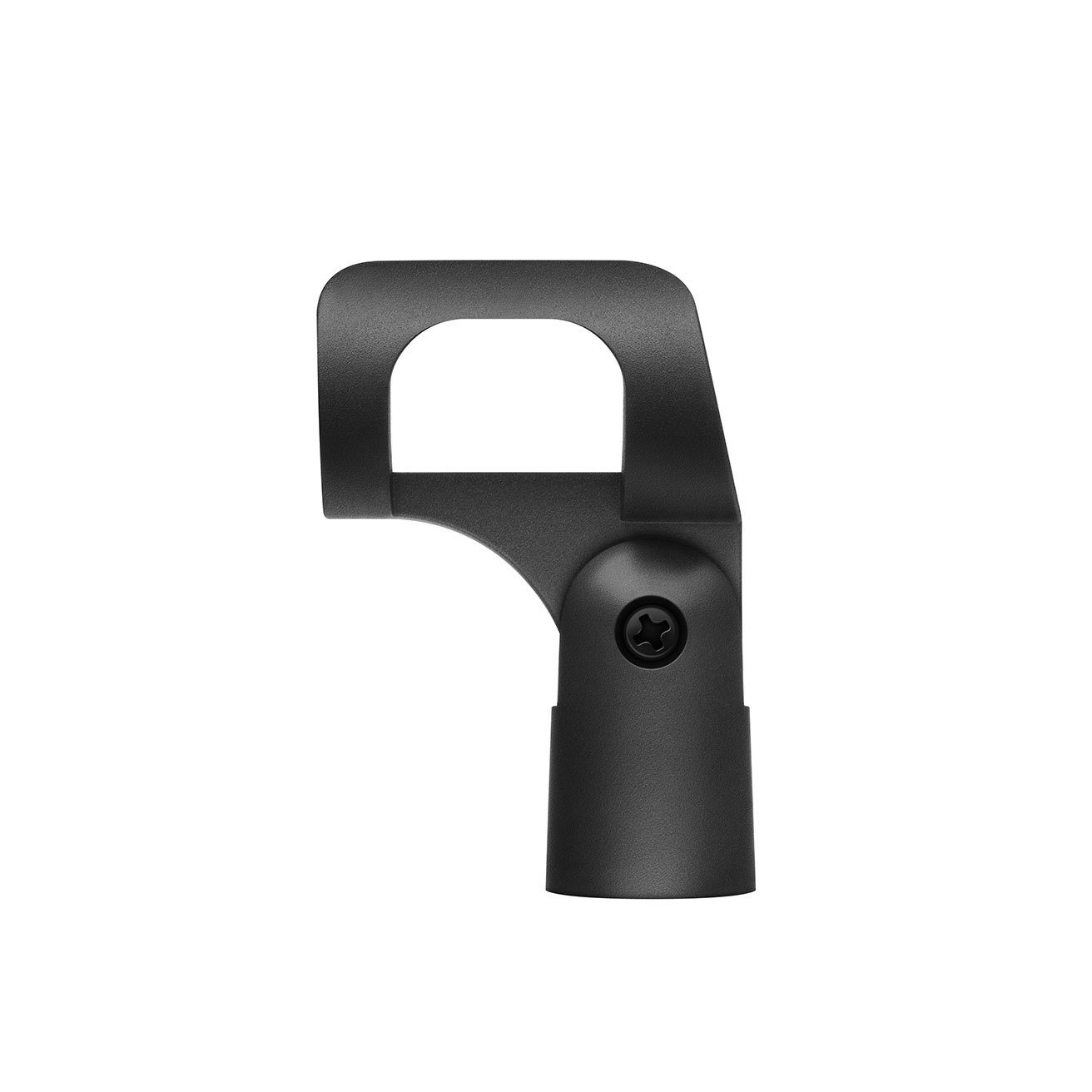

- Clamp

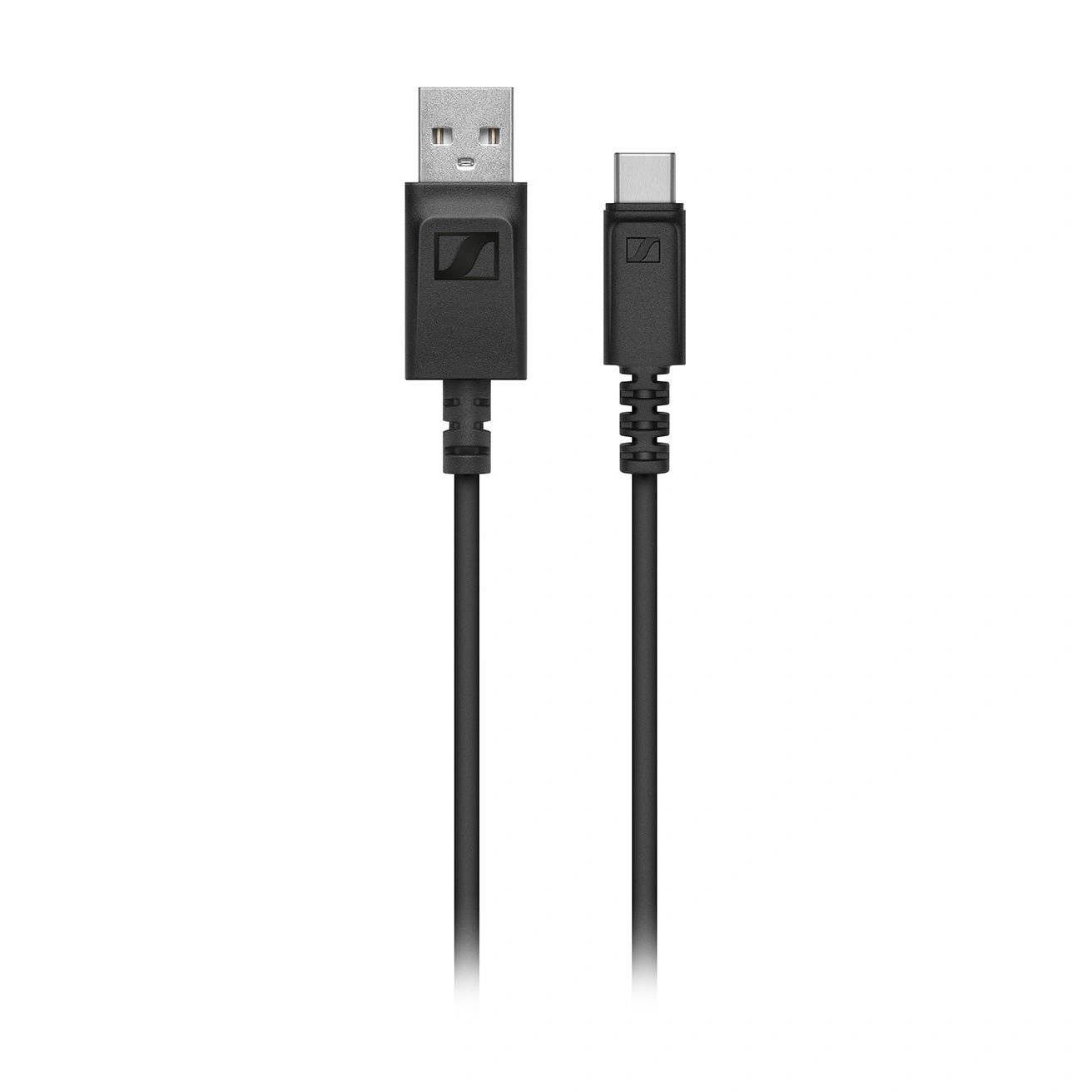

- USB-A to USB-C charging cable
- Documentation
