Xsw-d pedalboard set

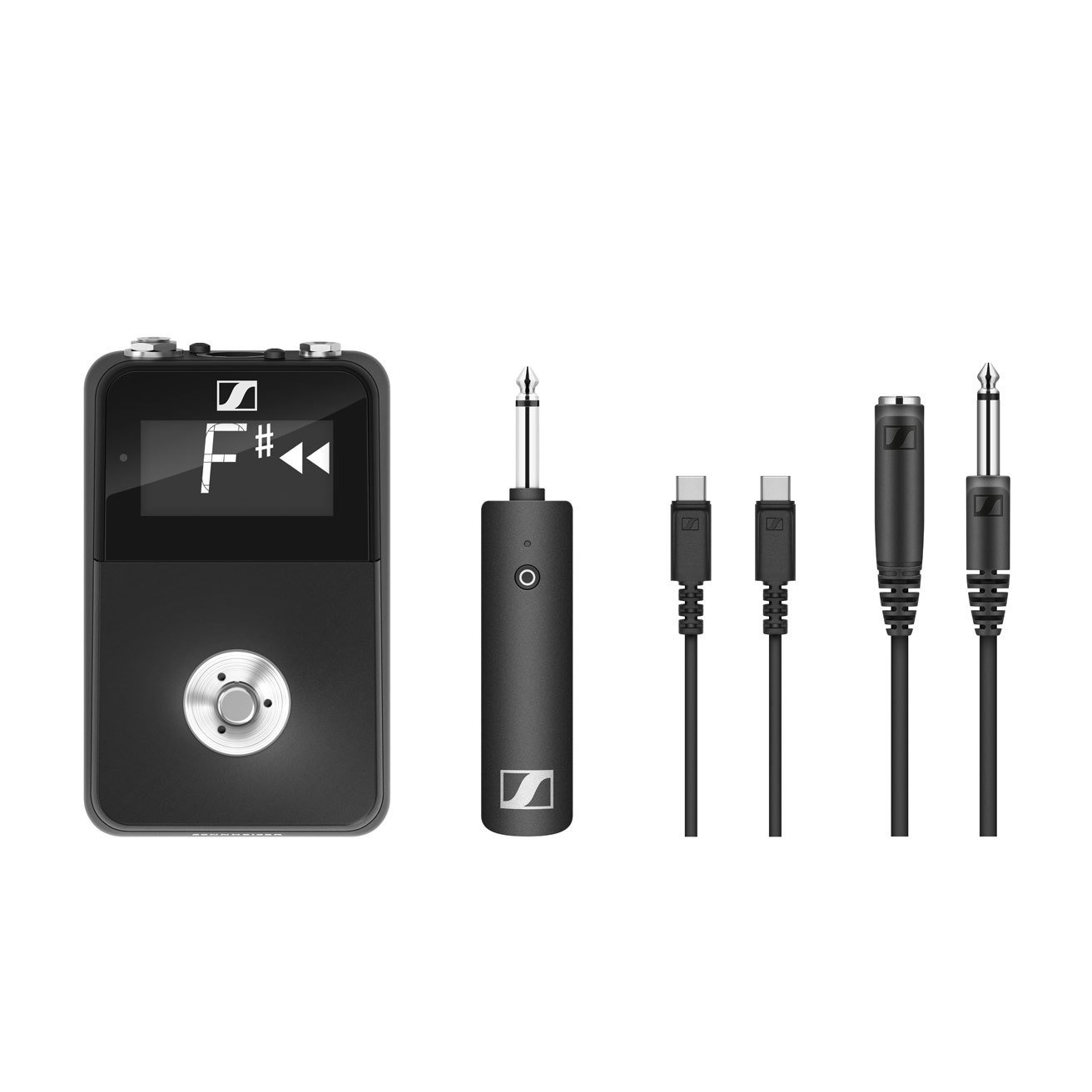

The XSW-D pedalboard set is a wireless single-button audio device that includes the XSW-D 6.3mm (1/4") transmitter, the XSW-D pedal receiver, receiver power supply, 6.3mm (1/4") extension cable, belt clip, and USB-C to USB-C charging cable.
This wireless single-button audio device uses digital transmission for convenient audio source connectivity. It is an elegant solution that provides reliable connections, allowing you to play guitar wirelessly and use the pedal.
Features:
- Wireless single-button audio device
- 2.4 GHz digital transmission for unlimited performance
- Range of 75 meters (250 feet) under optimal conditions
- Up to 5 hours of battery life on a single charge
- Switch between multiple transmitters connected to one receiver
- Configure any combination of transmitters and receivers
- Mute the transmitter or receiver
Specifications:
- XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
- XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
- XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
- XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
- XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
- XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
- XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm
- Non-linear distortion (THD) < 0.1%
- Charging time: typ. 3 hours
- Max audio output: 12 dBu
- Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)
- Signal-to-noise ratio: ≥ 106 dB
- Battery capacity: 850 mAh
- Codec: aptX® Live
- Frequency ranges: 2,400 - 2,483.5MHz
- Max input voltage: typ. 5.0 V
- Transmission power: max. 10 mW
- Voltage: 3.7 V
- Relative operating humidity: 95% (non-condensing)
- Delay: < 4 ms
- Temperature range: 0 °C - 60 °C (32 °F - 140 °F)
- 3.5 mm Jack/XLR frequency response: 80 - 18,000 Hz
- 6.3 mm Jack frequency response: 10 - 18,000 Hz
Package Includes:

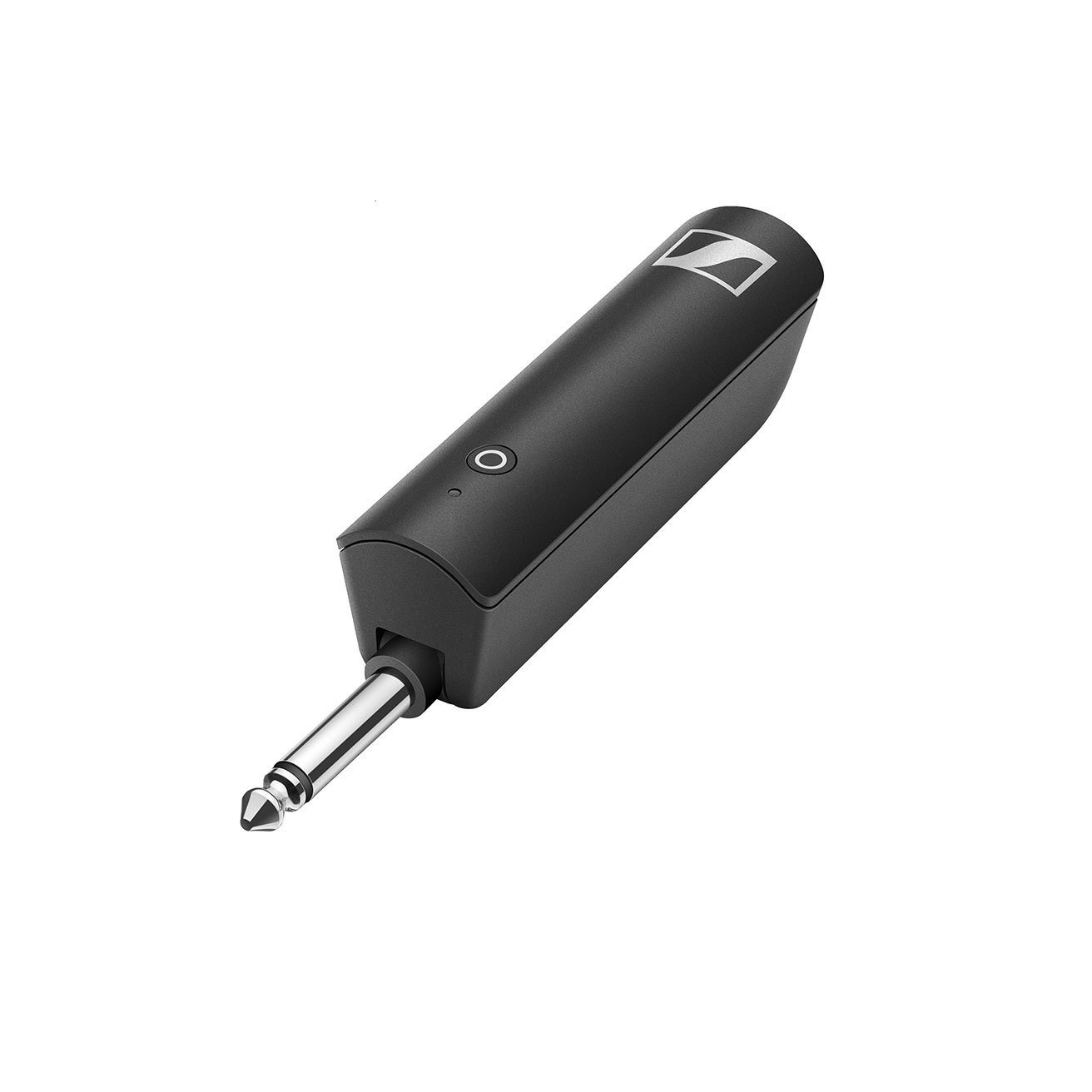

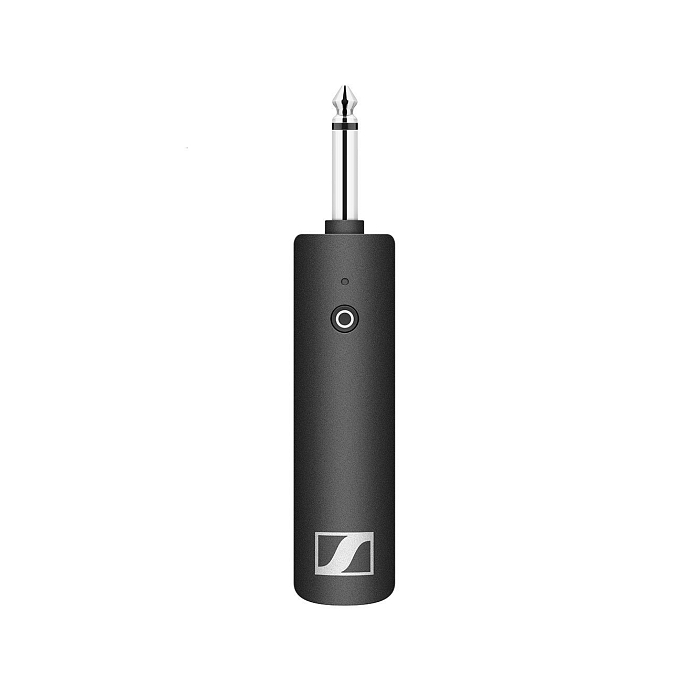

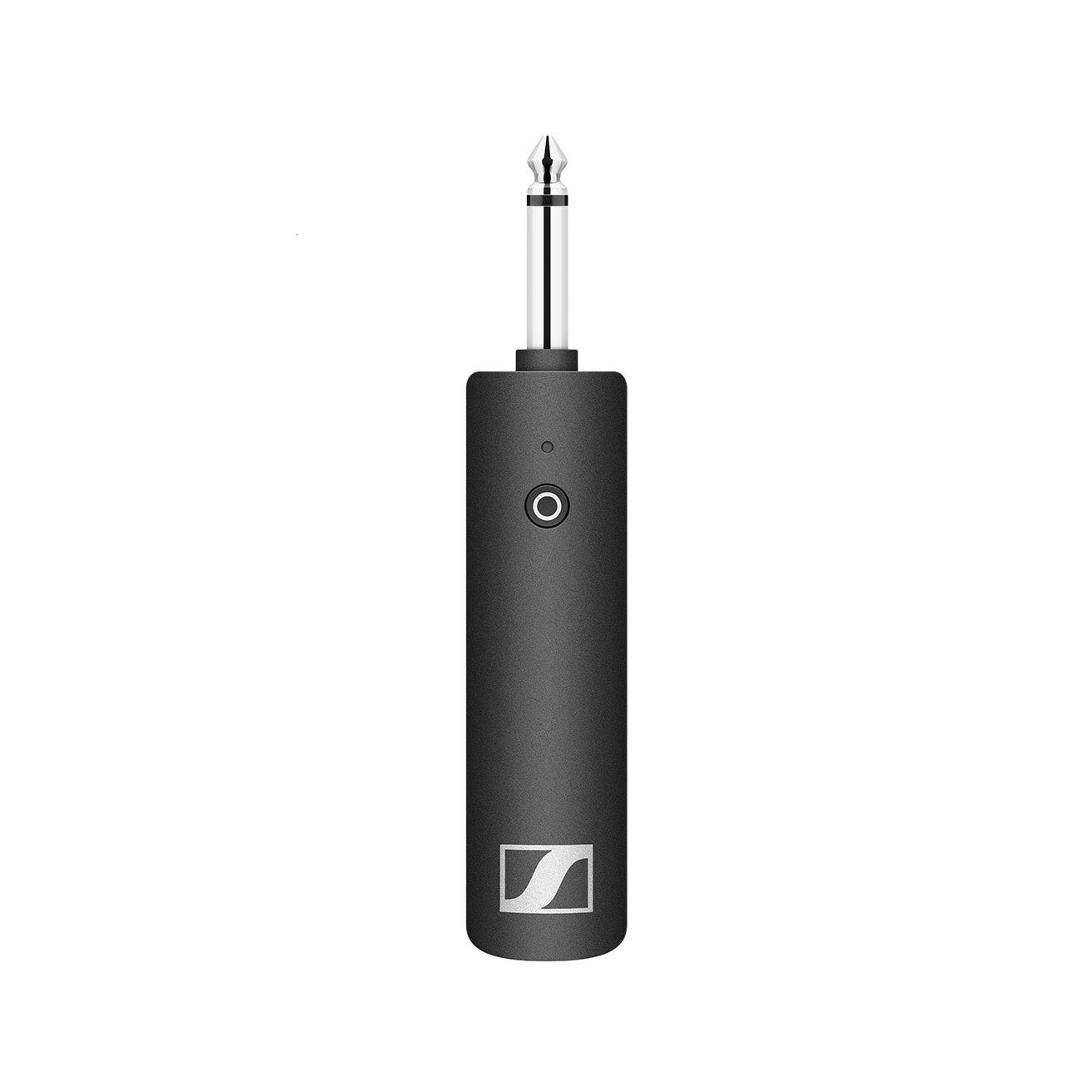

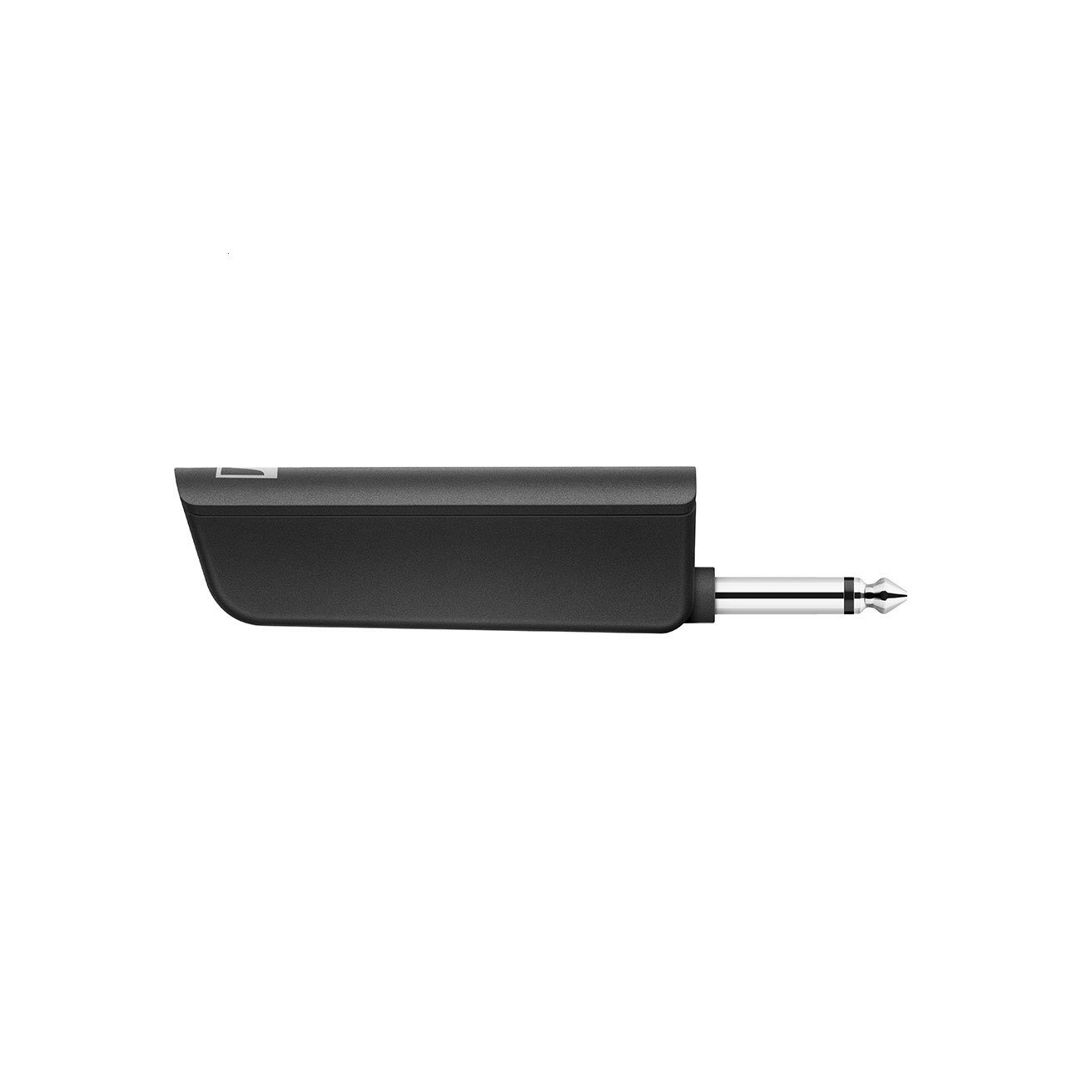

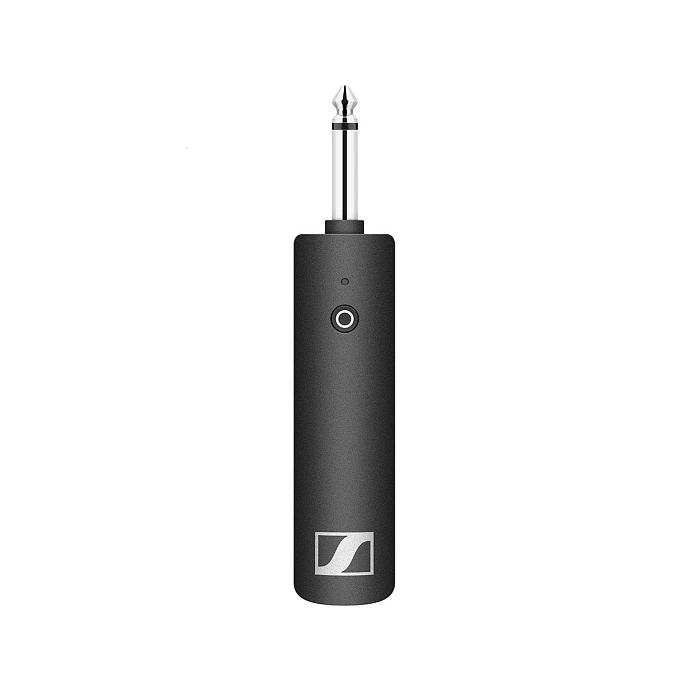

- XSW-D 6.3mm (1/4") transmitter

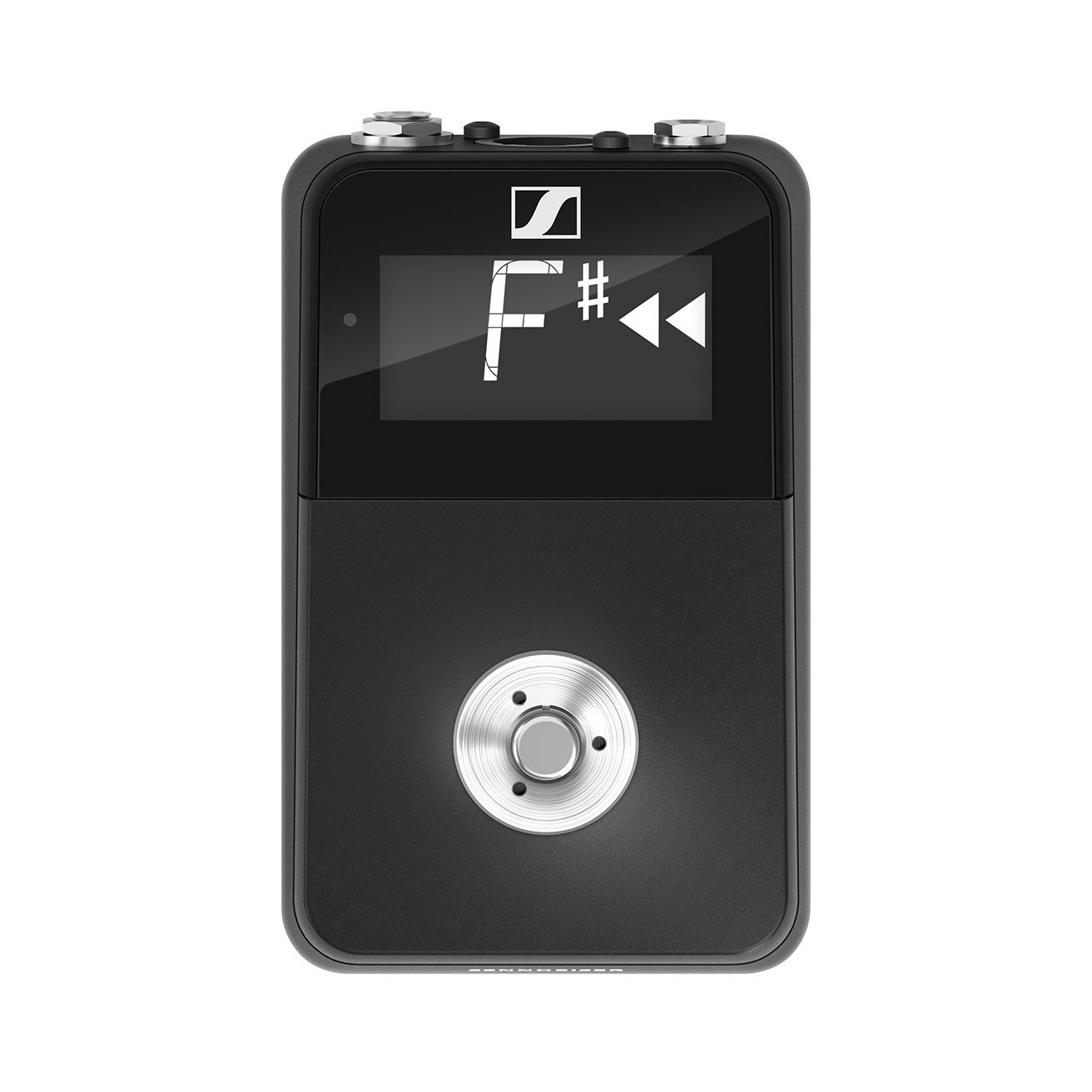

- XSW-D pedal receiver
- Receiver power supply

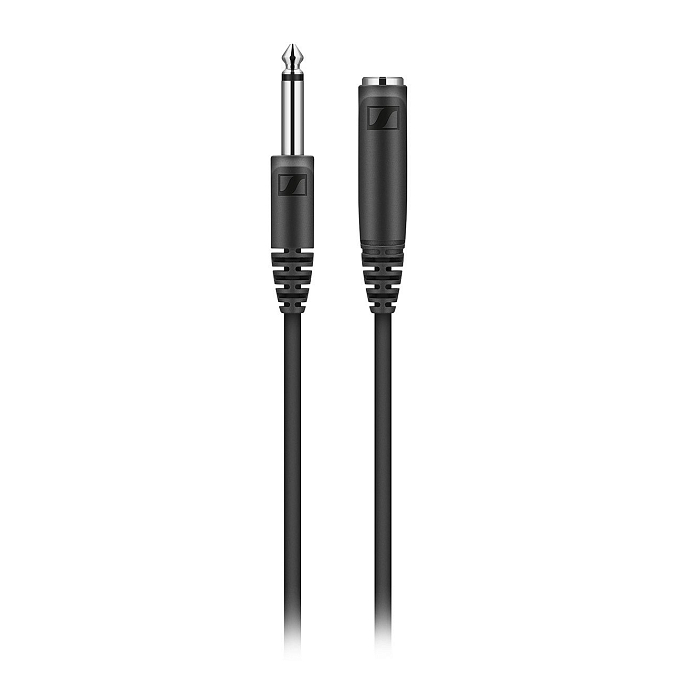

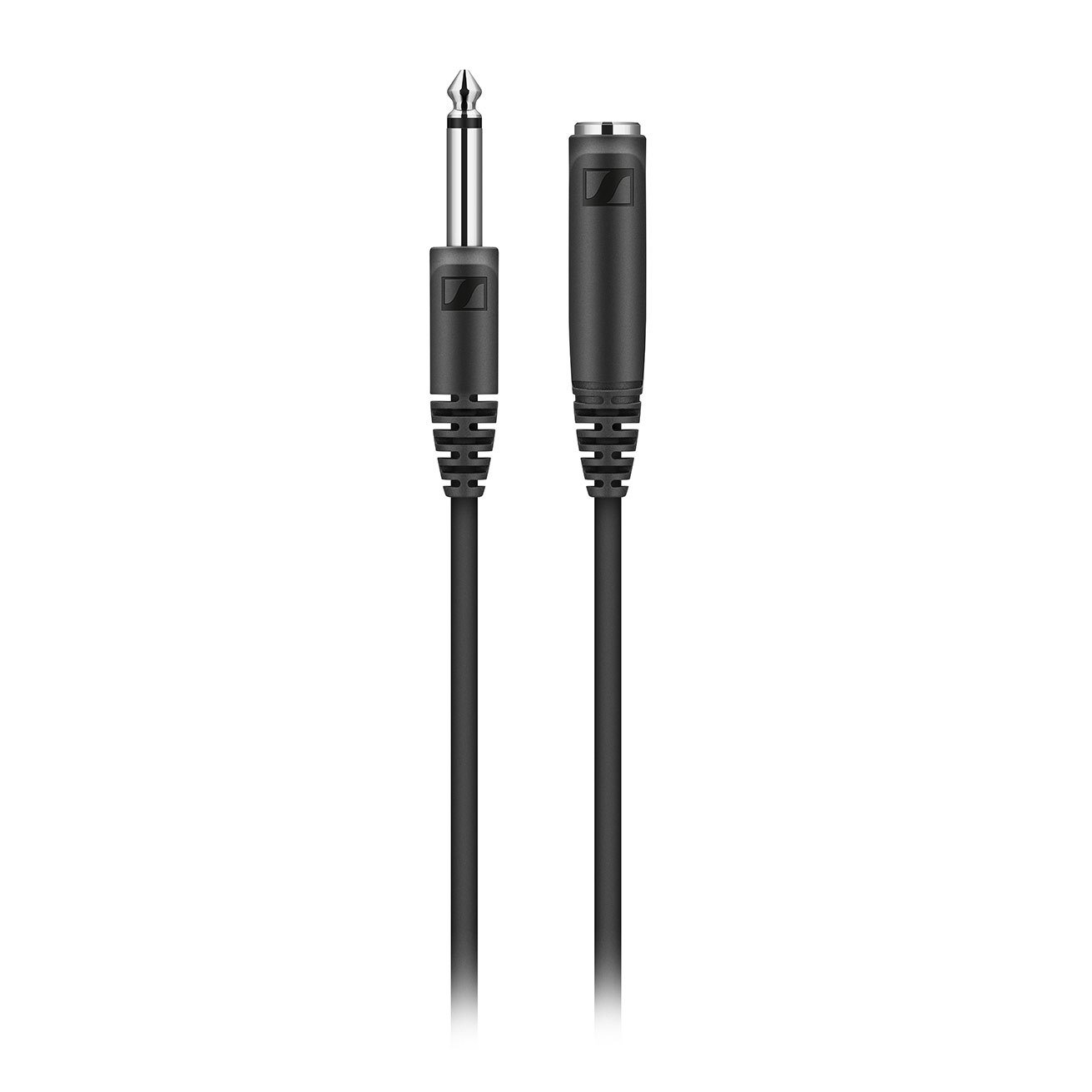

- 6.3mm (1/4") extension cable
- Belt clip

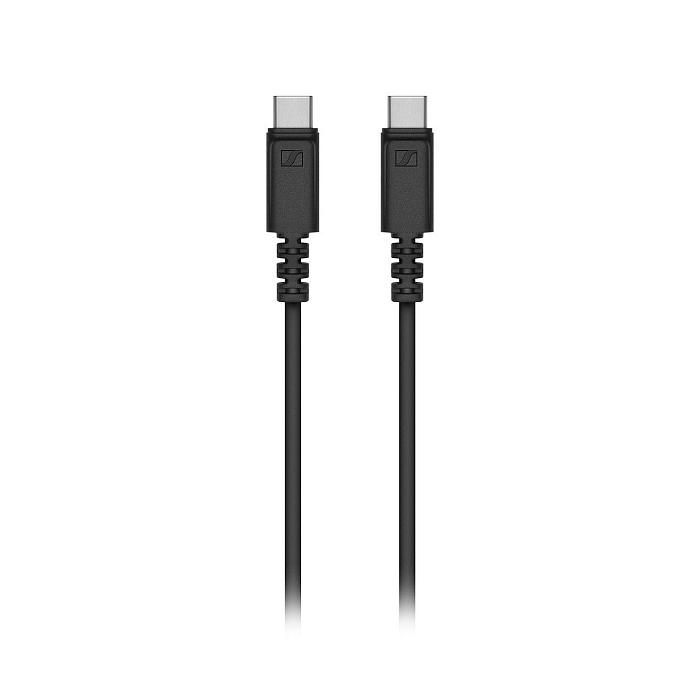

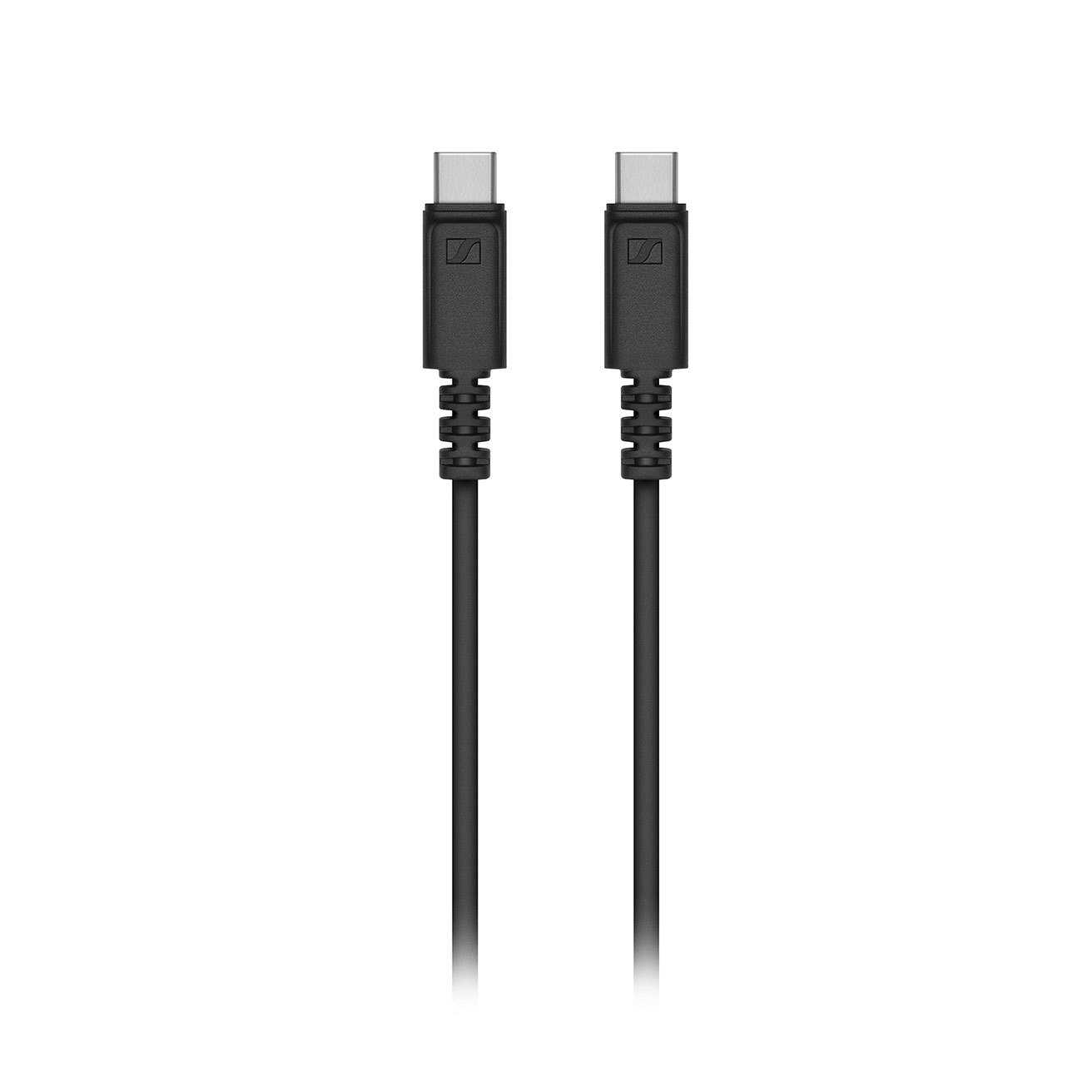

- USB-C to USB-C charging cable
- Documentation
