Xsw-d lavalier set

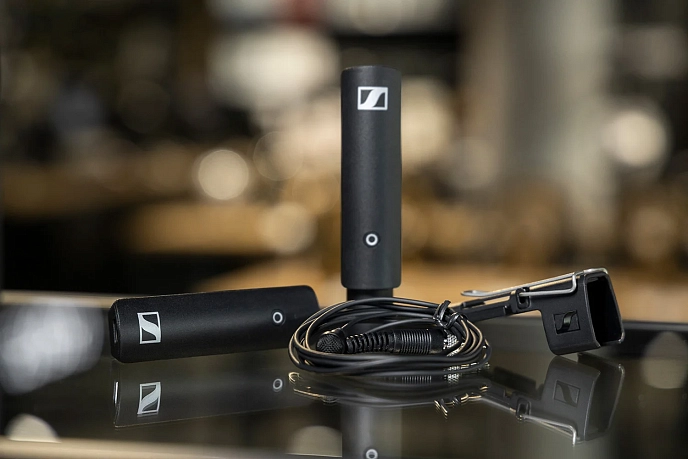

Convenient wireless audio device with a single-button interface, equipped with the ME2-II clip-on microphone, XSW-D 3.5mm (1/8") transmitter, XSW-D XLR receiver, belt clip, and USB-A to USB-C charging cable. This wireless single-button audio device utilizes digital transmission for easy audio source connectivity. With the ME2-II clip-on microphone, this elegant solution allows for seamless wireless presentations and reliable connectivity.
Features:
- Wireless single-button audio device
- Digital transmission at 2.4 GHz frequency for limitless operation
- Range of up to 75m (250ft) under optimal conditions
- Up to 5 hours of battery life on a single charge
- Switch between multiple transmitters connected to a single receiver
- Customize any combination of transmitters and receivers
- Mute functionality for transmitter or receiver
Specifications:
- XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
- XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
- XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
- XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
- XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
- XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
- XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm
- Non-linear distortion (THD) < 0.1%
- Charging time: approx. 3 hours
- Max. audio output: 12 dBu
- Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)
- Signal-to-noise ratio: ≥ 106 dB
- Battery life: up to 5 hours
- Modulation: GFSK with TDMA
- Li-Ion battery
- Capacity: 850 mAh
- aptX® Live codec
- Operating frequency range: 2,400 - 2,483.5MHz
- Max. input voltage: approx. 5.0 V
- Max. transmission power: 10 mW
- Voltage: 3.7 V
- Relative humidity: 95% (non-condensing)
- Delay: < 4 ms
- Temperature range: 0 °C - 60 °C (32 °F - 140 °F)
- 3.5 mm Jack/XLR: 80 - 18,000 Hz
- 6.3 mm Jack: 10 - 18,000 Hz
Package Contents:

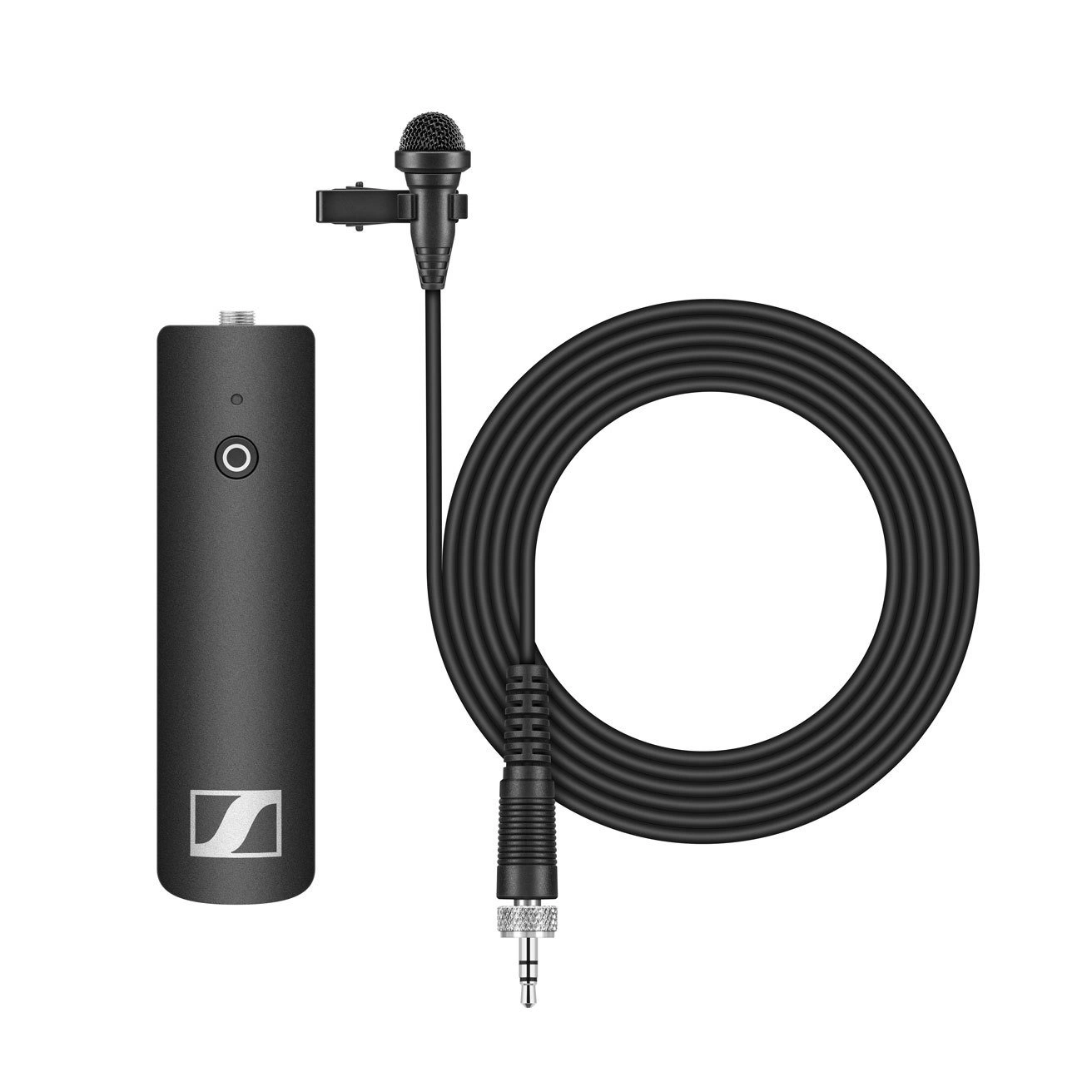

- ME2-II clip-on microphone with clamp

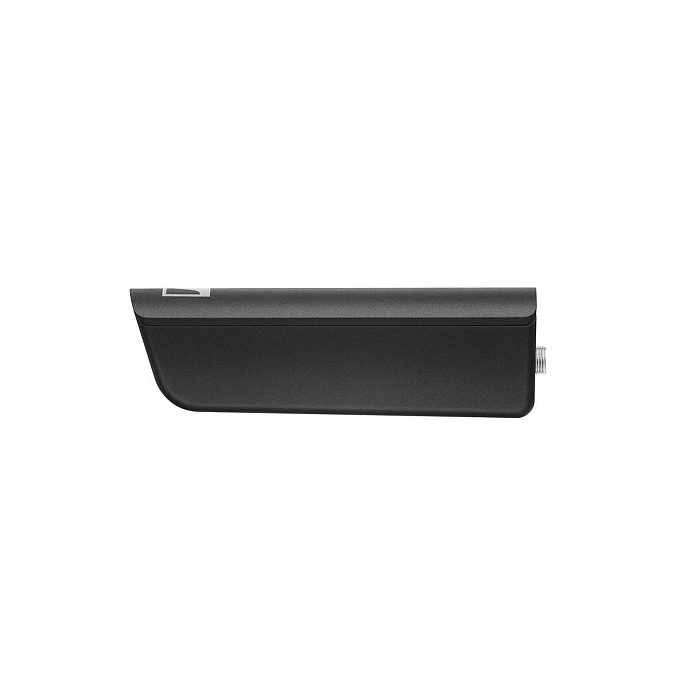

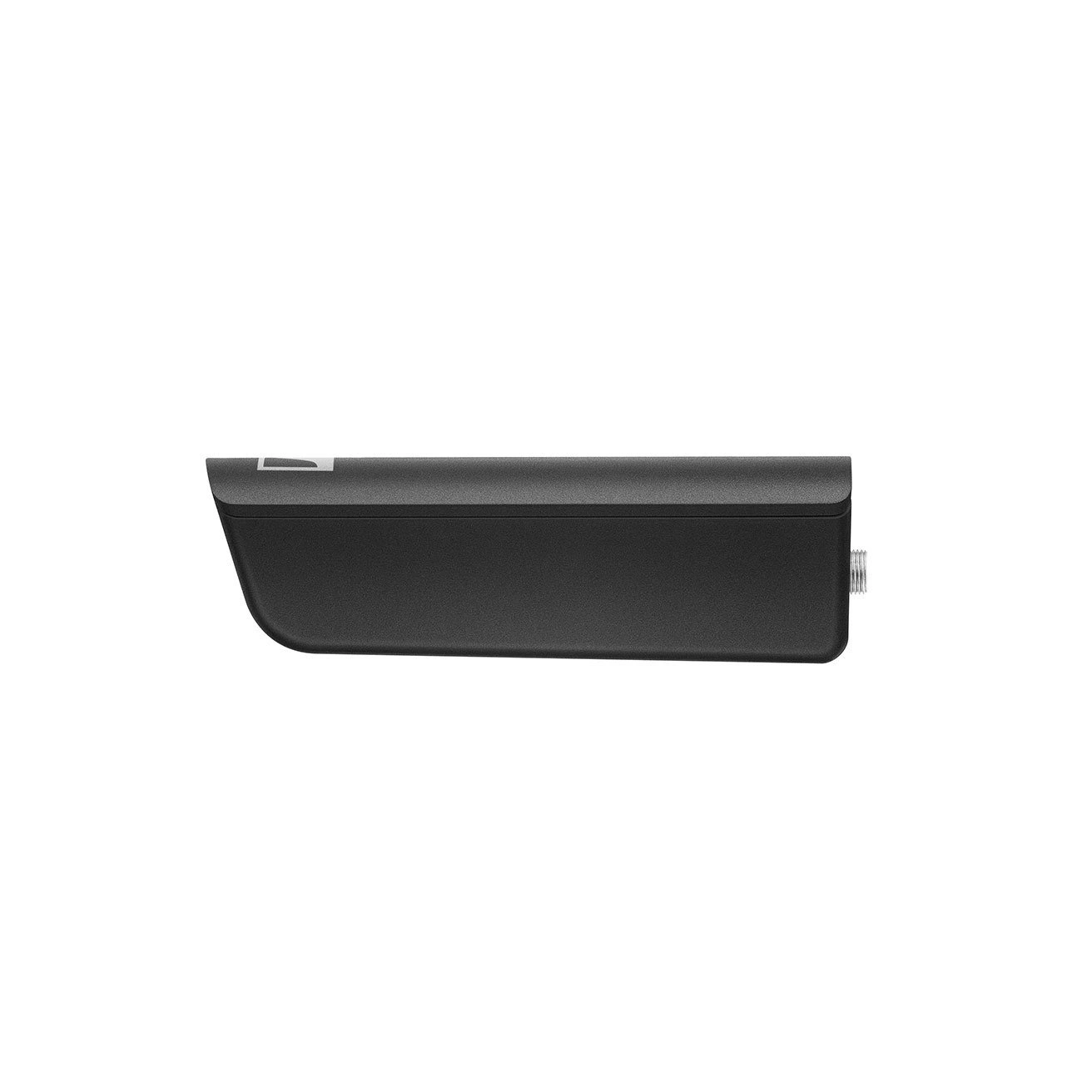

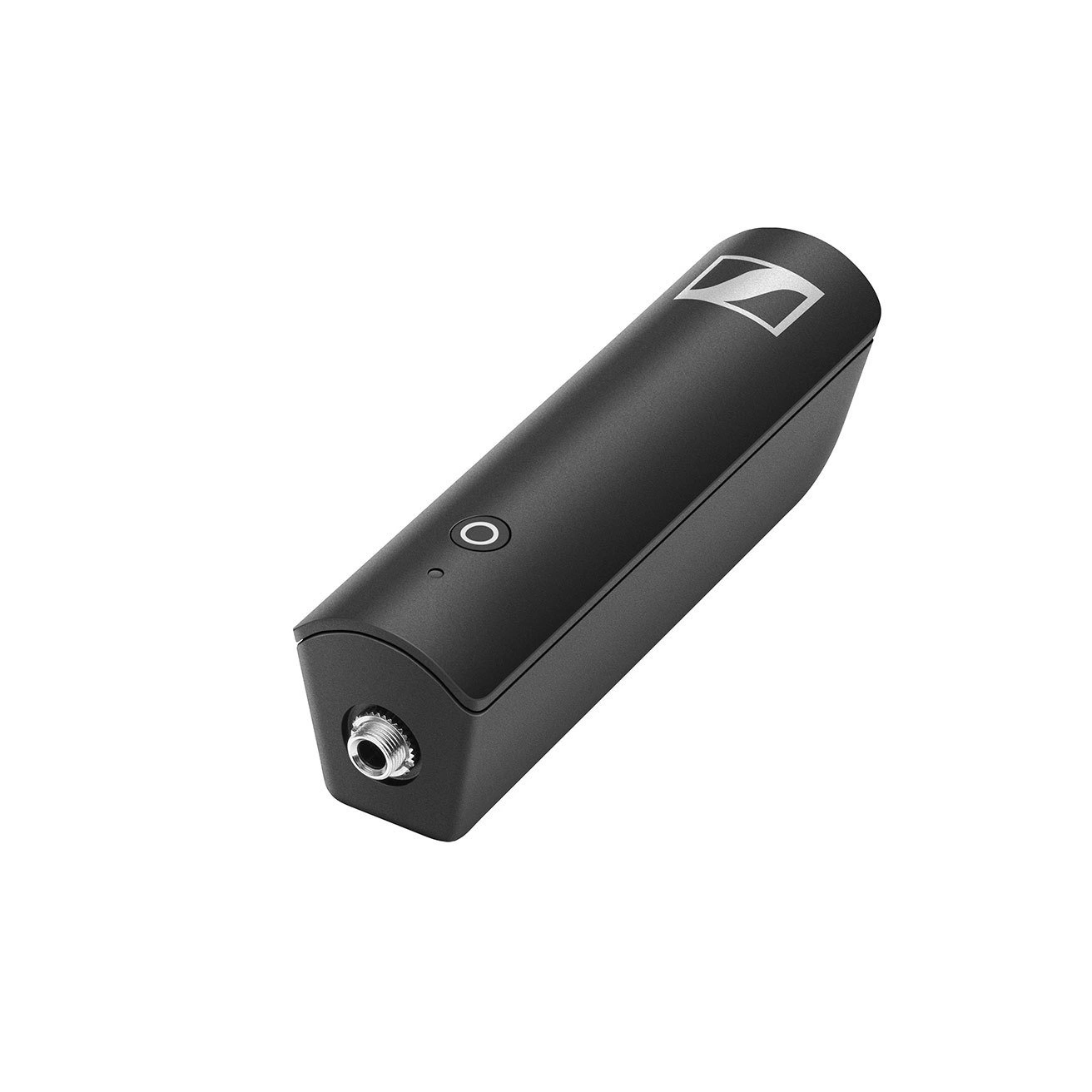

- XSW-D 3.5mm (1/8") transmitter

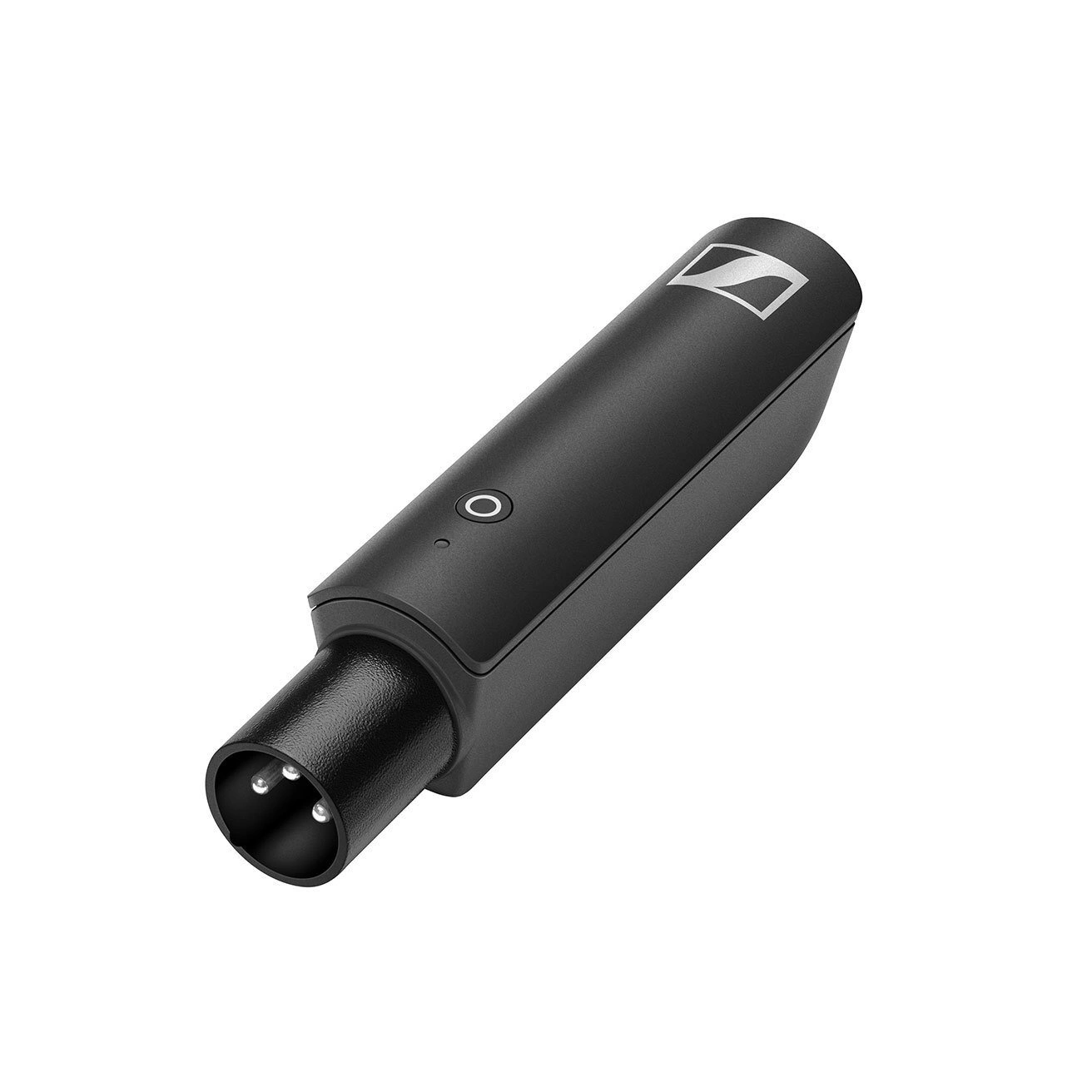

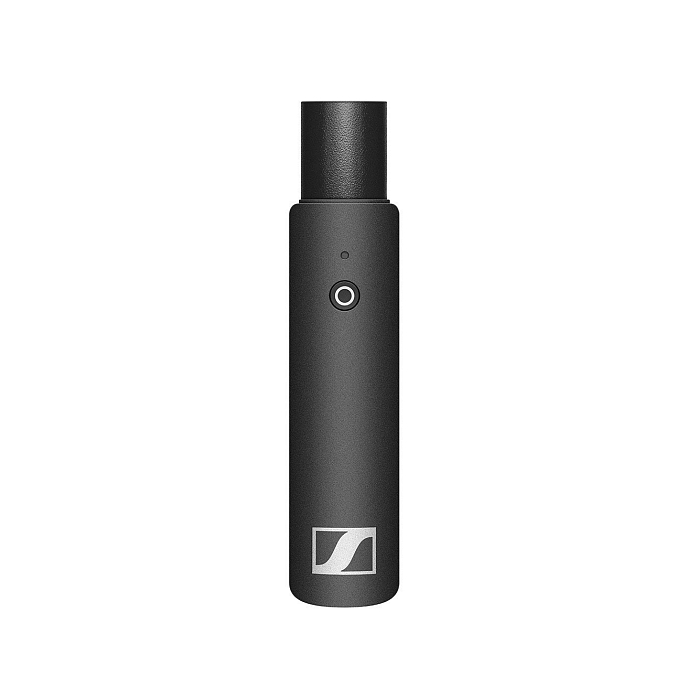

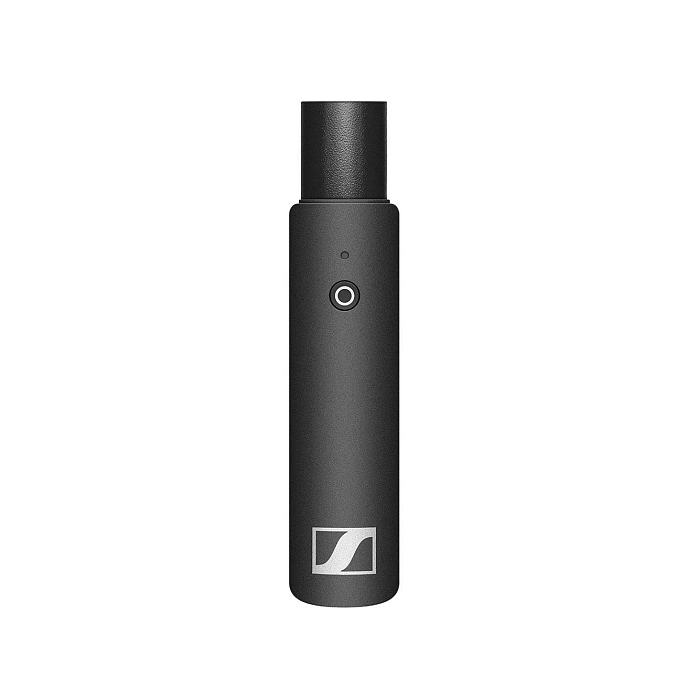

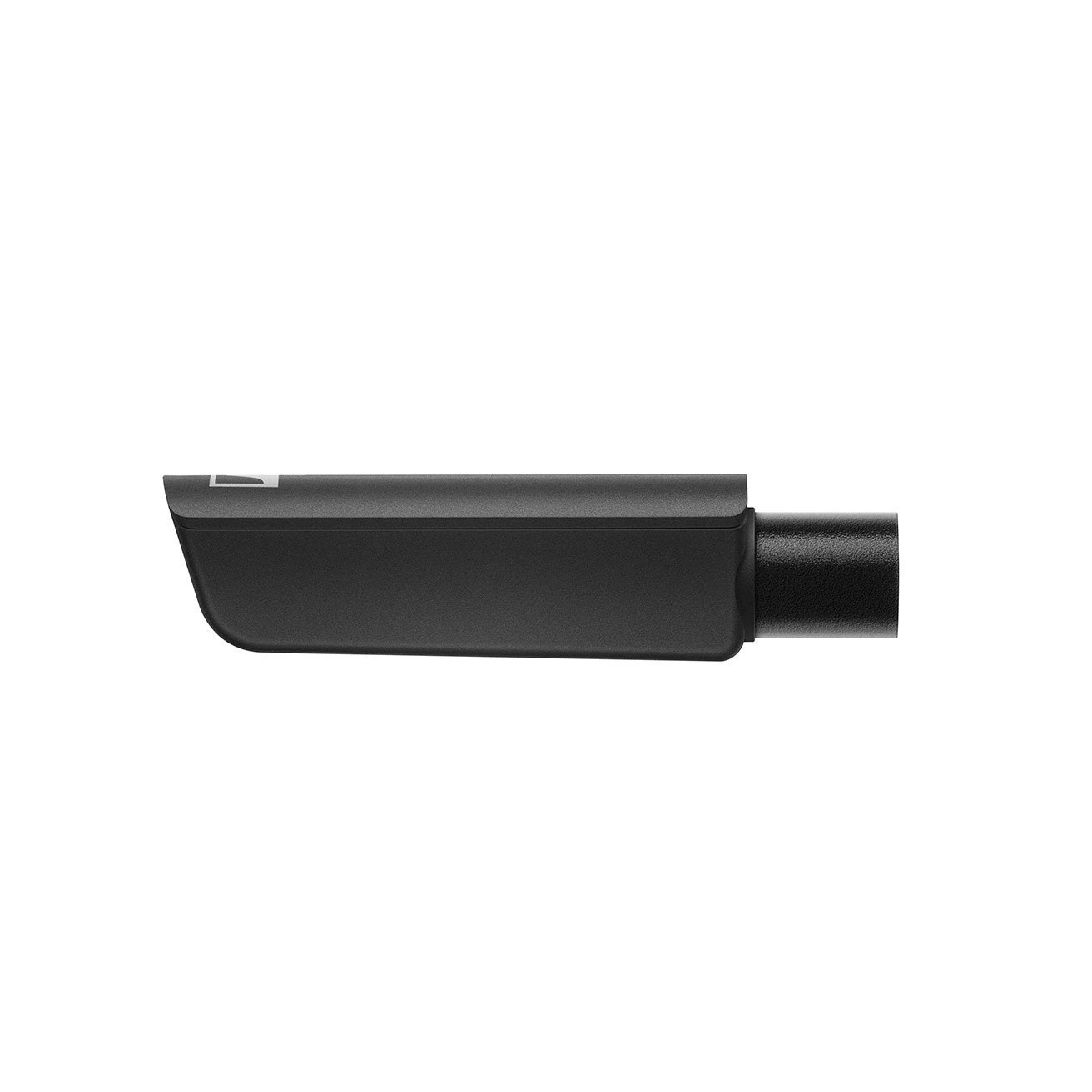

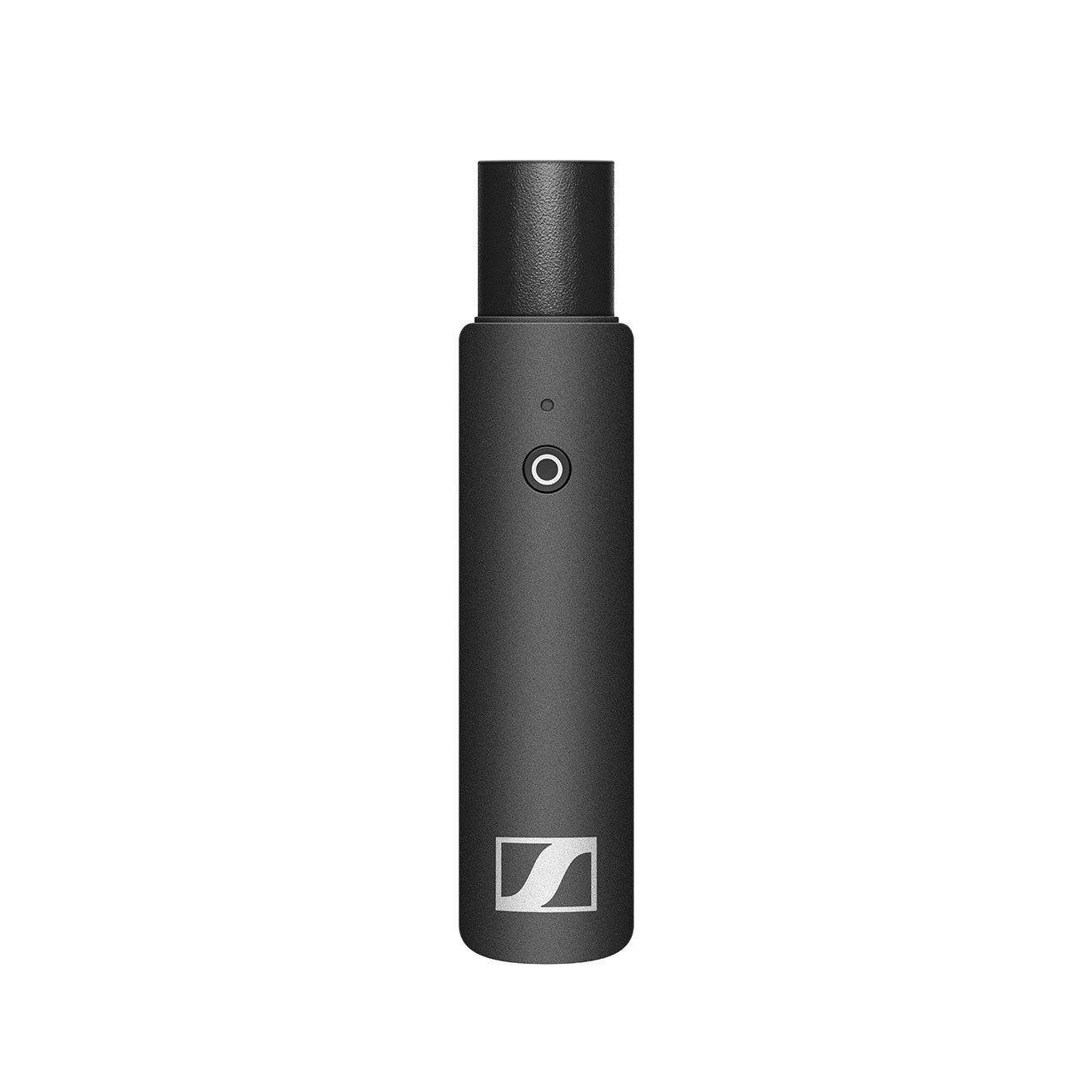

- XSW-D XLR receiver

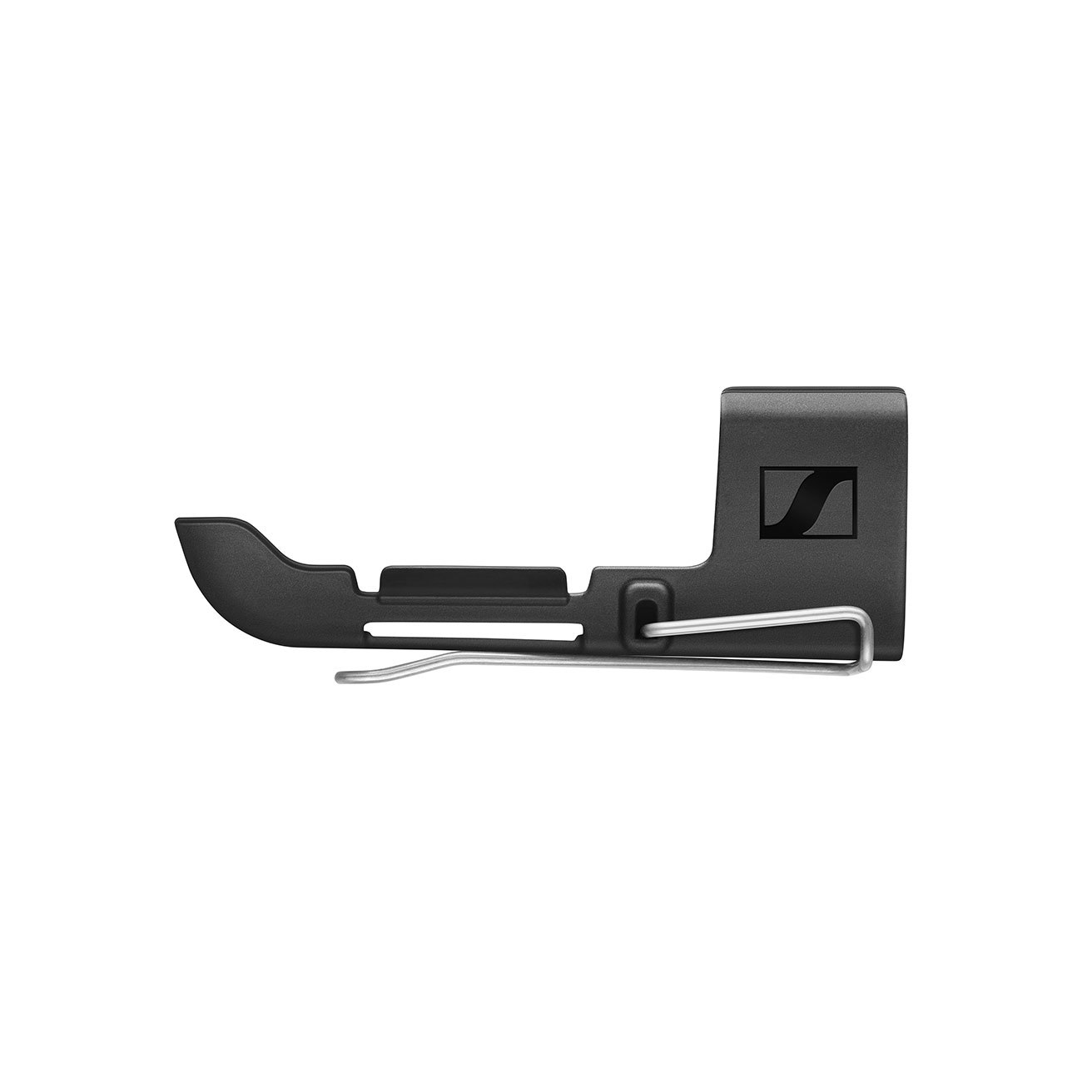

- Belt clip

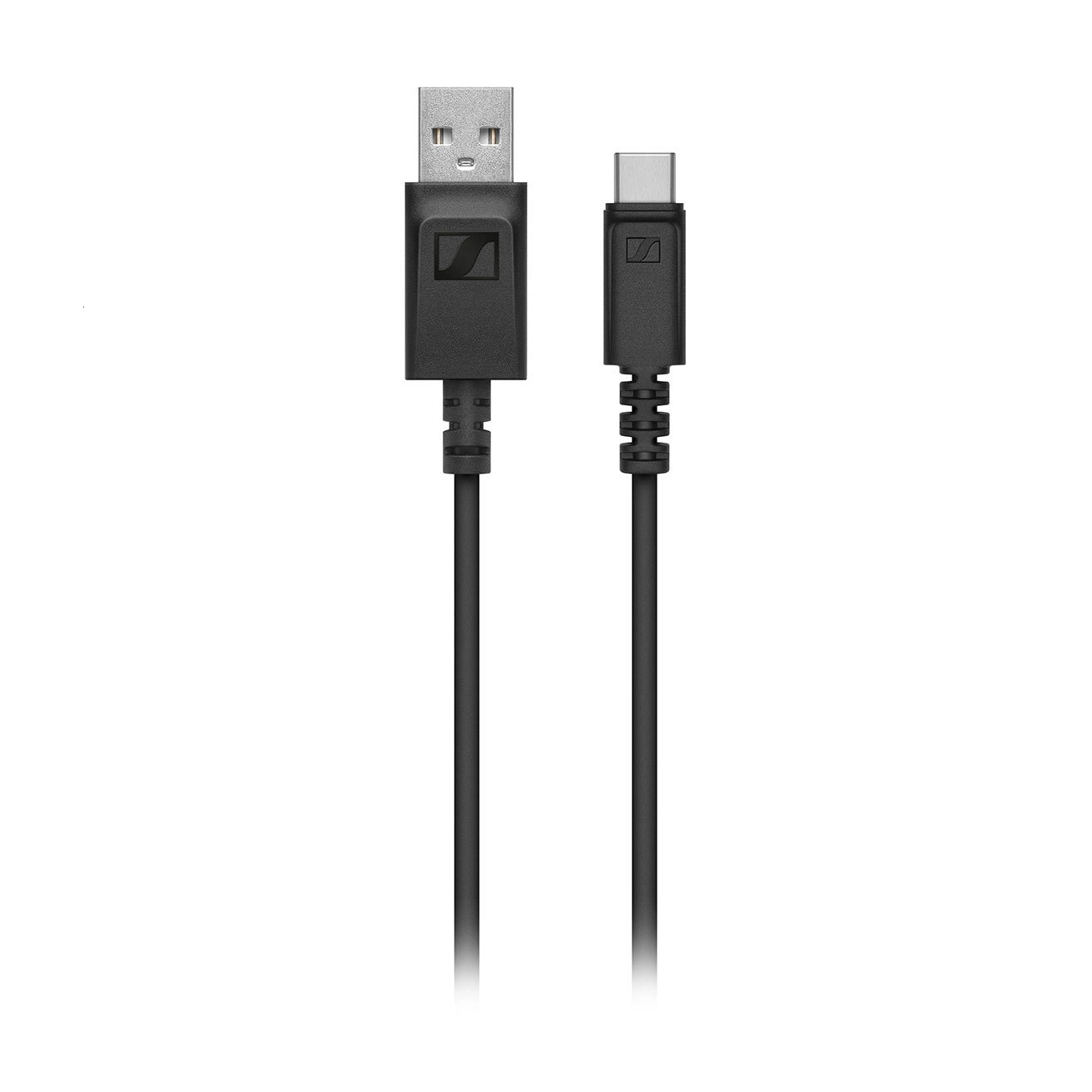

- USB-A to USB-C charging cable
- Documentation
