Radio system
Sennheiser XSW 2-ME2-B

Product code: 138036
no reviews
AED 1,803
Delivery
Pickup in Dubai:
Calculating...
Delivery (Dubai):
Calculating...
AVAILABILITY
  • A lot of goods
  • Enough product
  • Product is running out
Online store (Dubai)
In stock

Description

Reviews (0)

Description

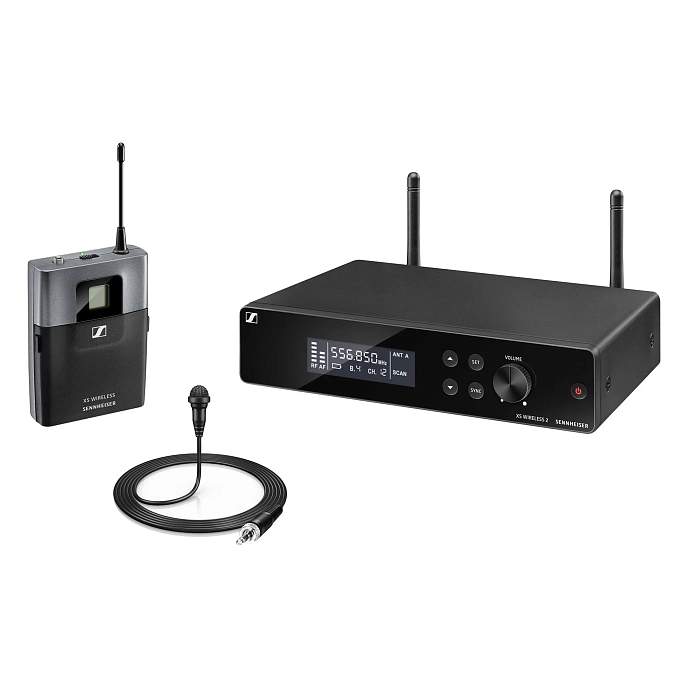

The Sennheiser XSW 2-ME2-B is a wireless radio system that is part of the XS Wireless 2 series. The package includes an EM-XSW 2 receiver, a SK-XSW belt pack transmitter, a ME 2-2 lapel microphone, an NT 12-5 CW power supply, and two AA batteries. Additionally, the box contains mounting accessories for rack installation and a soft case. The system operates in the frequency range of 614 - 638 MHz.

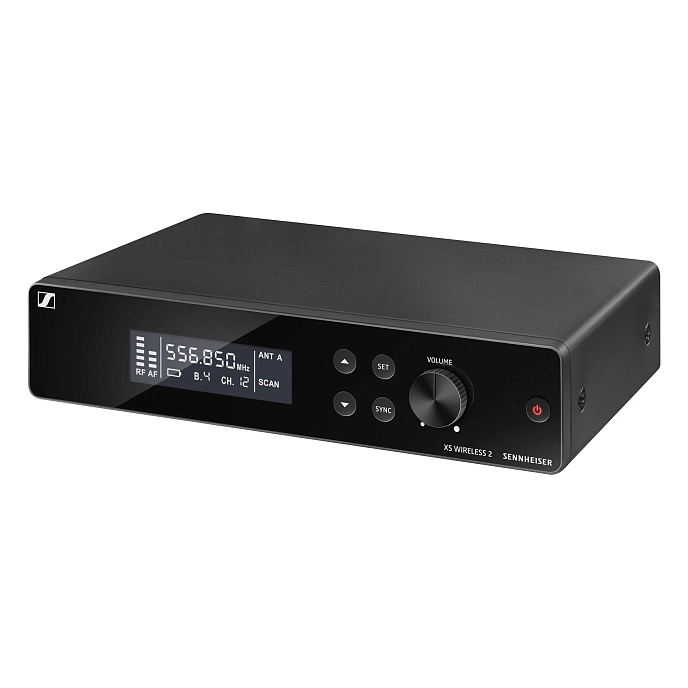

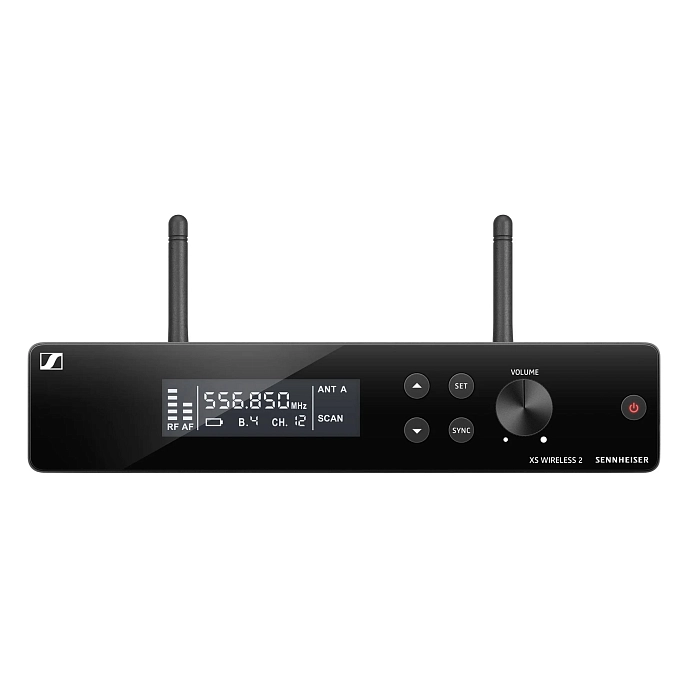

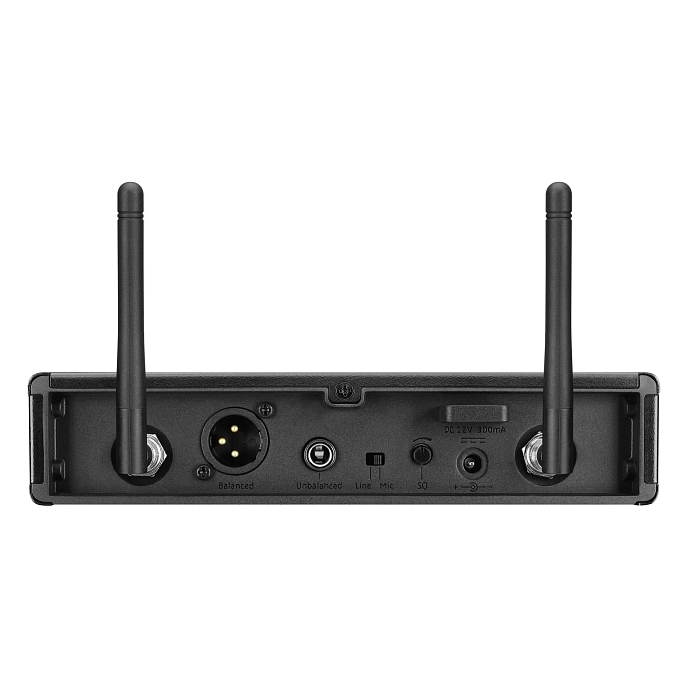

The wireless EM-XSW 2 receiver from the Sennheiser XSW 2-ME2-B set features two spaced external antennas on BNC connectors and a metal housing. It has outputs on a balanced XLR connector and an unbalanced 1/4" TS Jack. It supports 12 channels with 8 banks each. The front panel has a graphical LCD display that shows the active channel number, frequency, signal level, battery charge, and additional information. On the housing, there are additional buttons for adjustment and synchronization, as well as a large volume control knob. The receiver also has an automatic frequency management function. The NT 12-5 CW power supply operates at a voltage of 100-240 Volts.

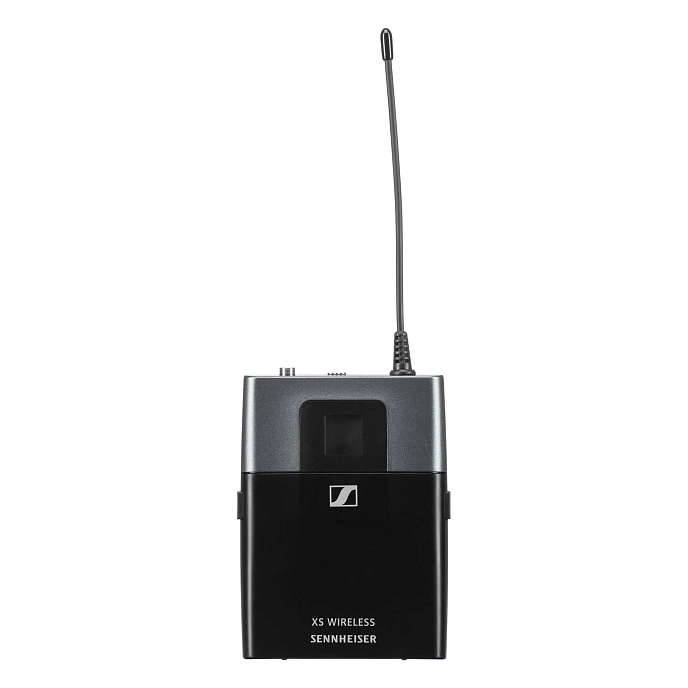

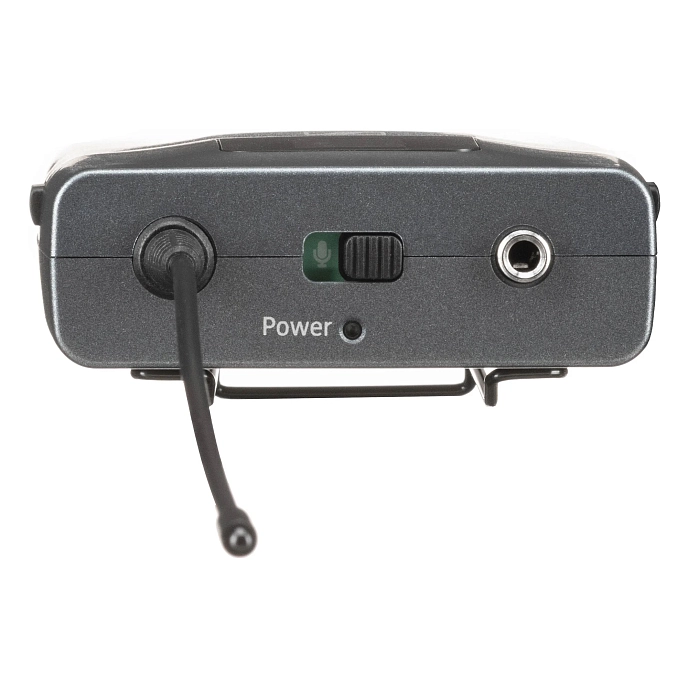

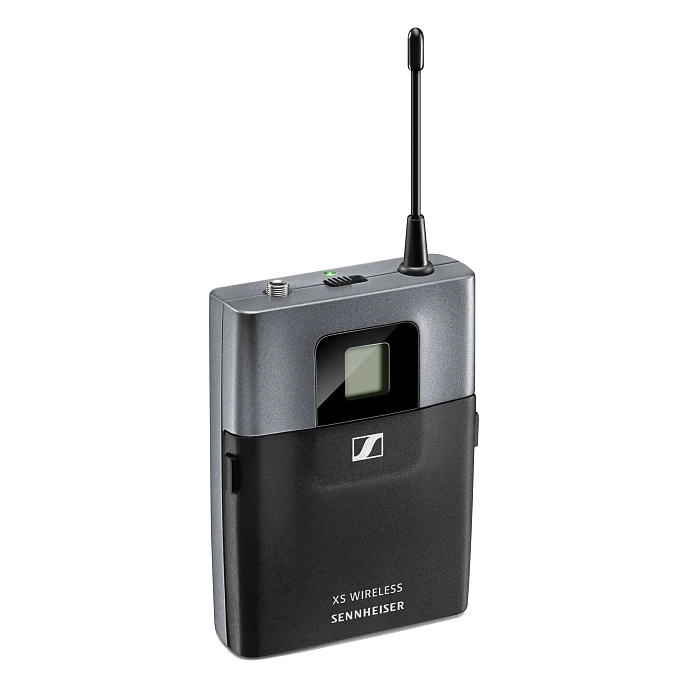

The SK-XSW belt pack transmitter from the Sennheiser XSW 2-ME2-B set is designed to connect to line sources, instruments, and microphones. It can be used in conjunction with XSW 1 Wireless and XSW 2 Wireless systems. It is commonly used by vocalists, musicians, and speakers, and has a 3.5 mm mini-Jack connector for microphone connection. The transmitter operates on two AA batteries for approximately 10 hours and has a battery charge indicator on the housing. The moisture-resistant ABS plastic housing can withstand harsh operating conditions in aggressive environments.

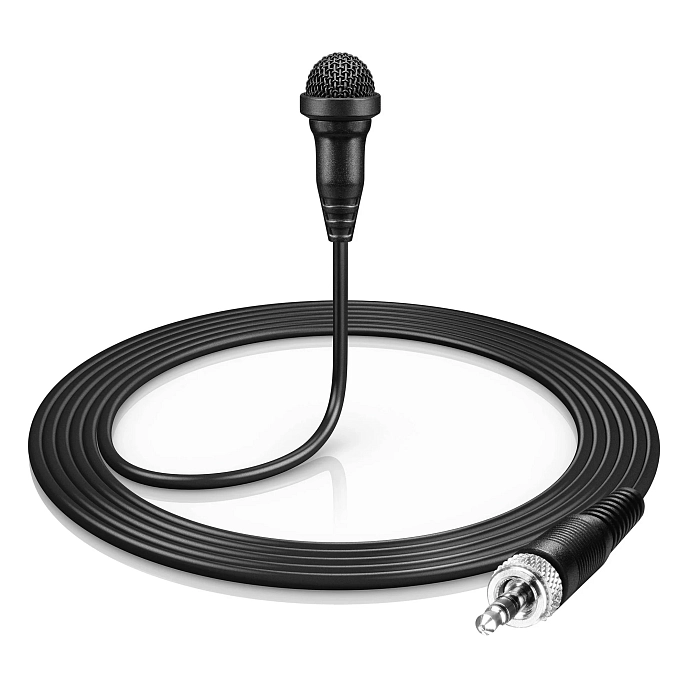

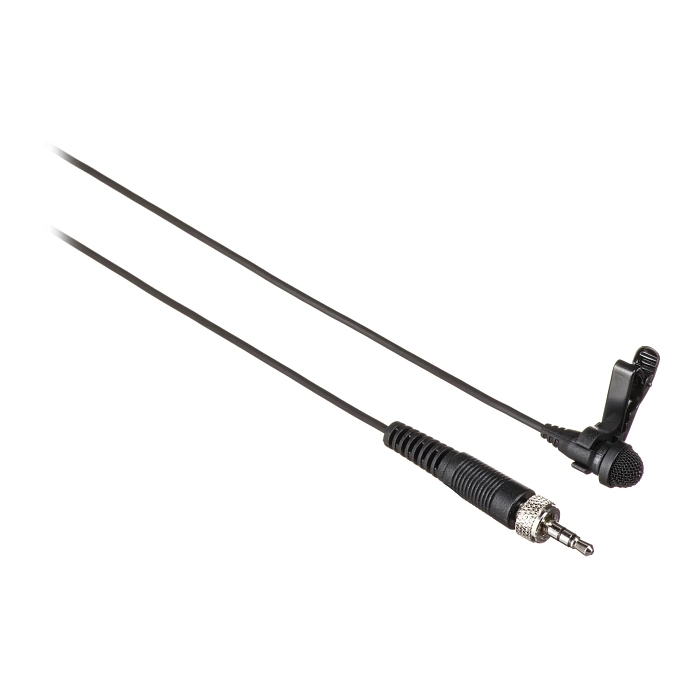

The ME2-2 miniature lapel microphone included in the Sennheiser XSW 2-ME2-B set is designed for vocalists or speakers. It has an omnidirectional polar pattern with high speech intelligibility and a pre-polarized capacitor capsule. The microphone's simple clothing attachment makes it highly discreet. It has a 3.5 mm mini-Jack connector, making it compatible with Evolution, AVX, SpeechLine Digital Wireless, XS Wireless, and many other wireless transmitters. The package includes a clothing clip for attachment.

Features:

  • 12 channels with 8 banks each
  • External antennas on the receiver
  • Outputs on balanced XLR and unbalanced 1/4" TS Jack for the receiver
  • Synchronization frequency: 2.4 GHz
  • Transmitter in ABS plastic housing, receiver in metal housing
  • Lapel microphone with condenser cartridge and omnidirectional polar pattern included
  • Carrier frequency range of the system: 614 - 638 MHz

Package Includes:

  • 1 EM-XSW 2 receiver
  • 1 SK-XSW belt pack transmitter
  • 1 ME 2-2 lapel microphone
  • 1 NT 12-5 CW power supply
  • 2 AA batteries
  • 1 rack mount kit
  • 1 soft case
  • User manual.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Antenna connector
bnc
Color
Frequency bandwidth, MHz
24
Frequency step setting, kHz
25
Microphone polar pattern

Omnidirectional, cardioid and supercardioid. It determines the sensitivity of the microphone to sound relative to the direction or angle, i.e. shows how well the microphone "hears" sound from different sides

Glossary of terms
cardioid

The polar pattern of the microphone that picks up the sound in front of it.

Словарь терминов
Microphone type
condenser

A metal membrane consisting of plates (a condenser) oscillates under the influence of sound air flows converting a sound wave into an electromagnetic one.

Словарь терминов
Modulation type

Frequency modulation (FM), amplitude modulation (AM), digital modulation

Glossary of terms
UHF
Number of channels
1
Number of presets in frequency bank
96
Radio frequency band
614-638 MHz
Receiver body material
plastic
Receiver power supply
2xAA
Receiver working principle
signal diversity
The highest receiver frequency, kHz
16
The highest transmitter frequency, kHz
16
The lowest receiver frequency, Hz
50
The lowest transmitter frequency, Hz
50
Transmitter power supply
2xAA
Transmitter power, MW
10
Transmitter type
waist

The transmitter that is attached to the belt.

Type of microphone included
lavalier
Depth, mm
28
Height, mm
96
Width, mm
71
Weight, g
95
Service life, months
24
Warranty, months
12
