Radio system
Sennheiser XSW 2-835-B

Product code: 116329
no reviews
AED 1,690
Delivery
Pickup in Dubai:
Calculating...
Delivery (Dubai):
Calculating...
AVAILABILITY
  • A lot of goods
  • Enough product
  • Product is running out
Online store (Dubai)
In stock

Description

Reviews (0)

Description

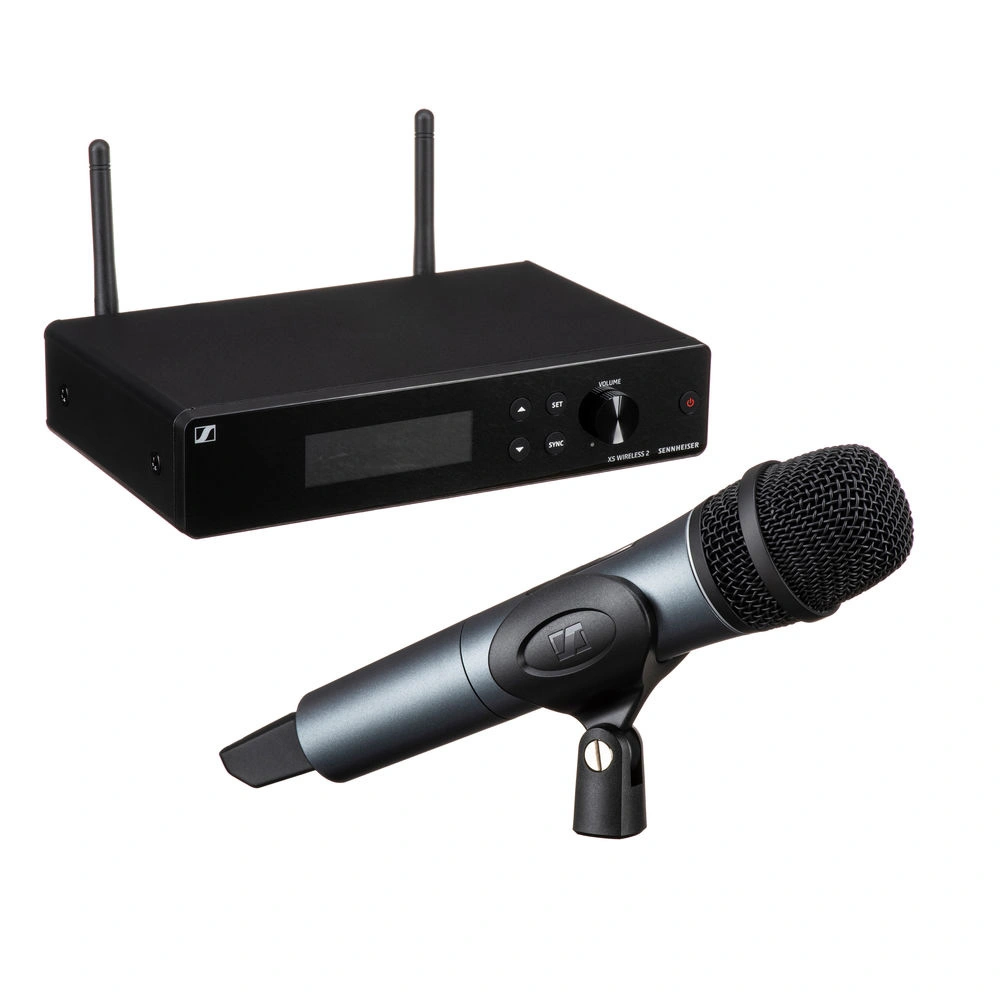

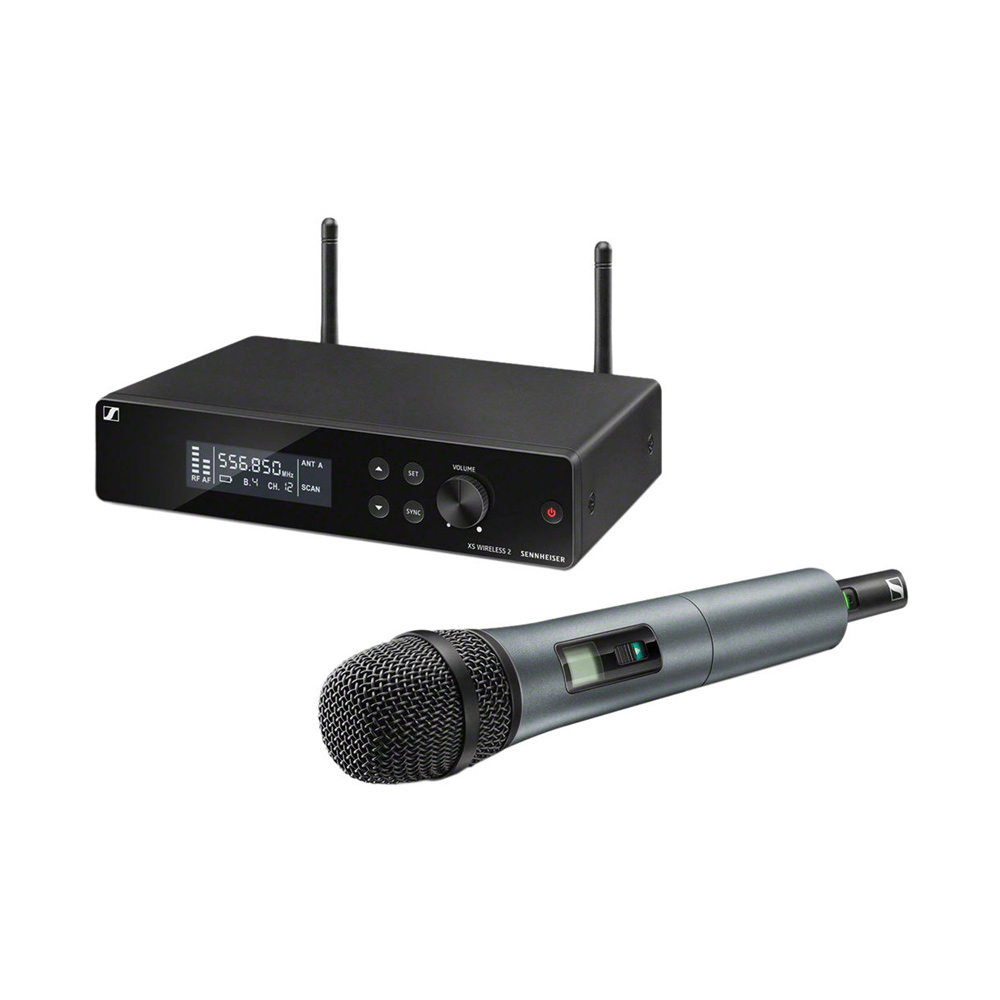

Sennheiser XSW 2-835-B is a wireless vocal radio system that is part of the XS Wireless 2 series. The set includes the EM-XSW 2 receiver, SKM 835-XSW handheld transmitter, MZQ 1 microphone clip, NT 12-5 CW power adapter, and two AA batteries. It also comes with a soft case and a set of rack mounting accessories. The system operates in the frequency range of 614-638 MHz. Synchronization is done through a remote channel.

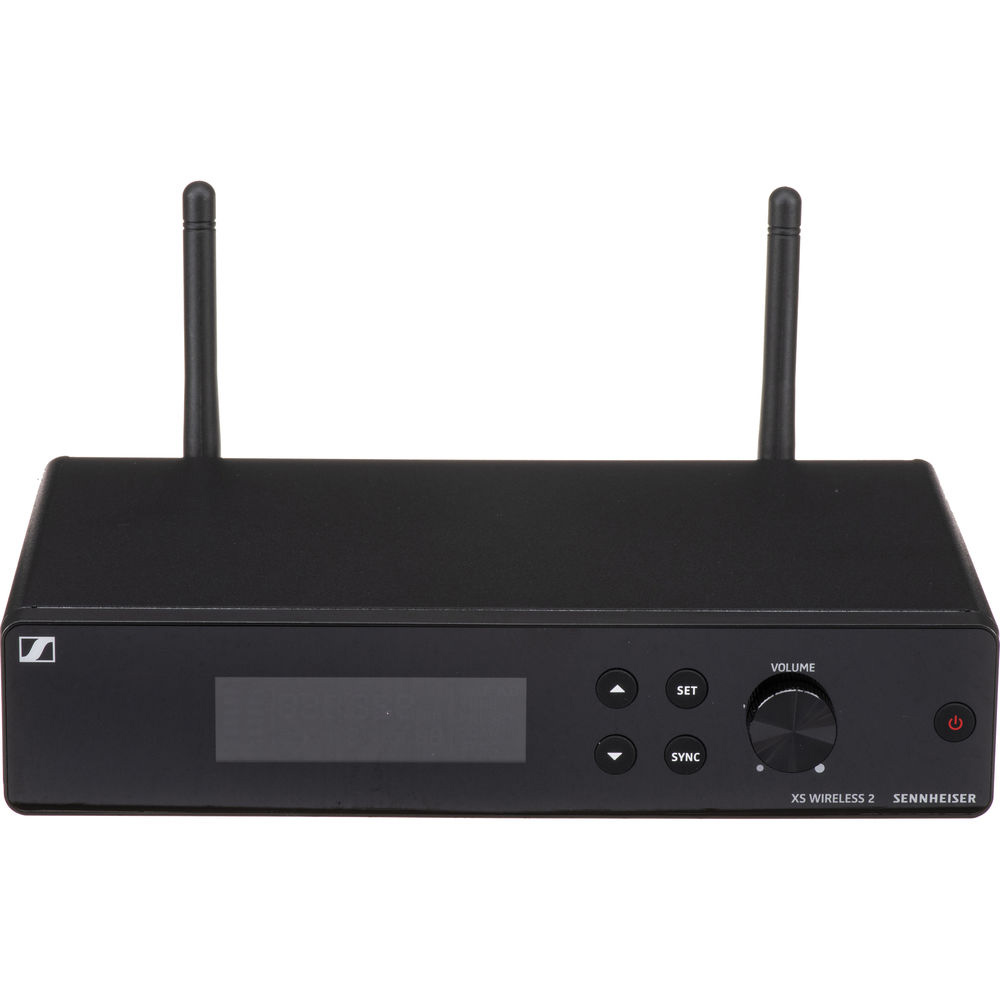

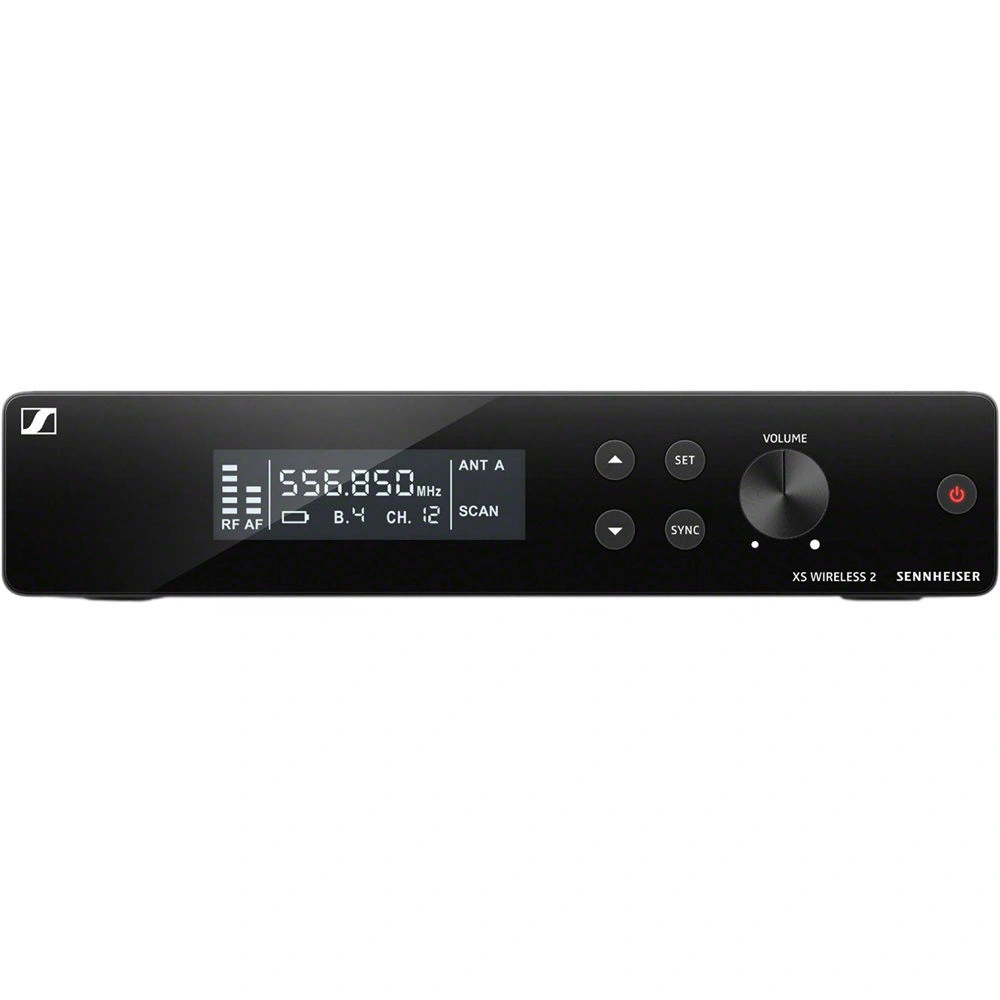

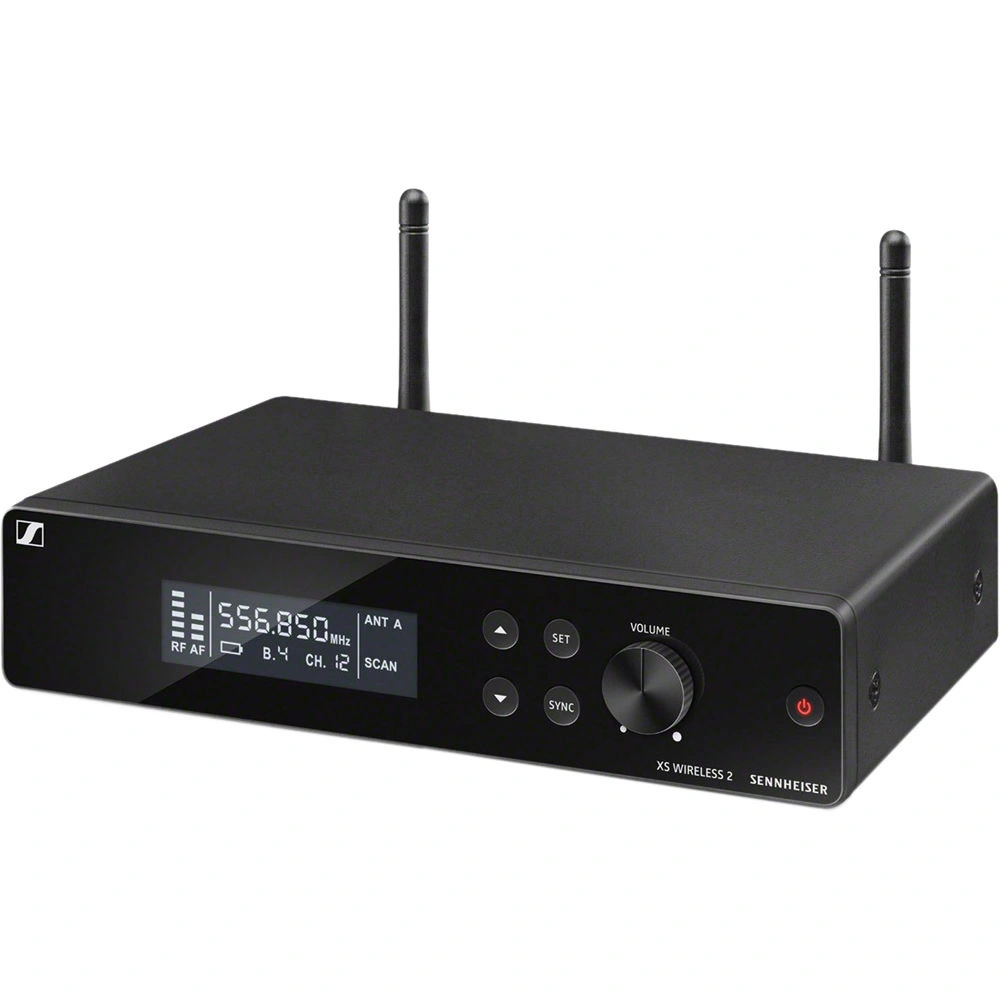

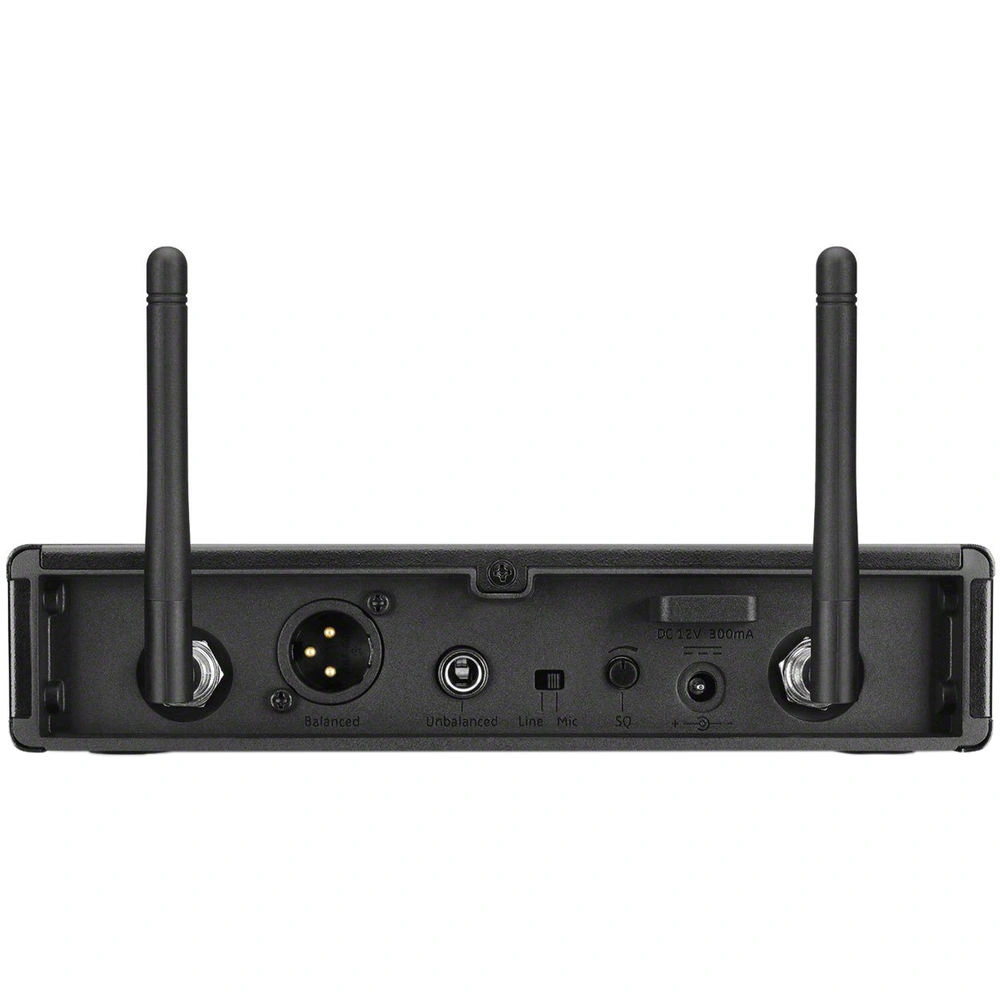

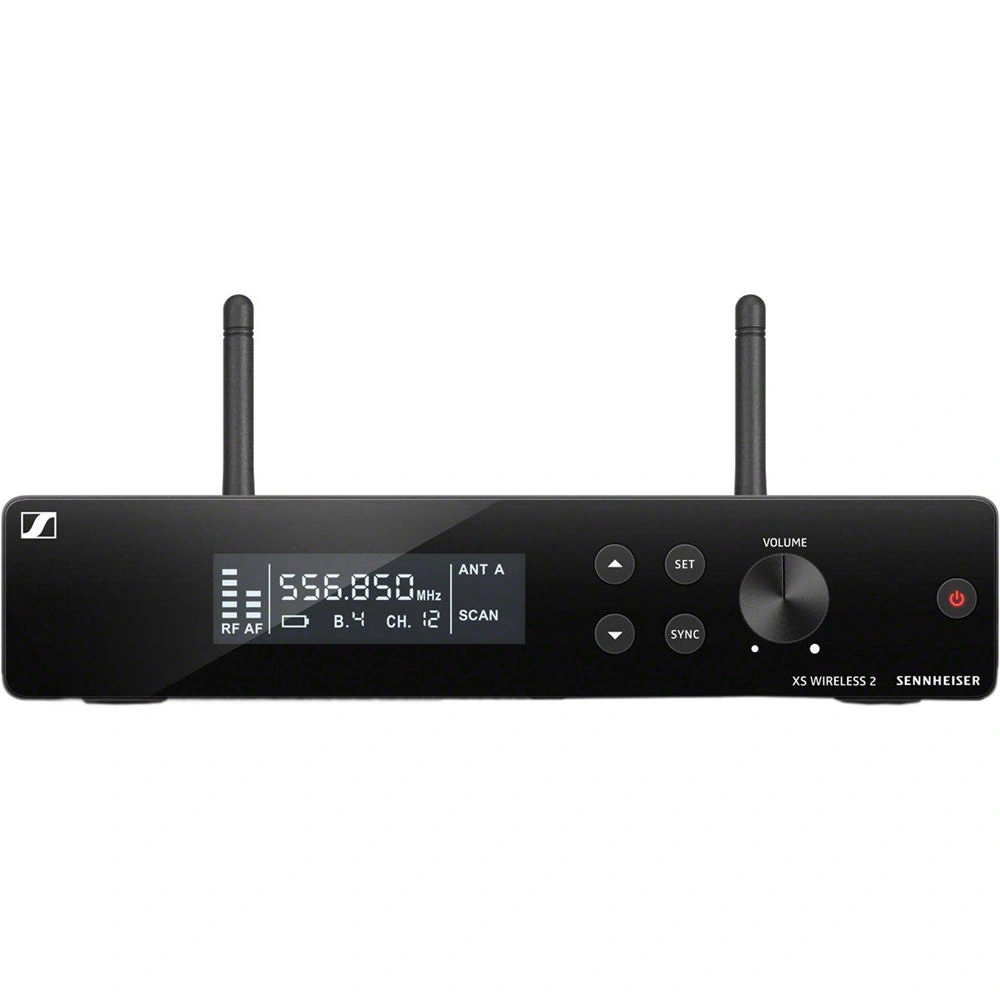

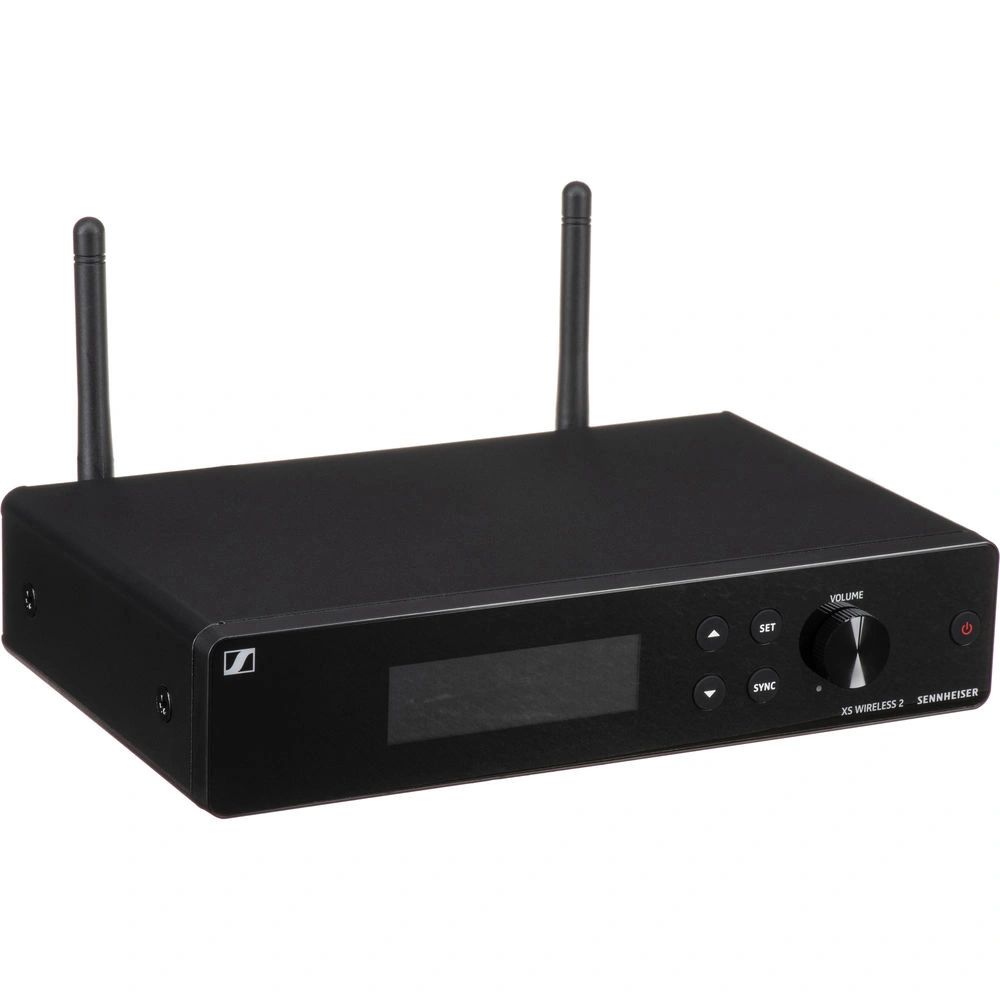

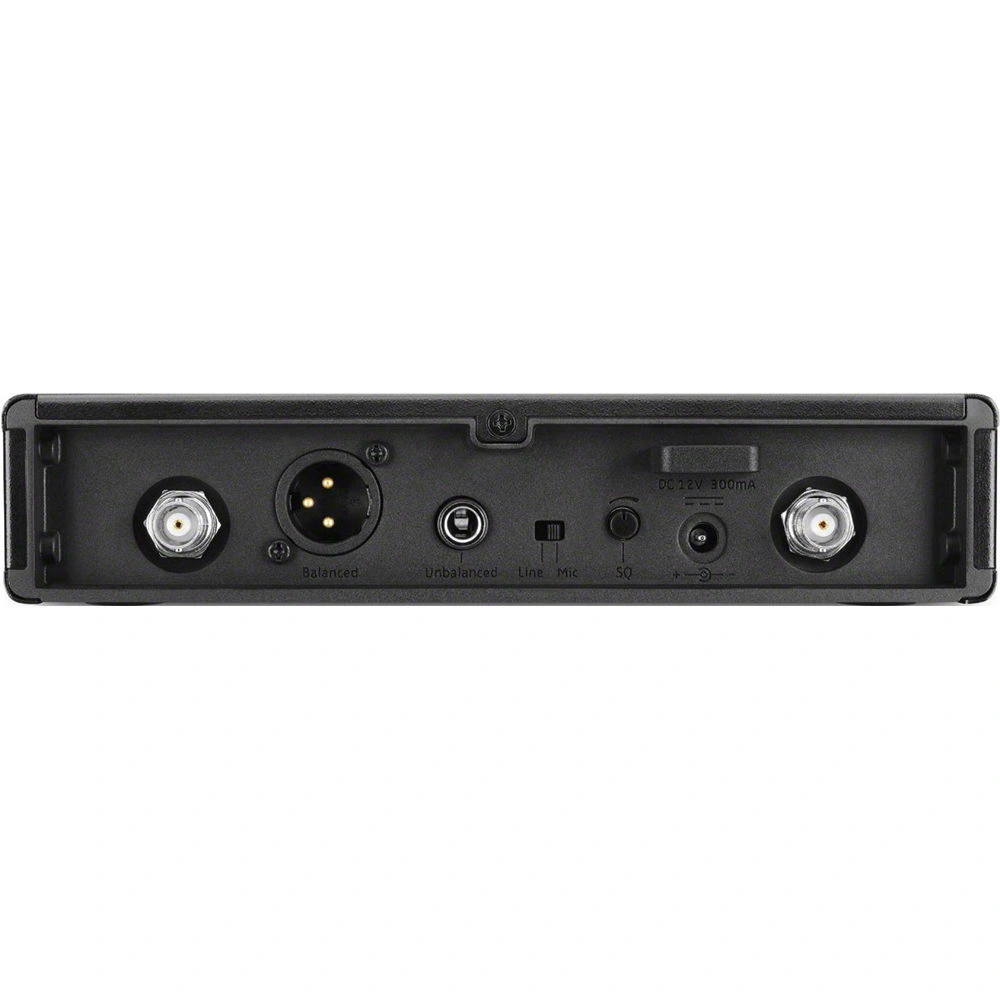

The EM-XSW 2 wireless receiver from the Sennheiser XSW 2-835-A set features two detachable external antennas and a metal housing. Outputs are available on a balanced XLR connector and an unbalanced 1/4" TS Jack connector. It supports 12 channels with 8 banks each. The front panel features a graphic LCD display that shows the active channel number, frequency, signal level, battery status, and auxiliary information. The housing also includes additional adjustment and synchronization buttons, as well as a large volume control knob. It has automatic frequency management function. The included NT 12-5 CW power supply is universal and works with voltages ranging from 100 to 240V.

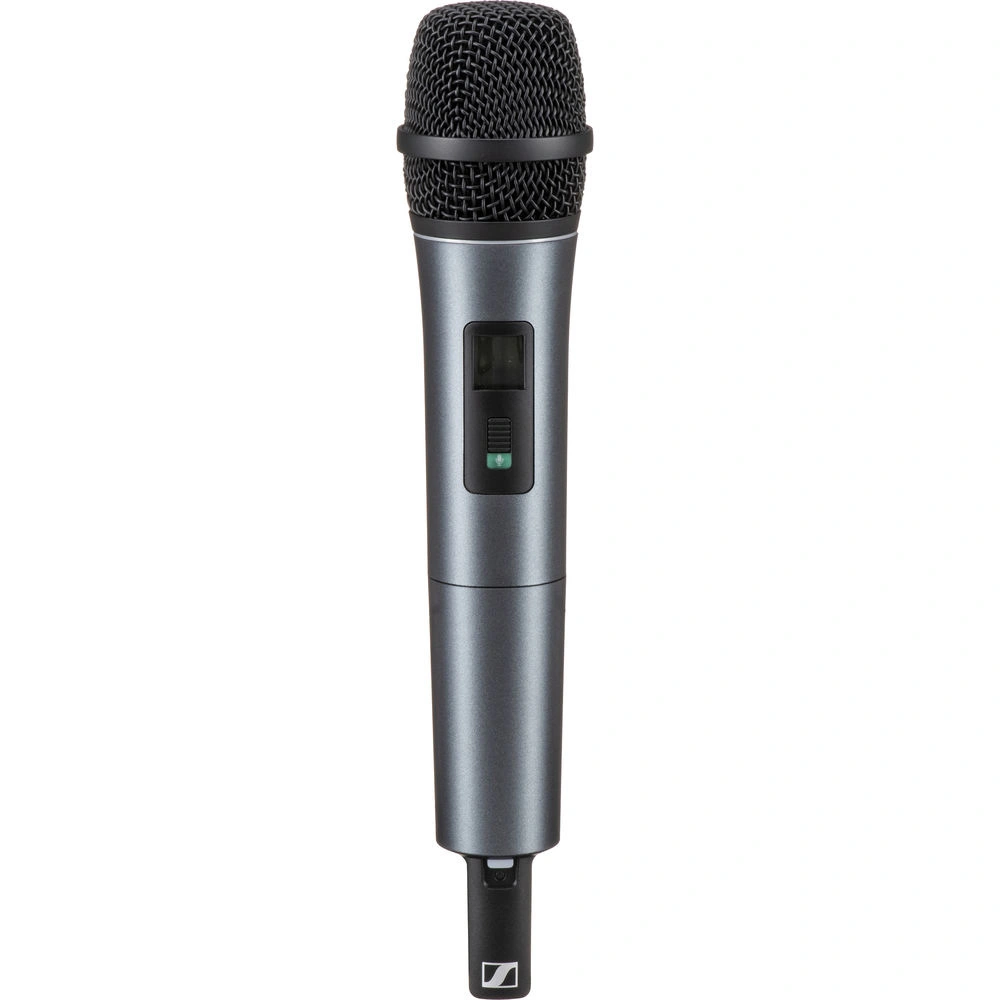

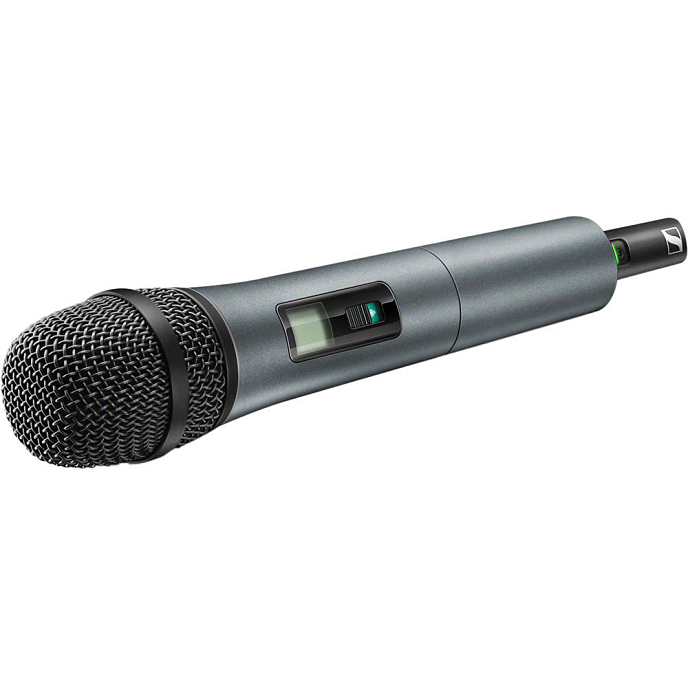

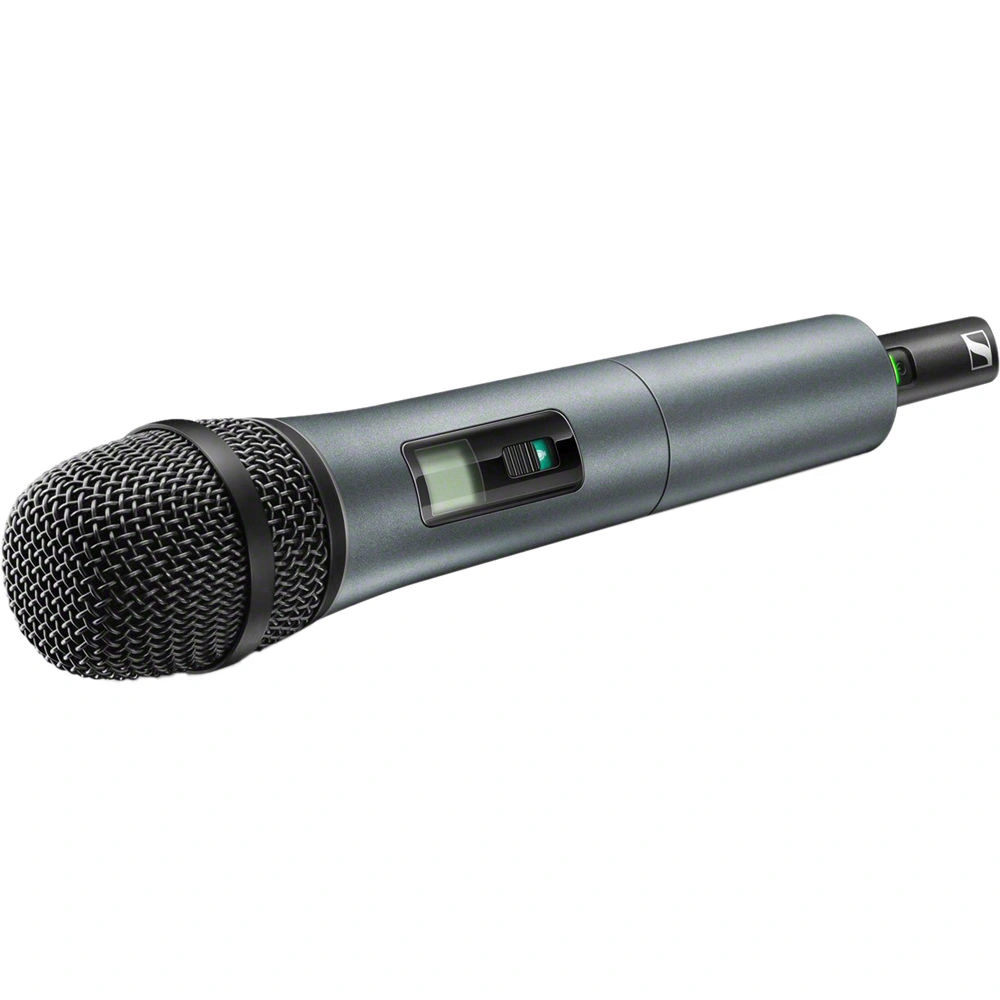

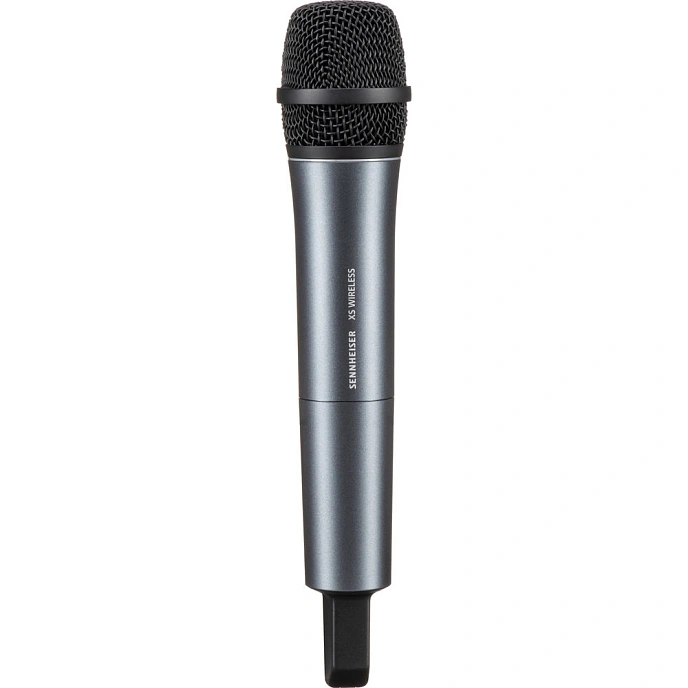

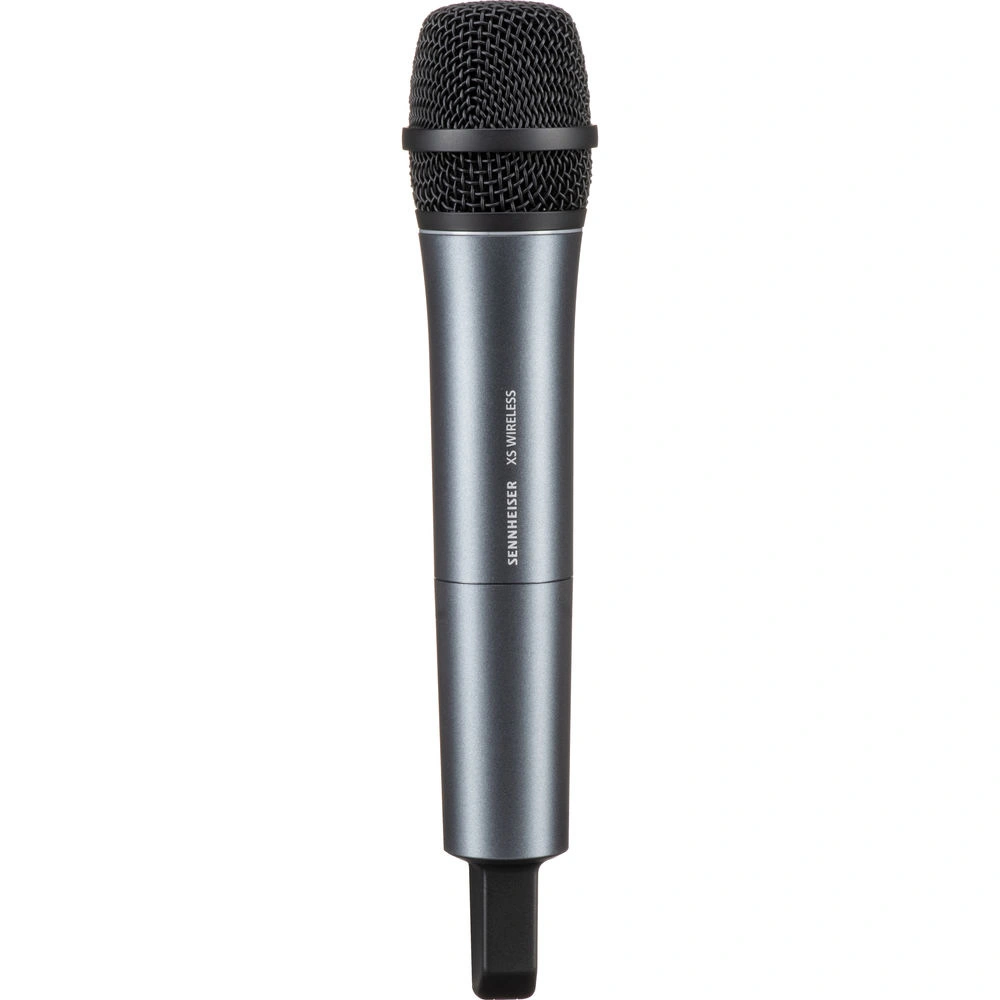

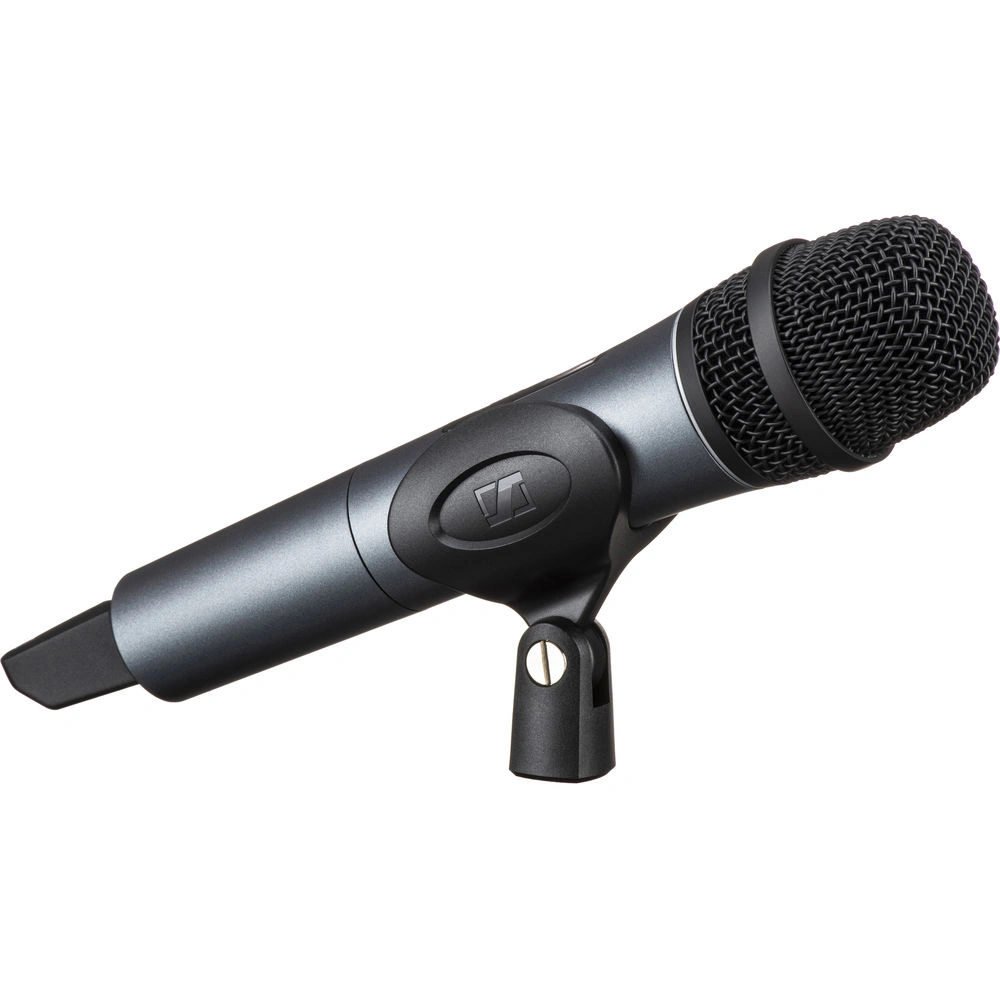

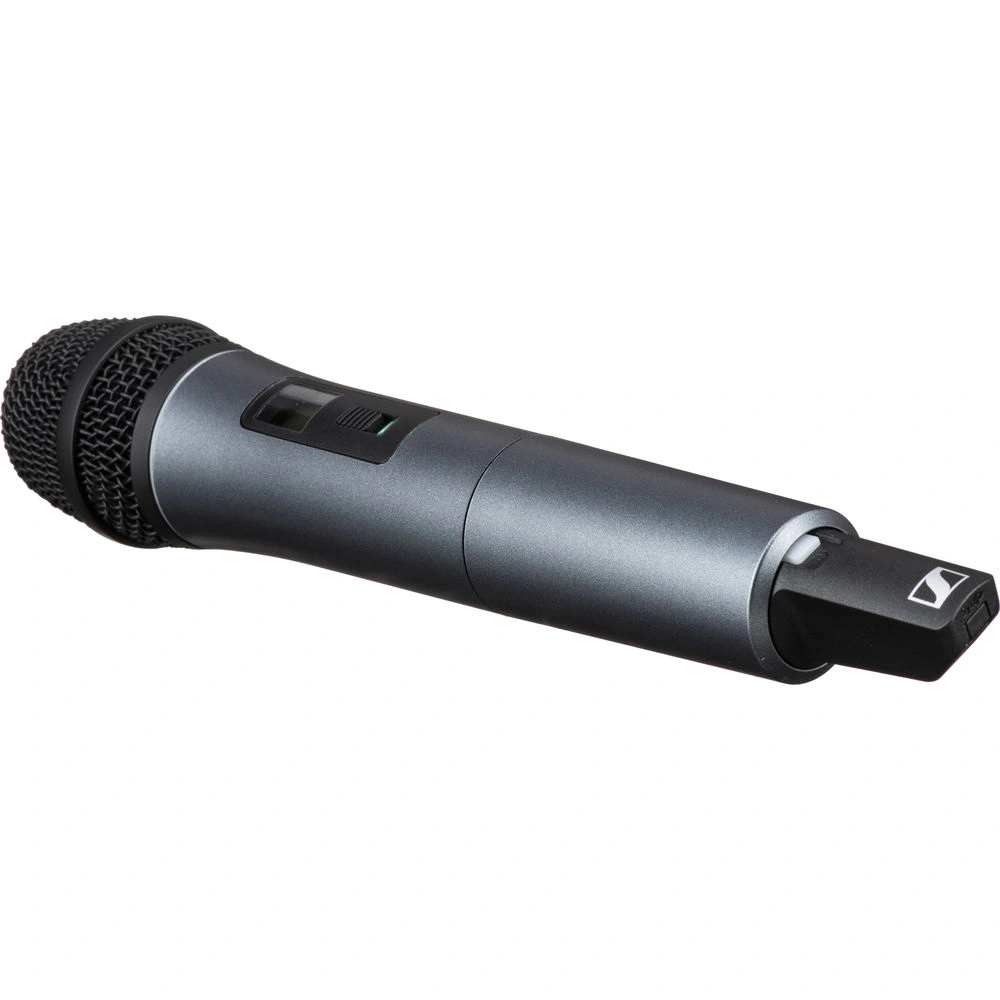

The SKM 835-XSW handheld transmitter from the Sennheiser XSW 2-835-B set is designed for XS Wireless systems. It features a dynamic capsule and a cardioid directional pattern. It can be used by vocalists, speakers, presenters, and for live performances on stage. It is powered by two AA batteries and can provide approximately 10 hours of continuous operation depending on the battery type, with a battery charge indicator. The ABS housing is designed to withstand tough touring conditions.

Features:

  • Vocal set
  • 12 channels, 8 banks
  • Detachable external antennas on the receiver
  • Outputs on balanced XLR and unbalanced 1/4" TS Jack
  • Synchronization frequency: 2.4 GHz
  • Transmitter housed in ABS plastic, receiver housed in a metal casing
  • Carrier frequency range: 614-638 MHz

Package includes:

  • SKM-XSW35 handheld transmitter
  • EM-XSW2 receiver
  • NT 12-5 universal power supply
  • 2 AA batteries
  • MZQ1 microphone clip
  • Rack mounting accessories
  • Soft case
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Antenna connector
bnc
Color
Frequency bandwidth, MHz
24
Microphone polar pattern

Omnidirectional, cardioid and supercardioid. It determines the sensitivity of the microphone to sound relative to the direction or angle, i.e. shows how well the microphone "hears" sound from different sides

Glossary of terms
cardioid

The polar pattern of the microphone that picks up the sound in front of it.

Словарь терминов
Microphone type
dynamic

The membrane of a dynamic microphone picks up sound waves, which make a coil located in a magnetic field move.

Словарь терминов
Modulation type

Frequency modulation (FM), amplitude modulation (AM), digital modulation

Glossary of terms
FM
Number of channels
1
Number of presets in frequency bank
12
Rack mounts included
yes
Radio frequency band
614-638 MHz
Receiver body material
metal
Receiver power supply
power supply unit
The highest receiver frequency, kHz
16
The highest transmitter frequency, kHz
16
The lowest receiver frequency, Hz
50
The lowest transmitter frequency, Hz
50
Transmitter operating time, hours
8
Transmitter power supply
2xAA
Transmitter power, MW
10
Transmitter type
handheld

The transmitter for connecting a microphone capsule.

Type of microphone included
handheld
Depth, mm
346
Height, mm
86
Width, mm
348
Weight, g
2393
