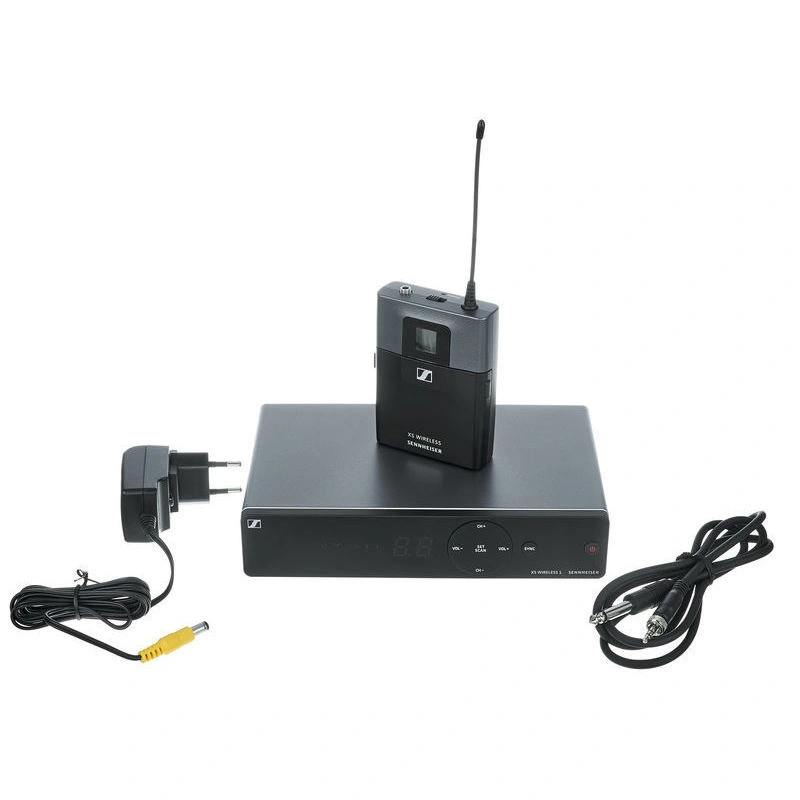

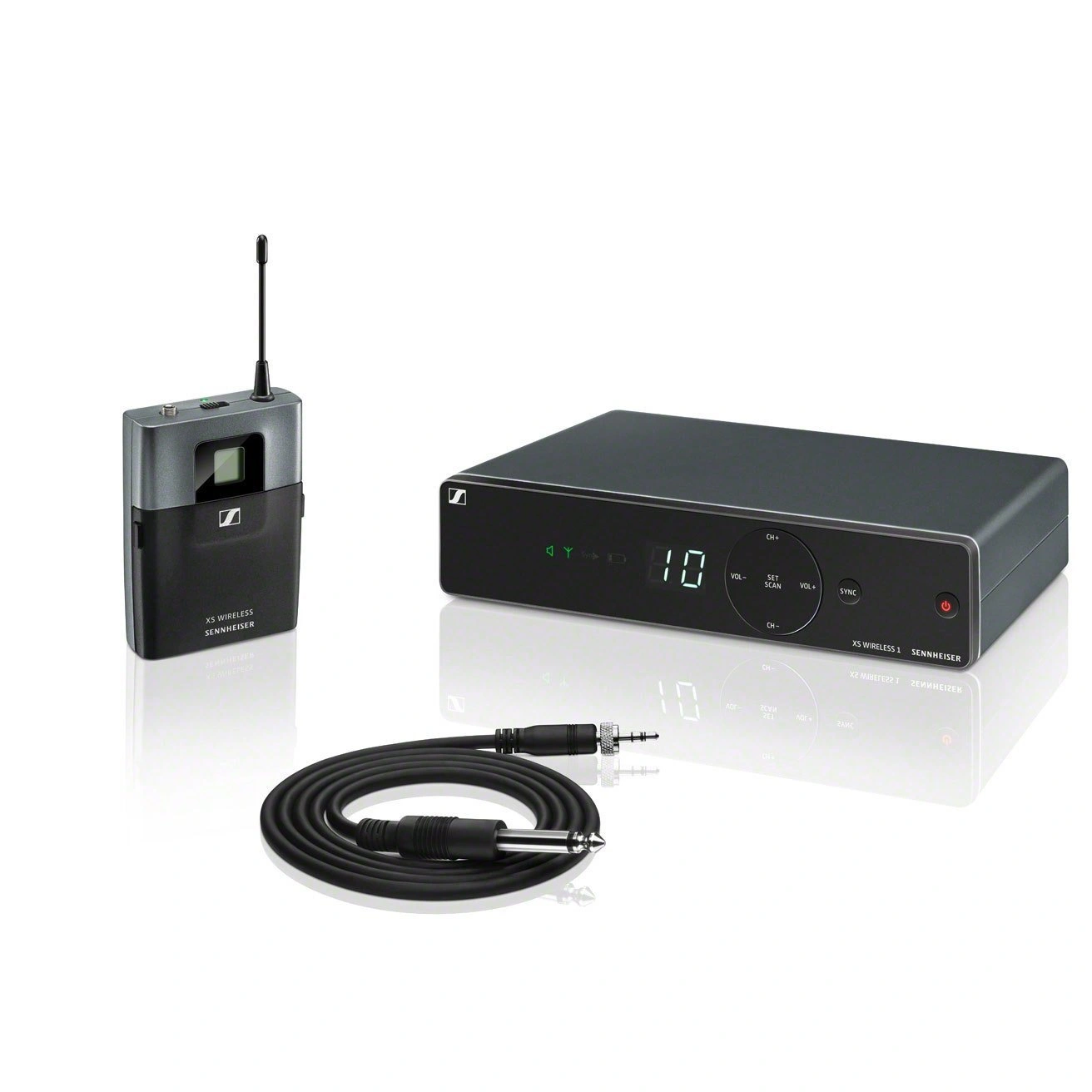

The Sennheiser XSW 1-Cl1-B is a wireless instrument radio system that is part of the XS Wireless 1 series. The package includes the EM-XSW 1 receiver, the SK-XSW belt transmitter, the NT 12-5 CW power supply, the Cl1 instrument cable, and two AA batteries. The operating frequency range is 614-638 MHz.

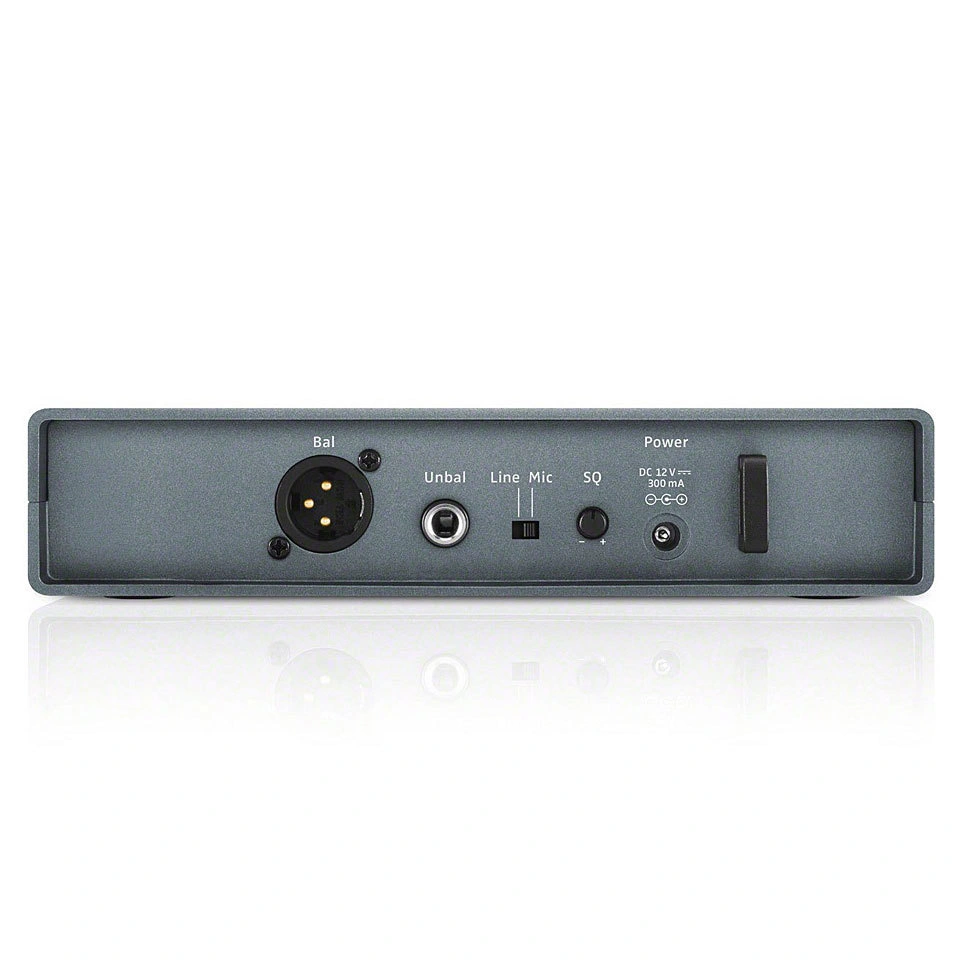

The EM-XSW 1 wireless receiver, which is included in the Sennheiser XSW 1-Cl1-B package, features separate internal antennas and a sturdy ABS plastic housing. The outputs are XLR and 1/4" TS Jack, and the receiver supports 10 channels with 8 banks in each. The LED display on the front panel shows the active channel number, and there is an automatic frequency management function. Synchronization is done through a remote channel. The universal power supply unit NT 12-5 CW operates with a voltage range of 100-240V.

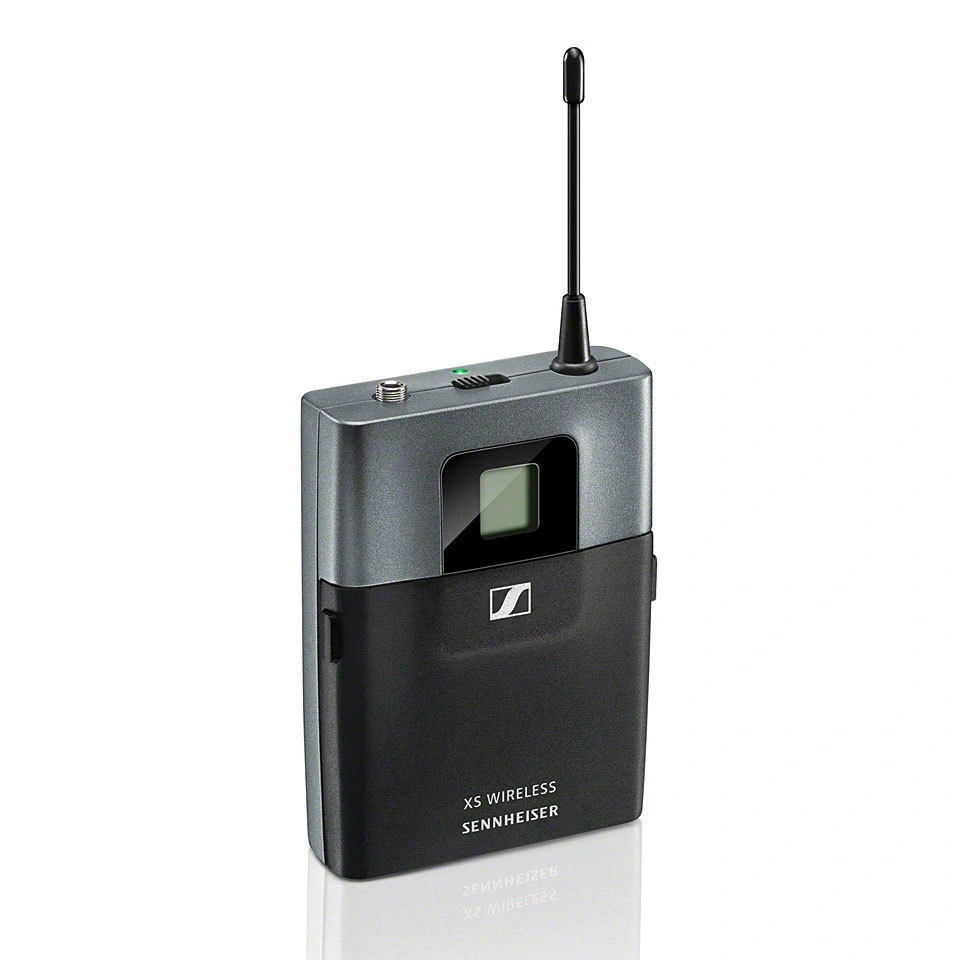

The Sennheiser XSW 1 belt transmitter, included in the Sennheiser XSW 1-Cl1-B package, is used for connecting line sources, instruments, and microphones. It works with the XSW1 and XSW2 Wireless systems. It can be used by vocalists, musicians, and speakers, and features a 3.5mm mini-Jack connector for connection. Up to 10 compatible channels in the UHF range can be used thanks to automatic frequency management. The transmitter operates on two AA batteries for an average of 10 hours, and there is a charge indicator on the water-resistant ABS plastic housing, which can withstand the toughest touring conditions. The instrument cable, with a 6.3mm TS Jack-M -> 3.5 TRS mini-Jack/M configuration, can be used to connect various guitars and other instruments with the corresponding connectors.
Features:
- For instruments
- Includes EM-XSW 1 receiver, SK-XSW belt transmitter, Cl1 instrument cable, NT 12-5 CW power supply for receiver, and two AA batteries
- 10 channels with 8 banks in each
- Separate internal antennas on the receiver
- Outputs on XLR and 1/4" TS Jack
- Receiver and transmitter housed in ABS plastic casings
- Carrier frequency range of the system: 614-638 MHz
Package includes:
- Belt transmitter
- Receiver
- Universal power supply
- Instrument cable
- 2 AA batteries
- User manual
- Warranty card
