Radio system
Sennheiser XSW 1-835-B

Product code: 106755
no reviews
AED 1,315
Delivery
Pickup in Dubai:
Calculating...
Delivery (Dubai):
Calculating...
AVAILABILITY
  • A lot of goods
  • Enough product
  • Product is running out
Online store (Dubai)
In stock

Description

Reviews (0)

Description

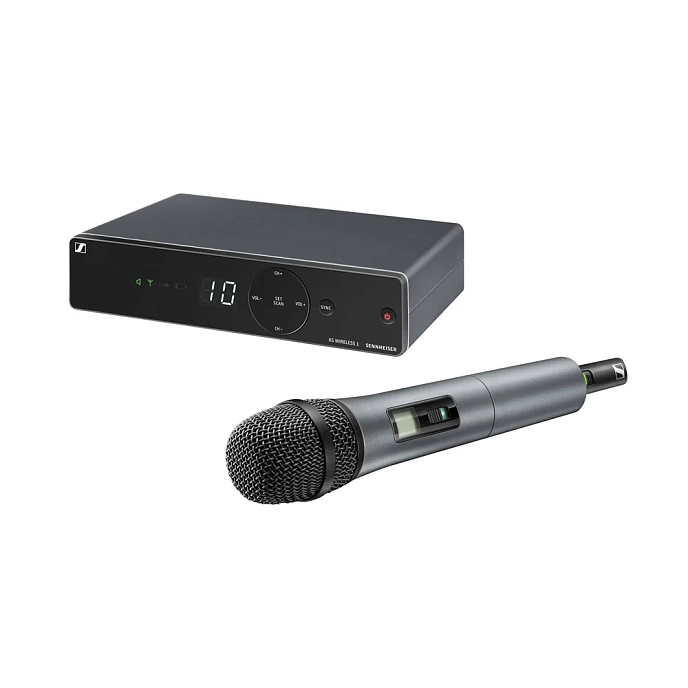

The Sennheiser XSW 1-835-B is a compact wireless vocal radio system from the XS Wireless series, designed for a wide range of applications. The set includes the EM-XSW 1 receiver, the SKM 835-XSW handheld transmitter, the MZQ 1 microphone clip, the NT 12-5 CW power adapter, and two AA batteries. This system is complete and you won't need to purchase anything extra to use it straight out of the box.

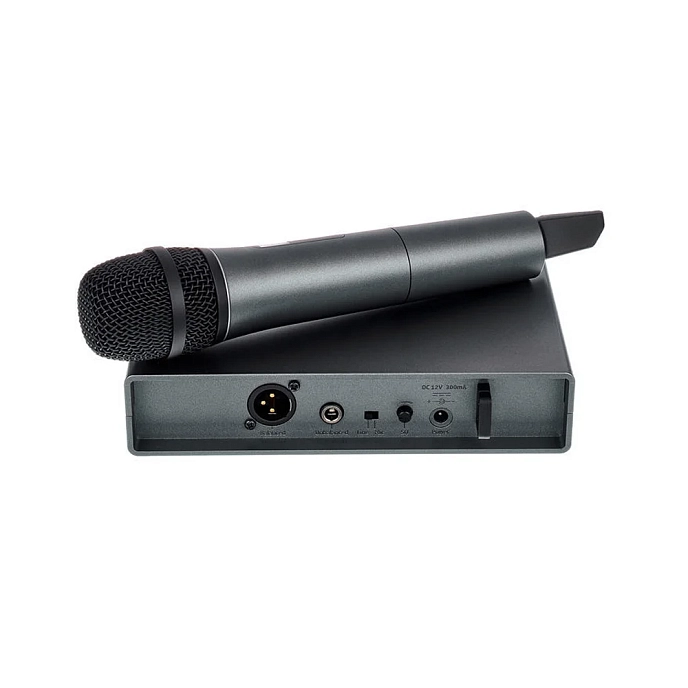

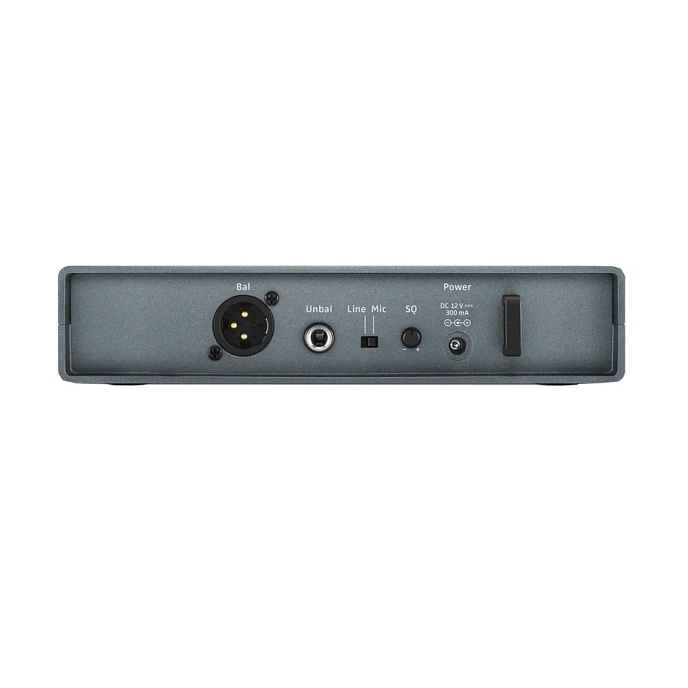

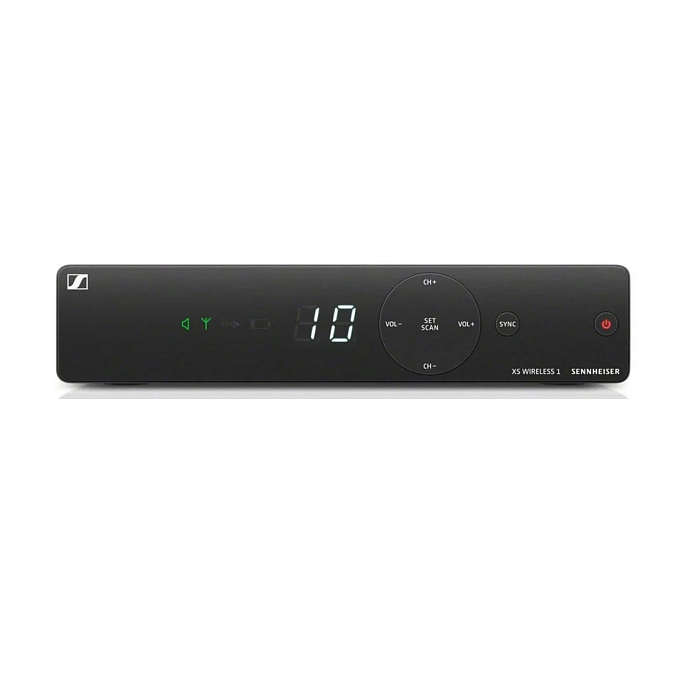

The EM-XSW 1 wireless receiver from the Sennheiser XSW 1-835-B set features internal antennas and XLR and 1/4" TS Jack outputs. It supports 8 banks in each of the 10 channels. The front display shows the active channel number. Frequency control is automatic, and easy setup is possible through remote channel synchronization. The receiver is housed in an ABS plastic casing. The frequency range of the system is 614-638 MHz. The included universal power supply, NT 12-5 CW, operates from 100 to 240 volts.

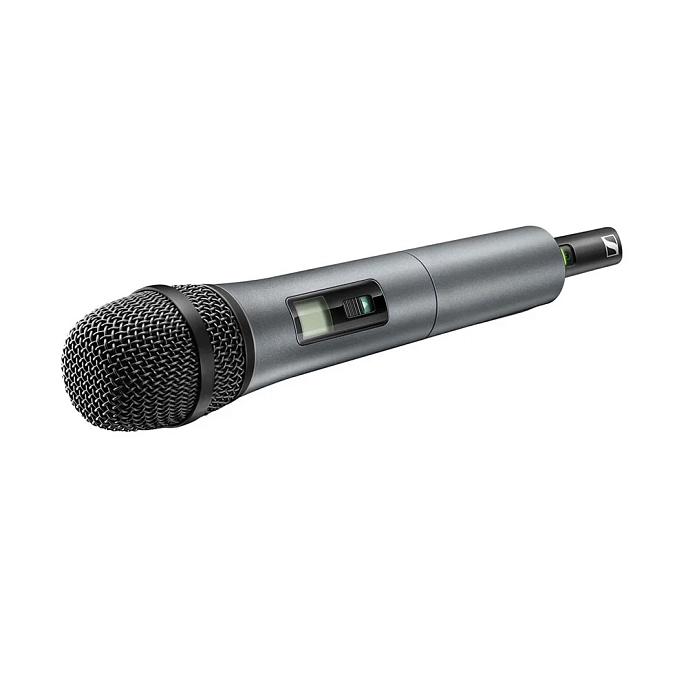

The SKM 835-XSW handheld transmitter from the Sennheiser XSW 1-835-B set is a high-performance wireless device for XS Wireless systems. It features a dynamic capsule and a cardioid pickup pattern. It can be used by vocalists, speakers, hosts, and for live performance sound reinforcement. Thanks to automatic frequency control, the transmitter provides up to 10 compatible channels in a stable UHF range. The transmitter delivers open, natural sound. It is powered by two AA batteries and provides approximately 10 hours of continuous operation, depending on the battery, with a battery indicator included.

Features include:

  • Designed for vocal transmission
  • Receiver outputs on balanced XLR and unbalanced 1/4" TS Jack
  • Bandwidth of up to 24 MHz
  • Transmitter operates on two AA batteries for approximately 10 hours
  • 8 banks, each with up to 10 preset channels
  • Transmitter with dynamic capsule and cardioid pickup pattern, operates on two AA batteries for up to 10 hours
  • Internal separated antennas on the receiver
  • Receiver and transmitter housed in ABS plastic casings
  • Frequency range of the system is 614-638 MHz

Package includes:

  • EM-XSW 1 receiver
  • SKM 835-XSW transmitter
  • MZQ 1 microphone holder
  • NT 12-5 CW power supply
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Color
Frequency bandwidth, MHz
24
Microphone polar pattern

Omnidirectional, cardioid and supercardioid. It determines the sensitivity of the microphone to sound relative to the direction or angle, i.e. shows how well the microphone "hears" sound from different sides

Glossary of terms
cardioid

The polar pattern of the microphone that picks up the sound in front of it.

Словарь терминов
Microphone type
dynamic

The membrane of a dynamic microphone picks up sound waves, which make a coil located in a magnetic field move.

Словарь терминов
Modulation type

Frequency modulation (FM), amplitude modulation (AM), digital modulation

Glossary of terms
FM
Number of channels
1
Number of presets in frequency bank
10
Radio frequency band
614-638 MHz
Receiver body material
plastic
Receiver power supply
power supply unit
The highest receiver frequency, kHz
16
The highest transmitter frequency, kHz
16
The lowest receiver frequency, Hz
50
The lowest transmitter frequency, Hz
50
Transmitter operating time, hours
8
Transmitter power supply
2xAA
Transmitter power, MW
10
Transmitter type
handheld

The transmitter for connecting a microphone capsule.

Словарь терминов
Type of microphone included
handheld
Depth, mm
345
Height, mm
86
Width, mm
348
Weight, g
1449
Service life, months
24
Warranty, months
12
Show all characteristicsShow fewer characteristics
