Raising the Bar
Evolution Wireless Digital pushes boundaries, providing a dynamic range surpassing any other wireless system on the market. It automatically sets the most reliable signal in seconds and scales up to 90 channels thanks to its 56 MHz frequency bandwidth. It's easy to see why this wireless system has no equal.
Equidistant Grid - Easier Than It Sounds
Evolution Wireless Digital features an equidistant grid, meaning the carrier frequencies have the same spacing. Previously, this was only found in our flagship Digital 6000 and Digital 9000 wireless systems. High-quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing for even distribution of frequencies every 600 kHz. This greatly simplifies frequency coordination for beginners and professionals in wireless systems, and also allows for scalability to an impressively large number of channels.
Your Pocket Assistant
The powerful Bluetooth Low Energy standard puts full control in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of quick automatic setup, access to all settings, and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy, and focus on your performance.

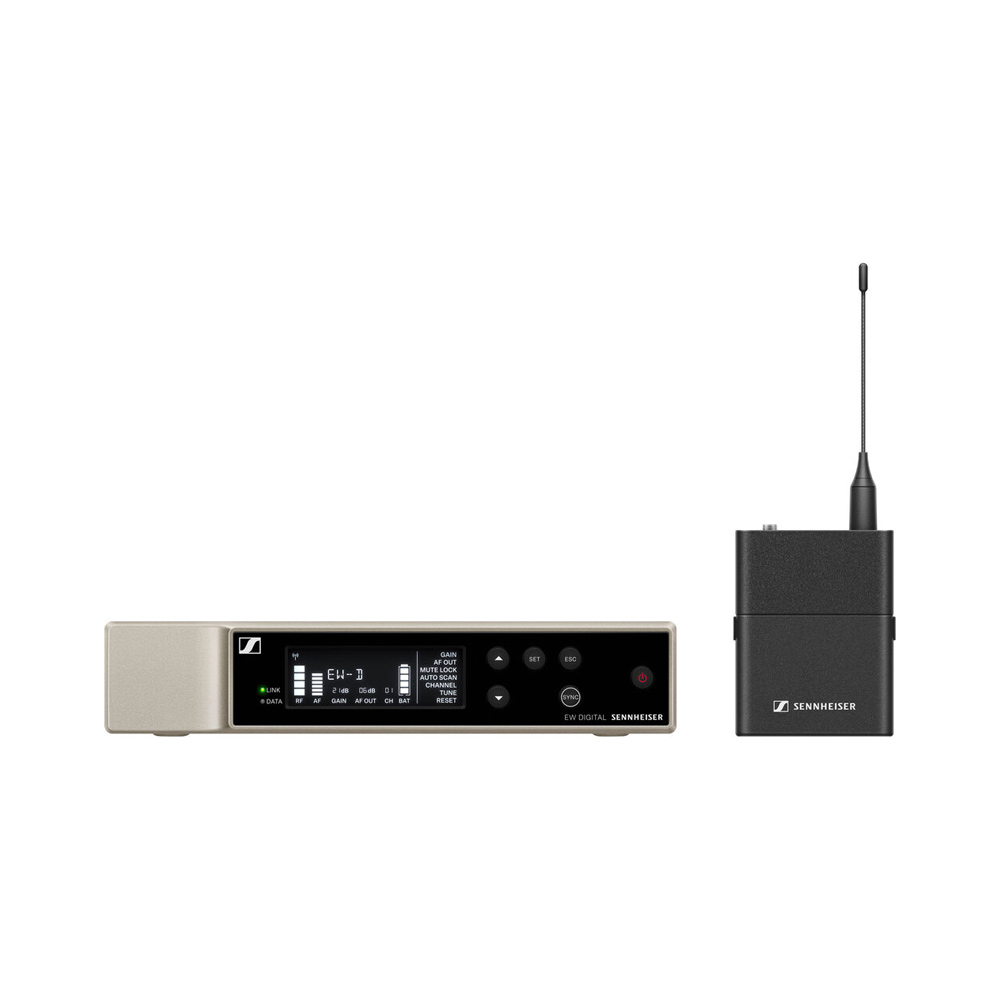

A versatile digital wireless system with a wide range of features for singers, speakers, or musicians, allowing for easy pairing and control through the EW-D Smart Assist app. The robust EW-D SK bodypack transmitter with its all-metal casing is perfect for daily use on stage.

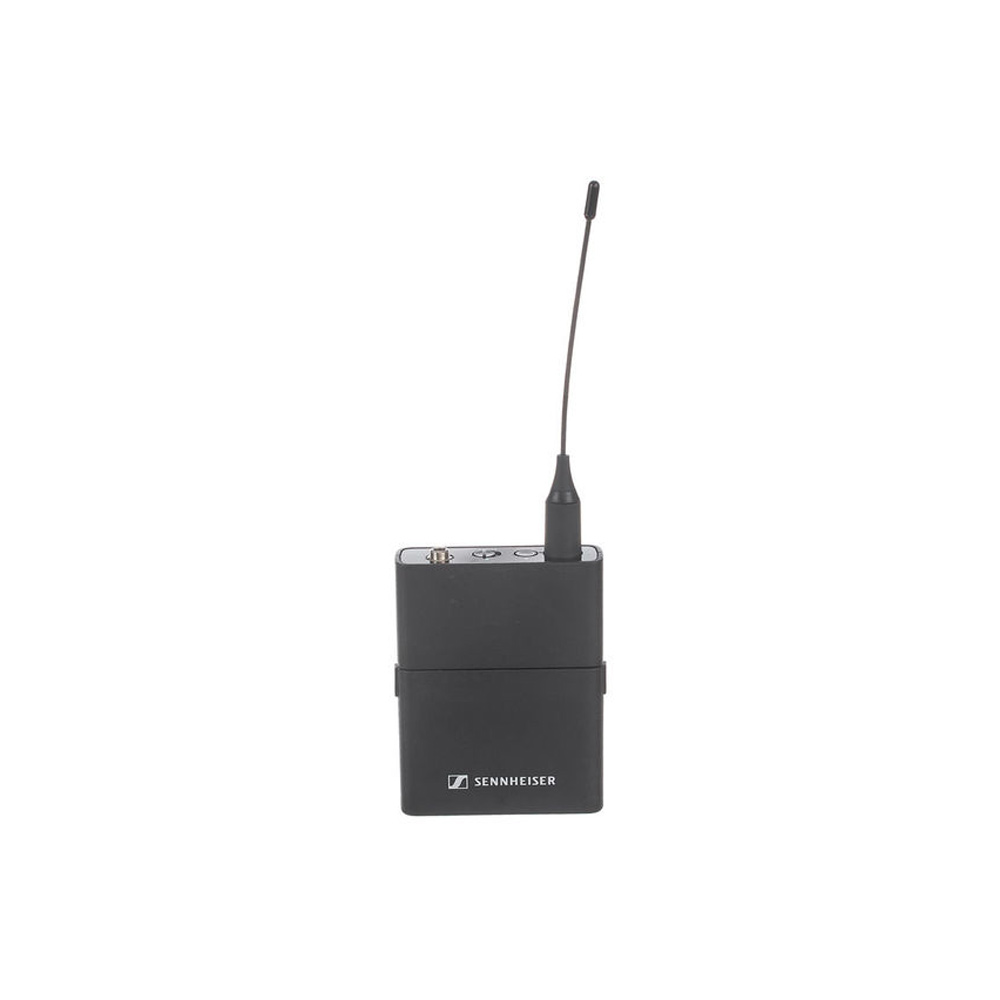

The Sennheiser EW-D SK is a wireless digital transmitter compatible with EW-D receivers. Lightweight and comfortable to wear, it features a durable all-metal casing, making it ideal for daily use on stage.
The EW-D SK is equipped with a locking 3.5mm connector, designed for connecting a lavalier microphone or headset of your choice, or a cable adapter for guitar and bass. With a 134 dB input dynamic range, it can handle a wide range of sound sources, including loud vocalists and performers, instrument connections, and even line level signals from mixers, all without any gain adjustments.
The device features a mute button that can also be deactivated from the receiver or mobile device during a performance. It quickly connects to the receiver via Bluetooth at a distance of up to 100 meters with just one button press. Furthermore, the EW-D SK utilizes an equidistant tuning grid, evenly distributing 2240 frequencies across a wide 56 MHz bandwidth to prevent issues with intermittent intermodulation that can occur when multiple transmitters are used in close spaces.
Features:
- Digital wireless communication eliminates noise, interference, and static discharges.
- UHF transmitter significantly improves range, reliability, and scalability of the connection.
- Mobile app simplifies setup and control, eliminating the need for complex menus.
- Automatic tuning creates reliable connections with minimal time and effort.
- Operating range: 520 - 576 MHz.
- Ability to choose up to 2240 frequencies.
- Lithium-ion rechargeable battery provides up to 12 hours of operation (up to 8 hours with AA batteries).
- 56 MHz bandwidth allows for up to 90 channels.
- Preserves all details even in the most dynamic performances thanks to a transmitter dynamic range of 134 dB.
- Bluetooth 5.1 wireless connection.
Package Includes:

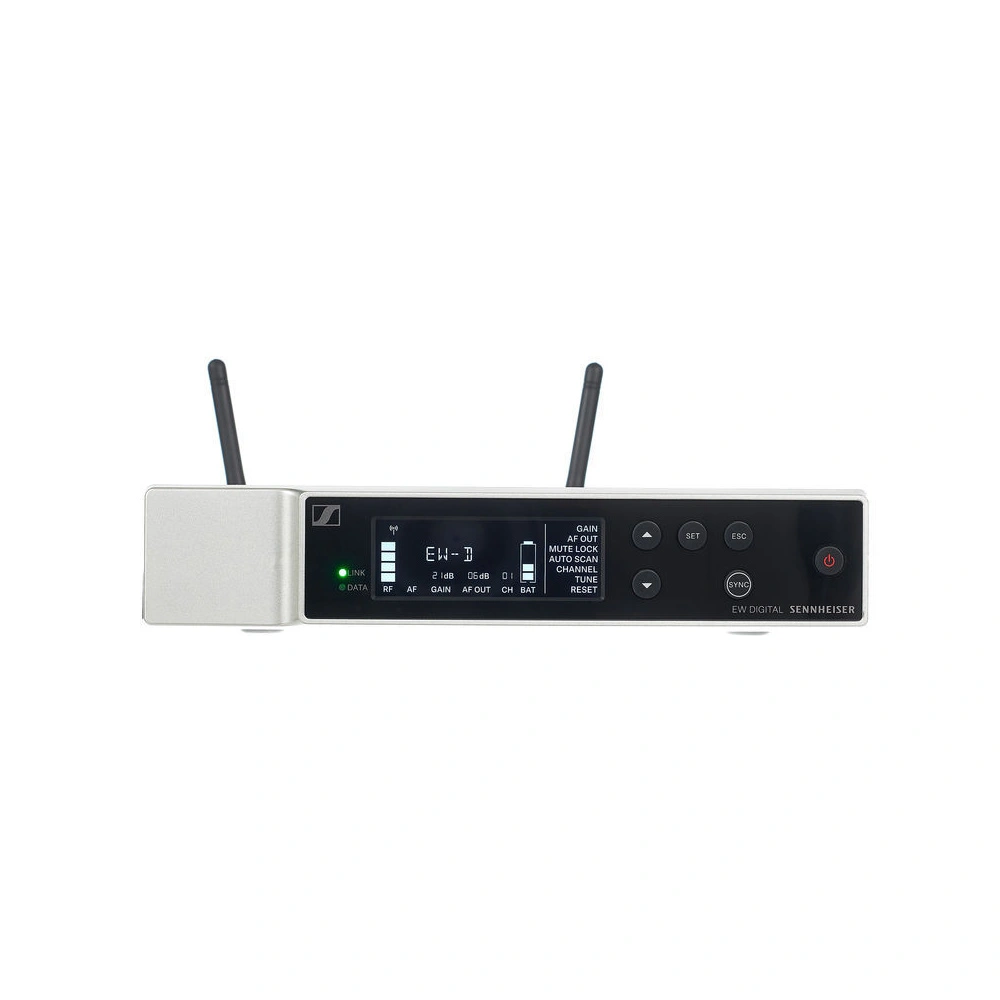

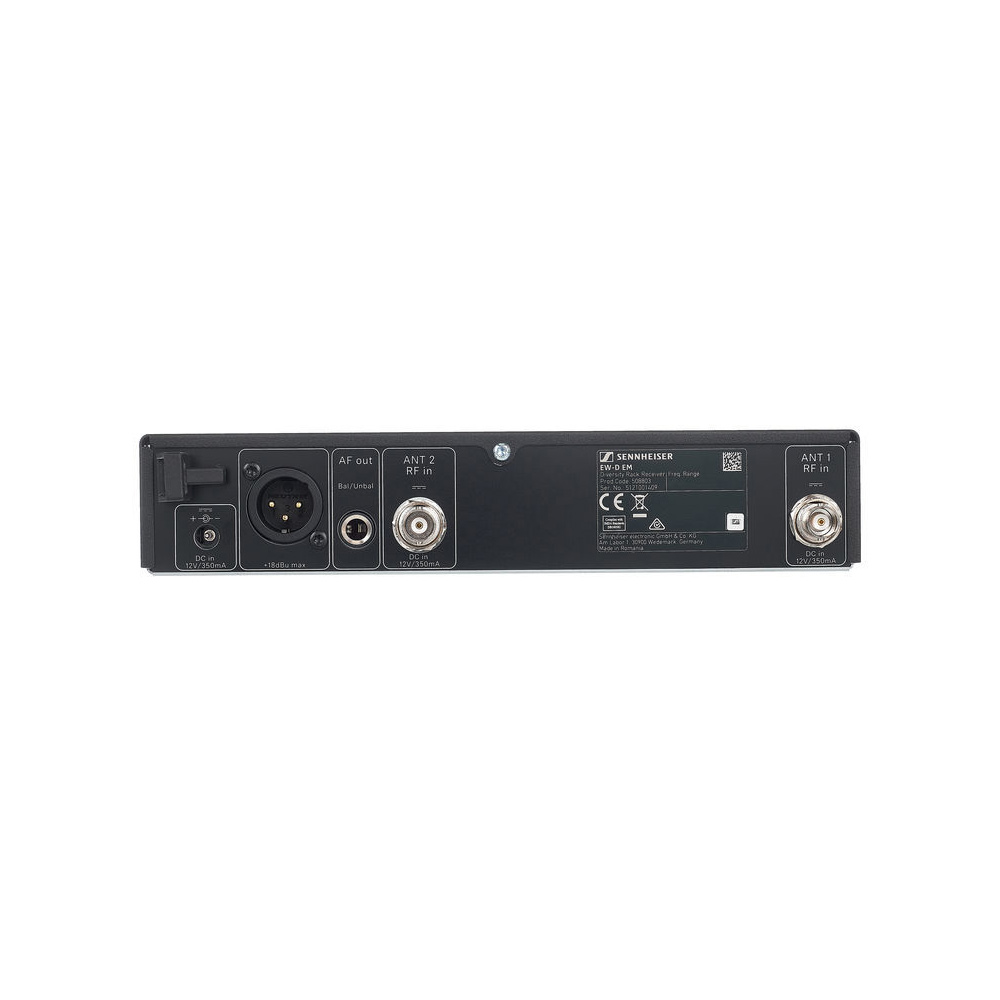

- EW-D EM receiver.

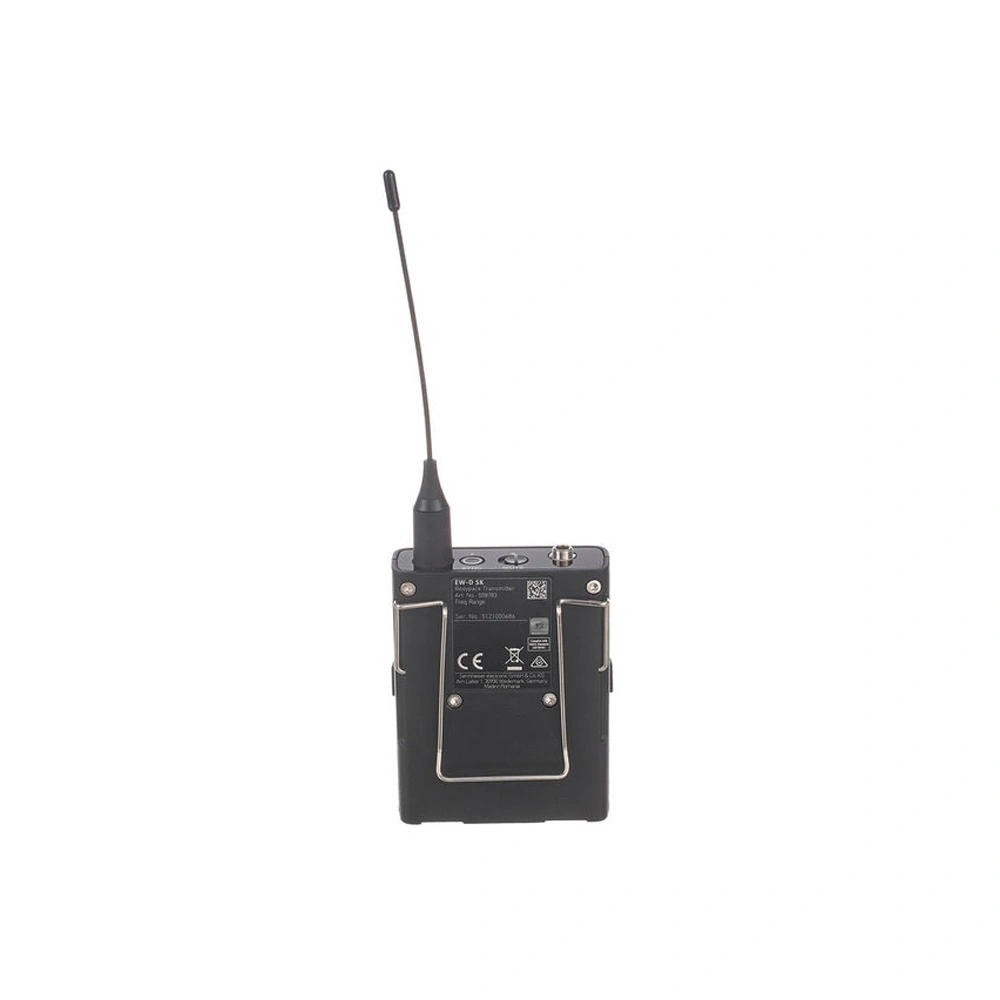

- EW-D SK bodypack transmitter.
- Rack mount kit.
- 4 rubber feet.
- Receiver power supply with adapters.
- 2 antennas.
- 2 AA batteries.
- Documentation.
