Radio system
Sennheiser EW 100 G4-835-S-B Black

Product code: 138916
no reviews
AED 2,957.85
Delivery
Pickup in Dubai:
Calculating...
Delivery by courier:
Calculating...
AVAILABILITY
  • A lot of goods
  • Enough product
  • Product is running out
Online store (Dubai)
In stock

Description

Reviews (0)

Description

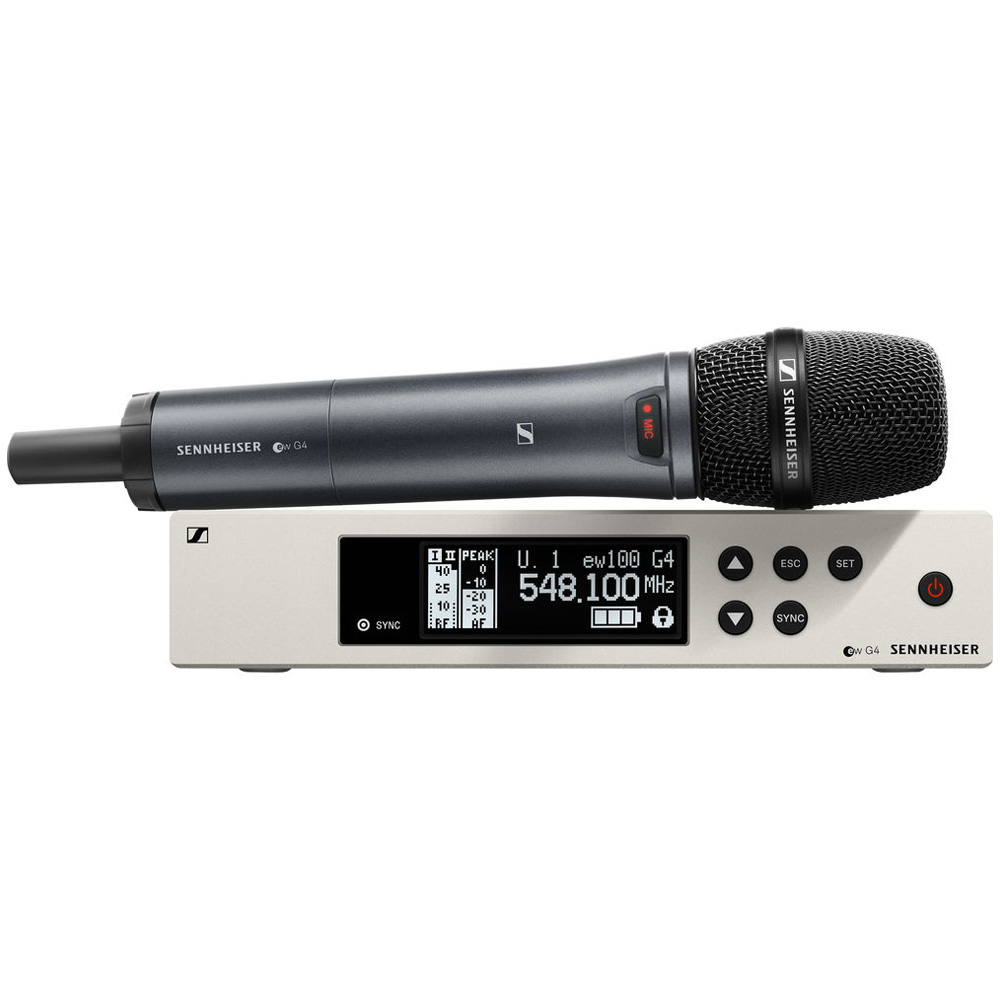

Sennheiser EW 100 G4-835-S Wireless Handheld Microphone System with MMD 835 Capsule (B: 626 to 668 MHz).

Key Features:

  • For Presenters and Performers
  • MMD 835 Dynamic Cardioid Mic Capsule
  • Handheld Transmitter with Mute Switch
  • Interchangeable Capsule Design
  • True-Diversity Rackmount Receiver
  • 1680 Auto-Scan Frequencies
  • 8-Hr AA Batteries
  • Expandable to 12 Mic Channels/330' Range

The Sennheiser EW 100 G4-835-S is an easy-to-set-up rackmount wireless handheld microphone system that brings high-quality, reliable audio to presenters, clergy, lecturers, and performers working in business and educational settings, houses-of-worship, theaters, or on musical stages.

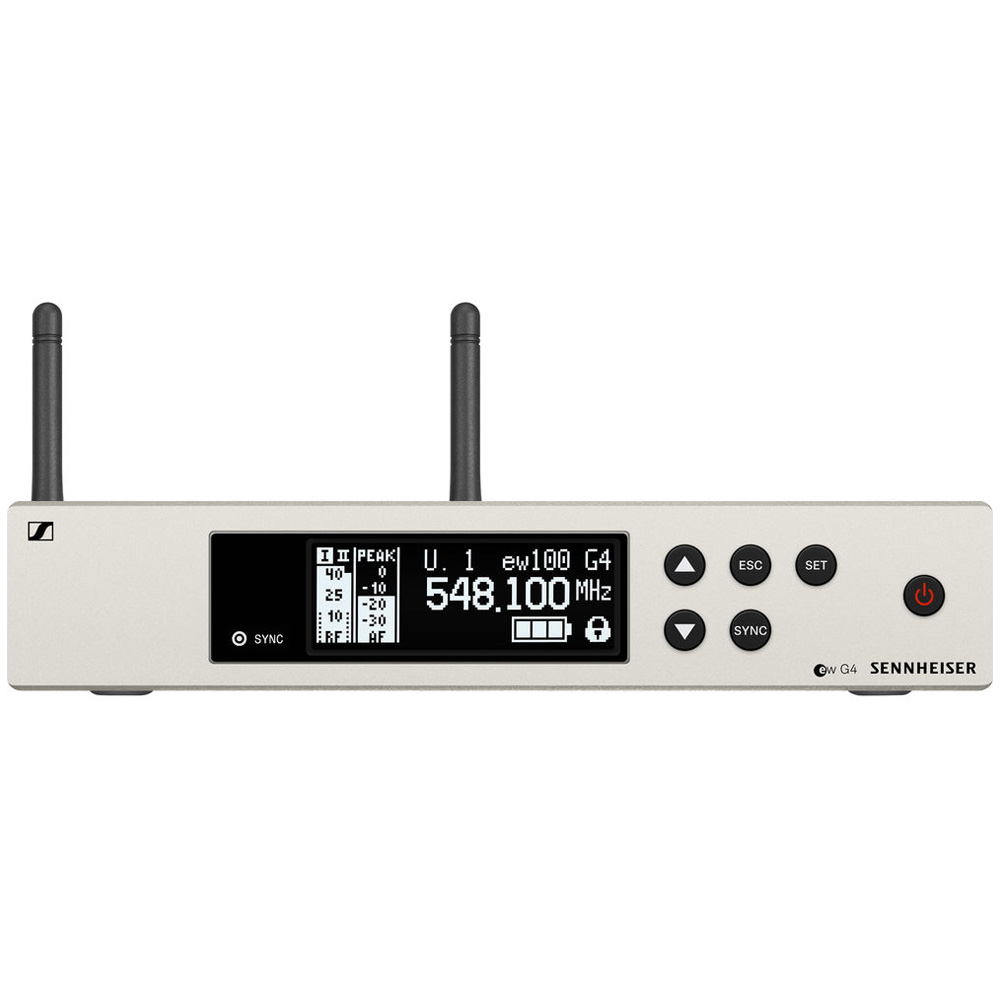

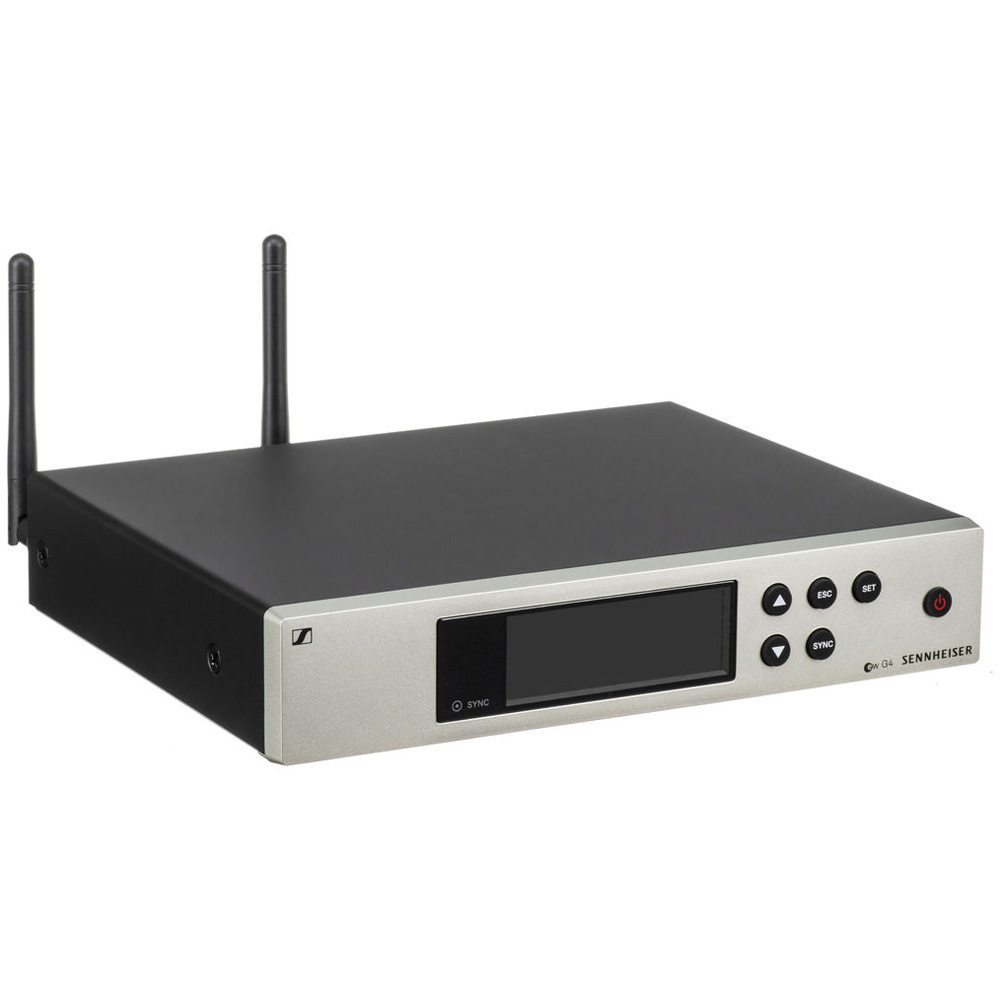

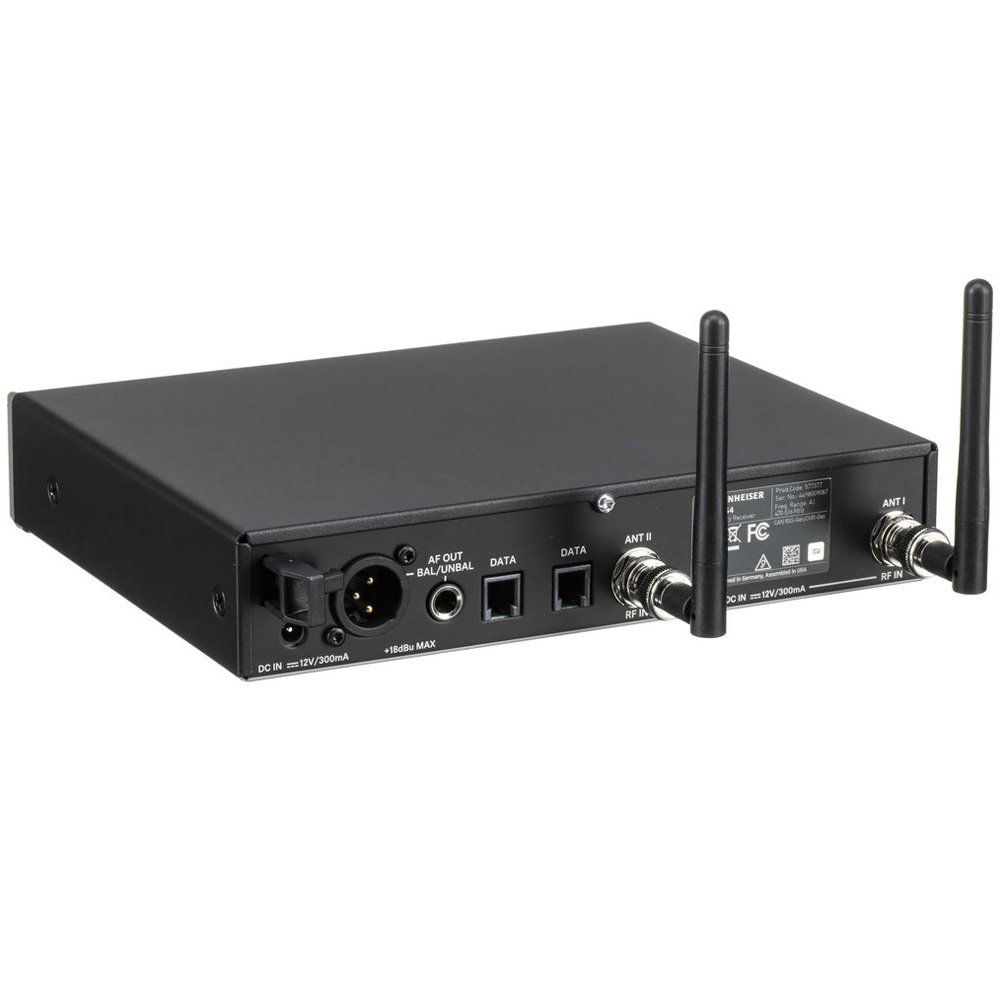

The EW 100 G4-835-S features a true diversity, half-rack receiver housed in a rugged, full-metal chassis. The receiver's auto-scan function searches a wide 42 MHz UHF tuning range with 1680 selectable frequencies available, seeking out a clean, interference-free channel for your audio transmission.

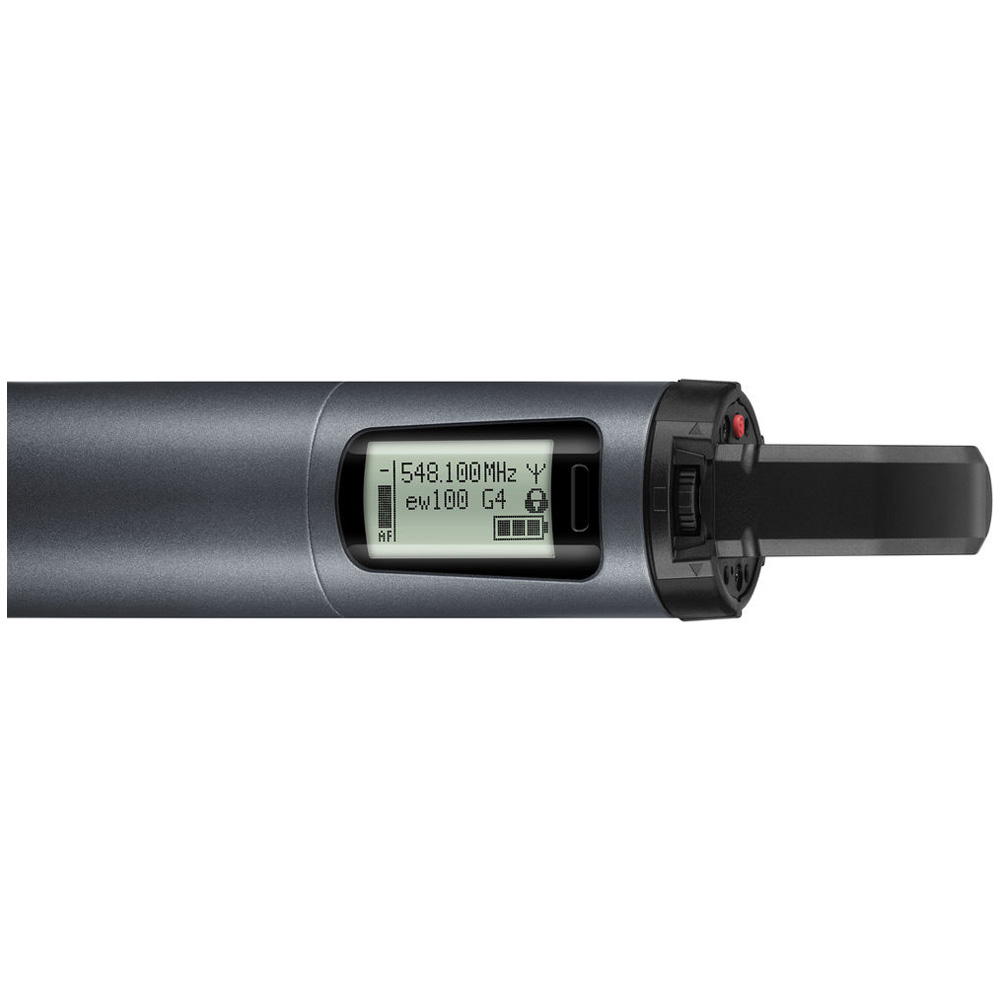

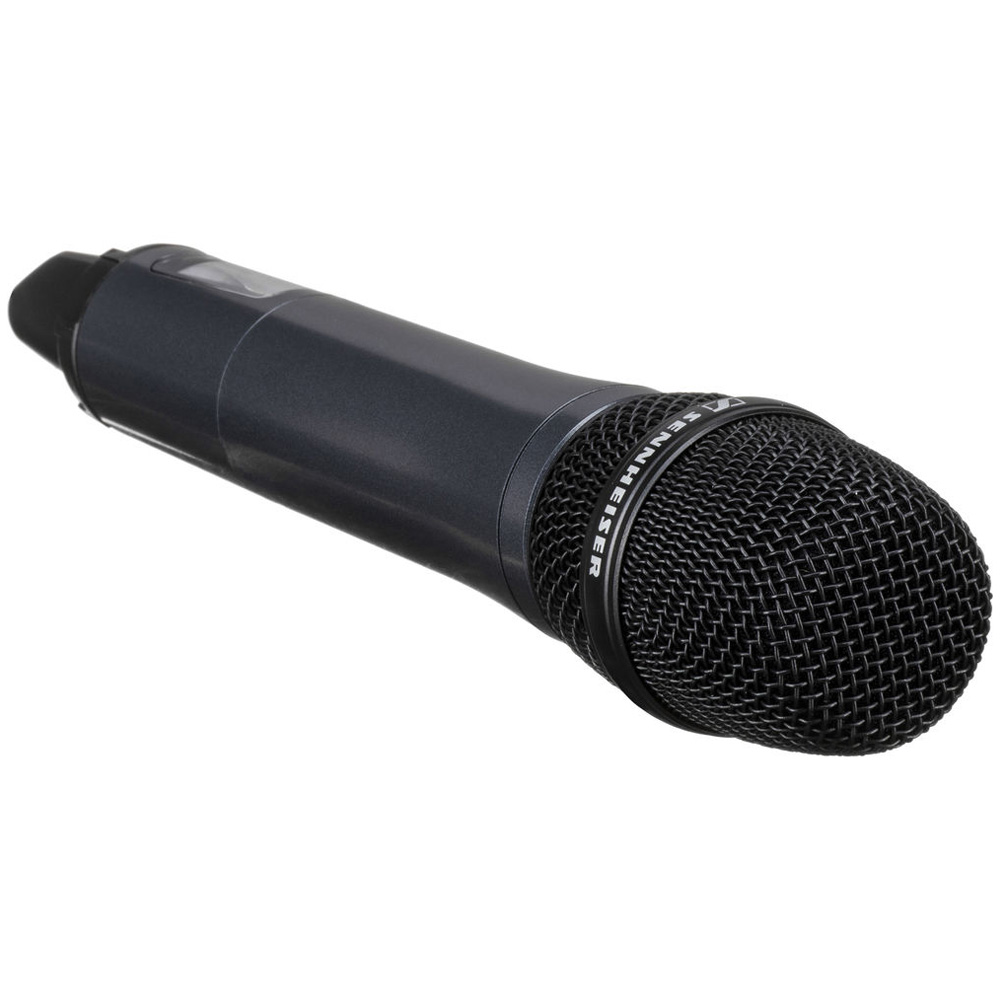

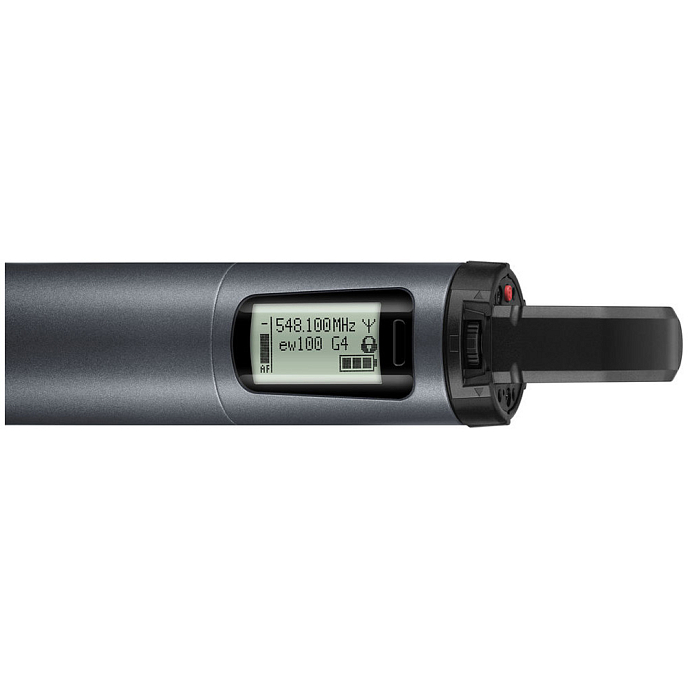

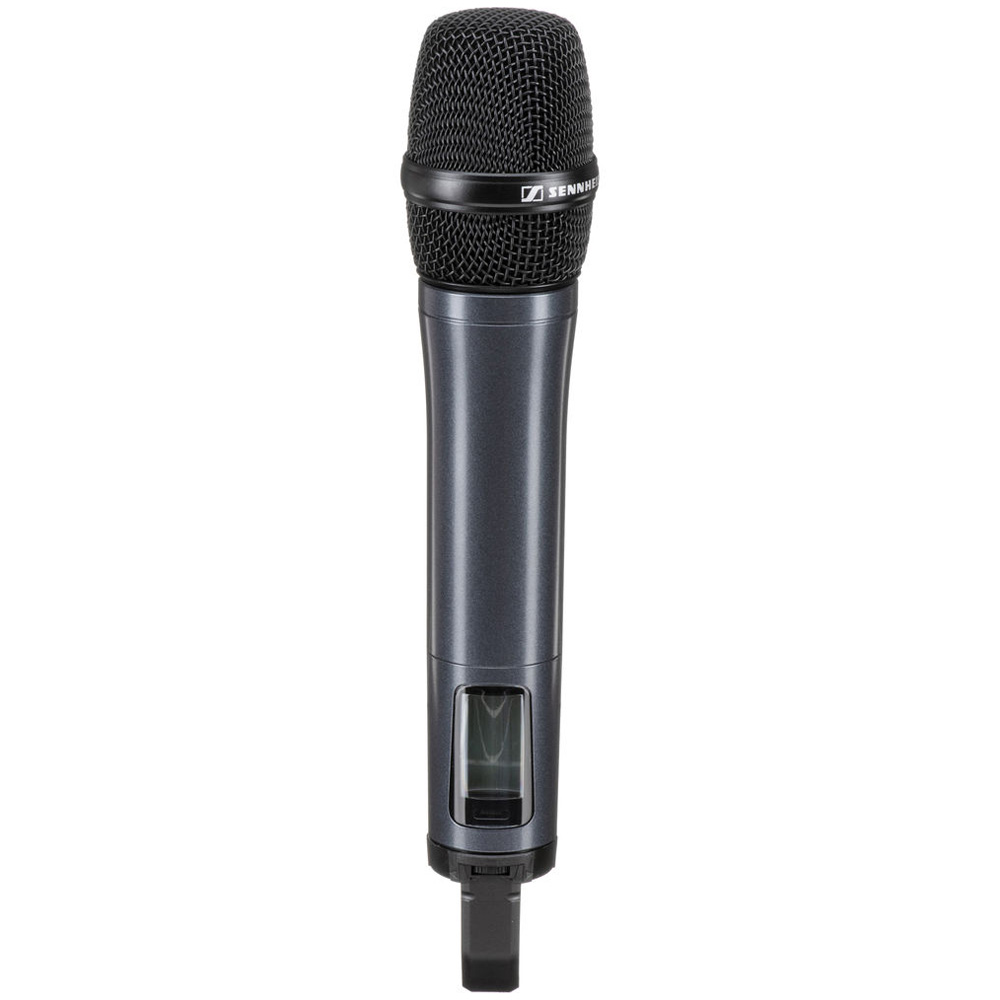

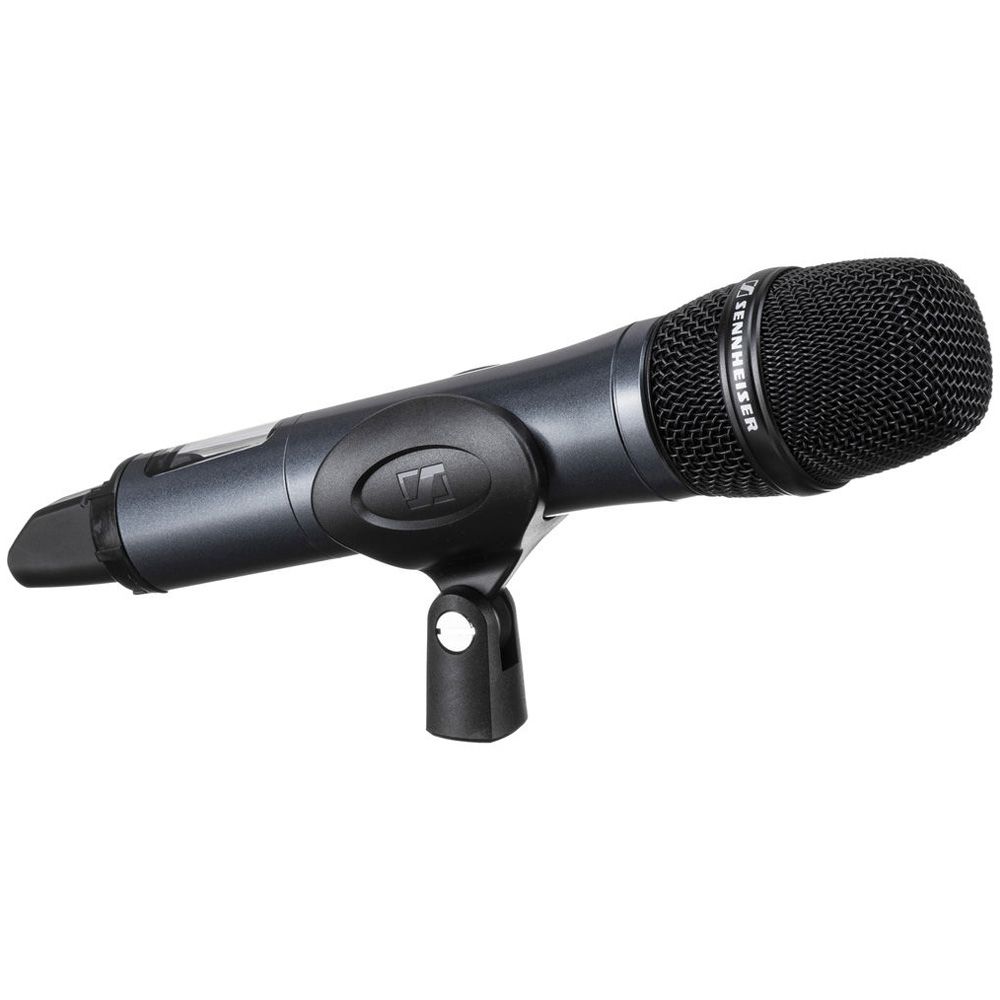

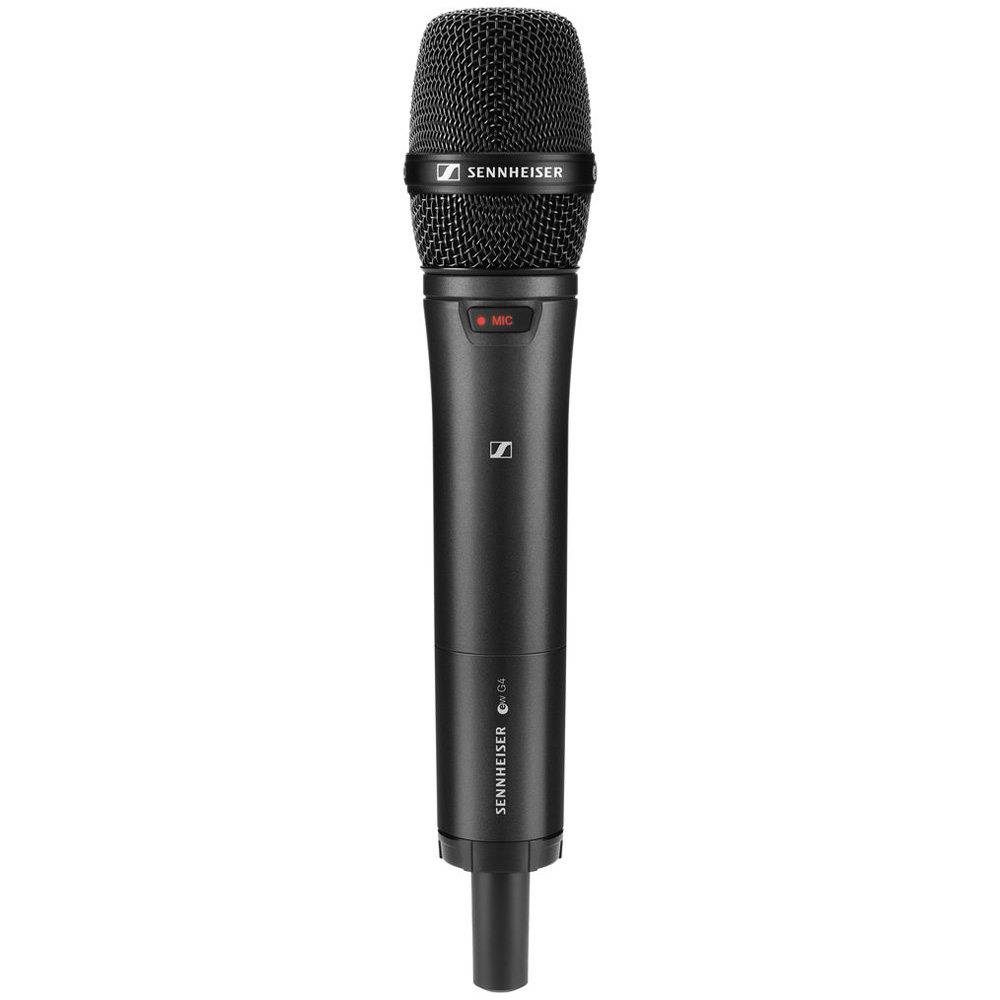

This system includes an SKM 100 G4-S handheld transmitter equipped with an interchangeable MMD 835 dynamic cardioid microphone capsule optimized for speech. The handheld transmitter provides up to 8 hours of operation on two AA batteries, with a fixed 30mW RF power output and a transmission range up to 330'. Up to 12 wireless mics can operate simultaneously in the same space, with the receivers linked together for fast, multi-channel frequency setup.

The EW 100 G4-835-S is backward-compatible with previous evolution systems. You can mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters. It is also compatible with EW 300/500 systems.

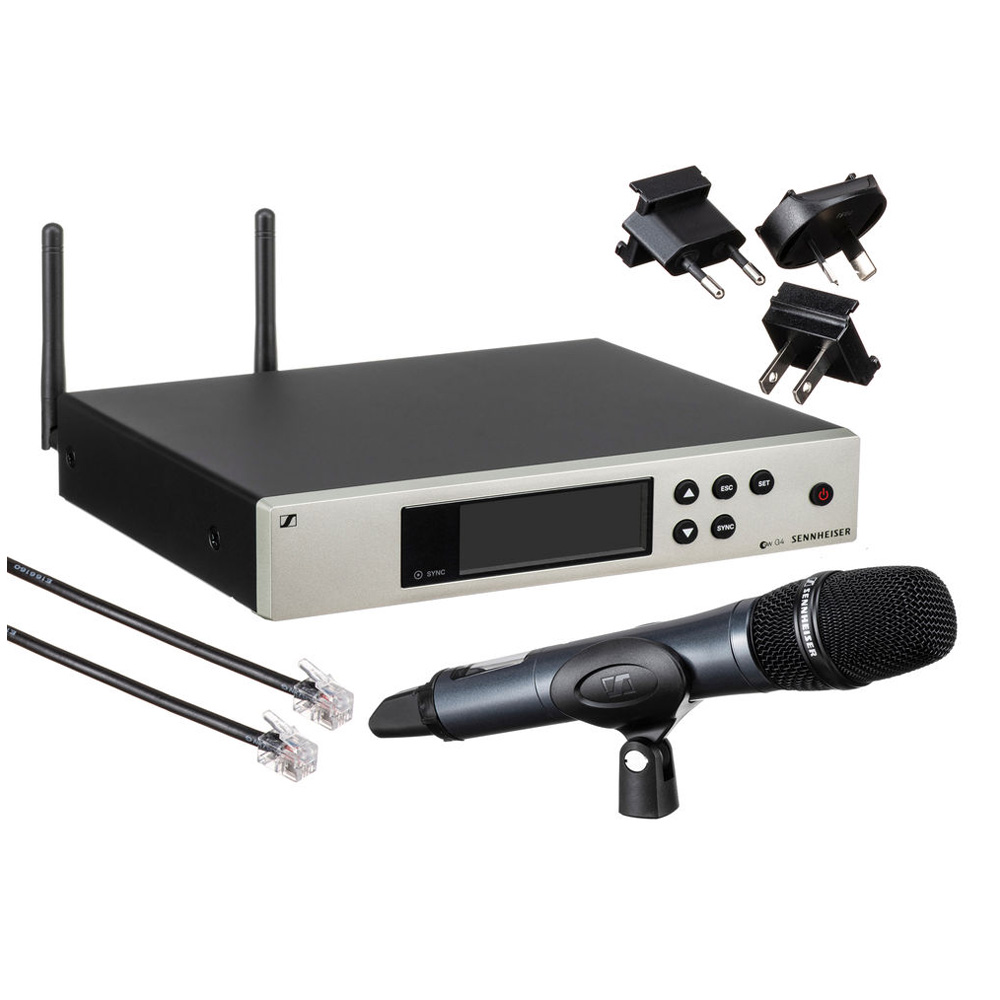

In the Box:

  • Sennheiser EM 100 G4 Wireless Receiver (B: 626 to 668 MHz)
  • Sennheiser SKM 100 G4-S Handheld Wireless Microphone
  • Sennheiser MMD 835 Cardioid Dynamic Capsule
  • Sennheiser MZQ 1 Clip
  • 2 x Rod Antennas

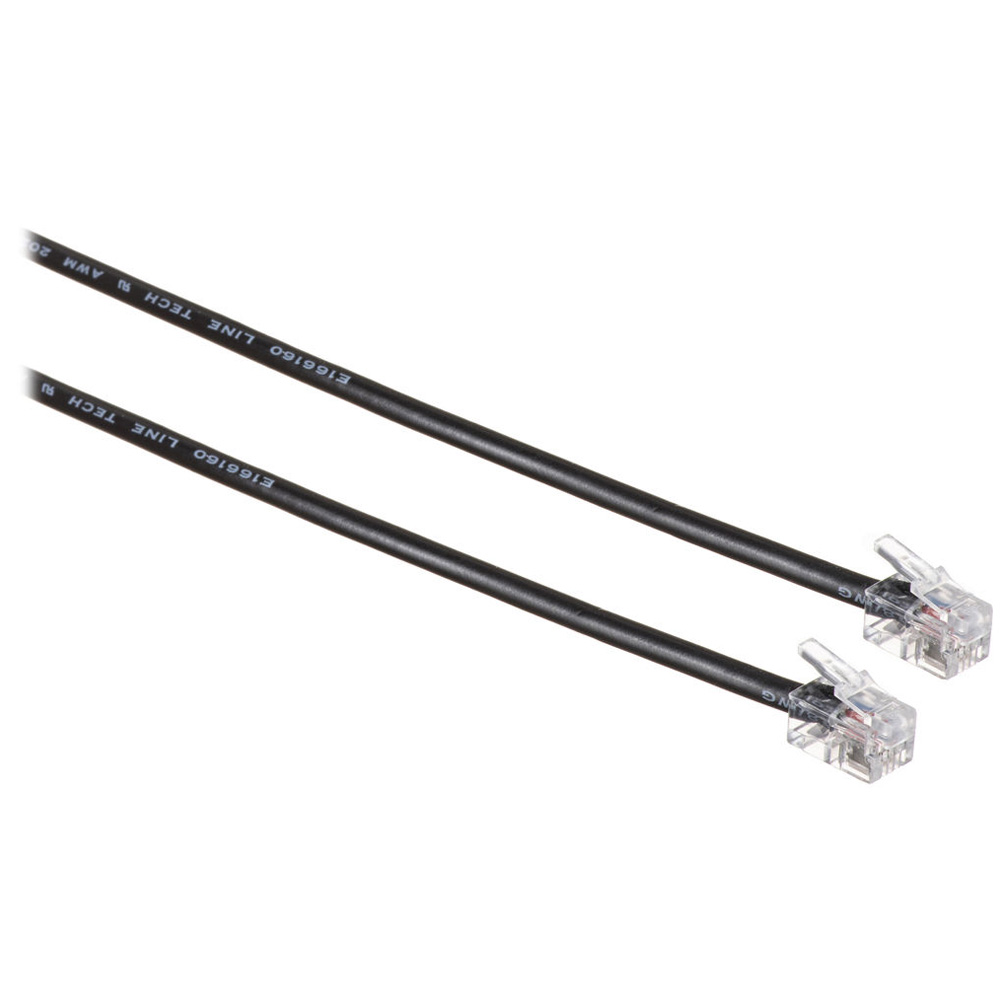

  • RJ10 Cable
  • 2 x AA Batteries
  • Rackmount Kit
  • Sennheiser NT 12-5-CW
  • Manual
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Antenna connector
bnc
Color
Frequency bandwidth, MHz
42
Frequency step setting, kHz
25
Microphone polar pattern

Omnidirectional, cardioid and supercardioid. It determines the sensitivity of the microphone to sound relative to the direction or angle, i.e. shows how well the microphone "hears" sound from different sides

Glossary of terms
cardioid

The polar pattern of the microphone that picks up the sound in front of it.

Словарь терминов
Microphone type
condenser

A metal membrane consisting of plates (a condenser) oscillates under the influence of sound air flows converting a sound wave into an electromagnetic one.

Словарь терминов
Modulation type

Frequency modulation (FM), amplitude modulation (AM), digital modulation

Glossary of terms
UHF
Number of channels
960
Rack mounts included
yes
Radio frequency band
626-668 MHz
Receiver body material
metal
Receiver power supply
power supply unit
Receiver working principle
signal diversity
The highest receiver frequency, kHz
20
The highest transmitter frequency, kHz
14
The lowest receiver frequency, Hz
50
The lowest transmitter frequency, Hz
80
Transmitter power supply
2xAA
Transmitter power, MW
30
Transmitter type
handheld

The transmitter for connecting a microphone capsule.

Type of microphone included
handheld
Weight, g
980
