The Sennheiser AC 41-EU is an active antenna combiner designed for the evolution wireless G4 series. It allows for simultaneous operation with multiple wireless stereo transmitters from the EW series (up to 4) using a shared antenna. The Sennheiser antenna combiner comes with a power supply and a set of BNC cables.
The device has a working frequency range from 470 to 870 MHz and a power consumption of 3.4 A with a resistance of 50 ohms. It is enclosed in a compact and durable housing.
Features:
- Device type: Active antenna combiner
- Working frequency range: 470 to 870 MHz
- Resistance level: 50 ohms
- Power consumption (maximum): 3.4 A
- Storage temperature: -20 to +70 degrees Celsius
- Operating temperature: -10 to +55 degrees Celsius
- Power supply parameters: 11.4 V DC, 350 mA
- Signal transmission losses: 0 dB (+/- 1 dB)
- Relative humidity (operating range): 5 to 95%
- Dimensions: 212x168x43 mm. Weight: 1470 g

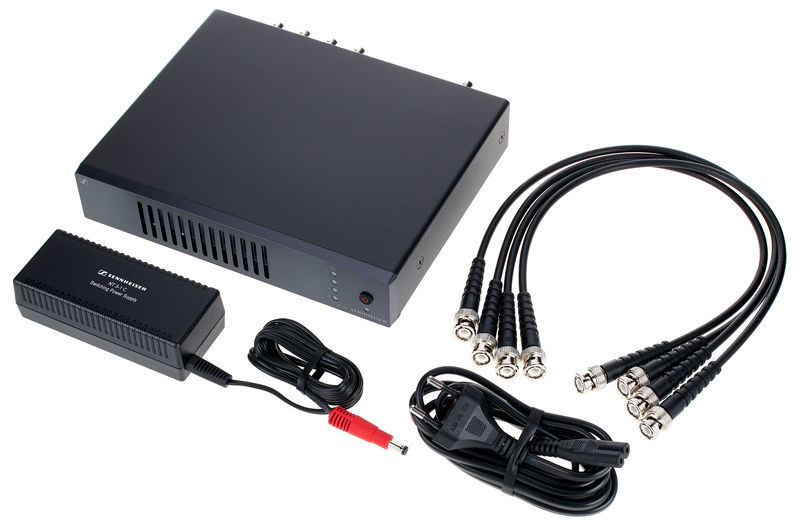

Package contents:
- Sennheiser AC 41-EU antenna combiner
- NT 3-1 power supply
- Set of BNC cables
- Documentation
