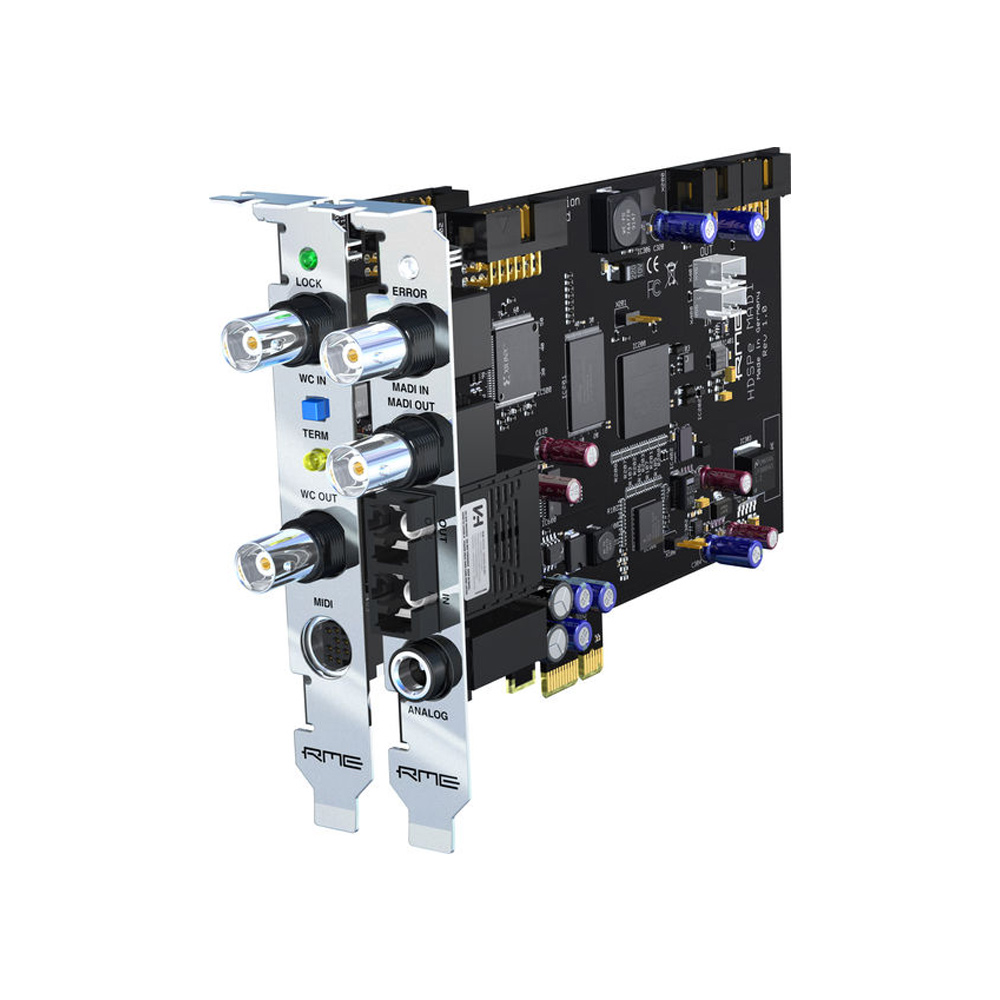

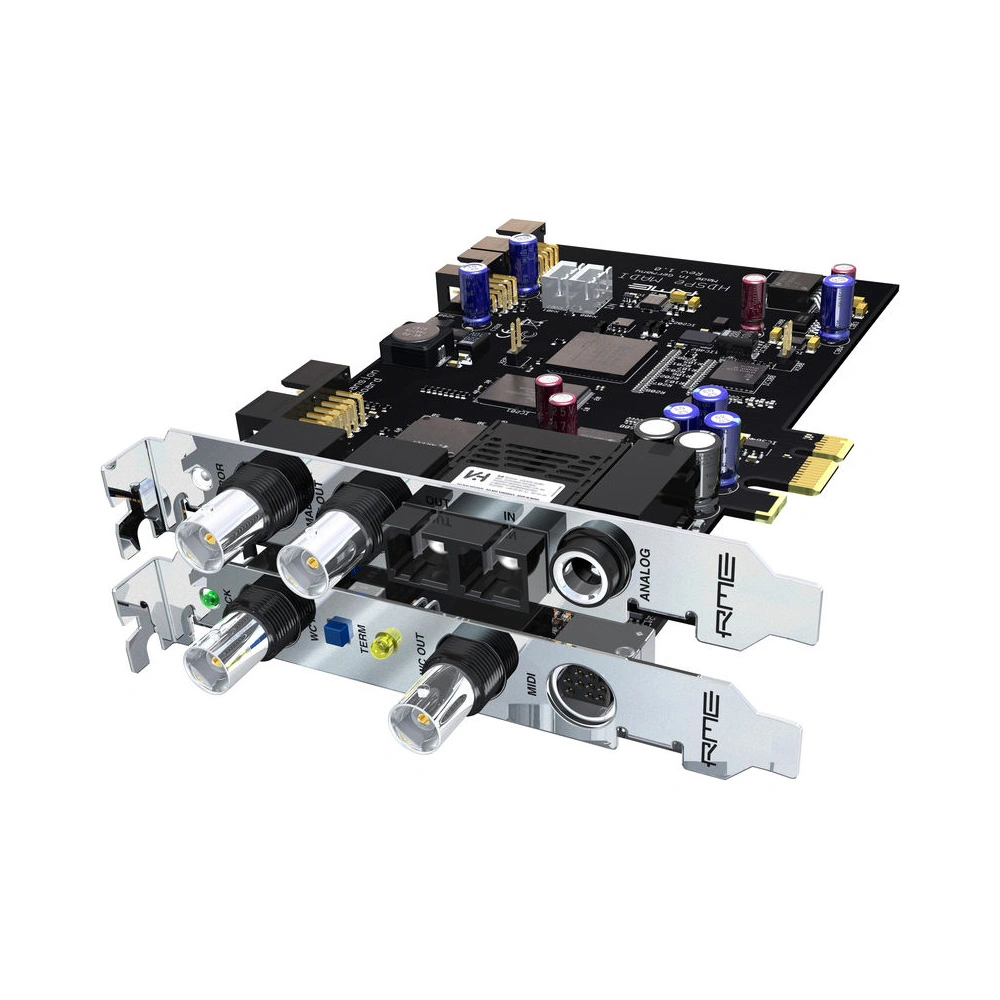

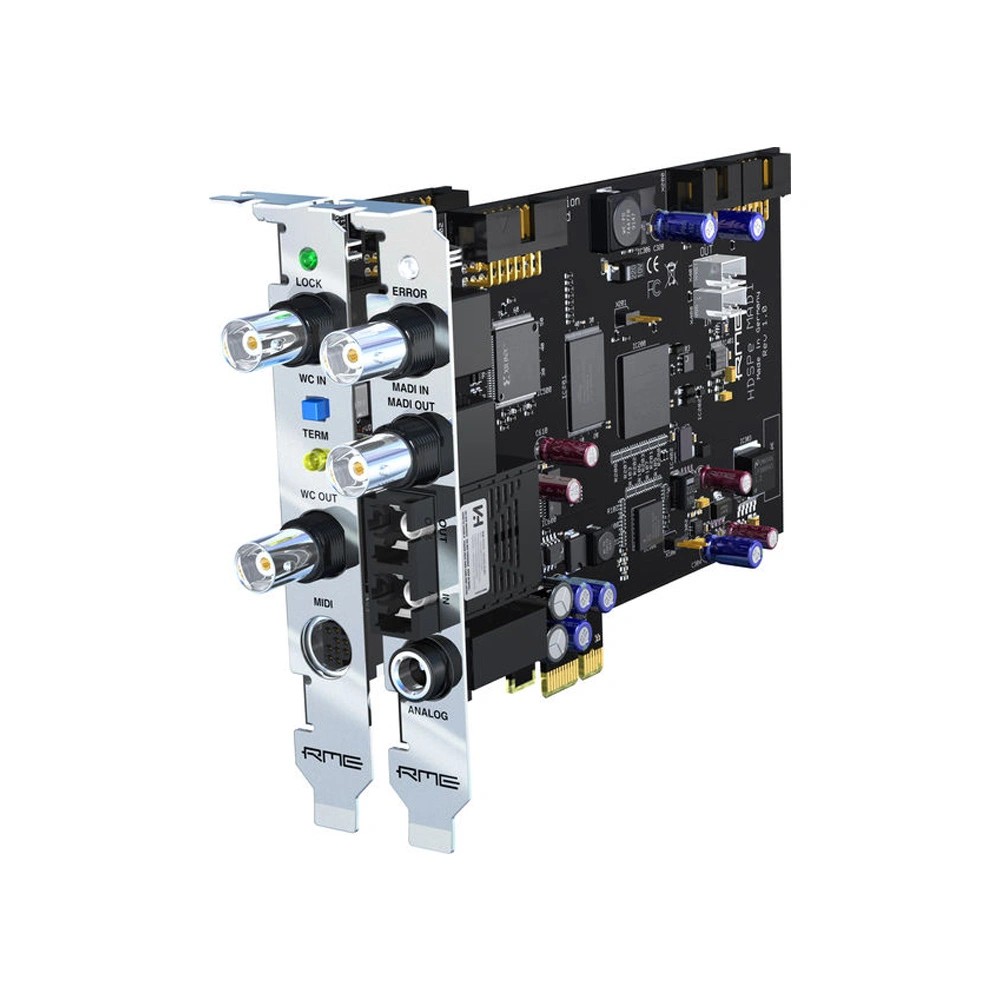

The HDSPe MADI features 128 audio channels and 2 digital inputs/outputs - optical and coaxial, as well as one BNC input/output for synchronization and one analog output for monitoring. The newly developed modular core Hammerfall Pro Audio Core processes three times the number of channels as previous MADI cards, reducing the load on the system and providing low latency on modern computers.
The new core technology is accompanied by a special version that allows for efficient use of a large number of channels with faster DSP. Additionally, the integrated RME 192 kHz effects engine provides direct monitoring with multiple effects directly on the card device, regardless of DAW software. You can use the HDSPe MADI card as a MADI router. Unlike most other solutions, the router can route each channel individually and even adjust the level of each channel.
Thanks to the new RME Audio Seamless Redundancy Operation technology, the card can function as a single input device recording up to 64 channels. In case of failure on one channel, the signal from another channel is used without interrupting the audio data stream, allowing for the use of not just one MADI card, but two or more additional MADI sources.
Features:
- Full duplex link (up to 500 MB/s data transfer speed)
- All settings are changeable in real-time
- Automatic and intelligent clock control
- Source synchronization: coaxial MADI, optical MADI, Word Clock, internal
- Sample rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (Sync/Word Clock)
- Frequency range: MADI: 32 kHz - 192 kHz, word clock: 27 kHz - 200 kHz
- Jitter: <1 ns, internal and all inputs
- Jitter sensitivity: PLL works even with 100 ns jitter without issues
- Comes with DIGICheck: tool for measuring, analyzing, and testing
- MIDI input and output via two 5-pin DIN connectors
Package Includes:
- PCIe sound card
- Audio cable
- Manual
