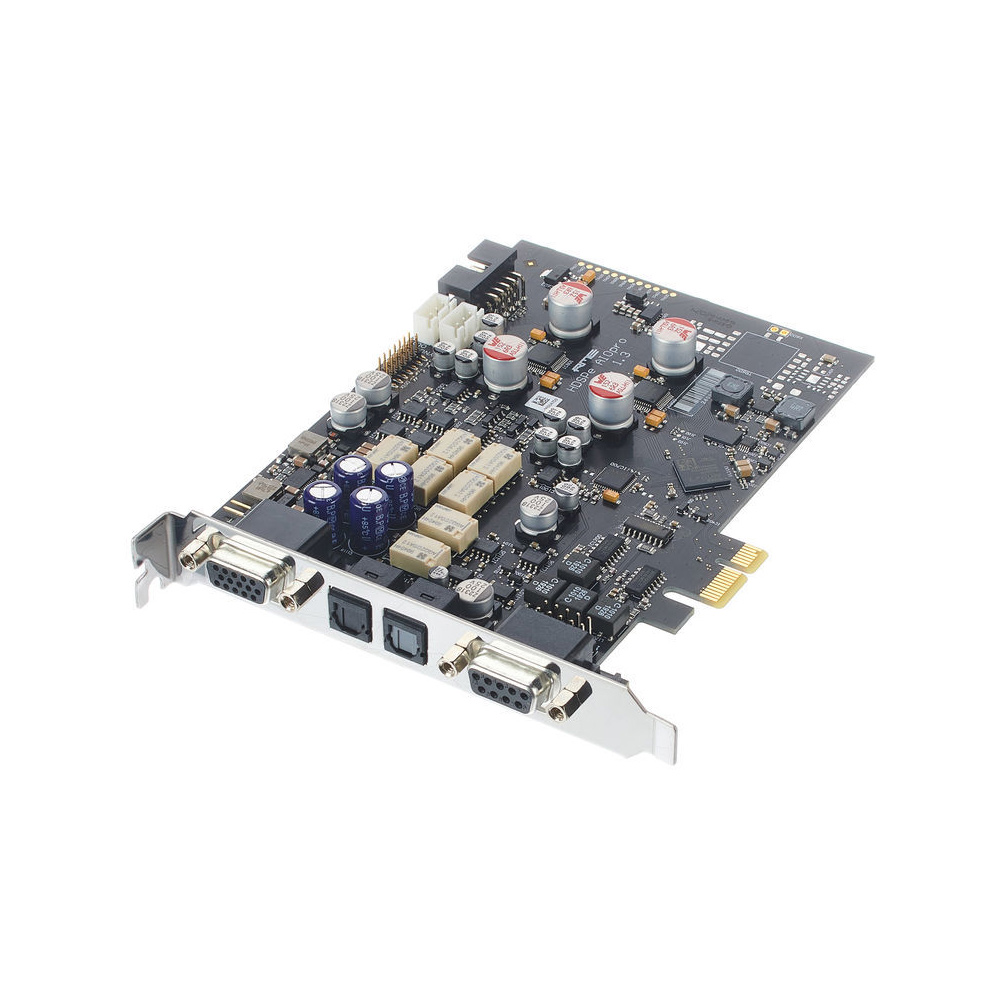

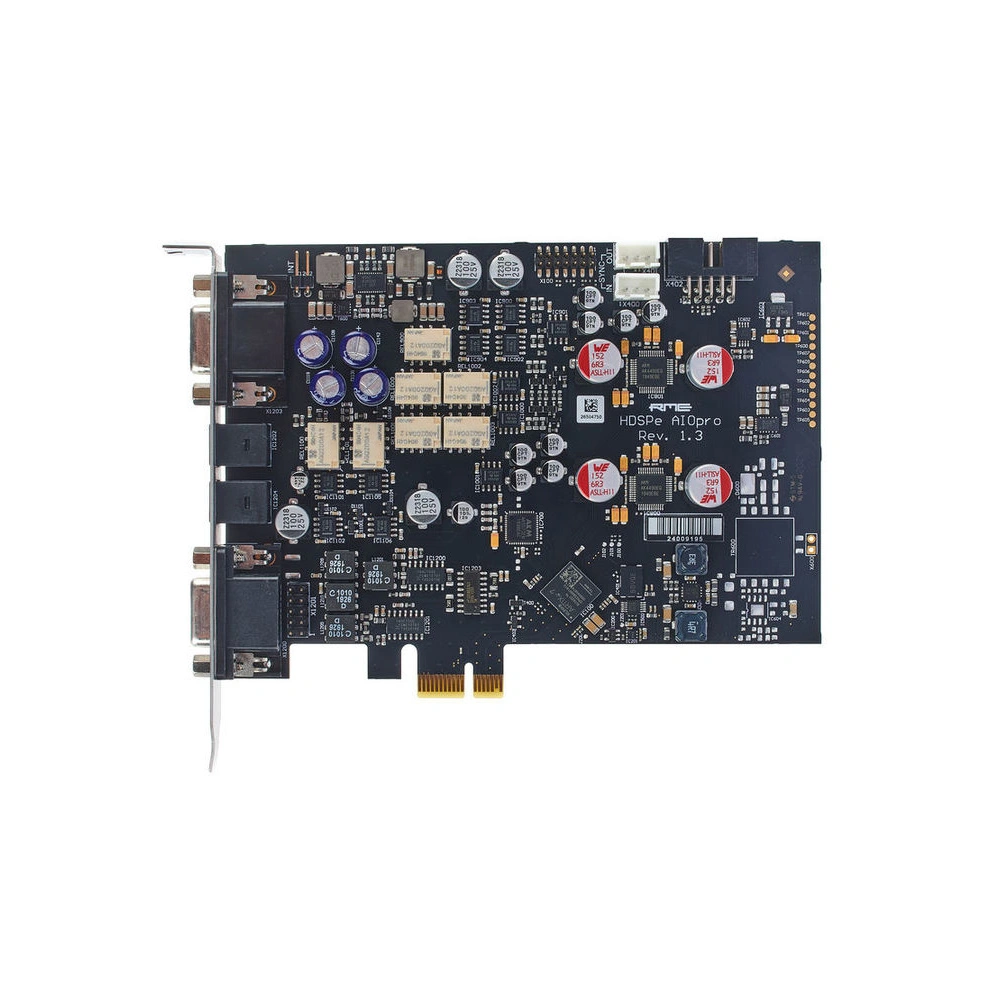

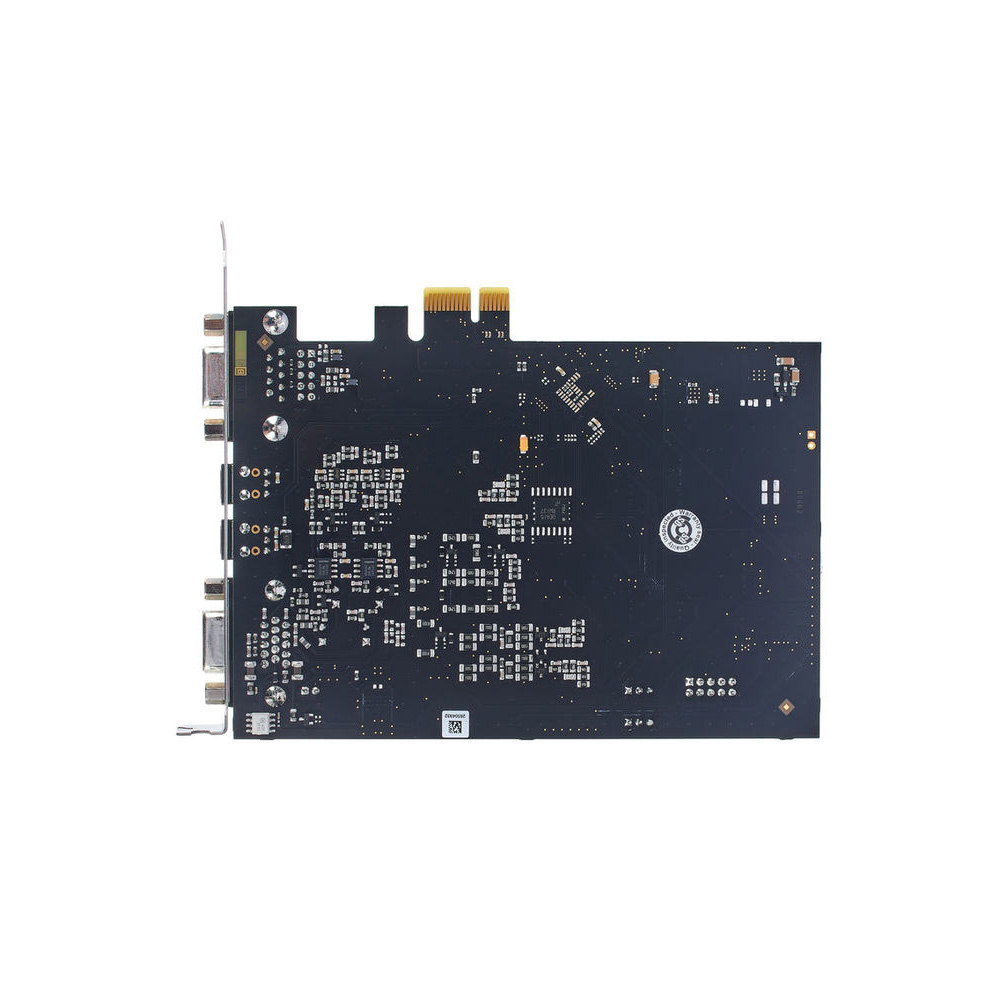

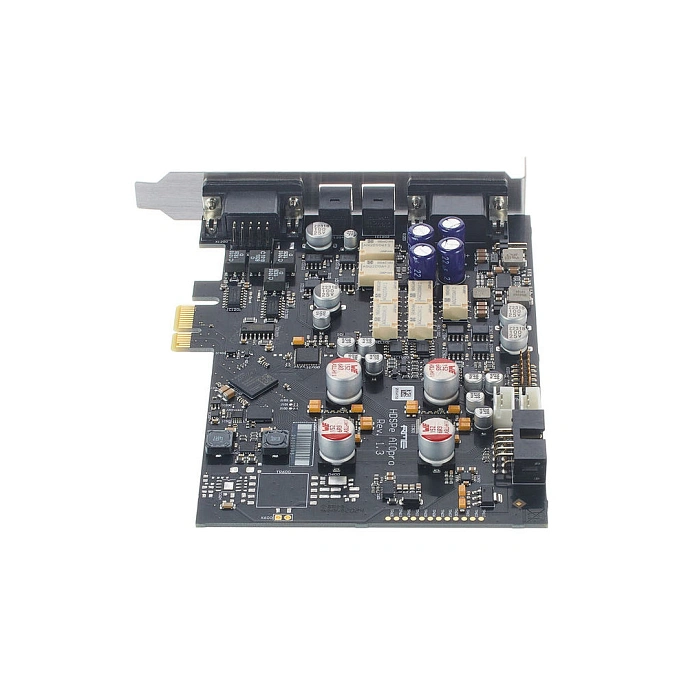

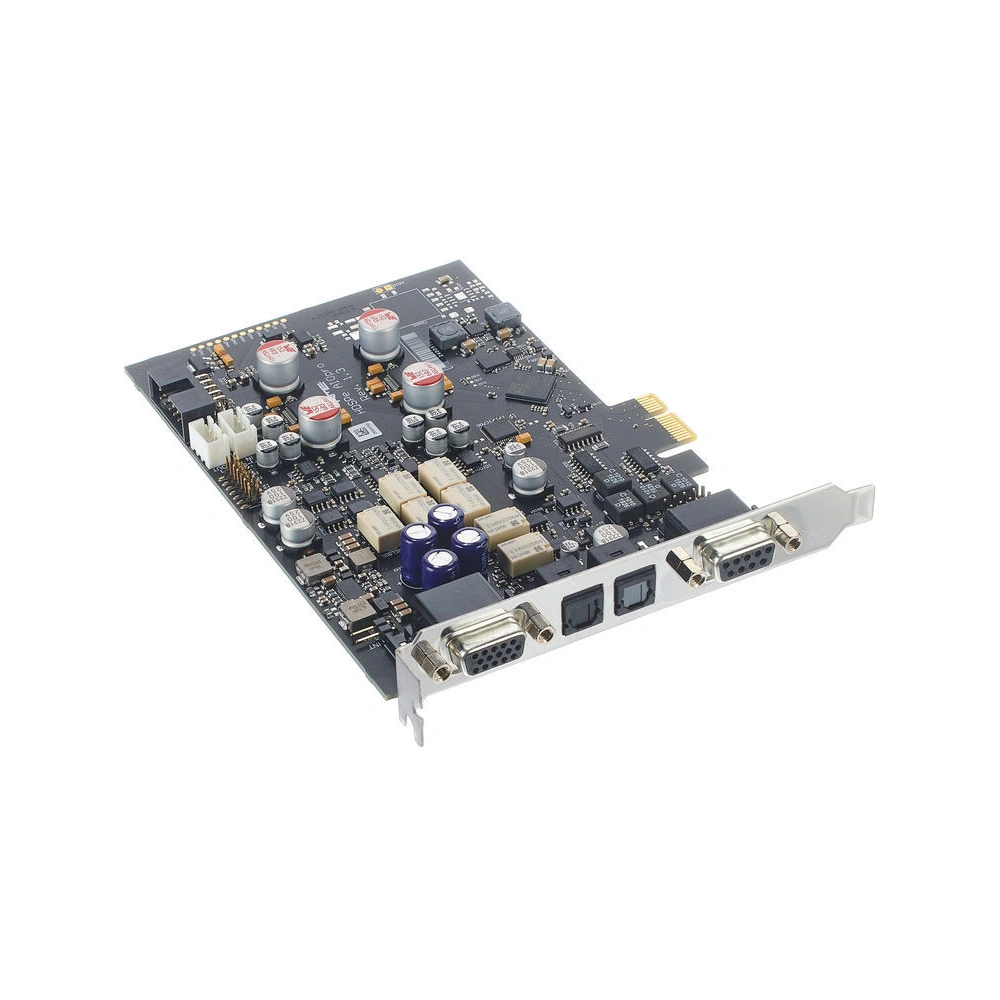

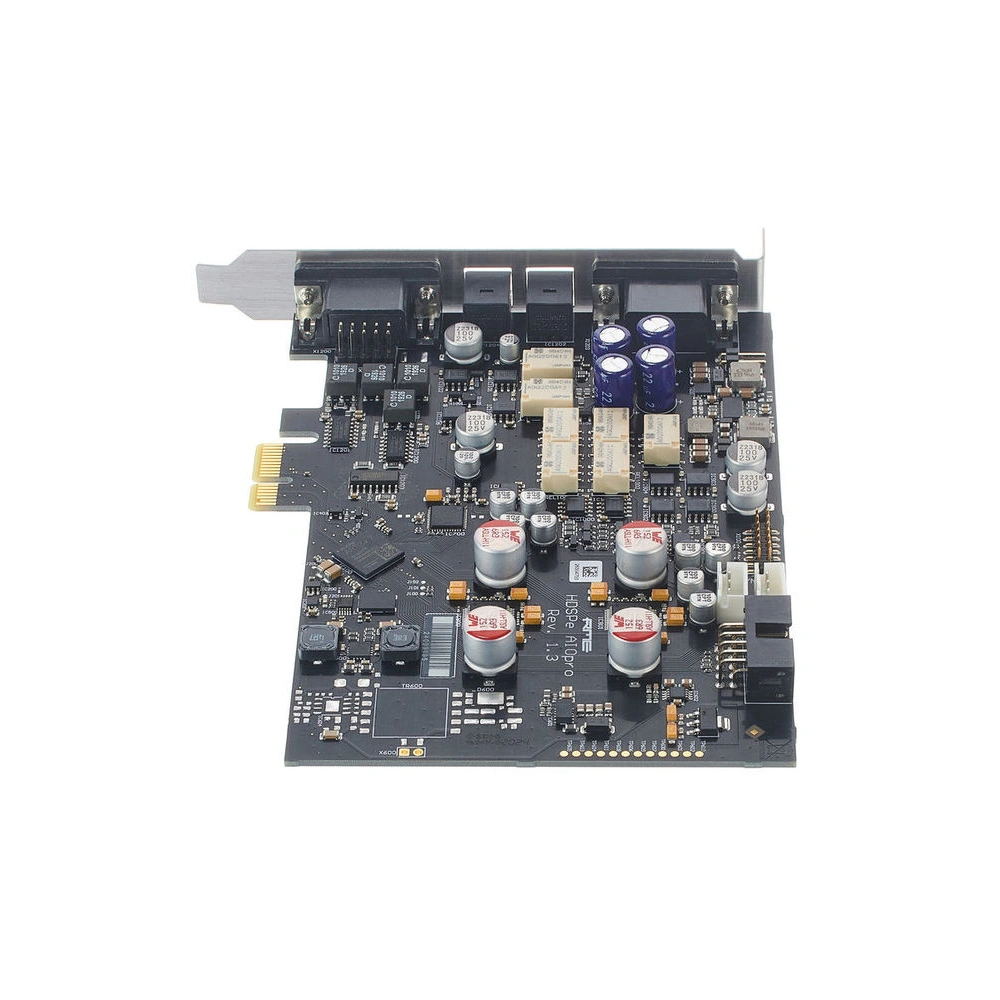

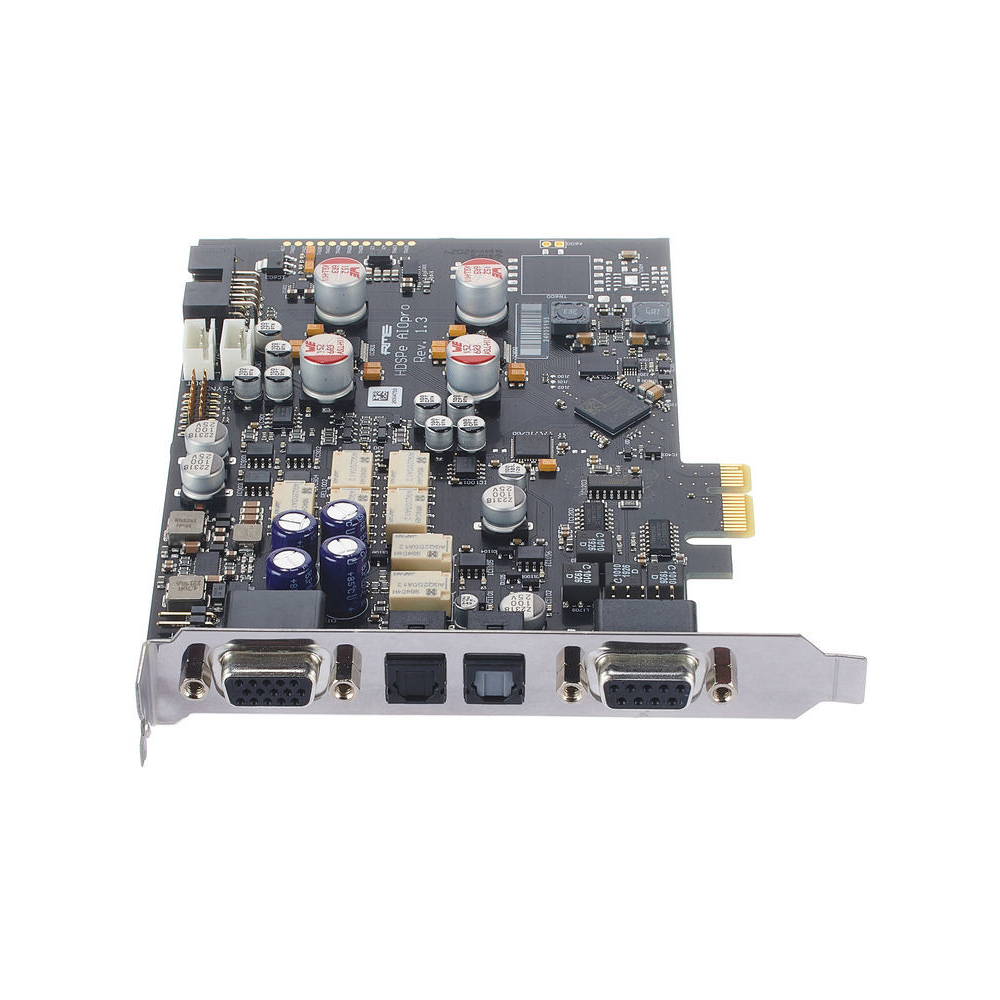

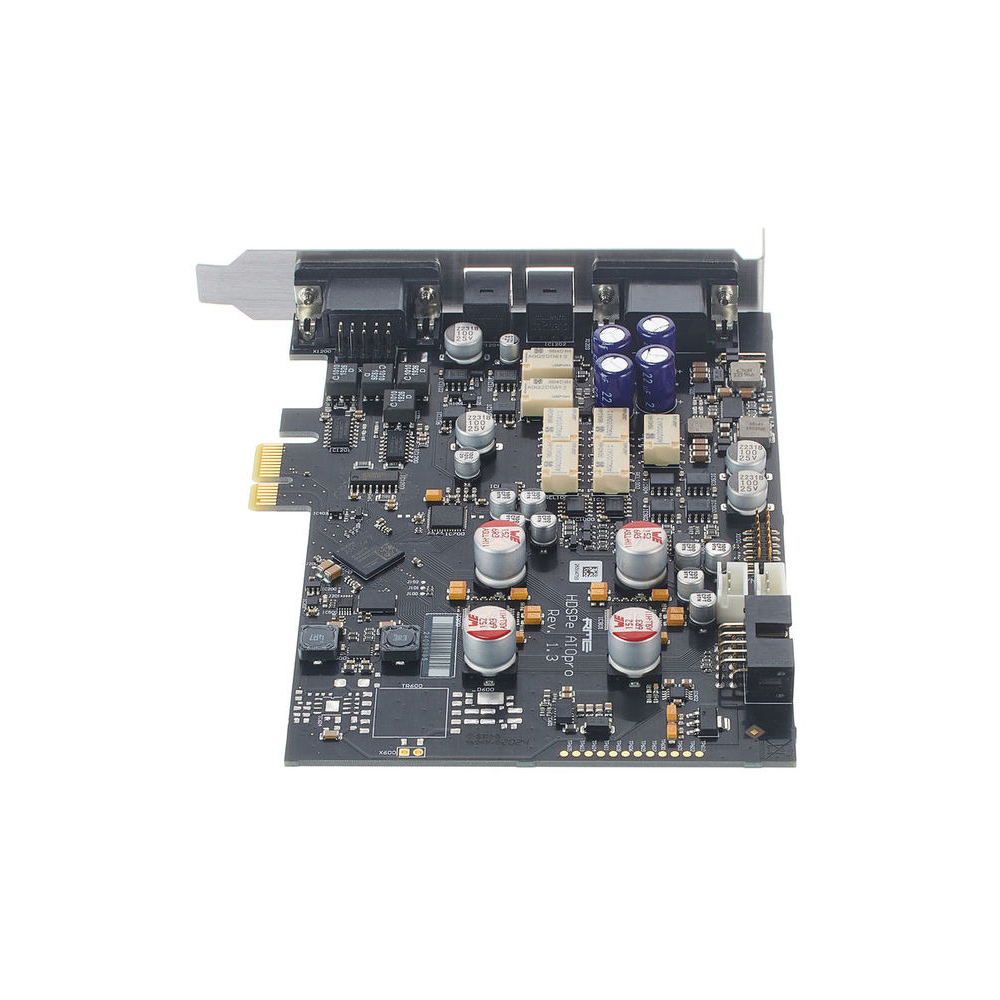

RME HDSPe AIO - one of the most versatile audio interfaces in the world. It is a universal solution for practically any musical task, featuring ADC/DAC with a sampling frequency of up to 192 kHz. The signal-to-noise ratio is 116 dB. All inputs and outputs can operate simultaneously, including SPDIF (phono) and AES/EBU (XLR). Additional high-quality analog inputs and outputs can be added to the device with an affordable expansion board.
The RME HDSPe AIO interface includes the versatile TotalMix mixer and SteadyClock synchronization technology. It also supports the additional TCO standard for timecode synchronization (LTC/video).
The RME HDSPe AIO is a PC-specific version of the HDSP 9632 card. The enhanced PCI Express core fully utilizes the capabilities of its new format, resulting in superior sound quality for multichannel audio with the lowest latency. With RME's flash update technology, hardware and software improvements, additions, and updates can easily be installed at any time.

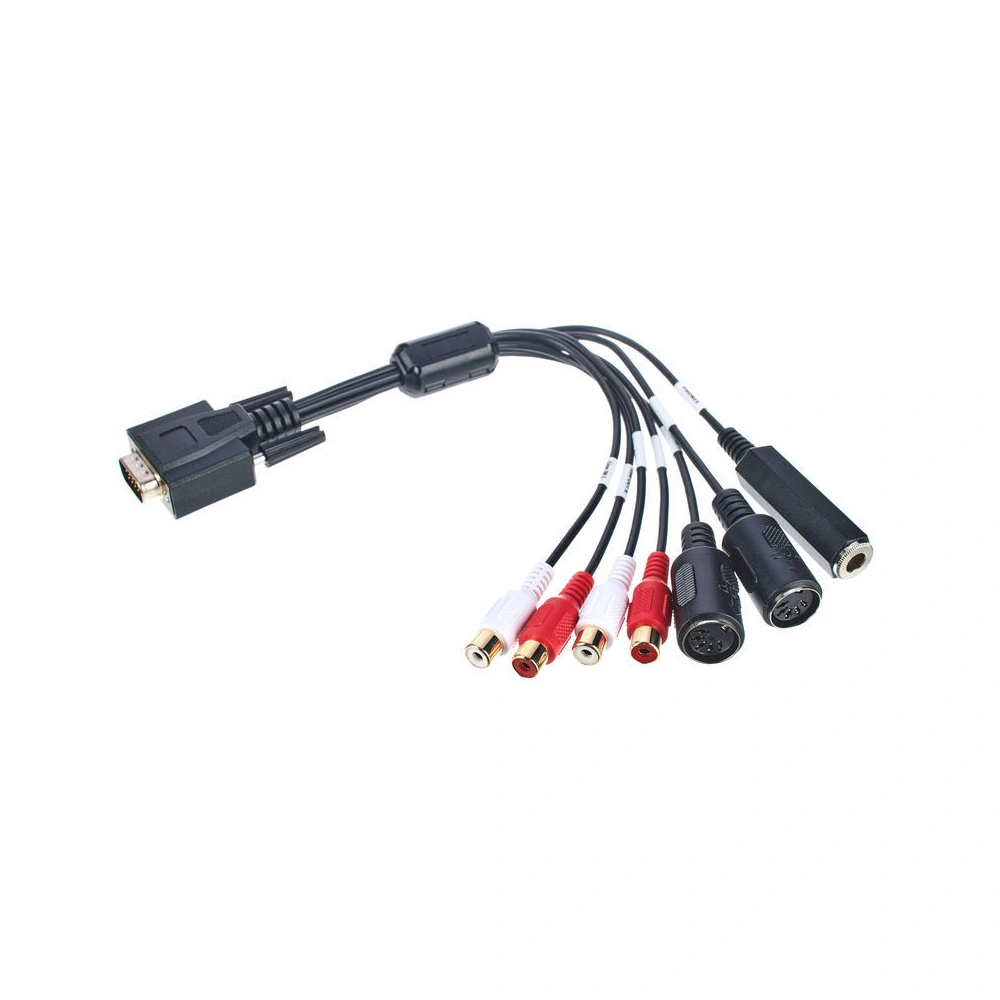

The base package of the RME HDSPe AIO comes with RCA/phono analog cables. The headphone output is in 1/4" TRS format. All analog inputs/outputs are unbalanced. XLR analog cables are available as an add-on.
TotalMix in the RME HDSPe AIO can remotely control other devices via MIDI. The port is virtually offered together with the driver. The package also includes DIGICheck software for Windows, which includes a spectrum analyzer and other utilities for sound analysis. There is full support for ASIO, GSIF 2.0, Core Audio, and Core MIDI protocols. It is also possible to work in Class Compliant mode with the TotalMix FX app for iPad.
Features:
- Analog inputs and outputs 24 bit/192 kHz with a signal-to-noise ratio of over 112 dB;

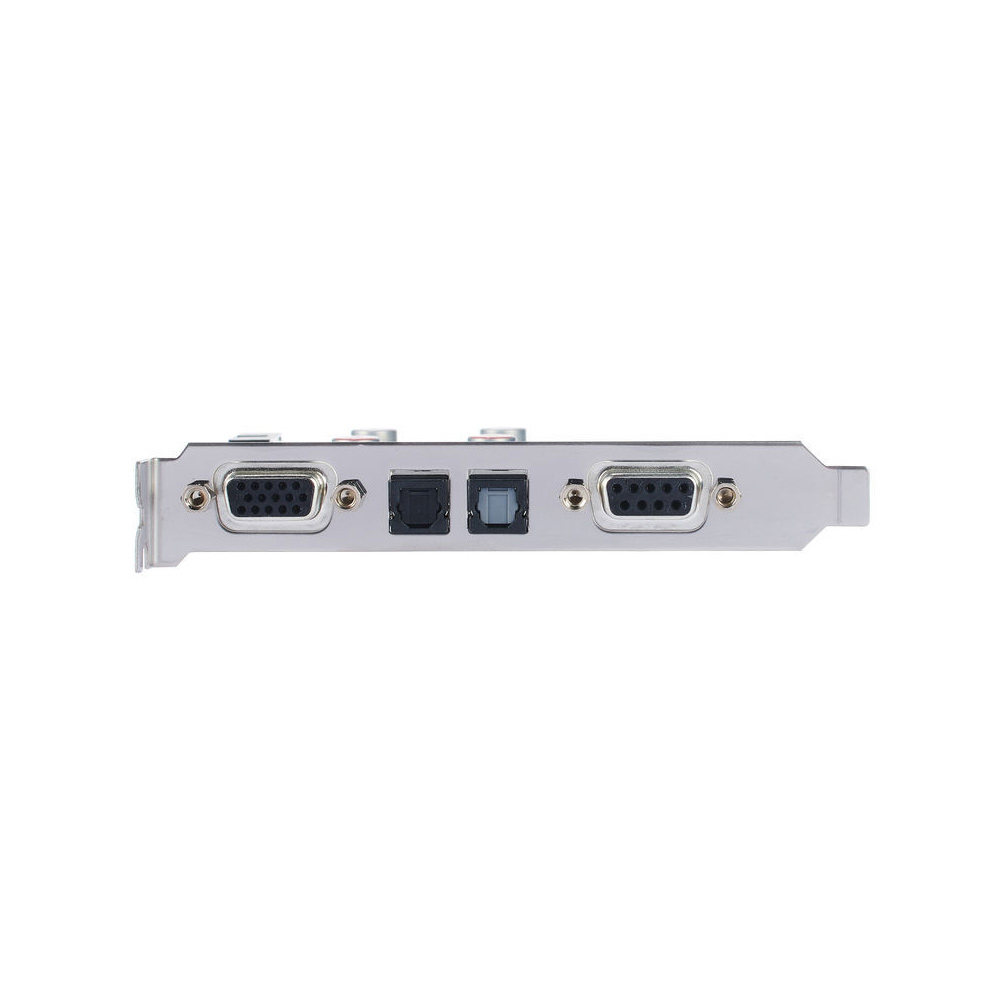

- Digital interfaces ADAT, S/PDIF, AES/EBU;
- Simultaneous operation of up to 18 inputs and 20 outputs;
- 16-channel MIDI interface;
- TotalMix with 760 channels with internal resolution of 42 bits;
- DIGICheck software for sound analysis included;
- Optional expansion board available with four balanced inputs and outputs.
Package includes:
- Sound card;

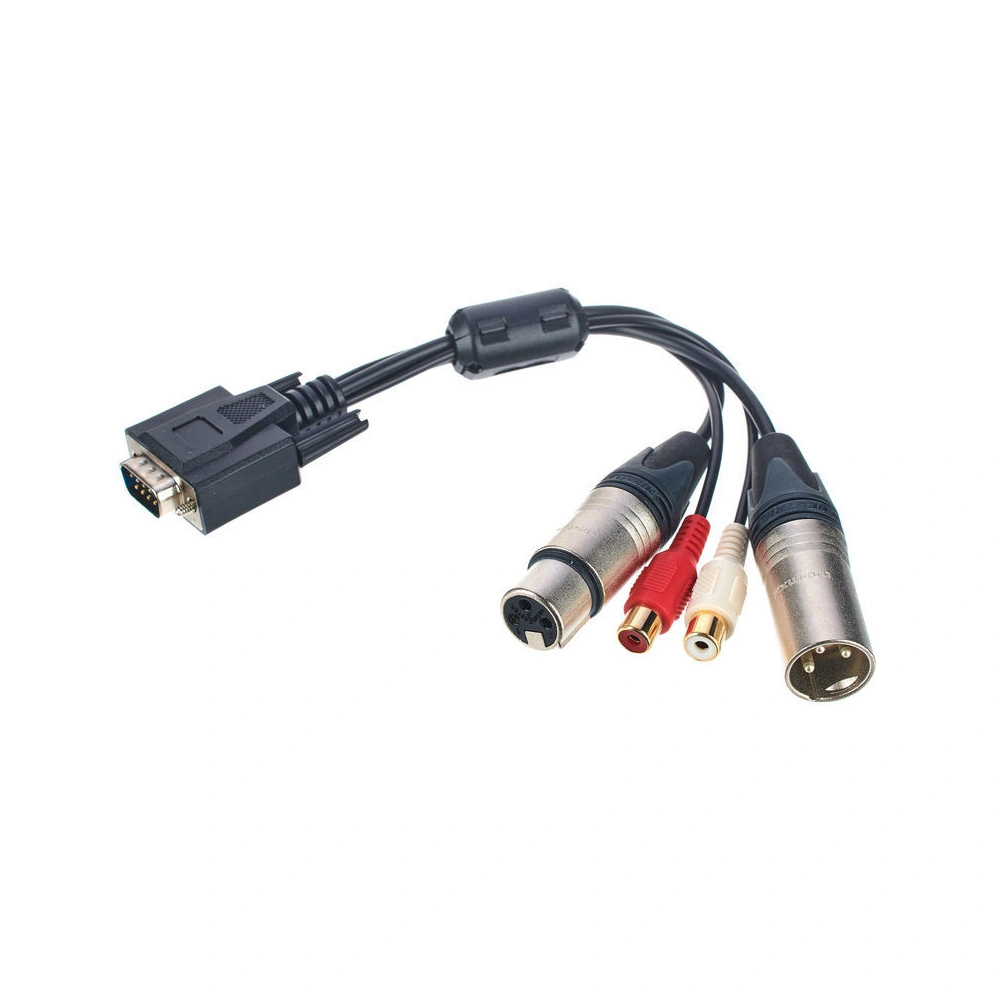

- Audio cable 2 pcs;

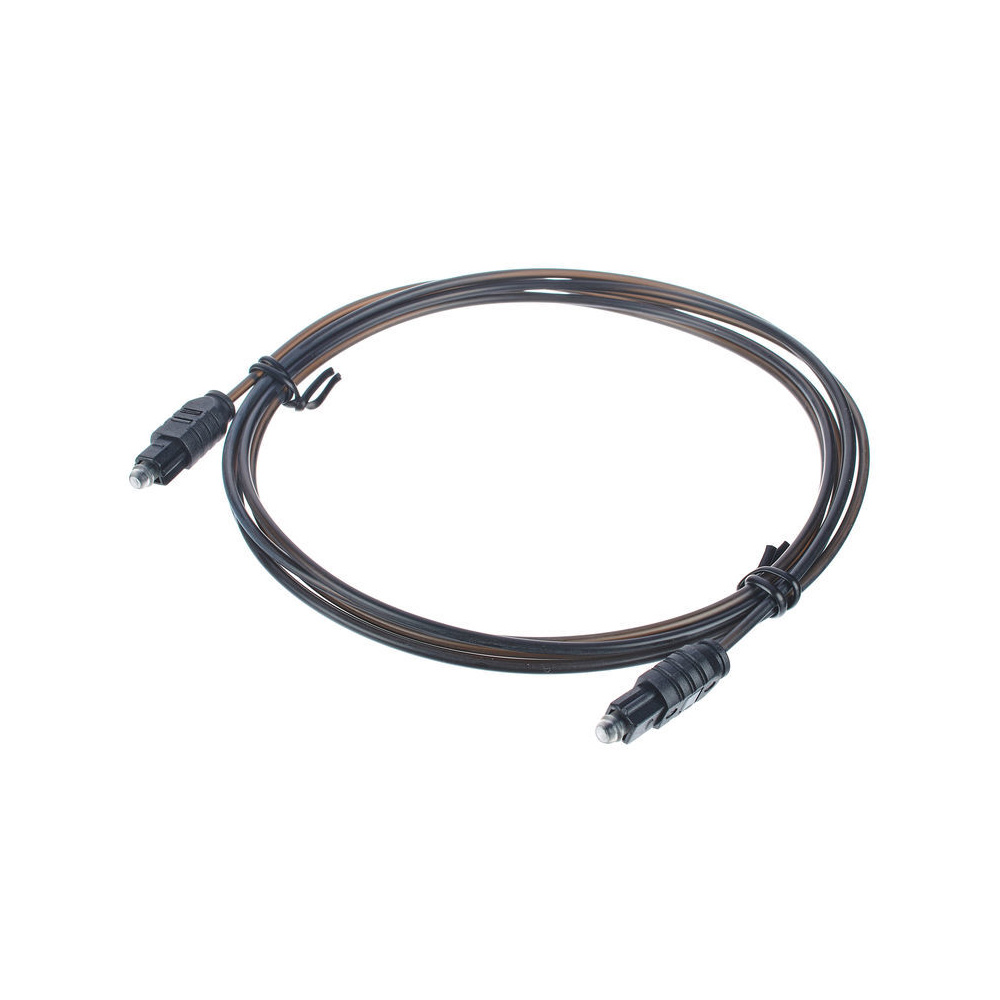

- Optical cable;
- Manual.
