The updated RME ADI-2 FS ADC-DAC converter/headphone preamp is a versatile device that combines the latest developments from the German company in an ergonomic housing with a simple and mostly automated control interface. Outstanding technical specifications, impeccably clean sound quality with high signal-to-noise ratio, intuitive interface, and highest build quality are just the first layer of the ADI-2 FS.

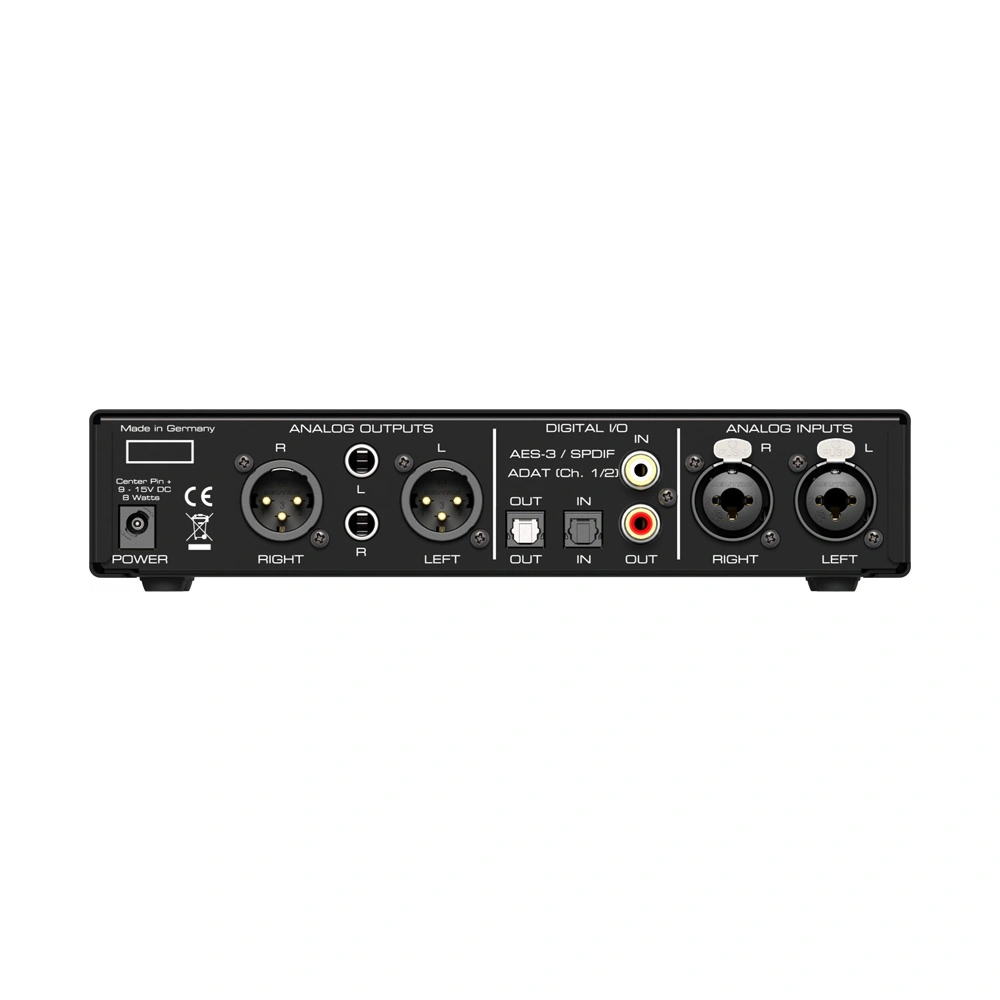

The ADI-2 Pro features two analog inputs on combo XLR/TRS connectors, two separate balanced and unbalanced XLR and TS outputs, two stereo headphone outputs, as well as optical S/PDIF and AES/EBU inputs, capable of working with ADAT protocol. USB 2.0 is fully compatible with UAC 2 for connectivity with iOS-based devices. Additionally, there is an option to connect an external power supply with a locking connector.
As a computer interface, the ADI-2 Pro offers operation in stereo (2/2) and multichannel mode (6/8). No additional drivers are required for compatibility with Mac OS X, unlike Windows, where RME MADIface series driver is used for full WDM and ASIO compatibility and to achieve the device's maximum performance.
The RME ADI-2 FS is like having a set of devices packed into one housing, with a simple and highly automated usage process. The converter is equipped with two balanced/unbalanced analog inputs and outputs, a headphone output, SteadyClock FS function for optimal quality conversion, DSP-based signal processing, adapter power option, USB class-compatibility, additional D-D and A-A modes that transform the RME ADI-2 FS into universal settings. The wide range of interactions ensures the most flexible and uncompromising signal transmission.
The analog inputs utilize the enhanced ADI-2 Pro circuitry with low noise and distortion levels, as well as extended frequency response. The 3 different signal level settings for input/output ensure perfect compatibility in the analog domain. The SteadyClock FS function allows for minimal jitter, guaranteeing excellent sound quality. The RME ADI-2 FS converter uses the ADI-2 Pro conversion technology: the AK557x and AK4490 family offer not only a 192 kHz sampling rate and low signal distortion but also a 120 dBA dynamic range.
The RME ADI-2 FS offers much more than just stunning sound. It excels in digital interfacing as well. The optical TOSLINK I/Os can be adjusted up to 192 kHz and also function as ADAT I/O even at 192 kHz. Interaction with SPDIF input and ADAT output, or vice versa, is supported in both AD/DA and D-D modes. Format conversion is possible between all options - SPDIF coaxial (or AES) with Professional or Consumer status, as well as ADAT.
Features:
- Professional high-performance analog-to-digital/digital-to-analog converter
- Multiformat converter operating with USB, AES/EBU, SPDIF, and ADAT protocols
- Playback and recording in direct digital stream
- Signal digitization with a maximum sampling frequency of 768 kHz
- 2 analog inputs and 4 analog outputs on XLR (balanced) and TS (unbalanced) connectors
- 2 powerful high-end headphone preamps
- High-performance analog-to-digital/digital-to-analog interface and headphone preamp for iPad and iPhone
Package includes:
- Audio interface
- Power supply
- Manual
