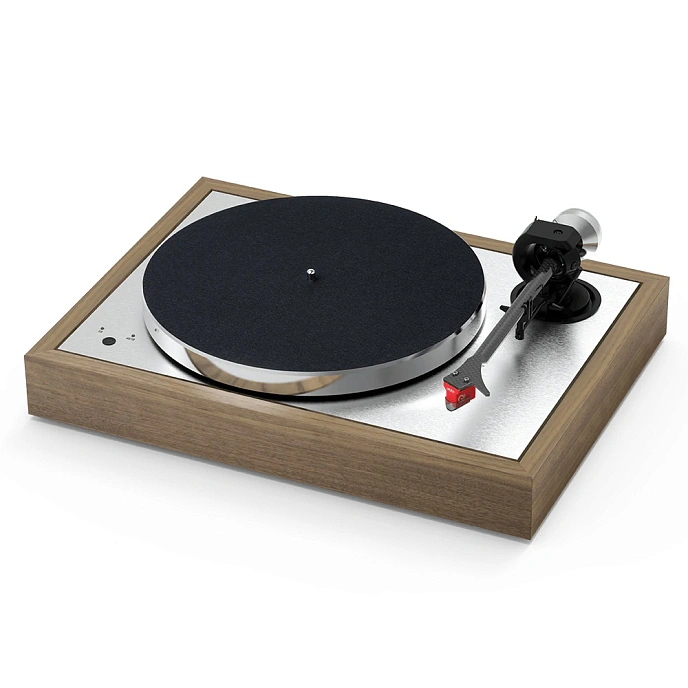

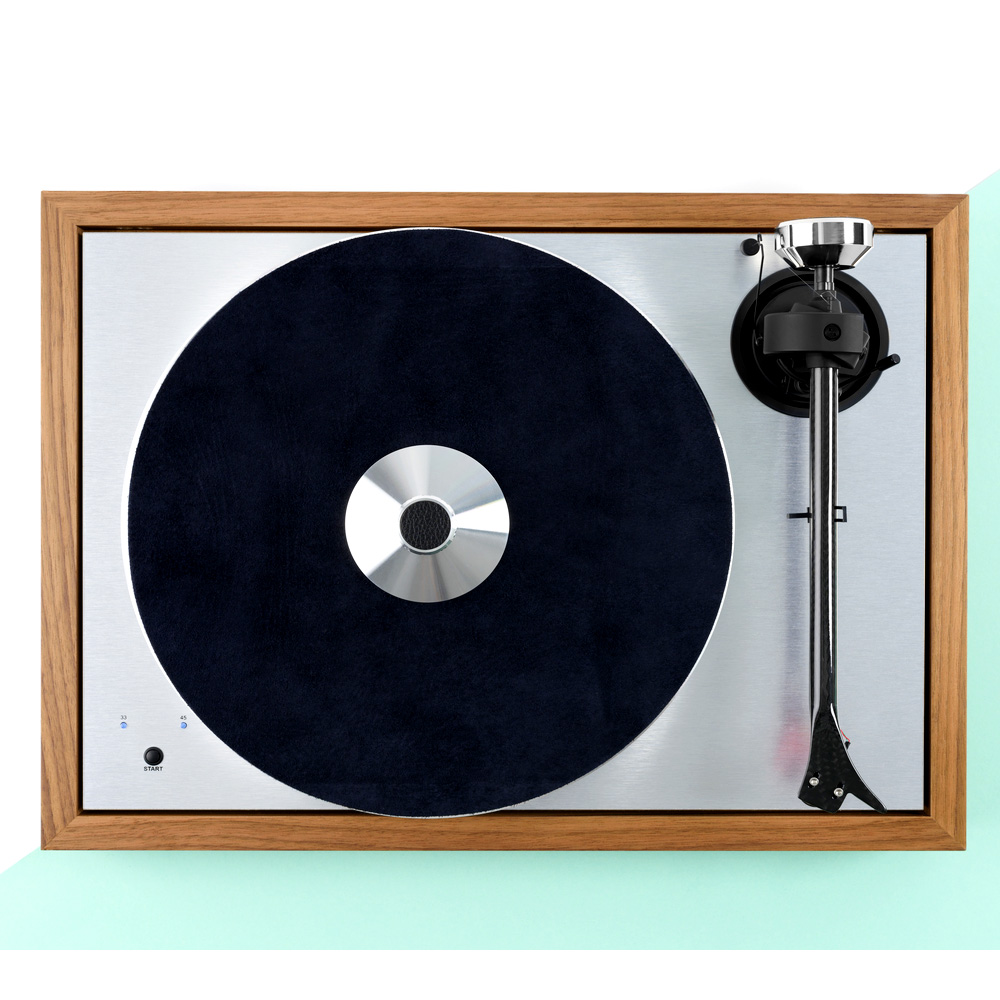

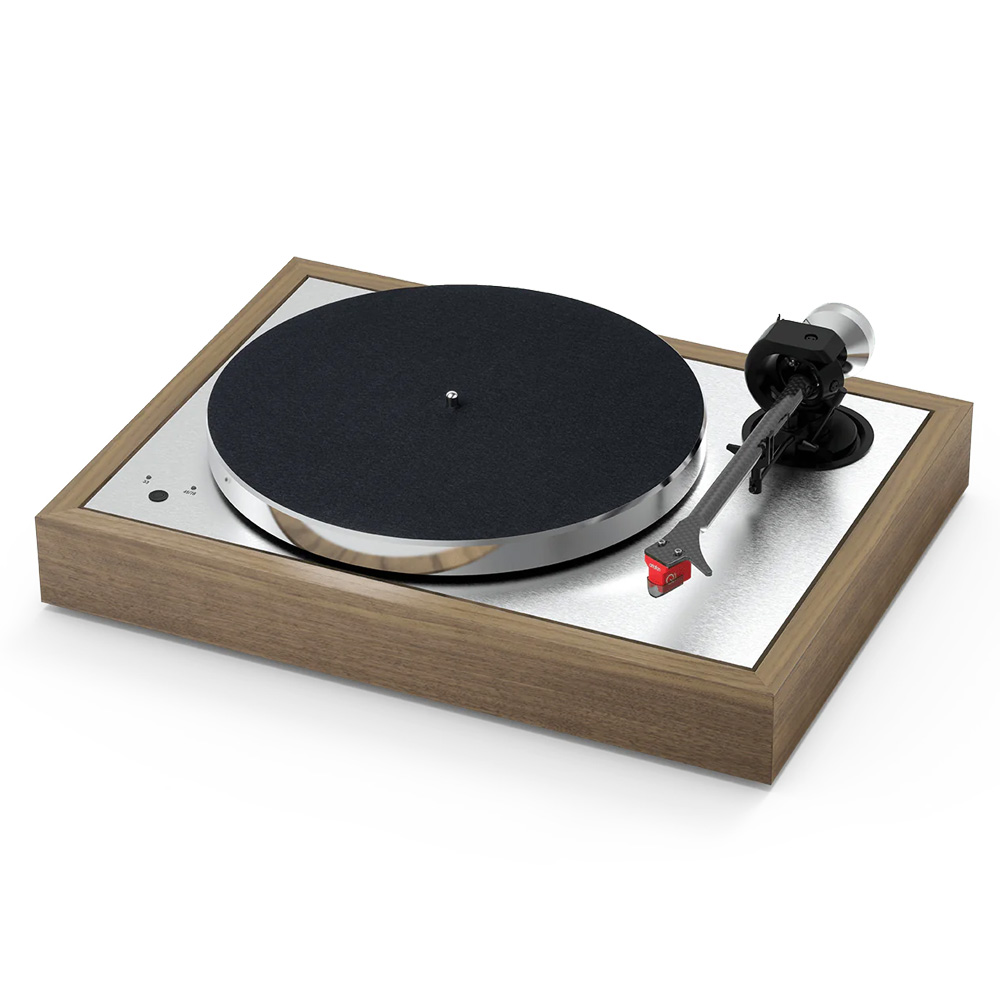

Pro-Ject The Classic SB Superpack Quintet. Subchassis turntable with 9“ carbon/alu sandwich tonearm.
Key Features:

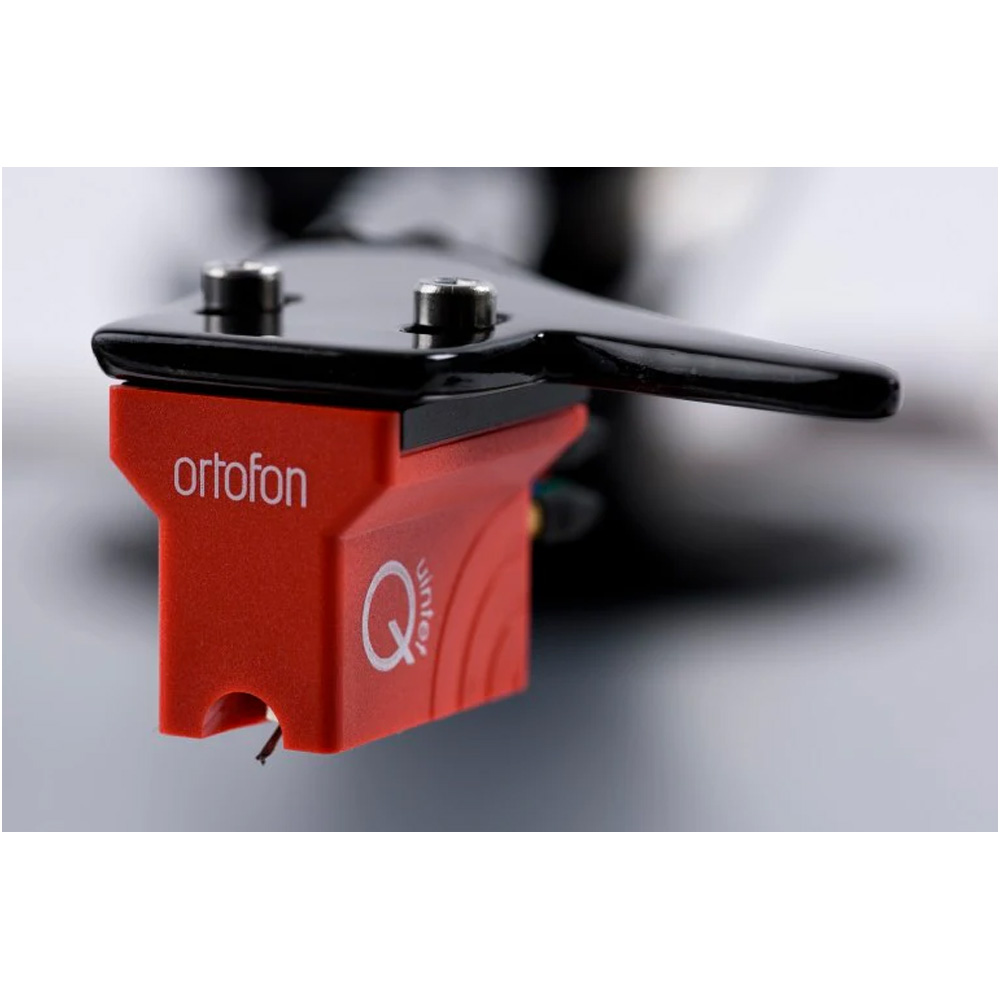

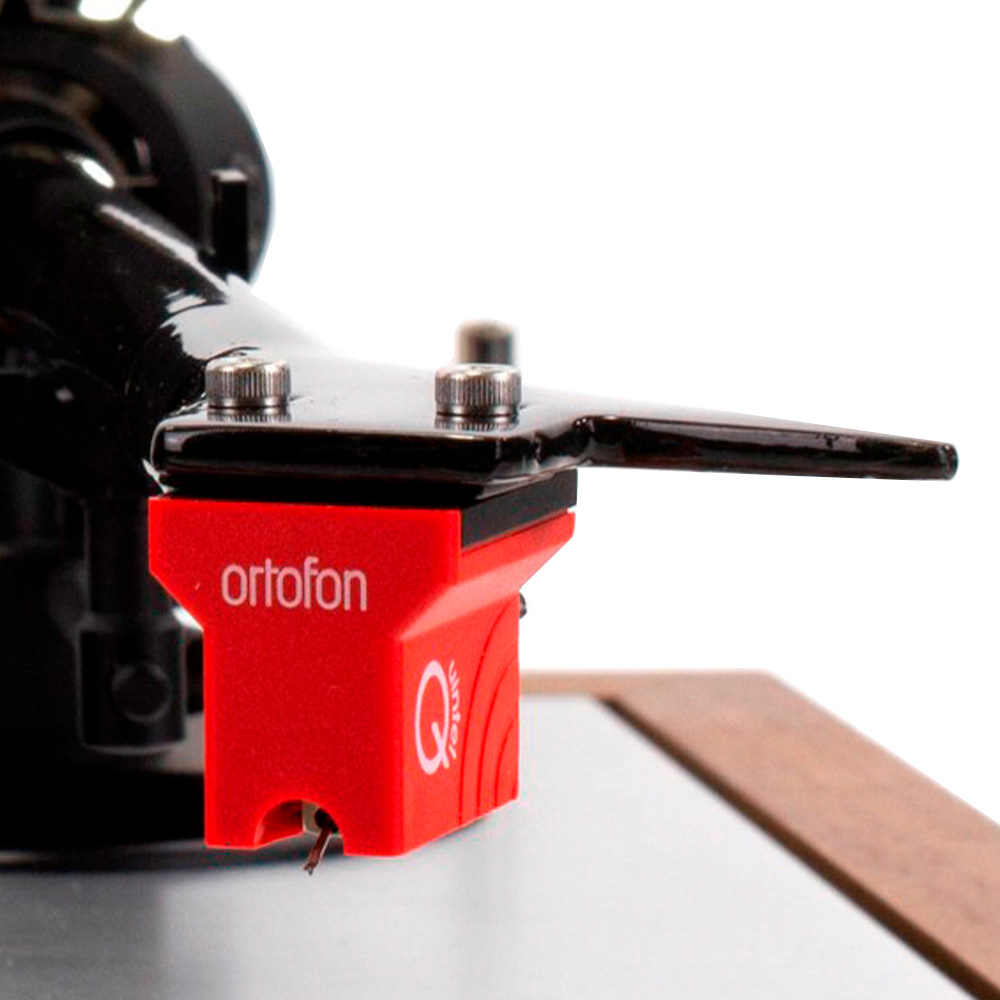

- Ortofon Qintet Red cartridge pre-installed
- Electronic speedcontrol (33/45 rpm)
- Top grade Clamp it included
- Leather mat included
- Belt drive with electronic speed control 33/45 rpm
- Height adjustable decoupling feet
- Precision balanced TPE*-damped aluminium-platter / felt mat
- Metal/MDF sandwich chassis floating on TPE suspension
- 9” carbon/aluminium tonearm with MM & MC capability
- Japanese ball bearing (base of tonearm)
- Integrated central vertical cable outlet for unhindered arm movement
- Ultra low friction zircon pin-point cardan bearings (top & side)
- Azimuth and VTA fully adjustable
- TPE damped counterweight
The Classic SB Superpack offers classic look and innovative high-end technology

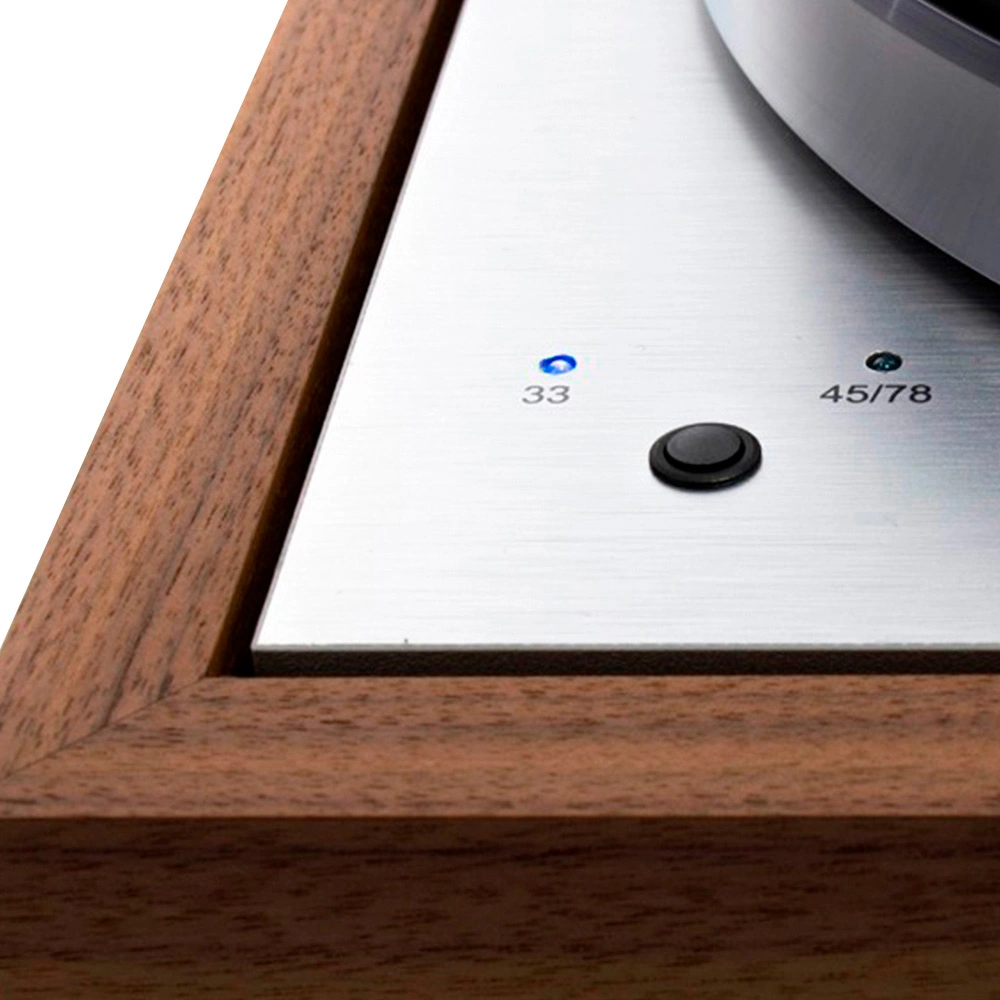

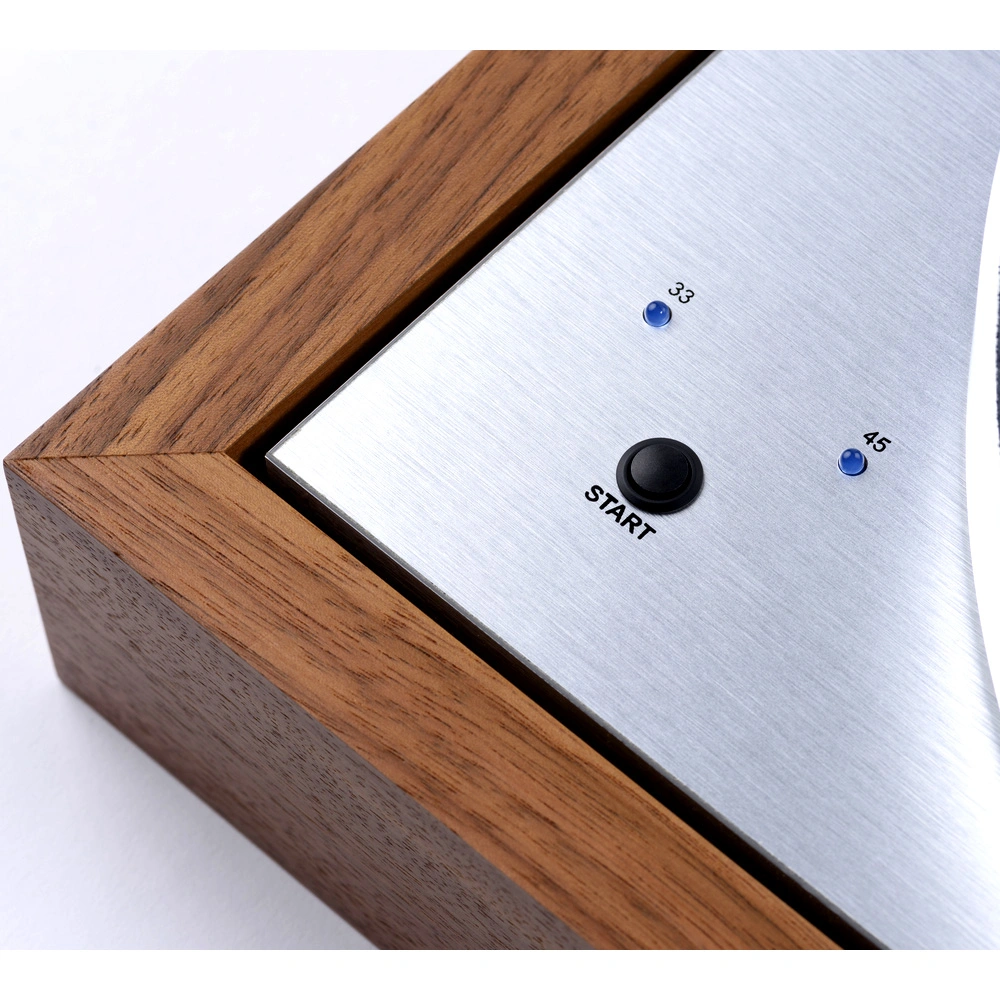

This turntable makes use of traditional frame design which was established by the famous turntable manufacturers of the 50’s and 60’s. It uses a compact simple and elegant form factor. The Classic SB Superpack incorporates a combination of approved belt drive design using a low noise AC motor with an ultra precision frequency DC-driven AC generator for ultimate speed stability. The Classic SB Superpack convinces with high precision dynamics and its rich details. For improved comfort an electronic speed change was built in, which lets you switch from 33 to 45 rpm (and vice versa) with the push of a button. Advanced technology is used for decoupling and the completely new designed tonearm.
Chassis & Subchassis
Like our famous Debut we wanted to create an easy to use “plug & play” product, but with better sound due to better isolation. Thanks to the modern damping materials TPE* we are able to design a very effective, subchassis construction. Isolating the platter and tonearm from the resonances of the motor and main plinth is the target.

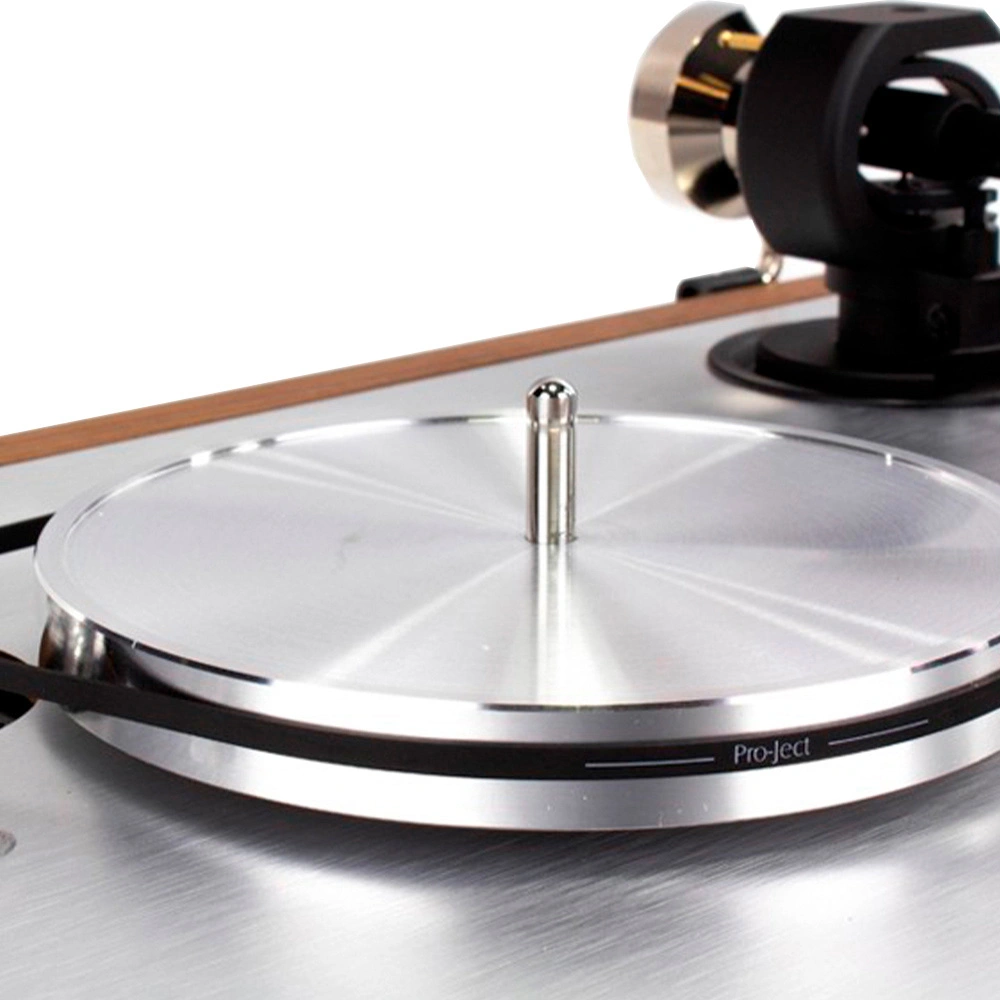

Platter & sub-platter

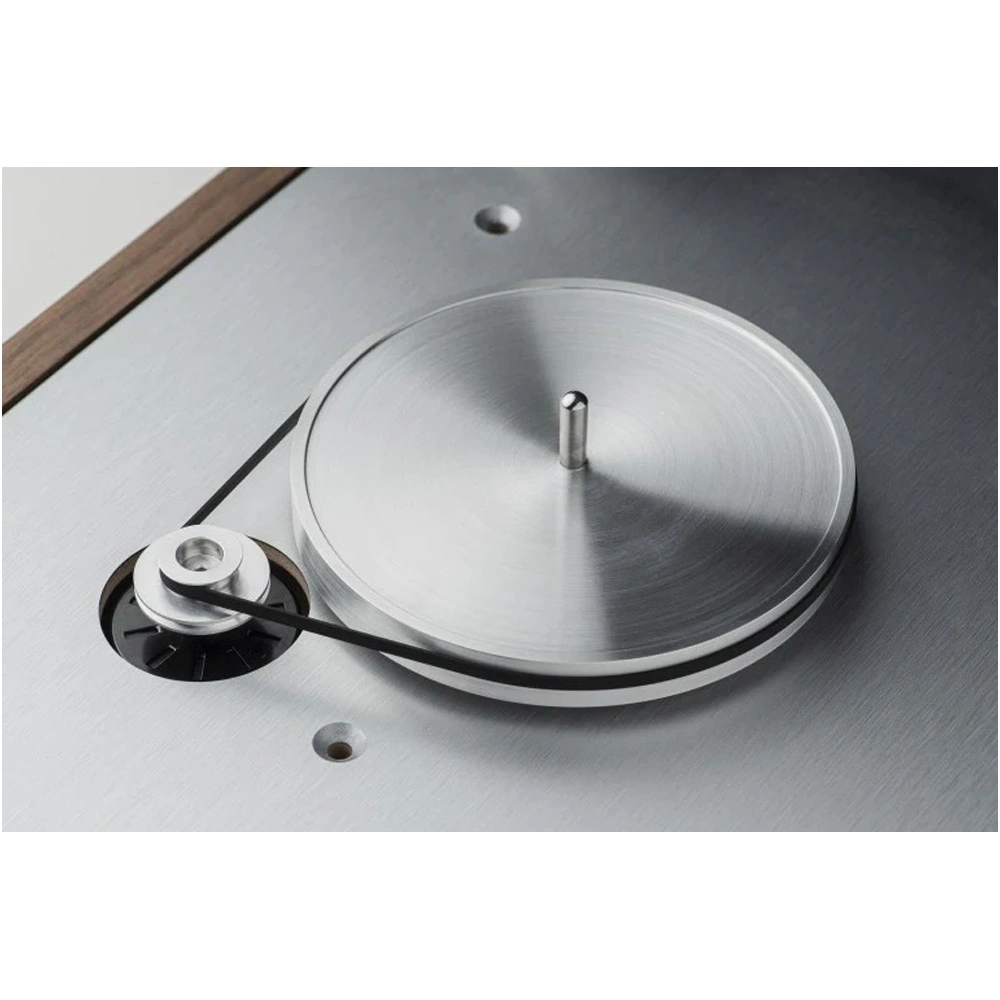

The heavy aluminium main platter construction utilises advanced thermo plastic elastomers (TPE) for optimising resonance behaviour. A drawback for most of the old designs was the platter. Casted platters all have been heavy (which is good for speed constancy and low wow and flutter) but suffered very much from ringing effects which again caused colouration of the sound. The platter of The Classic SB Superpack is precisely machined out of a special aluminium alloy again damped with TPE*, which offers special damping abilities. The subplat-ter / main bearing construction we use is similar system as on the Debut. It is made of hardened steel/ Bronze bushing/ Teflon bearing mirror, which results in very smooth low noise running smoothness of the bearing. The main difference to the Debut bearing are the tolerances which are by factor 10 lower and therefore more precise (0,005%). Especially the subplatter is a very sophisticated part which is accurately machined and guarantees a very good isolation between bearing noise and the platter itself.
New carbon/aluminium tonearm
The radical new designed Classic tonearm is the result of 25 years of experience in mechanical construction. The tonearm tube is made out of a sandwich of carbon and aluminium: carbon for stiffness and speed, alu for better damping. The cardan bearing assembly with pin-point zircon bearing provides ultra low friction. A new expensive Japanese base-ball-bearing allows a better lead of the tonearm wire and increases the free movement of the arm. The counterweight incorporates a TPE damper which allows us to reduce the amplitude of the tonearm cartridge resonance frequency by 50%. As typical for Pro-Ject and absolutely not standard at that price range we offer also azimuth and VTA adjustment to use a variety of cartridges. Different counterweight for cartridges up to 25 grams are available as anoption. We supply as standard the Ortofon Quintet Red moving coil cartridge. However, as the tonearm offers excellent damping and flexibility as well, its effective mass can be called middle heavy, so it is also a very good partner for MC cartridges.
In the Box:
- Turntable
- Ortofon Qintet Red cartridge
- Top grade Clamp
- Leather mat
- Manual
