The PreSonus StudioLive AR8C is a versatile eight-channel hybrid analog mixer designed for intermediate level users. It allows easy mixing and recording of concerts, performances, rehearsals, podcasts, and more. This lightweight, versatile, and multifunctional device is equipped with analog outputs and digital instruments. The microphone inputs feature PreSonus Class A preamps and three-band equalizers. It includes a built-in 24-bit/96 kHz USB audio interface, and you can record and playback your results in stereo mode directly from the console using the SD card recorder (up to 32 GB). You can also utilize the built-in Bluetooth 5.0 module. Compact and road-ready, the StudioLive AR series mixers are an excellent all-in-one solution for mixing and recording your performances.
Features:
- Hybrid eight-channel analog mixer
- Microphone inputs with Class A preamps
- Three-band equalizers on all channels
- USB audio interface 24bit/96kHz
- Direct recording using built-in SD card recorder, transport panel
- Bluetooth 5.0 for connecting to mobile sources
- Direct instrument connection to high impedance inputs 1 and 2, RCA inputs provided
- Master XLR outputs, two monitor outputs, aux send, 2 control room outputs, headphone output
- Effects processor with 16 effects

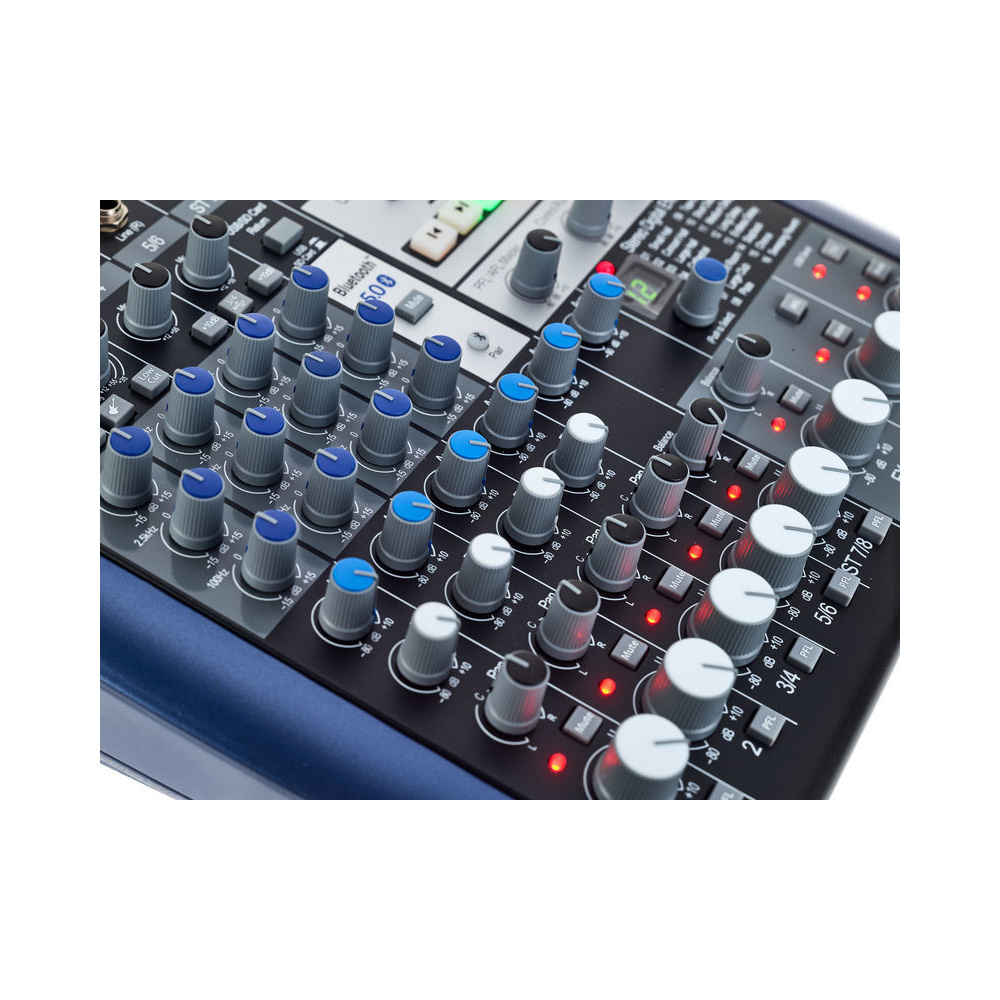

The PreSonus StudioLive AR8C is equipped with all the necessary controls and connectivity options. Each main channel includes a level control knob, microphone input with PreSonus Class A preamps, three-band equalizer, and other tools. Additionally, you can connect an electric guitar or bass guitar without the need for DI boxes; inputs 1 and 2 are high-impedance for direct connection. In addition to main outputs, you get two monitor outputs, each associated with a bus. As the StudioLive AR8C USB is also designed for studio use, you have CR outputs with a separate level control for listening to your results on studio monitors.

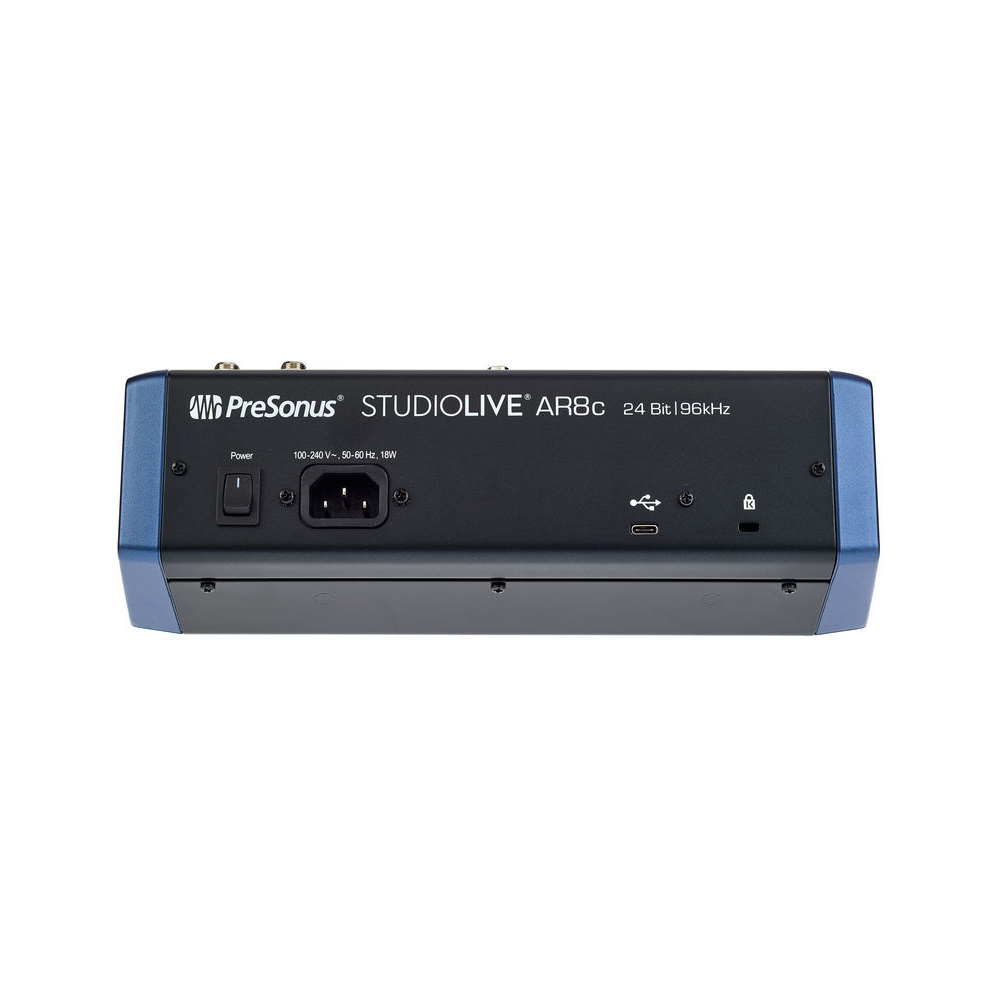

Bluetooth 5.0 and USB-C Input

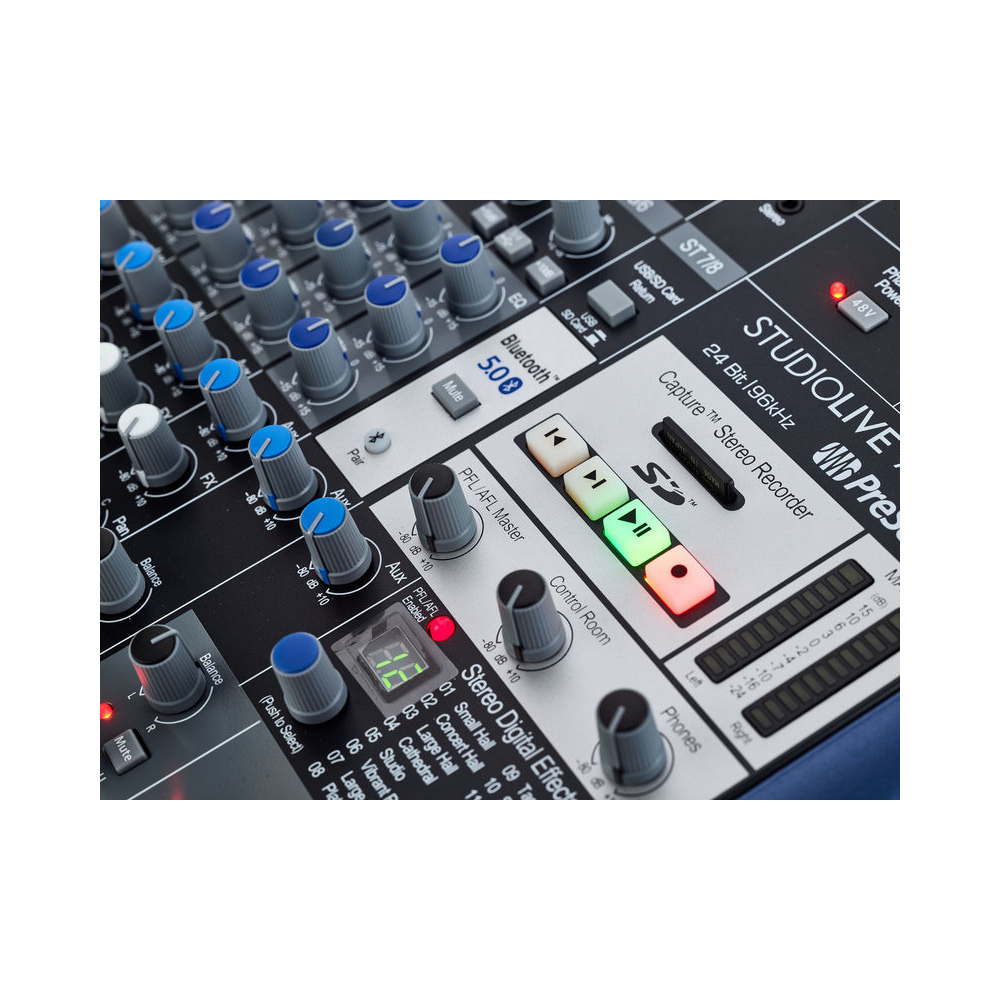

The PreSonus StudioLive AR8C can be fully utilized with high-tech devices. Connect a media player to the RCA and mini-jack unbalanced inputs, play music from the onboard SD recorder or through USB-connected Mac and PC computers. Use the built-in Bluetooth module to connect your phone to the mixer for instant wireless access to your music library for playing tracks, backing tracks, or rehearsals.
The package includes licenses for two applications: PreSonus Capture for live performance recording and Studio One Artist DAW with Studio Magic plugin bundle.
Lastly, let's talk about the onboard effects processor in the PreSonus StudioLive AR8C. It features sixteen types of effects, including various reverbs, chorus, and delay; there is even an option to emulate acoustically treated studio room for a warmer tone. The dedicated effects send/return mechanism along with the master level control knob allows you to adjust the amount of effects in the main and monitor mixes. You can even use a footswitch to bypass the effects processor.
Specifications:
- Inputs: 4 x XLR-F, 6 x 1/4" TRS Jack line in, 2 x RCA, 1 x 1/8” mini-Jack TRS Stereo, 1 x 1/4" TRS Jack footswitch, USB
- Outputs: 2 x XLR-M main outputs, 2 x 1/4" TRS Jack ctl room, 2 x 1/4" TRS Jack phones, 1 x 1/4" TRS Jack mon out, 1 x 1/4" TRS Jack fx aux
- Frequency range: 20 - 20000 Hz
- Input impedance: 1 kOhm (mic), >1 MOhm (instrument), 10 kOhm (line, balanced)
- Input level: +18 dB (mono mic, line), -5 dB (stereo), +12 dB (instrument), +22 dB (stereo line)
- Signal-to-noise ratio: 89 dB
- Phantom power: +48V
- ADC/DAC USB: 24/96

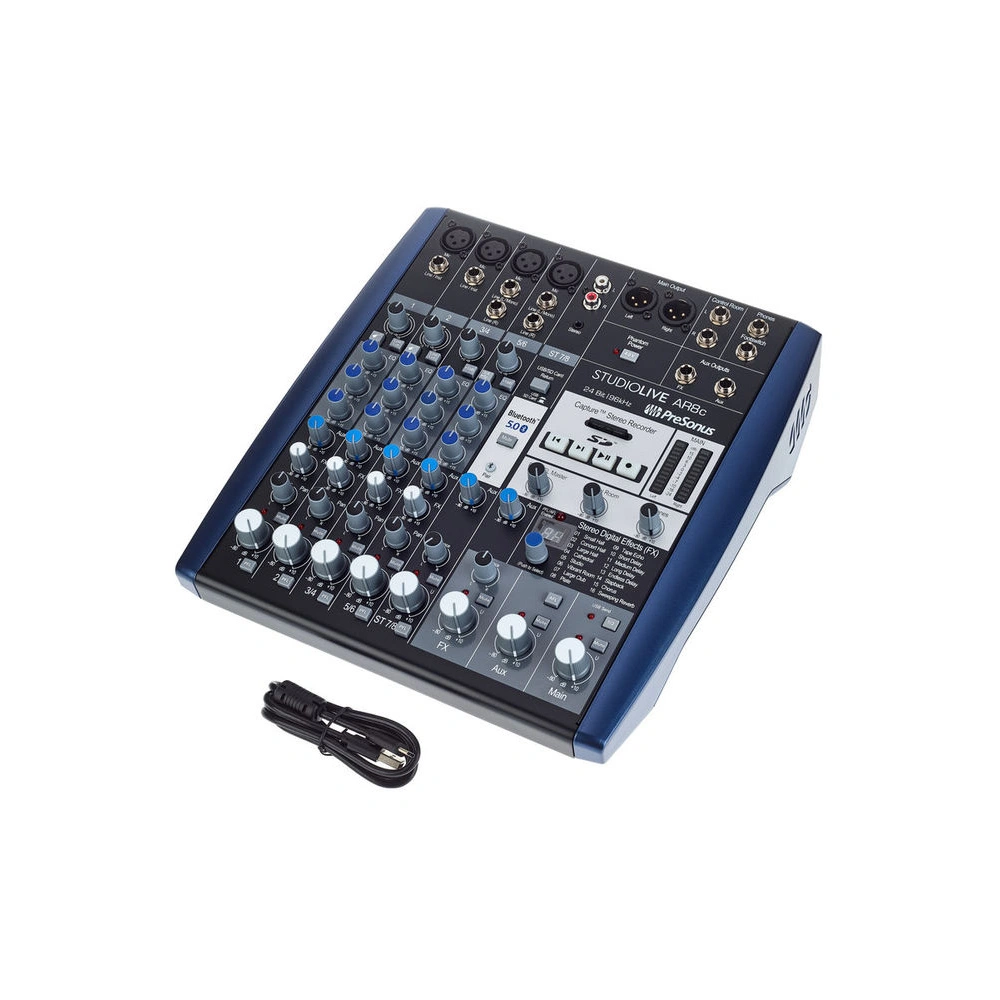

Package includes:
- Mixer
- USB-C cable
- Power cable
