The PreSonus Studio 1810 is a professional USB audio interface designed in a compact housing. Belonging to the Studio series of sound cards, it is known for its high-quality technical and external design, affordability, and focus on studio recording. This interface is equipped with premium 24-bit A/D/A converters with a sample rate of up to 192 kHz and a dynamic range of 114 dB, which is reflected in the quality of the recorded material.
Features:
- Professional USB audio interface
- AKM AK4458 DAC; AKM AK5558 ADC
- 18 inputs and 10 outputs
- 24-bit/192 kHz A/D/A
- XMAX microphone preamps
- +48V phantom power
- MIDI interface with input and output
- S/PDIF digital interface and ADAT input
- Fully metal construction
- Includes license keys for Studio One Artist program and Studio Magic plugin bundle

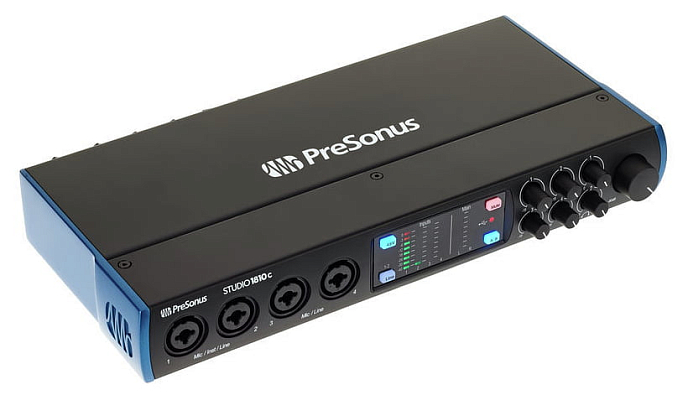

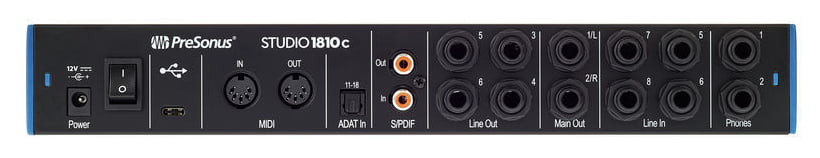

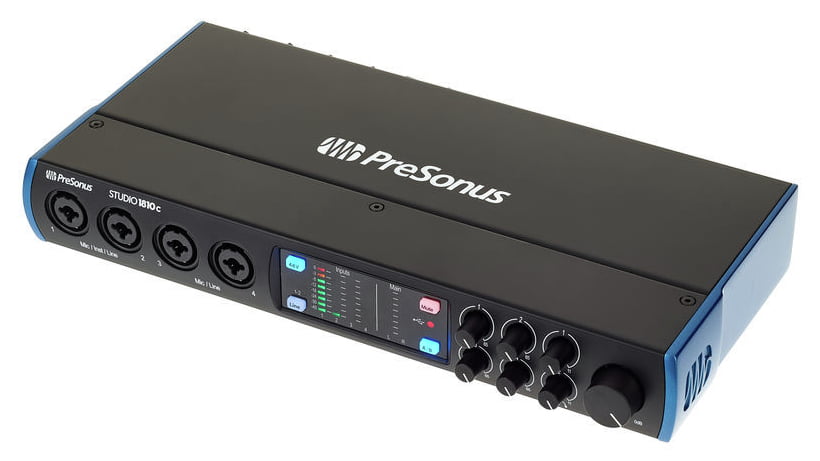

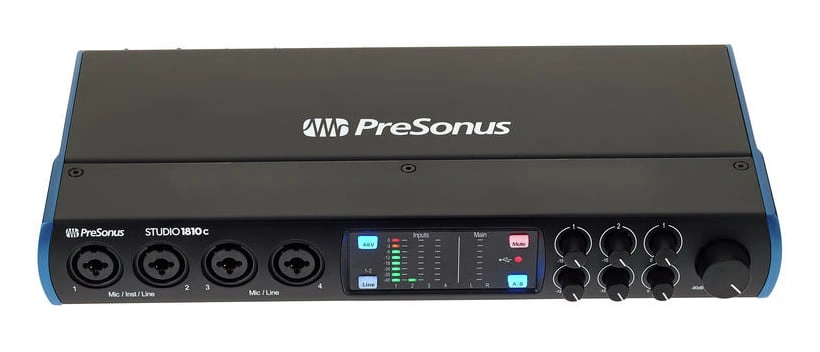

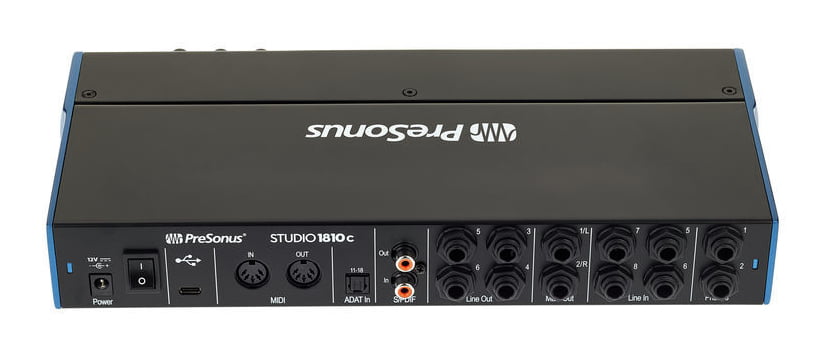

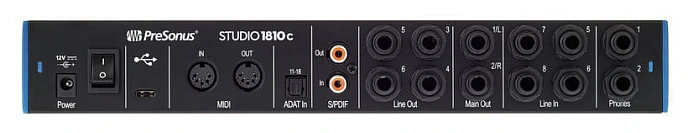

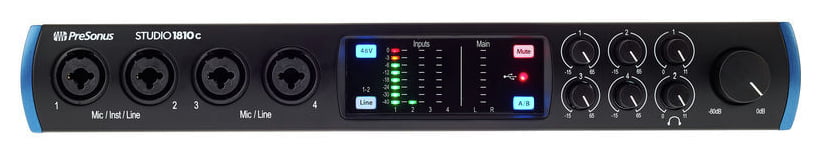

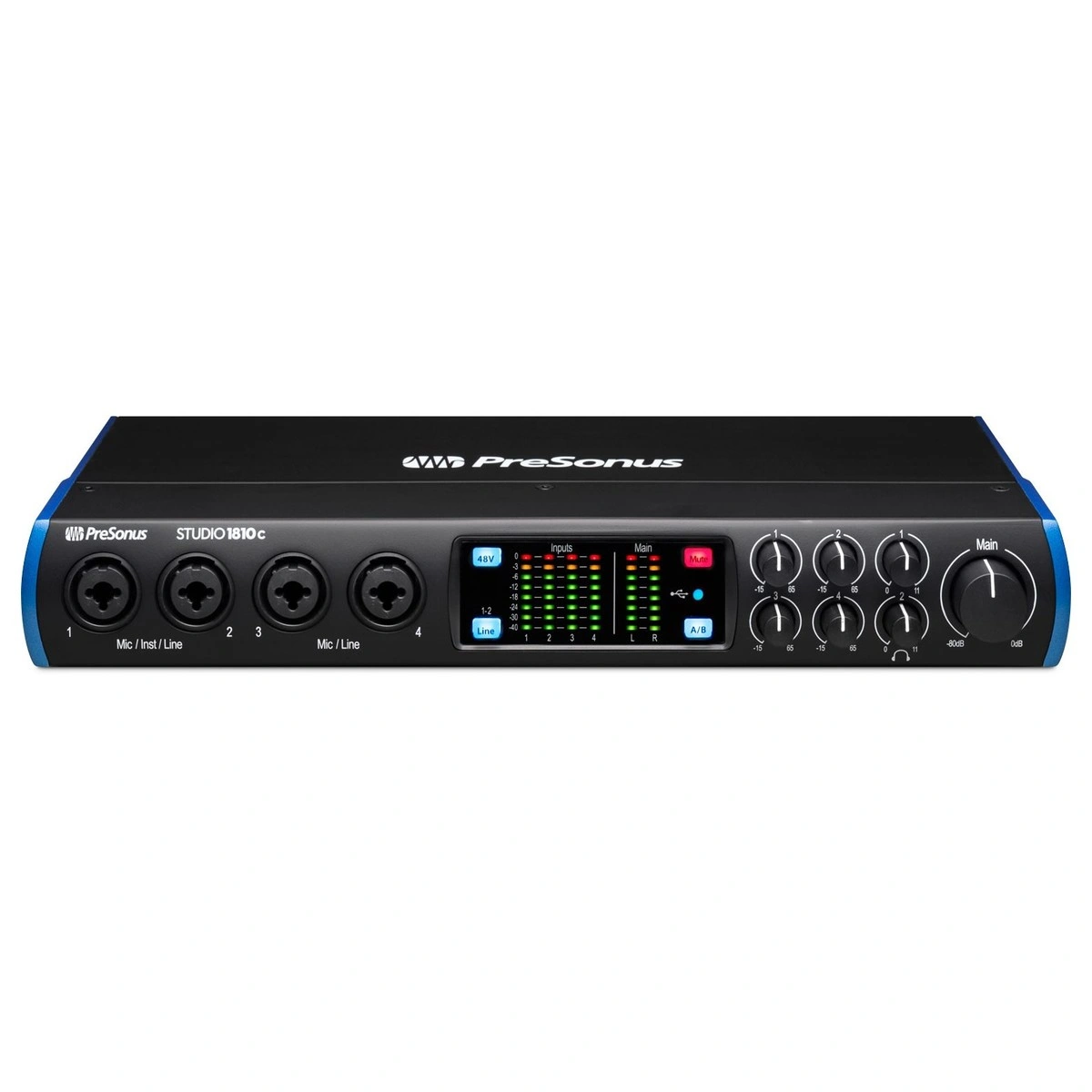

On the front panel, there are 4 inputs on Combo Jack/XLR connectors with separate volume controls, two of which can accept microphone and instrument signals, while the other two can only accept microphone and line signals. These channels feature XMAX microphone preamps, providing clear and clean sound across the frequency spectrum, with the option of +48V phantom power for condenser microphones. There are also 4 line inputs with 1/4'' Jack TRS connectors on the rear panel. Additionally, 2 inputs and 2 outputs are realized through the S/PDIF digital interface, presented on RCA connectors, and there are 8 ADAT format digital input channels. In digital format, the audio interface can accept audio with a sample rate of up to 96 kHz, providing you with 8 analog and 10 digital inputs.

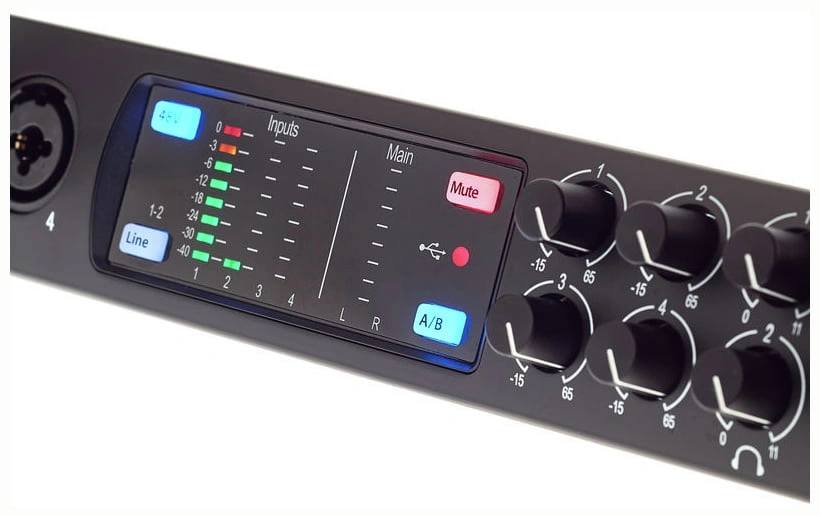

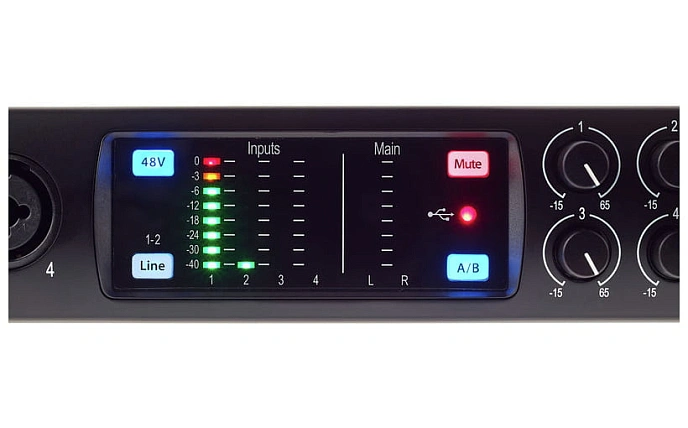

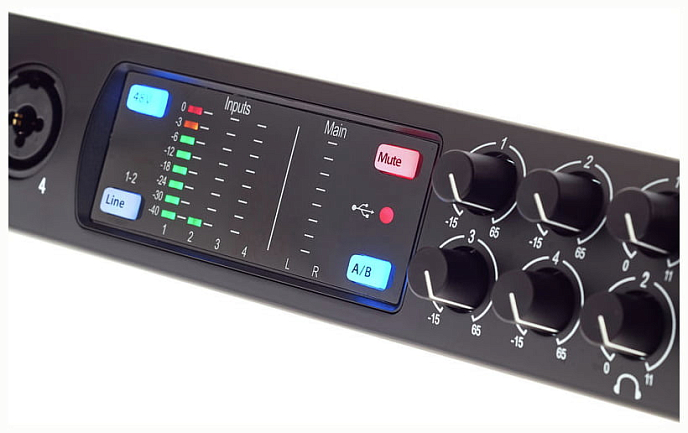

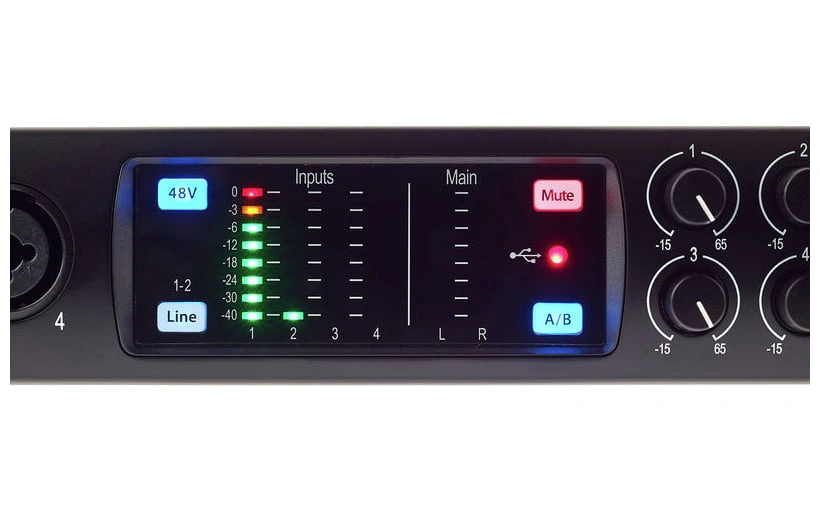

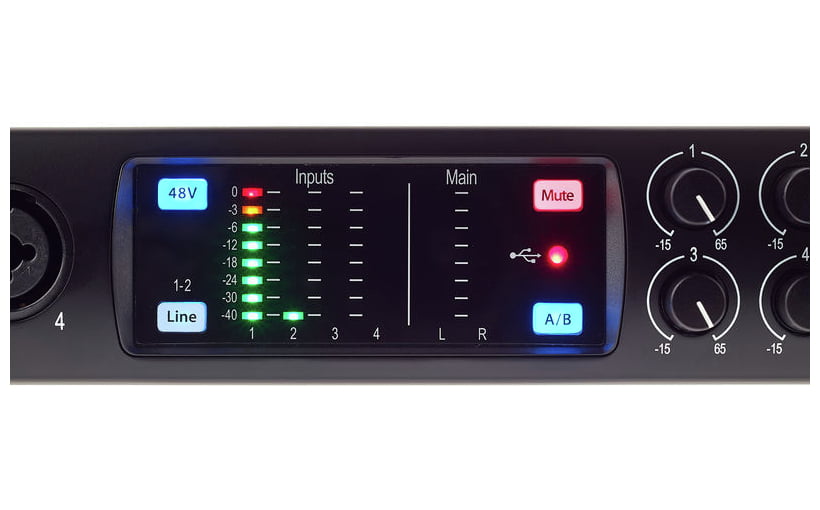

For audio output, there are 4 line outputs, a stereo monitor output, and 2 headphone outputs - all made with 1/4'' Jack TRS connectors. The frequency range of the audio interface ranges from 20 Hz to 20 kHz. The front part of the housing features a colored 8-segment level meter for input channels 1-4 and monitor outputs. Connection to the computer is done via a USB-B port, and the device is powered by a 12V DC adapter included in the package. There is a MIDI interface with input and output for sending and receiving MIDI information to external devices.

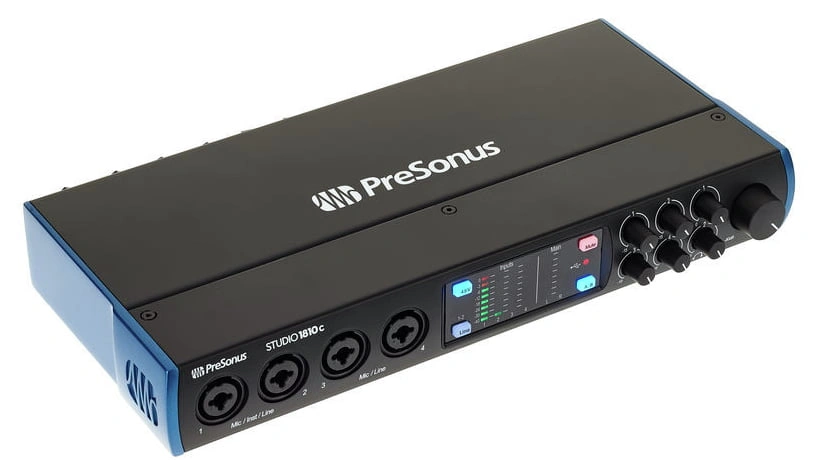

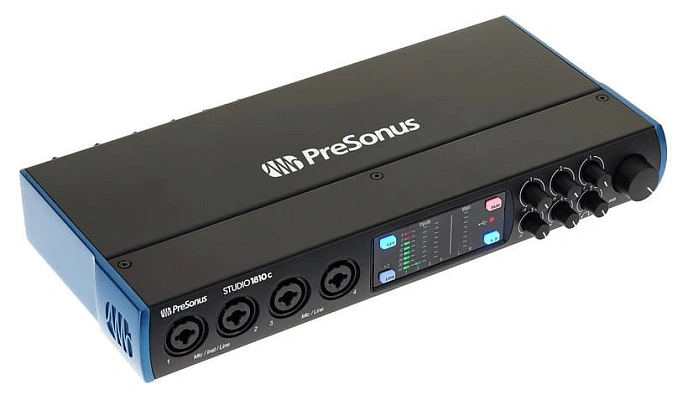

The PreSonus Studio 1810 is a professional audio interface with a large number of inputs equipped with proprietary preamps, the ability to record in modern quality formats, and a clear and simple interface. The device's housing is fully metallic, making it resistant to wear during daily use. The package includes a 1.8m USB cable, license keys for the Studio One Artist program, and the Studio Magic plugin and virtual instrument bundle, featuring products from manufacturers such as Arturia, Lexicon, Brainworx, and others.
Specifications:
- Bit depth: 24-bit
- Sample rate: 192 kHz
- Dynamic range: 115 dB
- Frequency range: 20 - 20,000 Hz
- Inputs: 4 x TRS 6.3mm / XLR, 4 x TRS 6.3mm, 1 x coaxial, 1 x optical ADAT
- Outputs: 6 x TRS 6.3mm, 1 x coaxial, 2 x 6.3mm TRS headphones
- Headphone output: 150 mW at 60 Ohms
- Dimensions: 44 x 317 x 140 mm
- Weight: 1.45 kg

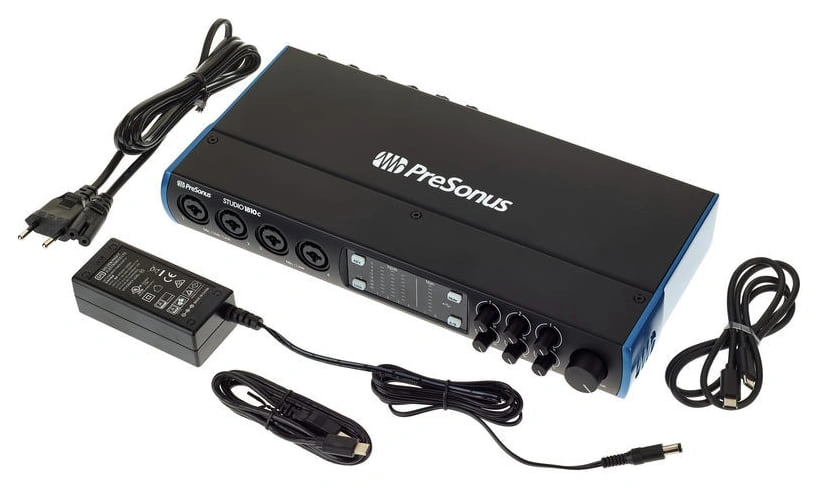

Package includes:
- Audio interface
- Power supply
- USB cable
- Manual
