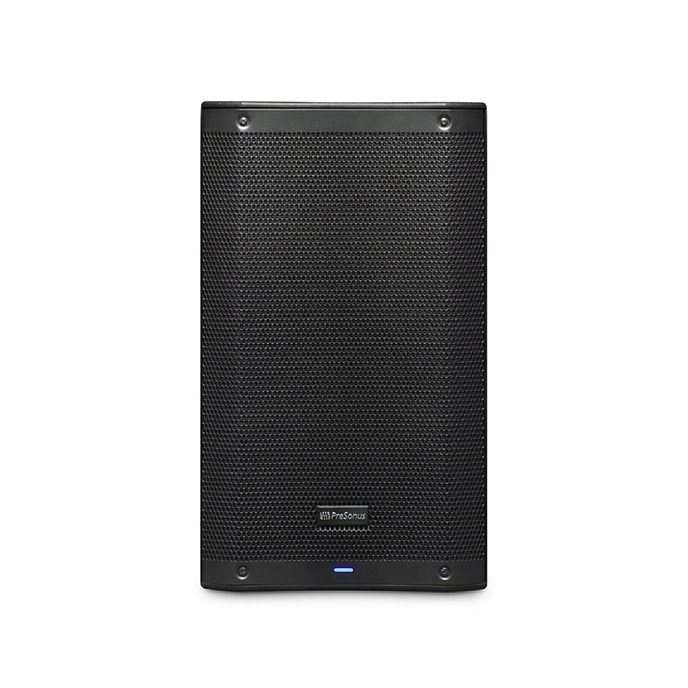

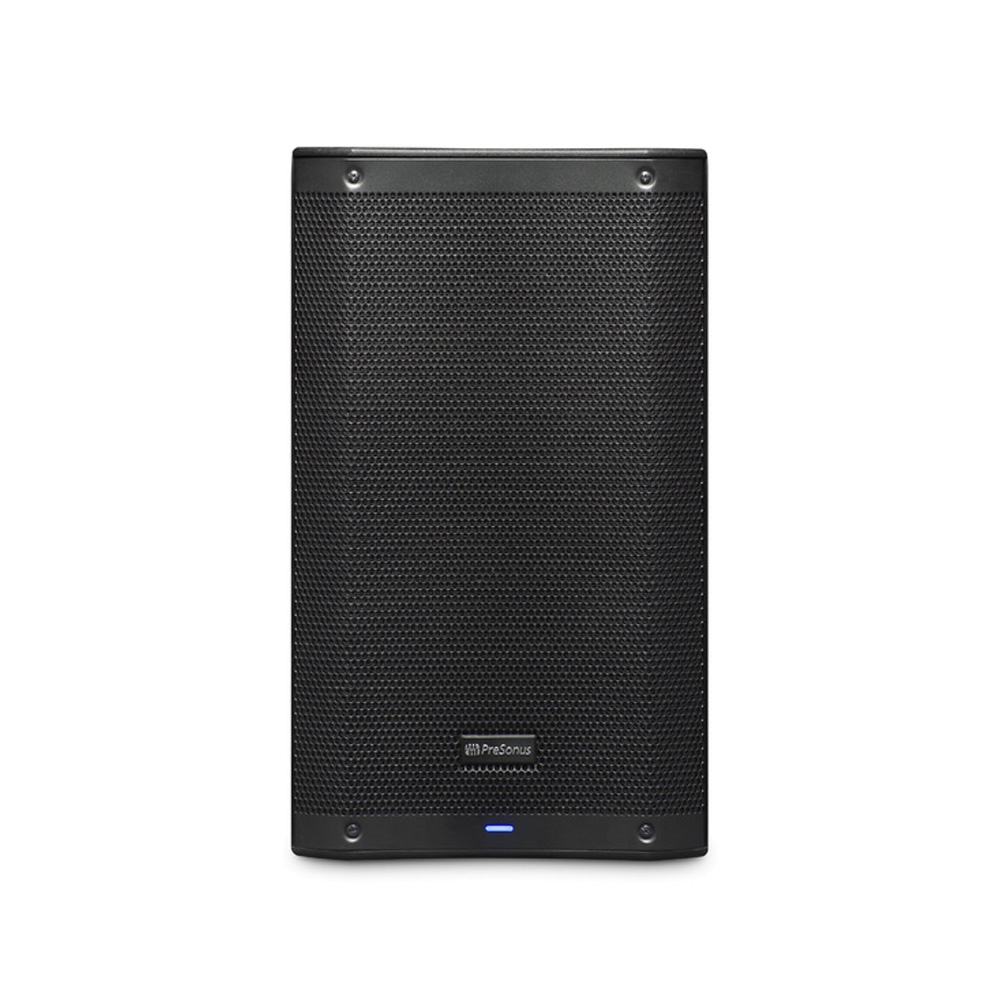

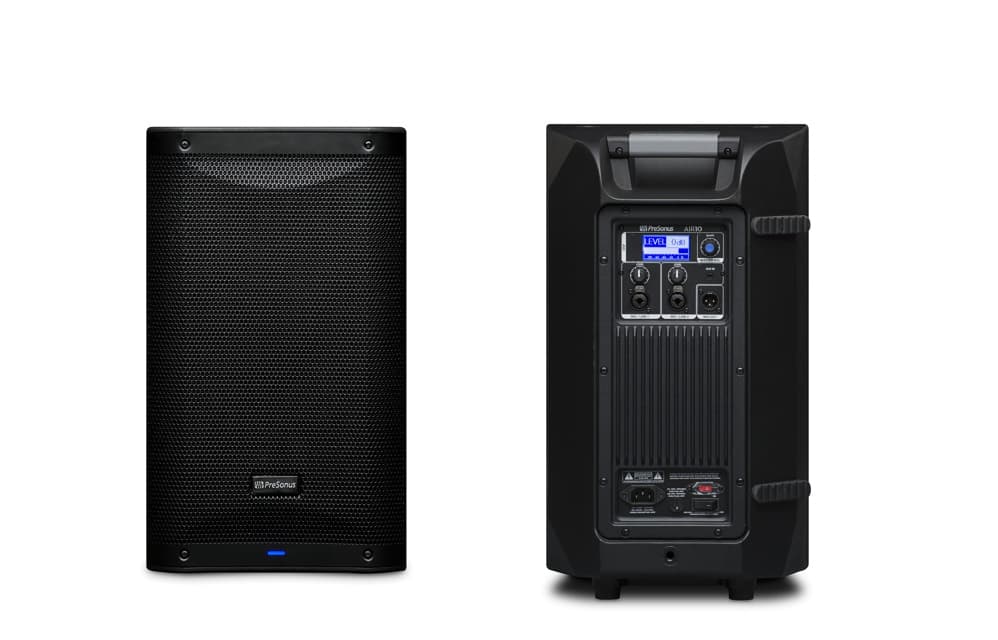

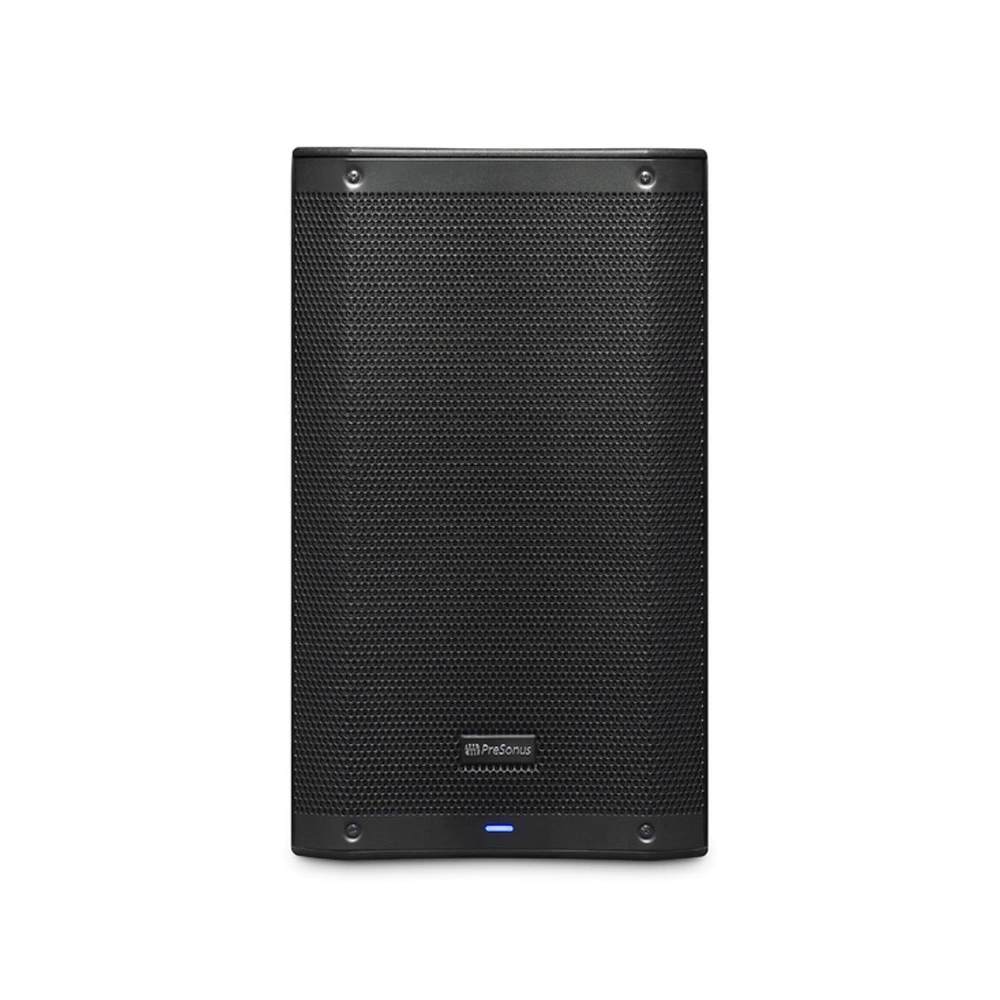

The PreSonus AIR10 is an active two-way loudspeaker from the AIR series designed for home use, as a monitor for DJs and musicians, and for other personal applications in both mobile and permanent installations. This speaker features a bi-amp design where signals for low and all other frequency ranges are separately amplified, providing high sound pressure levels even in the entry-level models. Class D (for low frequencies) and Class A/B (for high frequencies) amplifiers deliver a total dynamic power of up to 1200 watts. With a frequency range from 55 Hz to 20 kHz, the maximum sound pressure level reaches 121 dB, allowing you to hear many nuances, especially when adding a subwoofer to the system.
Features:
- Professional active two-way speaker system for mobile and home use
- Bi-amp design, Class D and A/B amplifiers
- 10" LF driver with 2.5" voice coil, 1" HF driver with compression driver
- 90x60 constant dispersion
- Built-in DSP
- Detachable LCD display on control panel
- Onboard mixer
- Power: 1200 (900+300) watts dynamic, 700 (500+200) watts continuous
- Maximum sound pressure: 121 dB
- 1/8" TRS mini-jack input for home sources
- 2 combination XLR/TRS inputs + XLR output
- Can be used as a stage monitor
- M10 rigging points
- Rugged polypropylene cabinet, 1.2 mm steel grille
- Built-in standard 35 mm mounting socket

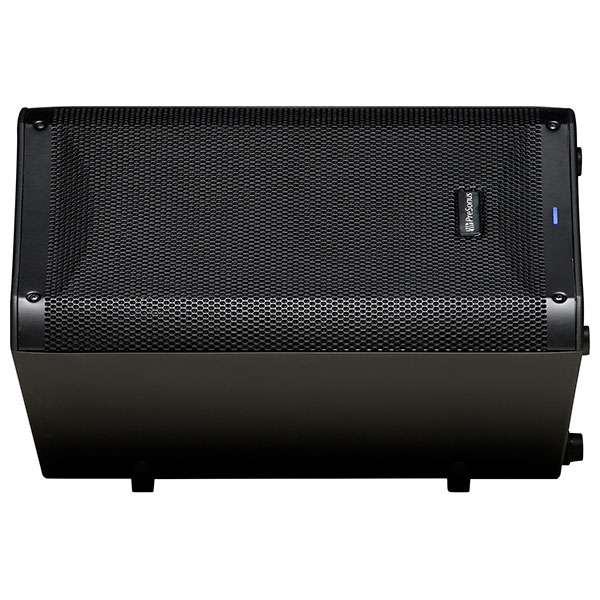

The multi-angle cabinet and rubber feet on the bottom and side allow for versatile placement options, whether for traditional vertical use or as a stage monitor. Mounting can be done using M10 points, making it easy to install the speaker on a stand or pole above a subwoofer. Additionally, the top handle makes it easy to transport the device.

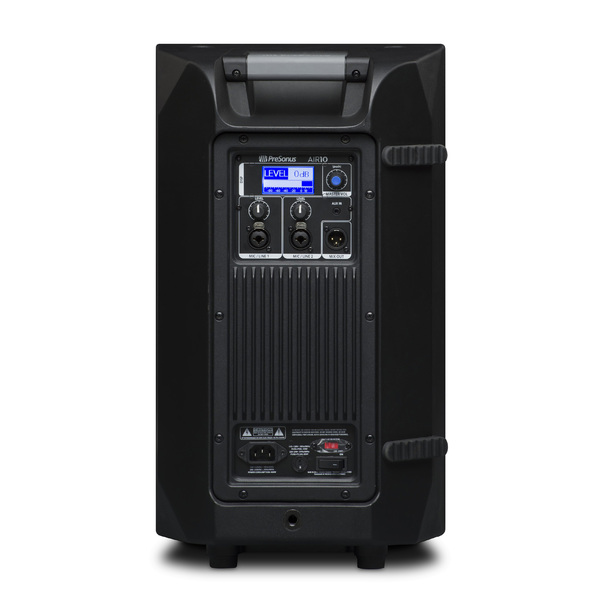

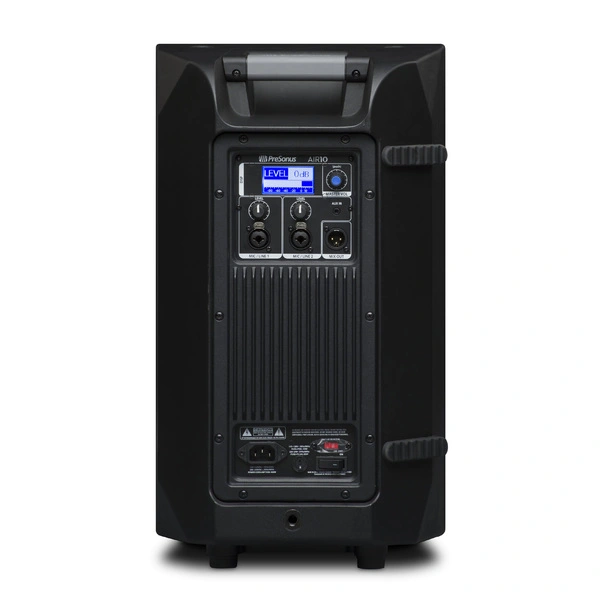

The PreSonus AIR10 offers multiple inputs, allowing you to connect the speaker to various sources. It includes two combination XLR/TRS inputs, each with a microphone preamp and independent controls. An additional aux in input for 1/8" TRS mini-jack (3.5mm) accepts signals from smartphones, tablets, and other devices. These signals can be mixed with others using the speaker's internal mixer, and the balanced XLR Mix Out output enables signal transmission to other AIR series speakers.
The Class D amplifier with continuous power of 500 watts for the 10" low-frequency driver is complemented by a Class A/B amplifier with 200 watts for the 1" high-frequency driver, ensuring natural sound reproduction. These speakers feature an easy-to-use built-in DSP with a detachable LCD display for simplified control. Dedicated controllers for high and low frequencies allow you to boost or cut them by 10 dB for room compensation. DSP presets help optimize performance for stand or wall mounting, as well as traditional standalone placement. The DSP can also adjust the speaker to compensate for excess low frequencies when mounted on the floor.
Package includes:
- Speaker
- Power cable
- Manual
