Microphone
Neumann TLM 107 Studio Set BK

Product code: 118790
no reviews
AED 5,914.65
Delivery
Pickup in Dubai:
Calculating...
Delivery (Dubai):
Calculating...
AVAILABILITY
  • A lot of goods
  • Enough product
  • Product is running out
Online store (Dubai)
In stock

Description

Reviews (0)

Description

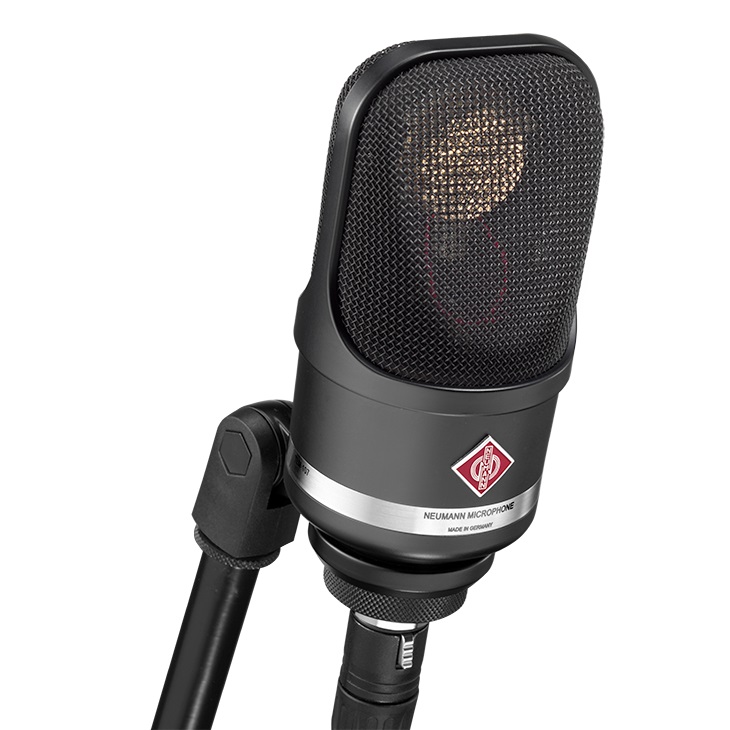

Classic proportions combined with attractive style and fresh ideas - the TLM 107 perfectly embodies Neumann's philosophy of "innovation grounded in tradition." Eschewing vintage and retro nostalgia, the TLM 107, which meets standards, is an impressive modern studio microphone.

Its wide range of functionality and high reproduction accuracy, closely resembling the original, makes the TLM 107 a versatile tool, unlocking the widest freedom in mixing and post-production.

Neumann Technology

The latest sound sensor, specifically designed for this microphone, is impressive for its outstanding pulse accuracy. The sequence of five polar patterns - omnidirectional, cardioid, bidirectional, supercardioid, and hypercardioid - is unusual for a large-diaphragm microphone capsule.

The TLM 107 ensures optimal sound not only for cardioid parameters it also guarantees maximum accuracy across the entire frequency range for all other directional characteristics. The sound always remains balanced, with virtually linear reproduction up to 8 kHz and a slight increase in high frequencies, giving the voice naturalness and freshness.

Particular attention has been given to the natural reproduction of speech sounds, especially the critical sound of "s". The acoustic grille is optimized for low sensitivity to sharp sounds. Additionally, the sound transducer has edge loading, and both diaphragms are grounded. In particular, this provides significant resistance to dust and moisture sensitivity.

Uncompromising sound design

The transformerless circuitry ensures a high degree of linearity and a wide dynamic range. Its own noise, barely reaching 10 dB, is practically inaudible. The maximum sound pressure level at 141 dB SPL can be increased to 153 dB SPL using the pre-attenuator (Pad). This allows the TLM 107 to capture the sound of even the loudest instruments without distortion.

The linear settings of the Low Cut at 40 Hz and 100 Hz are well-suited for practical recording situations. The 40 Hz setting effectively reduces noise interference below the range of fundamental tones (where 41 Hz is the frequency of the E string on a double bass), while the 100 Hz setting is optimized for speech and vocals (where 100 Hz corresponds to the lowest notes of a baritone voice).

Innovative management concept

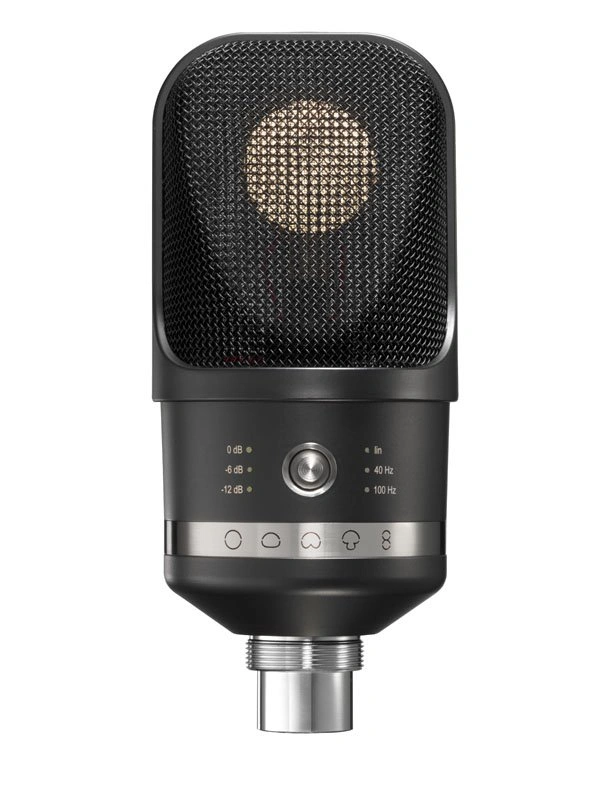

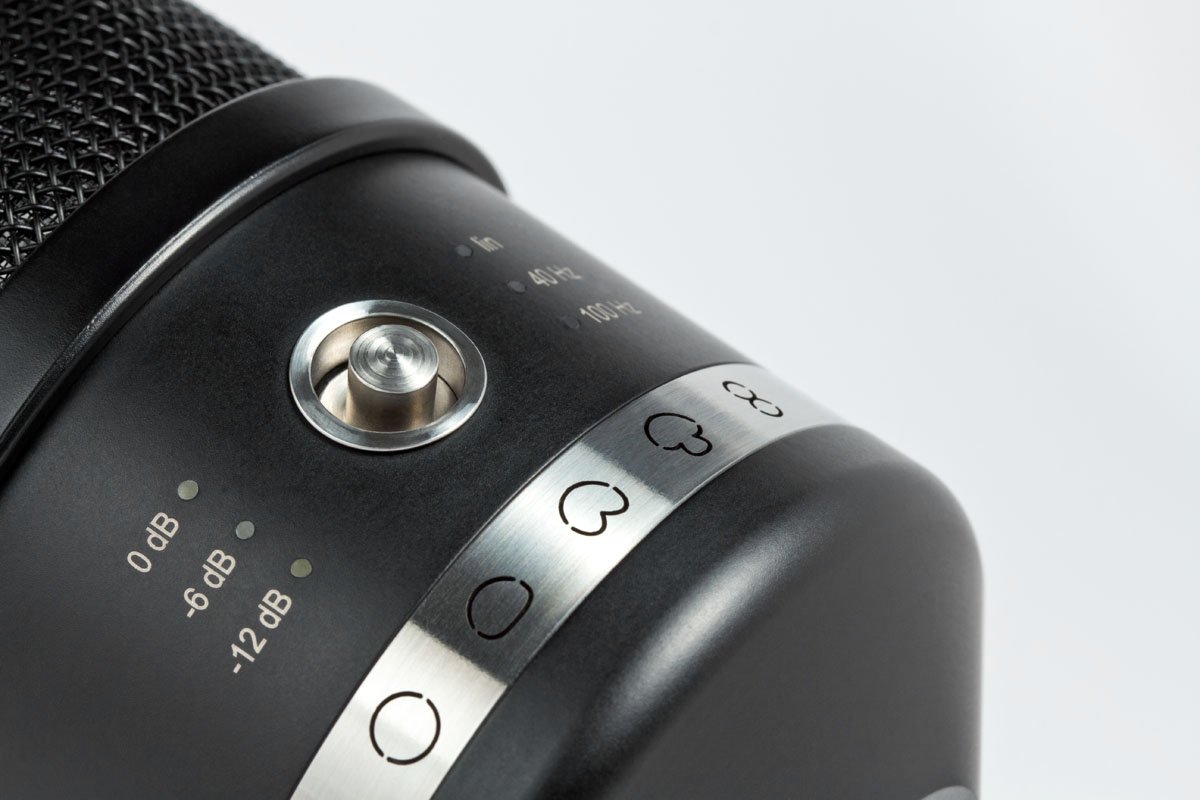

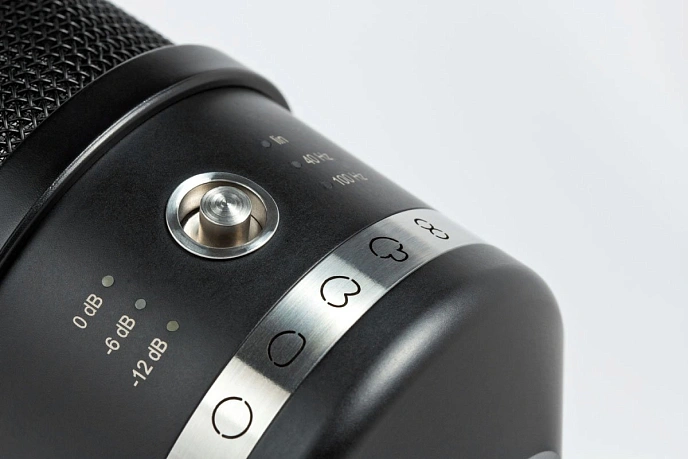

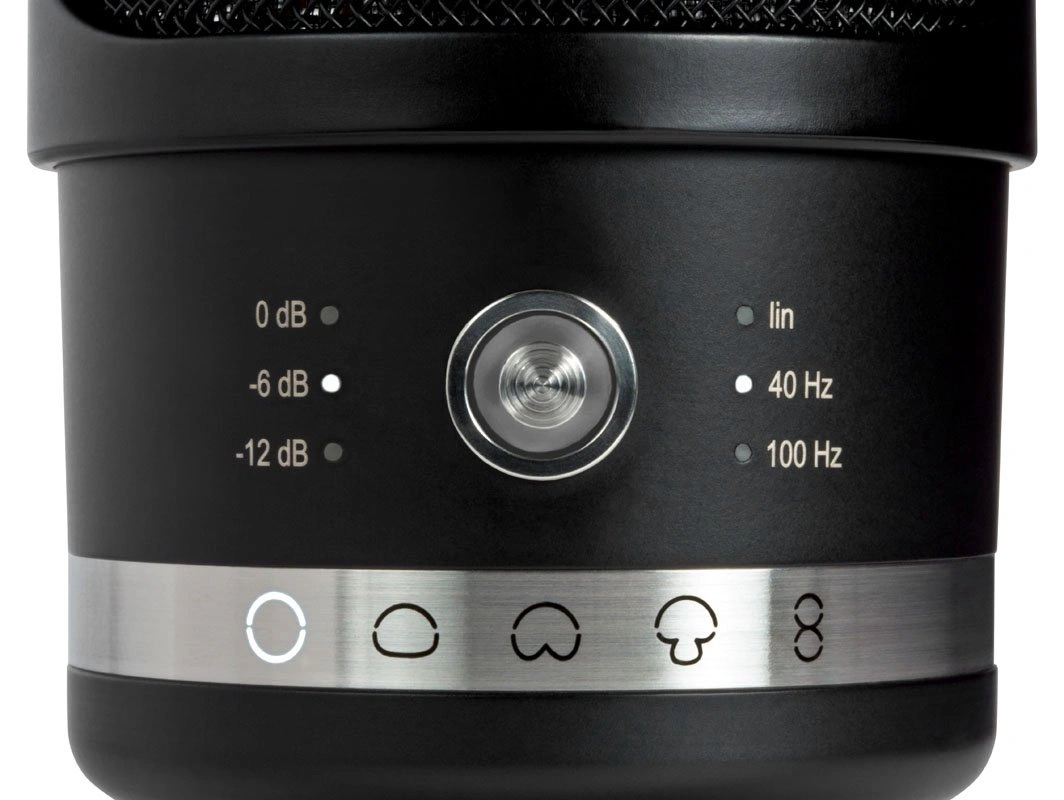

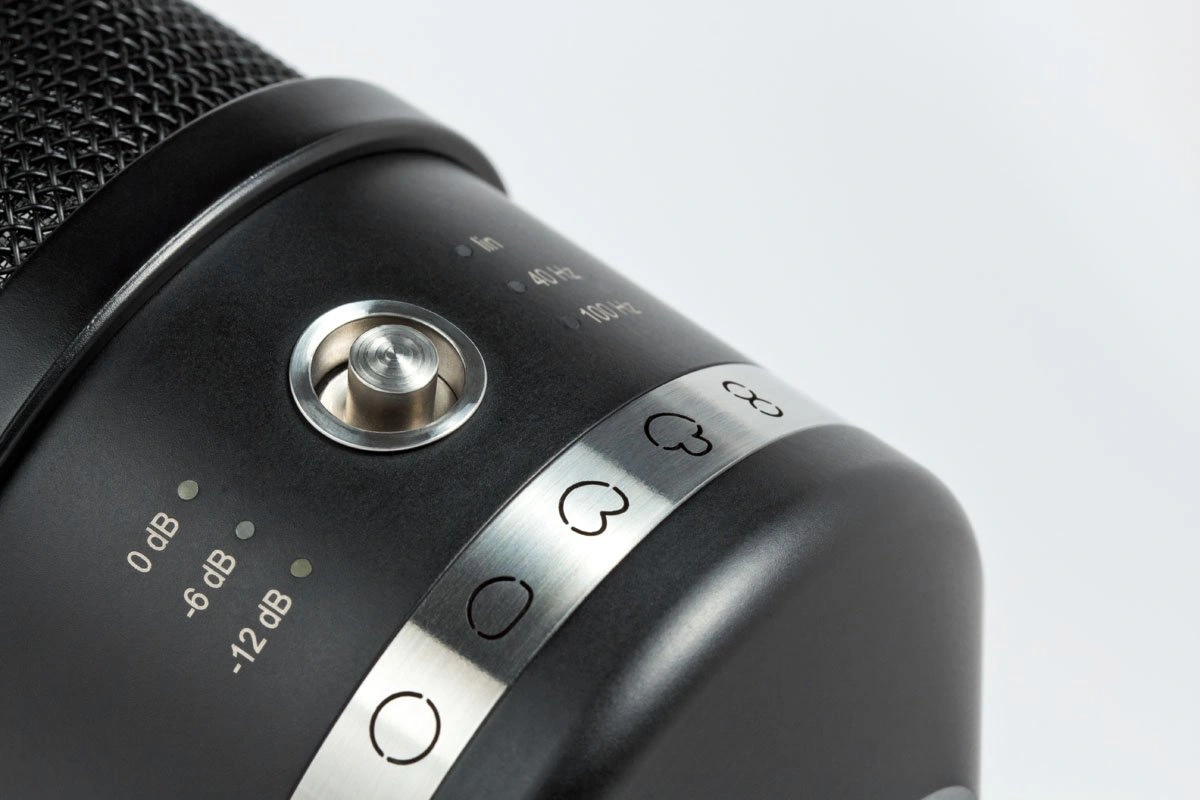

For the first time, all customizable microphone functions are intuitively adjustable using the navigation switch. The visual feature is represented by a backlit display with a chrome border, showing the current mode, while the Pad and Low Cut status are reflected by LEDs on the left and right of the switch.

To not distract the performer, the switch and display are located on the back of the microphone. The display automatically turns off after 10 seconds.

Features:

  • Large-diaphragm cardioid condenser microphone
  • Polar patterns: omnidirectional, cardioid, figure-8, supercardioid, hypercardioid
  • Control panel with switch and LED indicators
  • Low self-noise level: 10 dB
  • Impedance: 50 Ohms
  • Minimum load impedance: 1000 Ohms
  • Transformerless circuit
  • Connector: XLR
  • Phantom power
  • Frequency range: 20 Hz - 20,000 Hz
  • Sensitivity: 11 mV/Pa
  • Signal-to-noise ratio: 84
  • Maximum sound pressure level: 141 dB
  • Dimensions (W x D x H): 64 x 145 x 64 mm
  • Weight: 445 g

Package includes:

  • Neumann microphone

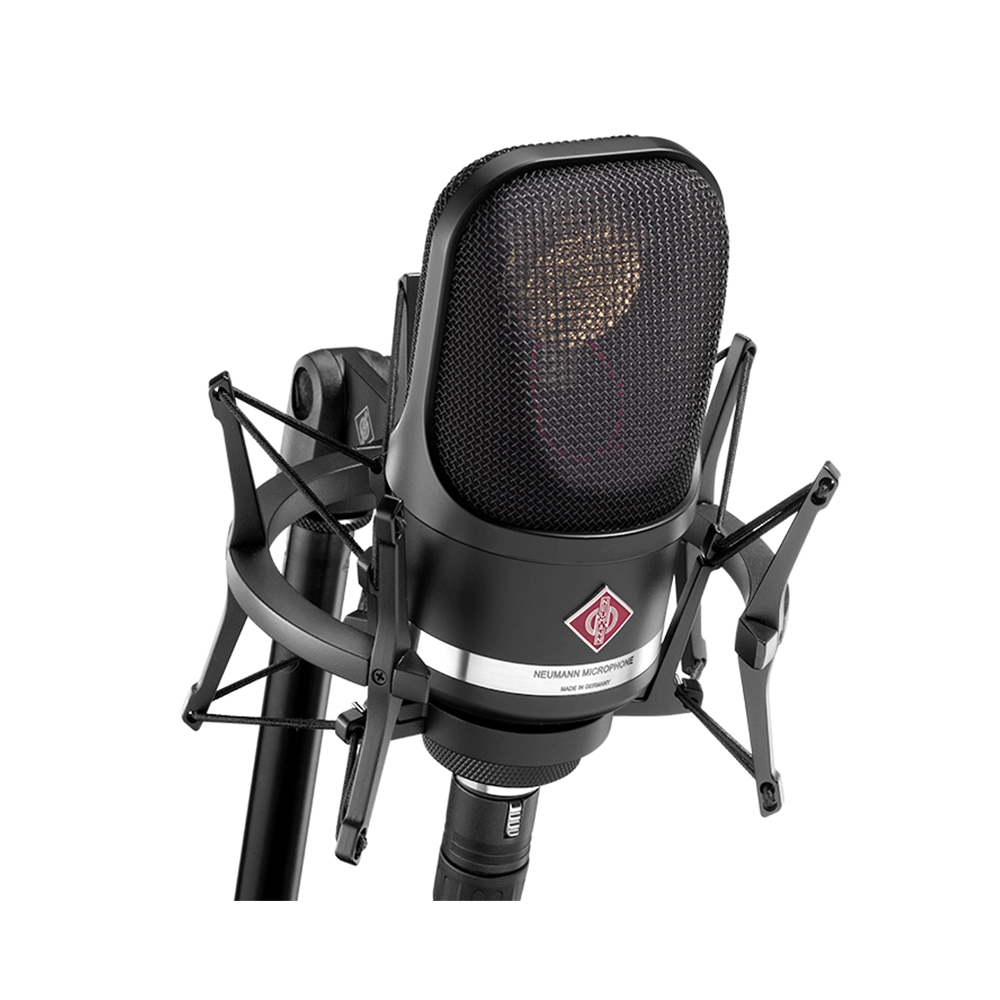

  • Neumann EA 4 mount
  • Wooden case
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Color
Connectors
XLR
Diaphragm size
large diaphragm

These microphones are very sensitive. They require an external power supply and are hung up to ceiling

Словарь терминов
Directional characteristic switch
yes
Free-field sensitivity without load (1 kHz), mV/Pa
11
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
50
Max SPL, dB
141
Microphone polar pattern

Omnidirectional, cardioid and supercardioid. It determines the sensitivity of the microphone to sound relative to the direction or angle, i.e. shows how well the microphone "hears" sound from different sides

Glossary of terms
cardioid

The polar pattern of the microphone that picks up the sound in front of it.

Словарь терминов
,
supercardioid

The polar pattern of the microphone, which picks up the sound from the front and partially from the back.

Словарь терминов
,
hypercardioid

Unidirectional polar pattern of the microphone.

Словарь терминов
,
bidirectional

Bidirectional polar pattern of the microphone.

Словарь терминов
,
circle

The microphone polar pattern which allows it to capture sound evenly from all sides.

Словарь терминов
Microphone type
condenser

A metal membrane consisting of plates (a condenser) oscillates under the influence of sound air flows converting a sound wave into an electromagnetic one.

Словарь терминов
Minimum load resistance, Ohms
1000
Phantom power

Necessary for condenser microphones

Glossary of terms
yes

Simultaneous transmission of DC power and information signals over one wire.

Словарь терминов
Sensitivity switch
yes
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
84
The highest microphone frequency, kHz
20
The lowest microphone frequency, Hz
20
Depth, mm
145
Height, mm
64
Width, mm
64
Weight, g
445
