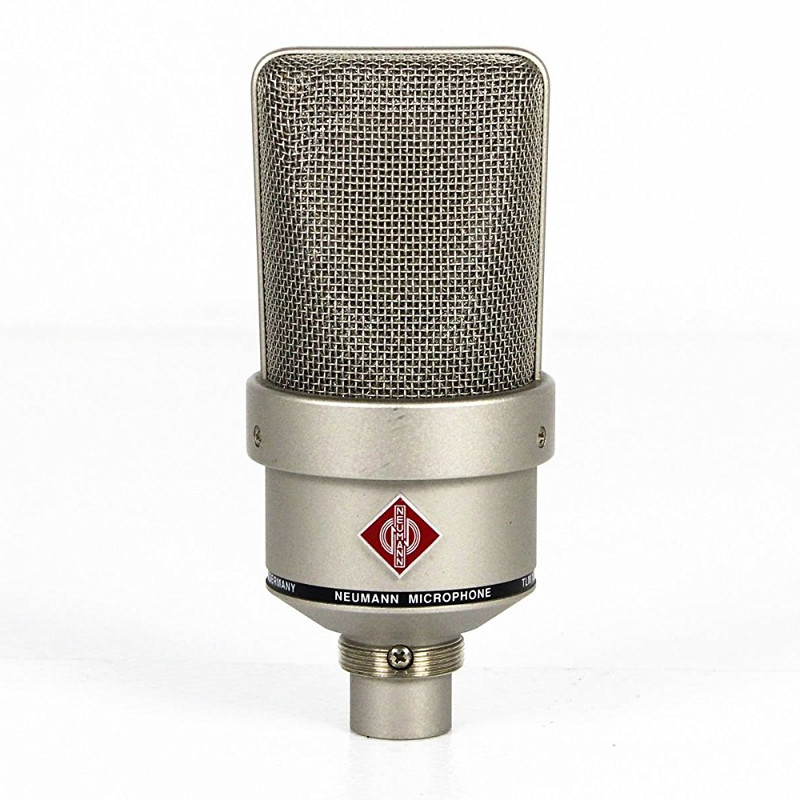

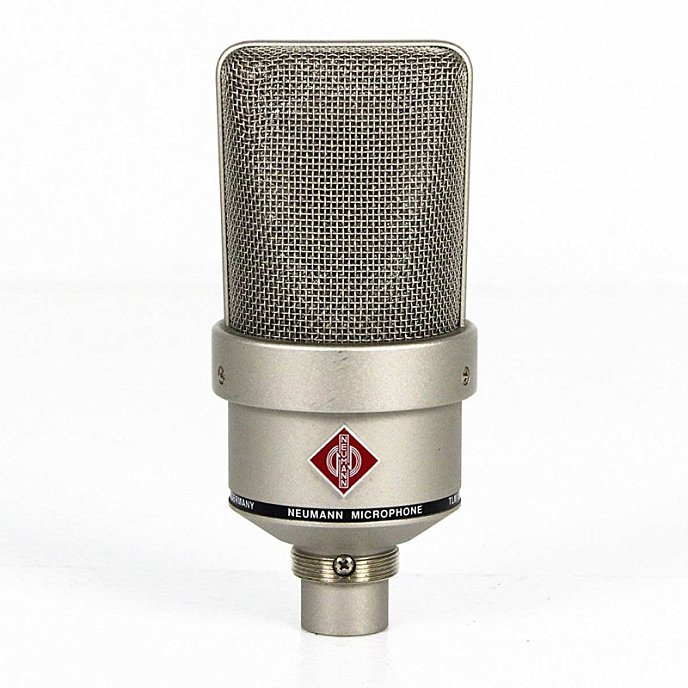

The Neumann TLM 103 is a studio condenser microphone that belongs to the TLM microphone range. These microphones are designed with a transformerless circuit to minimize noise levels and provide excellent response to transients. They also have a high output signal level, eliminating the need for a preamplifier, and offer exceptional linearity in frequency response even at low signal levels.
The TLM technology used in these microphones removes the reliance on magnetization of the core. Additionally, the TLM 103 features a large diaphragm, which is a common characteristic of most Neumann studio microphones. This large diaphragm allows for distortion-free recording of high sound pressure levels.
All TLM microphones are compatible with standard 48-volt phantom power, which is typical for condenser microphones. The TLM 103 specifically is a condenser microphone with a large diaphragm and a cardioid polar pattern. Its capsule design is based on the U 47 microphone. Despite its affordable price, the TLM 103 is the top-selling large-diaphragm microphone due to its sound quality that rivals more expensive options.
This microphone is ideal for recording vocals and broadcasting, but it can also be successfully used for capturing various instruments including strings, brass, percussion, guitar amplifiers, and even entire drum kits.
Features:
- Transformerless circuit design for minimal noise levels
- Exceptional response to transients
- High output signal levels without the need for a preamplifier
- Superb linearity in frequency response at low signal levels
- Large diaphragm for distortion-free recording of high sound pressure levels
Specifications:
- Frequency response range: 20 - 20000 Hz
- Polar pattern: Cardioid
- Type: Condenser
- Sensitivity: 23 dB/Pa
- Nominal impedance: 50 Ohms
- Minimum load impedance: 1000 Ohms
- Maximum SPL: 138 dB
- Input/output type: XLR 3F
- Dimensions: 60 mm in diameter, 132 mm in length
- Weight: 450 g

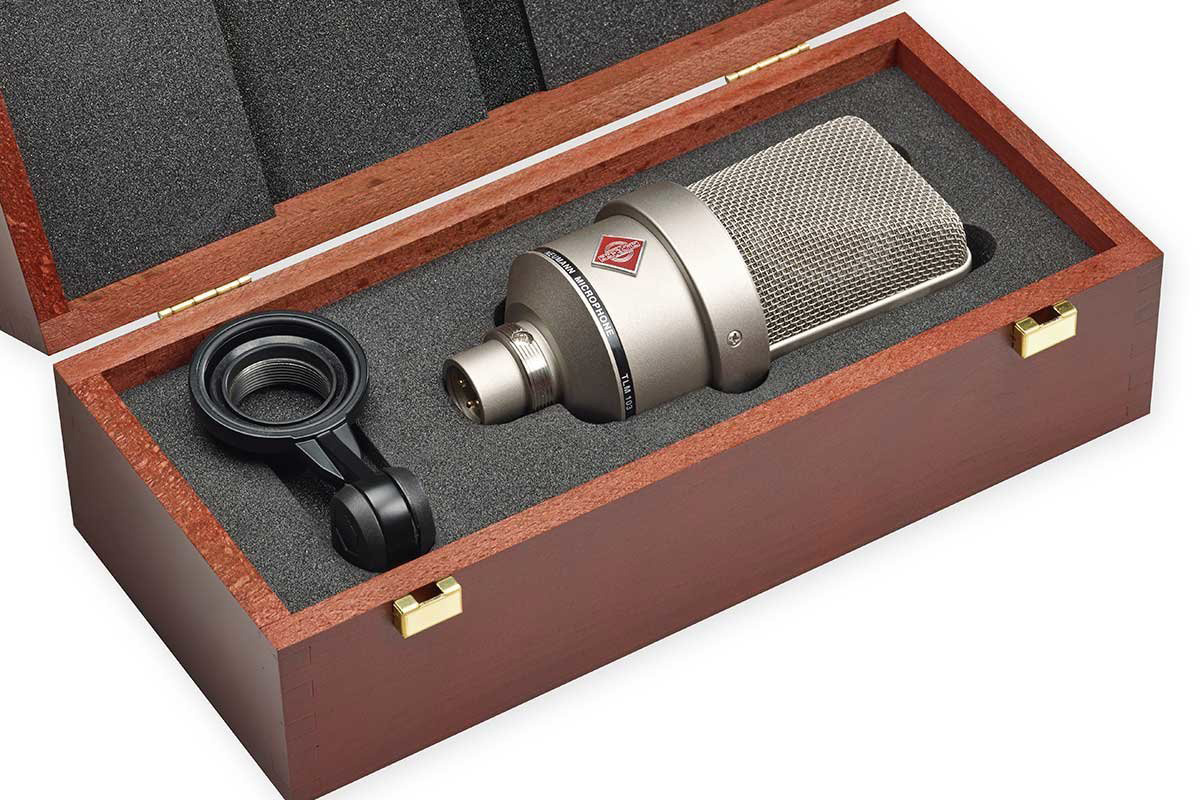

Included in the package:
- TLM 103 cardioid studio microphone
- SG 1 microphone holder
- Wooden box
