The Neumann TLM 102 is a studio condenser microphone that represents a new era for Neumann studio microphones. Despite its small size, the TLM 102 incorporates all the advanced features of Neumann technologies. Its harmonious proportions, classic design, and shiny ring on the protective grille ensure that it will catch your attention.
The TLM 102 produces impressive sound quality: it is equipped with a new large-diaphragm capsule (cardioid) that allows for a maximum sound pressure level of 144 dB and quick transient response. This microphone effortlessly handles percussion, drums, guitar amps, and other loud sound sources.
However, the true strengths of the TLM 102 shine when it comes to vocal and speech recording and broadcasting: a slight boost in the mid-range above 6 kHz provides superior voice intelligibility in the mix. The frequency response up to 6 kHz is extremely linear, ensuring minimal sound coloring and a well-defined bass response.

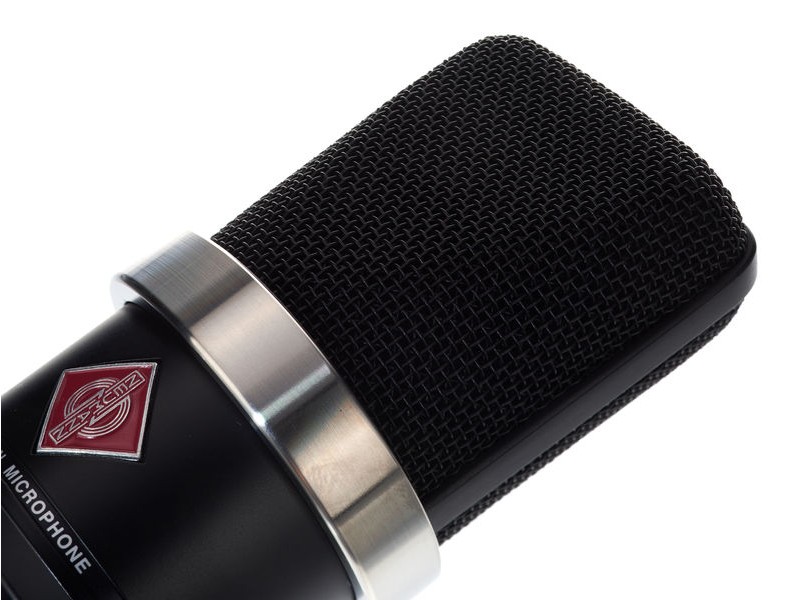

To reduce any unwanted structural noise, the microphone capsule is mounted elastically to the body. The built-in pop filter in the protective grille effectively eliminates explosive consonant sounds.
The TLM 102 is perfect for use in home and low-budget studios, project studios, and radio broadcasting studios thanks to its affordable price and wide range of applications.
It comes in two versions: nickel-plated and black (mt).

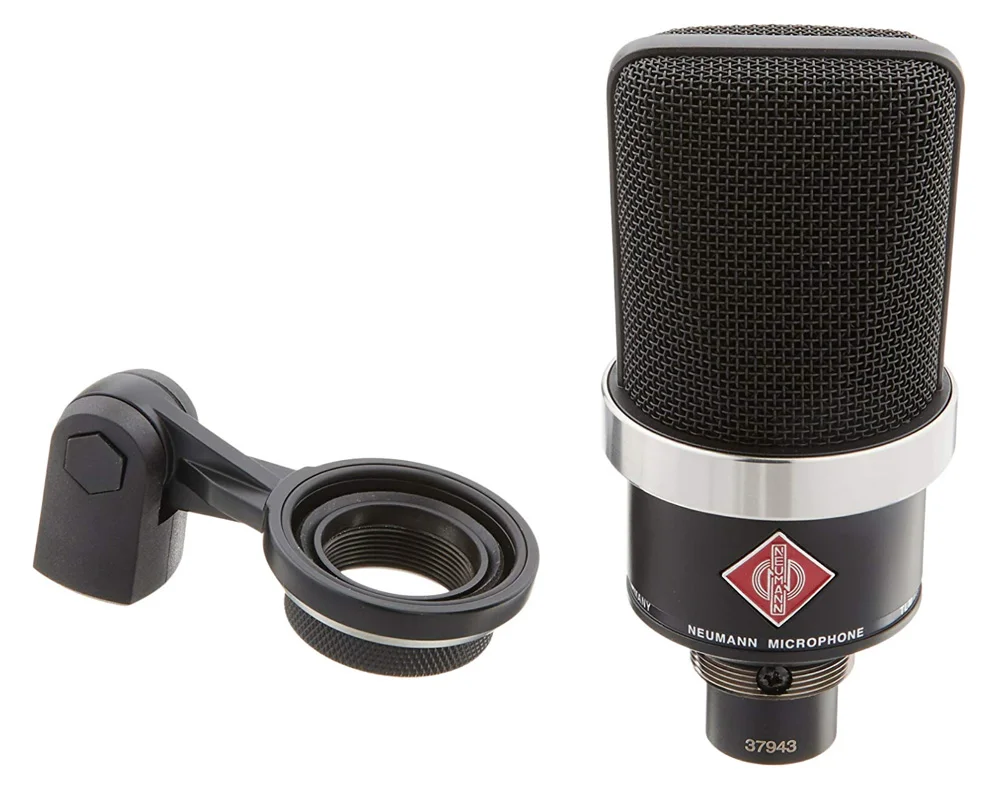

The package includes the metal swivel mount SG 2.
Features:
- Large-diaphragm cardioid microphone
- Pressure gradient transducer
- Compact design
- Very high maximum sound pressure level
- Slight boost in mid-range above 6 kHz
- Transformerless circuit
Specifications:
- Polar pattern: Cardioid
- Frequency range: 20 - 20000 Hz
- Sensitivity: 11 mV/Pa at 1 kHz
- Nominal impedance: 50 ohms
- Load impedance: 1000 ohms
- Equivalent noise level, A-weighted: 12 dB-A
- Signal-to-noise ratio: 73 dB
- Maximum sound pressure level for THD < 0.5%: 144 dB
- Maximum output voltage: 13 dBu
- Dynamic range of the microphone amplifier: 132 dB
- Phantom power: 48 V +/-4 V
- Current consumption: 3.5 mA
- Connector: 3-pin XLR-F
- Weight: 262 g
- Diameter: 52 mm
- Length: 116 mm
Package includes:
- Cardioid studio microphone TLM 102
- Microphone mount SG 2
