Studio microphone

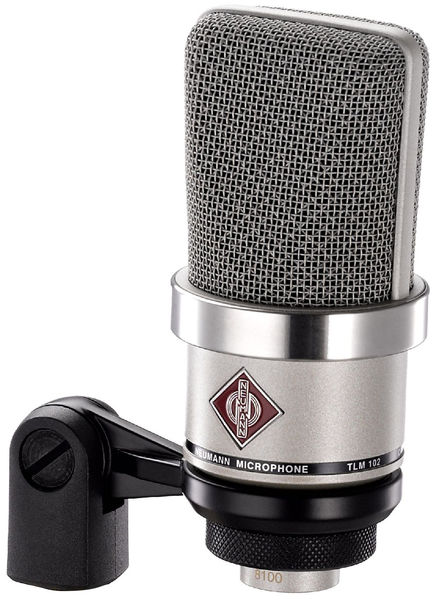

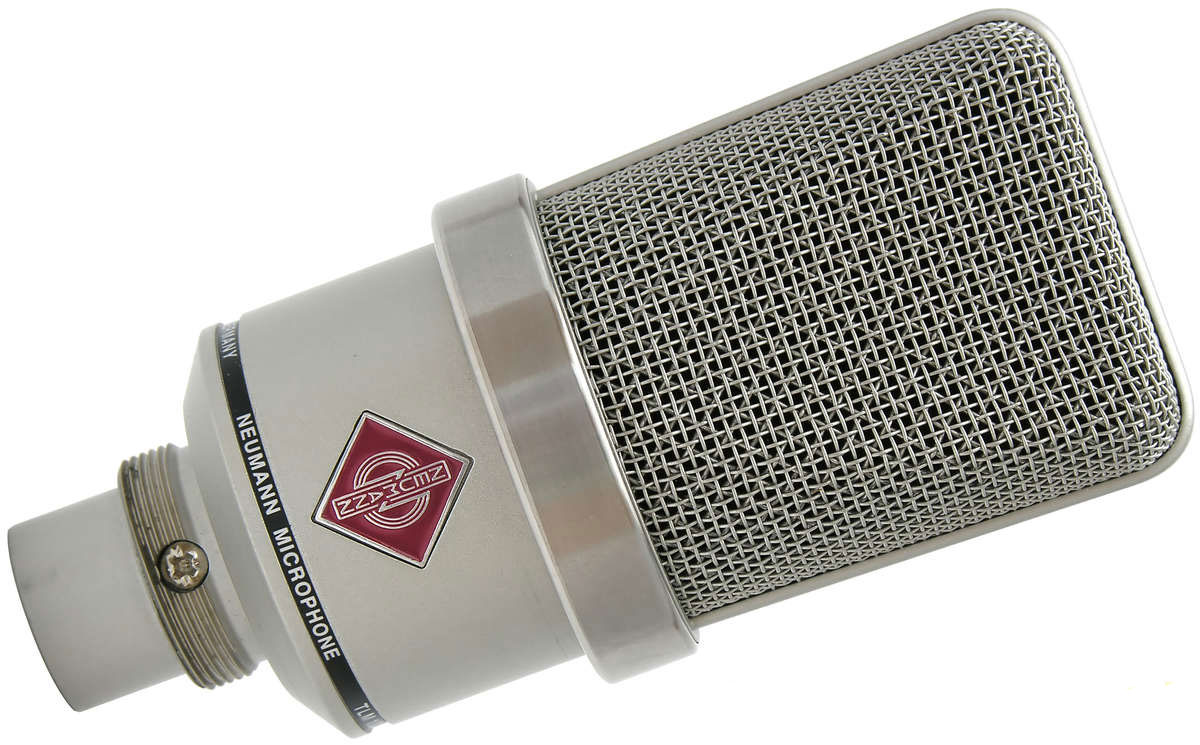

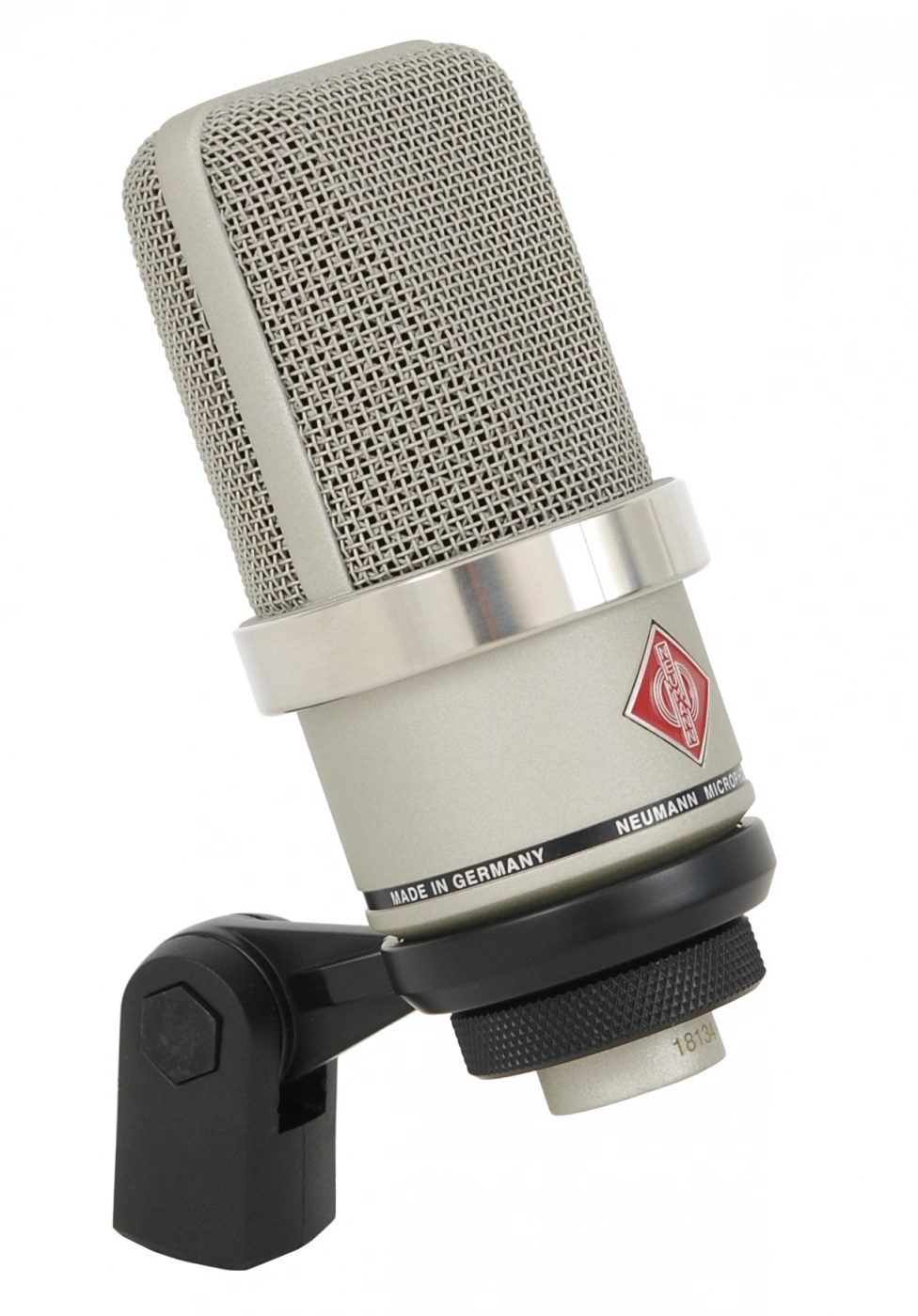

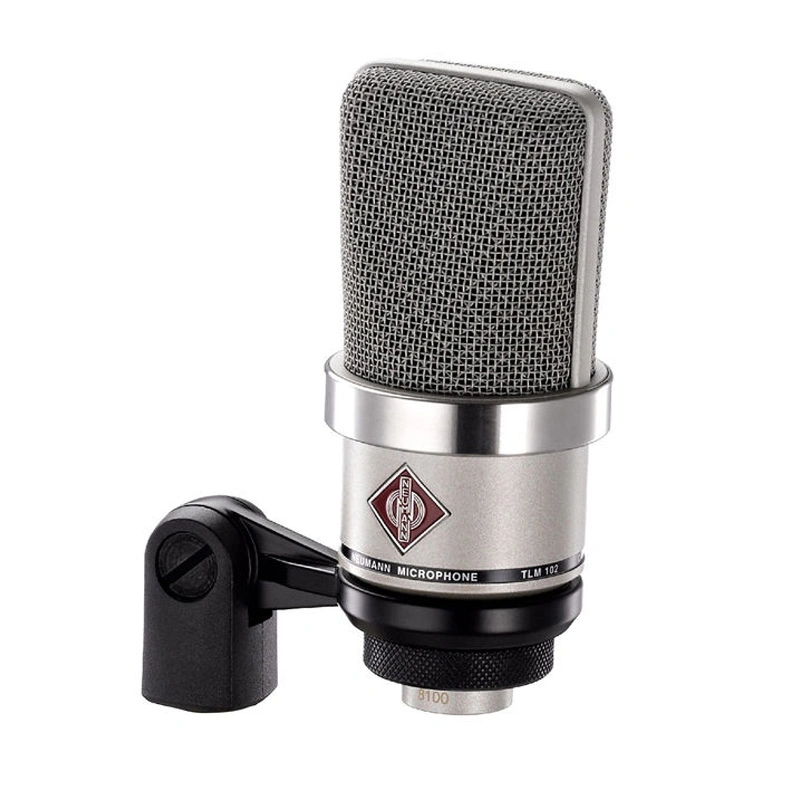

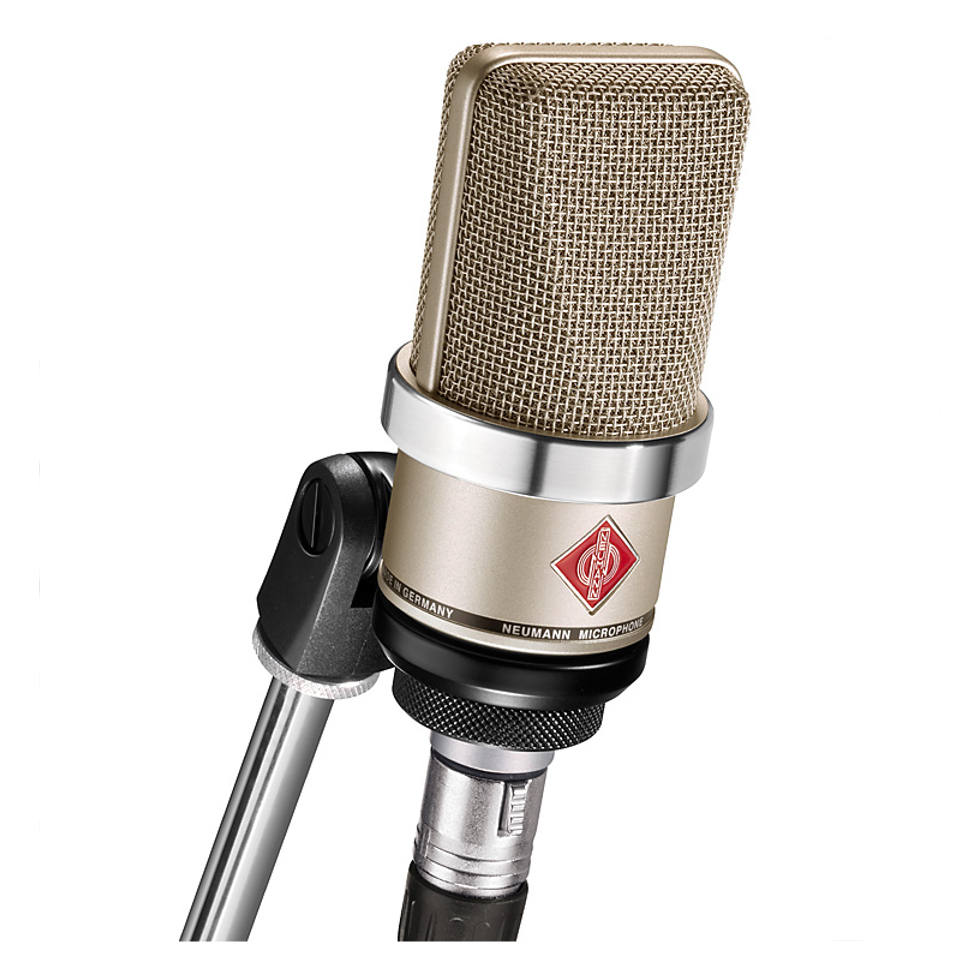

Neumann TLM 102

Product code: 82768
no reviews
AED 2,760.45
Delivery
Pickup in Dubai:
Calculating...
Delivery (Dubai):
Calculating...
AVAILABILITY
  • A lot of goods
  • Enough product
  • Product is running out
Online store (Dubai)
In stock

Description

Reviews (0)

Description

The Neumann TLM 102 is a studio condenser microphone that brings revolutionary technology in a compact design. Despite its small size, this microphone incorporates all the advanced features Neumann is known for. Its timeless design and glossy ring on the protective grille make it visually appealing and unique.

One of the standout features of the TLM 102 is its exceptional sound quality. It is equipped with a new large-diaphragm capsule (cardioid) that can handle sound pressure levels of up to 144 dB while maintaining fast transient response. This makes it ideal for capturing loud sound sources like percussion, drums, and guitar amplifiers.

However, the TLM 102 truly shines in vocal and speech recording, as well as broadcasting. It has a slight boost in the mid-frequency range above 6 kHz, which ensures exceptional voice intelligibility in the mix. The frequency response is linear up to 6 kHz, resulting in minimal coloration of the sound and well-defined bass frequencies.

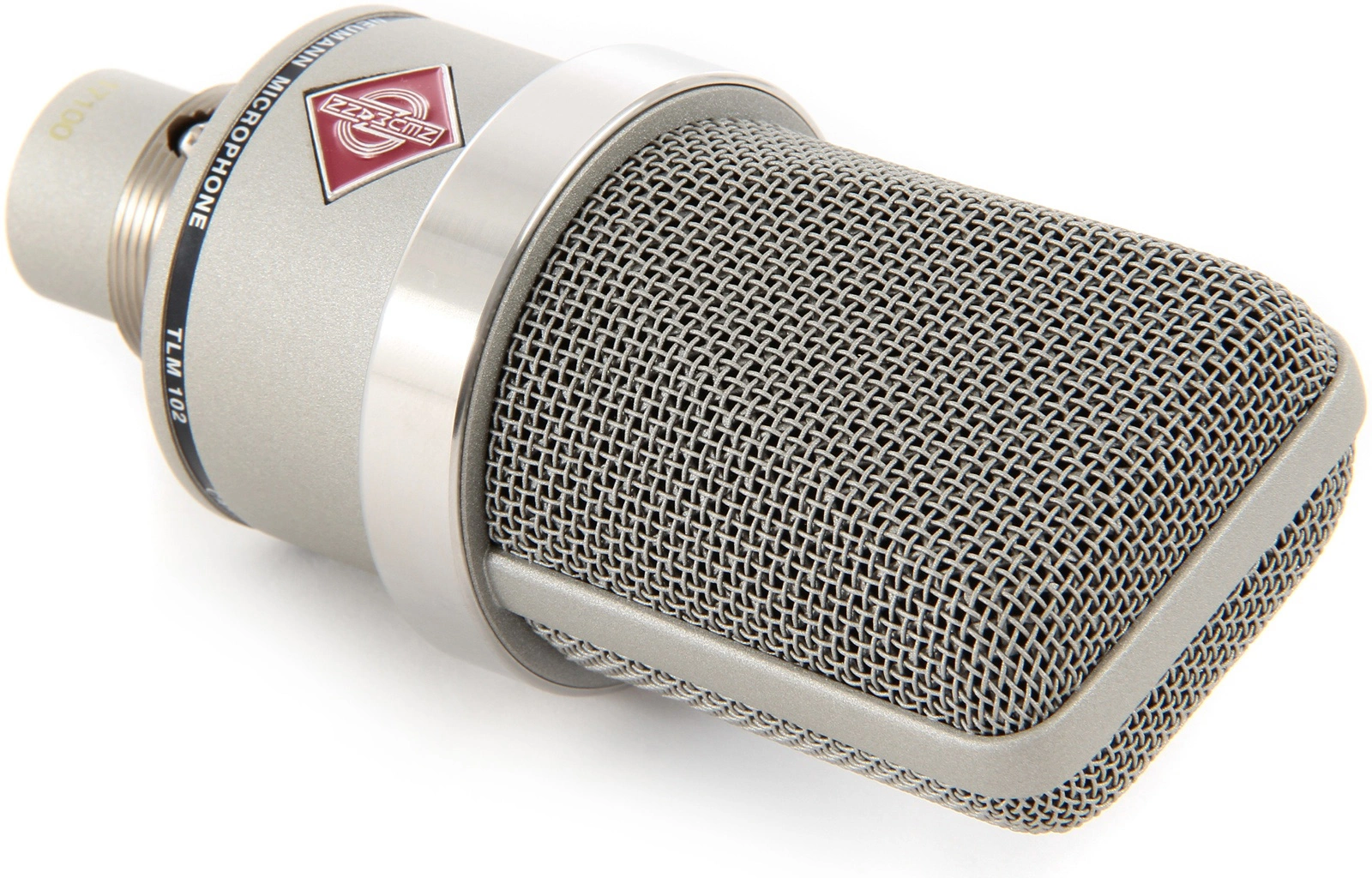

To reduce interference from structure-borne noise, the microphone capsule is elastically mounted to the body. Additionally, the integrated pop filter in the protective grille effectively reduces explosive consonants.

The TLM 102 is not only an exceptional microphone in terms of performance but also in terms of affordability. It is suitable for a wide range of applications, making it an ideal choice for home and budget studios, project studios, and broadcast studios.

The TLM 102 is available in two versions: nickel-plated and black (mt). The package includes the metal swivel mount SG 2.

Key Features:

  • Large-diaphragm cardioid microphone
  • Pressure gradient transducer
  • Compact design
  • Very high maximum sound pressure level
  • Slight boost in mid-frequencies above 6 kHz
  • Transformerless circuit

Specifications:

  • Polar pattern: cardioid
  • Frequency range: 20 - 20000 Hz
  • Sensitivity at 1 kHz into 1 kΩ: 11 mV/Pa
  • Nominal impedance: 50 Ω
  • Load impedance: 1000 Ω
  • Equivalent noise level, A-weighted: 12 dB-A
  • Signal-to-noise ratio: 73 dB
  • Maximum sound pressure level for THD < 0.5%: 144 dB
  • Maximum output voltage: 13 dBu
  • Dynamic range of microphone amplifier: 132 dB
  • Voltage supply: 48 V +/- 4 V
  • Current consumption: 3.5 mA
  • Connector: 3-pin XLR-F
  • Weight: 262 g
  • Diameter: 52 mm
  • Length: 116 mm

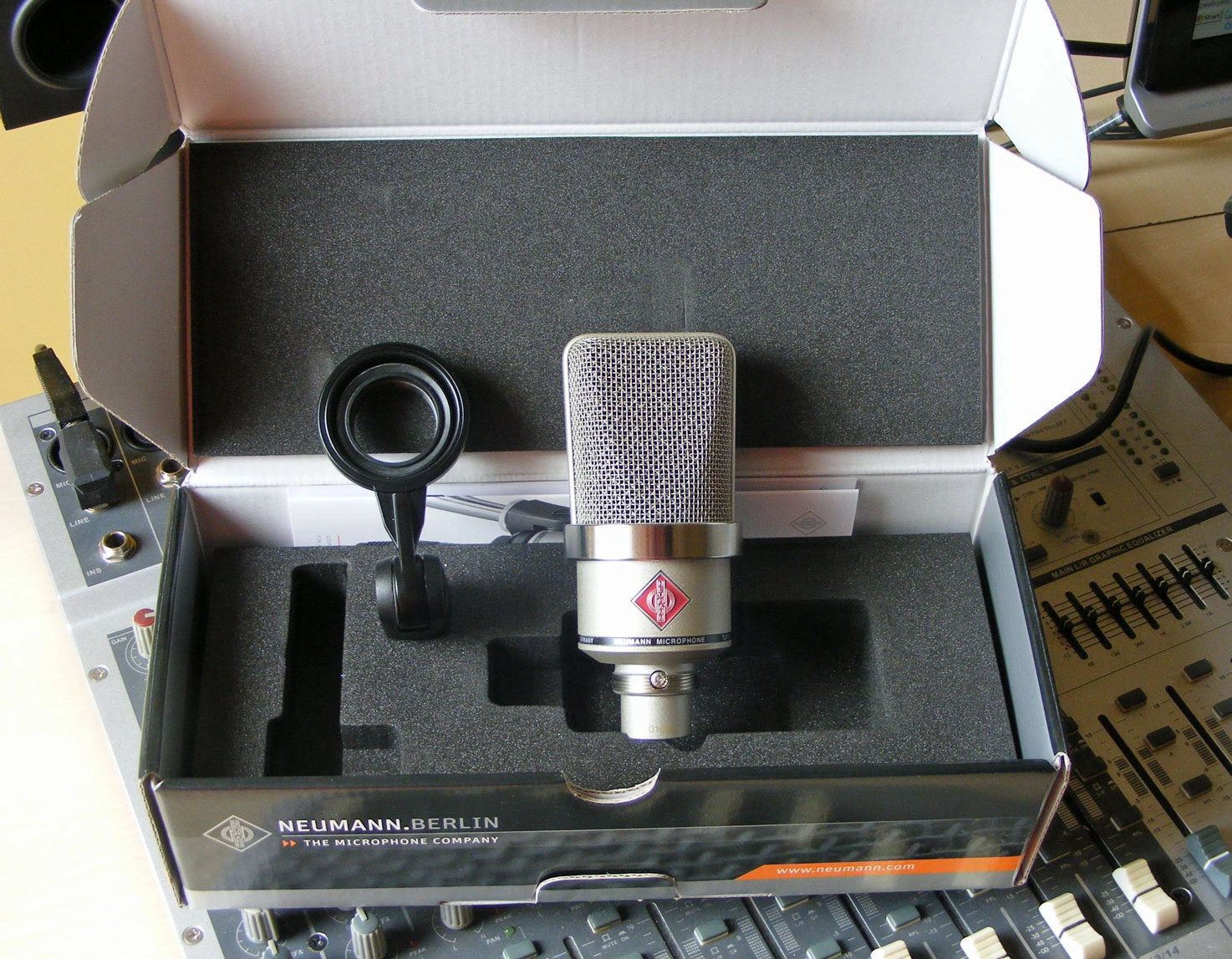

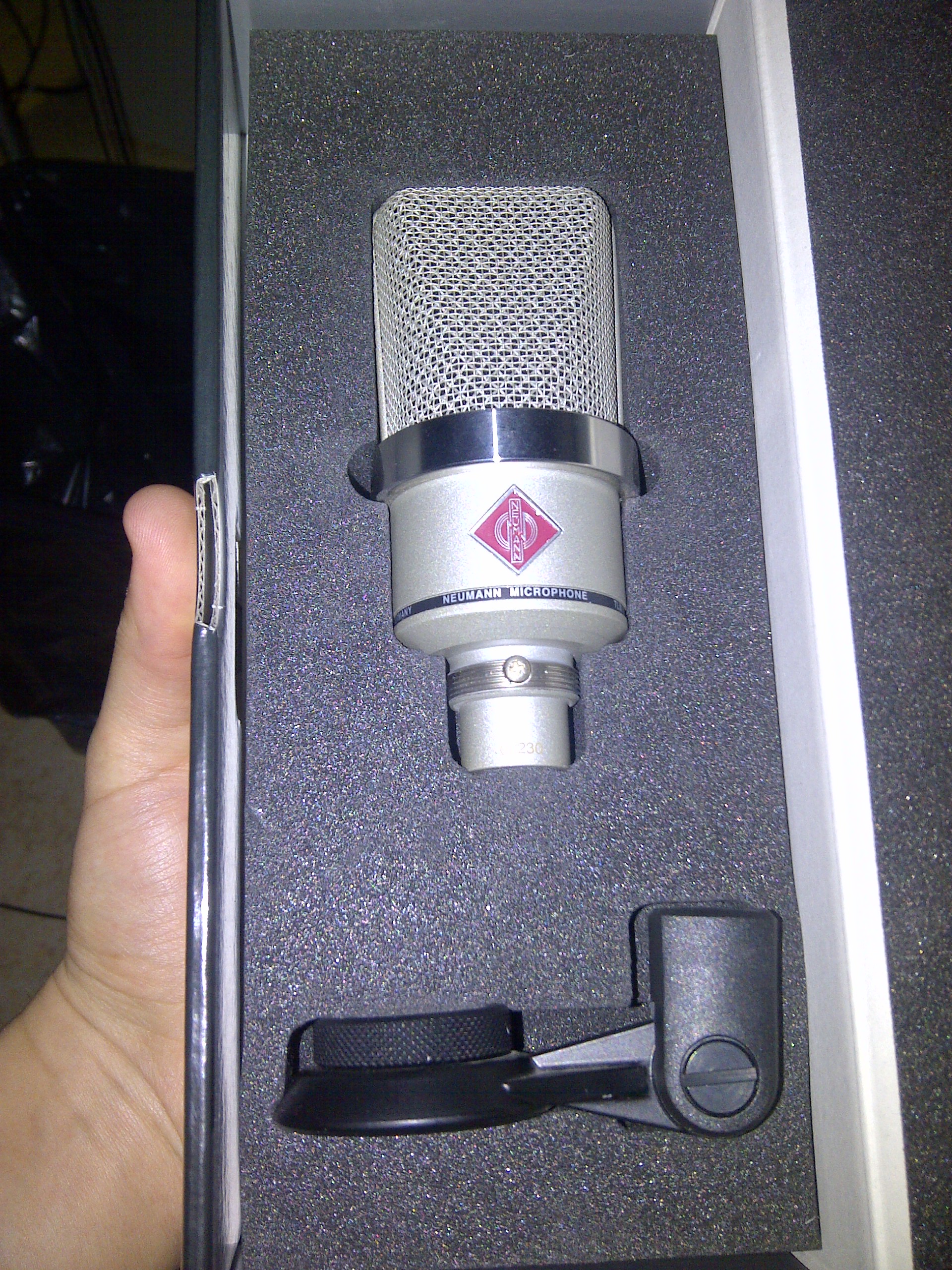

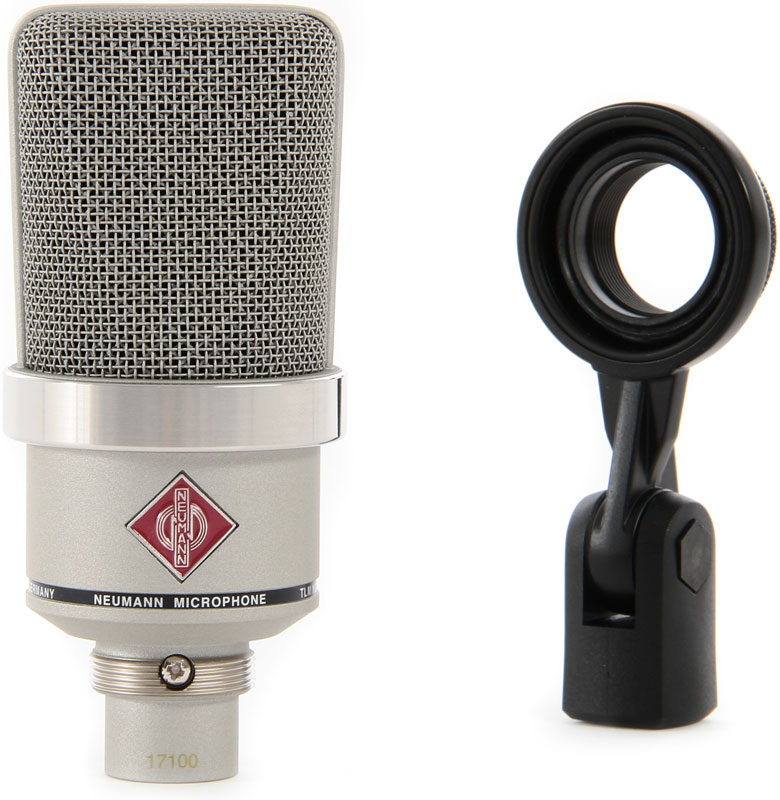

Package includes:

  • Cardioid studio microphone TLM 102
  • Microphone holder SG 2
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Audio signal format
mono
Color
Connectors
XLR
Diaphragm size
large diaphragm

These microphones are very sensitive. They require an external power supply and are hung up to ceiling

Словарь терминов
Free-field sensitivity without load (1 kHz), mV/Pa
11
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
50
Max SPL, dB
144
Microphone polar pattern

Omnidirectional, cardioid and supercardioid. It determines the sensitivity of the microphone to sound relative to the direction or angle, i.e. shows how well the microphone "hears" sound from different sides

Glossary of terms
cardioid

The polar pattern of the microphone that picks up the sound in front of it.

Словарь терминов
Microphone type
condenser

A metal membrane consisting of plates (a condenser) oscillates under the influence of sound air flows converting a sound wave into an electromagnetic one.

Словарь терминов
Minimum load resistance, Ohms
50
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
73
The highest microphone frequency, kHz
20
The lowest microphone frequency, Hz
20
Depth, mm
52
Height, mm
116
Width, mm
52
Weight, g
210
