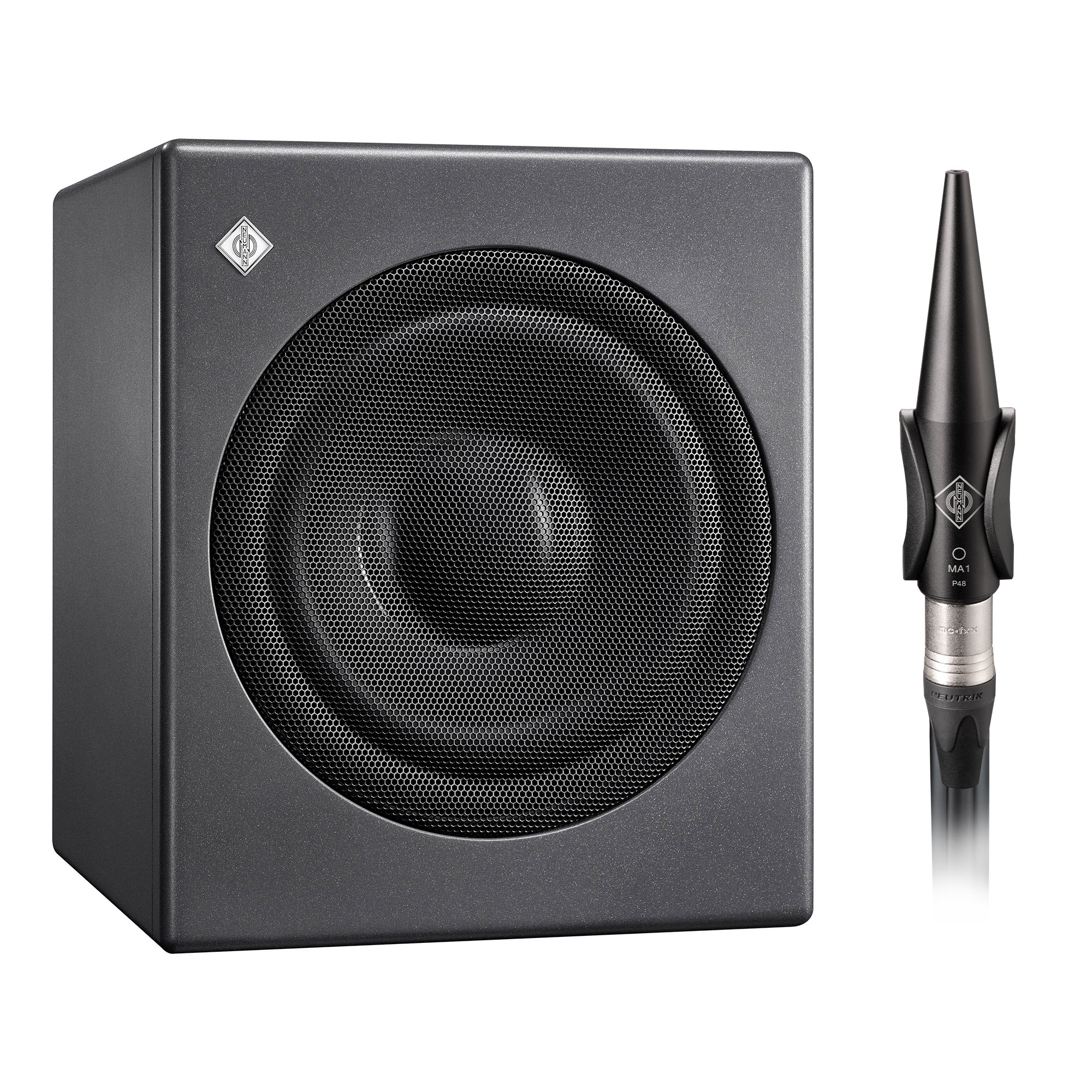

Neumann Monitor Alignment Kit 1 which provides a KH 750 DSP-powered 10" subwoofer and an MA 1 measurement microphone.
Neumann’s Automatic Monitor Alignment MA 1 ensures the best possible sound quality in any room – from home studios to professional control rooms. Using the individually calibrated measurement microphone your acoustic environment is analyzed in a guided process. Advanced algorithms, derived from decades of experience in aligning reference monitoring systems, guarantee optimally aligned frequency response, time of arrival and level for exact and reliable monitoring.
A unique benefit of the MA 1 Algorithm is precise and effective compensation of room modes. Using MA 1 results in increased clarity, consistency across monitors, dry bass, and time-correct, more accurate depiction of reverbs and acoustic spaces.
Key Features
- MA 1 Measurement Mic with Stand Clamp
- Calibration Software
- Achieve Ideal Frequency & Time Response
- 1 x KH 750 DSP 10" Subwoofer
- 256 W Amplifier
- Ethernet Control over Alignment & Set Up
- Settings Stored in DSP Monitors.
Reliable monitoring anywhere
Neumann’s Automatic Alignment software MA 1 is a dedicated tool for aligning network-enabled KH Line monitors in stereo systems and stereo systems with Bass Management via an additional subwoofer. Non-network-enabled (analog) KH Line monitors can be aligned via MA 1 when connected to a KH 750 DSP/AES67 subwoofer.
Unlike conventional correction software, MA 1 is an integrated solution with novel algorithms, specifically designed for Neumann studio monitors. No plug-in or special audio driver is required: Alignment data is stored and processed within the DSP-powered loudspeakers themselves. For analog Neumann studio monitors (i.e. without a network port) connected to a KH 750 DSP/AES67 subwoofer, MA 1 offers the added benefit of linearizing the phase response, too. This feature, which is already built into all network-enabled loudspeakers with digital electronics, is made possible for analog Neumann studio monitors by the KH 750’s DSP capabilities. The result is further increased accuracy in terms of tonality, impulse reproduction, and stereo localization.
How it works

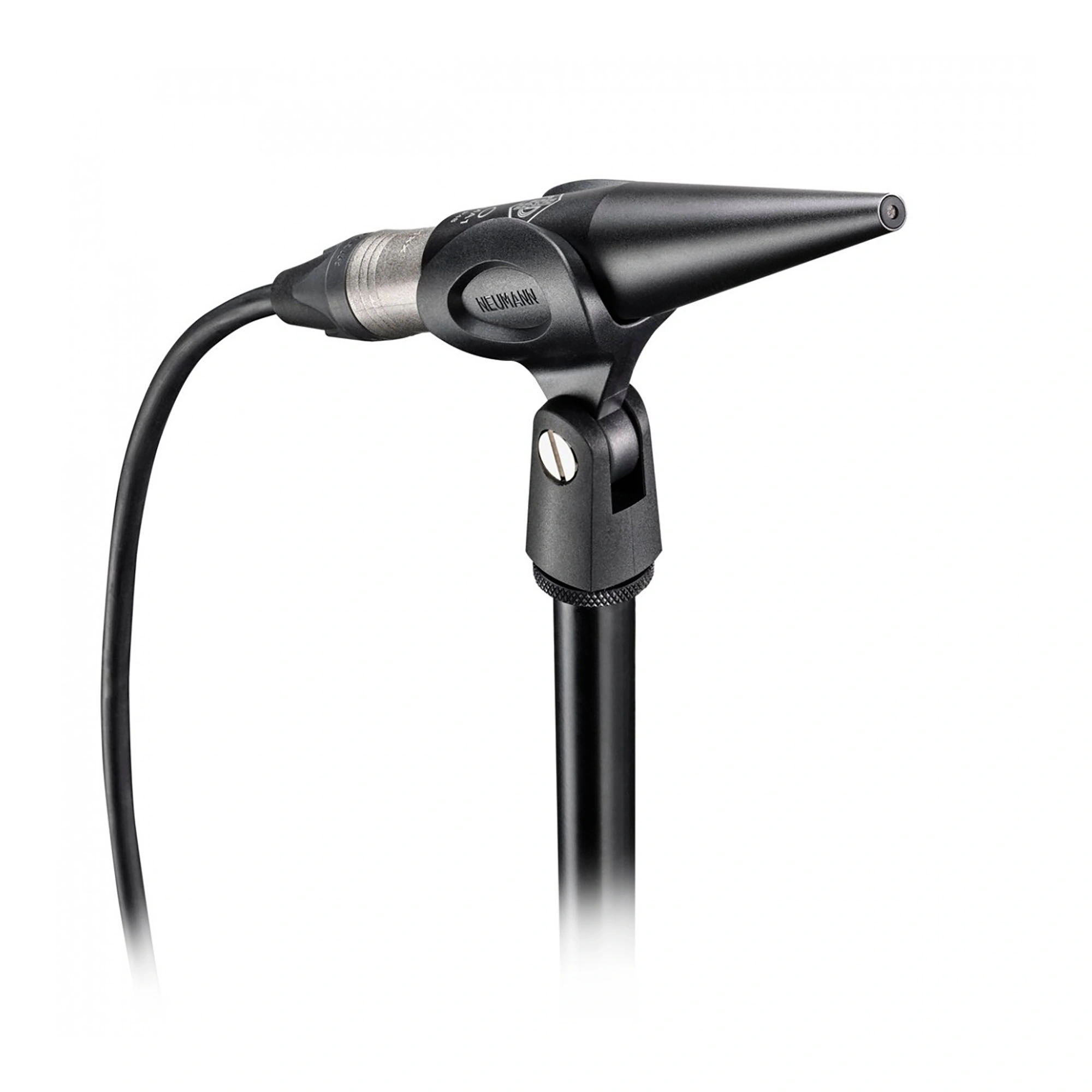

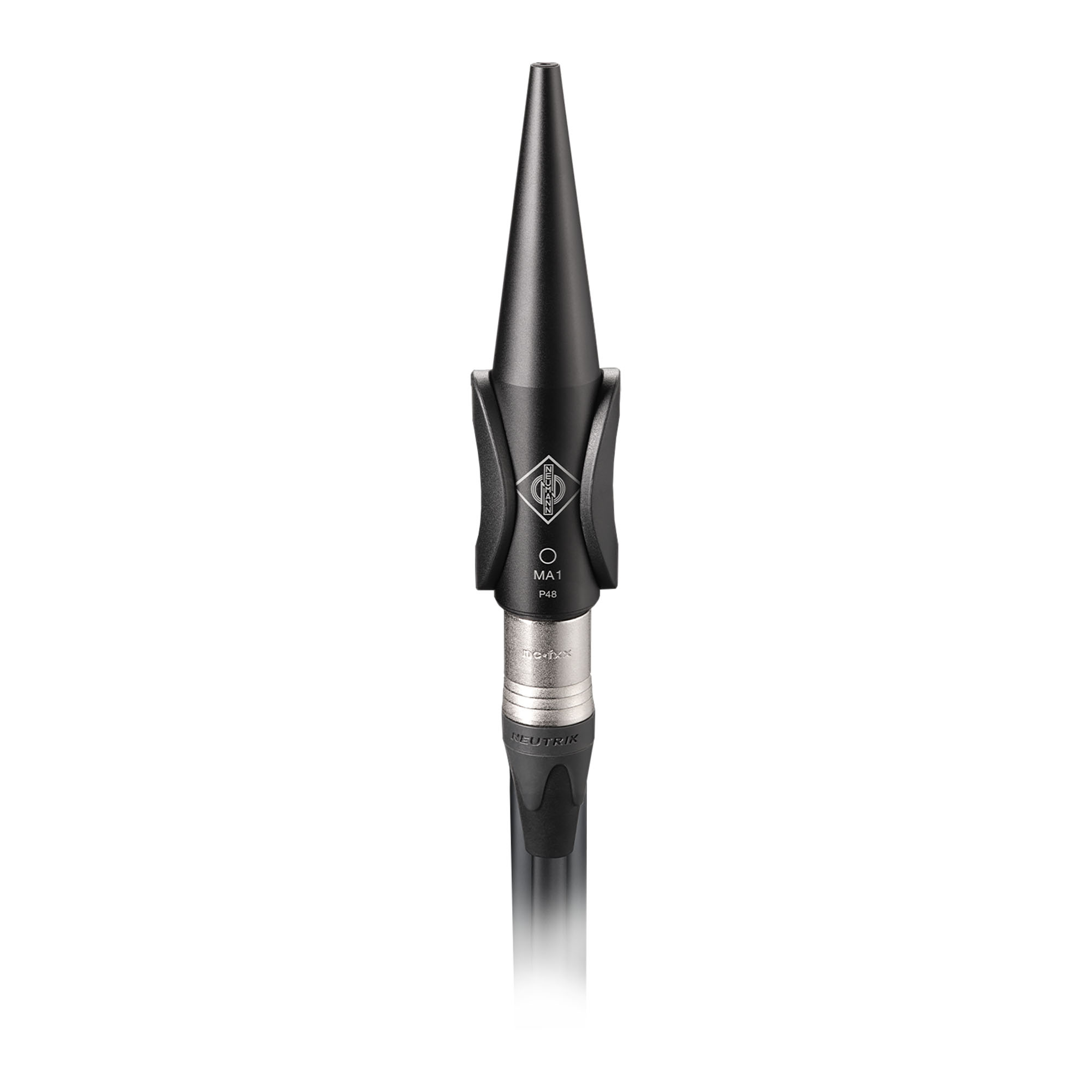

As a first step, the performance of each monitor in the listening environment is gathered in a guided process. No special acoustics knowledge is required. Simply connect your KH line monitors to the outputs and the MA 1 microphone to the input of your audio interface. This Class I measurement microphone was specifically developed for this software and comes individually calibrated. For communication, the network-enabled KH-line monitors must also be connected to your computer via a network, a standard ethernet switch supporting IPv6 will do.
From the measurement data, the software ascertains the room’s acoustic properties. The individual correction parameters are generated according to a room-specific target curve calculated by MA 1. Decades of experience in aligning reference monitoring systems in studio control rooms has been incorporated into this process. Of course, you can modify the target curve to your needs.
When using Bass Management in stereo systems, the alignment algorithm ensures optimal summation between subwoofers and satellites. This achieves optimized time-of-arrival- and phase-correct combination of the monitors and the subwoofer, thus preventing the subwoofer from being perceived as a separate sound source. The result is a unified playback system.
Multiple hardware systems and alignments can be conveniently saved, managed and recalled in MA 1.
All alignment parameters are stored and processed in the network-enabled monitors. So, once aligned, there is nothing to worry about anymore, no plug-ins, no driver issues.
After alignment, the ethernet connections can be removed from a technical perspective. However, keeping the network connections, the MA 1 software allows for advanced functions such as deactivating the subwoofer(s) or switching between different alignment presets (e.g. with a modified target curve).
Multichannel extension
MA 1 Automatic Monitor Alignment delivers outstanding acoustic results for stereo setups. For aligning surround and immersive setups, Multichannel Extension for MA 1 is available as a paid extra license.
Using the KH 750 DSP subwoofer, stereo sets of analog KH-Line monitors, too, can be used with the Automatic Monitor Alignment Software. The KH 750 DSP has enough processing power to align the entire system including the two analog loudspeakers connected to its outputs. Additionally, KH 120, KH 310, and KH 420 loudspeakers profit from phase linearization of their built-in crossover filters! The result is increased clarity, a dry bass, and a time-correct, more accurate depiction of reverbs and acoustic spaces.
DSP power for all

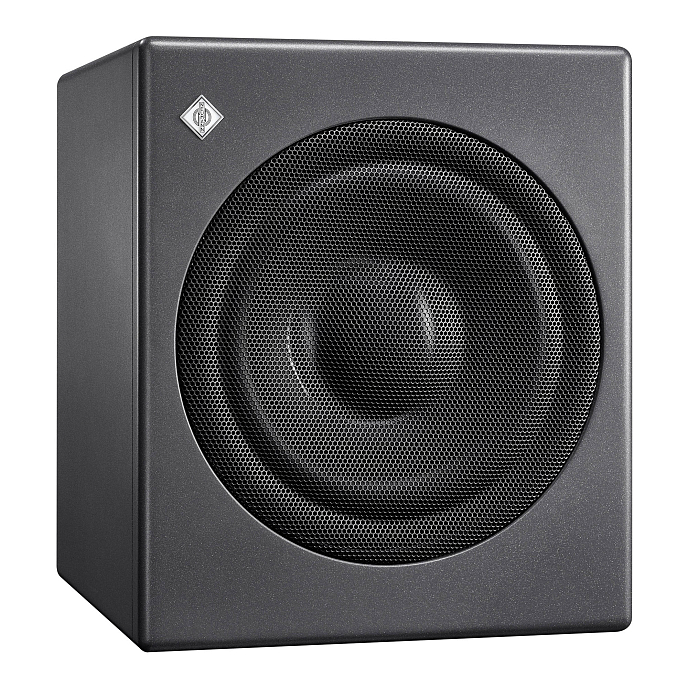

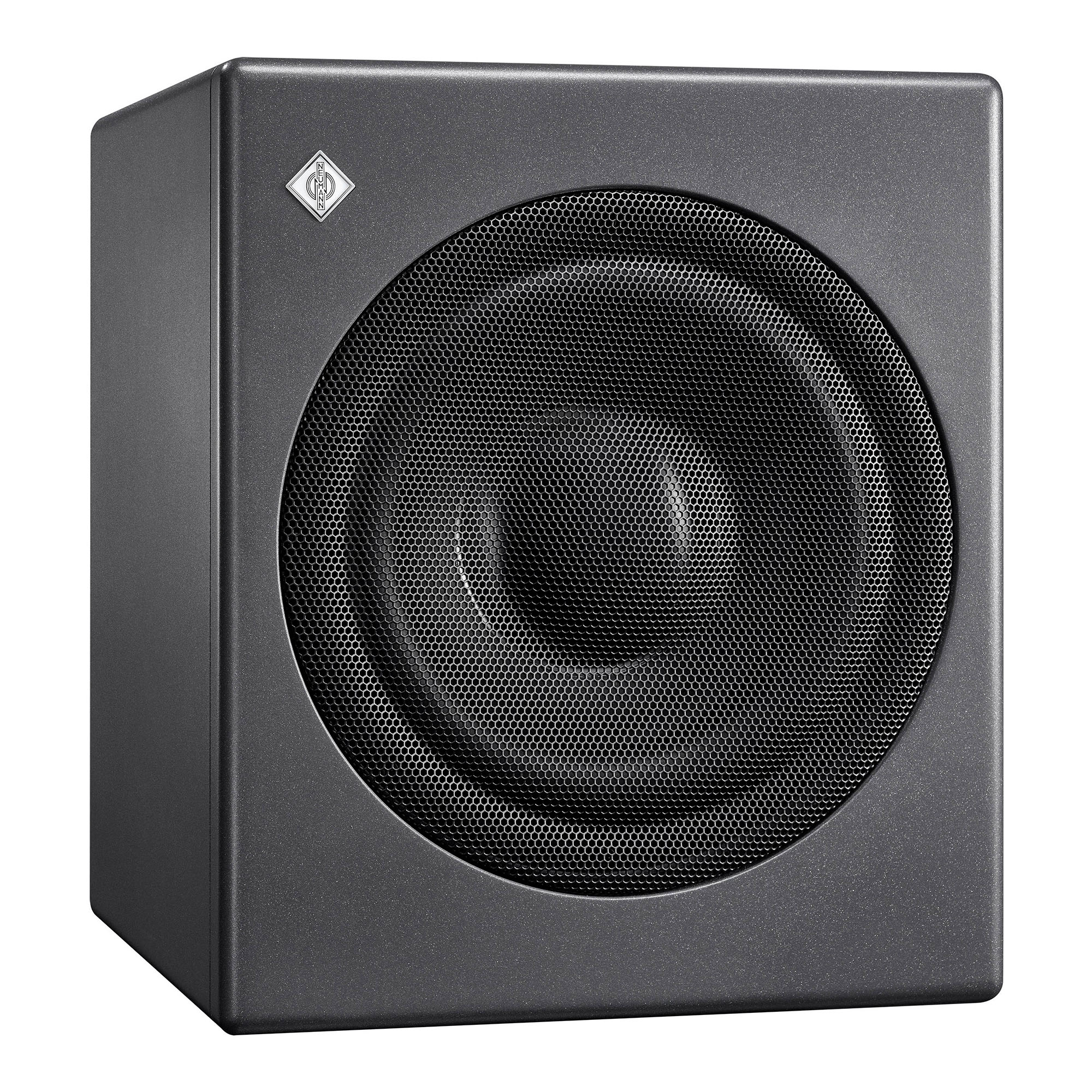

The compact KH 750 DSP is the ideal choice for smaller rooms and smaller studio monitors. It has a unique and flexible Bass Manager (2.0/0.1), analog and digital inputs, four routing modes and adaptable acoustical controls to be used in many different configurations.
More about the KH 750 DSP

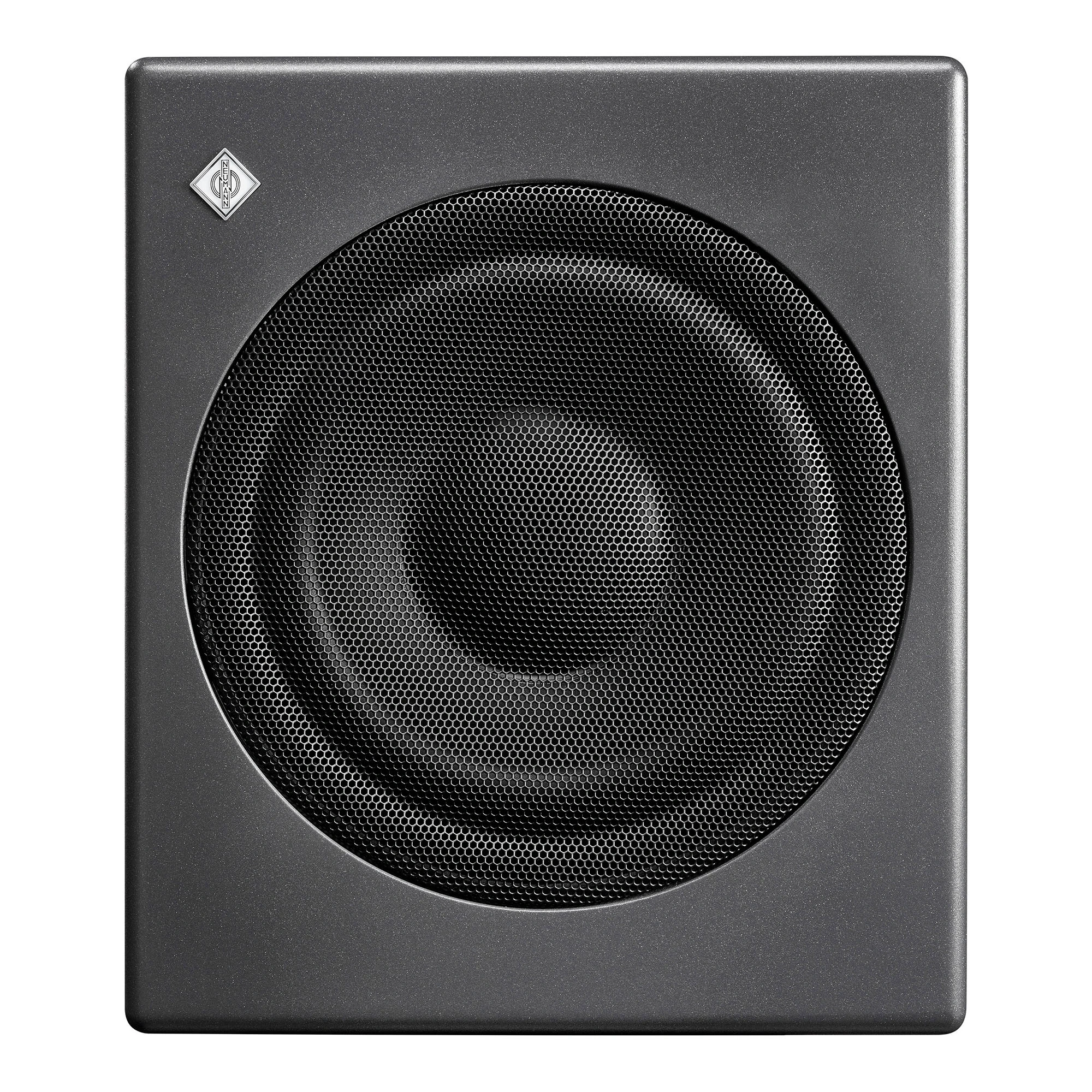

The newly designed 10” long-throw driver has a strong linear working magnet system with ELFF™ technology (Extremely Linear Force Factor™). As subwoofers are usually placed on the floor, a robust grille protects the driver from accidental damage. The ultra-compact cabinet is a closed design which brings the fastest possible transient response.

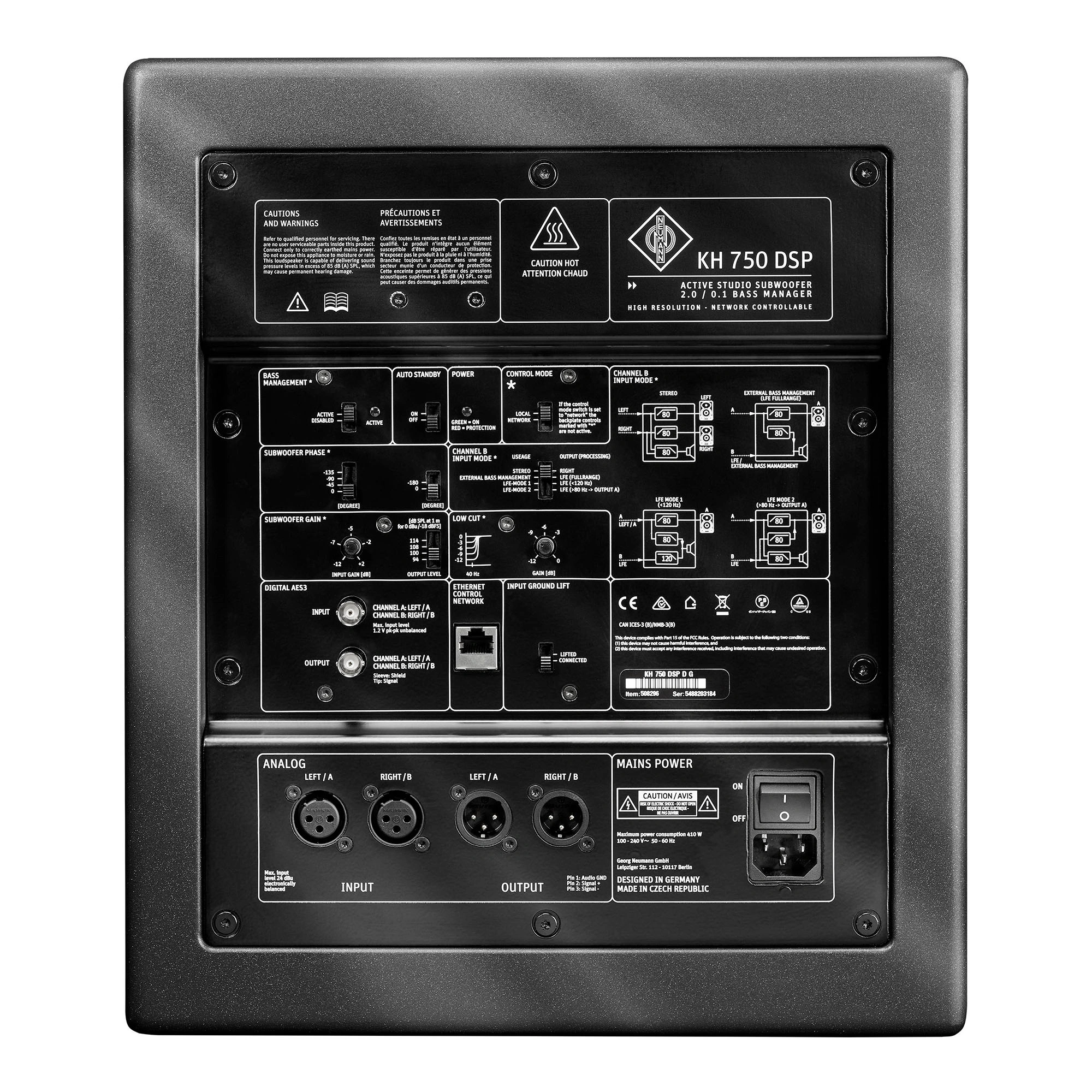

The two analog XLR inputs are balanced as are the two analog XLR outputs. The 192 kHz / 24-bit digital input can accept AES3 and S/P-DIF signals. There is a bypassable standby function and the switch-off time can be adjusted in the Neumann.Control iPad® app.
The KH 750 DSP can be used in music, broadcast, and post production studios for tracking, mixing, and mastering.
In the Box:
- 1 x KH 750 DSP D G Subwoofer
- 1 x MA 1 Measurement Microphone
- 1 x SG 105 Stand Mount
- Automatic Monitor Alignment Software (free download)
- Quick Start Guide
- Safety Guide.
