The KMS microphones were designed by Neumann engineers with the aim of delivering exceptional vocal reproduction during live performances, making them the top choice for demanding concerts. The KMS 105 model has become a global standard for high-quality stage microphones. These microphones seamlessly integrate with personal monitoring systems due to their low self-noise level and uncolored sound off-axis. With their supercardioid polar pattern, they effectively reduce unwanted sounds within a 180° hemisphere, allowing users to choose the microphone option that best suits their specific needs. The high acoustic resolution and nearly linear frequency response of these microphones ensure consistent high-quality sound, even in challenging stage conditions.
Key Features:
- Authentically captures the "Neumann" sound for stage performances
- Exceptional vocal and speech reproduction
- No alteration of sound when directly in front of the microphone
- Cardioid/supercardioid directional characteristics to effectively reject feedback
- Protection against wind noise without any negative side effects
- Includes a microphone stand mount
Applications:
- Amplification of vocals and speeches during live performances
- Broadcasting and voice-over microphone
- Perfect integration with personal monitoring systems
- Ideal for use in systems prone to feedback issues
Specifications:
- Acoustic principle: Pressure gradient transducer
- Polar pattern: Supercardioid
- Frequency range: 20–20000 Hz
- Sensitivity at 1 kHz into 1 kΩ: 4.5 mV/Pa
- Nominal impedance: 50 Ω
- Load impedance: 1000 Ω
- Equivalent noise level according to CCIR 468-3: 28 dB
- Equivalent noise level according to DIN/IEC 651: 18 dB-A
- Signal-to-noise ratio according to CCIR 468-3: 66 dB
- Signal-to-noise ratio according to DIN/IEC 651: 76 dB
- Maximum sound pressure level for THD < 0.5%: 150 dB
- Maximum output voltage: 12 mV
- Dynamic range of the microphone amplifier according to DIN/IEC 651: 132 dB
- Supply voltage: 48 V +/- 4 V
- Connector: 3-pin XLR-F
- Weight: 350 g
- Diameter: 48 mm
- Length: 180 mm

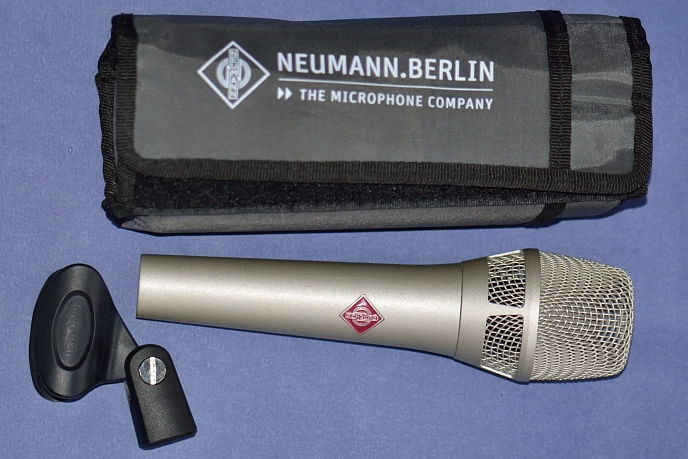

Package Includes:
- KMS 104 microphone
- Microphone stand mount
- Nylon storage and carrying pouch
