Integrated amplifier
Naim SUPERNAIT 3 Black

Product code: 140369
no reviews
AED 20,540
Delivery from the supplier's remote warehouse.
We will contact you within 48 hours to clarify the delivery time.

Description

Reviews (0)

Description

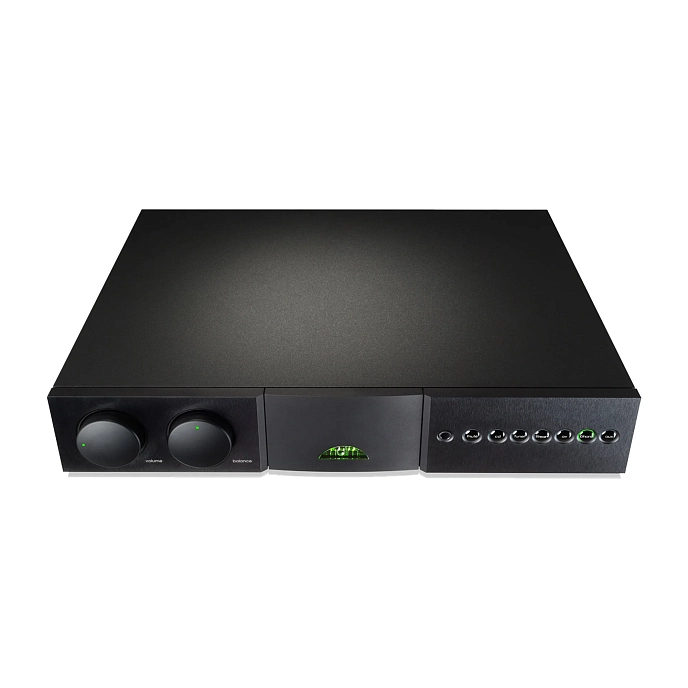

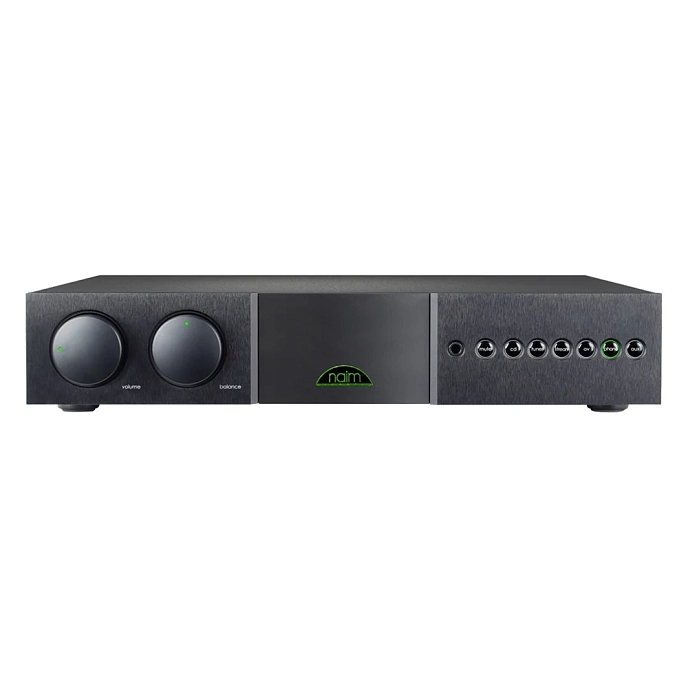

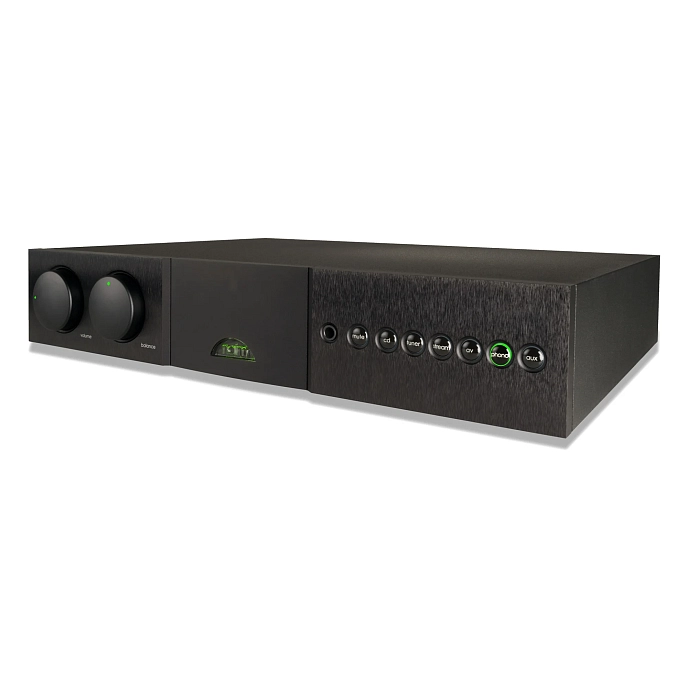

Naim SUPERNAIT 3 - 2-channel integrated amplifier.

Features:

  • Class A headphone amplifier
  • Alps Blue Velvet volume control
  • Magnetic relay input selection
  • Ceramic isolators for power transistors
  • Galvanically isolated microprocessor control section
  • Built-in DR 24V module - cleaner power based on Naim's discrete regulators technology for all preamplifier stages

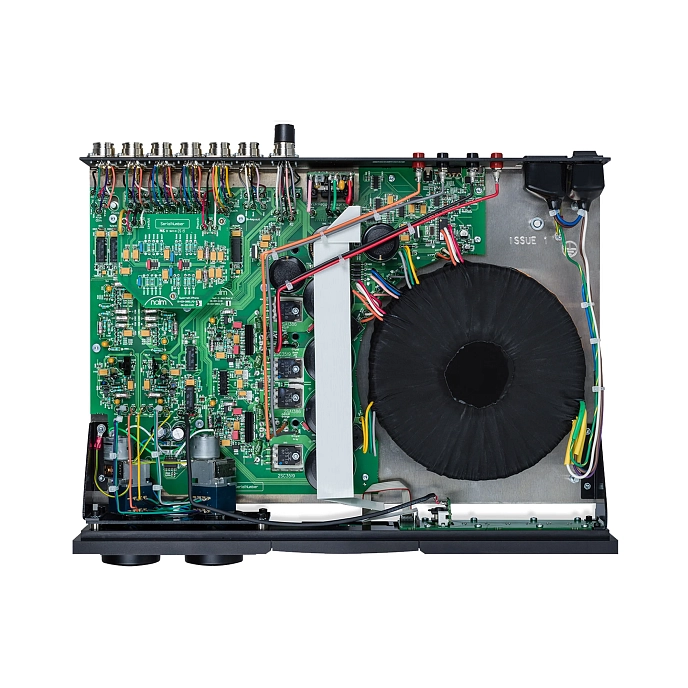

  • Larger and heavier toroidal transformer in the power supply - more power and faster recovery
  • Additional through-mount components in the signal path to better resist vibrations and peak thermal conditions
  • Input circuit board connectors manually mounted on the chassis for improved vibration protection
  • Microphone-isolated circuit boards

The SUPERNAIT 3 has undergone significant upgrades to enhance performance. With the addition of a built-in phono stage, the SUPERNAIT 3 is now the perfect partner for turntables - as well as for streamers, CD players, and any other music sources you want to enjoy with Naim's signature sound.

The Class A preamplifier stage acts as a headphone amplifier. Ceramic heat sinks minimize capacitive coupling between the chassis and output transistors for optimal sound quality.

Each input is separately isolated for minimum noise and interference. Ultra-low noise DC sources are used in the internal input relay, based on Naim's flagship NAC 552 preamplifier.

The SUPERNAIT 3 can be further upgraded with external power supplies, power amplifiers, and cables to achieve the maximum quality sound.

Technology and Craftsmanship:

Naim's research team has found a way to more than double the voltage amplification cascade speed, resulting in a twofold increase in the reaction speed of the output cascade. The transistors of the second amplification cascade are optimized and no longer require cascode shielding. This means the amplifier requires less stabilization, resulting in a twofold increase in the output voltage rise rate, noticeably improving sound quality.

The phono stage consists of three cascades: an amplification cascade, a passive equalization cascade, and an active equalization end amplifier cascade. This solution offers an excellent signal-to-noise ratio, the ability for RIAA equalization beyond the audible sound spectrum, and excellent overload margin.

All capacitors and resistors for RIAA equalization are film components for through-mounting, with reduced microphone effect and excellent peak characteristics. Since phono stages are 1000 times more sensitive than other inputs, this solution significantly improves sound quality. The input impedance is 47 kΩ parallel to a capacitive load of 470 pF - ideal for 5 mV moving magnet cartridges.

Included:

  • Amplifier
  • Remote control
  • Power cable
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Power per channel at 4 ohms, W
130
Power per channel at 8 Ohm, W
80

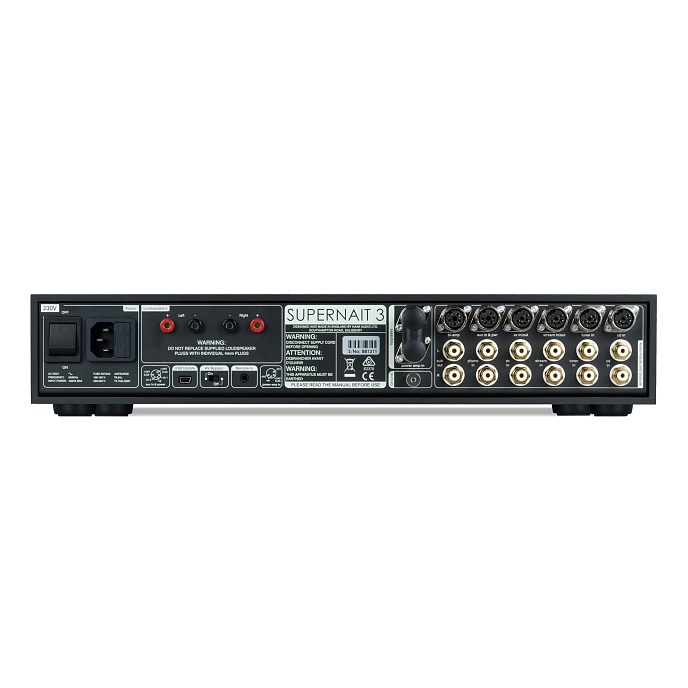

Input connectors
5-pin DIN, RCA
Output connectors
terminals
Headphone output
6.35mm jack
Phono stage type
MM
Circuit design
discrete

The circuit with transistors used.

Словарь терминов
Remote controller

The remote controller simplifies the use of the device

Glossary of terms
yes
Form factor
stationary

For use on a table or in a rack.

Словарь терминов
Color
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
4, 8
Material
aluminum
Number of channels
2
Depth, mm
314
Height, mm
87
Width, mm
432
Weight, g
14000
Country of origin

The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

Glossary of terms
UK
Service life, months
24
Warranty, months
12
Show all characteristicsShow fewer characteristics
