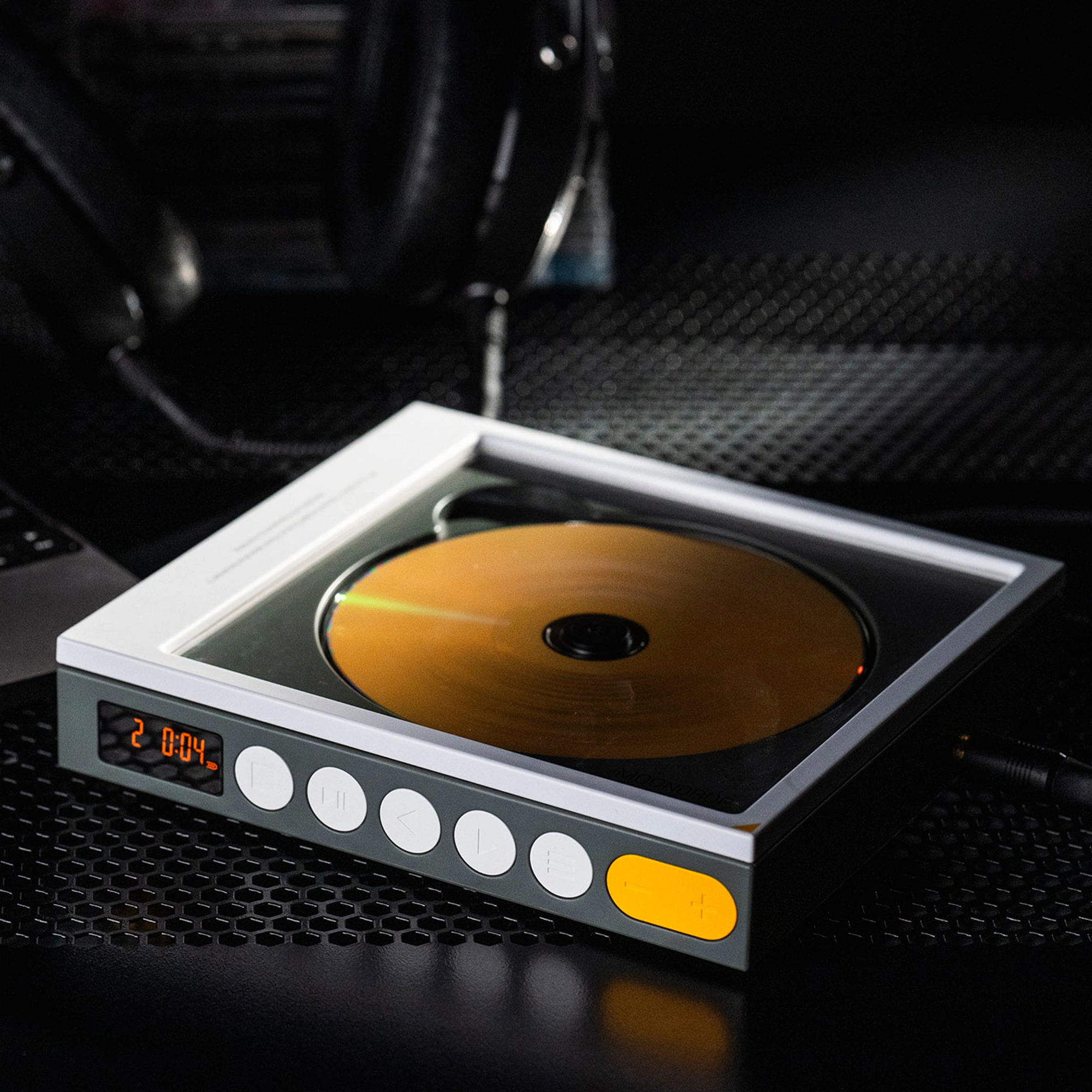

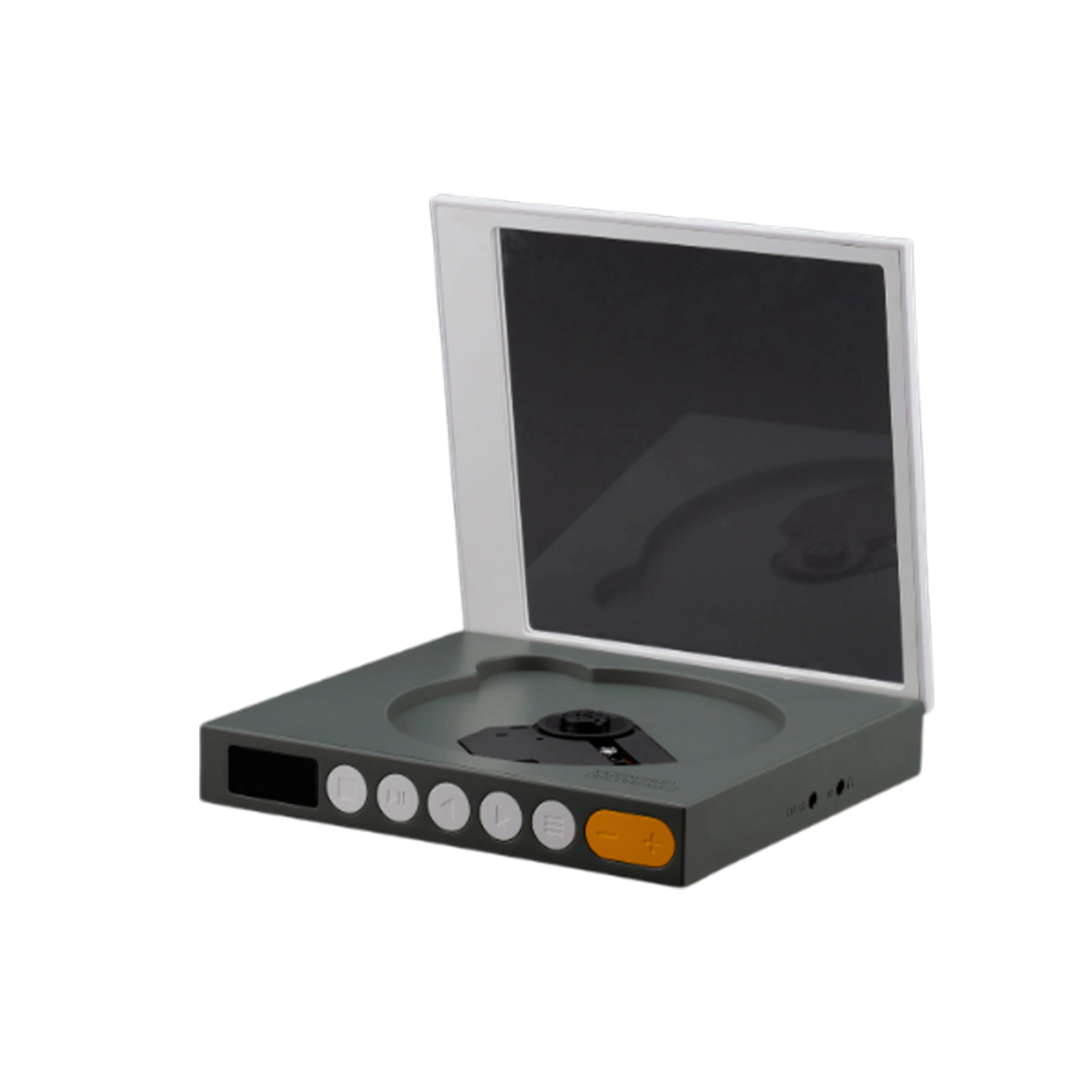

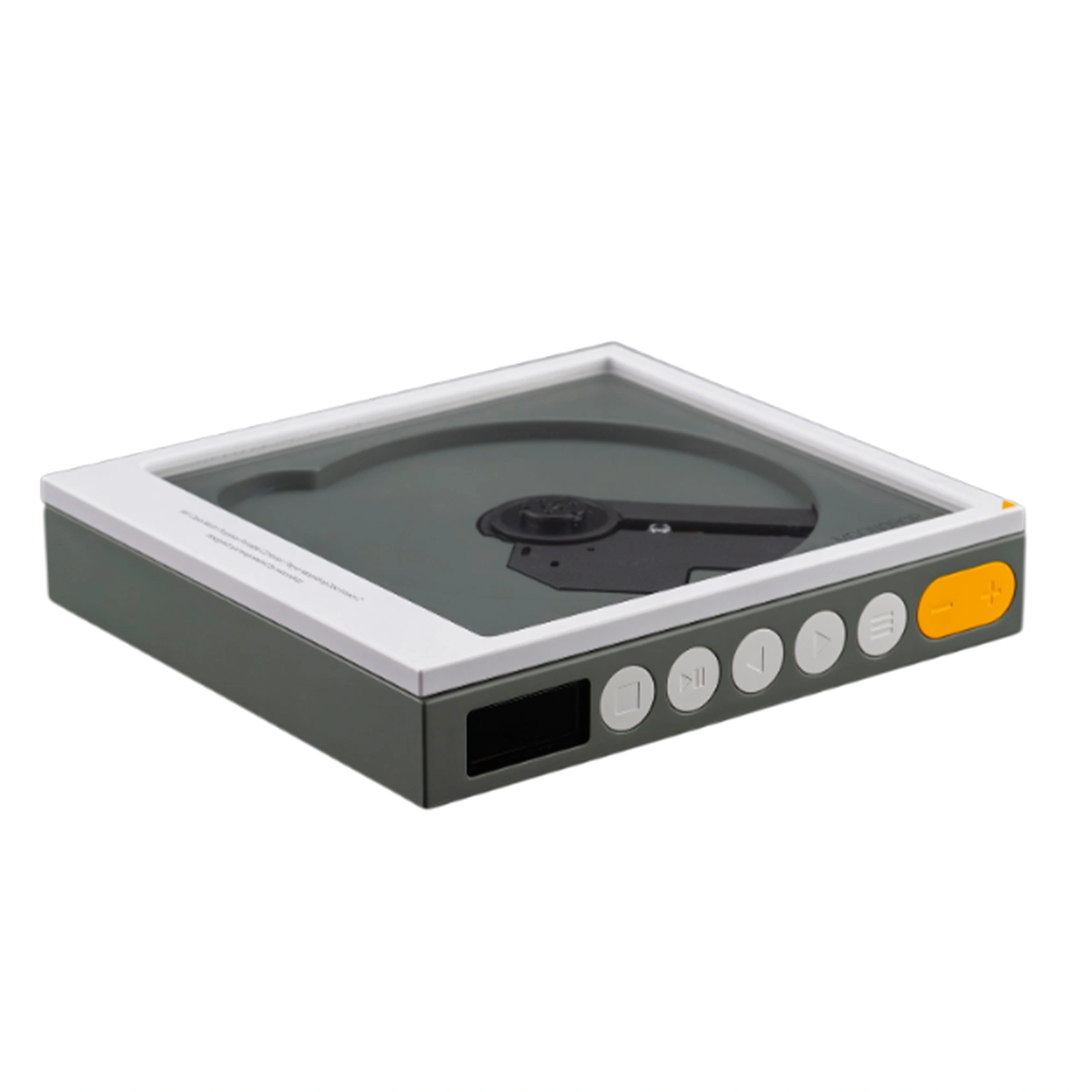

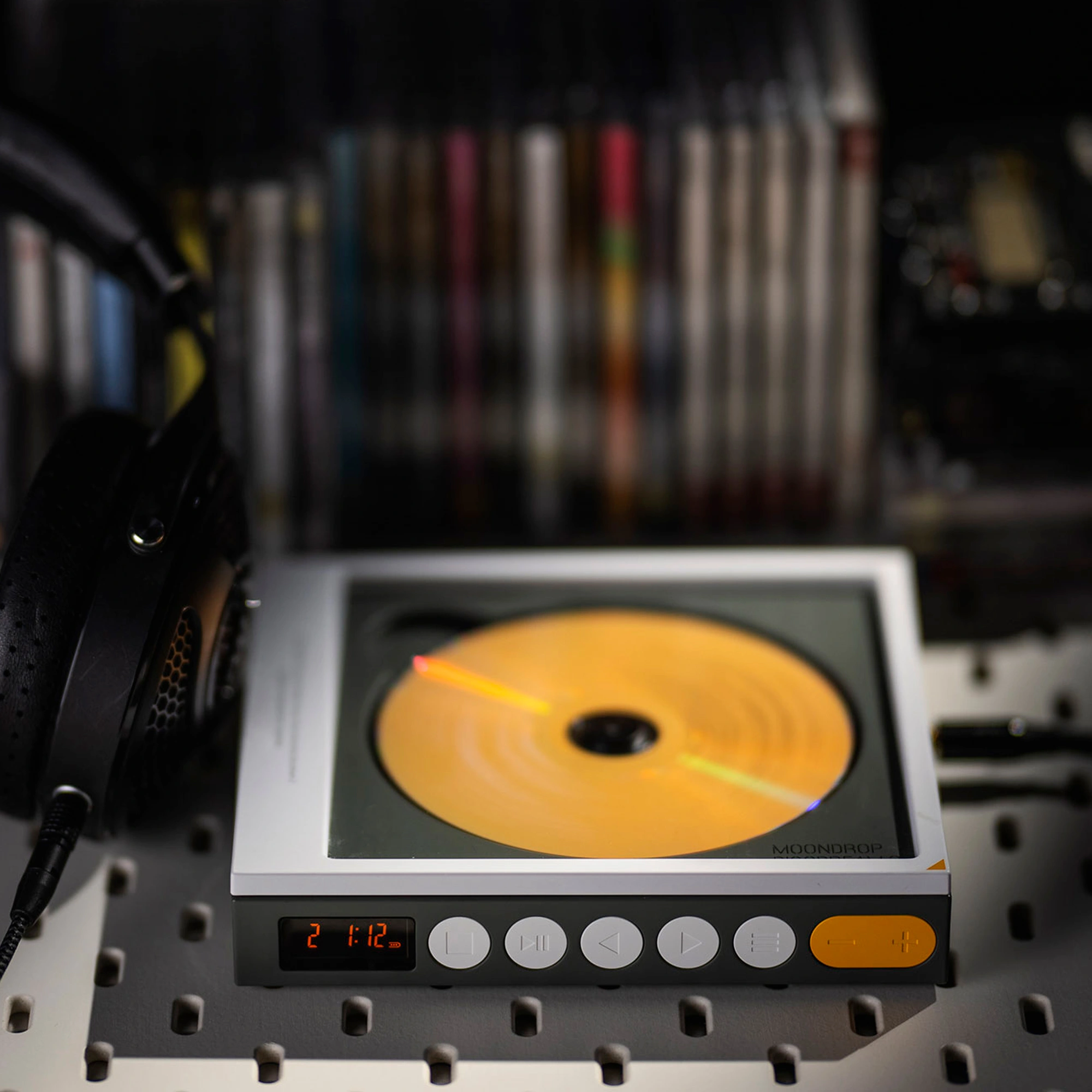

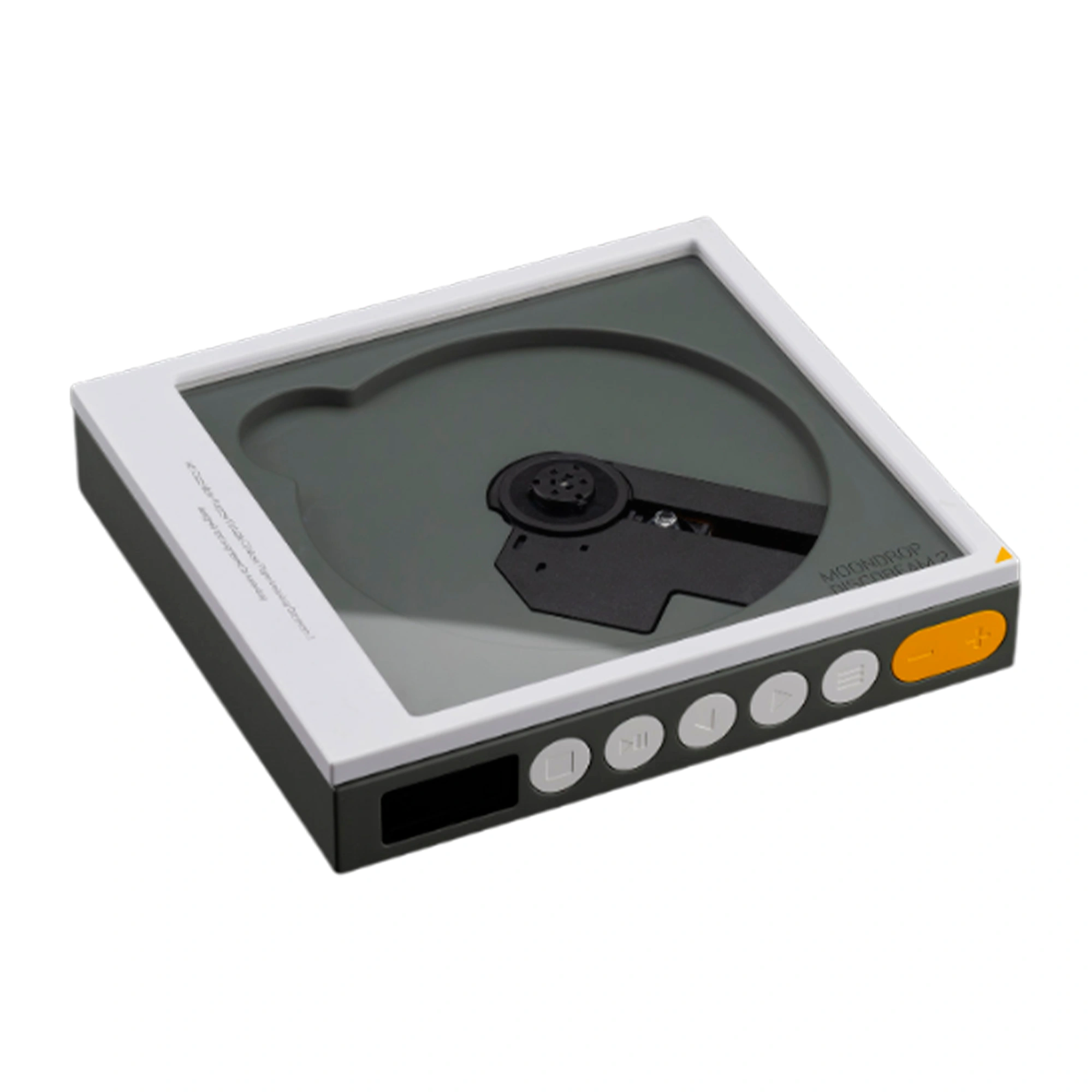

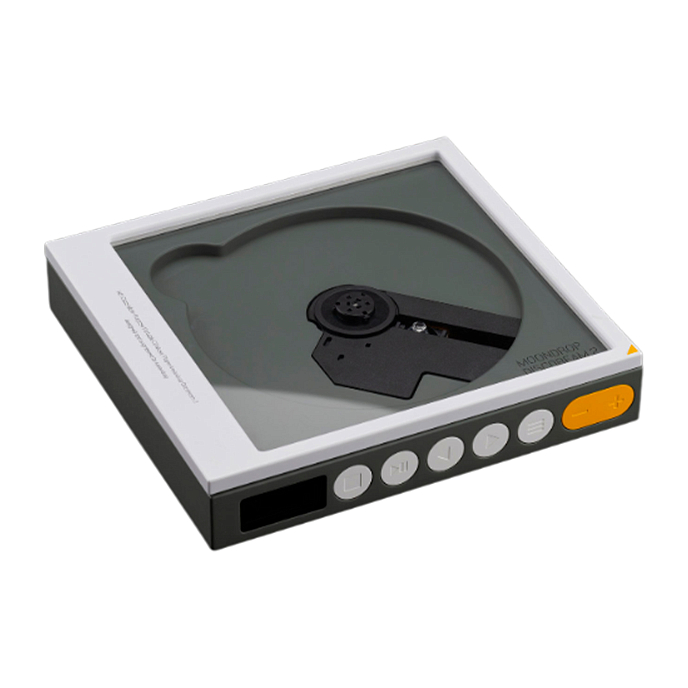

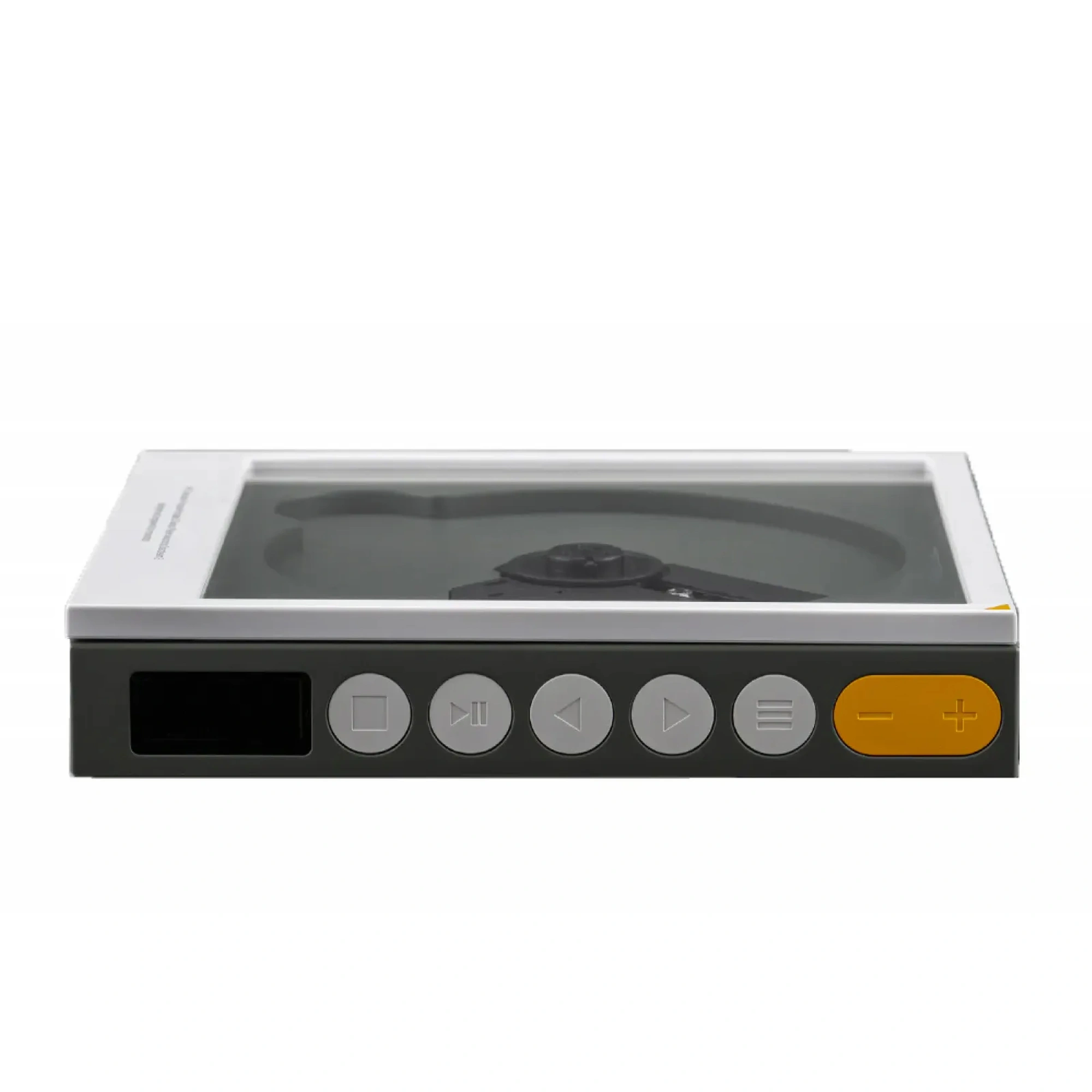

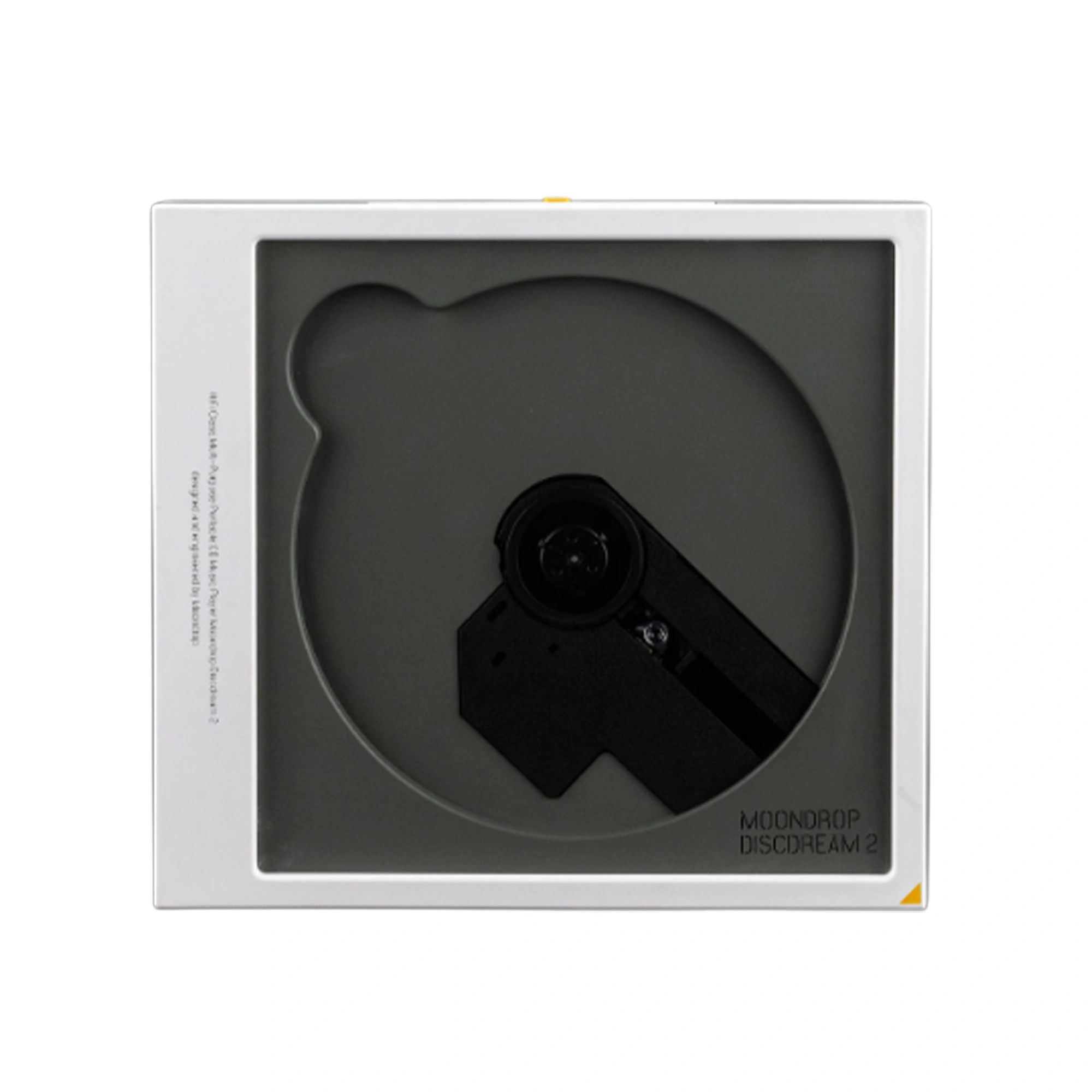

Moondrop Discdream 2 combines the classic functionality of a CD player with modern audio technologies in a compact design. The device features a Clamshell foldable construction with a transparent top cover to protect the disc during transportation. The body is covered in Soft-Touch material with contrasting color accents, enhancing ergonomics for daily use.
Features:
- Portable CD player
- Cirrus Logic CS43131 MasterHIFI DAC
- Supports formats: CD, CD-R, and CD-RW
- Universal 3.5mm headphone output
- Battery life: up to 9 hours (CD mode)
- Display shows track number, battery level, and playback time
At the core of Discdream 2 is the high-performance Cirrus Logic CS43131 MasterHIFI DAC, providing 32-bit audio signal decoding with a sampling frequency of up to 384 kHz in PCM format and support for DSD256. Stable audio operation is ensured by six linear voltage regulators that minimize electrical interference. The built-in dual-channel amplifier delivers 124 mW at 32 ohms through a standard 3.5mm output.
The CD drive of Discdream 2 uses an imported motor audio driver for smooth disc rotation, and a professional laser head for precise data reading. The dual damping system includes a 512 KB electronic buffer and a physical damping construction to protect against vibrations.

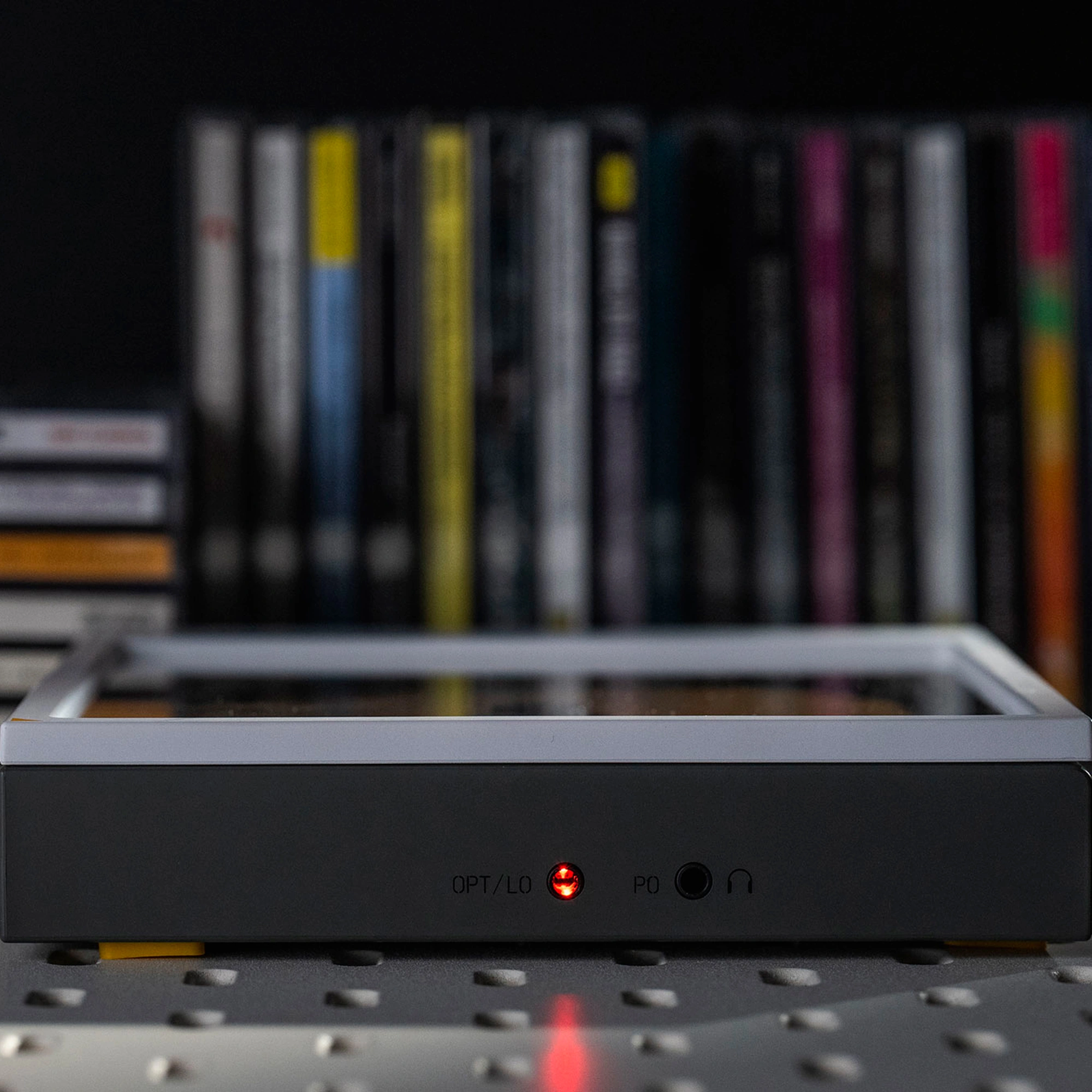

The device functionality is expanded with USB-DAC mode, allowing connection to computers without additional driver installation. The universal 3.5mm output operates in two modes: analog line-out with a voltage of 2Vrms and digital optical (S/PDIF). The player offers a 100-step volume adjustment for precise signal level control.
The 3500 mAh battery provides up to 9 hours of autonomous operation when playing CDs. The player supports CD, CD-R, and CD-RW formats. Impressive output characteristics include THD+N less than 0.0005% (AES17 standard) and a dynamic range of 122 dB.
Additional technical solutions include NDK clock generators to reduce jitter and automotive aluminum electrolytic capacitors in the power circuit. The informative display shows track number, battery level, and playback time.
Package includes:
- CD Player
- USB-C cable
- Manual
