The integrated amplifier from the Canadian company Moon Neo Ace is suitable for use in complex smart home installations, as it provides advanced features for external control, including compatibility with Control4 and Crestron devices. It can also serve as the foundation for a high-quality stereo system, thanks to its built-in phono stage, high-resolution DAC with DSD decoding up to DSD256, and 32-bit/384 kHz PCM. The Moon Ace is capable of handling complex speaker systems with impedance dips in the lower range. The amplifier is equipped with a MiND module (MOON Intelligent Network Device), which ensures easy navigation and full access to your digital music library. The MiND module supports streaming service TIDAL.
Features:
- Linear inputs, including a front 3.5mm mini-jack for personal media players.
- TRS headphone output 6.3mm on the front panel.
- Full integration with the MiND control app.
- Eight digital inputs, including USB (hi-res audio), SPDIF (2), optical (2), aptX Bluetooth, Wi-Fi, and Ethernet.
- First MOON product with an OLED screen for detailed information.
- Easy MiND setup with software menu.
- MM/MC phono stage input.
- Analog inputs can be set to "straight through" mode to bypass the amplifier stage for compatibility with components like a home theater processor.

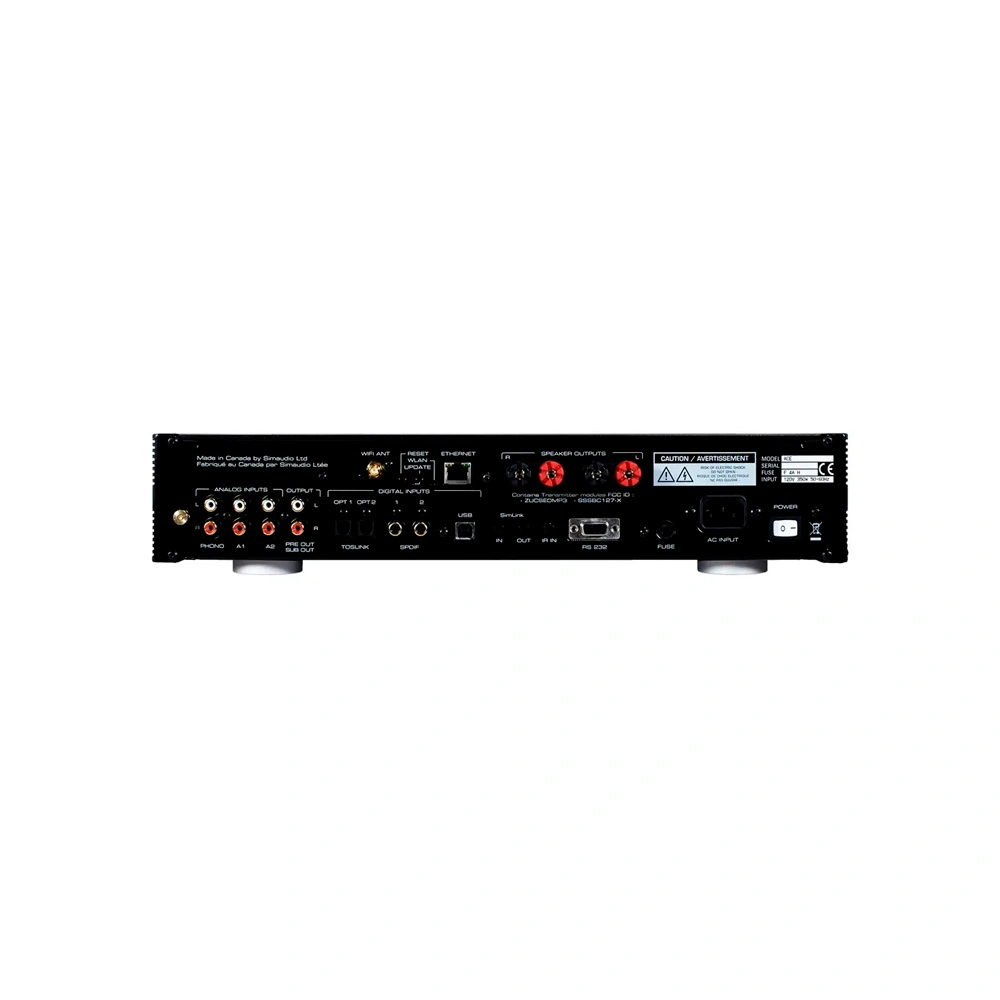

Connectivity Options:
Interfaces for control include SimLink, RS-232, and IR port. There are three analog line inputs (including a 3.5mm jack on the front panel) and five digital interfaces, including asynchronous USB. There is also a headphone output on a 6.3mm jack. The amplifier's analog inputs can be switched to "straight channel" mode for use with a home theater processor without the built-in volume control. The amplifier also features modules for a high-quality MM phono stage and aptX Bluetooth receiver. The ability to connect eight switchable digital sources and high-speed Wi-Fi and Ethernet network cards complete this comprehensive package.

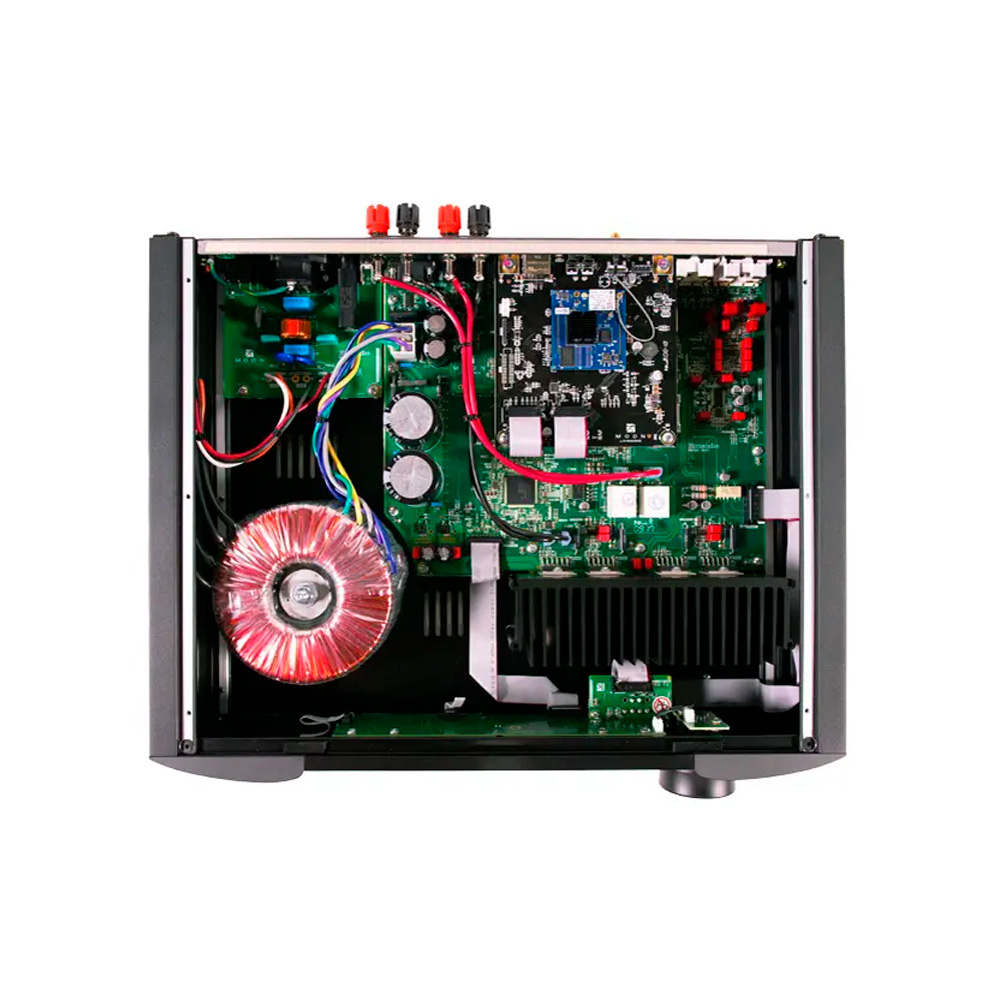

Toroidal Transformers:
Custom-made toroidal transformers with lower magnetic, electrical, and temperature losses deliver more powerful power delivery. These new high-performance transformers allow for faster power delivery and increased functionality, enhancing signal speed and improving dynamic characteristics.
Signal Path without Capacitors:
Audio circuits without capacitors (or so-called direct current feedback circuits) typically provide higher sound quality. Capacitors in the signal path have the most detrimental effect on sound coloring. Without capacitors, more audio information can be obtained at low frequencies. However, these circuits are highly susceptible to distortion from connected components, requiring serious protection for proper operation.
Advanced Renaissance Circuitry Technology:
Also known as "Zero Global Feedback" technology, this technology eliminates audio signal correction loops to make the amplifier very fast. Simaudio amplifier designs also allow them to perform well when connected to complex loads, positively impacting playback quality.
Package includes:
- Integrated amplifier
- Power cable
- Remote control 'CRM-3' with two batteries
- SimLink cable
- Wi-Fi antenna
- 1 spare fast-acting fuse
- Manual
