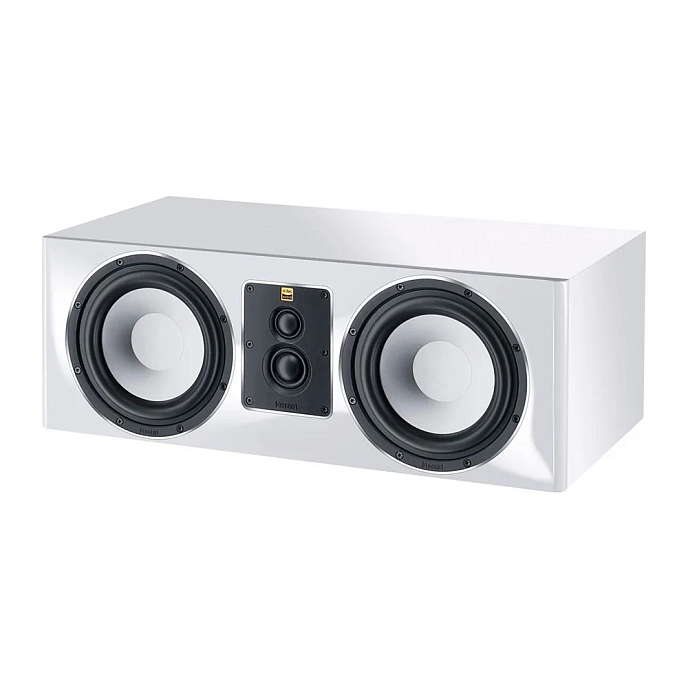

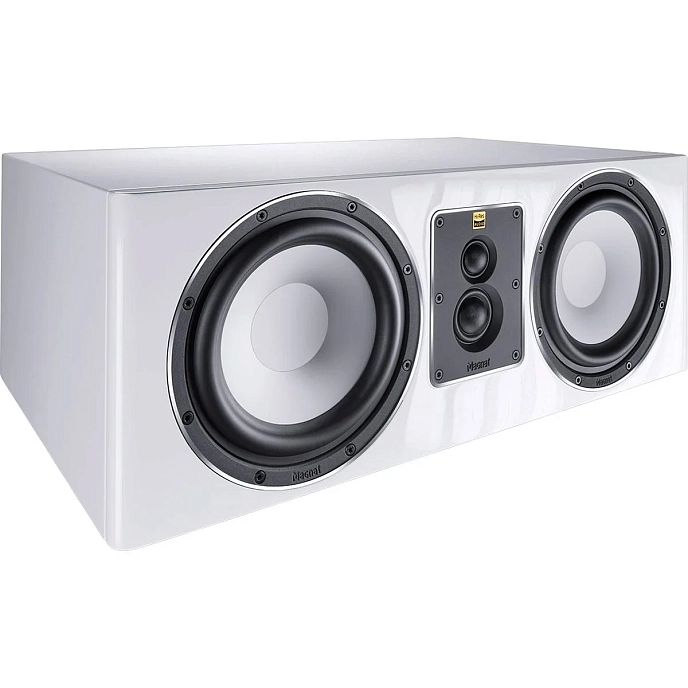

The Magnat Signature C 93 acoustic system is a three-way center channel with two woofers and a phase inverter. The woofers and midrange drivers with ventilated cast frames represent a Klippel-optimized design. Their ceramic-aluminum sandwich diaphragms are equipped with inverted dust caps. The drivers are combined with the APOC phase- and amplitude-optimized crossover with high-quality internal wiring and output to a massive terminal panel with sealed connectors.
Features:
- High-frequency module with Hi-Res certified dual drivers with fmax dual diaphragms;
- 3-way center speaker with Bass Reflex technology;
- Low-frequency driver with a ceramic-aluminum membrane;
- Optimization using Klippel laser equipment;
- Ventilated voice coil for maximum stability and dynamics.
HiFi premium class for connoisseurs
The Signature 900 series combines the finest in acoustic technologies with exquisite and timeless cabinet design. Of course, all 900 series speakers are Hi-Res Audio certified and can reproduce even the highest frequencies. Two floorstanding speakers, a shelf-mount model, a home theater center, and an active subwoofer provide the perfect combination depending on requirements, space, and application area.
Best chassis - Hi-Res certified

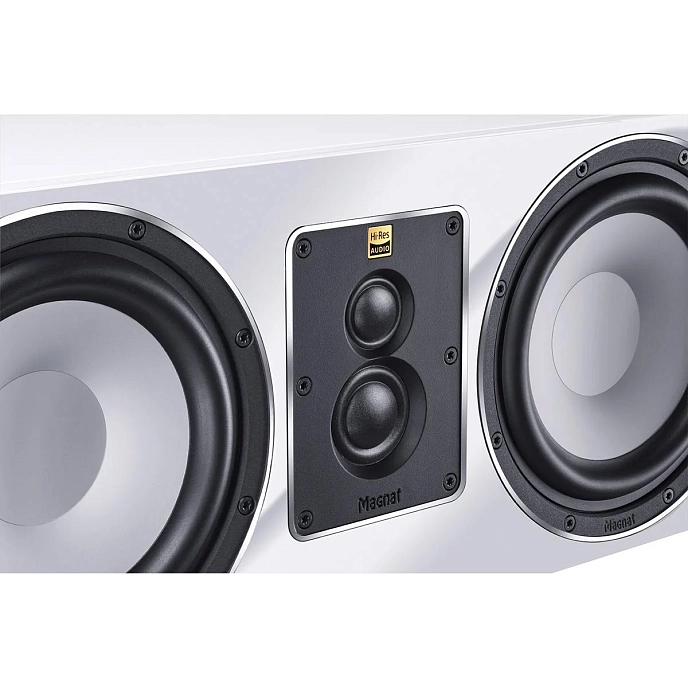

The high-frequency aluminum die-cast module with two fmax drivers is certified by the Japan Audio Society with Hi-Res imprint. The 30 mm diaphragm with an exceptionally wide surround allows it to work with low crossover frequency and seamlessly connect to the midrange. An additional 20mm super high-frequency diaphragm forms the basis for extended high-frequency reproduction. Even if many sources do not provide such high frequencies, here the higher harmonics, which are crucial for the listening experience, are installed. Additionally, the diaphragm has excellent circular dispersion as well as precisely calculated sound guides on the front panel, providing perfect sound volume.
The low and mid-frequency drivers are made of an aluminum alloy with a ceramic-aluminum diaphragm. The thoughtful combination of materials guarantees maximum suppression of interfering partial vibrations on one hand, and optimal weight on the other. This means that the powerful Neodymium technology drivers can not only reproduce extremely dynamic music but also keep the diaphragms absolutely stable, thus avoiding distortions. Solid speaker baskets made of an aluminum alloy ensure the necessary stability behind the scenes.
Impressive product quality

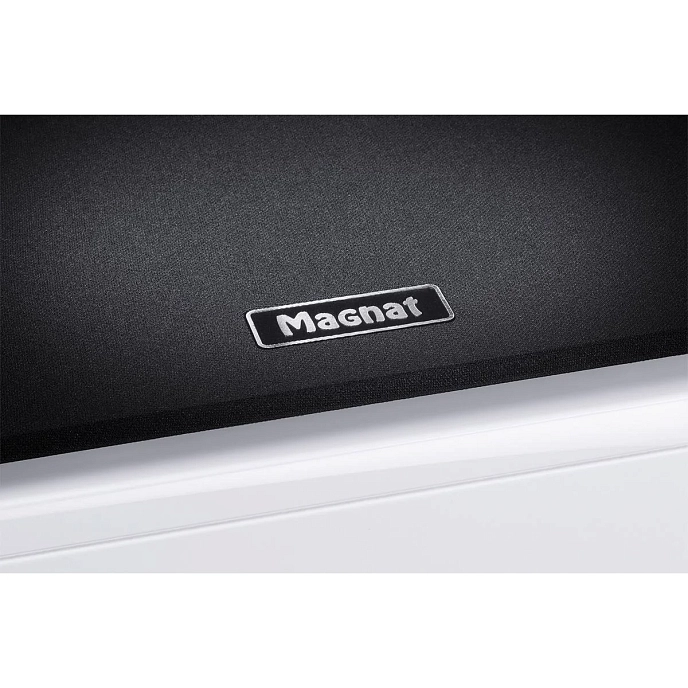

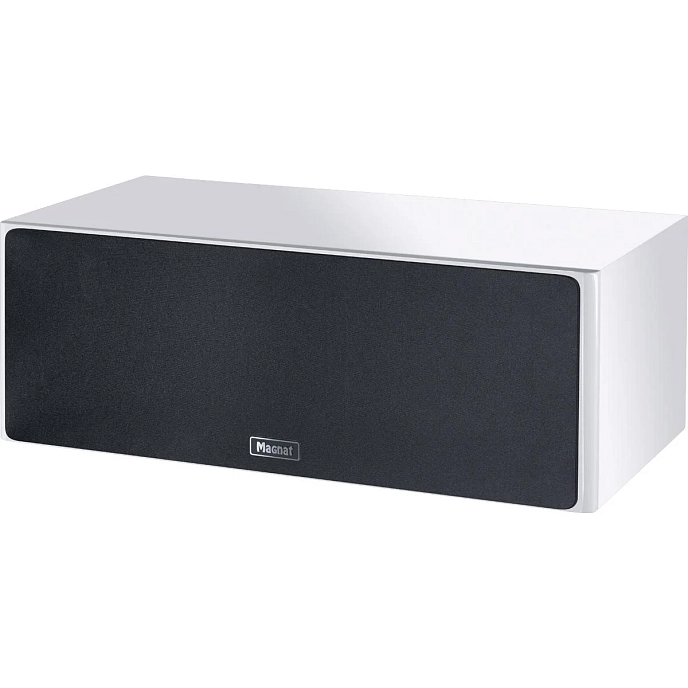

The audiophile chassis technology is implemented in an absolutely low-resonance cabinet made of solid MDF, which is secured in several places inside to ensure maximum freedom from resonance. The 900 series is available in an elegant black lacquer finish or in an exclusive designer Macassar veneer. Two Airflex ports with rounded openings ensure that the precisely calculated bass reflection tuning remains absolutely noise-free, even at high air movement levels. The removable protective cover is attached with magnets, maintaining a flawless appearance even with the cover removed. The bottom plate with built-in spikes not only ensures safe installation but above all, resonance-free installation. Additionally, there are high-quality connection terminals that accommodate large cable cross-sections and offer the possibility of bi-wiring and bi-amping.
Package Includes:
- Acoustic system - 1 pc.;
- Documentation.
