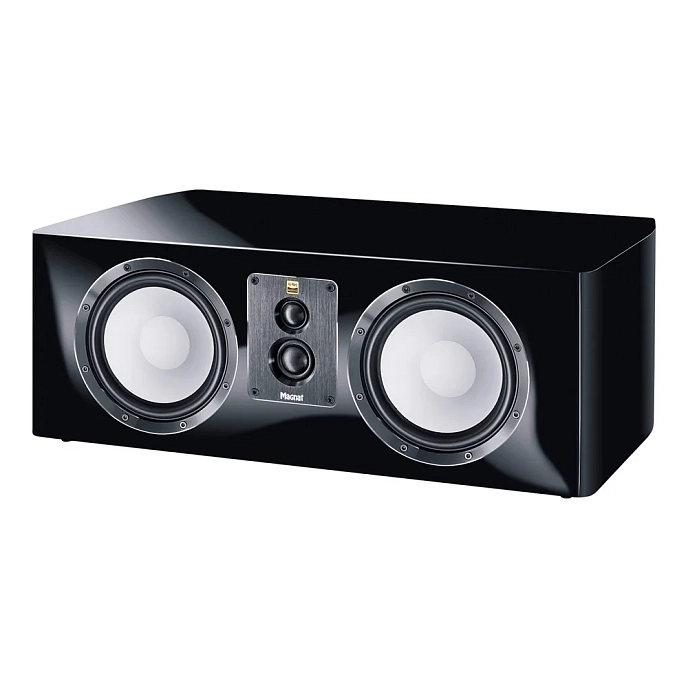

The Magnat Signature C 93 is a three-way center channel speaker with two low-frequency drivers and a phase inverter. The woofers and midrange drivers with ventilated cast frames are a Klippel-optimized design. Their ceramic-aluminum sandwich diffusers are equipped with inverted dust caps. The drivers are combined with the phase- and amplitude-optimized APOC crossover with high-quality internal wiring and output to a massive terminal panel with sealed connectors.
Features:
- High-frequency module with dual certified Hi-Res tweeters with dual fmax diffusers;
- 3-way center speaker with Bass Reflex technology;
- Low-frequency driver with ceramic-aluminum membrane;
- Optimization with Klippel laser equipment;
- Ventilated voice coil for maximum stability and dynamics.
Premium HiFi for enthusiasts
The Signature 900 series combines the best in acoustic technology with elegant and timeless cabinet design. Of course, all speakers in the 900 series are Hi-Res Audio certified and capable of reproducing even the highest frequencies. Two floorstanding speakers, a bookshelf model, a center speaker for home theater, and an active subwoofer provide the perfect combination depending on requirements, space, and application area.
Best chassis - Hi-Res certified
The aluminum die-cast module responsible for incredible high-frequency sound features two Hi-Res certified fmax tweeters, certified by the Japan Audio Society with the Hi-Res stamp. The 30mm diffuser with an especially wide surround allows it to work with a low crossover frequency and seamlessly connect to the midrange. An additional 20mm ultra-high-frequency diffuser forms the basis for extended high-frequency reproduction. Even though many sources do not provide such high frequencies, the higher harmonics necessary for the listening experience are present here. Additionally, the diffuser has excellent off-axis radiation and precisely calculated sound guides on the front panel, providing an ideal soundstage.
The low and midrange drivers are made of an aluminum alloy with a ceramic-aluminum membrane. The thoughtful combination of materials guarantees maximum damping of interfering partial vibrations on one hand and optimal weight on the other. This means that the powerful neodymium technology drivers are not only able to reproduce extremely dynamic music, but the membranes remain stable, thus preventing distortion. Solid speaker baskets made of aluminum alloy ensure the necessary stability behind the scenes.
Impressive product quality
The audiophile chassis technology is applied to an absolutely low-resonance enclosure made of solid MDF, which is mounted internally in multiple places to ensure maximum freedom from resonance. The 900 series is available in an elegant black lacquer finish or an exclusive designer Macassar veneer. Two Airflex ports with rounded apertures ensure that the bass reflection tuning remains completely silent even at high airflow levels. The removable protective cover is attached with magnets, ensuring that the appearance remains impeccable even with the cover removed. The bottom plate with integrated spikes not only provides safe installation but, above all, resonance-free installation. Additionally, there are high-quality connecting terminals that accommodate large cable cross-sections and offer the possibility of bi-wiring and bi-amping.
Package includes:
- 1 x speaker system;
- Documentation.
