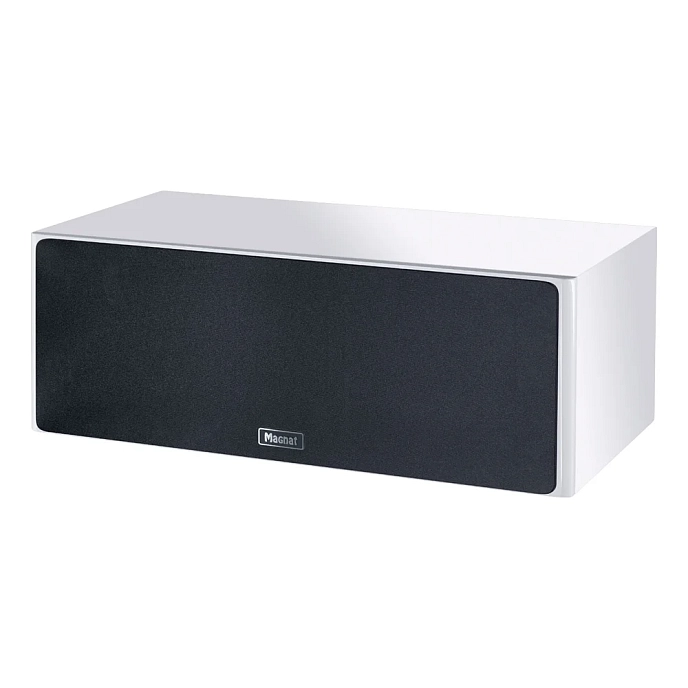

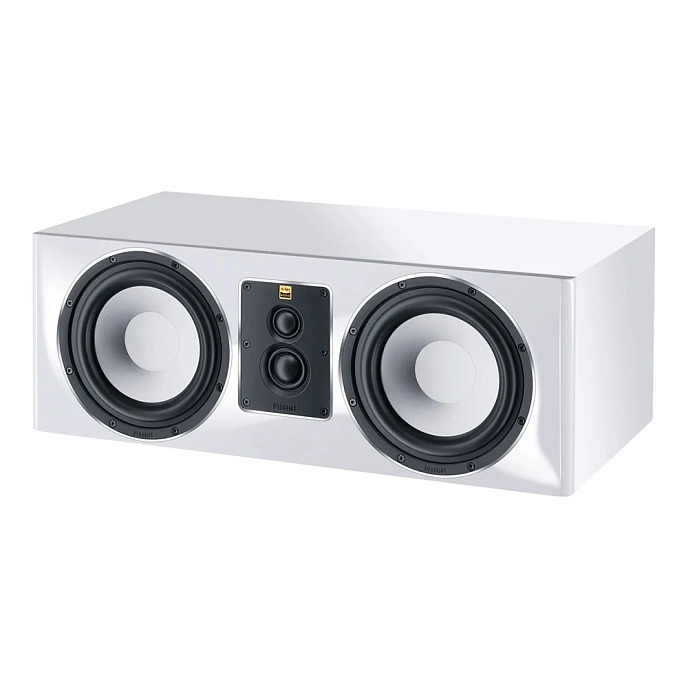

No home theater is complete without a good center speaker, as this is where most of the acoustic impact occurs. Signature Center 73 naturally has the same chassis and perfect tonal coordination to provide uniform all-around sound. The double high-frequency Hi-Res module in the center speaker is surrounded by two 170mm midrange drivers, making it a true 3-way system. Like all speakers in the Signature 700 series, the Center 73 also has a phase inverter port in Airflex configuration to prevent flow noise.
Features:
- Certified dual tweeter Hi-Res module with twin domes fmax;
- 3-way center speaker with a phase inverter;
- Midrange driver with ceramic/aluminum diaphragm;
- Optimal sound dispersion for use in a home theater system.
Tweeter and Super Tweeter
The recently developed high-resolution high-frequency module with two dome high-frequency drivers fmax. The high-frequency driver has a 1.2-inch dome with a very thick surround for linking low frequencies to the midrange. The front panel is attached with six screws, special sound guides for optimal dispersion.
Midrange Driver
The design was developed using Klippel's measuring complex.
Crossover
Large isolated terminals with thick gold-plated screw contacts ensure good contact for thick wires. Phase-amplitude optimized crossover with 24dB/oct filters made of high-quality components.
Enclosure
Glossy lacquered baffle combined with noble satin matte lacquer (enclosure). Very sturdy and reliably reinforced MDF enclosure with a timeless design. Removable protective grille with optimal sound transparency on magnetic mounting.
Package includes:
- Speaker system - 1 pc.;
- Documentation.
