The Signature 507 model features a full 4-way design. Two 17 cm bass drivers operate in the low frequency range up to 400Hz. The 17 cm midrange driver has a smaller voice coil diameter and a lighter suspension, operating in the range of 400Hz to 2.8kHz. The membranes of the bass and midrange drivers have a paper base (cellulose with a special impregnation and treatment). The speakers feature FE-Dynamics technology, optimizing all components of the driver. Powerful dual ferrite magnets create a very uniform magnetic field in the voice coil air gap. The voice coil frame has a special construction and perforation. The speaker baskets are designed to have minimal impact on the magnet, allowing for free airflow.
Features:
- Dual tweeter module with two fmax domes and Hi-Res certification
- 4-way speaker with a phase inverter
- Lower and mid-range driver and subwoofer optimized by the Klippel method
- Ventilated voice coil for maximum reliability and dynamics
- Metal spikes for secure installation and acoustic decoupling
High-order filters are used in the speakers' crossovers, implementing a 24dB/octave crossover slope. All floor-standing and bookshelf models in the Signature series have dual massive speaker terminals for bi-wiring/bi-amping connections.

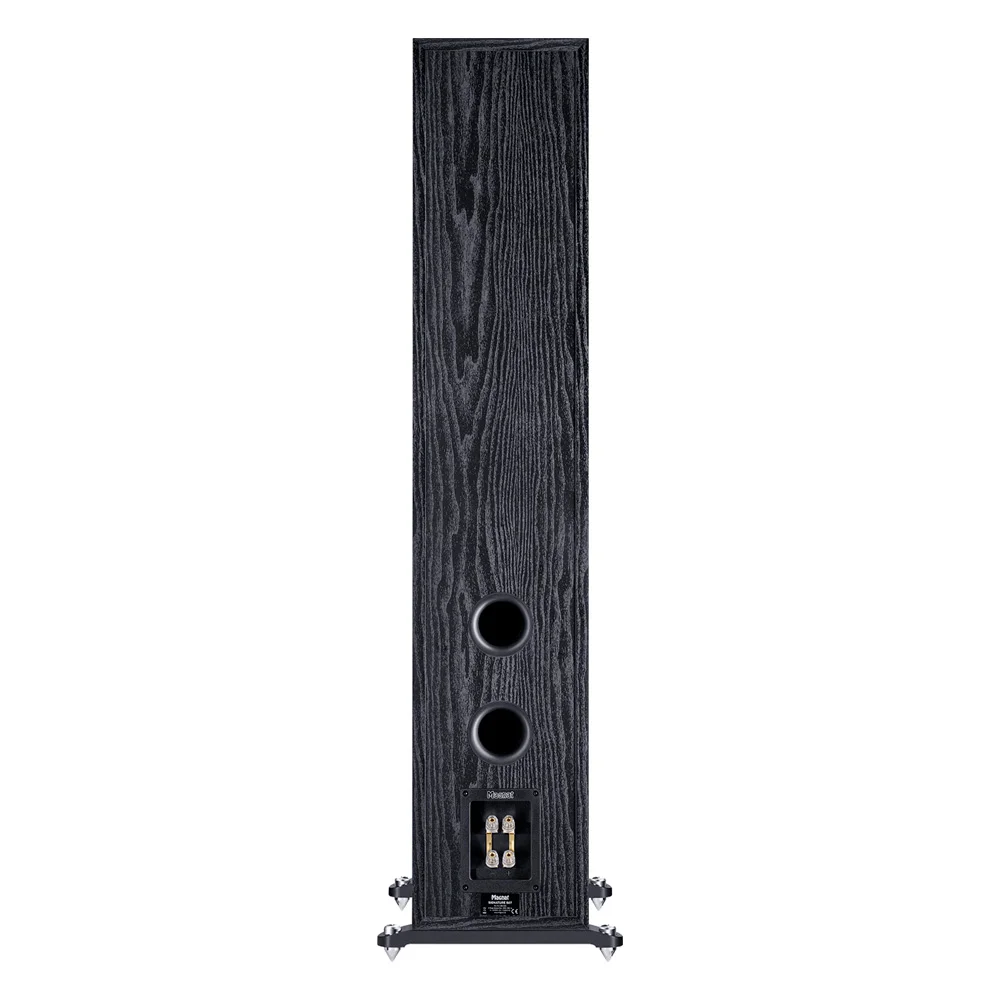

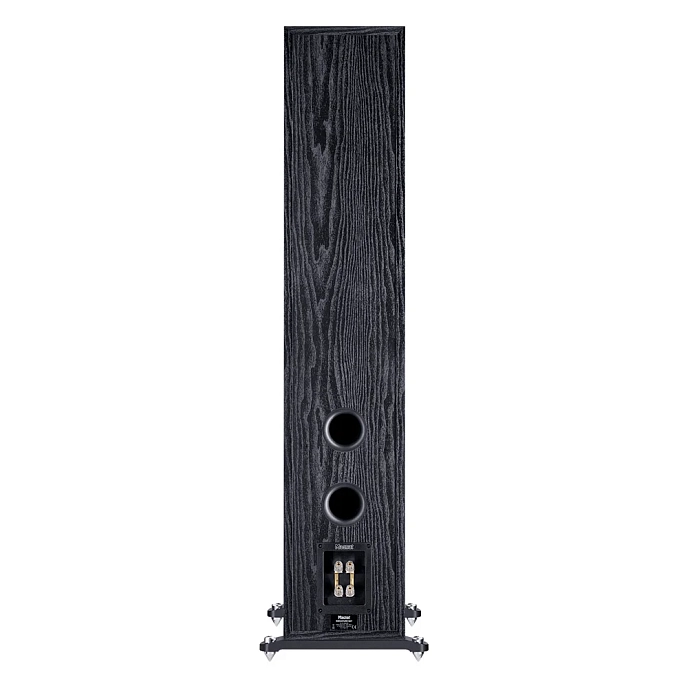

The sturdy cabinet is reinforced with horizontal bracing, with the midrange driver housed in a separate section. Signature 507 floor-standing speakers are placed on special supports with cones, improving stability and sound quality. The rear of the cabinet features two optimally shaped phase inverters.
The sound of the Magnat Signature 507 system is characterized by fast, dynamic, and open bass. High-quality sound reproduction allows for the finest nuances to be heard. These speakers can be confidently classified as versatile systems, thanks to their high sensitivity of 92dB. They can be paired with a wide range of amplifiers and A/V receivers.
Package Includes:
- 1 x Speaker system
- Documentation
