Integrated amplifier
Magnat MA 700 Black

Product code: 124281
no reviews

Description

Reviews (0)

Description

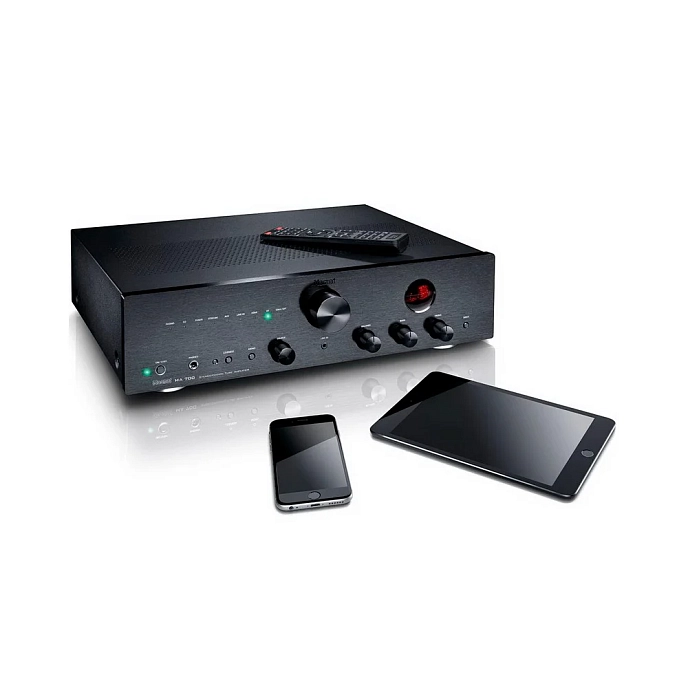

Magnat MA 700 Integrated Amplifier

The Magnat MA 700 is an integrated amplifier equipped with a dual triode ECC 81 tube. Operating in class AB, this amplifier can deliver 70W/channel with a 4 ohm impedance. However, in addition to this, the MA 700 provides all the necessary tools to play all your diverse media files. Along with various analog and digital inputs, as well as Bluetooth, there is also an HDMI input, making this amplifier a true all-rounder.

Features:

  • Hybrid integrated amplifier;
  • Legendary ECC 81 dual triode tube;
  • Class AB operation with 70W/channel at 4 ohms + peak power of 250W;
  • 5 analog inputs, 2 digital inputs, Bluetooth 5.0 support with aptX;
  • HDMI support + CEC;
  • Power supply with toroidal transformer.

The tubes in the Magnat MA 700 produce harmonic waves that perfectly round off the sound. However, getting enough power from them for demanding speakers can be challenging. That's why the low-noise tube preamp MA 700 is now equipped with the legendary ECC 81 dual triode tube. Carefully selected, these tubes ensure that everything is perfectly coordinated for each MA 700, so you can enjoy music for years to come. Powerful and efficient transistors take care of amplifying the musical signals - and they do it properly. Each channel provides 70W of continuous power. At peak power, the MA 700 delivers 250W.

Every signal into the Magnat MA 700, whether from the five analog inputs, two digital inputs, or via Bluetooth receiver with aptX lossless standard, leads to every listener enjoying the musical processing provided by the tube preamp - this also applies to the HDMI input. All digital signals first pass through a high-quality digital-to-analog converter. If the amplifier is connected to the HDMI ARC output on a TV, all audio signals from the TV and connected sources also pass through the MA700. This means tube sound for everyone, even with a connected game console or TV set-top box. And since the HDMI input supports CEC, the volume can be easily controlled using the TV remote control.

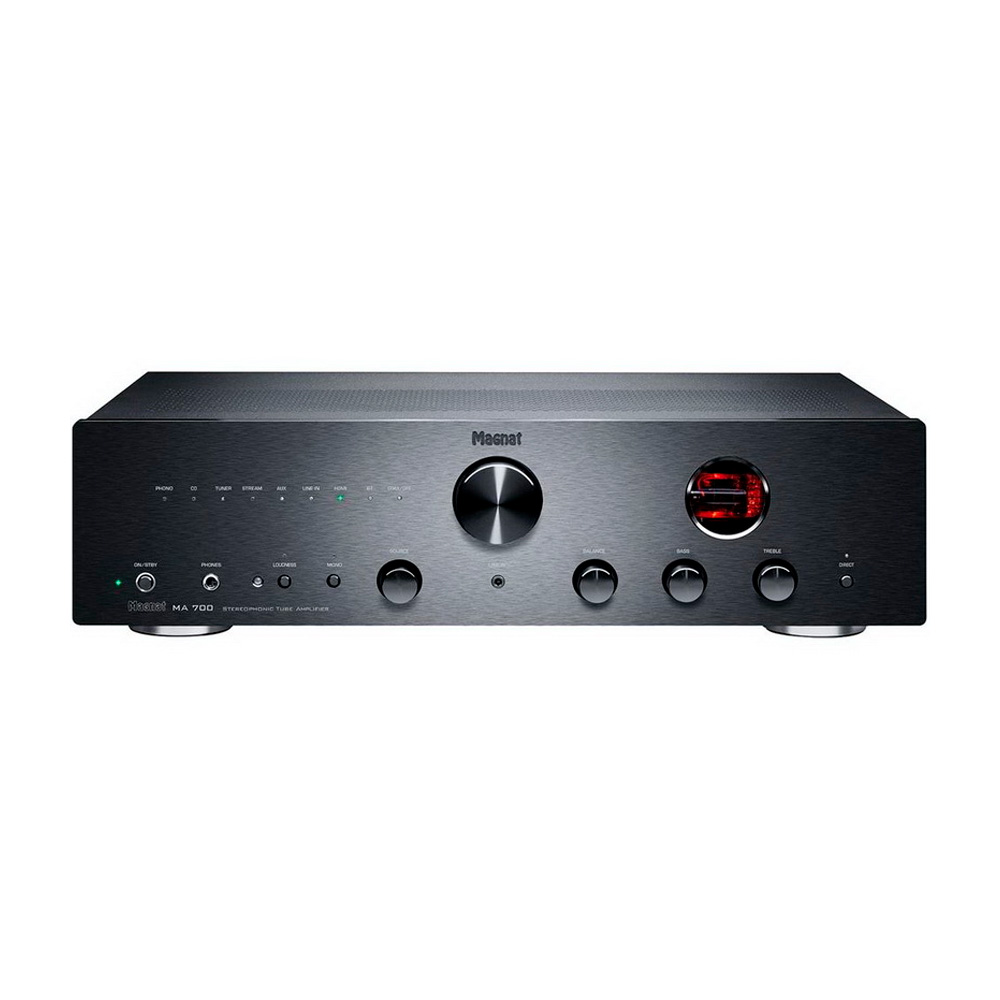

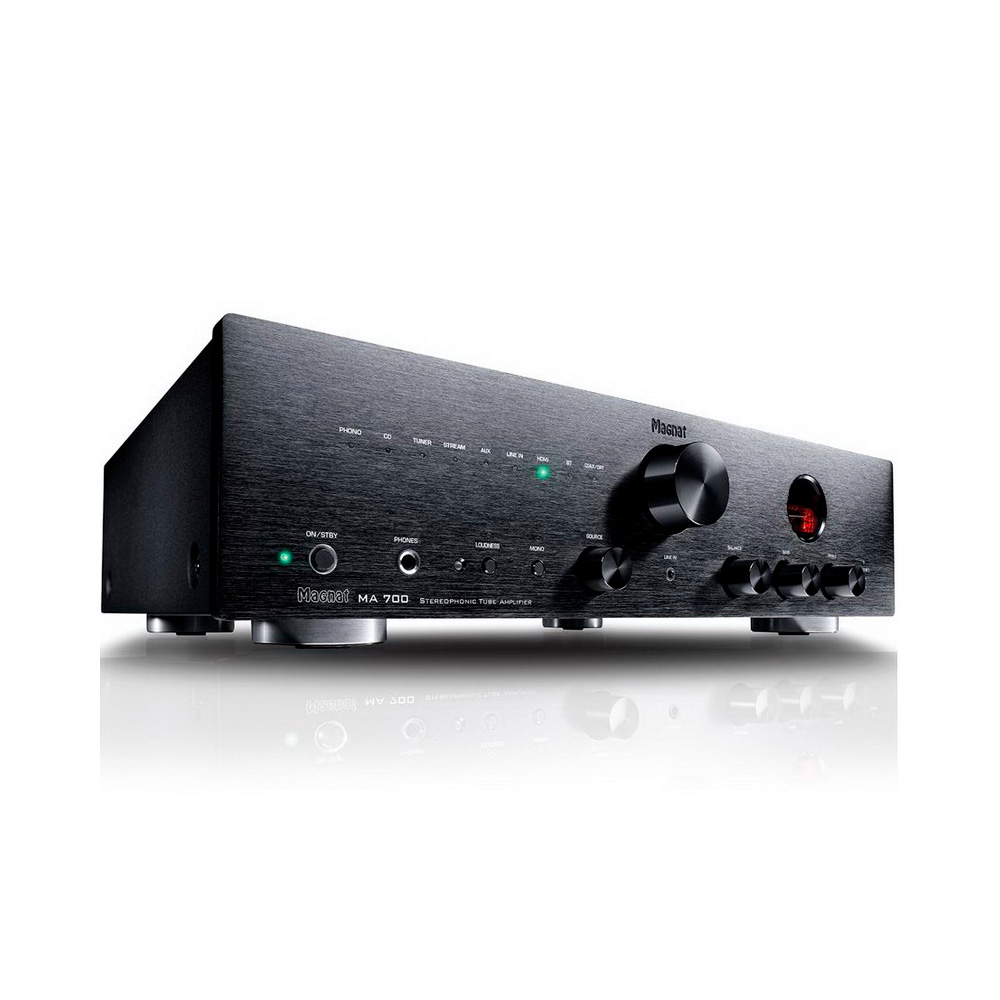

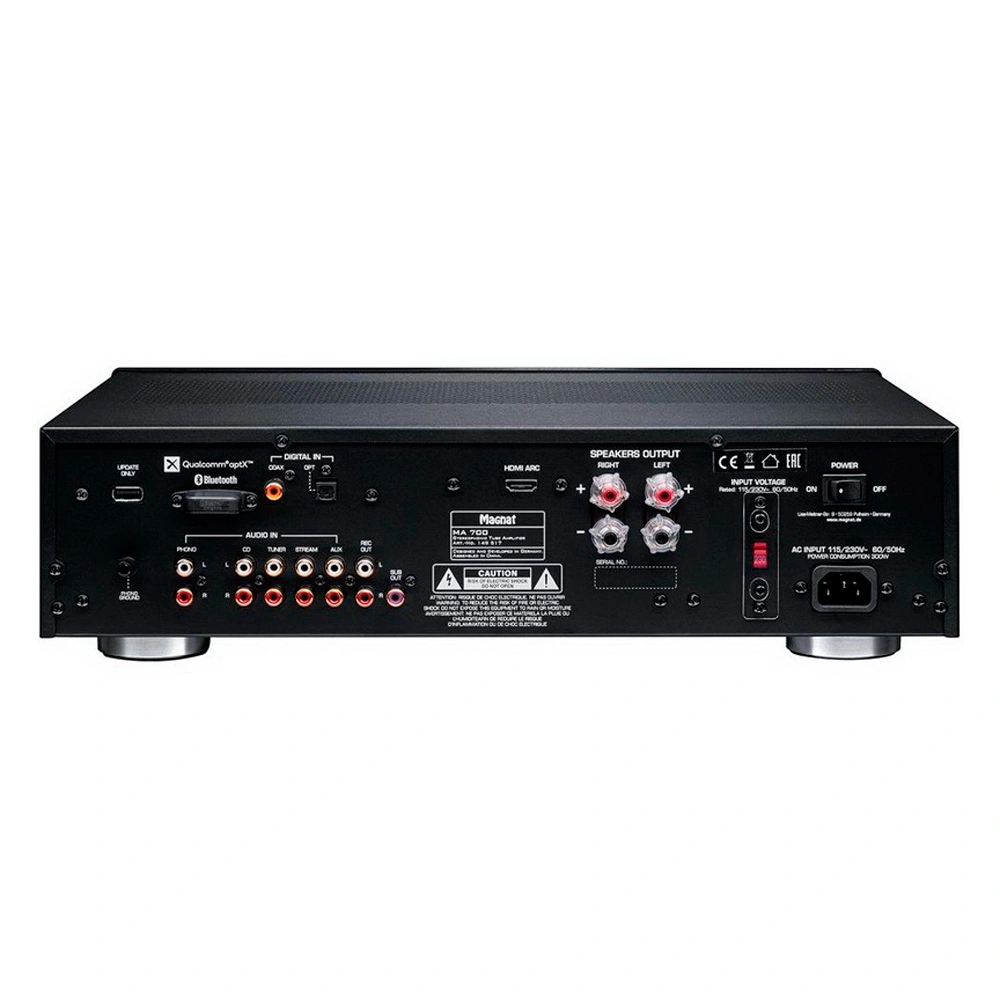

The power supply of the Magnat MA700 contains a special toroidal transformer and technology for separating circuits to ensure more stable and clean operation of the device. The fully metal housing is adorned with a robust aluminum front panel. Nine LEDs indicate the current selected input, and they can be dimmed in two stages. Control elements, such as rotary knobs for selecting the input, balance, bass and treble, as well as a large volume control knob, are also made of solid aluminum. On the right side - literally - an optical gleam: a round window through which the tube shines. The rear of the MA 700 is equipped with solid speaker terminals.

Package includes:

  • Amplifier;
  • Power supply;

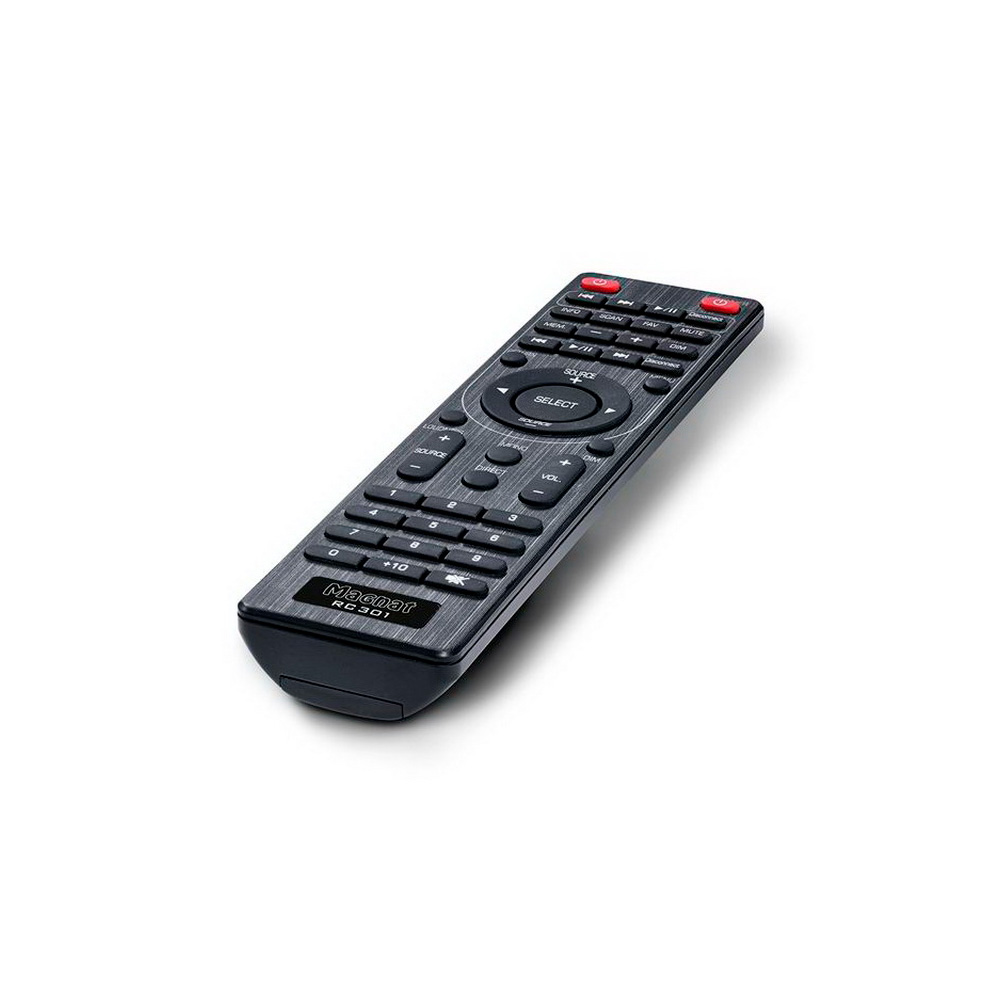

  • Remote control;
  • Documentation.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Power per channel at 4 ohms, W
70
Internal DAC
yes
Input connectors
RCA, S/PDIF, Toslink, HDMI
Output connectors
6.35mm jack, RCA
Headphone output
6.35mm jack
Phono stage type
MM
Circuit design
discrete

The circuit with transistors used.

Словарь терминов
Bluetooth version

Bluetooth is a short-range wireless technology that allows you to connect headphones or portable speakers, a stereo system or a soundbar to your smartphone or laptop. For a certain version to work, both devices must support it. The versions differ in data transfer speed, power consumption, securing data transfer, anti-interference ability and range of connection.

Glossary of terms
5.0
Remote controller

The remote controller simplifies the use of the device

Glossary of terms
yes
Network standards
Bluetooth
Form factor
stationary

For use on a table or in a rack.

Словарь терминов
Color
DAC bit depth, bits
24
Material
aluminum
Number of channels
2
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

Glossary of terms
192
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
102
Depth, mm
433
Height, mm
116
Width, mm
345
Weight, g
7400
Service life, months
24
Warranty, months
12
Show all characteristicsShow fewer characteristics
