In-Wall Speakers
Magnat IWT 262

Product code: 124301
no reviews

Description

Reviews (0)

Description

This speaker is designed for wall mounting. It can be used for both vertical and horizontal installation. The IWT 262 is perfect for use as a center speaker in home theaters when installed horizontally. Installation is usually done at ear level in the preferred listening position.

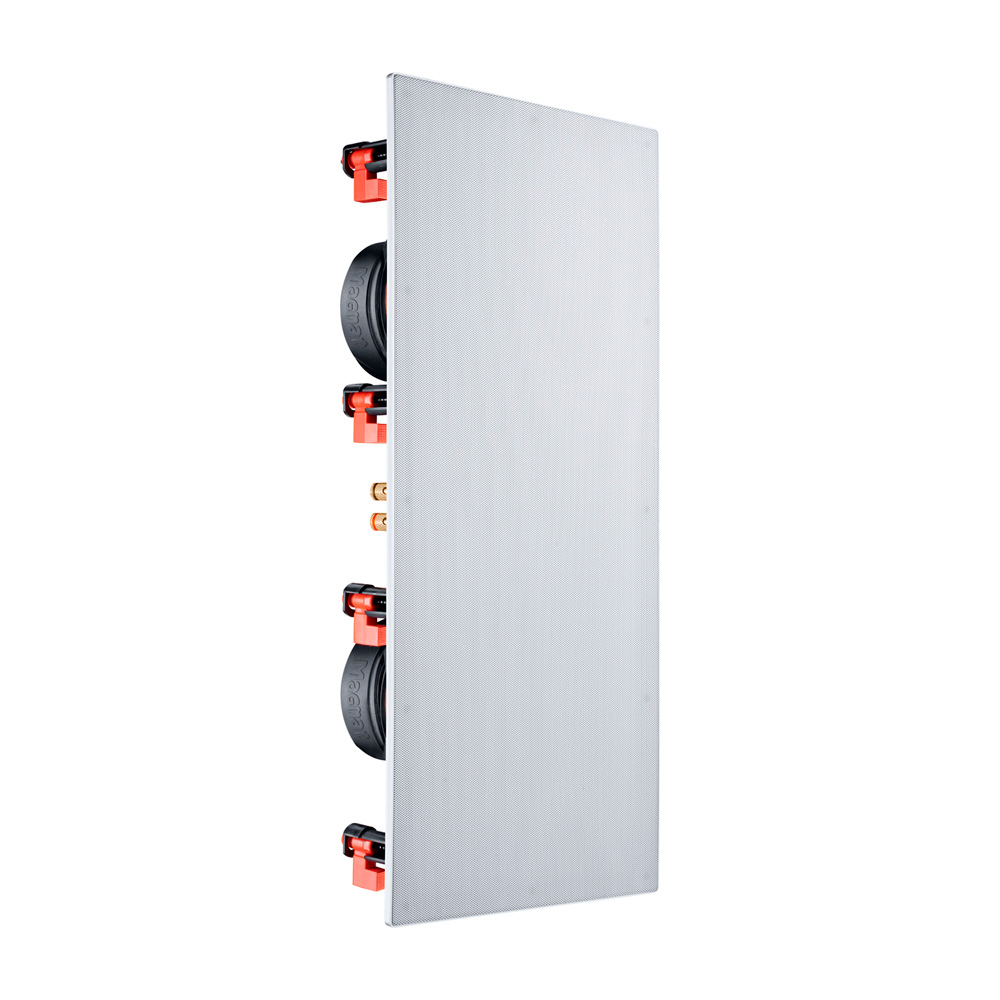

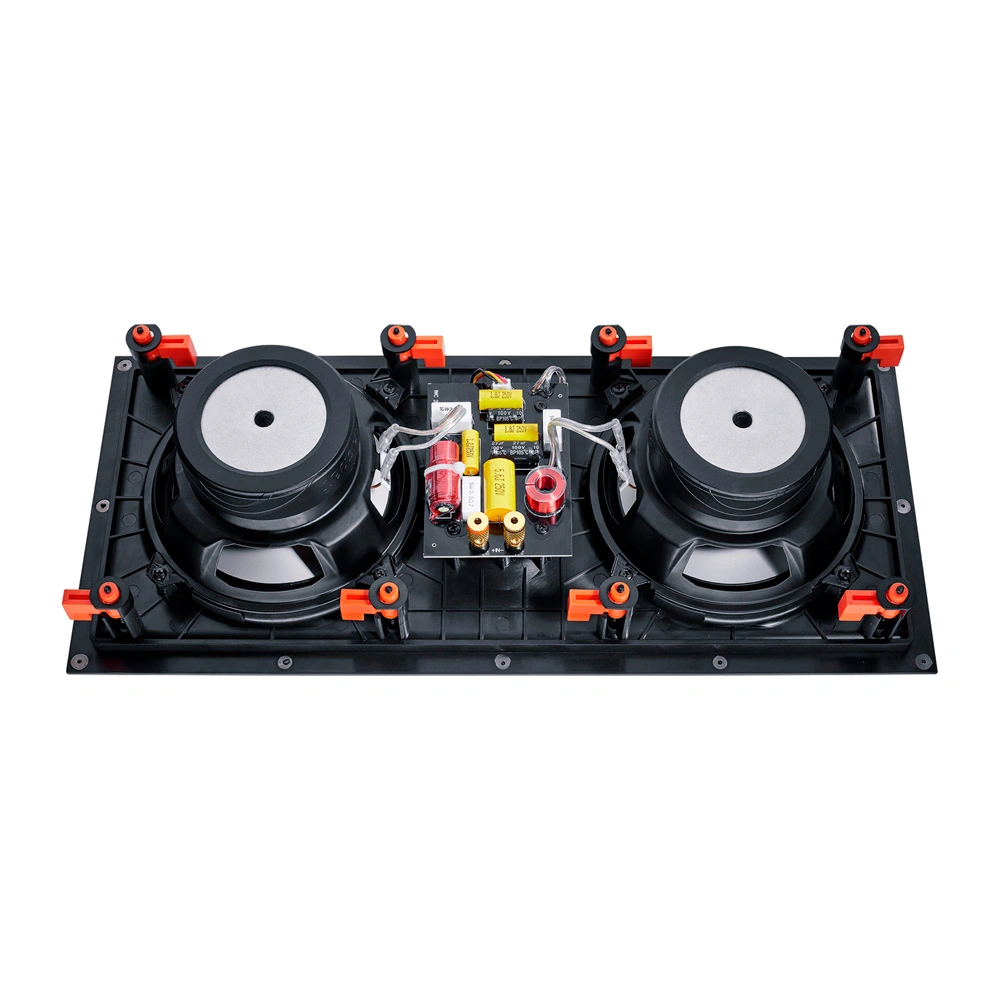

The Magnat SIGNATURE IWT series speakers are equipped with a clever clamping mechanism that allows for easy attachment in the wall's acoustic hole. The simplest way is to mount them on the ceiling or on walls made of drywall or similar surfaces. If there is a hole in a stone wall, an additional plate (such as rigips or wood) should be used. The clamping mechanism is suitable for wall thicknesses of 10-30 mm.

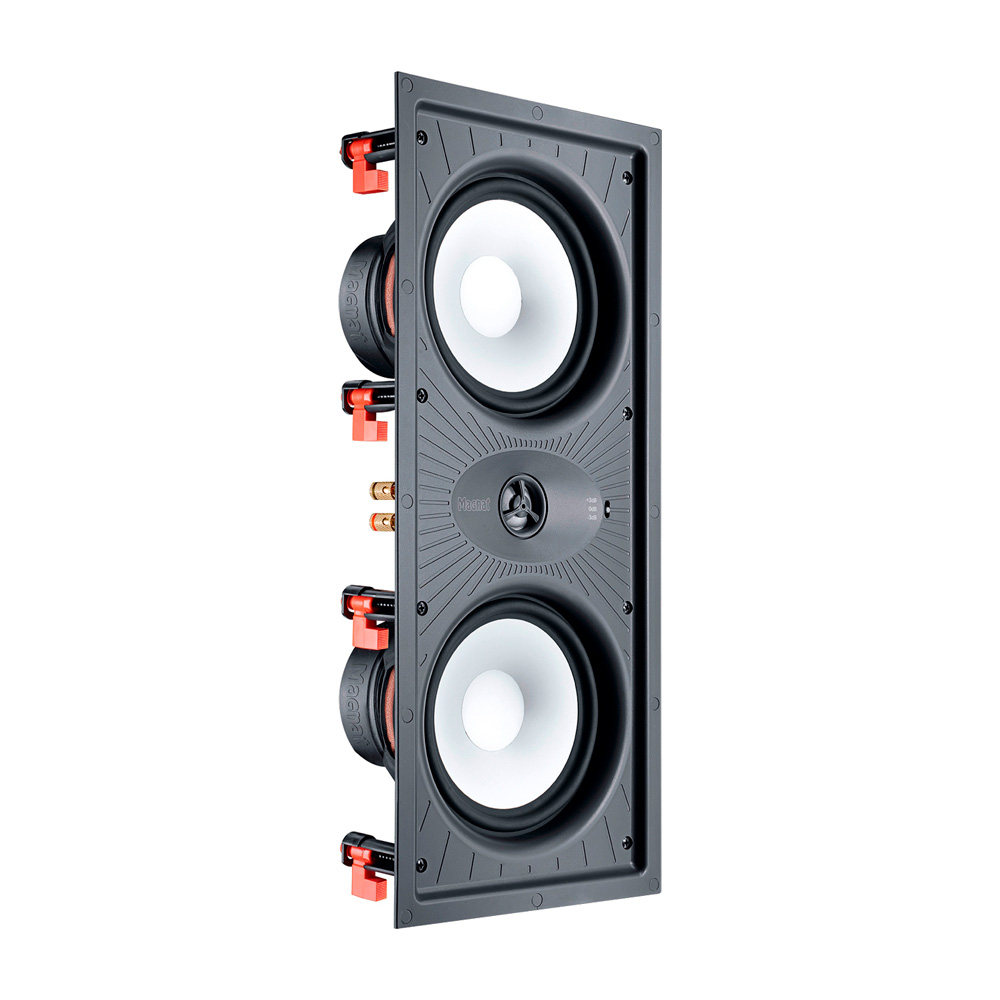

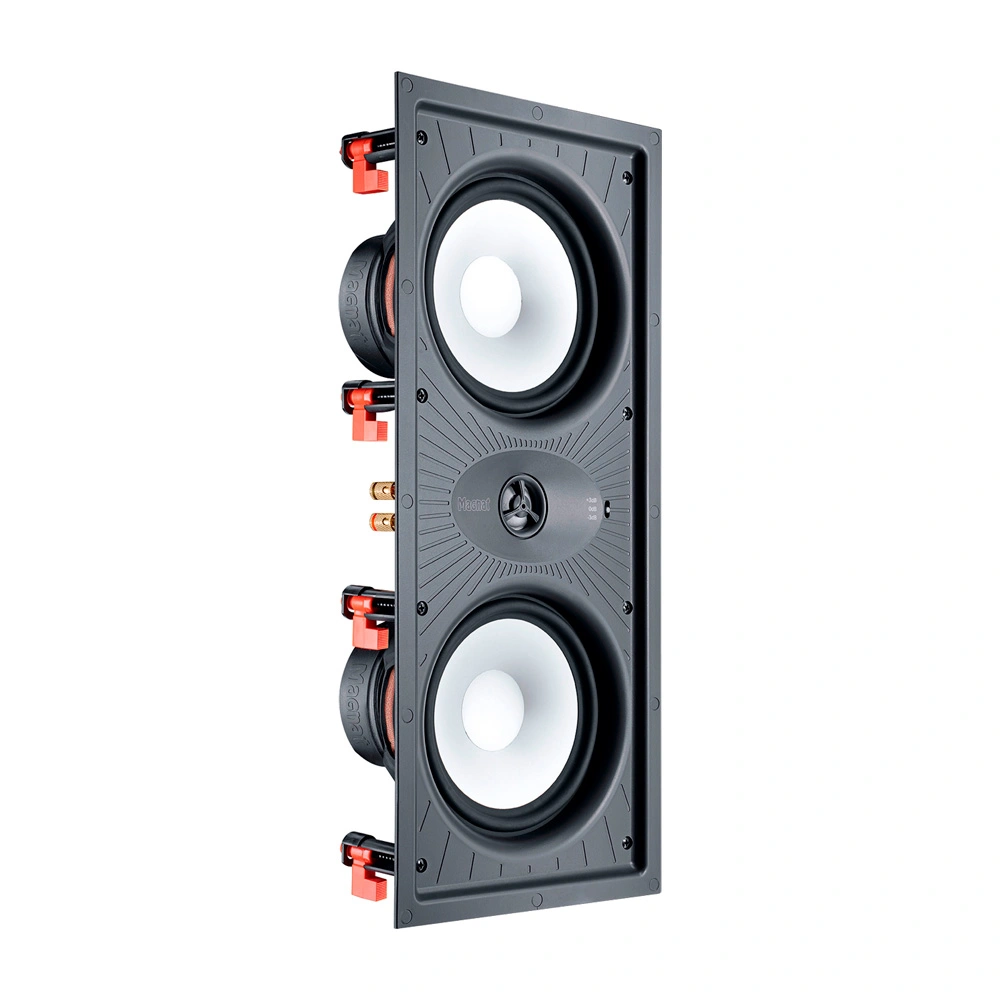

The largest model for wall mounting is the Signature IWT 262, which features two 16 cm low-frequency drivers and a high-frequency driver. The built-in speaker, designed for heavy-duty use, is ideal for complex stereo environments or as a front speaker (left/center/right) in a home theater. Thanks to its balanced dispersing properties, it can be used in both vertical and horizontal configurations. The latter makes it perfect for mounting under projector screens or flat-screen TVs. With a shallow mounting depth of only 100 mm, installation is straightforward even in rooms with limited space. The high-frequency level can be adjusted in three stages, allowing the sound to be adapted to the room's acoustics.

Features:

  • High-quality chassis technology with ceramic/aluminum low-medium frequency driver and fabric dome tweeter with coating;
  • High power in compact size;
  • Easy installation thanks to a thoughtful mounting system;
  • Perfectly complement the Signature series, allowing for individual combination with other speakers from the series;

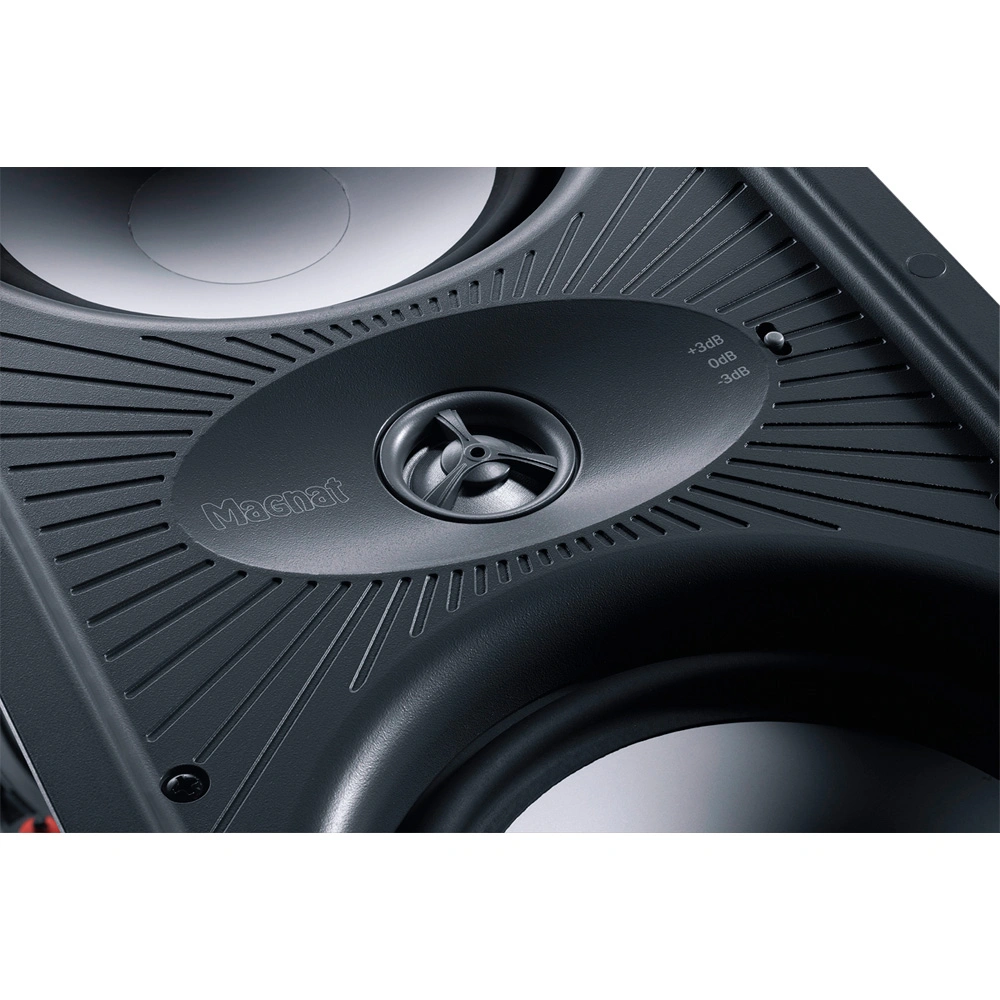

  • High-frequency level can be adjusted in 3 stages.

Package includes:

  • Speaker system;
  • Documentation.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Color
Connection method
stereo
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
4
Mount type
bracket
Number of lanes
two-lane

Two speakers where each is responsible for its own frequency band.

Словарь терминов
Power, W
200
Removable panels
yes
Sensitivity, dB

A value describing the volume of the device in relation to the level of power supplied

Glossary of terms
91
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
28
The lowest frequency, Hz
30
Type of speakers
passive in-wall
Depth, mm
100
Height, mm
491
Width, mm
220
Weight, g
3420
Service life, months
24
Warranty, months
12
