Bookshelf speakers
Magnat ATM 202 Black

Product code: 124312
no reviews

Description

Reviews (0)

Description

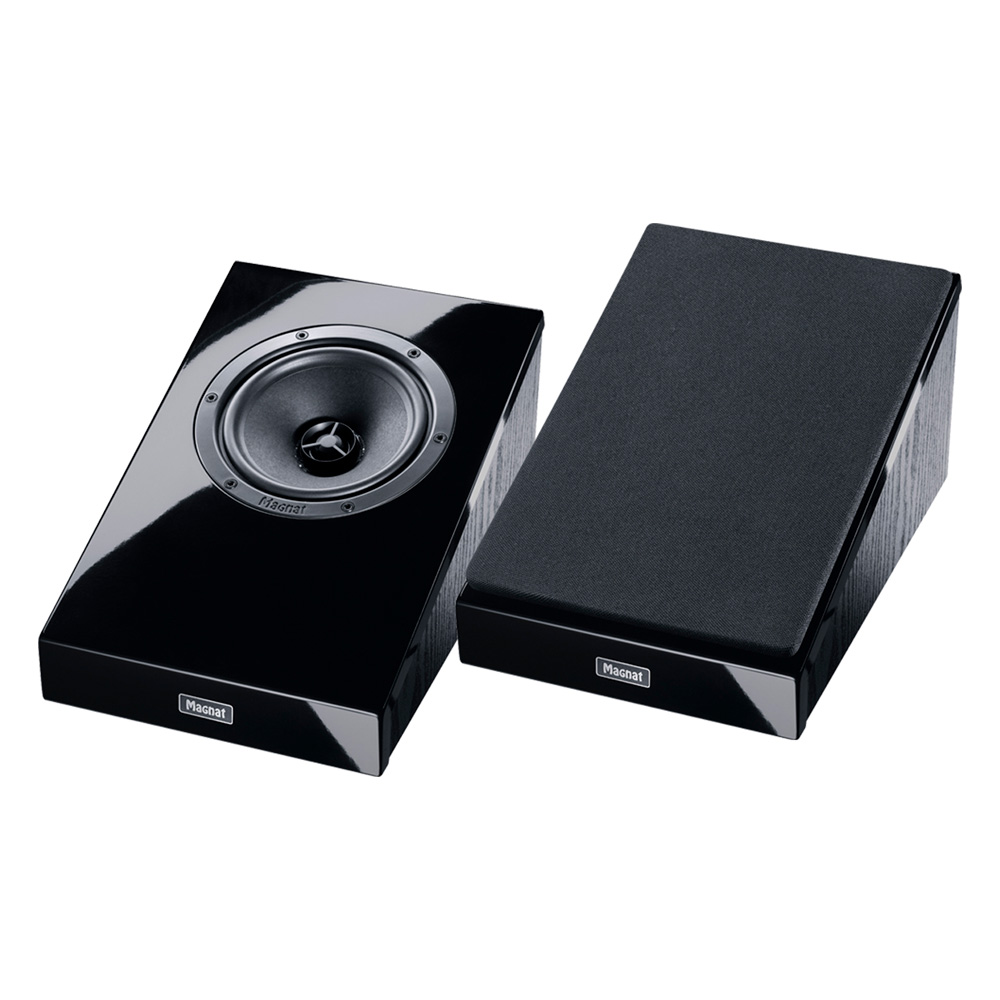

Magnat ATM 202 - Dolby Atmos Speaker System.

Features:

  • 20mm tweeter with fabric dome and neodymium magnet;
  • 130mm woofer with a lightweight paper diffuser, special coating, and highly efficient voice coil;
  • the speaker system is designed in accordance with strict Atmos technology requirements;

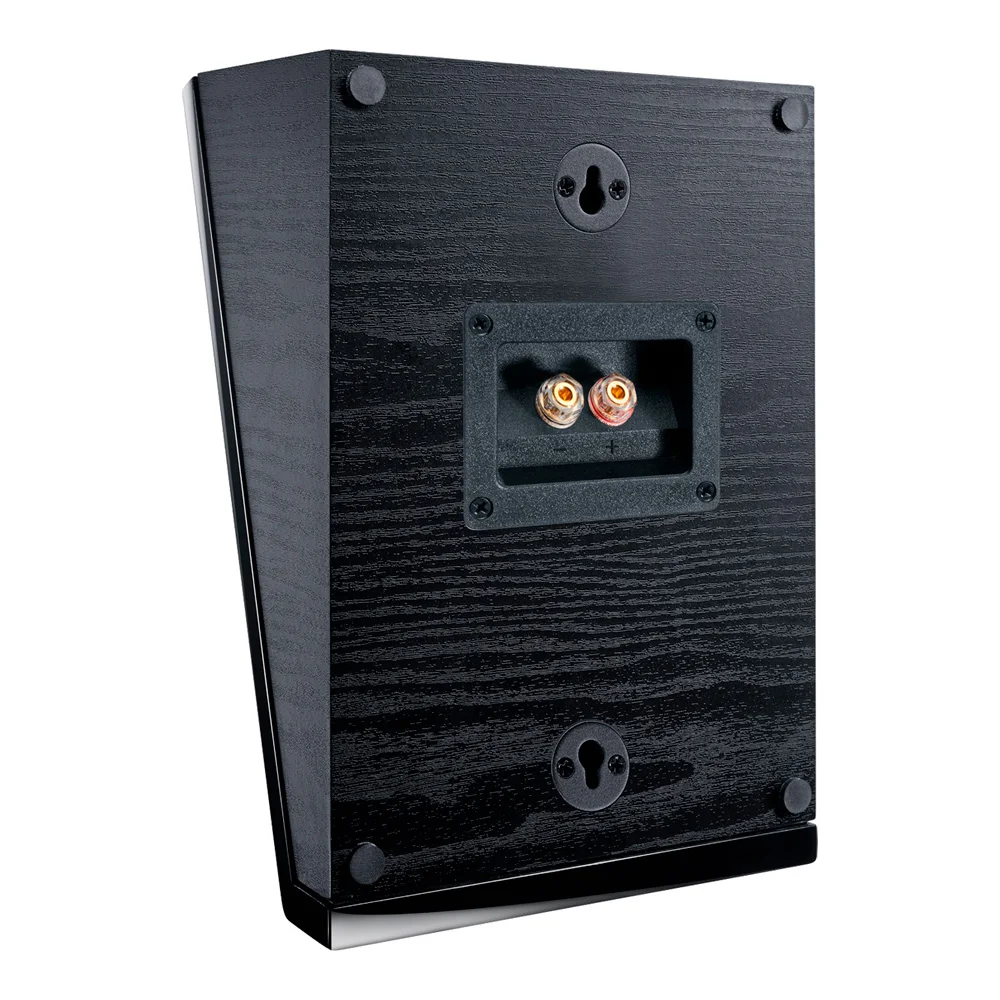

  • large terminals with thick gold-plated screw contacts;
  • amplitude and phase-optimized crossover with protection against high-frequency overload;
  • durable and attractive console-shaped enclosure with acoustic screen and front panel with glossy lacquer finish;

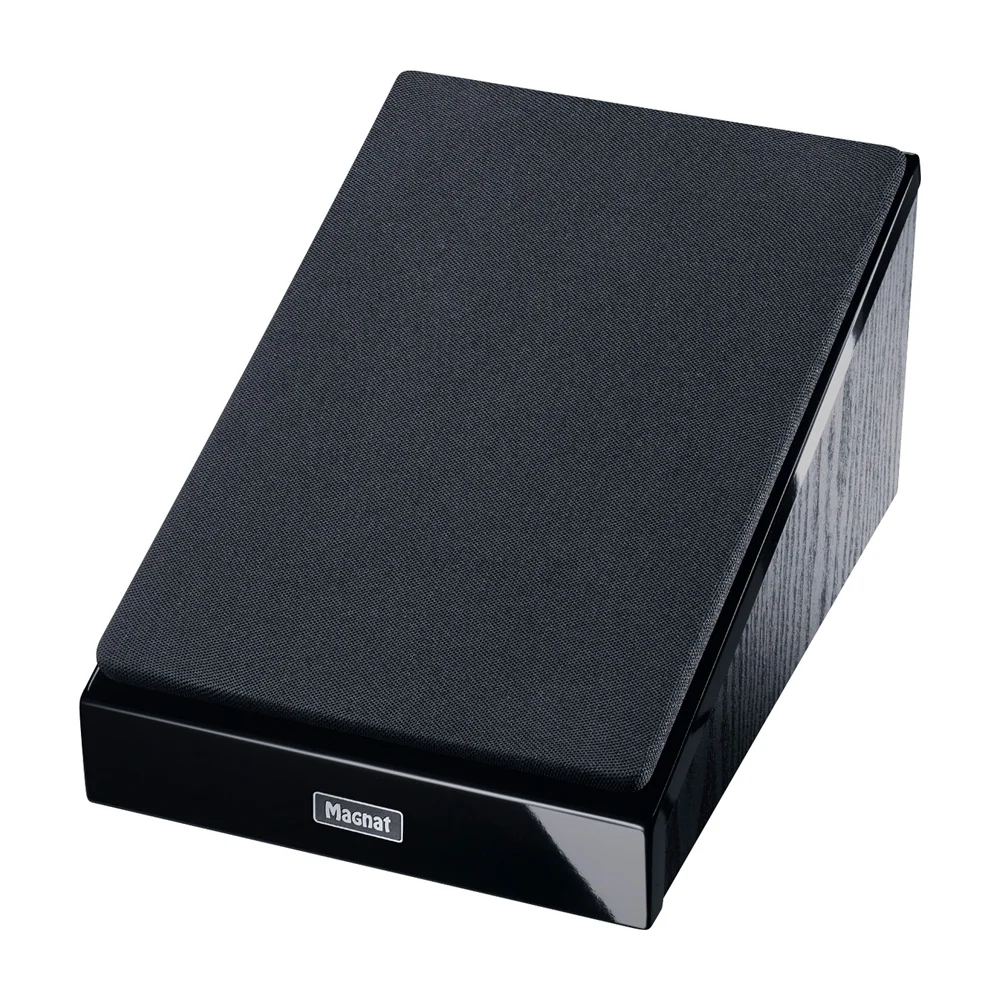

  • removable protective grille with optimal sound transmission on magnetic mounting;
  • anti-resonant rubber feet.

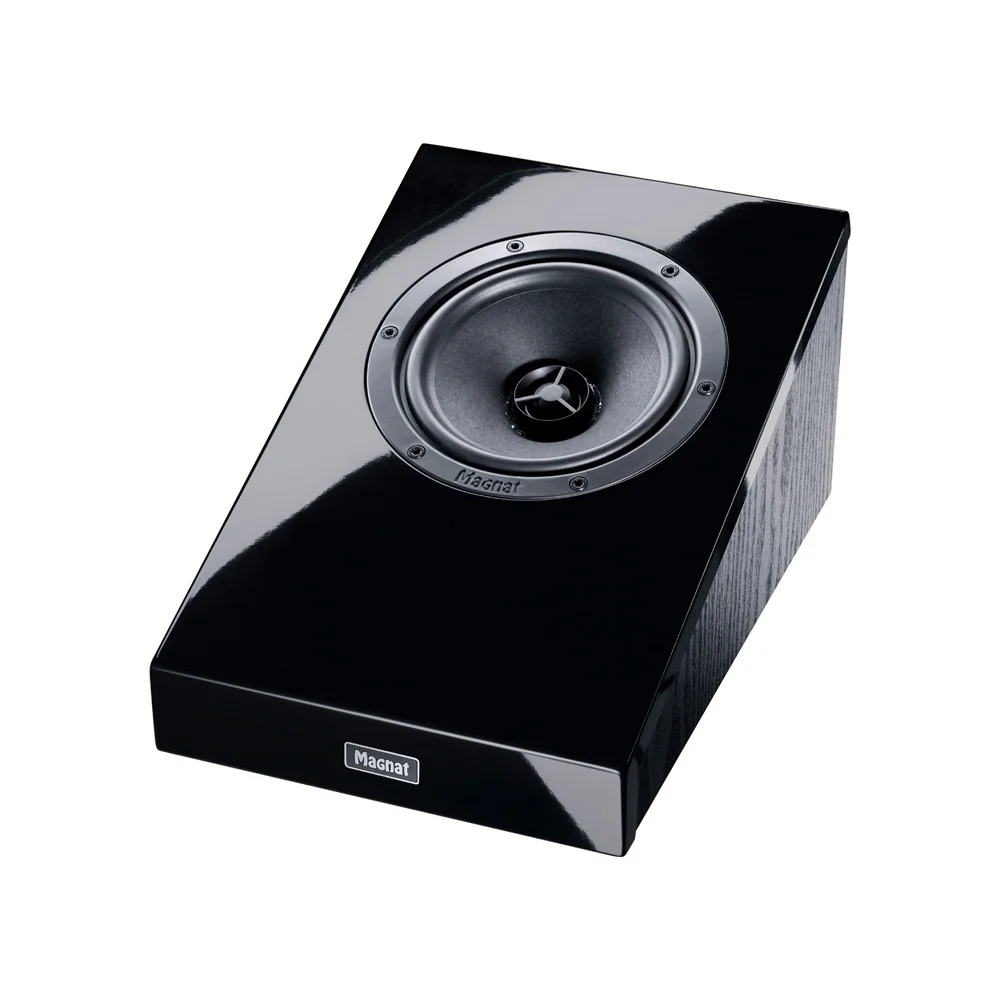

The coaxial speaker, specially designed in accordance with Atmos directives, combines a 20mm tweeter with a 130mm mid-bass woofer. The tweeter has a fabric dome and a powerful neodymium drive. The mid-bass woofer has a lightweight paper membrane with a special coating and a durable voice coil. All components are housed in a sturdy metal basket, which is elegantly concealed by a decorative ring with hexagonal threading on the front. The recommended amplifier power ranges from 20 to 100 watts. The crossover is optimized for amplitude and phase and meets strict Dolby Atmos requirements. The massive enclosure perfectly complements existing speakers or harmoniously integrates into the decor when wall-mounted.

Package includes:

  • speaker system - 2 pcs;
  • documentation.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Color
Connection method
stereo
Diameter of the woofer, mm
130
Impedance, Ohms

No higher than 32 Ohms for smartphone headphones. When using a good player or amplifier, it can be up to 100 Ohms. For stationary models you should coordinate the impedance with the amplifier power

Glossary of terms
6
Material
MDF
Mount type
body
Number of lanes
two-lane

Two speakers where each is responsible for its own frequency band.

Словарь терминов
Power, W
50
Removable panels
yes
Sensitivity, dB

A value describing the volume of the device in relation to the level of power supplied

Glossary of terms
88
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
36
The lowest frequency, Hz
50
Tweeter size, mm
25
Type of speakers
passive in-wall
Depth, mm
280
Height, mm
152
Width, mm
190
Weight, g
6400
Country of origin

The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

Glossary of terms
Germany
Service life, months
24
Warranty, months
12
