Cinema Ultra AEH 400-ATM Wall Speakers
The AEH 400-ATM are innovative 2-way wall speakers produced by the well-known German company Magnat. They are part of the Cinema Ultra series of speaker systems. These speakers are typically used in Dolby Atmos systems. With their small size and relatively high power, these speakers are ideal for setting up home theaters and building multi-channel music systems.
Features:
- Expand your home theater system to third-dimensional sound for a flawless spatial audio experience;
- Compact and efficient additional speakers suitable for a wide range of applications;
- Highly efficient coaxial configuration of drivers with a 13 cm woofer/midrange driver and a 25 mm dome tweeter;
- Can be used as additional speakers in a Dolby Atmos setup above the LCR 100-THX or as overhead speakers on the wall or ceiling;
- Switchable crossover to ensure optimal sound quality in any application area.
Design and Construction:

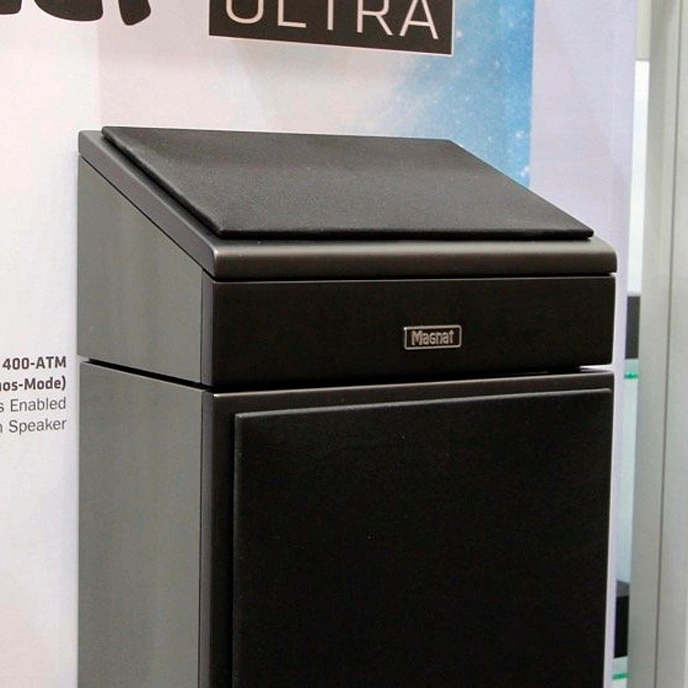

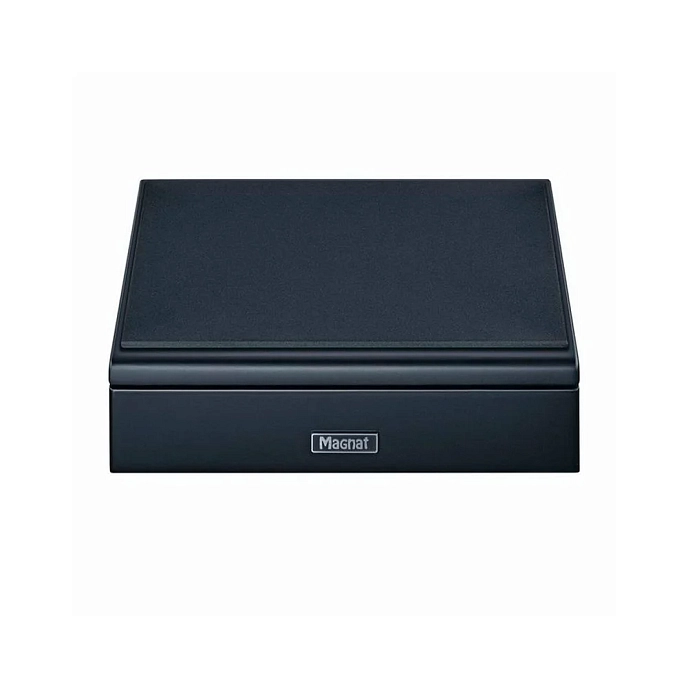

The Cinema Ultra AEH 400-ATM speakers have a trapezoidal design with dimensions of 150 x 280 x 188 mm and a weight of 3.7 kg. These compact speakers are typically wall-mounted or placed on floor-standing speakers, shelves. The speakers have a seamless, robust enclosure available in a single black vinyl finish. They come with a removable fabric grille to protect the drivers from dust and enhance the design.
Thanks to the unique angled front panel, these speakers deliver spacious sound for high-frequency channels, resulting in a true 3D audio experience. They provide a natural and realistic reproduction of even the slightest sounds from movies and music compositions.

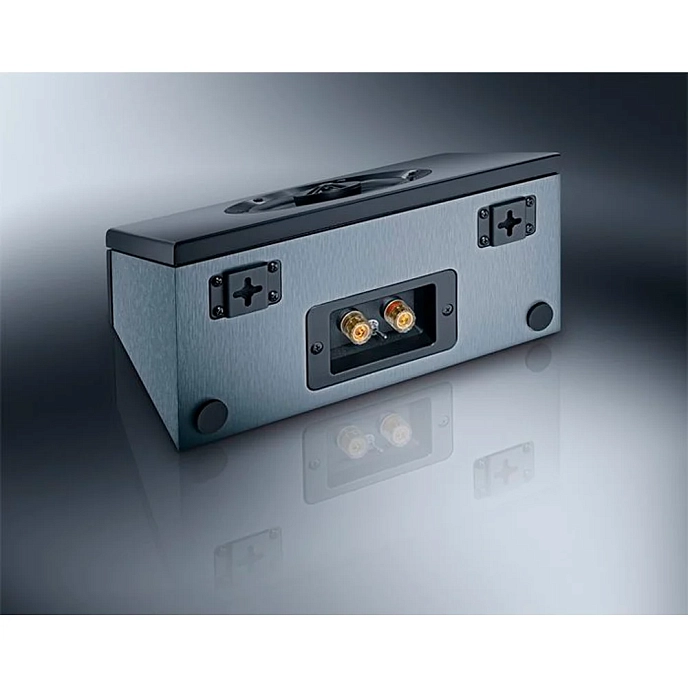

In addition to being used as overhead channel speakers, the Magnat Cinema Ultra AEH 400-ATM speakers feature built-in wall mounting brackets, allowing for easy installation on walls as stereo or standalone effect speakers or as part of existing home theater systems. They are connected using standard gold-plated screw terminals with "banana" type connectors.
Drivers and Sound Characteristics:

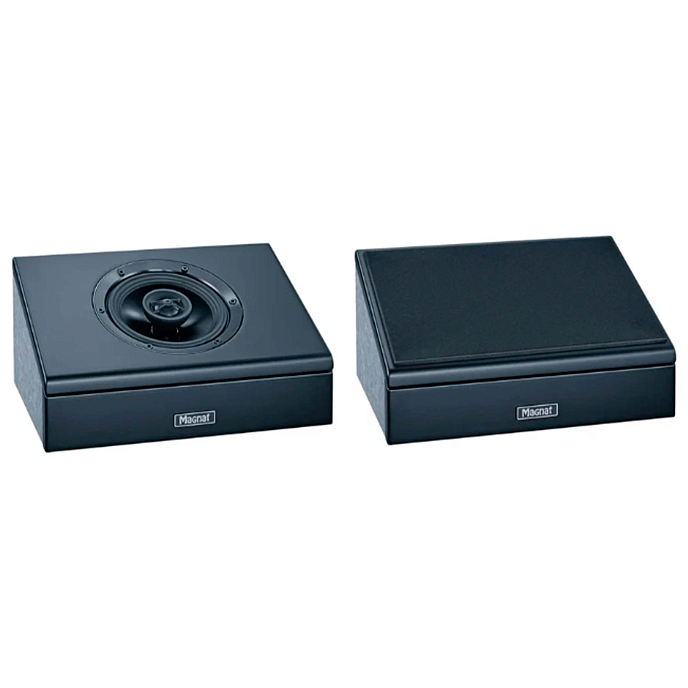

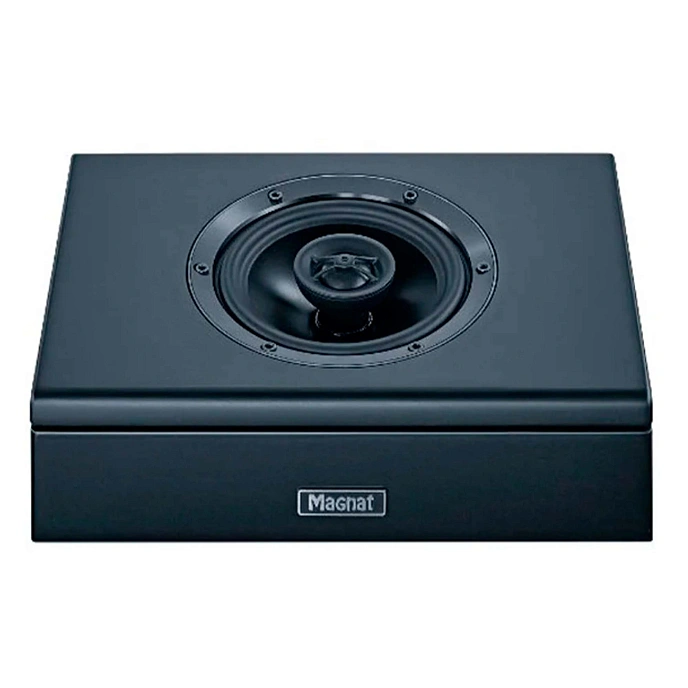

The Magnat Cinema Ultra AEH 400-ATM speakers feature a dual driver design with a 25 mm dome tweeter and a 133 mm midrange/woofer driver with a cone diaphragm. Typically, amplifiers ranging from 50 to 120 W are used with these speakers. The drivers deliver quality sound across the frequency range from 45 Hz to 37 kHz. The overall frequency range is divided by a high-quality crossover at 3500 Hz. The speaker system has a sensitivity of 89 dB and an impedance of 6 ohms.
Package Includes:
- Speaker system - 2 pcs;
- Documentation.
