The Mix series of compact mixers provides the same excellent quality you can expect only from the world leader in compact mixers, Mackie. This professional and affordable series is made entirely of high-quality components, installed in a sturdy metal casing, and is characterized by a design suitable for various sound reinforcement applications. Thanks to Mackie preamps, ample power reserves, and low noise levels, the Mix series will provide you with superior sound from any source.

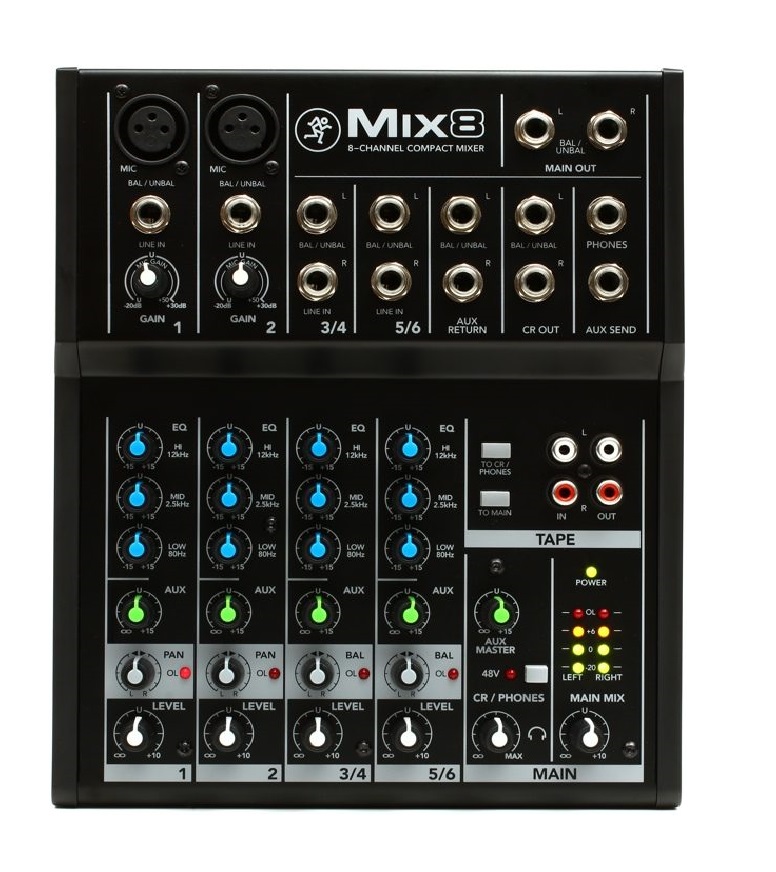

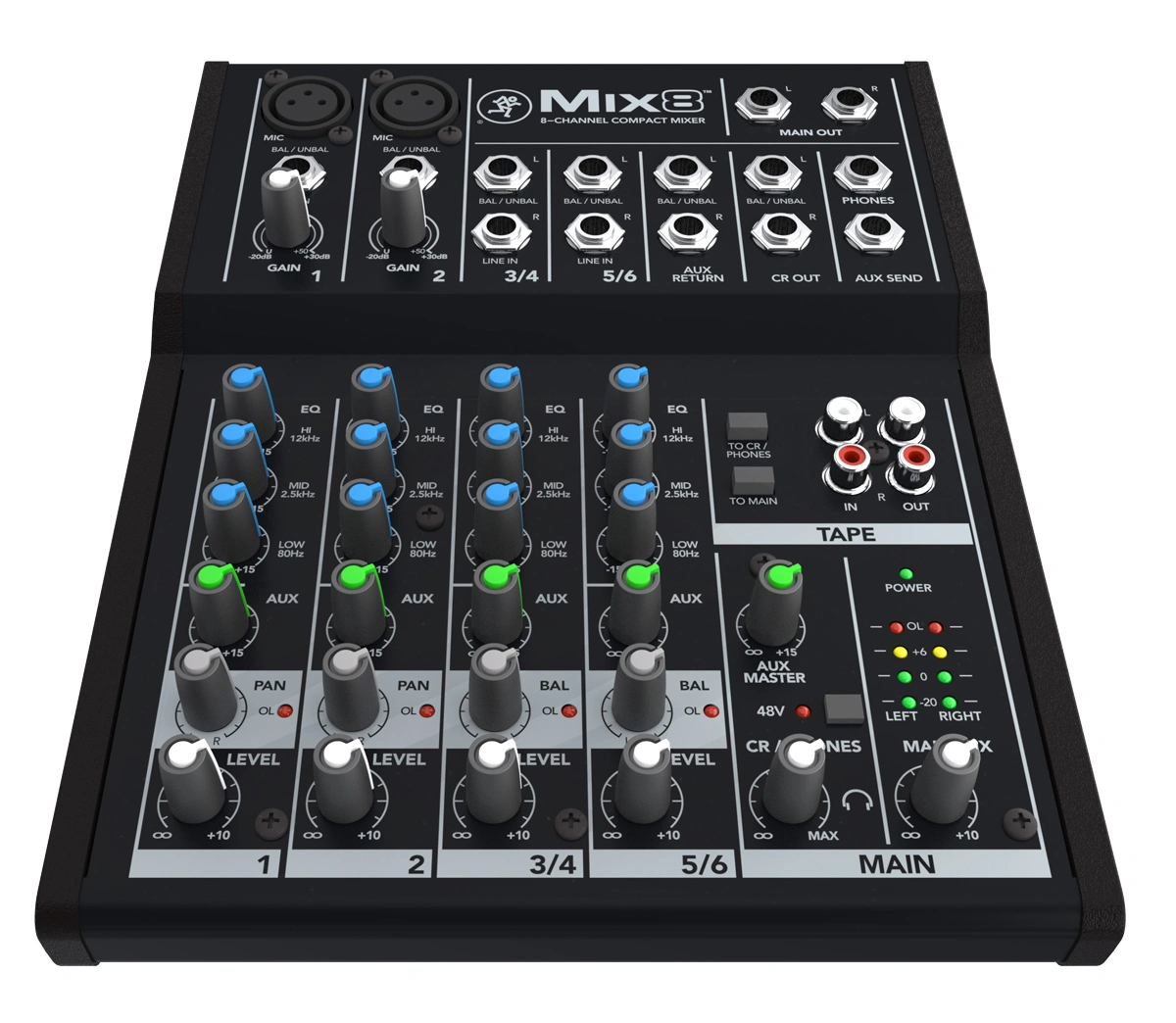

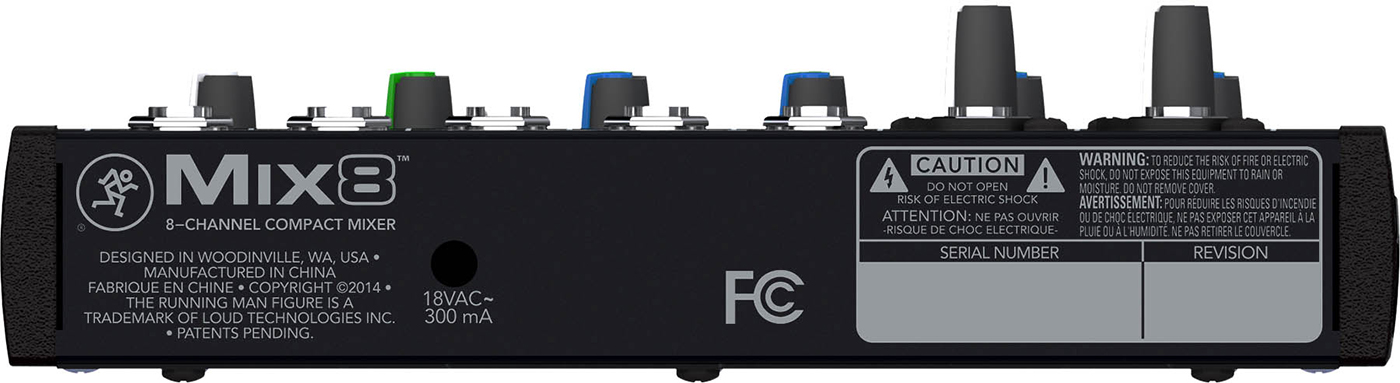

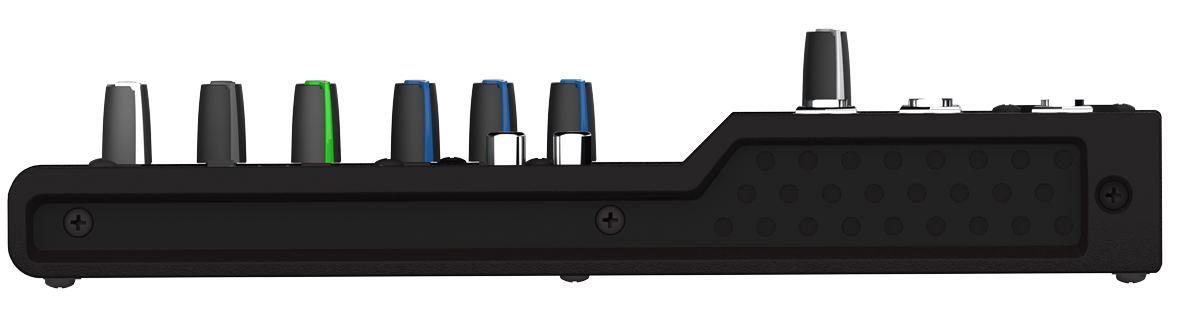

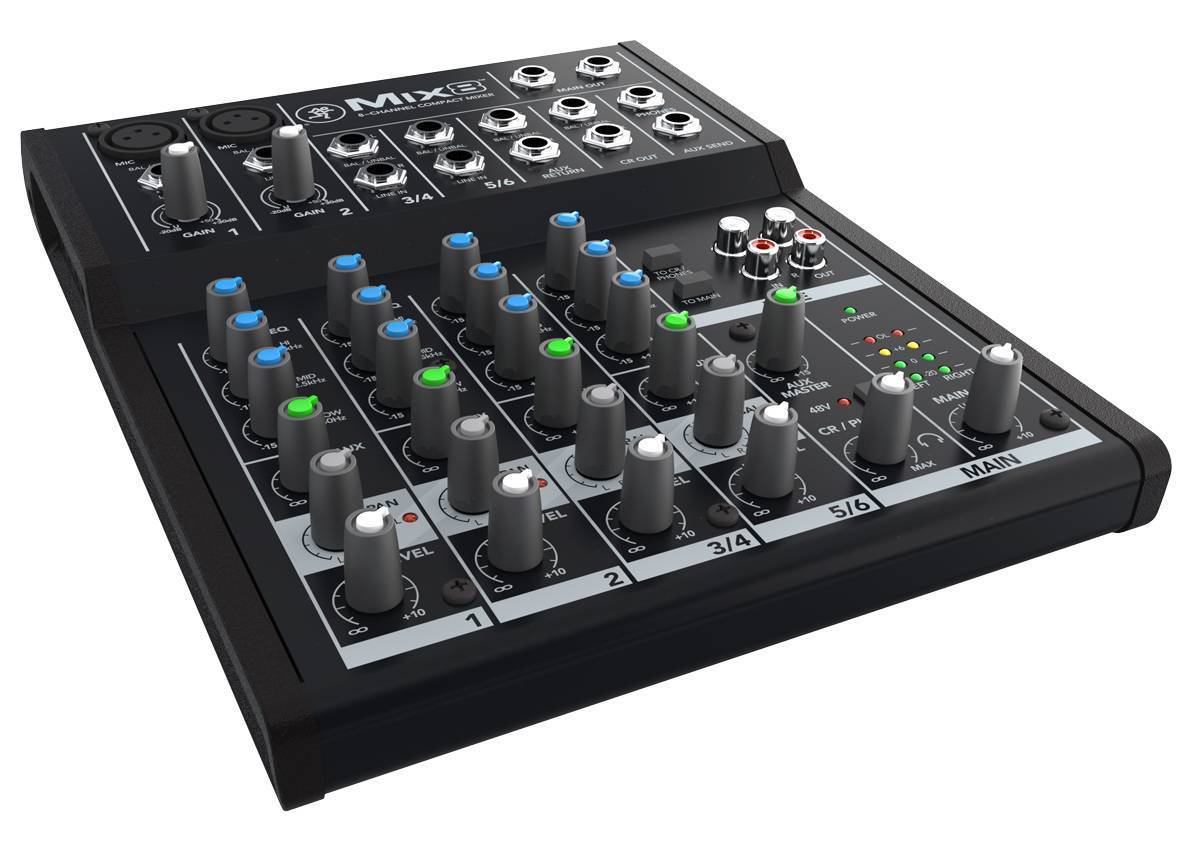

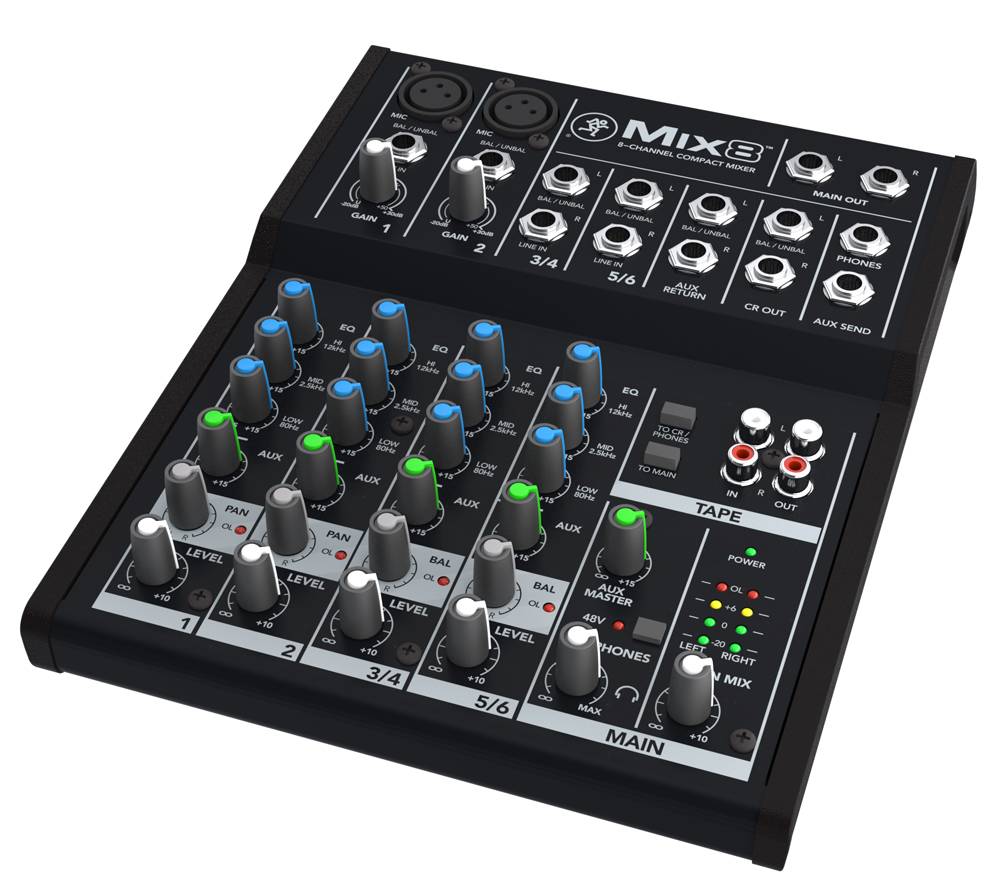

The Mix8 is an 8-channel compact mixer equipped with high-quality components, housed in a sturdy metal casing, and specially designed for a variety of sound reinforcement applications. The mixer features 2 mic/line inputs with 48V phantom power and 2 stereo 1/4" line inputs capable of accepting dynamic and condenser microphones, keyboards, DJ devices, portable players, and much more. The mic/line inputs have XLR and 1/4" connectors, a 3-band equalizer, aux send, level control, panning, and overload LED indicators. Each of the two stereo 1/4" line inputs also has an aux send, a 3-band equalizer, level and balance controls, and an overload LED indicator.
Features:
- 8-channel compact mixer with low noise levels;
- 2 studio-quality mic/line inputs;
- Pan, level, and overload indicators;
- Phantom power for studio condenser microphones;
- 2 stereo 1/4" line inputs;
- Level, balance, and overload indicators;
- 3-band equalizer with precise tone control on all channels;
- 1 aux send with stereo 1/4" return;
- Stereo RCA input/output for recording and playback;
- Main L/R outputs;
- Headphone output and stereo control room output;
- Sturdy and durable design.
Technical Specifications:
- Frequency range: 20 Hz - 30 kHz;
- THD+N: <0.25% @ +4 dBu;
- Equivalent input noise level: -125 dBu;
- CMRR: greater than -70 dB;
- Resistance:
- Microphone input 3.8 kΩ;
- All other inputs 10 kΩ;
- Tape output 1 kΩ;
- Phone output 22 Ω;
- All outputs 120 Ω unbalanced, 240 Ω balanced;
- Power supply: 230 VAC, 50/60 Hz;
- Dimensions: 53 x 198 x 244 mm;
- Weight: 1.1 kg.
