Headphone Amplifiers and DACs
HIFIMAN EF400 Silver Black

Product code: 141828
no reviews
AED 2,160
Delivery from the supplier's remote warehouse.
We will contact you within 48 hours to clarify the delivery time.

Description

Reviews (0)

Description

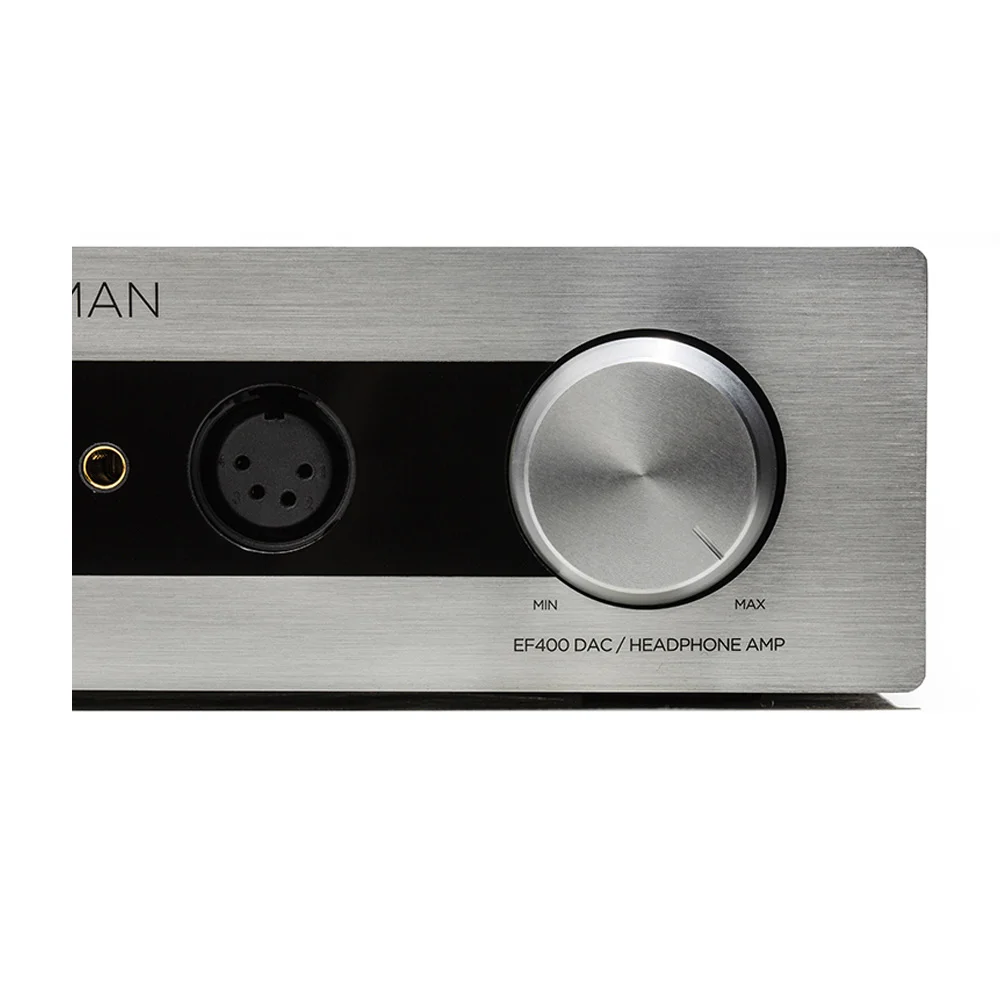

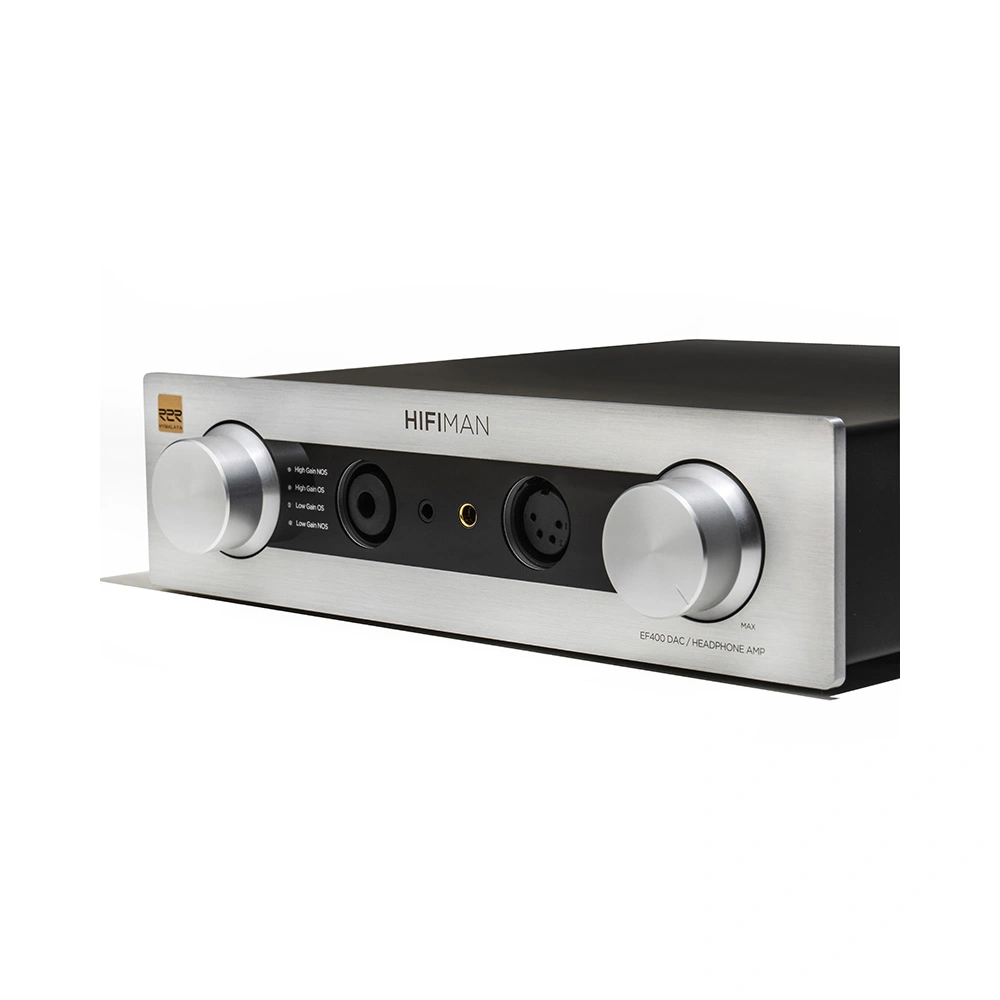

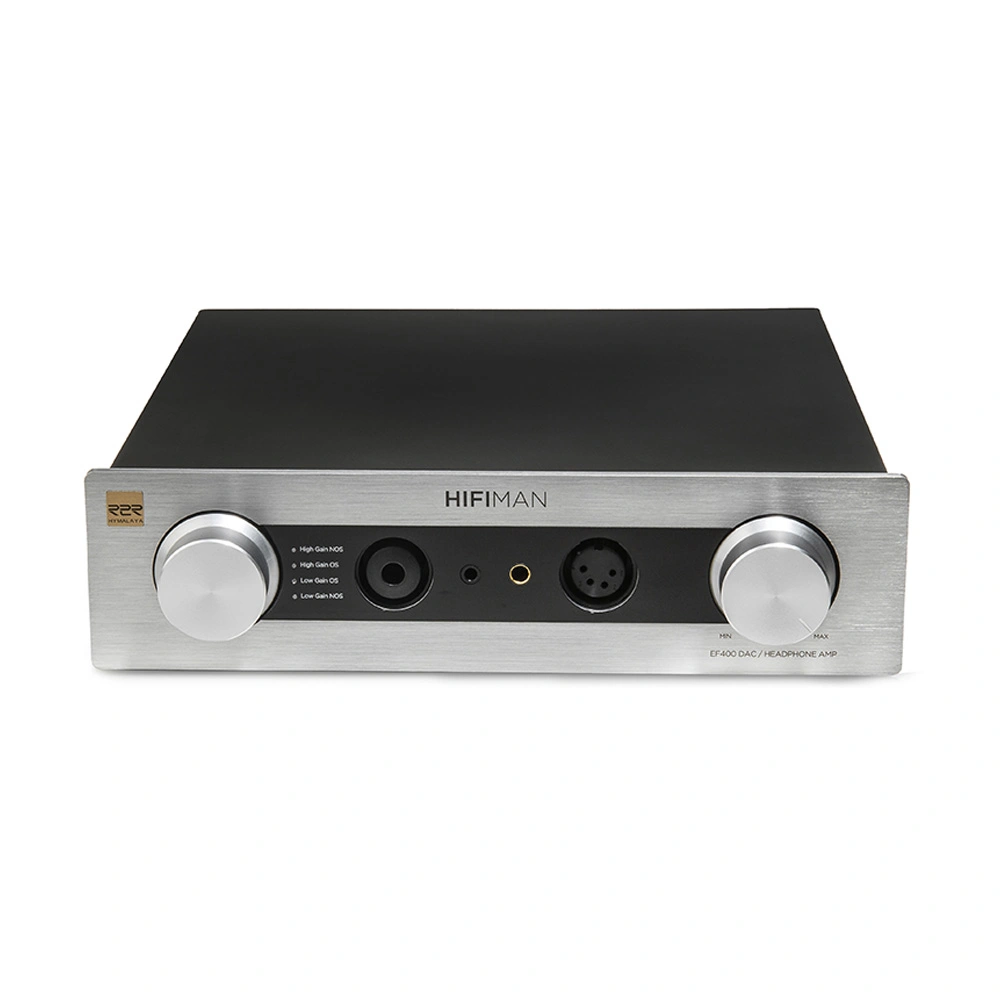

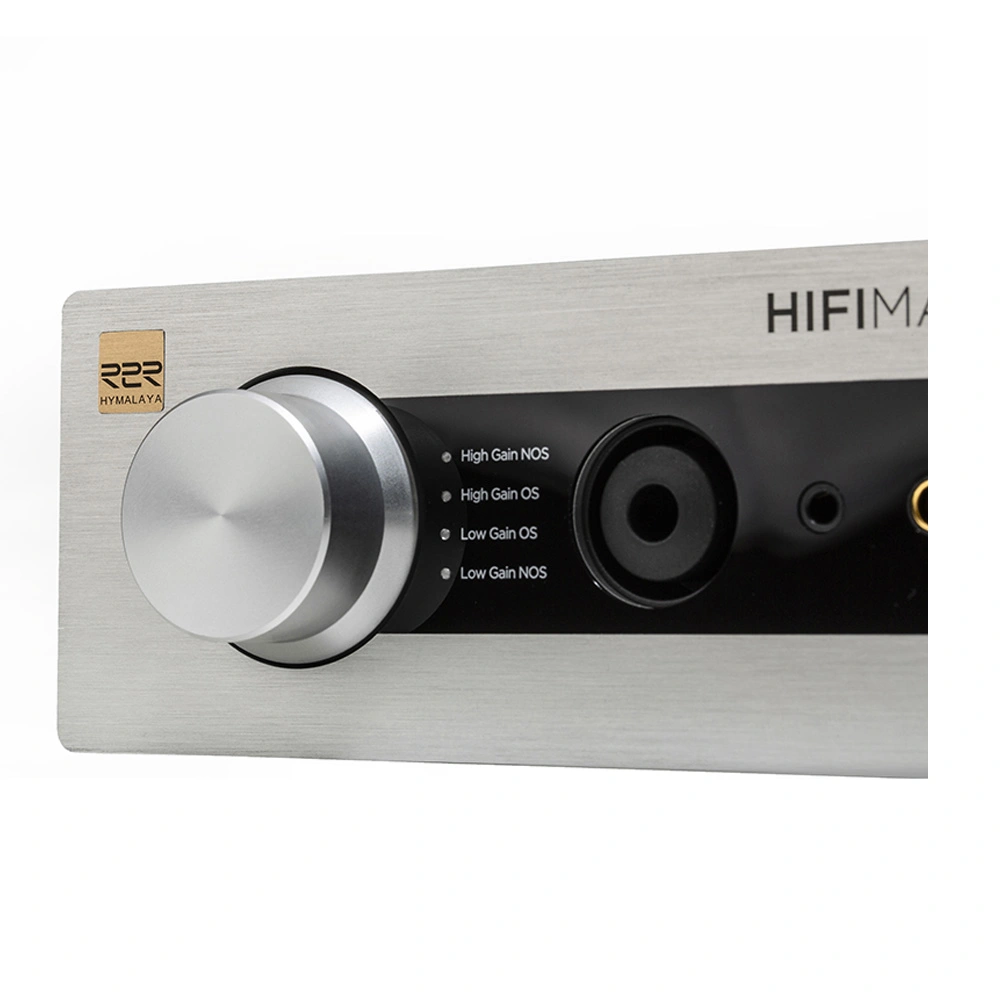

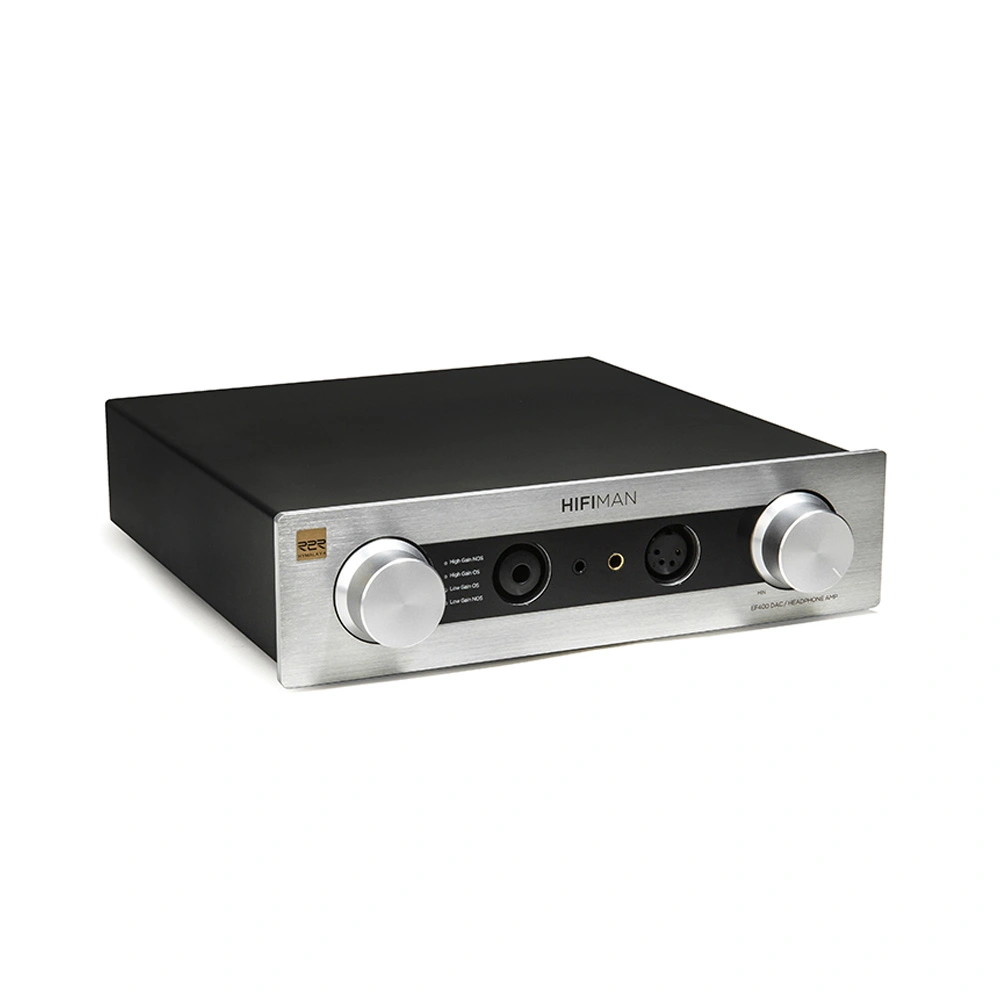

HiFiman EF400

The HiFiman EF400 is the latest desktop DAC/AMP on the market. This DAC/Amp is compact and reasonable in size, measuring 246.5mm long, 228mm wide, and 61mm tall. Despite its moderate size, it has a solid chassis that can support various items on top of it, such as a monitor or a laptop, although using a laptop is not recommended for heat dissipation reasons.

Key Features:

  • Full PCM decoding up to 24bit / 768kHz
  • Chipset: 2x HIMALAYA R2R DAC
  • Output power: up to 4400mW per channel
  • Outputs (headphones): 3.5mm TRS / 6.35mm TRS / 4.4mm Pentaconn / XLR 4 pins

Made entirely of aluminum, the HiFiman EF400 has a premium look and feel that makes it a standout piece in your setup. The device is complemented by large knobs on the front panel, four headphone outputs (two balanced + two single-ended), two line outputs (XLR + RCA), and two USB inputs - making it a pure DAC.

The HiFiman EF400 is a pure DAC with only USB-C and USB-A inputs, excluding Optical or Coaxial inputs. This minimalist design allows for versatility in file compatibility and streaming through one port.

Overall, the HiFiman EF400 boasts impressive specs that can rival top AKM/ESS/Texas-Instruments DACs, delivering a distinct sound signature only found in R2R chipsets.

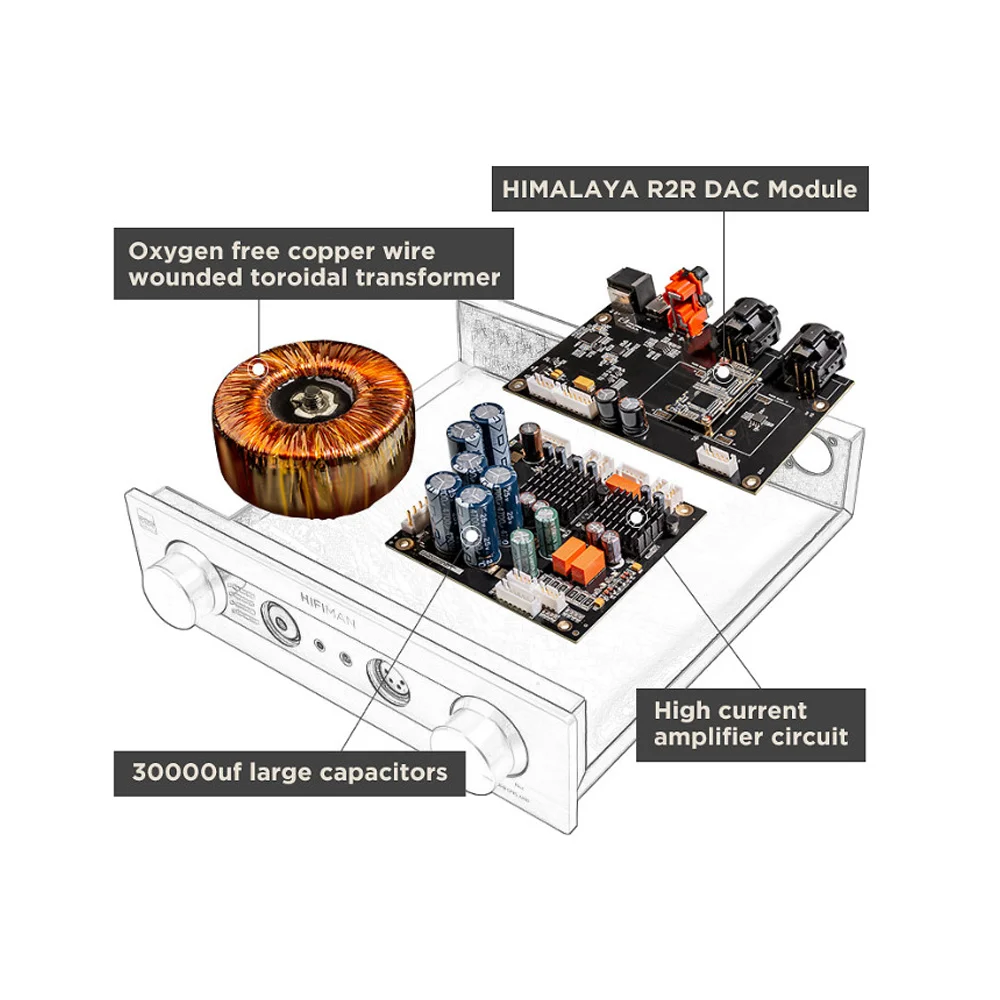

For the power section, HiFiman has included a full-discrete circuit with large 30,000uF capacitors and a dual-channel architecture for optimal performance. The device can output a maximum of 10.7 Vrms on a 36ohm load, ensuring it can drive any headphone effortlessly.

In the Box:

  • DAC/AMP
  • Power Cable
  • Manual
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Power, W
4.5
Headphone output
3.5mm jack, 6.35mm jack, 4.4mm jack, XLR
Output connectors
XLR, RCA
Power output

This is the useful power developed by the amplifier in the load resistance. Amplifiers are usually characterized by the highest power that can be obtained at the output, provided that the distortion does not exceed the specified permissible value. This power is called the output power of the amplifier.

Glossary of terms
4.5
DAC bit depth, bits
24
Internal DAC
yes
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

Glossary of terms
768
Signal-to-noise ratio, dB

The higher signal-to-noise ratio, the clearer sound and the bigger the dynamic range provided by the system

Glossary of terms
120
Connecting to a computer via USB
yes
DSD support

Direct Stream Digital is a single bit audio format developed by Sony and Philips. It uses density-pulse modulation coding (a kind of sigma-delta modulation) and is used to store records on SACD

Glossary of terms
yes
The lowest frequency, Hz
20
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
20
Circuit design
discrete

The circuit with transistors used.

Словарь терминов
Color
Form factor
stationary

For use on a table or in a rack.

Словарь терминов
Input connectors
USB-C, USB-A
Material
metal
Playback via USB
yes

Playing music files via USB

Словарь терминов
Preamplifier

A preamp is used as a hub to connect other components of the audio system. The preamp can be either integrated, or an autonomous device.

Glossary of terms
yes
Depth, mm
246
Height, mm
61
Width, mm
228
Weight, g
3100
