Hidizs DH80S Champagne

Product code: 140052
no reviews

Description

Reviews (0)

Description

Hidizs has developed the DH80S for high-resolution sound file playback. The device boasts an excellent component base with an improved signal decoding chip ESS9281C, which has a high dynamic range, low power consumption, ultra-low distortion, etc. The collaboration of the DAC with two independent OPAMP RT6863C amplifiers allows the device to have an output power of up to 4 Vrms on the balanced output (4.4 mm).

Features:

  • Native DSD64/128 support
  • MQA audio technology support
  • ESS9281C PRO DAC chip + two RT6863C operational amplifiers

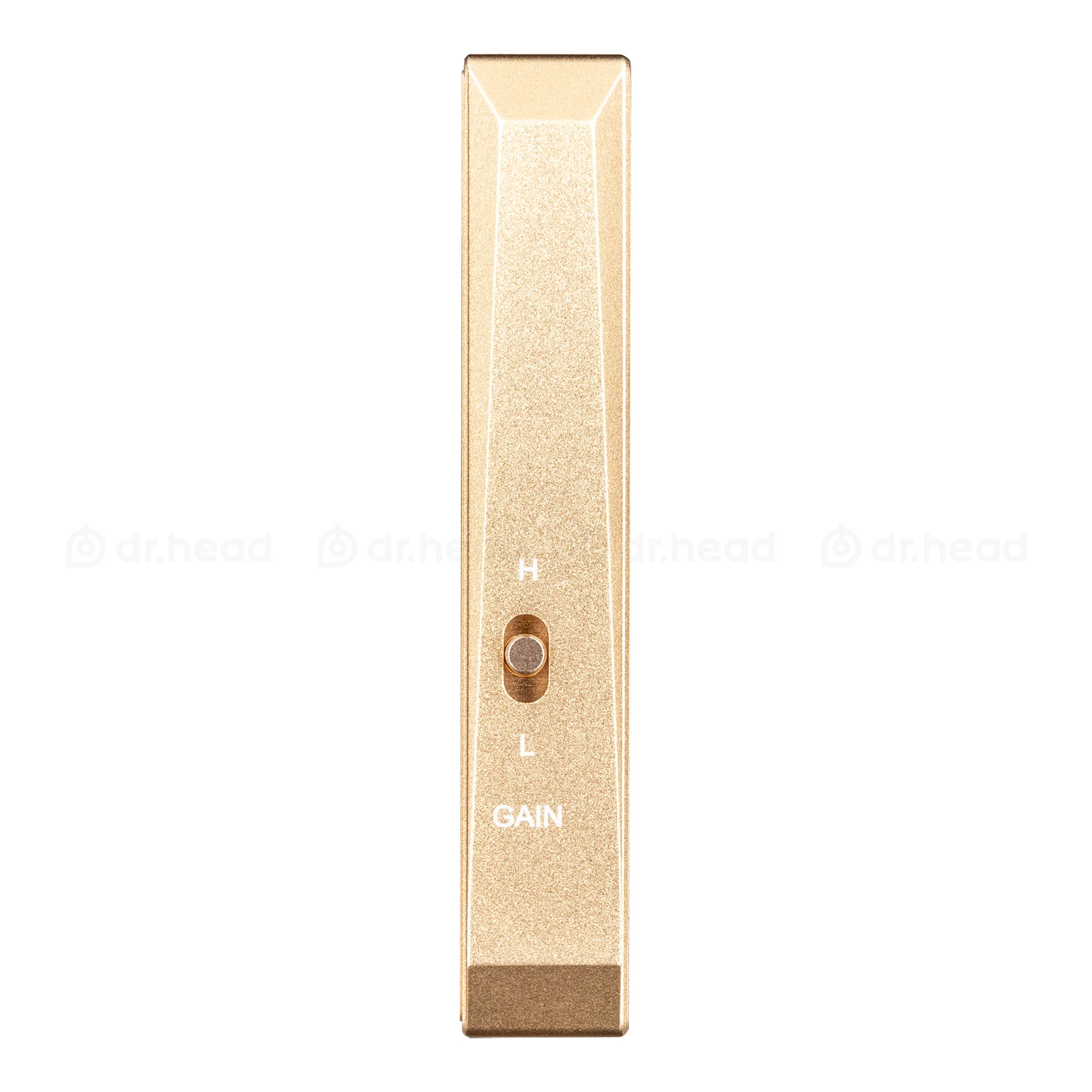

  • 3-level gain selection and high output power
  • Enhanced configuration to improve sound quality
  • Magnetic adsorption design
  • Apple Lossless support

ESS9281C Pro Chip + Two RT6863C Operational Amplifiers

The device is powered by a high-quality DAC with the latest generation ES9281C Pro chip from Sabre Technologies, paired with two independent operational amplifiers RT6863C, enabling the device to have an output power of up to 4 Vrms on the balanced (4.4 mm) output. Furthermore, the manufacturer states that the device features a high-quality component base, including capacitors from Panasonic, Dual Crystal Oscillators, and more. The quality component base and refined software allow the Hidizs DH80S to decode high-resolution audio signals with full, 8x MQA decoding. Additionally, besides MQA, it supports PCM decoding up to 32 bit / 384 kHz and DSD up to DSD128.

Sample Rate Indicator Light

The LED indicator lights up in different colors: red for 44.1k-48k, blue for 88.2k-384k, and pink for MQA. It synchronizes with the sampling rate of the currently playing track.

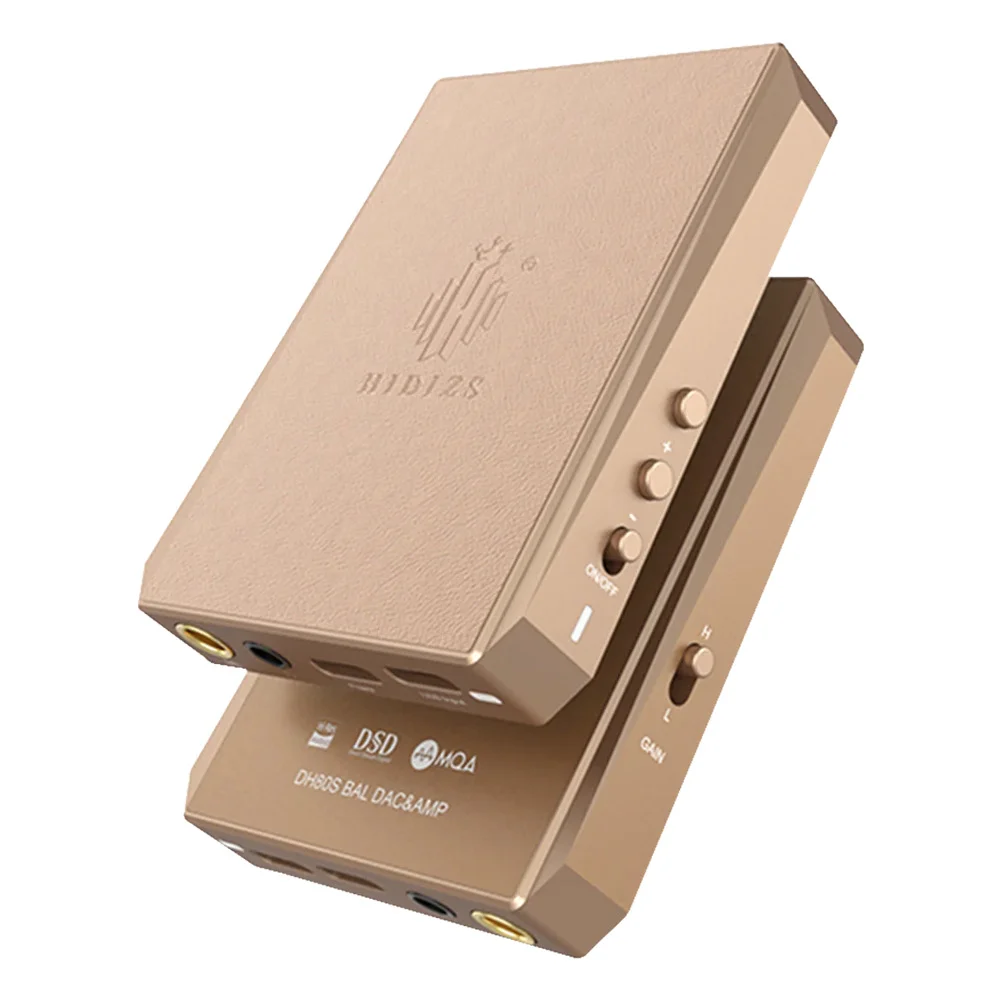

Magnetic Design

Thanks to the high-quality magnet, the DH80S can easily connect and securely fasten with the AP80/AP80 Pro. The connection ports are also well protected.

Package Includes:

  • DAC
  • USB-C charging cable
  • USB-C to USB-C cable
  • Documentation
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand

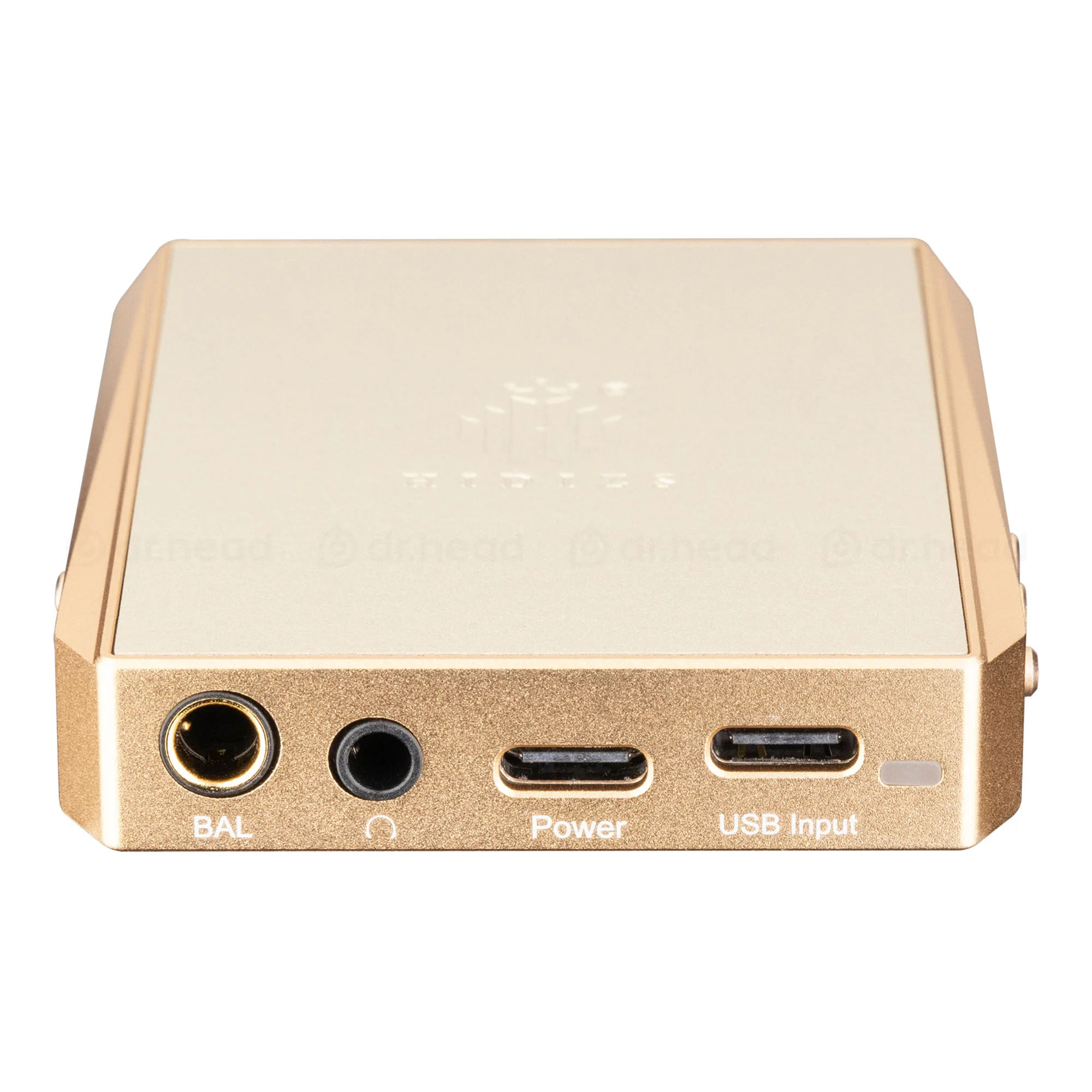

Headphone output
3.5mm jack, 4.4mm jack
Output connectors
3.5mm jack, 4.4mm jack
Power output

This is the useful power developed by the amplifier in the load resistance. Amplifiers are usually characterized by the highest power that can be obtained at the output, provided that the distortion does not exceed the specified permissible value. This power is called the output power of the amplifier.

Glossary of terms
0.125, 0.210
DAC chip

The chip used for digital-to-analog conversion

Glossary of terms
ES9281C Pro
DAC bit depth, bits
32
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

Glossary of terms
384
Powered by USB
yes
Connecting to a computer via USB
yes
DSD support

Direct Stream Digital is a single bit audio format developed by Sony and Philips. It uses density-pulse modulation coding (a kind of sigma-delta modulation) and is used to store records on SACD

Glossary of terms
yes
Built-in battery
yes
The lowest frequency, Hz
20
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
80
Color
Form factor
portable
Input connectors
USB-C
Material
aluminum
Playback via USB
yes

Playing music files via USB

Словарь терминов
Circuit design
operational
Power, W
0.125, 0.211
Depth, mm
12
Height, mm
70
Width, mm
50
Weight, g
83
Country of origin

The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

China
Service life, months
24
Warranty, months
12
Show all characteristicsShow fewer characteristics
