Hidizs DH80S Blue

Product code: 140051
no reviews

Description

Reviews (0)

Description

Hidizs has developed the DH80S to provide high-resolution sound playback. The device features excellent components, with an enhanced signal decoding chip ESS9281C, which has a high dynamic range, low power consumption, ultra-low distortion, and more. The collaboration of the DAC with two independent OPAMP amplifiers RT6863C allows the device to have an output power of up to 4 Vrms on the balanced output (4.4 mm).

Features:

  • Native DSD64/128;
  • MQA audio technology support;
  • ESS9281C PRO DAC chip + two RT6863C operational amplifiers;

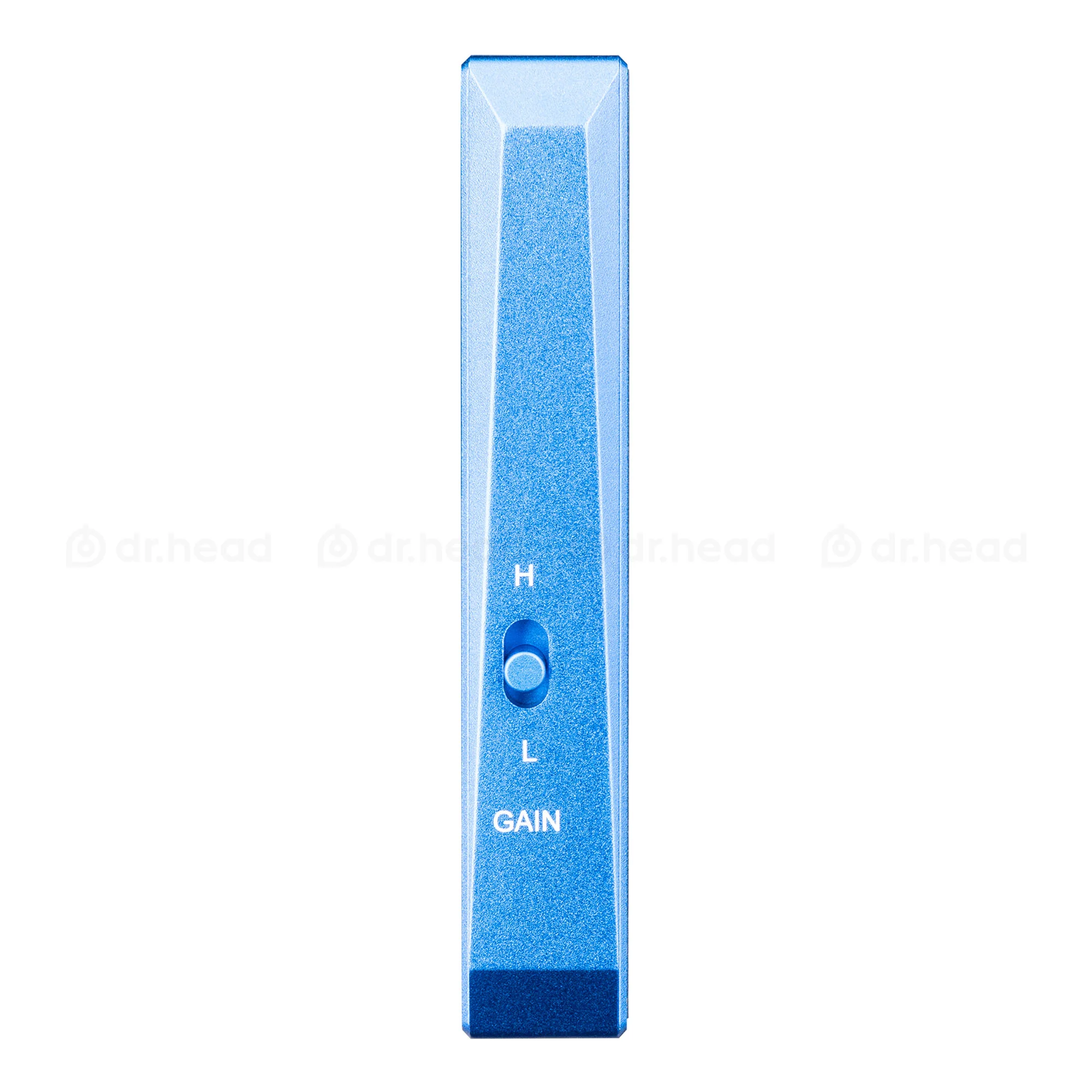

  • 3-level gain selection and high output power;
  • Enhanced configuration to improve sound quality;
  • Magnetic adsorption design;
  • Support for Apple Lossless.

ESS9281C Pro chip + two RT6863C operational amplifiers

The device is powered by a high-quality DAC with the latest generation ES9281C Pro chip from Sabre Technologies, working in conjunction with two independent operational amplifiers RT6863C, allowing the device to have an output power of up to 4 Vrms on the balanced (4.4 mm) output. Moreover, the manufacturer says that the device has a very high-quality component base, including capacitors from Panasonic, Dual Crystal Oscillators, etc. The quality component base and well-developed software allow the Hidizs DH80S to decode high-resolution audio signals with full, 8x MQA decoding. Certainly, besides MQA, there is support for decoding PCM up to 32 bit / 384 kHz and DSD up to DSD128.

Sampling frequency indicator light

The LED indicator lights up in different colors: red: 44.1k-48k; blue: 88.2k-384k; pink: MQA. Synchronized with the sampling frequency being played at the moment.

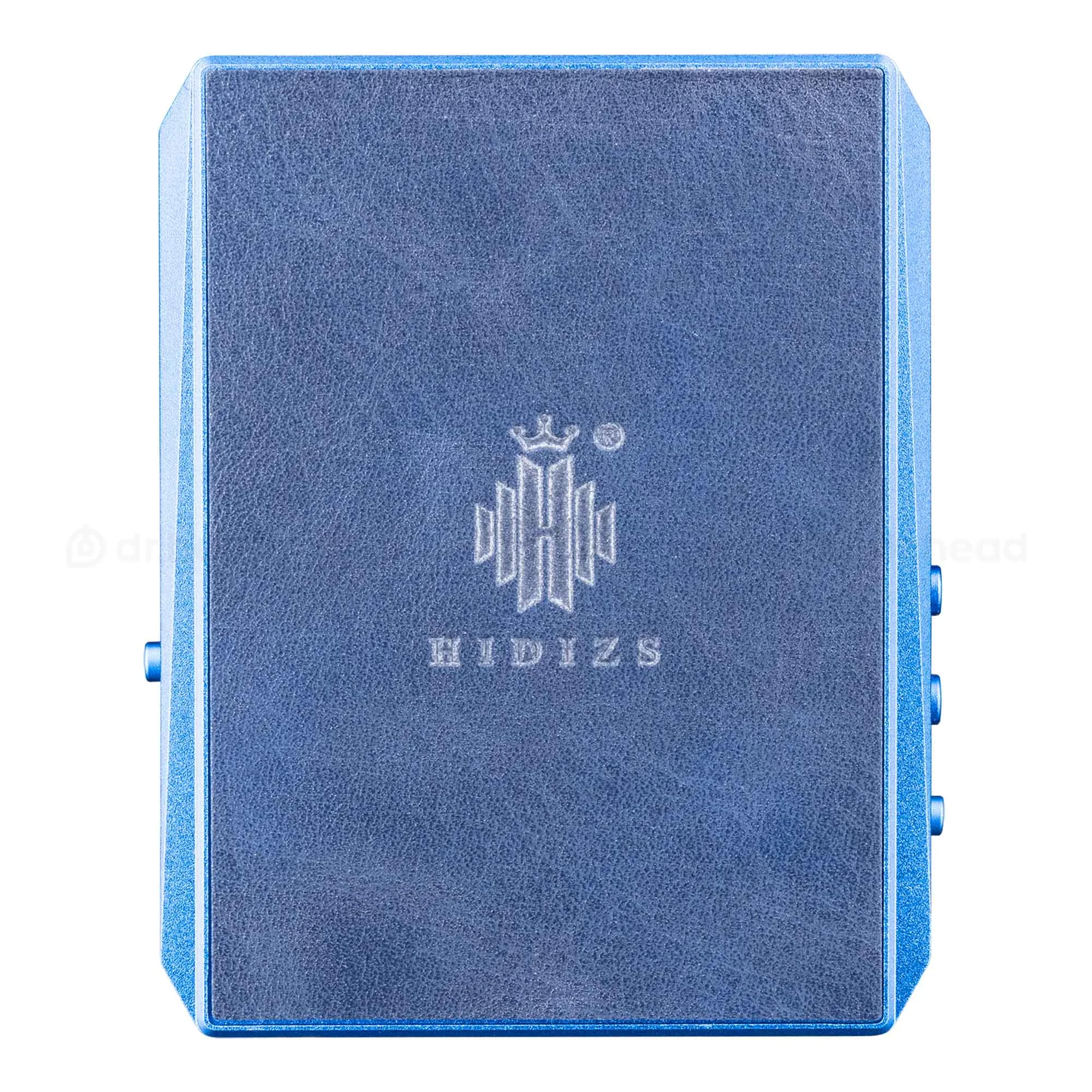

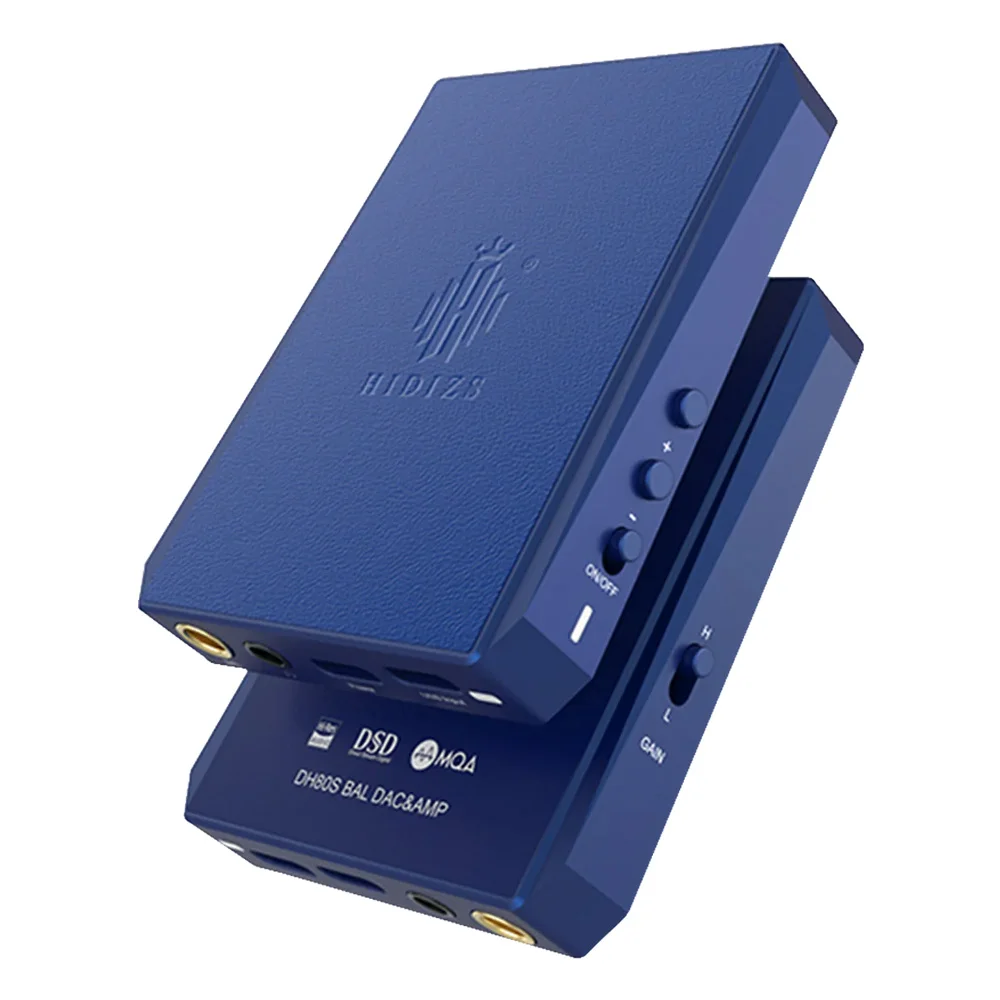

Magnetic design

Thanks to the high-quality magnet, DH80S and AP80/AP80 Pro can be easily connected and securely fixed. The connection ports are also well protected.

Package includes:

  • DAC;
  • USB-C charging cable;
  • USB-C to USB-C cable;
  • Documentation.
Reviews (0)

There are no reviews for this product yet.

Characteristics

Characteristics

Brand
Headphone output
3.5mm jack, 4.4mm jack
Output connectors
3.5mm jack, 4.4mm jack
Power output

This is the useful power developed by the amplifier in the load resistance. Amplifiers are usually characterized by the highest power that can be obtained at the output, provided that the distortion does not exceed the specified permissible value. This power is called the output power of the amplifier.

Glossary of terms
0.125, 0.21
DAC chip

The chip used for digital-to-analog conversion

Glossary of terms
ES9281C Pro
DAC bit depth, bits
32
Sampling rate, kHz

The sampling frequency of a time-continuous signal during its sampling

Glossary of terms
384
Powered by USB
yes
Connecting to a computer via USB
yes
DSD support

Direct Stream Digital is a single bit audio format developed by Sony and Philips. It uses density-pulse modulation coding (a kind of sigma-delta modulation) and is used to store records on SACD

Glossary of terms
yes
Built-in battery
yes
The lowest frequency, Hz
20
The highest frequency, kHz

The upper limit of the frequencies reproduced by the device. The human ear hears the standard frequency range: 20 Hz – 20000 Hz.

Glossary of terms
80
Color
Form factor
portable
Input connectors
USB-C
Internal DAC
yes
Material
aluminum
Playback via USB
yes

Playing music files via USB

Словарь терминов
Circuit design
operational
Power, W
0.125, 0.211
Depth, mm
12
Height, mm
70
Width, mm
50
Weight, g
83
Country of origin

The country of origin may differ from the declared one. Production facilities may be located in several states. All brand factories operate according to general standards, and finished products undergo appropriate control.

China
Service life, months
24
Warranty, months
12
